2.9

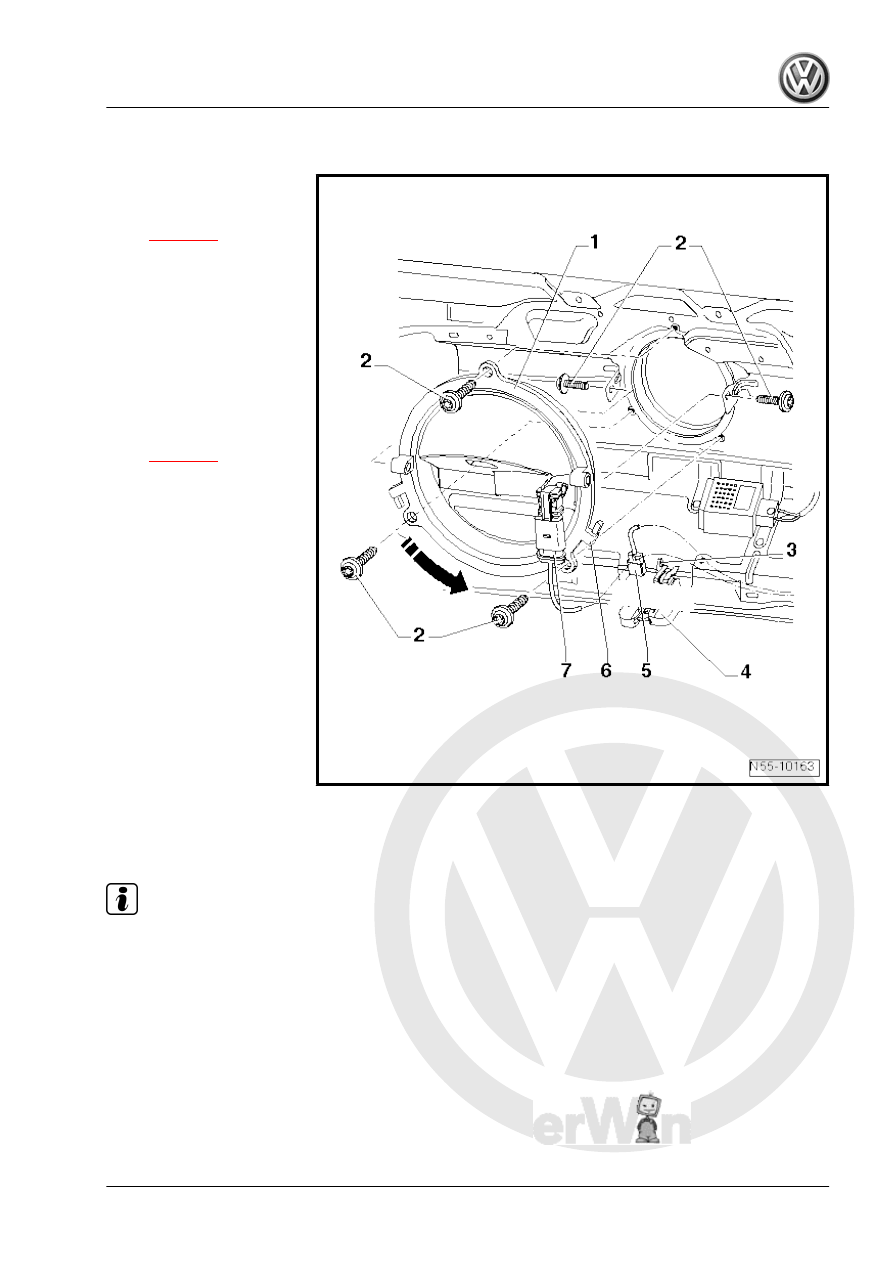

Assembly overview - rear lid latch and release components

1 - Release element with but‐

ton E234

❑ Removing and installing

⇒ page 37

2 - Bolt

❑ Qty. 5
❑ 4 Nm

3 - Emergency release

❑ Emergency release can

be found through an

aperture in the rear lid

trim

4 - Lid lock

❑ Removing and installing

⇒ page 39

5 - Lid lock connector
6 - Retaining bracket
7 - Release element connector

2.10

Removing and installing release ele‐

ment

Note

If rear lid will not open, it can be opened by hand using the emer‐

gency release -3- on rear lid lock -4-. Emergency release can be

found through an aperture in the rear lid trim

General body repairs, exterior - Edition 04.2008

2. Rear lid

37

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

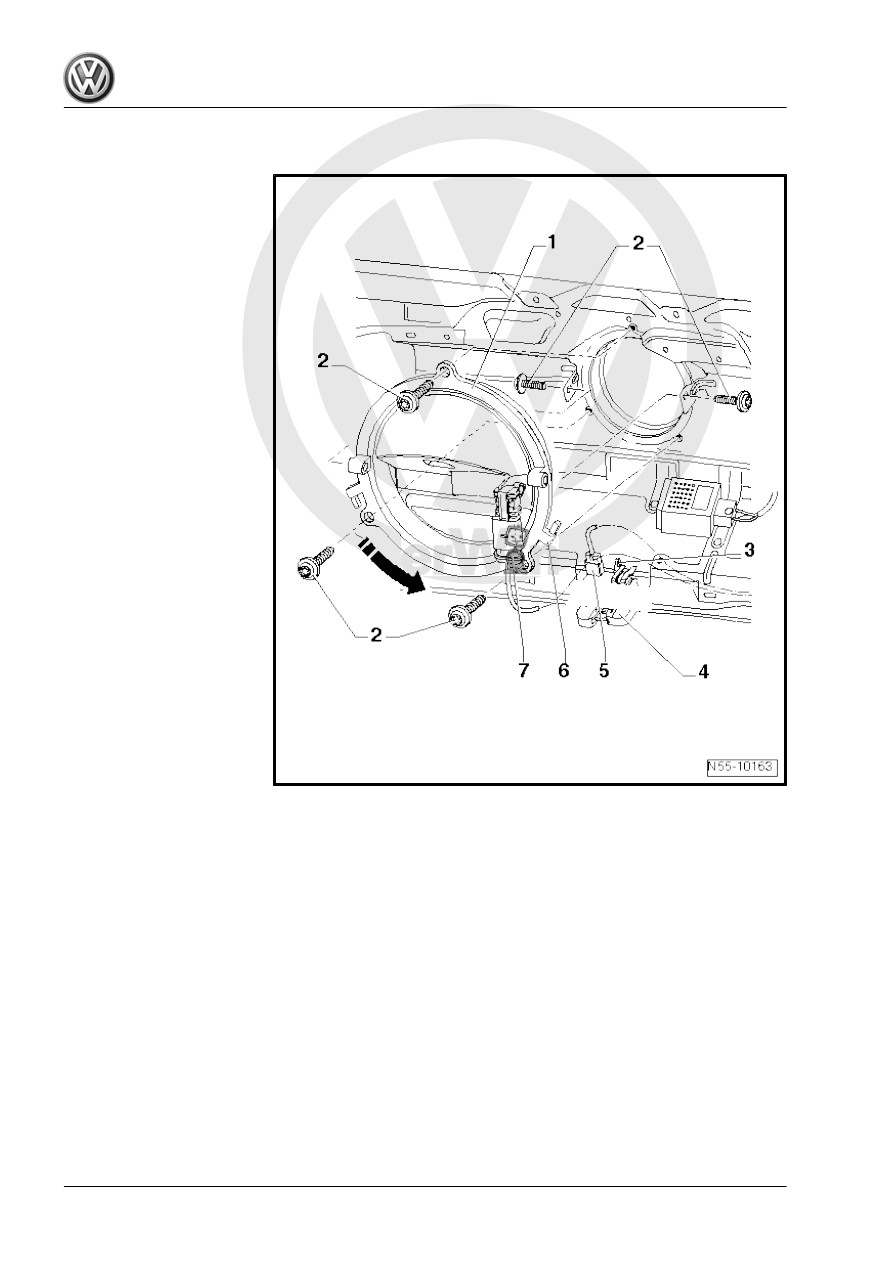

2.10.1

Removing

– Remove rear lid trim ⇒  General body repairs, interior; Rep.

Gr.  70; ; Trims and insulation; Rear lid trim .

– Remove rear window wiper motor ⇒  Electrical system; Rep.

Gr.  92 ; Window wiper and washer system; Rear window wiper

system .

– Separate connector -7- from release element -1-.
– Remove bolts -2-.
– Loosen release element contrary to the -arrow- from the re‐

taining brackets -6-

– Then remove release element -1-.

2.10.2

Installing

Installation is carried out in reverse order of removal.
– Specified torque for release element bolts: 4 Nm.
• Before closing rear lid, check function of lid release compo‐

nents.

General body repairs, exterior - Edition 04.2008

38

     Rep. Gr.55 - Bonnet, rear lid

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

2.11

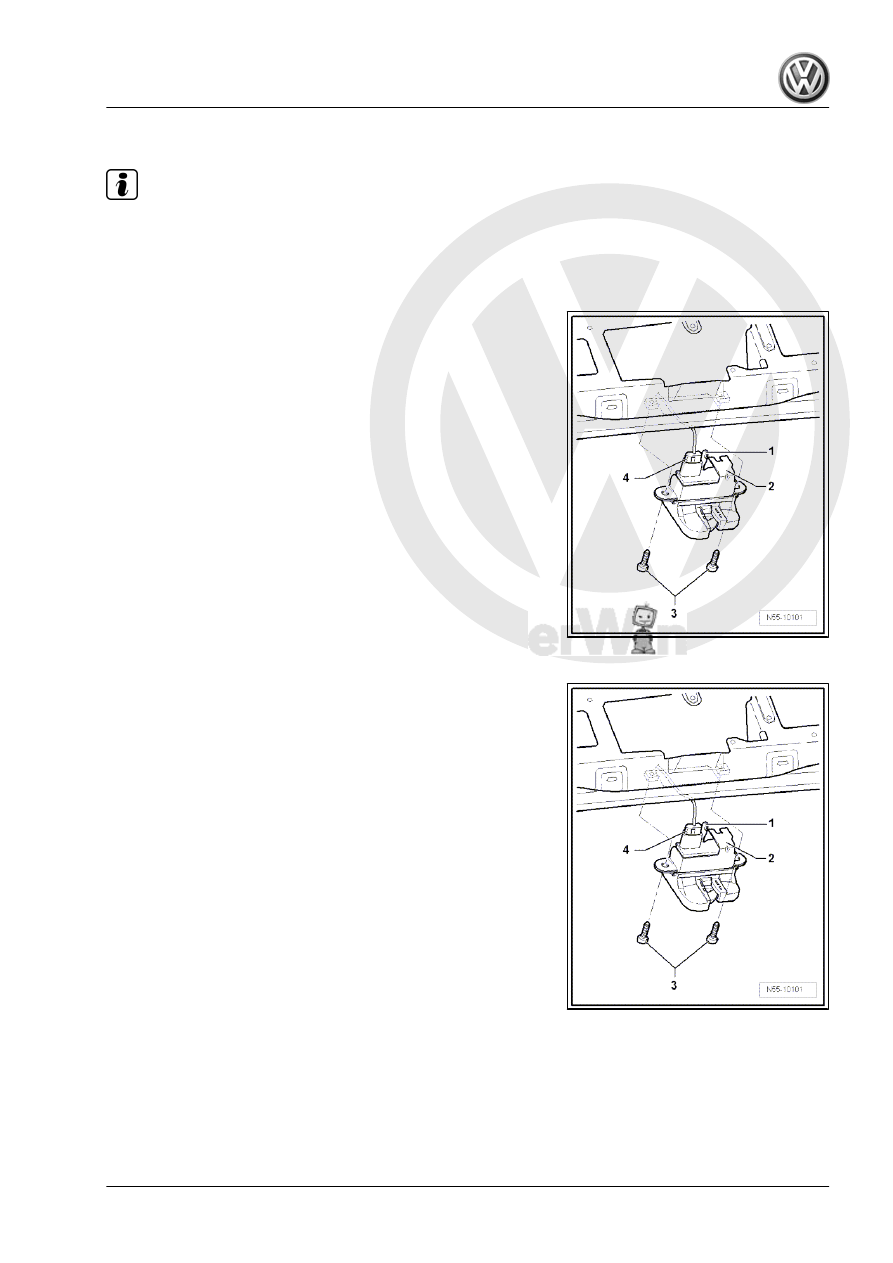

Removing and installing lid lock

Note

If rear lid will not open, it can be opened by hand using the emer‐

gency release -1- on rear lid lock -2-. Emergency release can be

found through an aperture in the rear lid trim

2.11.1

Removing

– Remove rear lid trim ⇒  General body repairs, interior; Rep.

Gr.  70; ; Trims and insulation; Rear lid trim .

– Disconnect connector -4- from lid lock -2-.
– Remove bolts -3- and guide lid lock -2- downwards and out of

lid.

2.11.2

Installing

– Guide rear lid lock -2- into rear lid and tighten bolts -3-.
– Specified torque for bolts -3-: 23 Nm.
– Attach connector -4- for rear lid lock -2-.
Further installation is performed in the reverse order of removal.
• Before closing rear lid, check function of lid release compo‐

nents.

2.12

Rear lid seal

During production, a sealant is applied to the rear lid seals, the

seal is then placed on the rear lid flange and rolled on.

General body repairs, exterior - Edition 04.2008

2. Rear lid

39

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

Note

When seals are removed, the sealant will spread to the inside

of the seal and the flanks will be bent out slightly. If the seal is

then refitted, a leak-free tight seal is not guaranteed.

Therefore each seal which is removed completely should be

replaced by a so-called “tap-on” seal.

If a seal has been partially removed, squeeze sides of seal

together before installing.

2.13

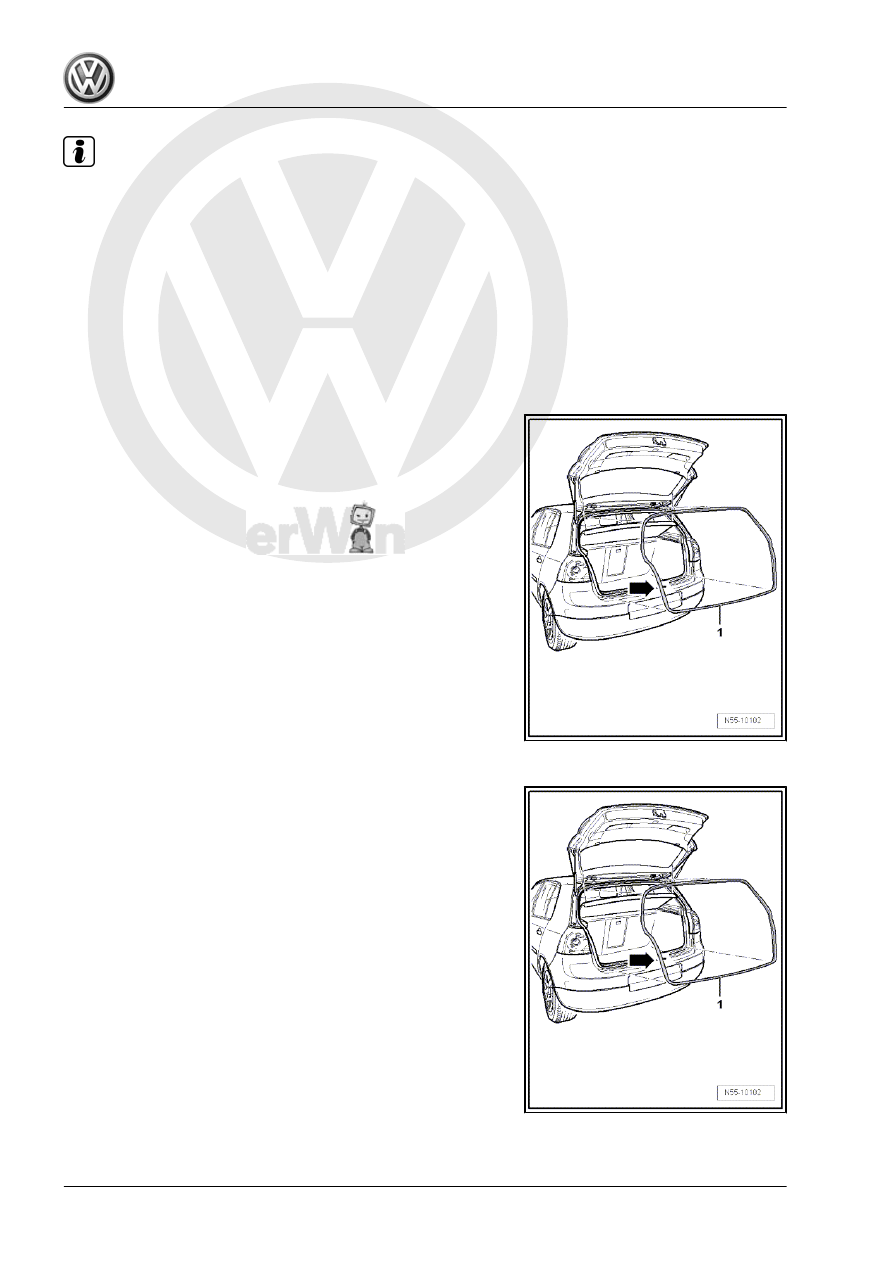

Removing and installing rear lid seal

2.13.1

Removing

– Pull rear lid seal -1- off body flange.

2.13.2

Installing

– Align rear lid seal -1- so that the vulcanised point -arrow- is

located to the middle of the rear left light cluster.

General body repairs, exterior - Edition 04.2008

40

     Rep. Gr.55 - Bonnet, rear lid
