4.8.3

Tread depth (including spare wheel):

Check

– Check tyre tread depth.
Minimum tread depth: 1.6 mm

Note

This figure may vary according to legislation in individual coun‐

tries.

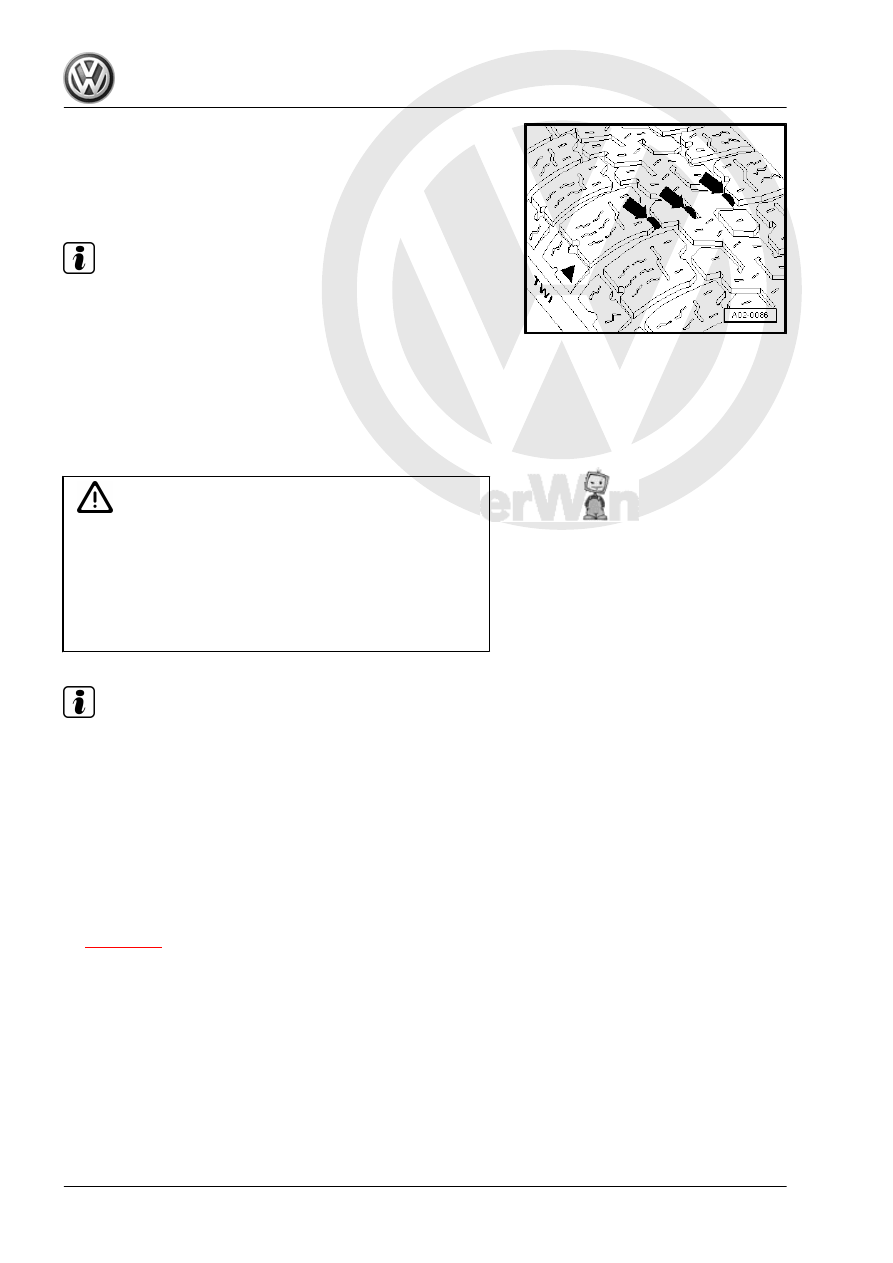

The minimum tread depth is reached when the tyres have

worn down level with the 1.6 mm high tread wear indicators

-arrows- positioned at intervals around the tyre.

If the tread depth is approaching the minimum allowed depth,

inform the customer.

4.8.4

General notes

WARNING

♦ For safety reasons, only tyres of same type and tread pat‐

tern should be fitted on a vehicle! Approved wheel and tyre

combinations, e.g. ⇒  Running gear; Rep. Gr.  44 ; Golf

from model year 2004 up to model year 2009

♦ On four-wheel drive vehicles, tyres of the same type and

tread pattern must be used. Otherwise the centre differ‐

ential may be damaged.

Note

The tyre pressure table is valid for all factory fitted tyre sizes.

The pressures in the table apply to cold tyres. Do not reduce

increased pressures of warm tyres.

Tyre pressures for the relevant model can also be found on a

sticker attached to the inside of fuel tank flap.

Adjust the tyre pressure to suit the vehicle load.

The spare wheel should have the highest tyre pressure deter‐

mined for the vehicle.

Please note that basic setting should be performed on vehicles

with tyre pressure monitoring after every pressure change

⇒ page 116

 .

Maintenance - Edition 11.2009

50

    4. Descriptions of work

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

Winter tyres

Note

Important information on recommended winter tyres can be

found in Wheels and Tyres Guide - Standard → ⇒  Running

gear; Rep. Gr.  44 ; Recommended winter tyres

If winter tyres are fitted, a sticker, visible for the customer and

indicating the speed limit, must be applied in the in interior of

the vehicle.

For winter tyres the tyre pressures for standard tyres are valid.

Note

For technical reasons it is possible that several cross references

are not directed to the correct chapter. In this case select the pro‐

cedure manually in the information.

4.8.5

Tyre pressures for Golf Plus 2005▸

Check tyre pressure using tyre inflator -VAS 5216- , correct if

necessary.
Petrol engines

⇒ page 51

Diesel engines

⇒ page 51

Golf Plus with petrol engines

Petrol engines

Tyre pressures for Golf Plus

from 2005

Output

Half payload

bar/psi

Full payload

bar/psi

front

rear

front

rear

1.4 l 55 kW, 90 kW and 118 kW

2.2/31

2.2/31

2.4/34

2.9/41

1.6 l 66 kW, 75 kW and 85 kW

2.2/31

2.2/31

2.4/34

2.9/41

2.0 l 110 kW

2.2/31

2.2/31

2.4/34

2.9/41

Temporary spare wheel (collapsible

spare wheel)

4.2/60

4.2/60

4.2/60

4.2/60

Golf Plus with diesel engines

Diesel engines

Tyre pressures for Golf Plus

from 2005

Output

Half payload

bar/psi

Full payload

bar/psi

front

rear

front

rear

1.9 l 77 kW, 85 kW and 96 kW TDI

2.2/31

2.2/31

2.4/34

2.9/41

2.0 l 55 kW SDI

2.2/31

2.2/31

2.4/34

2.9/41

2.0 l 103 kW TDI

2.3/33

2.3/33

2.5/36

3.0/43

Temporary spare wheel (collapsible

spare wheel)

4.2/60

4.2/60

4.2/60

4.2/60

Maintenance - Edition 11.2009

4. Descriptions of work

51

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

4.8.6

Tyre pressures for Golf 2004▸

Check tyre pressure using tyre inflator -VAS 5216- , correct if

necessary.
Petrol engines

⇒ page 52

Diesel engines

⇒ page 52

Golf with petrol engines

Petrol engines

Tyre pressures for Golf

from 2004

Output

Half payload

bar/psi

Full payload

bar/psi

front

rear

front

rear

1.4 l 55 kW, 59 kW, 66 kW and 90 kW

2.0/29

2.0/29

2.3/33

2.8/40

1.4 l 103 kW

2.2/31

2.2/31

2.4/34

2.9/41

1.4 l 125 kW

2.3/33

2.3/33

2.5/36

3.0/43

1.6 l 75 kW and 85 kW

2.0/29

2.0/29

2.3/33

2.8/40

2.0 l 110 kW

2.1/30

2.1/30

2.3/33

2.8/40

2.0 l 147 kW and 169 kW

2.4/34

2.4/34

2.6/37

(not NAR)

3.0/43

(not NAR)

2.0 l 147 kW and 169 kW

225/45 R 17 91 H

2.3/33

2.3/33

---

---

2.0 l 147 kW and 169 kW

225/40 R 18 92 H (XL)

2.6/38

2.6/38

---

---

2.5 l 110 kW and 125 kW

2.3/34

2.3/34

---

---

2.5 l 110 kW and 125 kW

only 225/40 R 18 92 H (XL)

2.6/38

2.6/38

---

---

2.0 l 110 kW

4motion

2.2/31

2.2/31

2.4/34

2.9/41

2.0 l 147 kW

4motion

2.3/33

2.3/33

2.5/36

3.0/43

3.2 l 184 kW

2.8/40

2.8/40

3.0/43

3.2/47

Temporary spare wheel (collapsible

spare wheel)

4.2/60

4.2/60

4.2/60

4.2/60

Golf with diesel engines

Diesel engines

Tyre pressures for Golf

from 2004

Output

Half payload

bar/psi

Full payload

bar/psi

front

rear

front

rear

1.9 l 66 kW, 85 kW and 96 kW TDI

2.1/30

2.1/30

2.3/33

2.8/40

1.9 l 77 kW TDI

2.2/31

2.2/31

2.4/34

2.9/41

2.0 l 55 kW SDI

2.0/29

2.0/29

2.3/33

2.8/40

2.0 l 96 kW and 103 kW TDI

2.3/33

2.3/33

2.5/36

3.0/43

2.0 l 118 kW and 125 kW TDI

2.4/34

2.4/34

2.6/37

3.0/43

1.9 l 77 kW and 103 kW TDI

4motion

2.3/33

2.3/33

2.5/36

3.0/43

Temporary spare wheel (collapsible

spare wheel)

4.2/60

4.2/60

4.2/60

4.2/60

Maintenance - Edition 11.2009

52

    4. Descriptions of work

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

4.9

Brake and clutch system: Change brake

fluid

Instructions for use and safety

⇒ page 53

 .

Brake fluid specification

⇒ page 53

Changing brake fluid

⇒ page 53

 .

4.9.1

Instructions for use and safety

Note

From model year 2006 a new brake fluid will be introduced.

The new brake fluid can also be used for older vehicles.

For this purpose it can be mixed with the previous brake fluid.

WARNING

♦ Brake fluid must under no circumstances come into con‐

tact with fluids containing mineral oils (oil, petrol, cleaning

solutions). Mineral oils will damage seals and sleeves of

brake system.

♦ Brake fluid is poisonous. In addition, due to its corrosive

nature, it must not come into contact with paint.

♦ Brake fluid is hygroscopic, i.e. it attracts moisture from the

surrounding air and therefore must always be stored in air-

tight containers.

♦ Wash away spilt brake fluid using plenty of water.
♦ Do not reuse extracted (used) brake fluid.
♦ Observe disposal regulations!

4.9.2

Brake fluid specification

Permissible specifications:
♦ Brake fluid conforming to US standard FMVSS 116 DOT 4

(previous brake fluid)

♦ Brake fluid conforming to VW standard VW 501 14 (new brake

fluid).

4.9.3

Changing brake fluid

Special tools and workshop equipment required

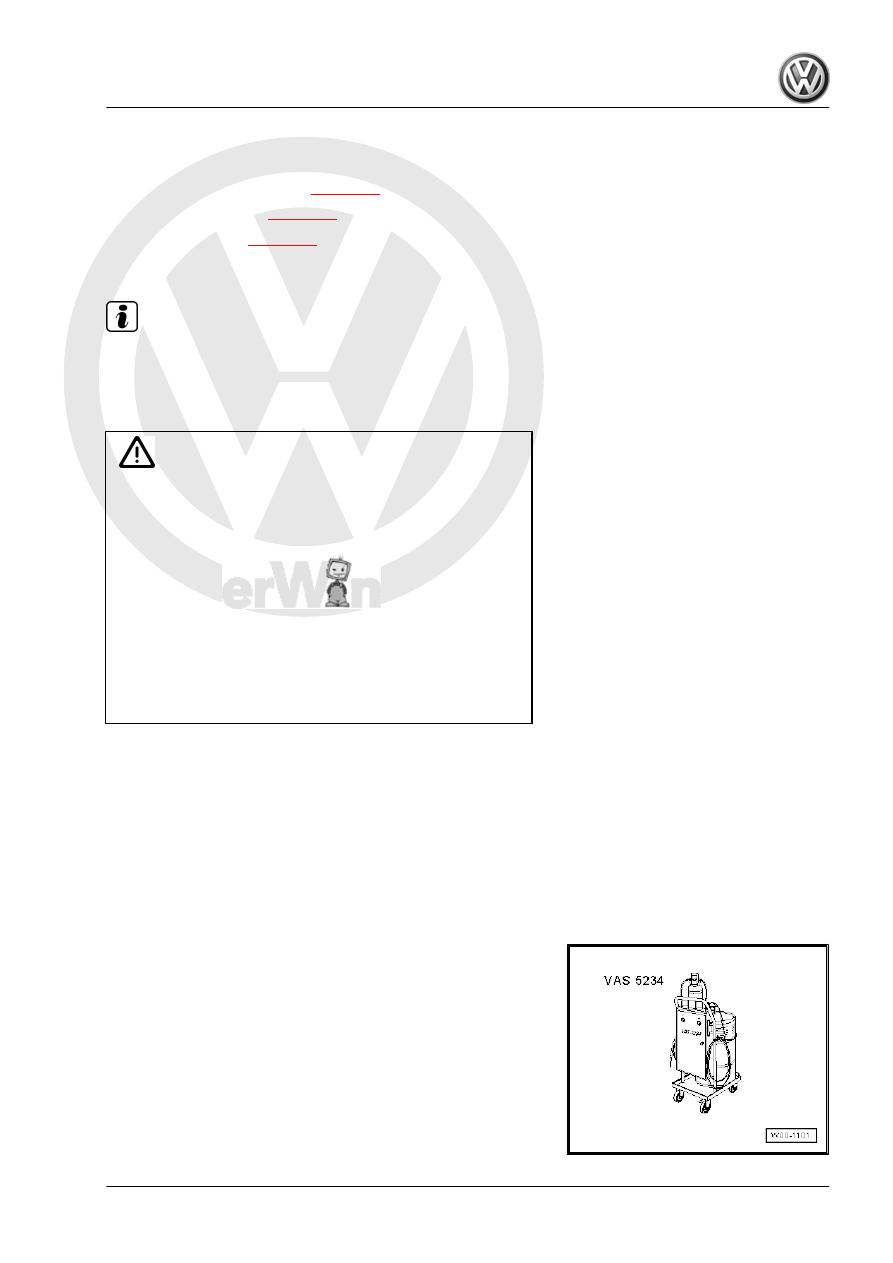

♦ Brake filling and bleeding equipment -VAS 5234-
