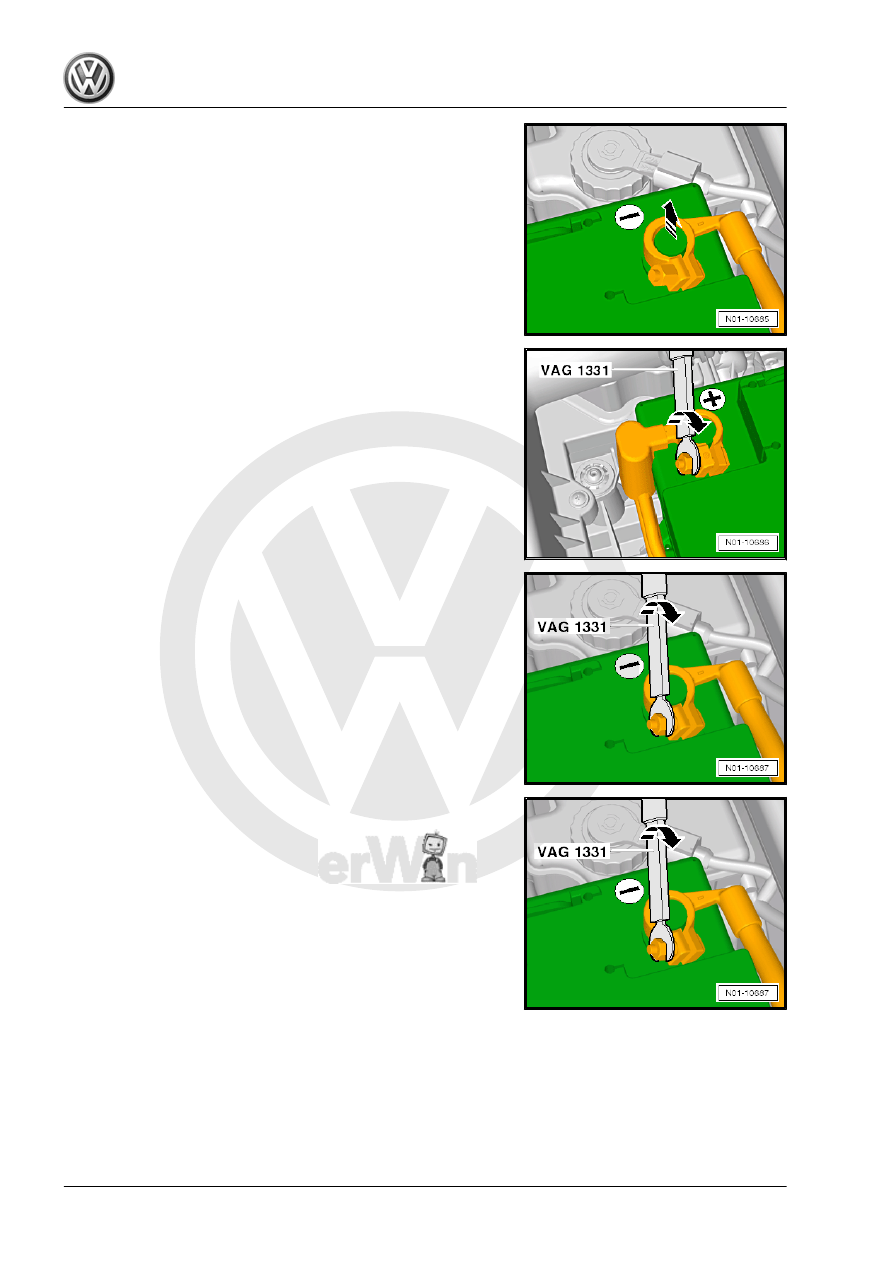

– Loosen the -NEGATIVE- battery clamp and remove.

– Tighten the -POSITIVE- battery clamp to 9 Nm using torque

wrench -V.A.G 1331- and ratchet -V.A.G. 1331/1- .

– Reconnect the -NEGATIVE- battery clamp to 9 Nm using tor‐

que wrench -V.A.G 1331- and ratchet -V.A.G. 1331/1- .

If the battery clamp on negative terminal is NOT seated securely:

– Tighten the -NEGATIVE- battery clamp on battery terminal to

9 Nm using torque wrench -V.A.G 1331- and ratchet -V.A.G.

1331/1- .

Maintenance - Edition 11.2009

46

    4. Descriptions of work

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

– Reinstall cover, if fitted.
After connecting battery perform the following work steps:
Procedure
Vehicle electrics → Electrical system ⇒  Rep. Gr.  27 → Discon‐

necting and connecting battery → Connecting battery → Work

steps after connecting battery
For technical reasons it is possible that several cross references

are not directed to the correct chapter. In this case select the pro‐

cedure manually in the information.

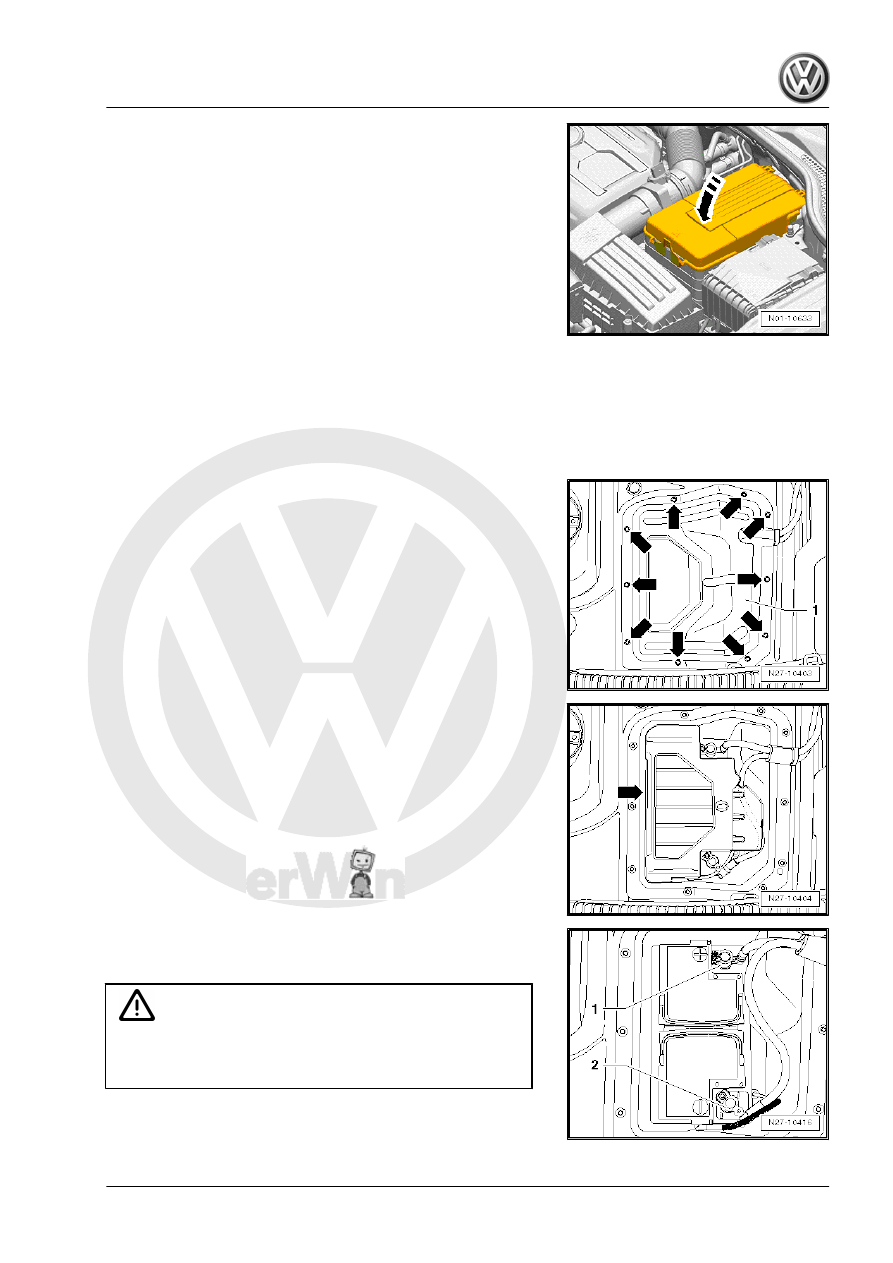

Battery in luggage compartment
Carry out the following procedure:
– Raise luggage compartment floor and secure with its appli‐

ance.

– Remove the right filler piece for luggage compartment floor

with fitted tool.

The cover for battery housing is visible.

– Remove the 10 multi-point socket head bolts -arrows- and re‐

move cover for battery housing -1-.

– Take out shaped component -arrow-.

– Check whether battery clamps are secure on battery terminals

by moving battery negative cable -2- and battery positive cable

-1- back and forth.

WARNING

If the battery clamp is not seated securely on the positive ter‐

minal,  first  disconnect  battery  clamp  from  battery  negative

terminal to prevent possible accidents.

If the battery clamp is not seated securely on positive terminal:

Maintenance - Edition 11.2009

4. Descriptions of work

47

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

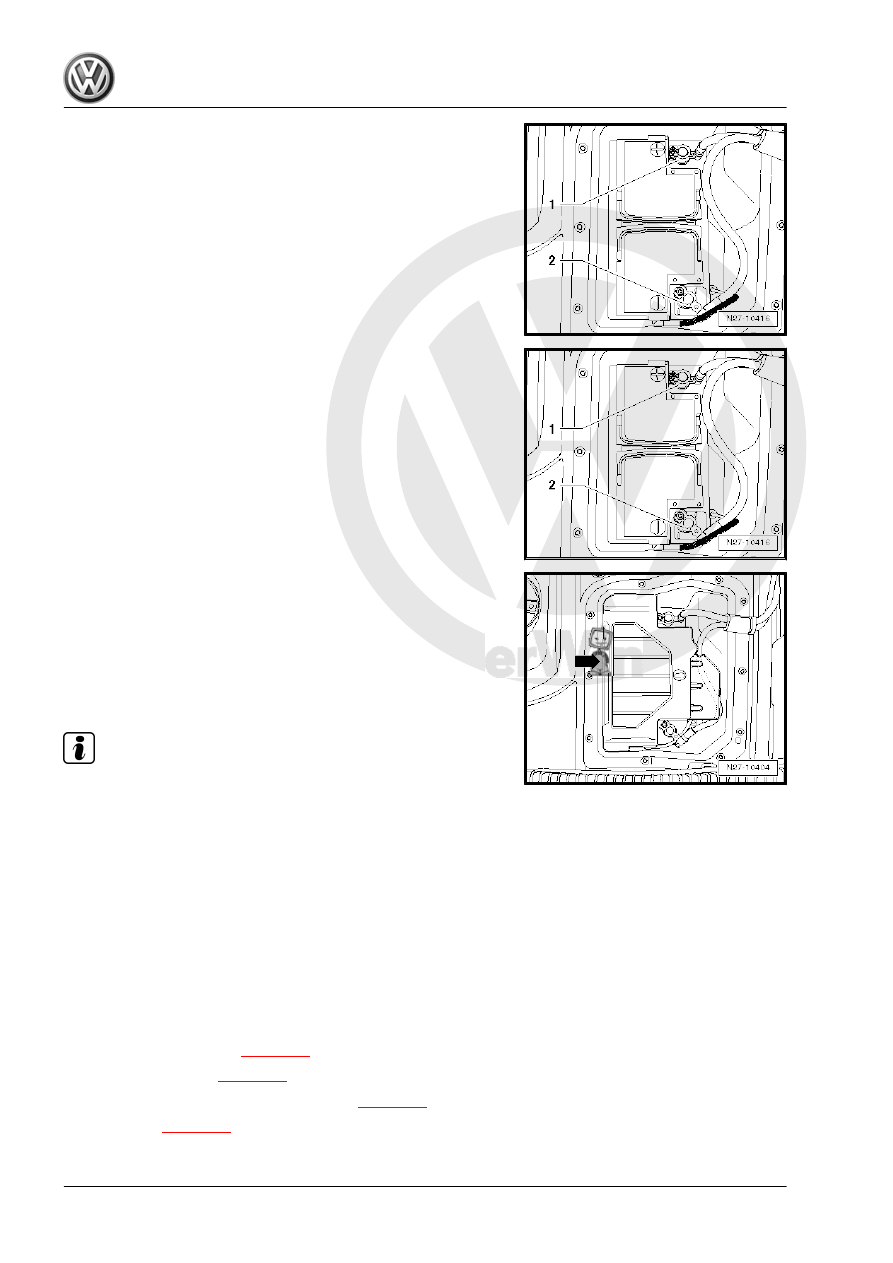

– Disconnect battery terminal clamp -2- from battery negative

terminal first.

– Tighten battery terminal clamp -1- on battery positive terminal

to 6 Nm.

– Reconnect battery clamp -2- to battery negative terminal and

tighten to 6 Nm.

If the battery clamp on negative terminal is not seated securely:

– Tighten battery clamp -2- on battery negative terminal to 6 Nm.

– Reinstall shaped component -arrow-.
– Install cover for battery housing and retighten the 10 multi-

point socket head bolts

(M6 x 16) to 10 Nm.
– Place the right filler piece for luggage compartment floor with

fitted tool in position provided, and fold luggage compartment

floor back.

Note

After connecting the battery observe work steps: “Electrical sys‐

tem” ⇒  Electrical system; Rep. Gr.  27 ; Connecting battery

“Connecting battery”.

4.7

Battery: Check using battery tester with

printer VAS 5097A or VAS 6161

Procedure: “Electrical system general information” ⇒  Electrical

system general information; Rep. Gr.  27 ; Checking battery

“Checking battery”

4.8

Checking tyres: Condition, wear pattern,

tyre pressure, tread depth and age of

tyres

Checking condition of tyre

⇒ page 49

 .

Checking wear pattern

⇒ page 49

 .

Tread depth (including spare wheel): Check

⇒ page 50

General notes

⇒ page 50

 .

Maintenance - Edition 11.2009

48

    4. Descriptions of work

s

p

e

c

t

 t

o



th

e

 c

o

rr

e

c

t

n

e

s

s



o

f

in

fo

r

m

a

tio

n

 in

 th

is

 d

o

c

um

en

t.

C

o

py

rig

ht b

y



V

olk

sw

a

ge

n



A

G.

Checking tyre pressure using tyre inflator -VAS 5216- , correct if

necessary, Golf 2004▸

⇒ page 52

 .

Checking tyre pressure using tyre inflator -VAS 5216- , correct if

necessary, Golf Plus 2005▸

⇒ page 51

 .

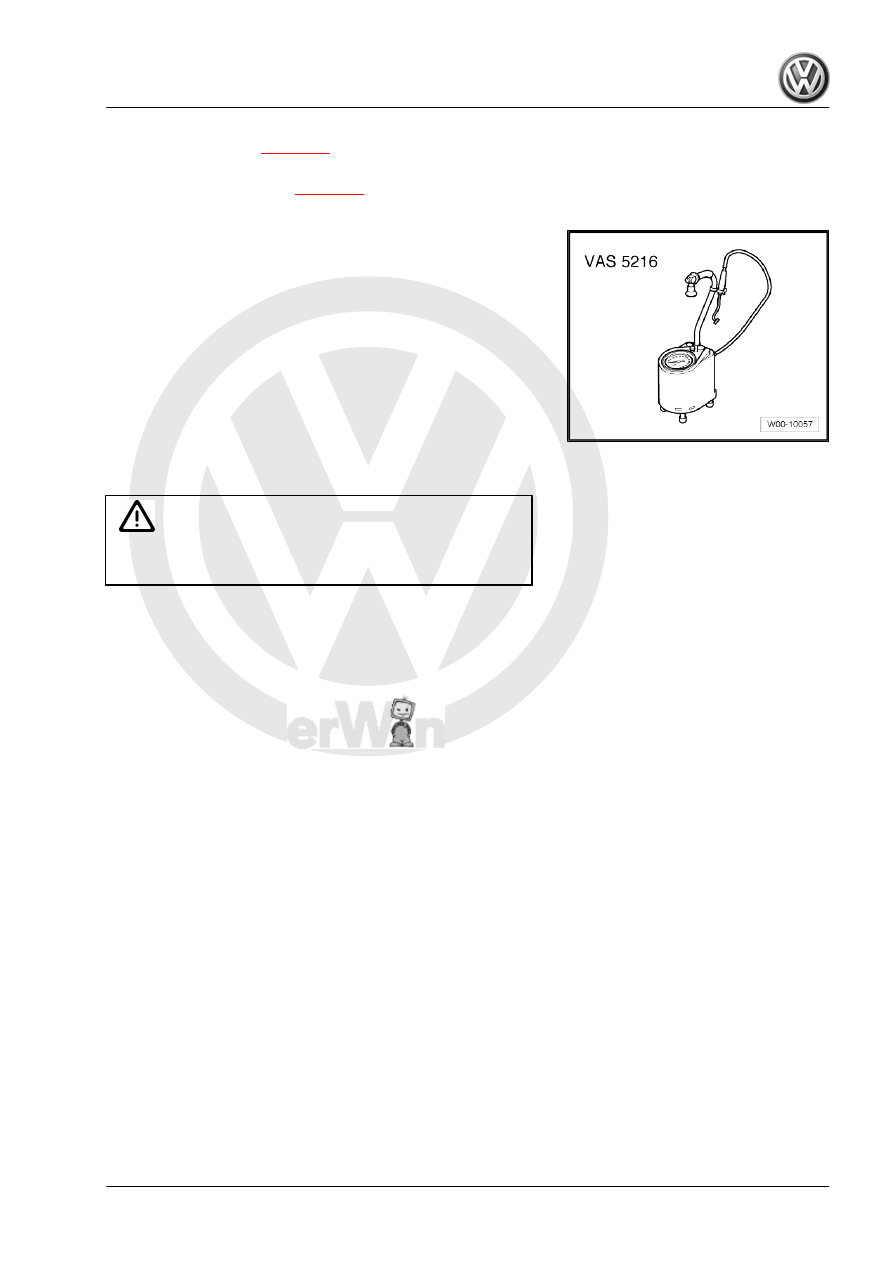

Special tools and workshop equipment required
♦ Tyre inflator -VAS 5216-

4.8.1

Checking condition of tyre

WARNING

If damage is determined, always check to see if a new tyre

should be fitted.

Tests at delivery inspection
– Check tyre treads and side walls for damage and remove for‐

eign bodies such as, for example, nails or glass splinters.

Tests at service
– Check tyre treads and side walls for damage and remove for‐

eign bodies such as, for example, nails or glass splinters.

– Check tyres for cupping, one-sided wear, porous side walls,

cuts and punctures.

– Check tyre age. We recommend not to use any tyres older

than 6 years. Inform customer!

4.8.2

Checking wear pattern

The wear pattern on the front tyres will indicate, for example, if

toe and camber settings should be checked:
♦ Feathering on tread indicates incorrect toe setting.
♦ One-sided tread wear is mainly attributed to incorrect camber.
When wear of this nature is detected, determine cause by check‐

ing alignment (repair measure).

Maintenance - Edition 11.2009

4. Descriptions of work

49
