Volkswagen Golf / Golf Plus. Manual - part 97





model year 2009

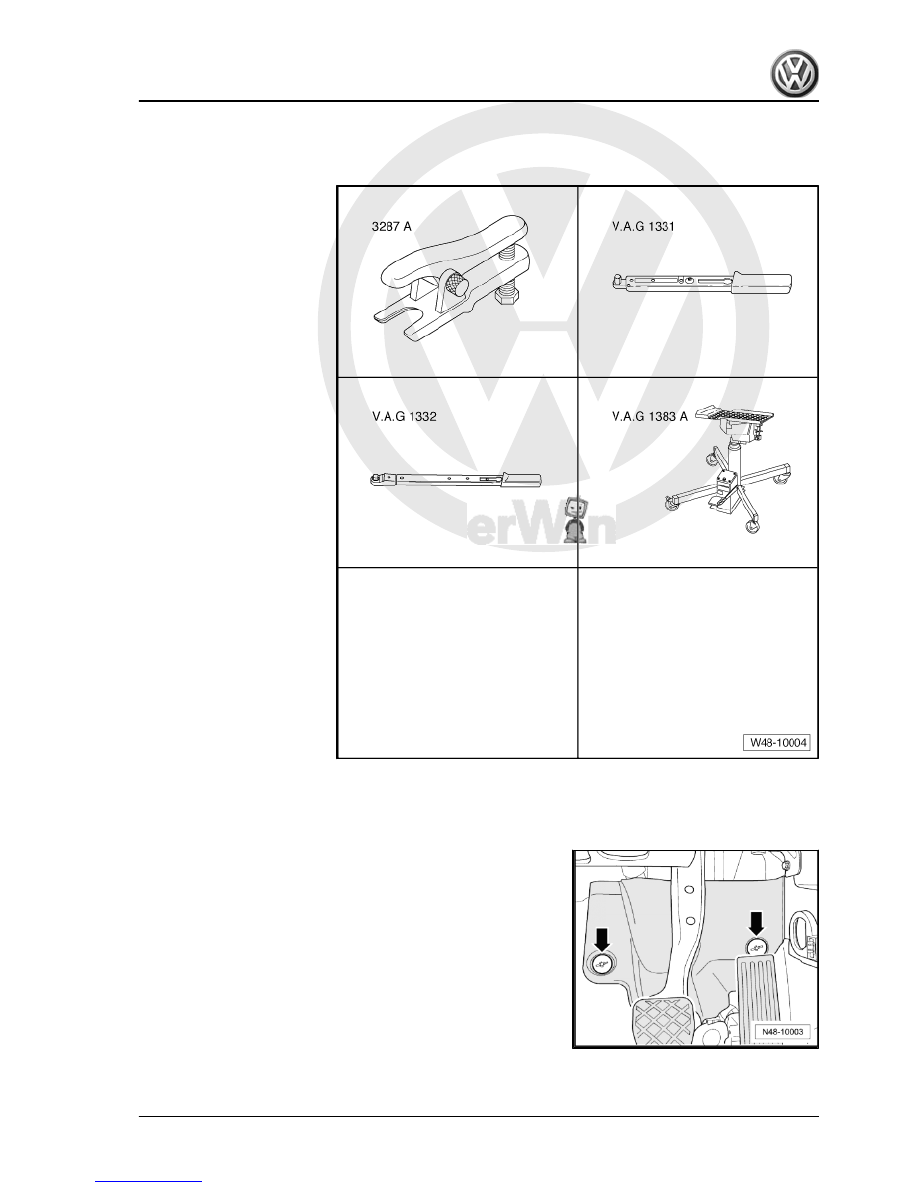

Special tools and workshop

equipment required
♦ Torque wrench -V.A.G

1331-

♦ Torque wrench -V.A.G

1332-

♦ Engine and gearbox jack -

V.A.G 1383 A-

♦ Ball joint puller -3287 A-

Removing steering box
– Disconnect battery. ⇒  Rep. Gr.  27 ; Battery; Disconnecting

and reconnecting battery.

– Remove footwell trim by removing nuts -arrows-.

7. Electromechanical steering box after model year 2009

385

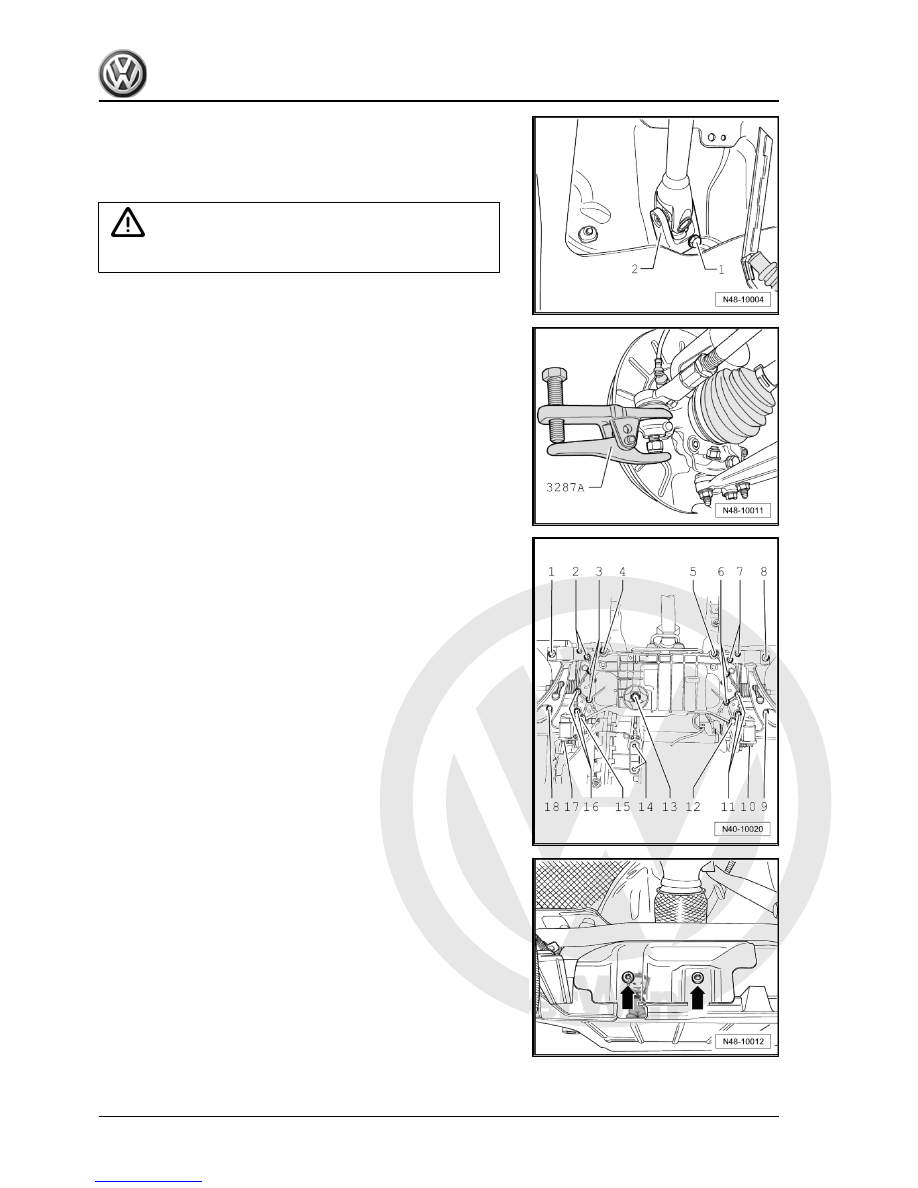

Caution

Leave nut screwed a few turns onto pin to protect thread.

– Press track rod ball joint off wheel bearing housing with

-3287A-.

– Remove lower noise insulation ⇒  Rep. Gr.  50 ; Assembly

overview - noise insulation .

– Disconnect pendulum support from gearbox by removing bolts

-14-.

– Remove exhaust system retainer on subframe.

– Remove bolts -arrows- on heat shield.
– Remove heat shield from subframe.

386

     Rep. Gr.48 - Steering



⇒ page 16

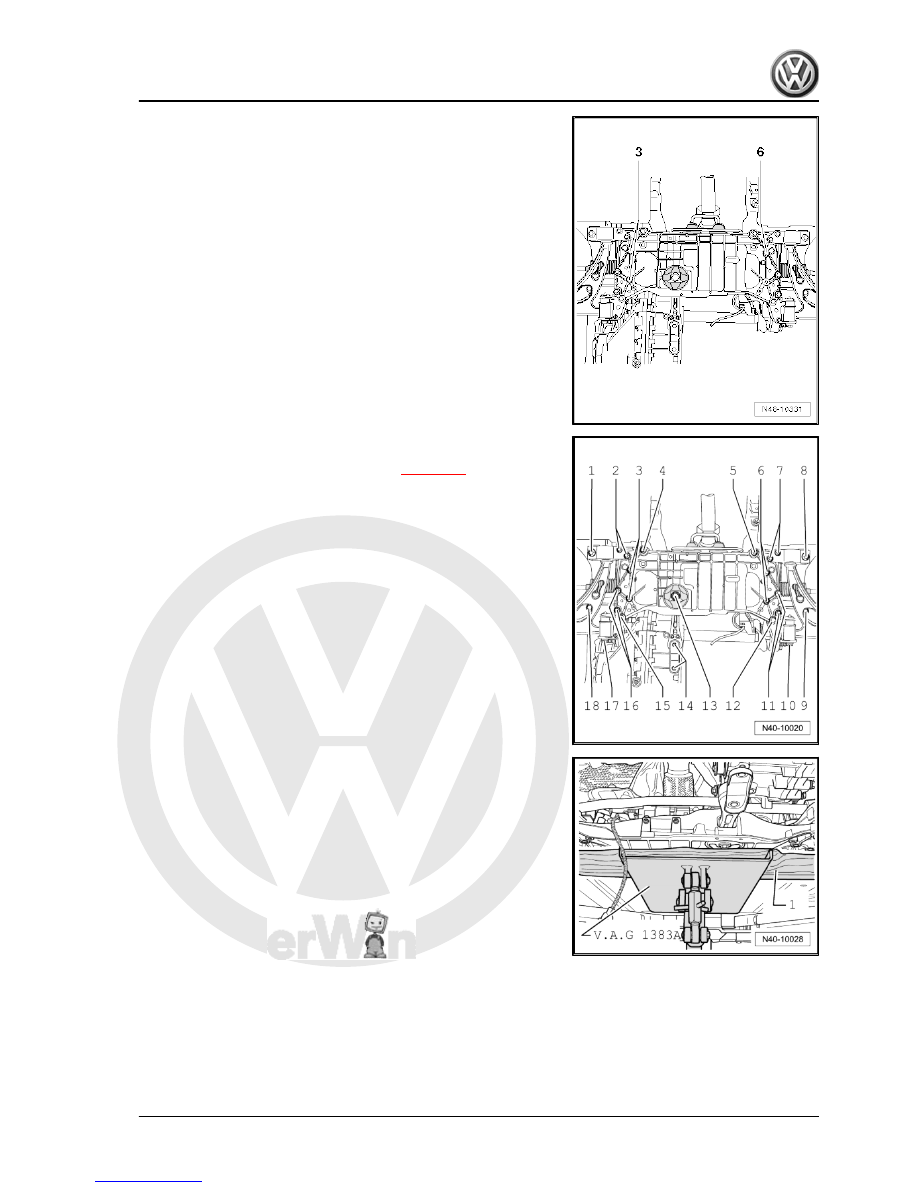

– Position engine and gearbox jack -V.A.G 1383 A- under sub‐

frame.

– Place a wooden block -1- or similar between V.A.G 1383 A

and subframe.

7. Electromechanical steering box after model year 2009

387

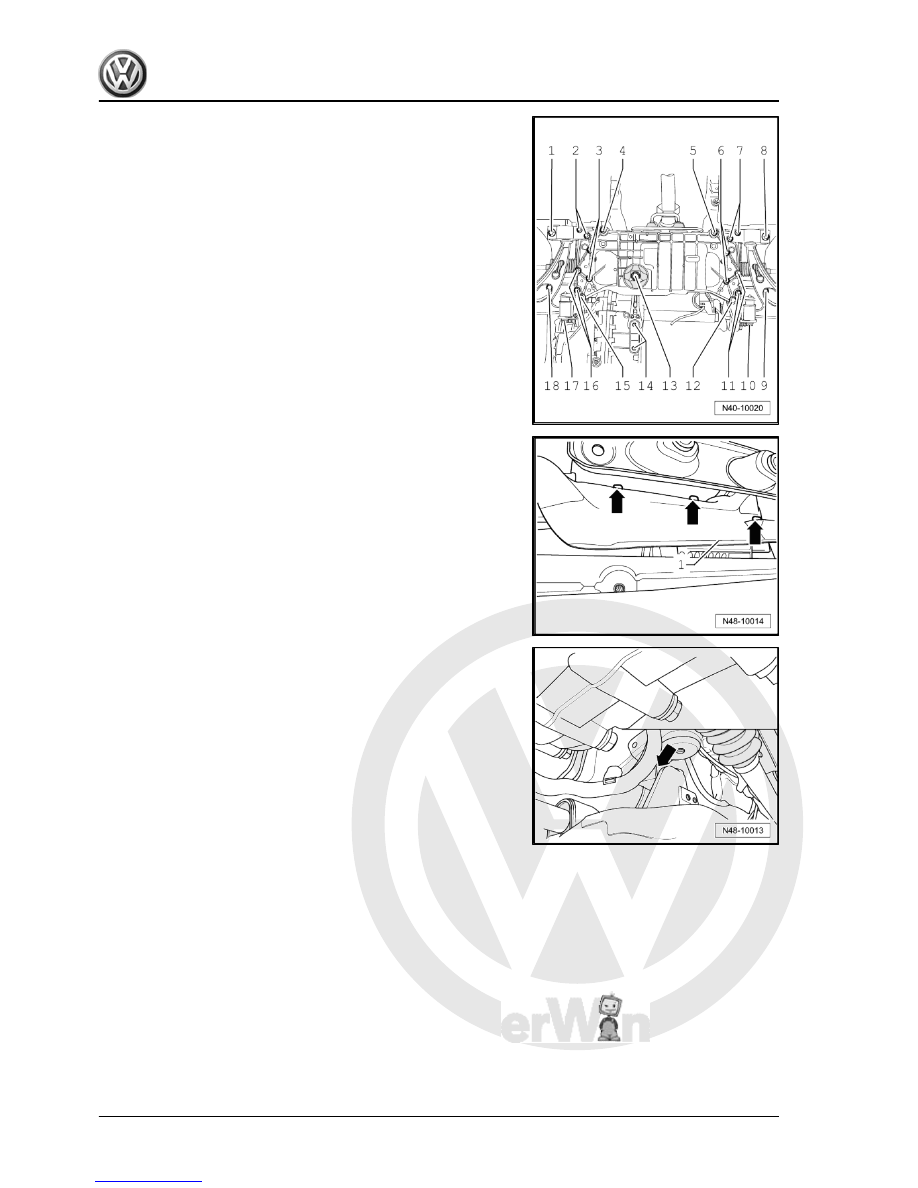

– Remove heat shield -1- over steering box.
– Remove bolts -arrows-.

– Remove cable guide from subframe -arrow-.
– Unclip all remaining cable clips on steering box.
– Disconnect all electrical connections on steering box.
– Lower subframe using engine and gearbox jack -V.A.G 1383

A- far enough that the steering box can be removed.

388

     Rep. Gr.48 - Steering
