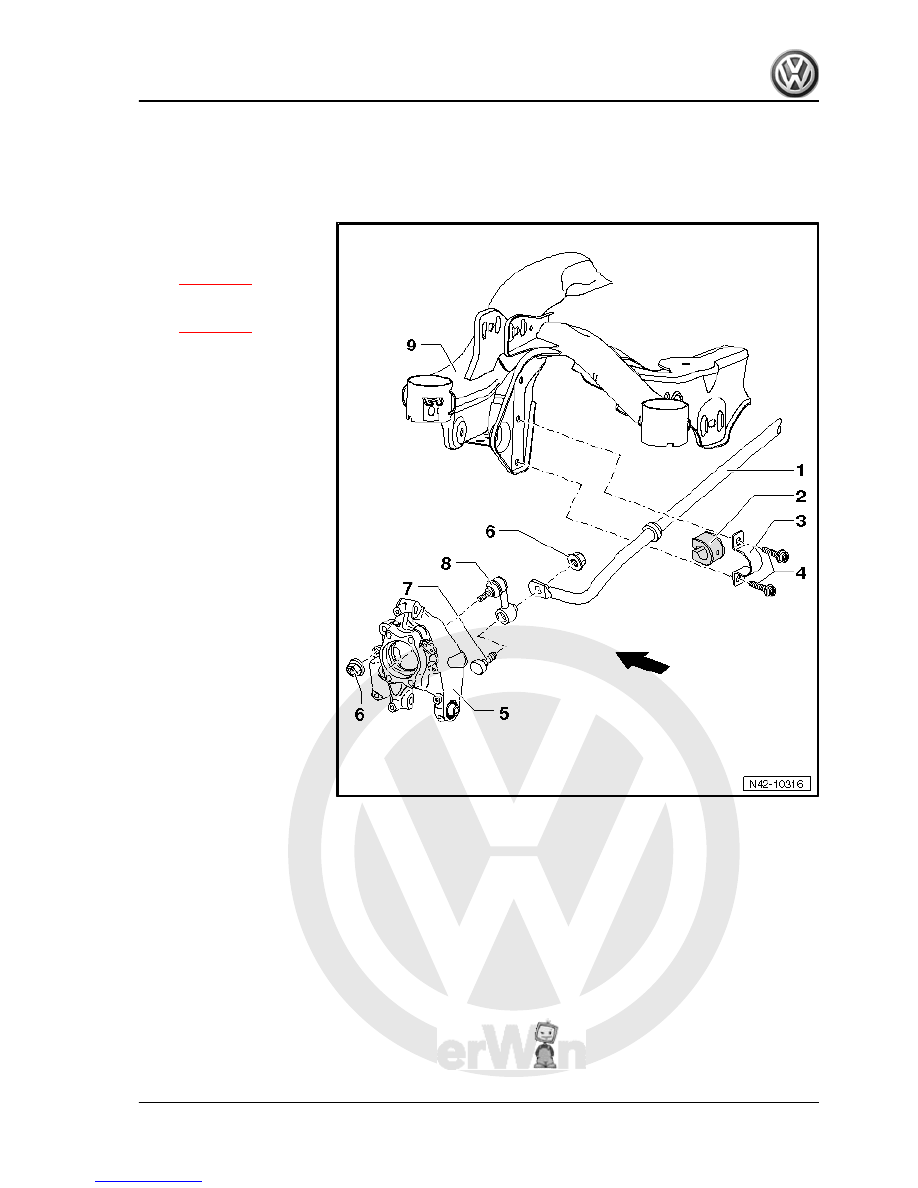

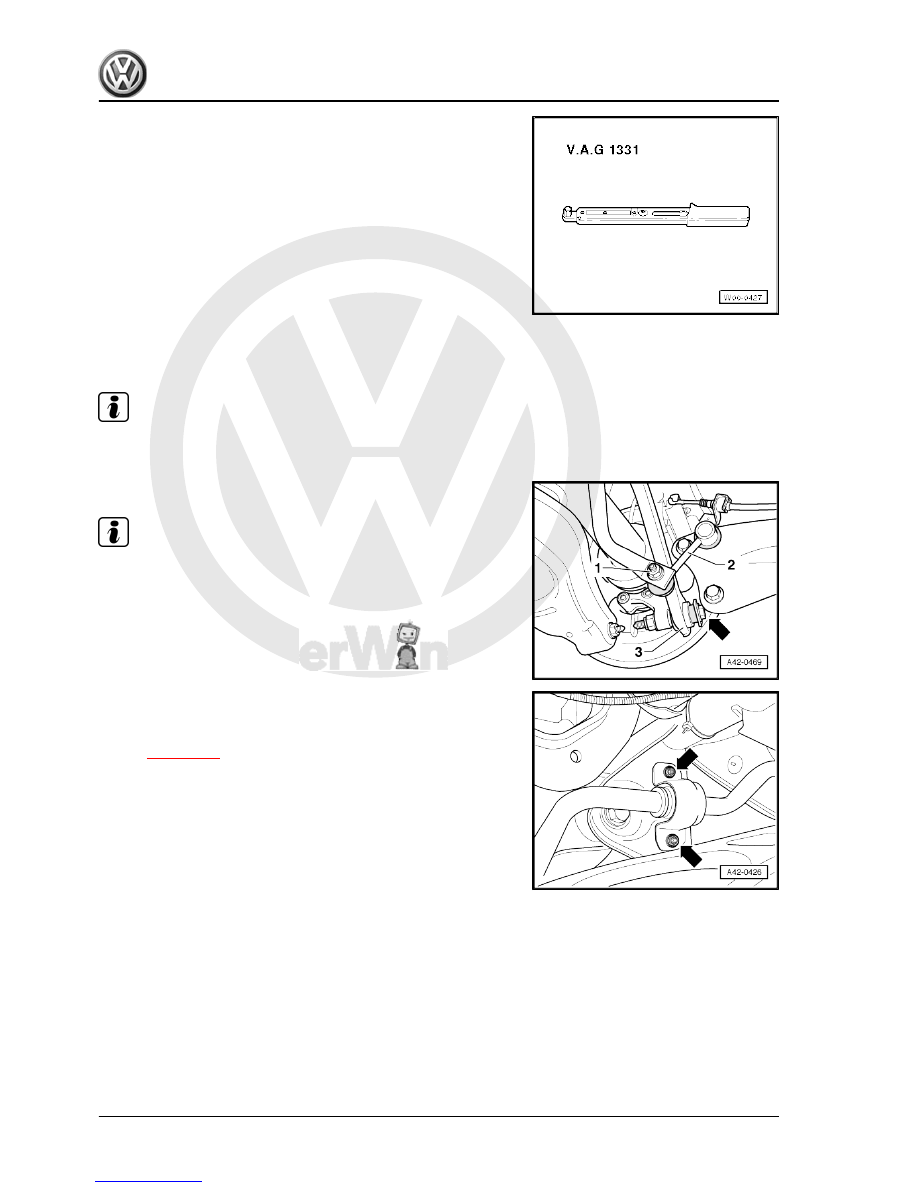

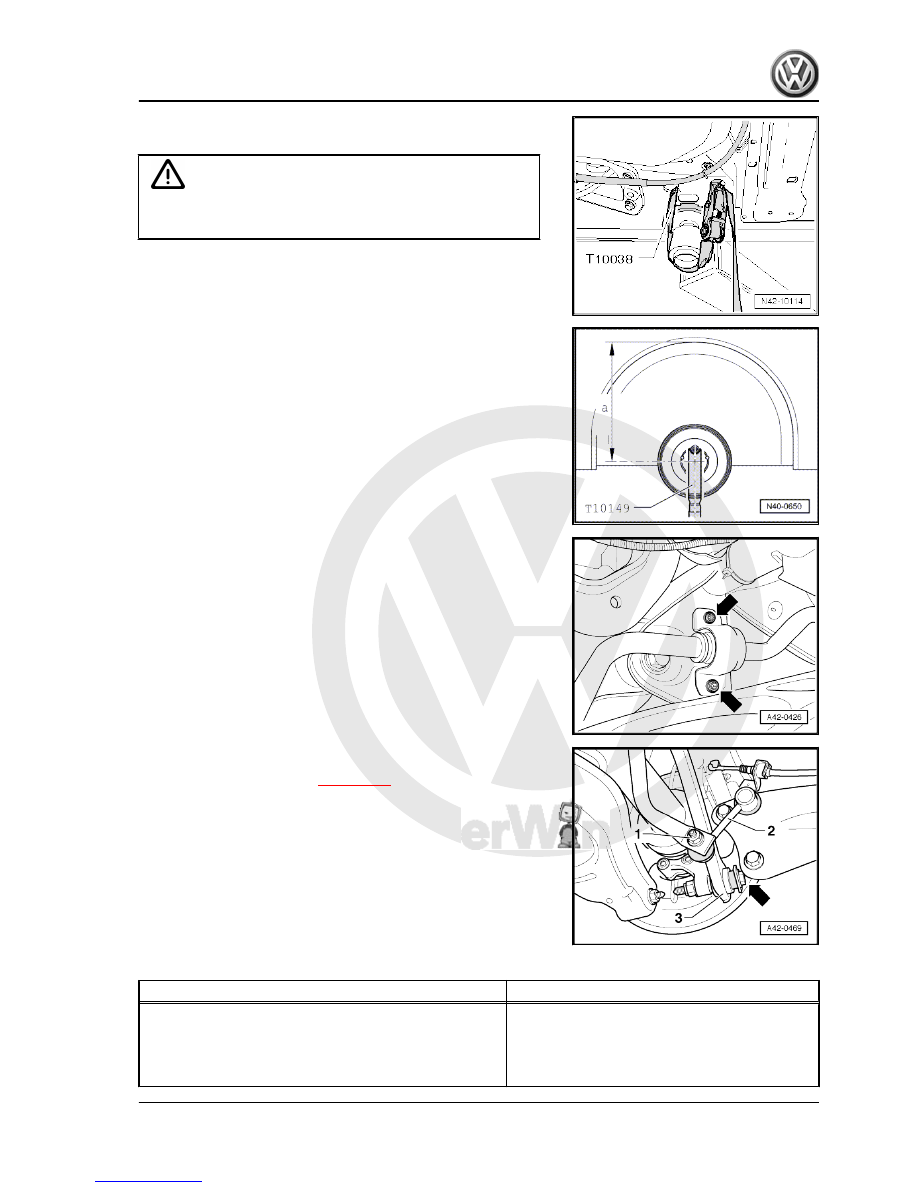

from steel and wheel bearing housing made from aluminium) -Arrow- indicates direction of travel. 1 - Anti-roll bar ❑ Note different running gear versions; see ⇒ page 317 , vehicle data sticker ❑ Removing and installing ⇒ page 269 2 - Bearing ❑ Always renew mount‐ ings on both sides of the vehicle. 3 - Clamp ❑ M8 x 28 removing 5 - Wheel bearing housing ❑ M10 x 55 removing 7 - Multi-point socket head bolt ❑ Renew each time after removing 8 - Coupling rod ❑ Connects anti-roll bar to trailing arm and wheel bearing housing 9 - Subframe 18.1 Removing and installing anti-roll bar Special tools and workshop equipment required 18. Assembly overview - anti-roll bar (four-wheel drive, subframe made from steel and wheel bearing housing made from aluminium)
