– Loosen the outer drive shaft threaded connection

⇒ page 274

 .

– Remove wheel.
– Remove brake carrier with brake caliper and tie to body with

wire ⇒  Rep. Gr.  46 .

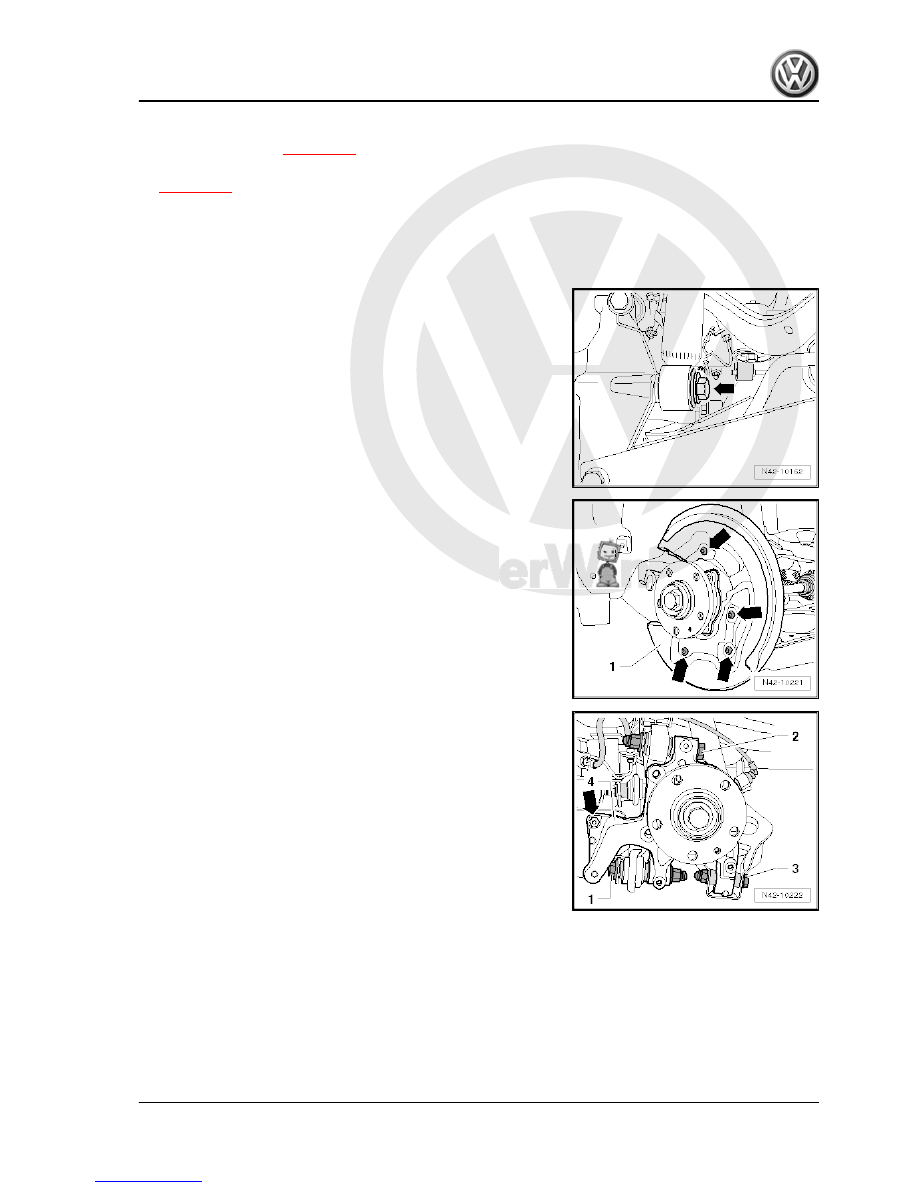

– Remove ABS speed sensor from wheel bearing housing.
– Remove bolt -arrow-.

– Unscrew bolts -arrows- and remove splash plate -1-.

– Remove bolt for track rod -1-, upper transverse link -2- and

lower transverse link -3- from wheel housing -4-.

– Remove coupling rod from wheel bearing housing -arrow-.

14. Assembly overview - wheel bearing housing, trailing link (four-wheel drive, subframe made from steel and wheel bearing housing made

from aluminium)

253



Note

Ensure that a plate/washer is installed between the track rod, up‐

per control arm, shock absorber and wheel bearing housing

respectively.

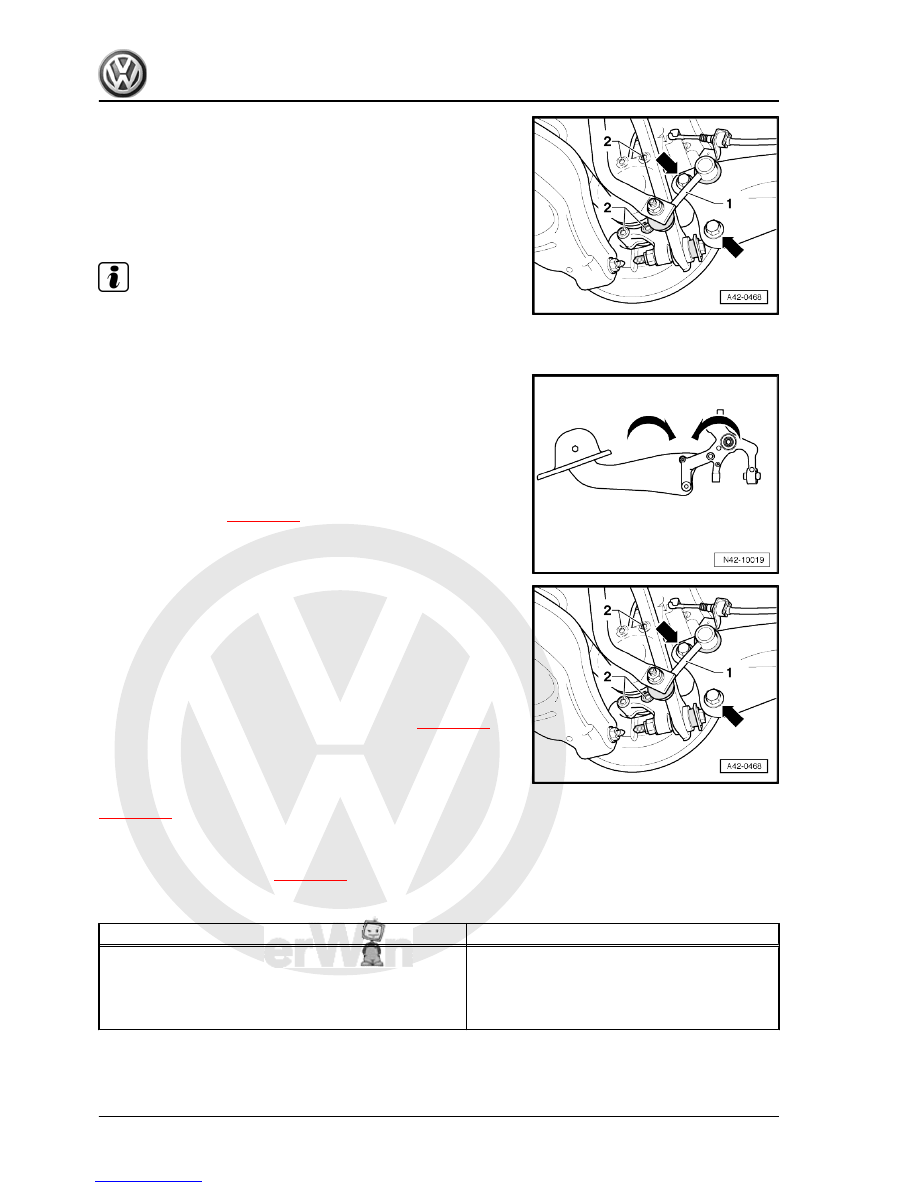

Position: threaded connection between trailing arm and wheel

bearing housing
Threaded connection for trailing arm and wheel bearing housing

may be tightened only after all other components (particularly the

spring and shock absorber) of respective wheel suspension have

been installed. To tighten, wheel suspension must be in extended

position. Only then do trailing arm and wheel bearing housing

move to the necessary position -arrows-.
– Install coil spring

⇒ page 257

 .

It is important to keep to the specified sequence for the following

operations.

– Fit trailing arm to wheel bearing housing with bolts -arrows-

but do not tighten yet.

– Attach coupling rod -1- to trailing arm but do not tighten nut

yet.

– Lower wheel suspension again using engine and gearbox jack

-V.A.G 1383 A- and remove support -T10149- from wheel hub.

– Tighten trailing arm bolts -arrows- to specified torque, ensur‐

ing that components are positioned as required

⇒ page 254

 .

– Bolt coupling rod -1- to wheel bearing housing and anti-roll bar.
The threaded connections on the wheel bearing housing may be

tightened only when the dimension between the centre of wheel

hub and lower edge of wheel housing has been attained

⇒ page 188

 .

– Attach brake carrier with brake caliper ⇒  Brake systems; Rep.

Gr.  46 .

– Install wheel and tighten

⇒ page 288

 .

Specified torques

Component

Specified torque

Upper transverse link to wheel bearing housing

♦ Use new nuts and bolts
♦ Tighten threaded connections only when vehicle is in

the normal running position

130 Nm + 90° further

254

     Rep. Gr.42 - Rear suspension



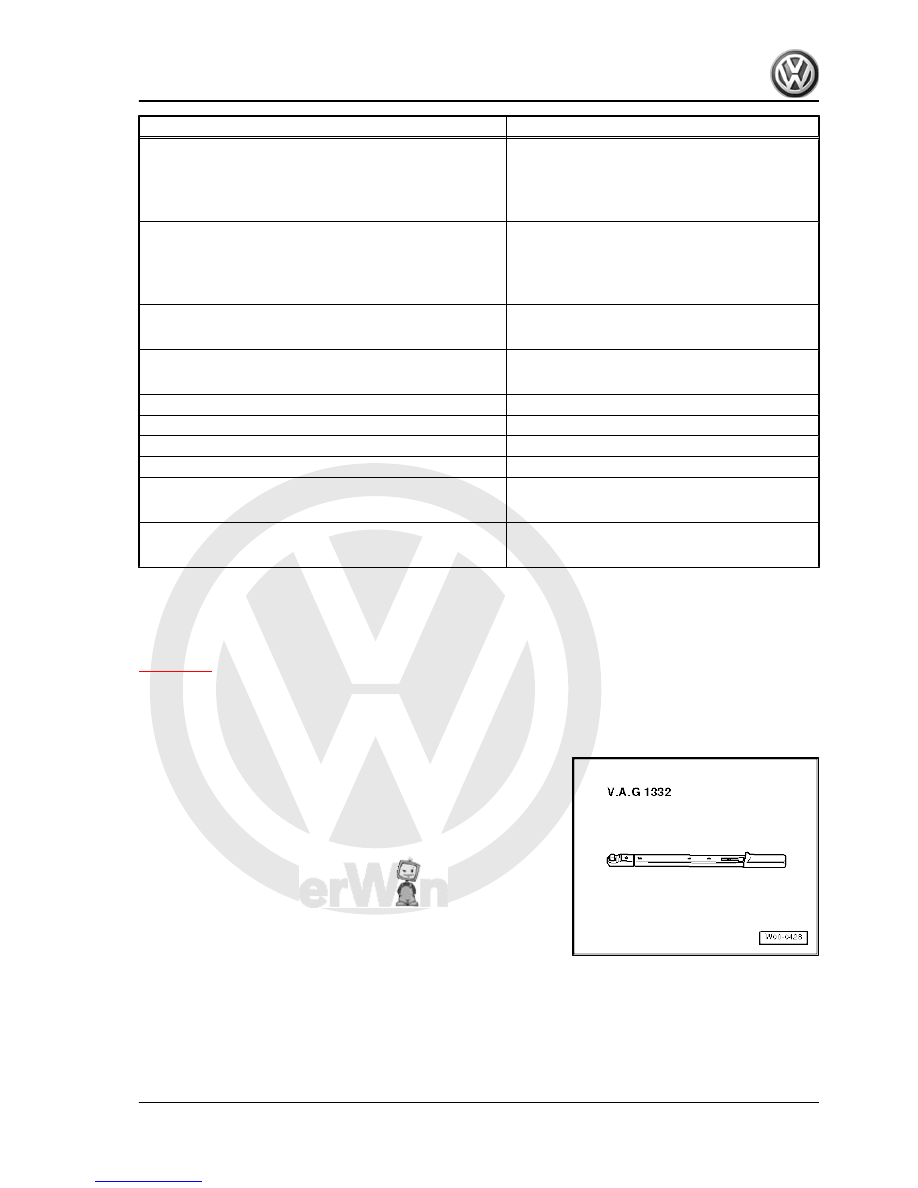

Wheel bearing housing to lower suspension link

♦ Use new nuts and bolts
♦ Tighten threaded connections only when vehicle is in

the normal running position

90 Nm + 90° further

Wheel bearing housing to track rod

♦ Use new nuts and bolts
♦ Tighten threaded connections only when vehicle is in

the normal running position

130 Nm + 90° further

Trailing arm to wheel bearing housing

♦ Use new bolts!

90 Nm + 45° further

Coupling rod to wheel bearing housing

♦ Use new nut.

45 Nm

Splash plate to wheel bearing housing

12 Nm

ABS speed sensor to wheel bearing housing

8 Nm

Shock absorber to wheel bearing housing

180 Nm

Brake disc to wheel bearing housing.

4 Nm

Drive shaft to wheel hub “hexagon bolt”

♦ Use new bolt

180 Nm +180° further

Drive shaft to wheel hub “12-point bolt”

♦ Use new bolt

70 Nm + 90° further

14.2

Renewing bonded rubber bush for

wheel bearing housing

⇒ page 240

14.3

Removing and installing wheel bearing/

wheel hub unit

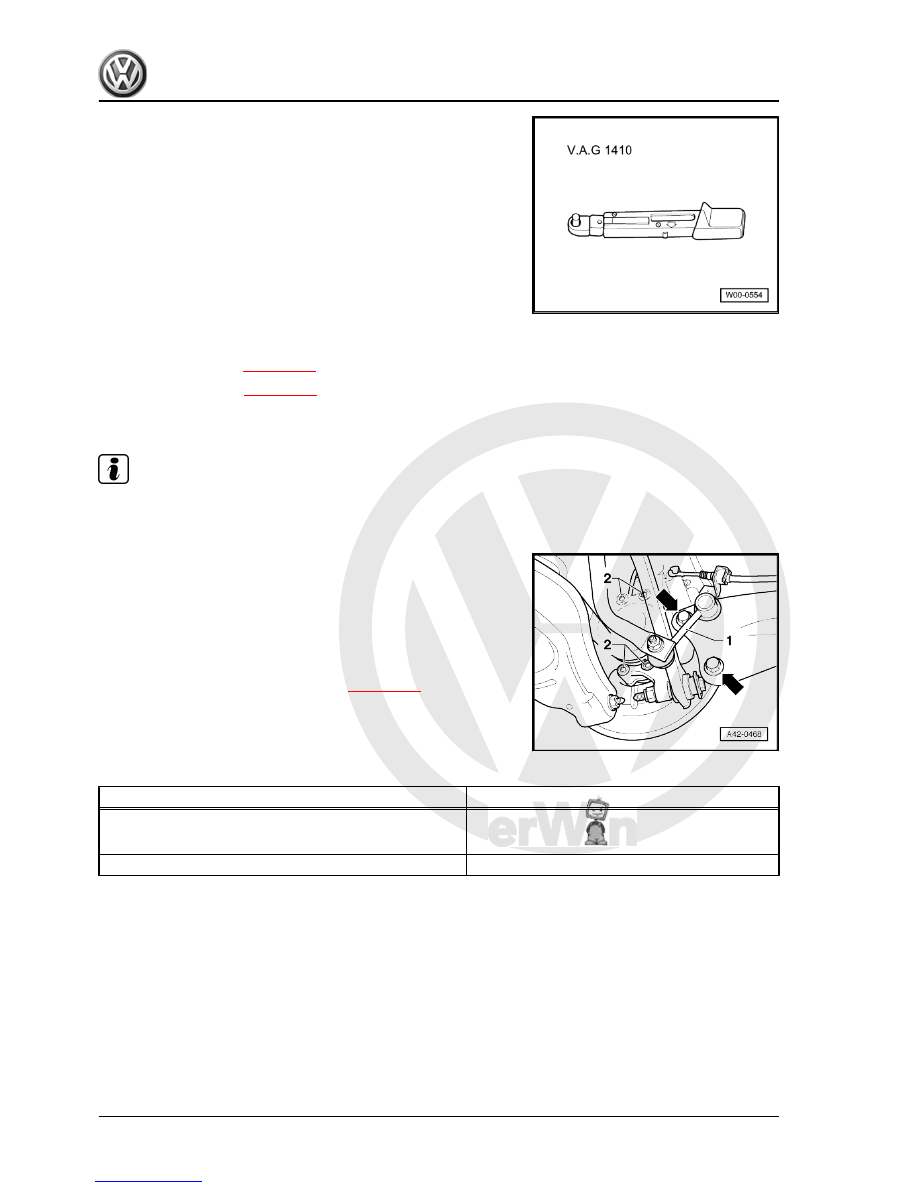

Special tools and workshop equipment required
♦ Torque wrench -V.A.G 1332-

14. Assembly overview - wheel bearing housing, trailing link (four-wheel drive, subframe made from steel and wheel bearing housing made

from aluminium)

255



⇒ page 257

 .

– Remove drive shaft

⇒ page 276

 .

– Remove brake carrier with brake caliper and tie to body with

wire ⇒  Rep. Gr.  46 .

Note

Do not suspend the brake caliper from the brake hose.

– Remove bolt for brake disc and remove brake disc.
– Remove bolts -2-.
– Pull wheel hub/wheel bearing unit out from wheel bearing

housing.

Installing
Carry out installation in the reverse sequence, noting the follow‐

ing:
– Use a new hexagon bolt and tighten

⇒ page 274

 .

Specified torques

Component

Specified torque

Wheel hub with wheel bearing to wheel bearing housing

♦ Use new bolt

70 Nm + 90° further

Brake disc to wheel bearing housing.

4 Nm

256

     Rep. Gr.42 - Rear suspension
