Volkswagen Golf / Golf Plus. Manual - part 43





⇒ page 168

 .

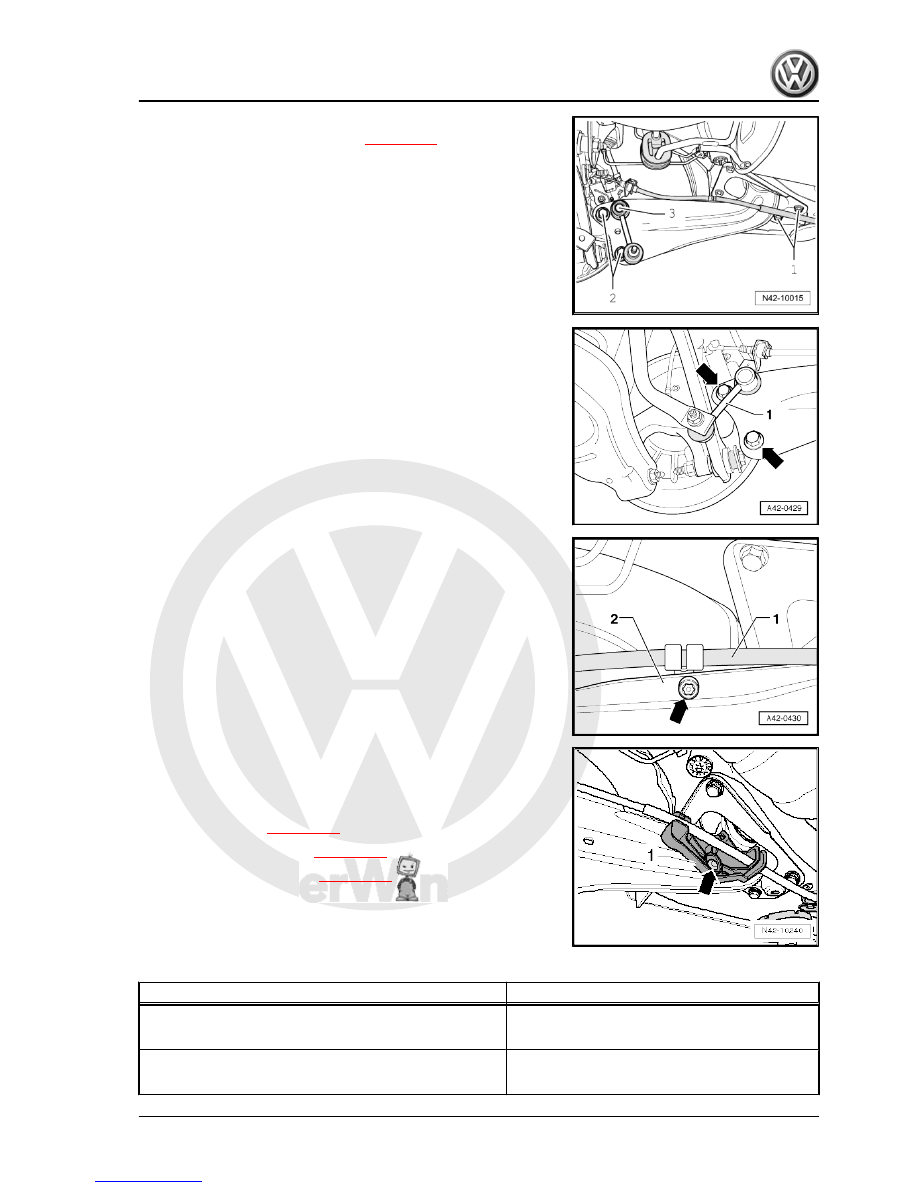

– Bolt coupling rod -1- to wheel bearing housing and anti-roll bar.

– Bolt handbrake cable -1- to trailing arm -2- -arrow-.

Vehicles with retainer for handbrake cable
– Attach retainer -1- by pushing in inner pin of rivet -arrow-.
Continuation for all vehicles
– Install coil spring

⇒ page 173

 .

– Install wheel and tighten

⇒ page 288

 .

– Perform wheel alignment

⇒ page 305

 .

Specified torques

Component

Specified torque

Trailing arm to wheel bearing housing

♦ Use new bolts

90 Nm +45°

Trailing arm to mounting bracket

♦ Use new bolt

90 Nm + 90°

4. Assembly overview: wheel bearing housing, trailing arm (front-wheel drive)

169



Mounting bracket to body

♦ Use new bolts

50 Nm +45°

Coupling rod to trailing arm.

♦ Use new nut

45 Nm

Handbrake cable to trailing arm

⇒  Brake systems; Rep. Gr.  46

4.5

Repairing trailing arm

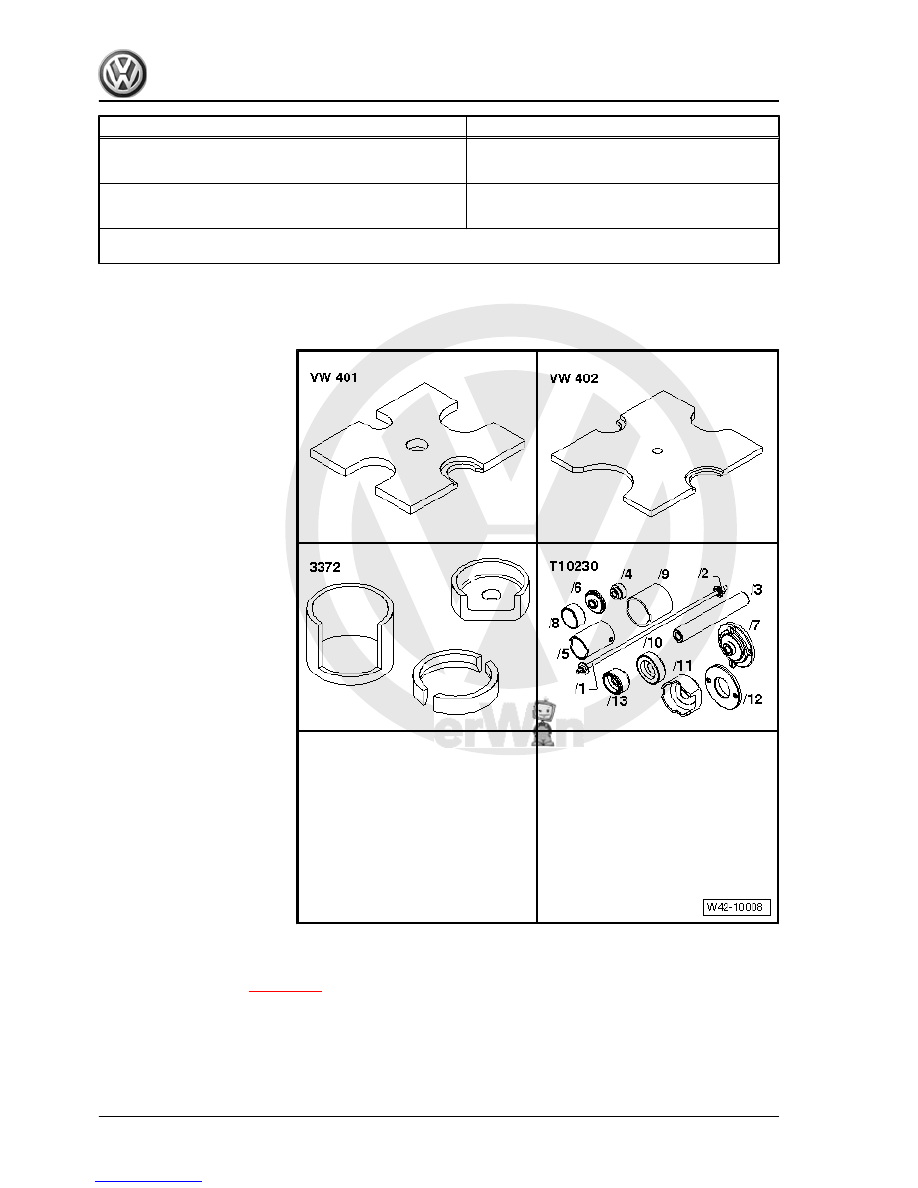

Special tools and workshop

equipment required
♦ Assembly tool -T10230-
♦ Removal tool -3372-
♦ Thrust plate -VW 401-
♦ Thrust plate -VW 402-

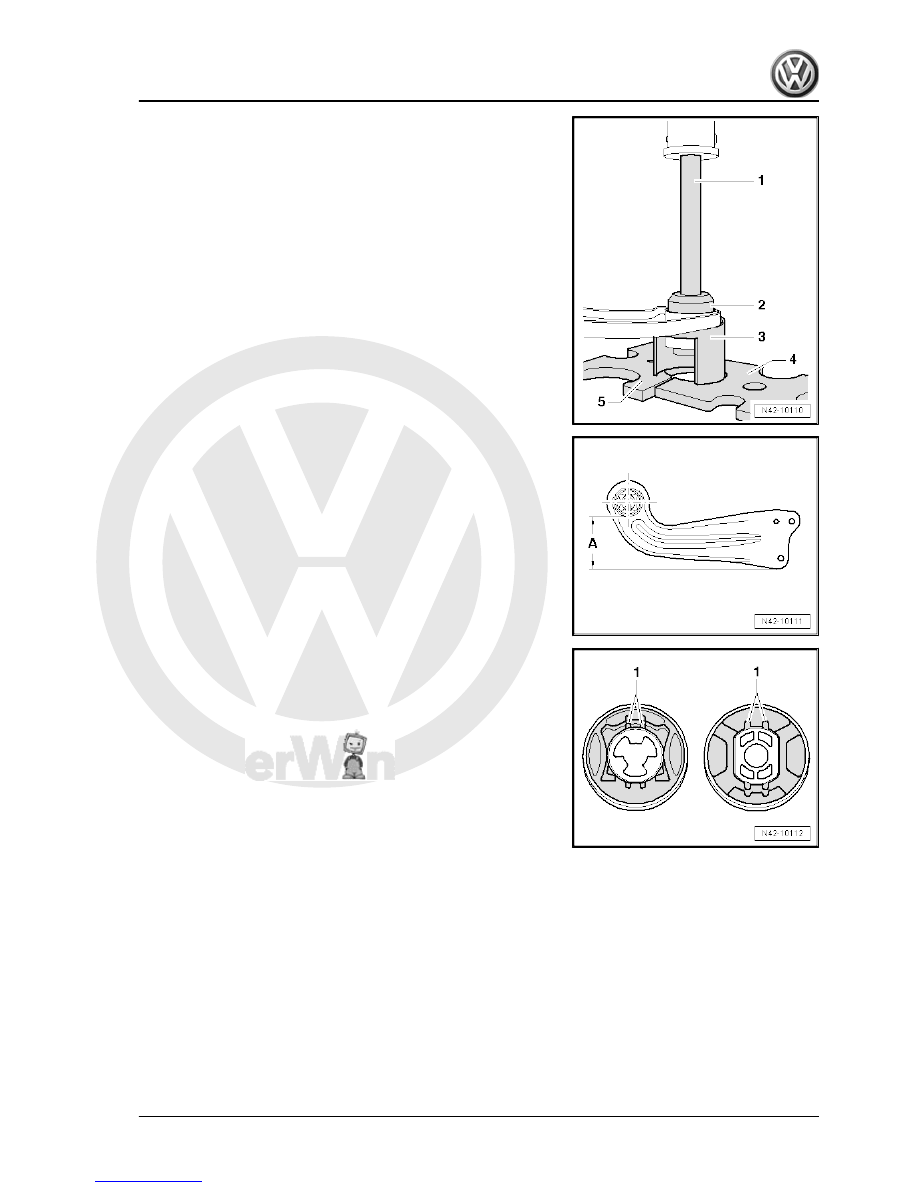

Pressing out bonded rubber bush
– Remove trailing arm

⇒ page 166

 .

170

     Rep. Gr.42 - Rear suspension



There are two different types of bonded rubber bushes. On both

types, the marked line must be between the projections -1- after

being pressed in.

4. Assembly overview: wheel bearing housing, trailing arm (front-wheel drive)

171



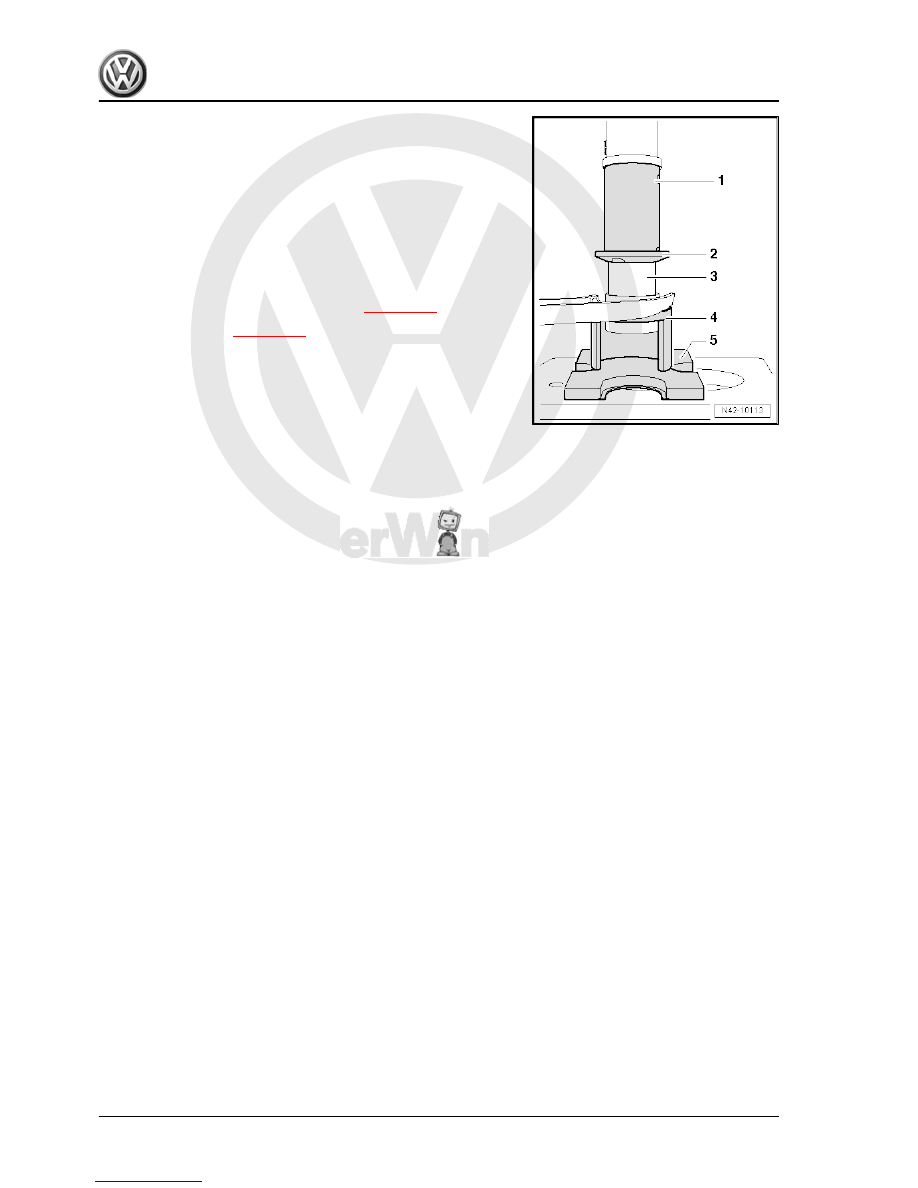

3 - Bonded rubber bush
4 - Removal tool -3372-
5 - Thrust plate -VW 402-
– Press bonded rubber bush in flush.
– Attach mounting bracket to trailing arm

⇒ page 167

 .

– Install trailing arm

⇒ page 168

 .

172

     Rep. Gr.42 - Rear suspension
