Volkswagen Golf / Golf Plus. Manual - part 41

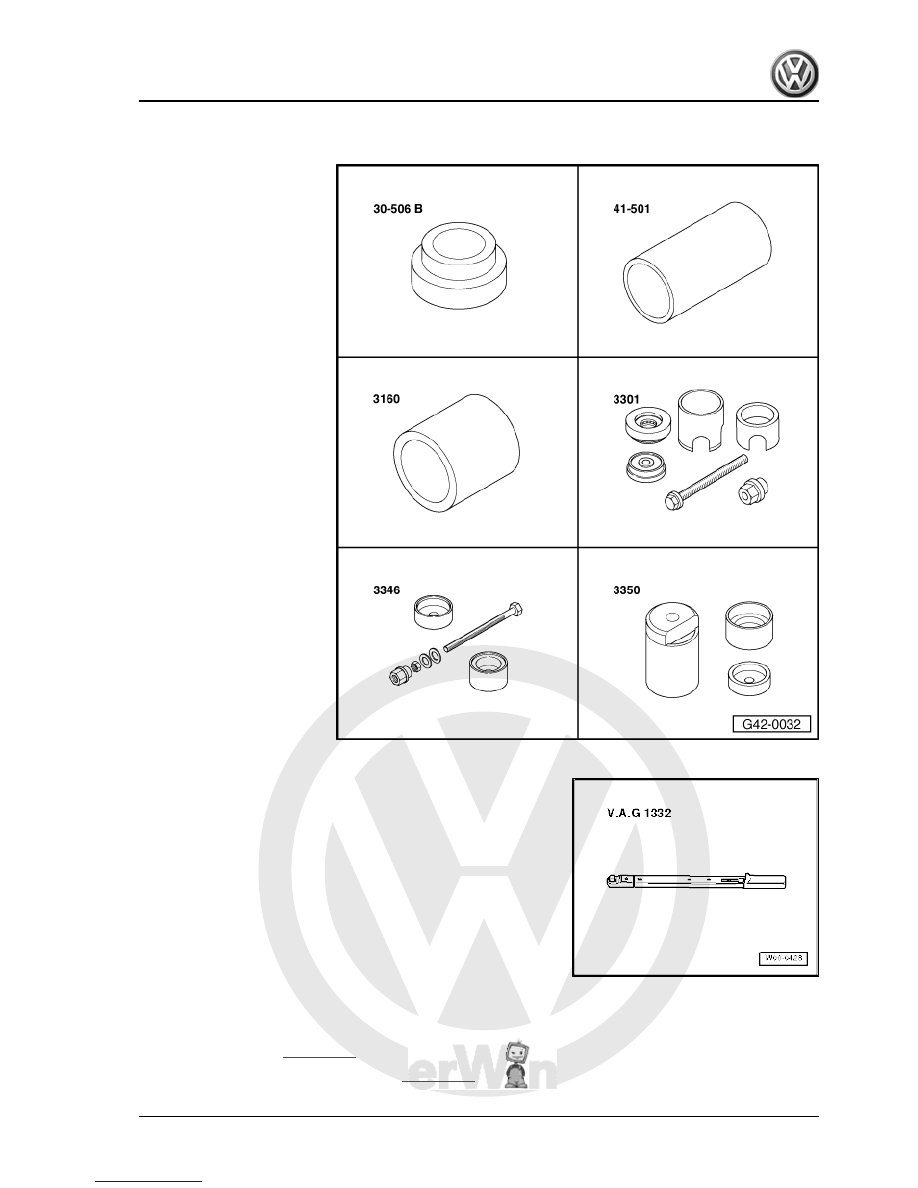

Special tools and workshop

equipment required
♦ Press tool -30 - 506 B-
♦ Drift sleeve -41-501-
♦ Sleeve -3160-
♦ Assembly tool -3301-
♦ Assembly tool -3346-
♦ Assembly tool -3350-

♦ Torque wrench -V.A.G 1332-

Removing
– Remove wheel.
– Remove coil spring

⇒ page 173

 .

– Remove wheel bearing/wheel hub unit

⇒ page 164

 .

4. Assembly overview: wheel bearing housing, trailing arm (front-wheel drive)

161

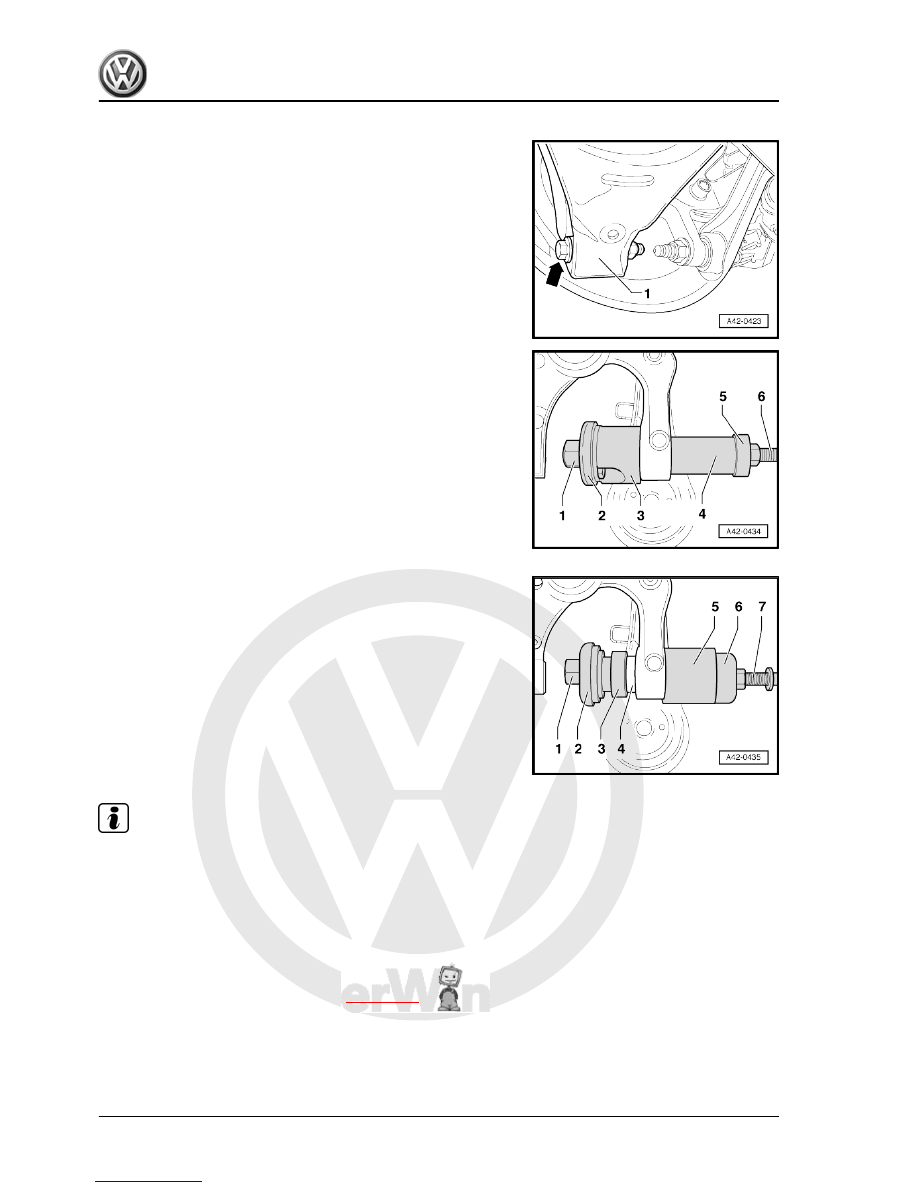

– Attach tools as shown in figure.
1 - Nut -3346/3-
2 - Thrust piece -3301-
3 - Press tool -30 - 506 B-
4 - Bonded rubber bush
5 - Sleeve -3160-
6 - Thrust piece -3350/2-
7 - Spindle -3346/2-
– Pull in bonded rubber bush by turning spindle.

Note

Do not use lubricant.

Install bonded rubber bush carefully so that it does not cant.

Installing
– Install backplate.
– Install wheel bearing/wheel hub unit.
Bolt connections on wheel bearing housing may be tightened only

when dimension “a” has been obtained

⇒ page 137

 .

162

     Rep. Gr.42 - Rear suspension



 .

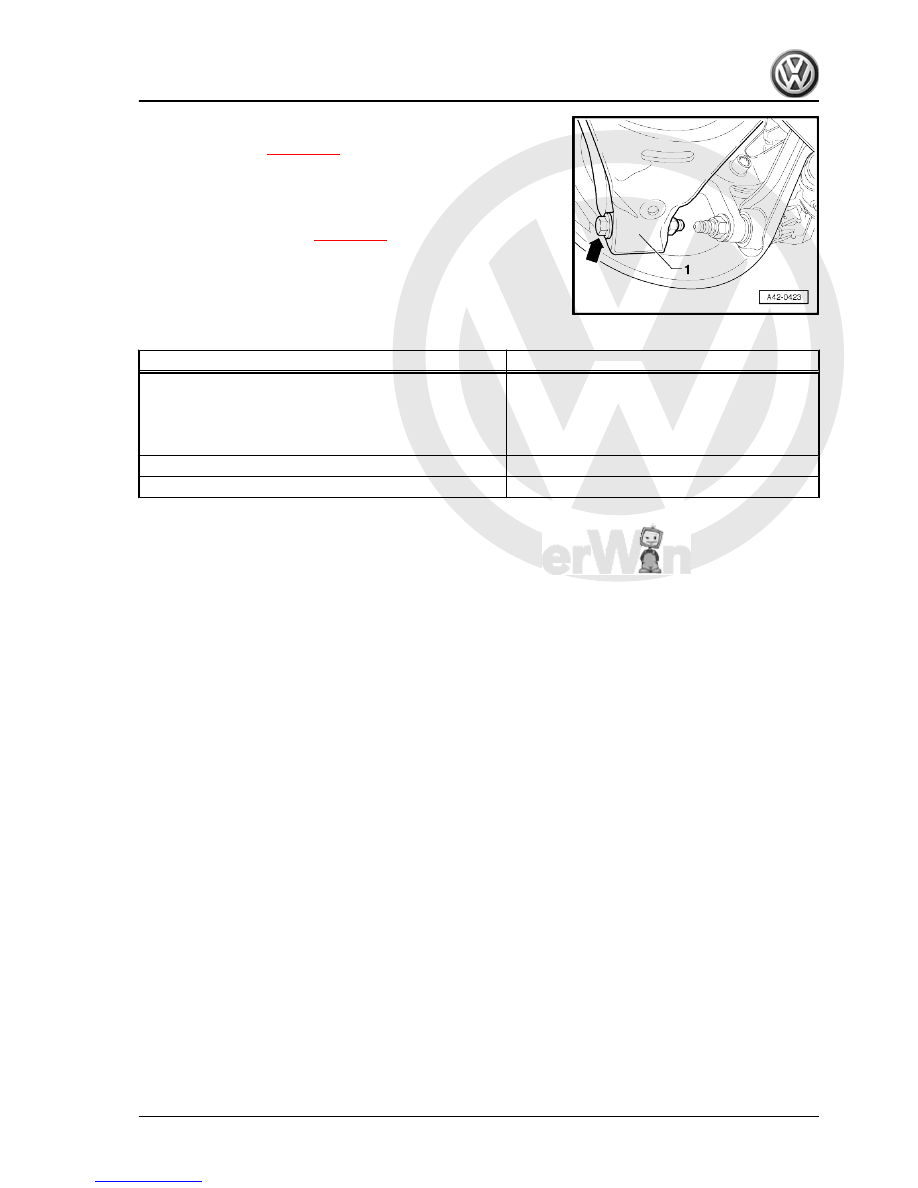

– Install brake disc.
– Attach brake carrier with brake caliper ⇒  Brake systems; Rep.

Gr.  46 .

– Install wheel and tighten

⇒ page 288

 .

Specified torques

Component

Specified torque

Wheel bearing housing to lower suspension link

♦ Use new nuts and bolts
♦ Tighten threaded connections only when vehicle is in

the normal running position.

90 Nm + 90°

Splash plate to wheel bearing housing

12 Nm

Brake disc to wheel bearing housing.

4 Nm

4. Assembly overview: wheel bearing housing, trailing arm (front-wheel drive)

163

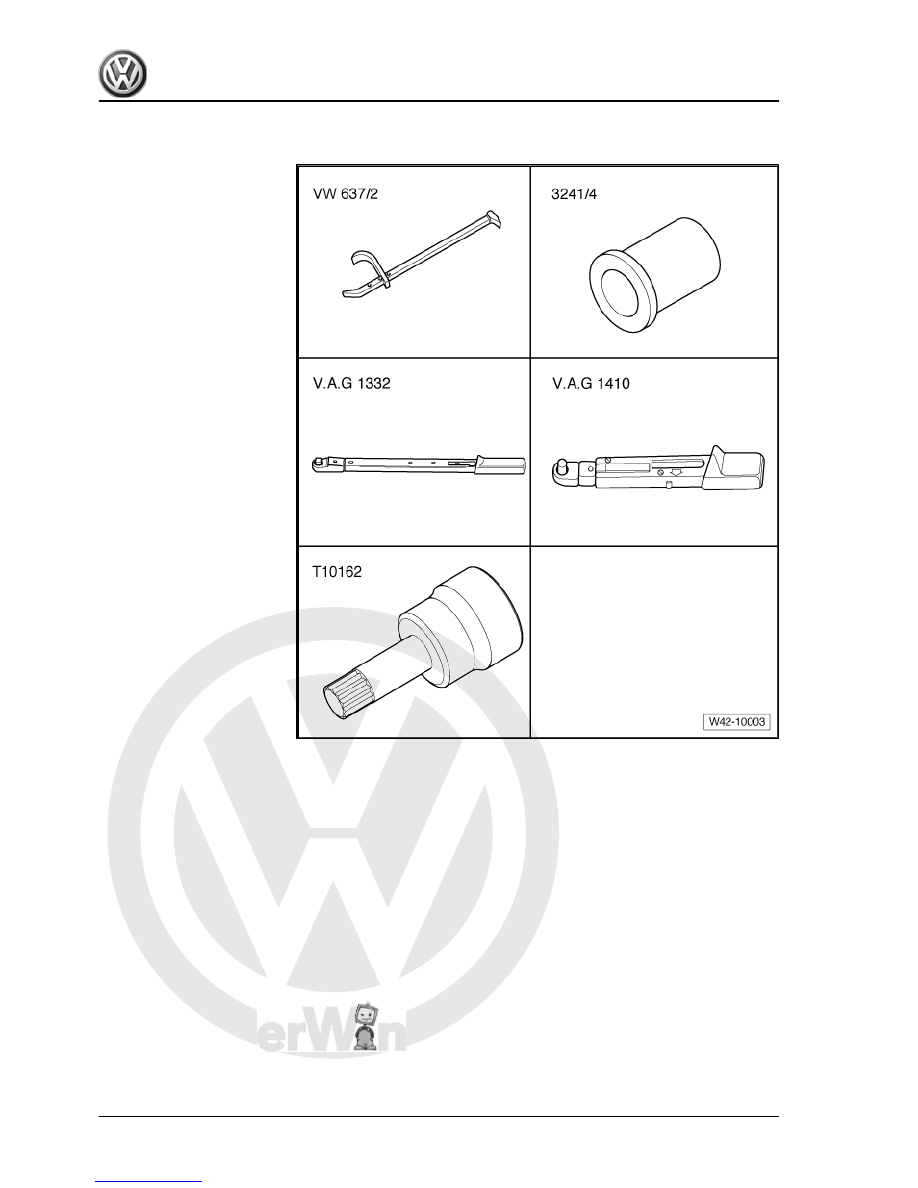

Special tools and workshop

equipment required
♦ Hub grease cap puller -VW

637/2-

♦ Fitting sleeve -3241-
♦ Torque wrench -V.A.G

1332-

♦ Torque wrench -V.A.G

1410-

♦ Tool insert -T10162-

Removing
– Raise vehicle.
– Remove wheel.

164

     Rep. Gr.42 - Rear suspension
