overview - noise insulation .

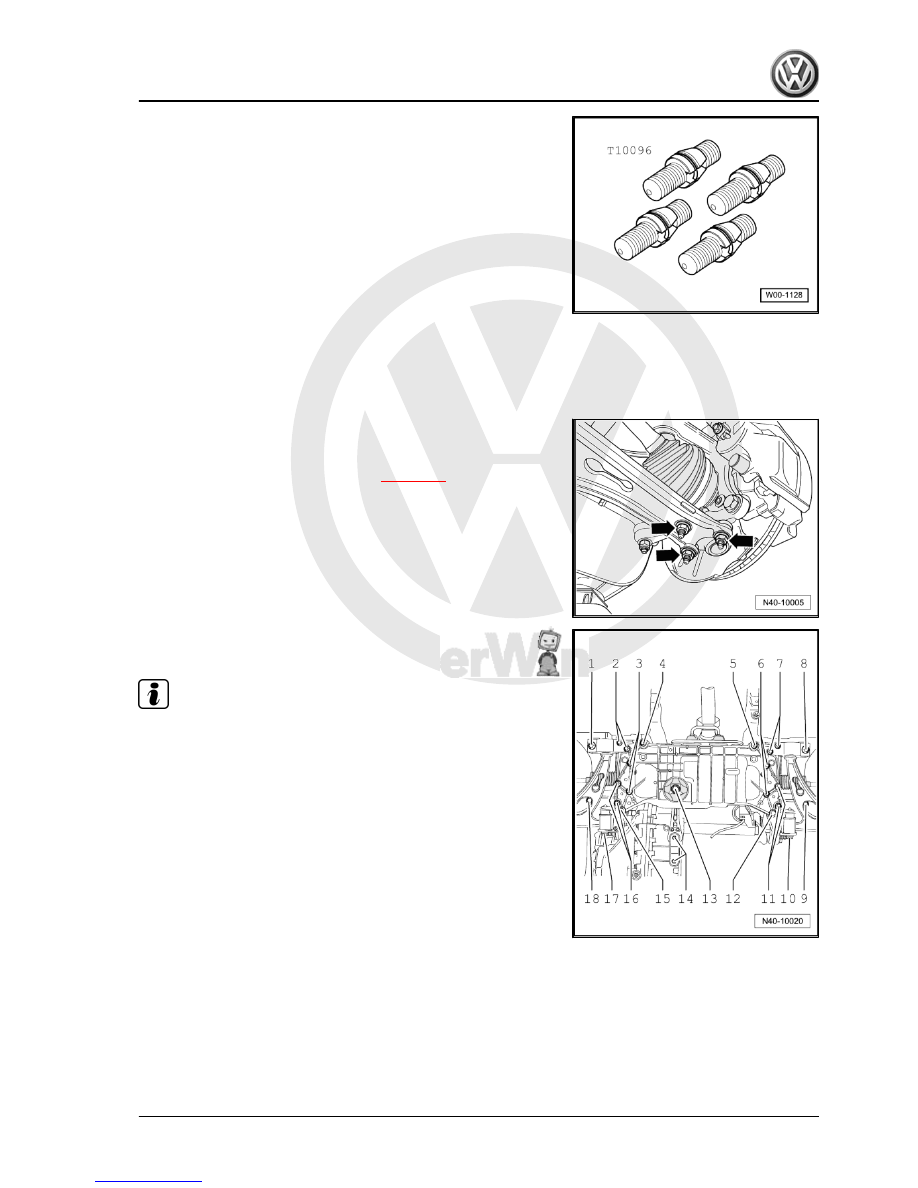

– Remove nuts -arrows-.
– Pull swivel joint out of suspension link.
– Fixing position of mounting bracket

⇒ page 17

 .

– Replace bolt for left side -1- and for right side -8- with locating

pins -T10096- and tighten locating pins to 20 Nm.

Note

The locating pins -T10096- may be tightened only to a maximum

of 20 Nm; otherwise the threads of the locating pins may be dam‐

aged.

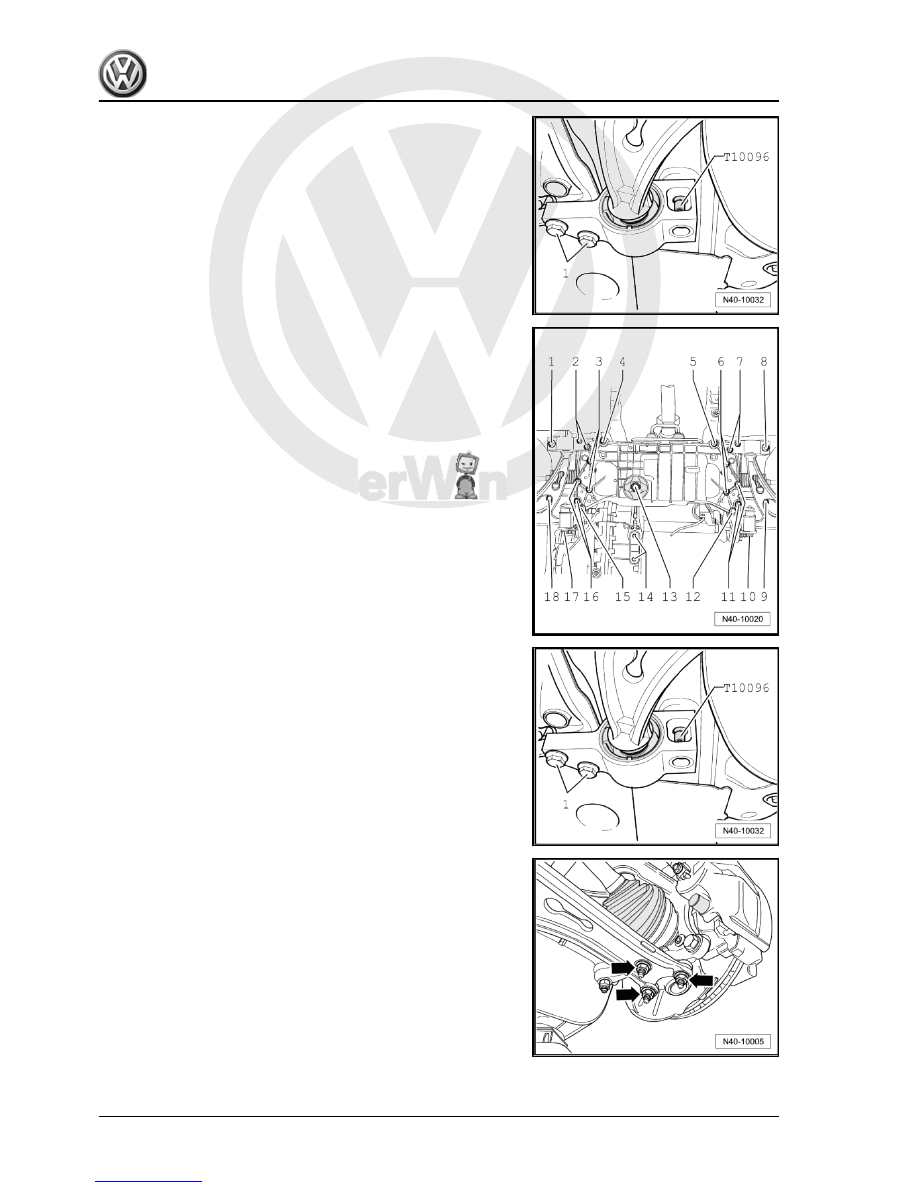

– Now remove bolt -10- for left side and bolt -17- for right side.

3. Subframe, anti-roll bar, suspension link

37



– Start bolt -1- and tighten.
– Now replace locating pin -T10096- with a new bolt and tighten

to specified torque.

– Bolt suspension link to swivel joint and tighten -arrows-.

38

     Rep. Gr.40 - Front suspension



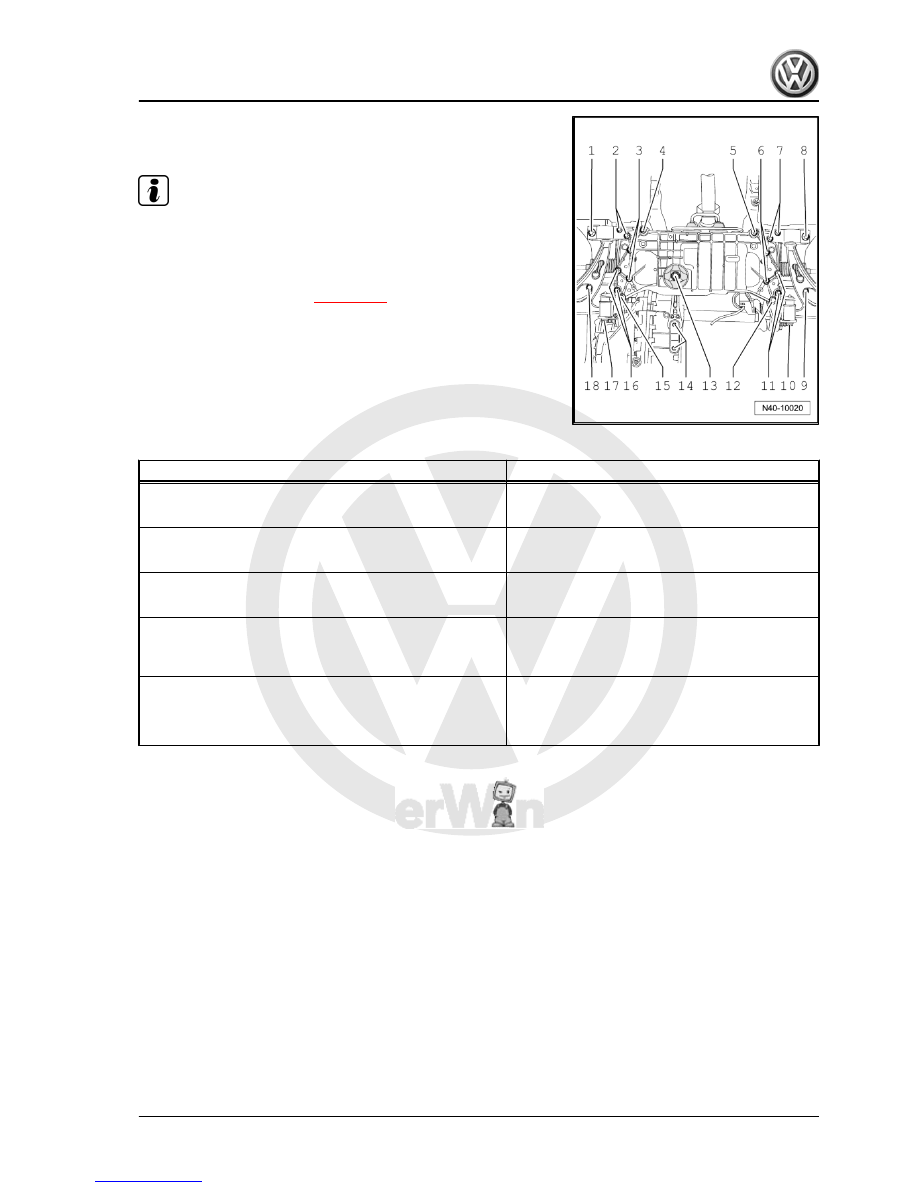

Ensure boot is not damaged or twisted.

– Install lower noise insulation. ⇒  Rep. Gr.  50 ; Assembly over‐

view - noise insulation .

– Install wheel and tighten

⇒ page 288

 .

Specified torques

Component

Specified torque

Mounting bracket to bracket

♦ Use new bolts

50 Nm + 90°

Mounting bracket to body

♦ Use new bolts

70 Nm + 90°

Swivel joint to cast steel suspension link

♦ Use new nuts

60 Nm

Swivel joint to sheet steel or forged aluminium suspension

link

♦ Use new nuts

100 Nm

Suspension link to bracket

♦ Use new bolt
♦ Tighten bolt in unladen state

70 Nm +180°

3.14

Removing and installing suspension link

with mounting bracket (left side for ve‐

hicles with DSG or automatic gearbox‐

es)

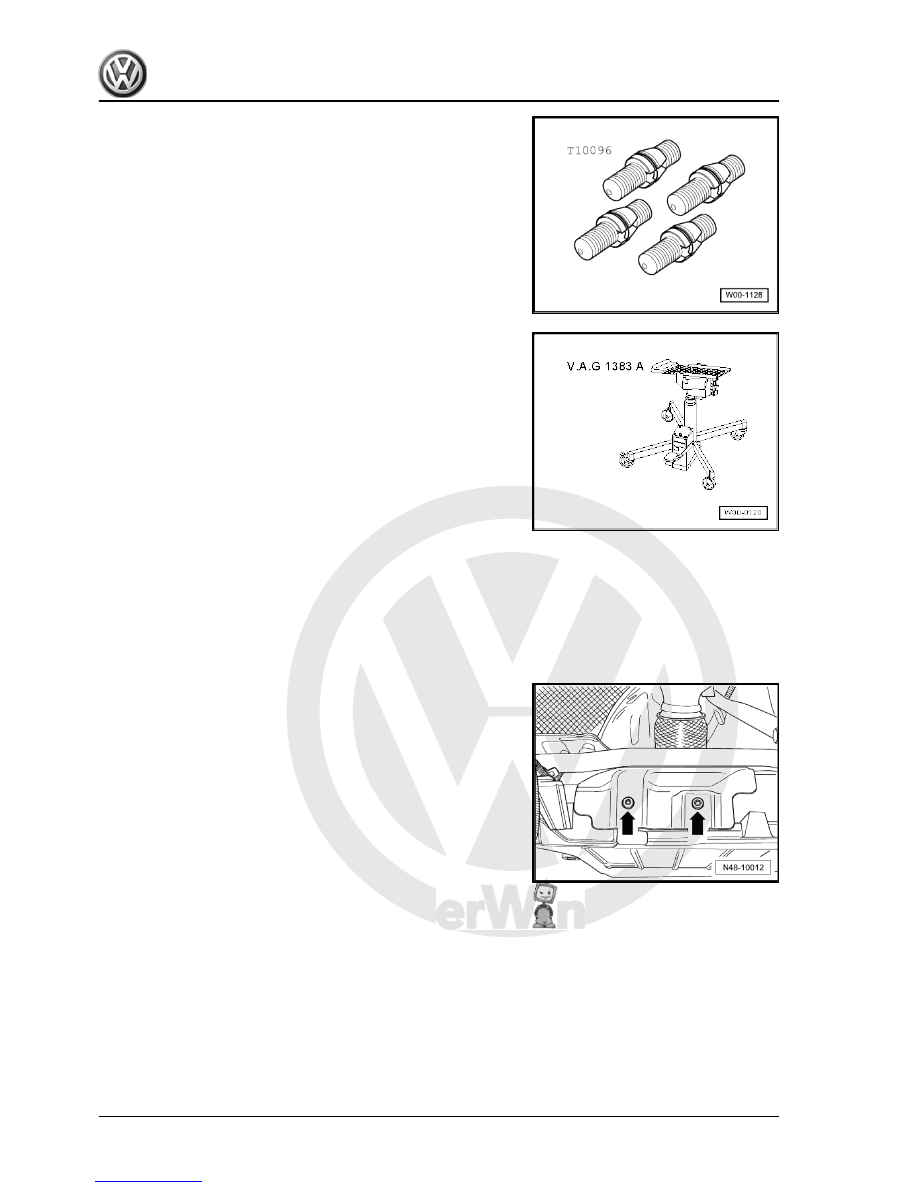

Special tools and workshop equipment required

3. Subframe, anti-roll bar, suspension link

39



Removing
– Remove left front wheel.
– Remove lower noise insulation ⇒  General body repairs, ex‐

terior; Rep. Gr.  50 ; Overview - noise insulation .

– Detach exhaust system bracket from subframe.
Vehicles with front-wheel drive
– Remove bolts -arrows- on heat shield.
– Remove heat shield from subframe.
Continuation for all vehicles

40

     Rep. Gr.40 - Front suspension
