2. Instrument cluster

4RUNNER (U)

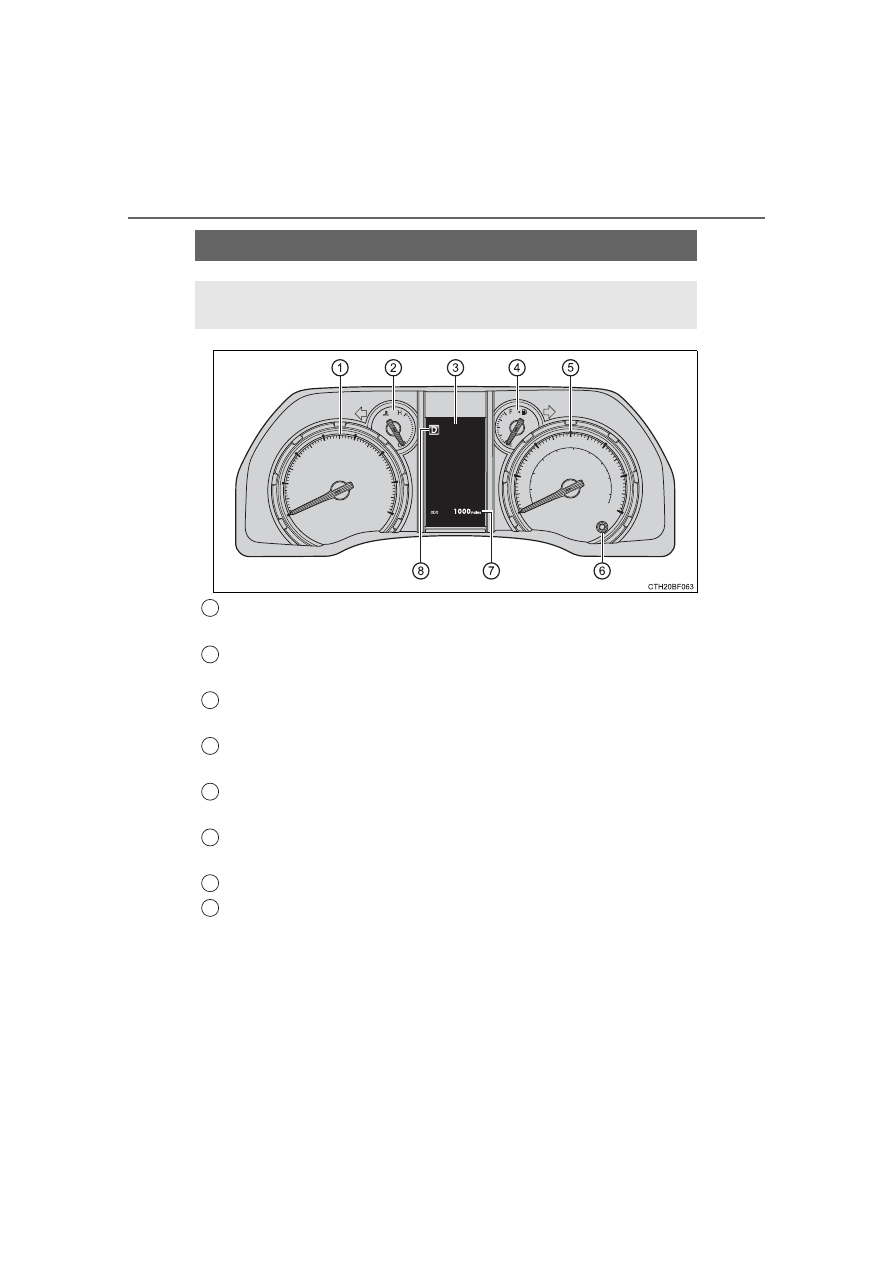

Tachometer

Displays the engine speed in revolutions per minute

Engine coolant temperature gauge

Displays the engine coolant temperature

Multi-information display

Presents the driver with a variety of vehicle data (



P. 90)

Fuel gauge

Displays the quantity of fuel remaining in the tank

Speedometer

Displays the vehicle speed

Odometer/trip meter display change button

Switches the trip information.

Odometer/trip meter display
Shift position and shift range

Displays the selected shift position or selected shift range (



P. 218)

Gauges and meters

The  displayed  content  may  differ  depending  on  the  type  of
meter.

1

2

3

4

5

6

7

8

89

2. Instrument cluster

2

Instru

me
nt clu

ster

4RUNNER (U)

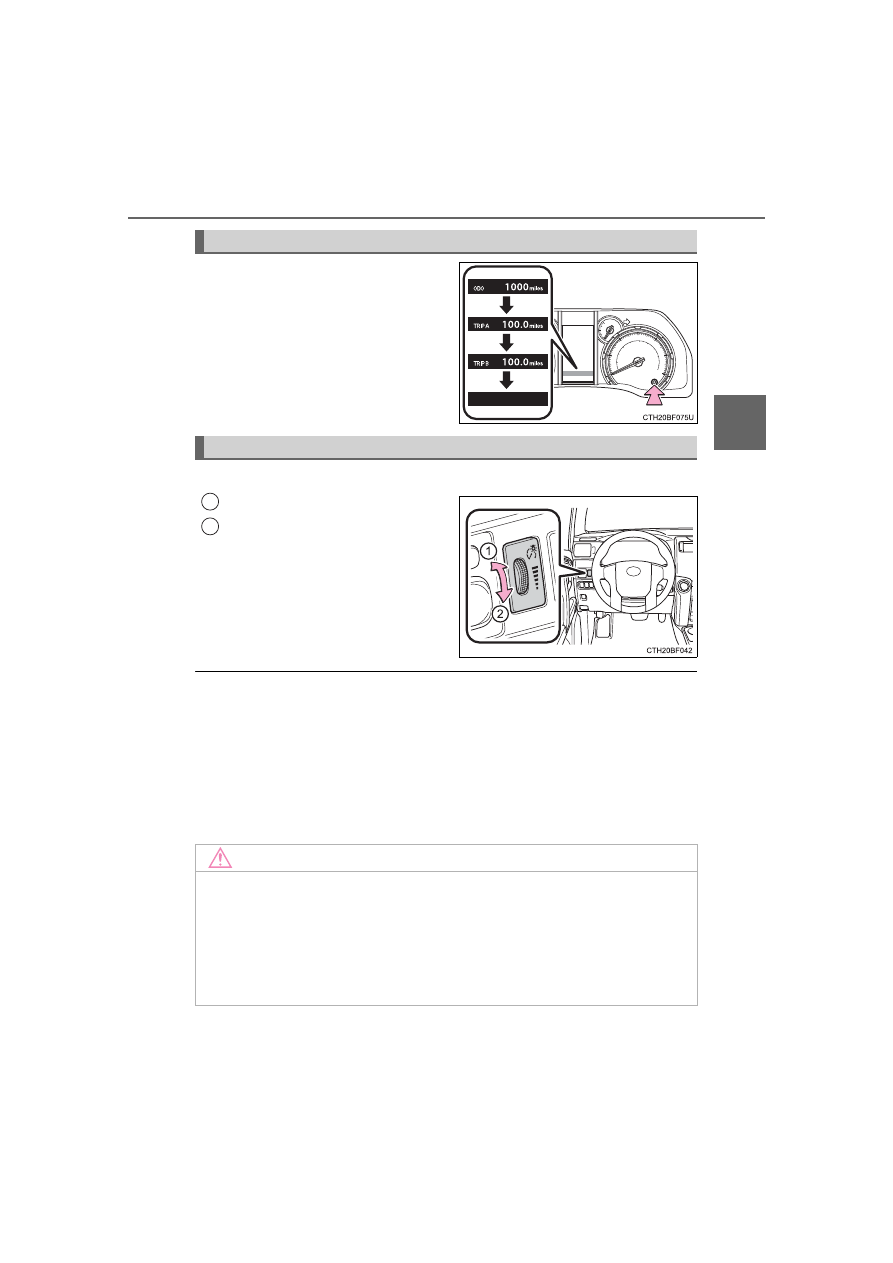

Switches  between  odometer  and
trip meter displays. When the trip
meter  is  displayed,  pressing  and
holding  the  button  will  reset  the
trip meter.

The brightness of the instrument panel lights can be adjusted.

Brighter
Darker

■

The meters and display illuminate when



Vehicles without a smart key system

The engine switch is in the “ON” position.



Vehicles with a smart key system

The engine switch is in IGNITION ON mode.

■

The brightness of the instrument panel lights

When  the  headlight  switch  is  turned  to  on,  the  brightness  will  be  reduced
slightly unless the control dial is turned fully upward.

Changing the display

Instrument panel light control

1

2

NOTICE

■

To prevent damage to the engine and its components

●

Do not let the indicator needle of the tachometer enter the red zone, which
indicates the maximum engine speed.

●

The engine may be overheating if the engine coolant temperature gauge is
in  the  red  zone  (H).  In  this  case,  immediately  stop  the  vehicle  in  a  safe
place, and check the engine after it has cooled completely. (



P. 517)

90

2. Instrument cluster

4RUNNER (U)

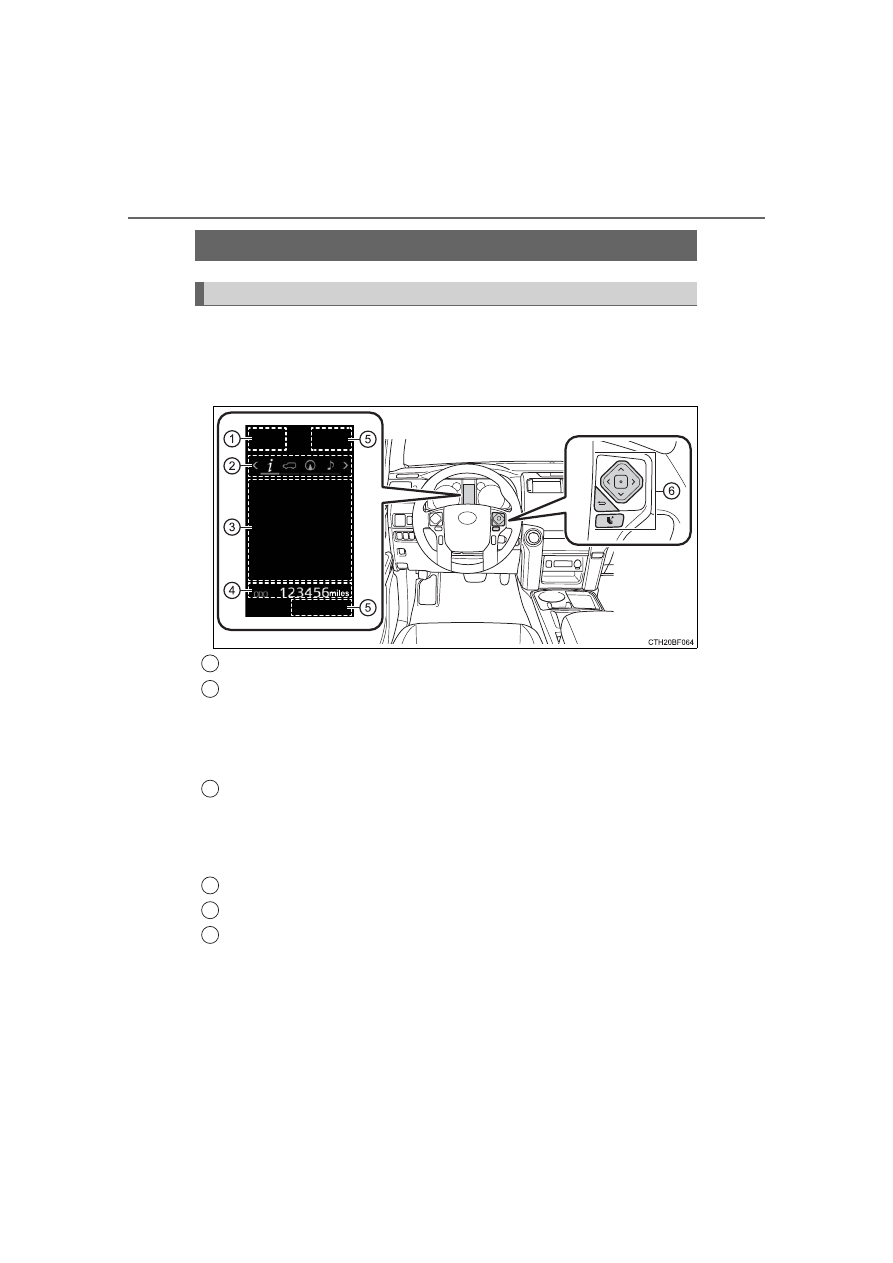

The multi-information display presents the driver with a variety of driv-
ing related data, such as the current outside temperature. The multi-
information display  can  also  be  used  to  change  the  display  settings
and other settings.

Shift position and shift range (



P. 218

)

Menu icon display area

Displays the following items.
When a menu icon is not selected, the outside temperature is displayed.

• Menu icons (



P. 92)

• Outside temperature (



P. 97)

Content display area

A variety of information can be displayed by selecting a menu icon. Addi-
tionally, warning or pop-up display will be displayed in some situations.

• Menu icon content (



P. 92)

• Warning message (



P. 487)

Odometer and trip meter

(



P. 88)

Indicators

(



P. 82)

Meter control switches

(



P. 91)

Multi-information display

Summary of functions

1

2

3

4

5

6

91

2. Instrument cluster

2

Instru

me
nt clu

ster

4RUNNER (U)

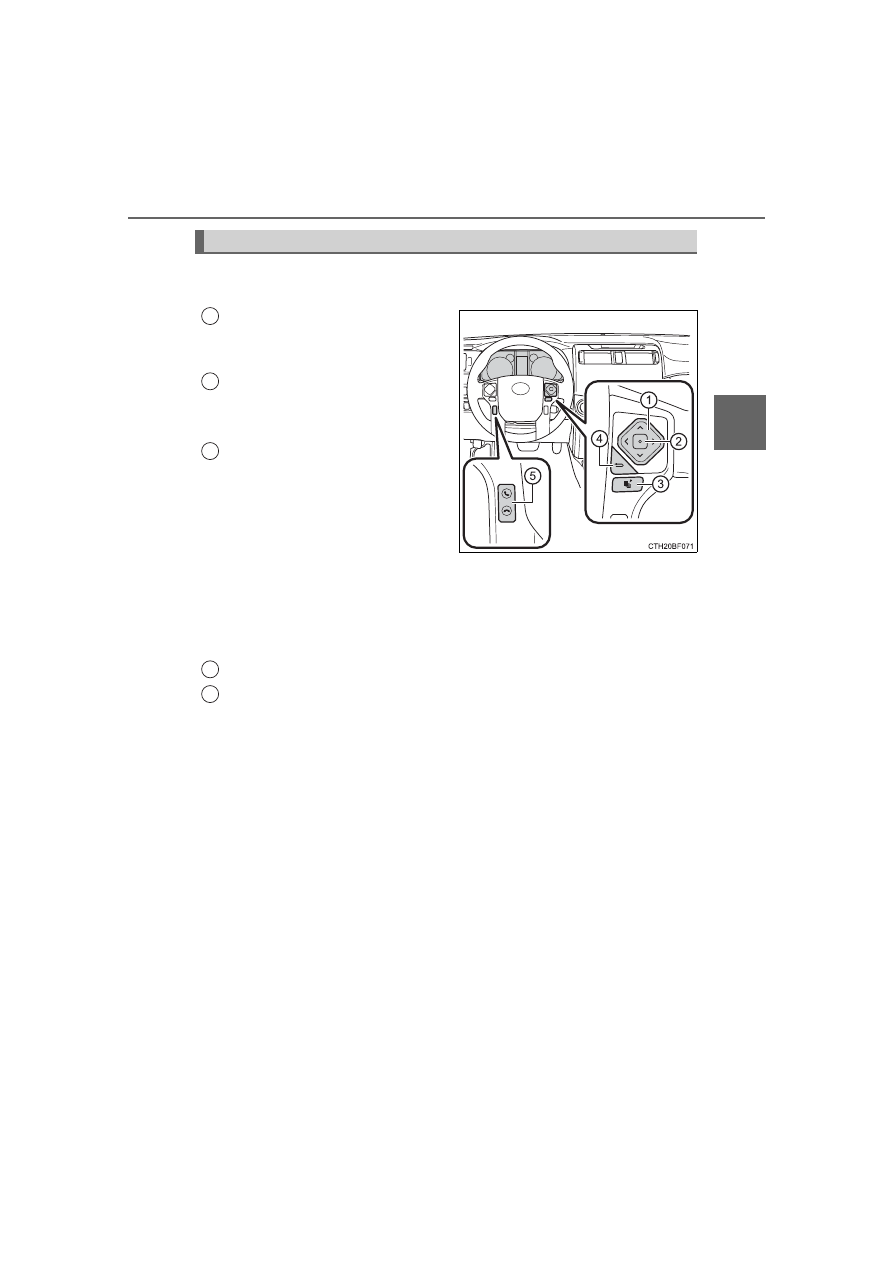

The  multi-information  display  is  operated  using  the  meter  control
switches.

Scroll  screens

*

,  change  the

displayed  content

*

  and  move

the cursor
Press: Enter/Set
Press and hold:
Reset/Display the next screen
Press: Displays the screen reg-
istered as the top screen

When  no  screen  has  been  regis-
tered, the drive information screen
will be displayed.

Press  and  hold:  Registers  the
currently  displayed  screen  as
the top screen

When  the  confirmation  screen  is  displayed,  select  yes  to  register  the
screen. If the selected screen cannot be registered, a registration failure
message will be shown.

Return to the previous screen
Call sending/receiving display

Linked with the hands-free system, sending or receiving call is displayed.
For details regarding the hands-free system, refer to the “Navigation sys-
tem owner's instruction”.

*

: When the screen can be scrolled or different content can be displayed, a

mark, such as an arrow, will be displayed to suggest which switch to oper-
ate.

Operating the meter control switches

1

2

3

4

5

92

2. Instrument cluster

4RUNNER (U)

 Drive information

Select to display various drive data. (



P. 93)

 Vehicle information display

Select to display the vehicle information. (



P. 95)

 Navigation system-linked display (if equipped)

Select to display the following navigation system-linked information.

• Route guidance
• Compass display (north-up display/heading-up display)

 Audio system-linked display (if equipped)

Select to enable selection of an audio source or track on the display
using the meter control switches.

 Driving assist system information

Select to display the operational status of the following systems:

• Dynamic radar cruise control (



P. 273)

• LDA (Lane Departure Alert) (



P. 265)

 Warning message display

Select to display warning messages and measures to be taken if a
malfunction is detected. (



P. 487)

• When there are no current warning messages, “No Messages” is

displayed.

• When  there  are  multiple  warning  messages,

  or

  can  be

used to switch the displayed warning message.

 Settings display

Select  to  change  the  meter  display  settings  and  the  operation  set-
tings of some vehicle functions. (



P. 95)

Menu icons

93

2. Instrument cluster

2

Instru

me
nt clu

ster

4RUNNER (U)

Items displayed can be switched by pressing

 or

 up and down.

■

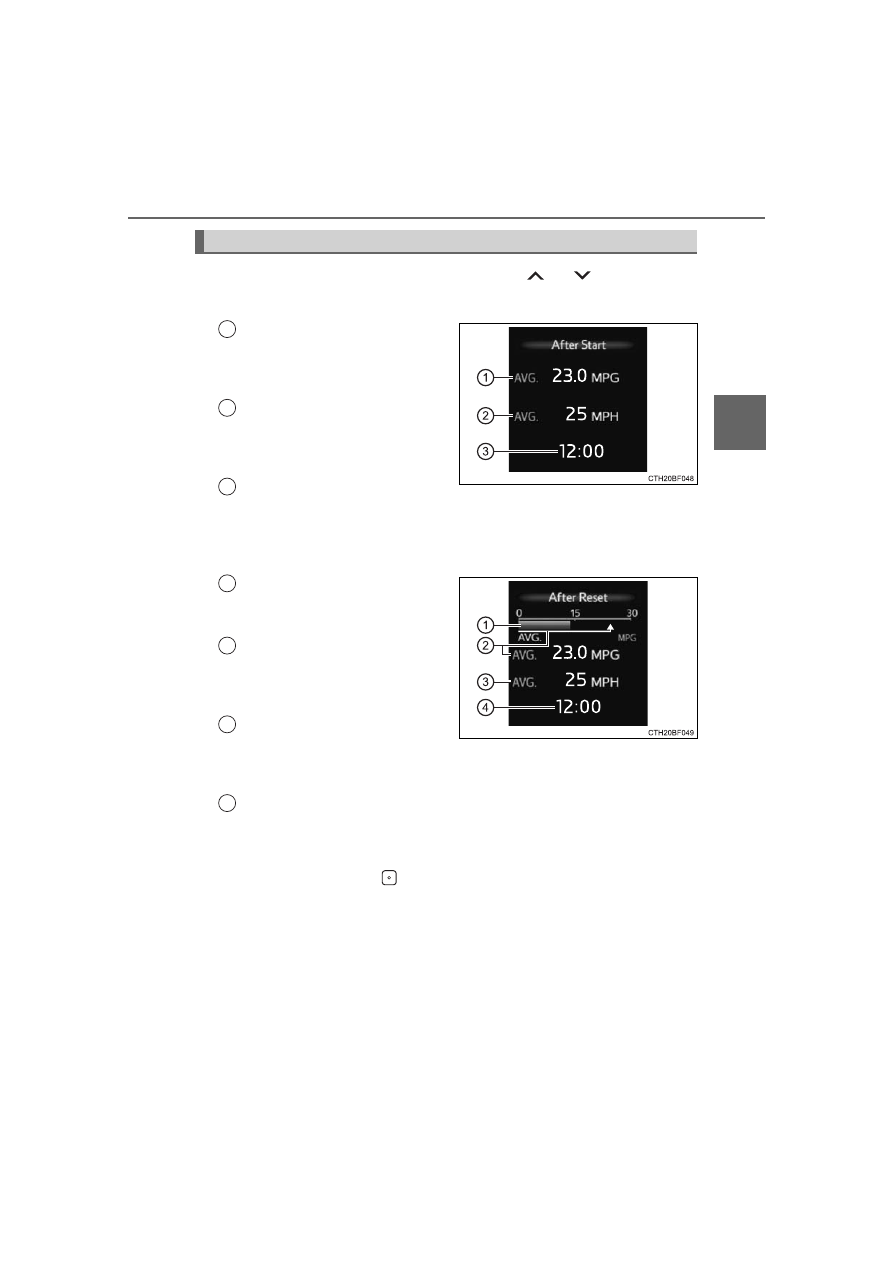

After Start

Average fuel economy

*

Displays  the  average  fuel  con-
sumption  since  the  engine  was
started.

Average vehicle speed

Displays  the  average  vehicle
speed  since  the  engine  was
started.

Elapsed time

Displays the elapsed time since the engine was started.

*

: Use the displayed average fuel economy as a reference.

■

After Reset

Current fuel economy

Displays the current rate of fuel
consumption.

Average fuel economy

*

1,2

Displays  the  average  fuel  con-
sumption since the function was
reset.

Average speed

*

2

Displays  the  average  vehicle
speed  since  the  function  was
reset.

Elapsed time

*

2

Displays the elapsed time since the function was reset.

*

1

: Use the displayed average fuel economy as a reference.

*

2

: Pressing and holding

 will reset.

Drive information

1

2

3

1

2

3

4

94

2. Instrument cluster

4RUNNER (U)

■

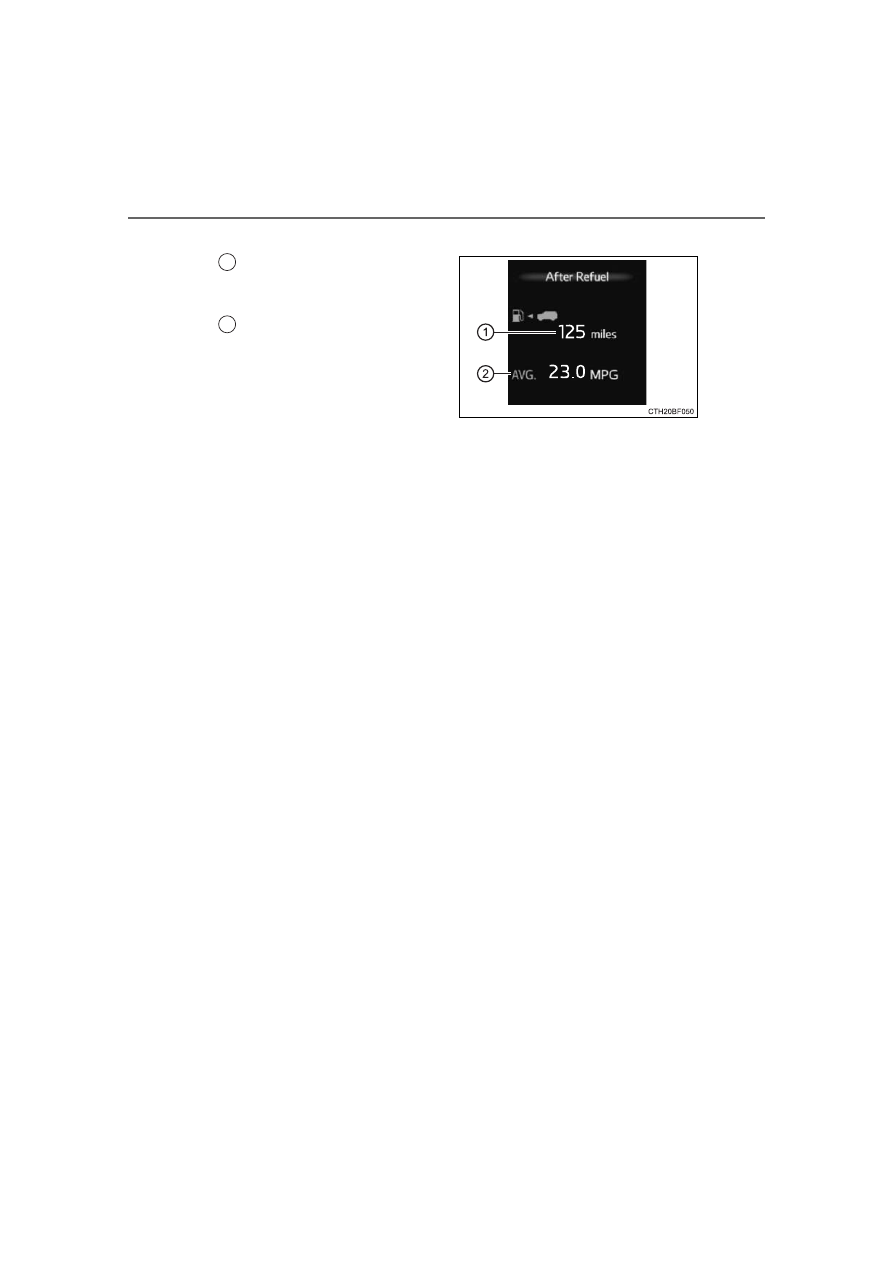

After Refuel

Range

*

1,2

Displays  the  driving  range  with
remaining fuel.

Average fuel economy

*

2,3

Displays  the  average  fuel  con-
sumption  since  the  vehicle  was
refueled.

*

1

: This  distance  is  computed

based on your average fuel con-
sumption. As a result, the actual
distance that can be driven may
differ from that displayed.

*

2

: When only a small amount of fuel is added to the tank, the display may

not be updated. When refueling, turn the engine switch off. If the vehicle
is refueled without turning the engine switch off, the display may not be
updated.

*

3

: Use the displayed average fuel economy as a reference.

■

Eco Indicator (Eco Driving Indicator Zone Display)



P. 97

■

Speed

Displays the vehicle speed.

■

Vehicle sway warning

Detects the sway of the vehicle within a lane, which is often associ-
ated with a decrease in the driver’s attention level, and displays the
decrease in attention using a bar display.
The shorter the bar length, the more the driver may need to rest.

This display is a part of the LDA (Lane Departure Alert) system. The dis-
play is enabled when the operating conditions of the vehicle sway warn-
ing function are met. (



P. 265)

■

Blank screen (display off)

Drive information is not displayed.

1

2

95

2. Instrument cluster

2

Instru

me
nt clu

ster

4RUNNER (U)

Items displayed can be switched by pressing

 or

 up and down.

■

Steering angle

Displays the direction of the front tires.

The tire direction is displayed in 3 stages for both left and right, in accor-
dance with the angle of the tire.
If a battery terminal is disconnected and reconnected, the display may
be disabled temporarily. After driving the vehicle for a while, the display
will be enabled.

■

Tire inflation pressure

Displays inflation pressure of each tire.

The inflation pressure of the spare tire will be displayed. (if equipped)

The  settings  of  some  features  can  be  changed  by  using  the  meter
control switches.

■

Setting procedure

On the setting screen, choose the desired item using

 or

,

and then press

.

• For functions that can be enabled or disabled, the function switches

between on and off each time

 is pressed.

• For  functions  that  allow  to  select  operation  contents,  display  con-

tents, etc., the setting screen is displayed.

Select  the  desired  setting  by  operating

  or

,  and  then

press

.

To stop the selection, press

 to return to the previous screen.

Vehicle information

Settings display

1

2

96

2. Instrument cluster

4RUNNER (U)

■

Setting items

●

 LDA (Lane Departure Alert)

Select to set up LDA. (



P. 558)

• Alert sensitivity
• Sway warning
• Sway sensitivity

●

 PCS (Pre-Collision System)

Select to set the following items. (



P. 257)

• PCS on/off
• PCS sensitivity

●



Intuitive parking assist (if equipped)

Select to set the Intuitive parking assist on/off

●

Vehicle settings
“TPWS” (Tire Pressure Warning System) (



P. 423)

• “Set Pressure”

Select to initialize the tire pressure warning system.

• “Change Wheel Set”

Select to register the ID codes of the tire pressure sensors to
the tire pressure warning system.3

●

Meter settings (



P. 557)

Select to set the following items.

• Language

Select to change the language on the display.

• Units

Select to change the unit for measure.

•

 Eco Driving Indicator Light

Select to activate/deactivate the Eco Driving Indicator Light.
(



P. 97)

•

 switch settings

You can register 1 screen as the top screen. To register, press

and hold

 while the desired screen is displayed.

• Pop-up display

Select to set the pop-up displays (



P. 98), which may appear

in some situations, on/off.

• Initialization

Select to reset the meter display settings.

97

2. Instrument cluster

2

Instru

me
nt clu

ster

4RUNNER (U)

■

Multi-terrain Select display

*

 (if equipped)



P. 314

■

Crawl Control display

*

 (if equipped)



P. 311

■

Outside temperature display

Displays the outside temperature

The temperature range that can be displayed is from -40 °F (-40 °C) to
122 °F (50 °C).
When  the  outside  temperature  drops  below  37  °F  (3  °C),

  will

flash approximately 10 seconds, then stay on.

■

Customization

Settings (e.g. available language) can be changed.
(Customizable features:



P. 547)

*

: Automatically displayed when the system is used

■

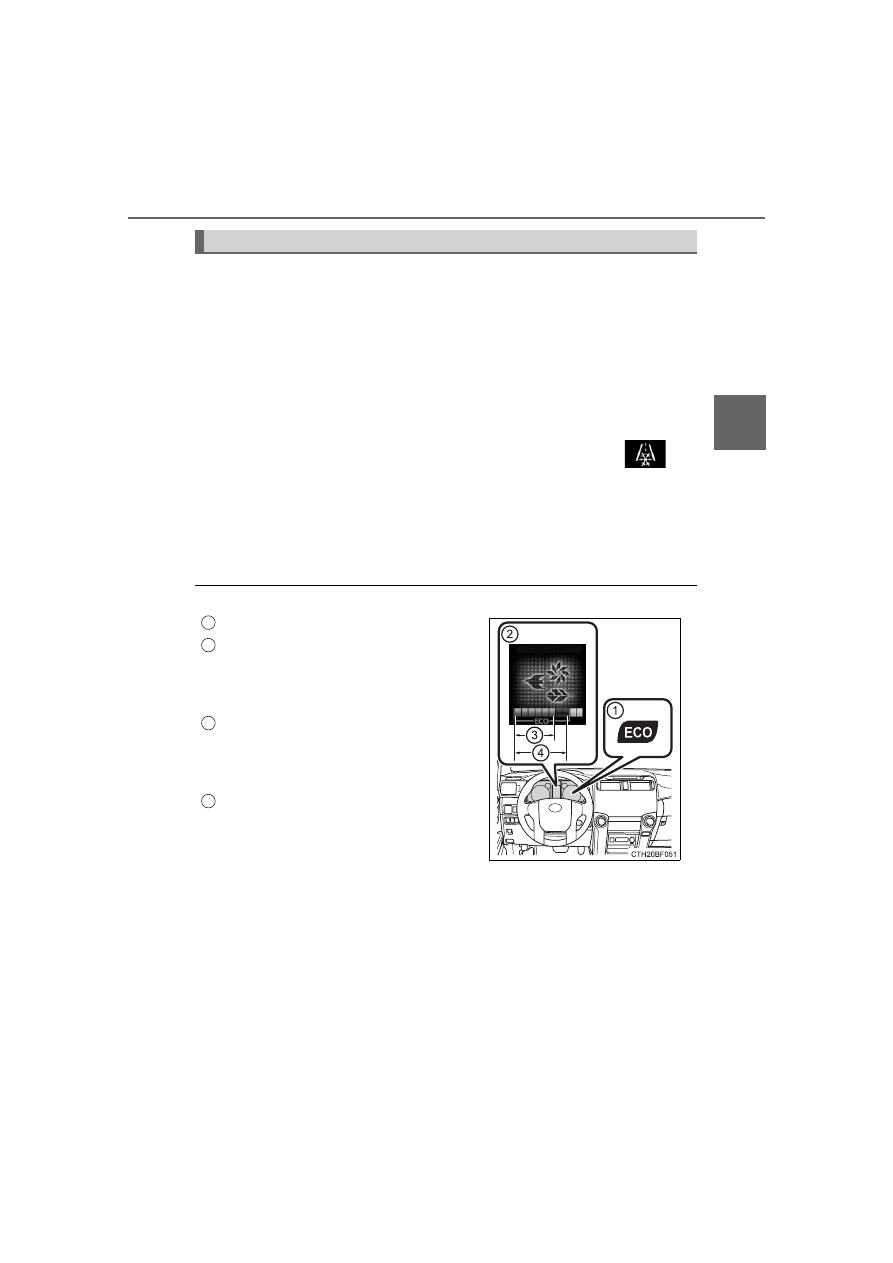

Eco Driving Indicator

Other contents

Eco Driving Indicator Light
Eco Driving Indicator Zone Display
Suggests  the  Zone  of  Eco  driving  with
current  Eco  driving  ratio  based  on
acceleration.
Eco driving ratio based on acceleration
If the acceleration exceeds Zone of Eco
driving,  the  right  side  of  Eco  Driving
Indicator Zone Display will illuminate.
Zone of Eco driving
Eco  Driving  Indicator  will  not  operate
under the following conditions:
• The shift lever is in any position other

than D.

• The  vehicle  speed  is  approximately

80 mph (130 km/h) or higher.

• The  Crawl  Control  is  operating.  (if

equipped) (



P. 311)

1

2

3

4

98

2. Instrument cluster

4RUNNER (U)

■

Pop-Up display

The pop-up display is displayed on the multi-information display according to
the operating conditions of the following functions:

●

Route guidance display of the navigation system-linked system (if equipped)

●

Incoming call display of the hands-free phone system

The pop-up display function can be disabled.

■

Tire inflation pressure

●

It  may  take  a  few  minutes  to  display  the  tire  inflation  pressure  after  the
engine switch is turned to IGNITION ON mode. It may also take a few min-
utes  to  display  the  tire  inflation  pressure  after  inflation  pressure  has  been
adjusted.

●

“---”  may  be  displayed  if  the  tire  information  cannot  be  determined  due  to
unfavorable radio wave conditions.

●

Tire inflation pressure changes with temperature. The displayed values may
also be different from the values measured using a tire pressure gauge.

■

Outside temperature display

In  the  following  situations,  the  correct  outside  temperature  may  not  be  dis-
played, or the display may take longer than normal to change:

●

When the vehicle is stopped, or moving at low speeds (less than 12 mph [20
km/h])

●

When the outside temperature has changed suddenly (at the entrance/exit
of a garage, tunnel, etc.)

●

When “--” or “E” is displayed, the system may be malfunctioning. Take your
vehicle to Toyota dealer.

■

Liquid crystal display

Small  spots  or  light  spots  may  appear  on  the  display. This  phenomenon  is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.

99

2. Instrument cluster

2

Instru

me
nt clu

ster

4RUNNER (U)

WARNING

■

Caution for use while driving

For safety, avoid operating the meter control switches while driving as much
as  possible,  and  do  not  look  continuously  at  the  multi-information  display
while driving. Stop the vehicle and operate the meter control switches. Fail-
ure  to  do  so  may  cause  a  steering  wheel  operation  error,  resulting  in  an
unexpected accident.

■

Cautions while setting up the display

As the engine needs to be running during setting up the display, ensure that
the vehicle is parked in a place with adequate ventilation. In a closed area
such as a garage, exhaust gases including harmful carbon monoxide (CO)
may  collect  and  enter  the  vehicle.  This  may  lead  to  death  or  a  serious
health hazard.

■

The multi-information display at low temperatures

Allow the interior of the vehicle to warm up before using the multi-informa-
tion  display. At  extremely  low  temperatures,  the  multi-information  display
monitor may respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear
number appearing on the display. This lag could cause the driver to down-
shift  again,  causing  rapid  and  excessive  engine  braking  and  possibly  an
accident resulting in death or serious injury.

NOTICE

■

While setting up the display

To prevent battery discharge, ensure that the engine is running while setting
up the display features.

100

2. Instrument cluster

4RUNNER (U)

101

Operation of

each component

3

4RUNNER (U)

3-1.  Key information

Keys .................................. 102
Side doors......................... 110

3-2.  Opening, closing and

locking the doors

Smart key system ............. 118
Automatic running

boards............................. 128

Back door.......................... 131

3-3.  Adjusting the seats

Front seats ........................ 136
Rear seats......................... 139
Driving position

memory........................... 149

Head restraints.................. 153

3-4.  Adjusting the steering

wheel and mirrors

Steering wheel .................. 156
Inside rear view mirror ...... 158
Outside rear view

mirrors............................. 160

3-5.  Opening, closing

the windows
and moon roof

Power windows ................. 162
Power back window .......... 166
Moon roof.......................... 170

102

4RUNNER (U)

3-1. Key information



Vehicles without a smart key system

Master keys

Operating the wireless remote con-
trol function

Valet key
Key number plate



Vehicles with a smart key system

The following keys are provided with the vehicle.

Electronic keys

• Operating the smart key system

(



P. 118)

• Operating  the  wireless  remote

control function

Mechanical keys
Key number plate

Keys

The keys

1

2

3

1

2

3

103

3-1. Key information

3

Op
eration

 o

f each

 compo

nen
t

4RUNNER (U)



Vehicles without a smart key system

Locks all the doors (



P. 110)

Unlocks all the doors (



P. 110)

Pressing  the  button  unlocks  the
driver’s  door.  Pressing  the  button
again within 3 seconds unlocks the
other doors.

Opens  the  windows  and  moon
roof (press and hold)

*

Sounds the alarm
(press and hold) (



P. 104)

*

: This setting must be customized at your Toyota dealer.



Vehicles with a smart key system

Locks all the doors (



P. 110)

Unlocks all the doors (



P. 110)

Pressing  the  button  unlocks  the
driver’s  door.  Pressing  the  button
again within 3 seconds unlocks the
other doors.

Opens  the  windows  and  moon
roof (press and hold)

*

Sounds the alarm
(press and hold) (



P. 104)

*

: This setting must be customized at your Toyota dealer.

Wireless remote control (if equipped)

1

2

3

4

1

2

3

4
