72

1-2. Emergency assistance

4RUNNER (U)

■

Safety Connect Services Information

●

Phone  calls  using  the  vehicles  Bluetooth

®

  technology  will  not  be  possible

when Safety Connect is active and in use.

●

Safety Connect is available beginning Fall 2009 on select Toyota models (in
the  contiguous  United  States  only).  Contact  with  the  Safety  Connect
response center is dependent upon the telematics device being in operative
condition, cellular connection availability, and GPS satellite signal reception,
which  can  limit  the  ability  to  reach  the  response  center  or  receive  emer-
gency  service  support.  Enrollment  and  Telematics  Subscription  Service
Agreement  required. A  variety  of  subscription  terms  is  available;  charges
vary by subscription term selected and location.

●

Automatic Collision Notification, Emergency Assistance and Stolen Vehicle
Location  are  available  in  the  United  States,  including  Hawaii  and Alaska,
Puerto Rico and Canada, and Enhanced Roadside Assistance are available
in the United States, Puerto Rico and Canada.

●

Automatic Collision Notification, Emergency Assistance, Stolen Vehicle and
Enhanced Road Assistance are not available in the U.S. Virgin Islands.
For vehicles first sold in the U.S. Virgin Islands, no Safety Connect services
will function in or outside the U.S. Virgin Islands.

●

Safety Connect services are not subject to section 255 of the Telecommuni-
cations Act and the device is not TTY compatible.

■

Languages

The Safety Connect response center will offer support in multiple languages.
The Safety Connect system will offer voice prompts in English, Spanish, and
French. Please indicate your language of choice when enrolling.

■

When contacting the response center

You may be unable to contact the response center if the network is busy.

When the engine switch is turned to the “ON” position (vehicles with-
out a smart key system) or the engine switch is turned to IGNITION
ON mode (vehicles with a smart key system), the red indicator light
comes on for 2 seconds then turns off. Afterward, the green indicator
light comes on, indicating that the service is active.
The  following  indicator  light  patterns  indicate  specific  system  usage
conditions:

●

Green indicator light on = Active service

●

Green indicator light flashing = Safety Connect call in process

●

Red indicator light (except at vehicle start-up) = System malfunction
(contact your Toyota dealer)

●

No indicator light (off) = Safety Connect service not active

Safety Connect LED light Indicators

73

1-2. Emergency assistance

1

Fo
r safety and securi

ty

4RUNNER (U)

■

Automatic Collision Notification

In case of either airbag deployment or severe rear-end collision, the
system is designed to automatically call the response center. The
responding  agent  receives  the  vehicle’s  location  and  attempts  to
speak with the vehicle occupants to assess the level of emergency.
If  the  occupants  are  unable  to  communicate,  the  agent  automati-
cally  treats the call  as  an  emergency,  contacts  the  nearest emer-
gency services provider to describe the situation, and requests that
assistance be sent to the location.

■

Stolen Vehicle Location

If your vehicle is stolen, Safety Connect can work with local author-
ities to assist them in locating and recovering the vehicle. After filing
a police report, call the Customer Experience Center at 1-800-331-
4331 in the United States, 1-877-855-8377 in Puerto Rico or 1-888-
869-6828 in Canada, and follow the prompts for Safety Connect to
initiate this service.
In  addition  to assisting law enforcement with  recovery of  a stolen
vehicle, Safety-Connect-equipped vehicle location data may, under
certain  circumstances,  be  shared  with  third  parties  to  locate  your
vehicle. Further information is available at Toyota.com in the United
States, Toyotapr.com in Puerto Rico and Toyota.ca in Canada.

■

Emergency Assistance Button (“SOS”)

In the event of an emergency on the road, push the “SOS” button to
reach  the  Safety  Connect  response  center.  The  answering  agent
will determine your vehicle’s location, assess the emergency, and
dispatch the necessary assistance required.

If  you  accidentally  press  the  “SOS”  button,  tell  the  response-center
agent that you are not experiencing an emergency.

Safety Connect services

74

1-2. Emergency assistance

4RUNNER (U)

■

Enhanced Roadside Assistance

Enhanced  Roadside  Assistance  adds  GPS  data  to  the  already
included warranty-based Toyota roadside service.
Subscribers can press the “SOS” button to reach a Safety Connect
response-center agent, who can help with a wide range of needs,
such as: towing, flat tire, fuel delivery, etc. For a description of the
Enhanced  Roadside  Assistance  services  and  their  limitations,
please  see  the  Safety  Connect  Terms  and  Conditions,  which  are
available  at  Toyota.com  in  the  United  States,  Toyotapr.com  in
Puerto Rico and Toyota.ca in Canada.

Important! Read this information before using Safety Connect.

■

Exposure to radio frequency signals

The Safety Connect system installed in your vehicle is a low-power
radio transmitter and receiver. It receives and also sends out radio
frequency (RF) signals.
In August  1996,  the  Federal  Communications  Commission  (FCC)
adopted RF exposure guidelines with safety levels for mobile wire-
less phones. Those guidelines are consistent with the safety stan-
dards  previously  set  by  the  following  U.S.  and  international
standards bodies.

●

ANSI (American National Standards Institute) C95.1 [1992]

●

NCRP (National  Council  on  Radiation  Protection  and Measure-
ment) Report 86 [1986]

●

ICNIRP  (International  Commission  on  Non-Ionizing  Radiation
Protection) [1996]

Those standards were based on comprehensive and periodic eval-
uations of the relevant scientific literature. Over 120 scientists, engi-
neers,  and  physicians  from  universities,  and  government  health
agencies and industries reviewed the available body of research to
develop the ANSI Standard (C95.1).
The design of Safety Connect complies with the FCC guidelines in
addition to those standards.

Safety information for Safety Connect

75

1-2. Emergency assistance

1

Fo
r safety and securi

ty

4RUNNER (U)

■

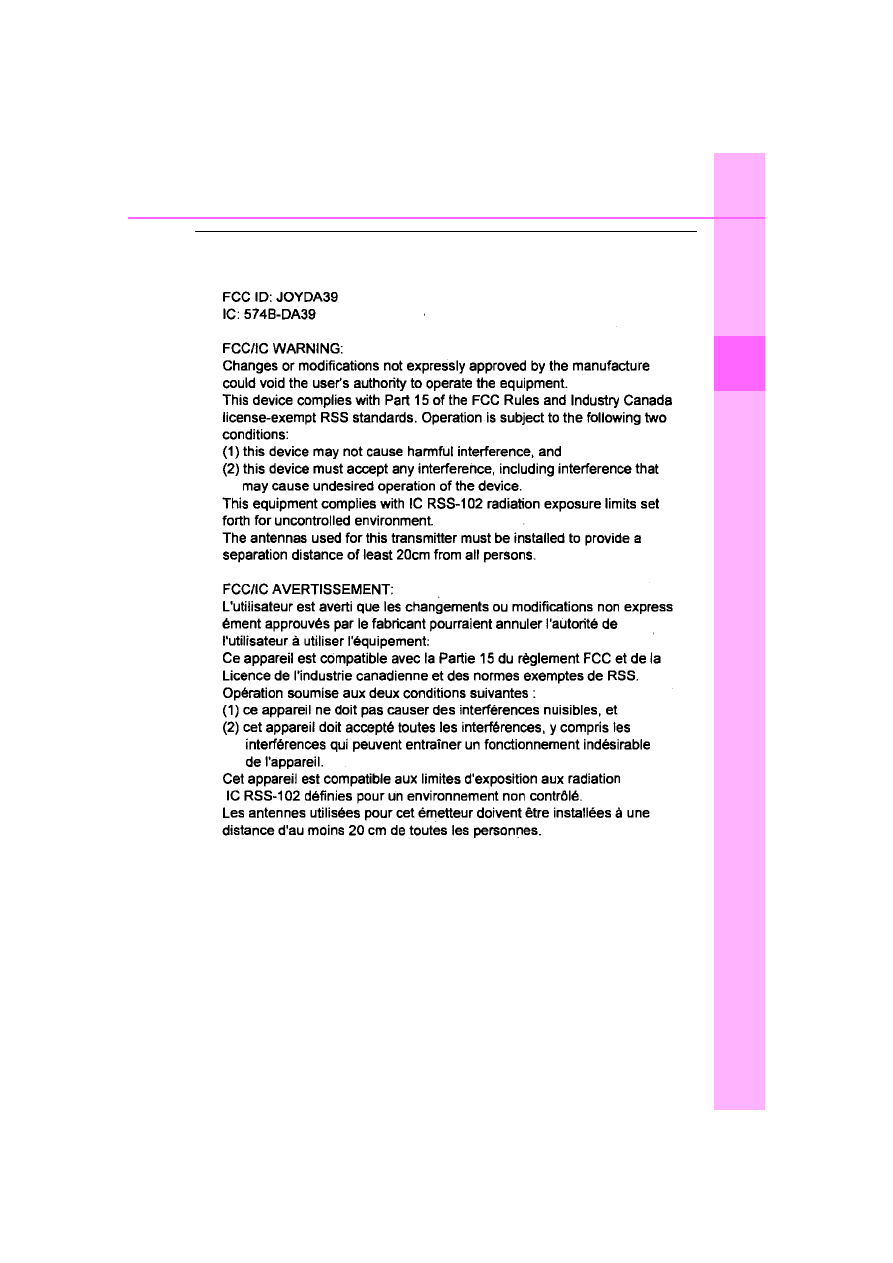

Certification for Safety Connect

76

4RUNNER (U)

1-3. Theft deterrent system



Vehicles without a smart key system

The  indicator  light  flashes  after
the  key  has  been  removed  from
the  engine  switch  to  indicate  that
the system is operating.
The  indicator  light  stops  flashing
after the registered key has been
inserted into the engine switch to
indicate that the system has been
canceled.



Vehicles with a smart key system

The indicator light flashes after the engine switch has been turned off
to indicate that the system is operating.
The  indicator  light  stops  flashing  after  the  engine  switch  has  been
turned  to ACCESSORY  or  IGNITION  ON  mode  to  indicate  that  the
system has been canceled.

■

System maintenance

The vehicle has a maintenance-free type engine immobilizer system.

■

Conditions that may cause the system to malfunction

●

If the grip portion of the key is in contact with a metallic object

●

If the key is in close proximity to or touching a key to the security system
(key with a built-in transponder chip) of another vehicle

Engine immobilizer system

The vehicle’s keys have built-in transponder chips that prevent
the engine from starting if a key has not been previously regis-
tered in the vehicle’s on-board computer.
Never leave the keys inside the vehicle when you leave the vehi-
cle.
This system is designed to help prevent vehicle theft but does
not guarantee absolute security against all vehicle thefts.

77

1-3. Theft deterrent system

1

Fo
r safety and securi

ty

4RUNNER (U)

■

Certifications  for  the  engine  immobilizer  system  (vehicles  without  a
smart key system)



For vehicles sold in the U.S.A.



For vehicles sold in Canada

78

1-3. Theft deterrent system

4RUNNER (U)

■

Certifications for the engine immobilizer system (vehicles with a smart
key system)



For vehicles sold in the U.S.A.



For vehicles sold in Canada

WARNING

■

Certifications for the engine immobilizer system

Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.

NOTICE

■

To ensure the system operates correctly

Do  not  modify  or  remove  the  system.  If  modified  or  removed,  the  proper
operation of the system cannot be guaranteed.

79

1-3. Theft deterrent system

1

Fo
r safety and securi

ty

4RUNNER (U)

The alarm uses light and sound to give an alert when an intrusion is
detected.
The  alarm  is  triggered  in  the  following  situations  when  the  alarm  is
set:

●

A locked door is unlocked or opened in any way other than using
the entry function, wireless remote control or mechanical key. (The
doors will lock again automatically.)

●

The hood is opened.

●

The battery is reconnected.

Close  the  doors  and  hood,  and
lock all the doors. The system will
be set automatically after 30 sec-
onds.

The  indicator  light  changes  from
being on to flashing when the sys-
tem is set.

Do one of the following to deactivate or stopping the alarms:

●

Unlock the doors.

●

Vehicles  without  a  smart  key  system:  Turn  the  engine  switch  to
“ACC” or “ON” position, or start the engine. (The alarm will be deac-
tivated or stopped after a few seconds.)

●

Vehicles  with  a  smart  key  system:  Turn  the  engine  switch  is  in
ACCESSORY  or  IGNITION  ON  mode,  or  start  the  engine.  (The
alarm will be deactivated or stopped after a few seconds.)

Alarm





: If equipped

The alarm

Setting the alarm system

Deactivating or stopping the alarm

80

1-3. Theft deterrent system

4RUNNER (U)

■

System maintenance

The vehicle has a maintenance-free type alarm system.

■

Items to check before locking the vehicle

To prevent unexpected triggering of the alarm and vehicle theft, make sure of
the following:

●

Nobody is in the vehicle.

●

The windows and moon roof are closed before the alarm is set.

●

No valuables or other personal items are left in the vehicle.

■

Triggering of the alarm

The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.)

■

Alarm-operated door lock

●

When the alarm is operating, the doors are locked automatically to prevent
intruders.

●

Do  not  leave  the  key  inside  the  vehicle  when  the  alarm  is  operating,  and
make sure the key is not inside the vehicle when recharging or replacing the
battery.

●

A person inside the vehicle opens a door
or the hood.

●

The  battery  is  recharged  or  replaced
when the vehicle is locked.

NOTICE

■

To ensure the system operates correctly

Do  not  modify  or  remove  the  system.  If  modified  or  removed,  the  proper
operation of the system cannot be guaranteed.

81

Instrument cluster

2

4RUNNER (U)

2.

Instrument cluster

Warning lights and

indicators .......................... 82

Gauges and meters ............ 88
Multi-information display ..... 90

82

4RUNNER (U)

2. Instrument cluster

The  units  used  on  the  speedometer  and  some  indicators  may  differ
depending on where the vehicle is sold.

Warning lights and indicators

The warning lights and indicators on the instrument cluster and
center panel inform the driver of the status of the vehicle’s vari-
ous systems.
For  the  purpose  of  explanation,  the  following  illustration  dis-
plays all warning lights and indicators illuminated.

83

2. Instrument cluster

2

Instru

me
nt clu

ster

4RUNNER (U)

Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.

Warning lights

*

1

(U.S.A.)

Brake  system  warning
light (



P. 477)

*

1

Slip indicator (



P. 478)

*

1

(Canada)

Brake  system  warning
light (



P. 477)

*

3

(if equipped)

Four-wheel  drive  indica-
tor light (



P. 479)

*

5

High  coolant  tempera-
ture warning light
(



P. 477)

*

3

(if equipped)

Low  speed  four-wheel
drive indicator light
(



P. 479)

*

1

Charging  system  warn-
ing light (



P. 477)

*

3

(if equipped)

Rear  differential  lock
indicator light (



P. 478)

*

1

(U.S.A.)

Malfunction

indicator

lamp (



P. 478)

*

3

(if equipped)

Center  differential  lock
indicator light (



P. 479)

*

1

(Canada)

Malfunction

indicator

lamp (



P. 478)

*

2, 4, 5

(if equipped)

Multi-terrain  Select  indi-
cator light (



P. 479)

*

1

SRS warning light
(



P. 478)

*

5

Brake  Override  System/
Drive-Start

Control/

warning light (



P. 480)

*

1

(U.S.A.)

ABS warning light
(



P. 478)

(U.S.A.)

Parking brake indicator
(



P. 480)

*

1

(Canada)

ABS warning light
(



P. 478)

(Canada)

Parking brake indicator
(



P. 480)

84

2. Instrument cluster

4RUNNER (U)

*

1

: These  lights  turn  on  when  the  engine  switch  is  turned  to  IGNITION  ON

mode (vehicles with a smart key system) or the engine switch is turned to
the “ON” position (vehicles without a smart key system) to indicate that a
system  check  is  being  performed.  They  will  turn  off  after  the  engine  is
started, or after a few seconds. There may be a malfunction in a system if
the lights do not come on, or do not turn off. Have the vehicle inspected by
your Toyota dealer.

*

2

: This light flashes to indicate a malfunction.

*

3

: This light flashes rapidly to indicate a malfunction.

*

4

: This light flashes continuously to indicate a malfunction.

*

5

: This light illuminates on the multi-information display.

*

6

: This light flashes or illuminates to indicate a malfunction.

*

1, 6

PCS warning light
(



P. 480)

*

1

Power  steering  warning
light (



P. 479)

*

5

(Amber)

LDA indicator (



P. 481)

*

1

Master warning light
(



P. 487)

Open door warning light
(



P. 479)

*

1

Tire  pressure  warning
light (



P. 481)

Low  fuel  level  warning
light (



P. 480)

(if equipped)

Unengaged “Park” warn-
ing light (



P. 479)

Seat  belt  reminder  light
(



P. 480)

*

1

(if equipped)

KDSS

warning

light

(



P. 479)

*

5

Low  engine  oil  pressure
warning light (



P. 477)

*

1, 2

(if equipped)

Automatic

running

boards  indicator  light
(



P. 479)

85

2. Instrument cluster

2

Instru

me
nt clu

ster

4RUNNER (U)

The indicators inform the driver of the operating state of the vehicle’s
various systems.

Indicators

Turn signal indicator
(



P. 223)

*

1

“TRAC OFF” indicator
(



P. 323)

(U.S.A.)

Headlight indicator
(



P. 225)

*

1, 2



Slip indicator (



P. 322)

(Canada)

Tail light indicator
(



P. 225)

*

1

VSC OFF indicator
(



P. 323)

Headlight  high  beam
indicator (



P. 228)

Automatic High Beam
indicator (



P. 231)

Front fog light indicator
(



P. 235)

*

5

Cruise control indicator
(



P. 273)

*

4

Security indicator
(



P. 76, 79)

*

5

Dynamic radar cruise
control indicator
(



P. 273)

*

1, 3

Eco  Driving  Indicator
Light (



P. 97)

*

5

Cruise control set indica-
tor (



P. 273)

(U.S.A.)

Parking brake indicator
(



P. 224)

*

1, 6

PCS warning light
(



P. 254)

(Canada)

Parking brake indicator
(



P. 224)

“AIR BAG
ON/OFF”
indicator
(



P. 46)

*

1, 4

(U.S.A.)

“AIR BAG
ON/OFF”
indicator
(



P. 46)

*

1, 4

(Canada)

86

2. Instrument cluster

4RUNNER (U)

*

1

: These lights turn on when the engine switch is turned to the “ON” position

(vehicles  without  a  smart  key  system)  or  the  engine  switch  is  turned  to
IGNITION ON mode (vehicles with a smart key system) to indicate that a
system  check  is  being  performed.  They  will  turn  off  after  the  engine  is
started, or after a few seconds. There may be a malfunction in a system if
the lights do not come on, or do not turn off. Have the vehicle inspected by
your Toyota dealer.

*

2

: This light flashes to indicate that the system is operating.

*

3

: This light does not turn on when the system is disabled.

*

4

: This light illuminates on the center panel.

*

5

: This light illuminates on the multi-information display.

*

6

: This light turns on when the system is off.

*

5

(Green)

LDA indicator (



P. 265)

(if equipped)

“A-TRAC” indicator
(



P. 301)

*

2, 5

(Amber)

LDA indicator (



P. 265)

*

1

(if equipped)

“AUTO  LSD”  indicator
(



P. 303)

(if equipped)

Four-wheel  drive  indica-
tor (



P. 293)

*

5

(if equipped)

Multi-terrain  Select  indi-
cator (



P. 314)

*

1

(if equipped)

Downhill  assist  control
system indicator
(



P. 308)

*

5

(if equipped)

Crawl Control indicator
(



P. 311)

(if equipped)

Low  speed  four-wheel
drive indicator
(



P. 293, 297)

(if equipped)

Intuitive  parking  assist
indicator (



P. 286)

(if equipped)

Rear  differential  lock
indicator (



P. 305)

*

1, 2

(if equipped)

Automatic

running

boards indicator
(



P. 128)

(if equipped)

Center  differential  lock
indicator (



P. 297)

87

2. Instrument cluster

2

Instru

me
nt clu

ster

4RUNNER (U)

WARNING

■

If a safety system warning light does not come on

Should a  safety  system light  such as  the ABS and  SRS  warning  light  not
come on when you start the engine, this could mean that these systems are
not available to help protect you in an accident, which could result in death
or serious injury. Have the vehicle inspected by your Toyota dealer immedi-
ately if this occurs.
