3-4. Adjusting the steering wheel and mirrors

3

Opera

tion of e

ach compon

ent

The height of the rear view mirror can be adjusted to suit your driving
posture.
Adjust the height of the rear view
mirror by moving it up and down.

Responding  to  the  level  of  brightness  of  the  headlights  of  vehicles
behind, the reflected light is automatically reduced.

Changing automatic anti-glare function mode
On/off

When the automatic anti-glare function is in ON mode, the indicator illumi-
nates.
The function will set to ON mode each time the engine switch is turned to
IGNITION ON mode.
Pressing  the  button  turns  the  function  to  OFF  mode.  (The  indicator  also
turns off.)

Inside rear view mirror

The rear view mirror’s position can be adjusted to enable suffi-
cient confirmation of the rear view.

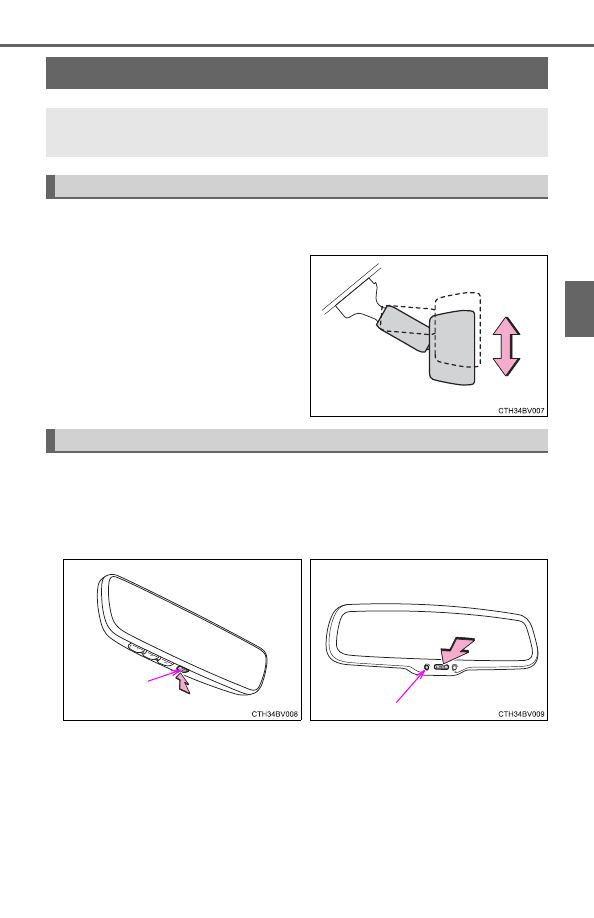

Adjusting the height of rear view mirror

Anti-glare function

Vehicles  with  garage  door
opener

Vehicles  without  garage  door
opener

Indicator

Indicator

146

3-4. Adjusting the steering wheel and mirrors

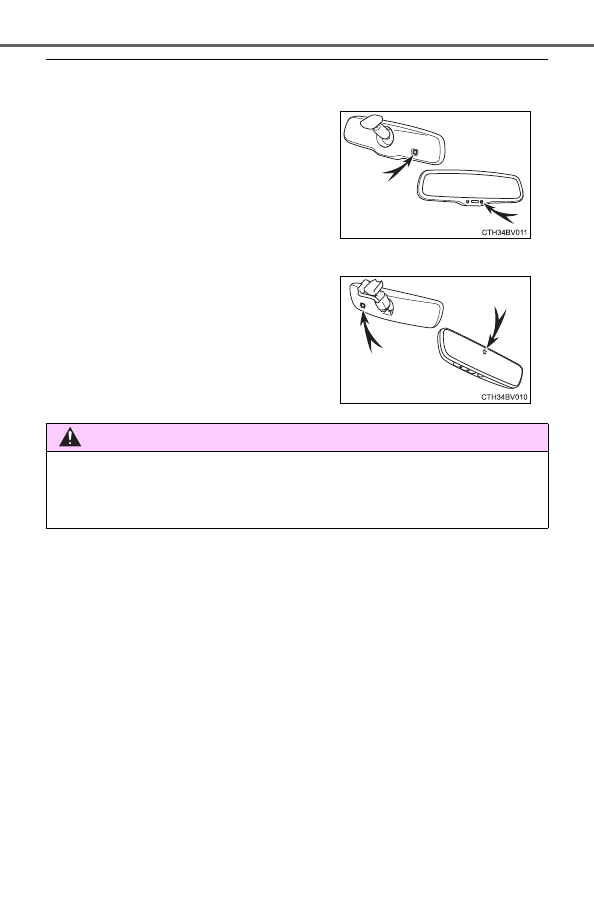

To prevent sensor error

Vehicles without garage door opener

Vehicles with garage door opener

To ensure that the sensors operate prop-
erly, do not touch or cover them.

To ensure that the sensors operate prop-
erly, do not touch or cover them.

WARNING

Do not adjust the position of the mirror while driving.
Doing  so  may  lead  to  mishandling  of  the  vehicle  and  cause  an  accident,
resulting in death or serious injury.

147

3-4. Adjusting the steering wheel and mirrors

3

Opera

tion of e

ach compon

ent

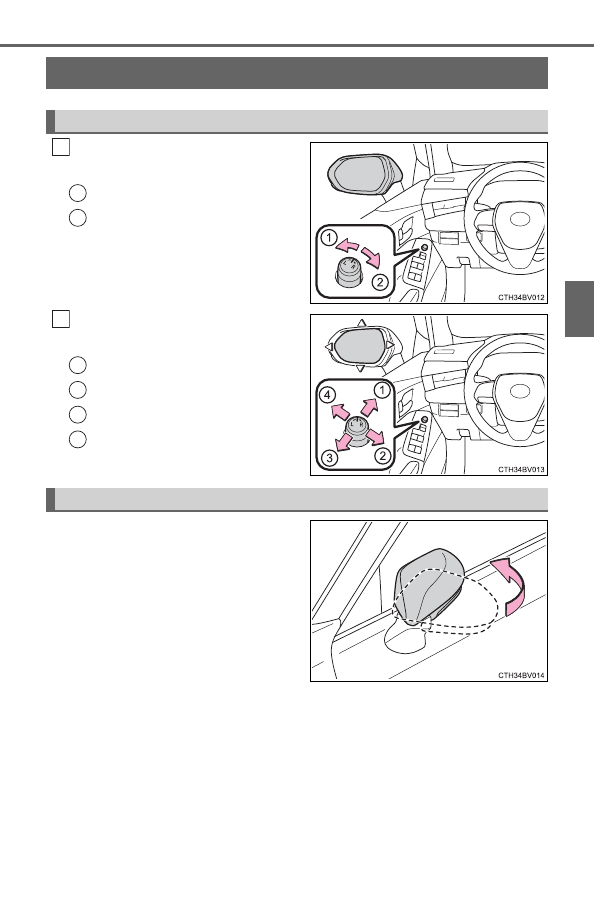

To select a mirror to adjust, turn
the switch.

Left
Right

To adjust the mirror, operate the
switch.

Up
Right
Down
Left

Push the mirror back in the direc-
tion of the vehicle’s rear.

Outside rear view mirrors

Adjustment procedure

1

1
2

2

1
2
3
4

Folding the mirrors

148

3-4. Adjusting the steering wheel and mirrors

When the mirror select switch is in the “L” or “R” position, the outside
rear view mirrors will automatically angle downwards when the vehicle
is reversing in order to give a better view of the ground.
To disable this function, select neither “L” nor “R” of the mirror select
switch.

Adjusting the mirror angle when the vehicle is reversing
With the shift lever in R, adjust the mirror angle at a desired posi-
tion.
The adjusted angle will be memorized and the mirror will automati-
cally tilt to the memorized angle whenever the shift lever is shifted
to R from next time.

The memorized downward tilt position of the mirror is linked to the nor-
mal position (angle adjusted with the shift lever in other than R). There-
fore, if the normal position is changed after adjustment, the tilt position
will also change.
When the normal position is changed, readjust the angle in reversing.

Mirror angle can be adjusted when
The engine switch is in ACCESSORY or IGNITION ON mode.

When the mirrors are fogged up
The outside rear view mirrors can be cleared using the mirror defoggers. Turn
on the rear window defogger to turn on the outside rear view mirror defog-
gers. (

 P. 312)

Automatic adjustment of the mirror angle (vehicles with driving position
memory)
A desired mirror face angle can be entered to memory and recalled automati-
cally by the driving position memory. (

P. 136)

Auto anti-glare function (if equipped)
When the anti-glare inside rear view mirror is set to automatic mode, the out-
side  rear  view  mirrors  will  activate  in  conjunction  with  the  anti-glare  inside
rear view mirror to reduce reflected light. (

P. 145)

Customization
Some functions can be customized. (

P. 491)

Linked  mirror  function  when  reversing  (vehicles  with  driving
position memory)

149

3-4. Adjusting the steering wheel and mirrors

3

Opera

tion of e

ach compon

ent

WARNING

Important points while driving
Observe the following precautions while driving.
Failure to do so may result in loss of control of the vehicle and cause an
accident, resulting in death or serious injury.

Do not adjust the mirrors while driving.

Do not drive with the mirrors folded.

Both the driver and passenger side mirrors must be extended and properly
adjusted before driving.

When a mirror is moving
To avoid personal injury and mirror malfunction, be careful not to get your
hand caught by the moving mirror.

When the mirror defoggers are operating
Do not touch the rear view mirror surfaces, as they can become very hot
and burn you.

150

3-5. Opening and closing the windows

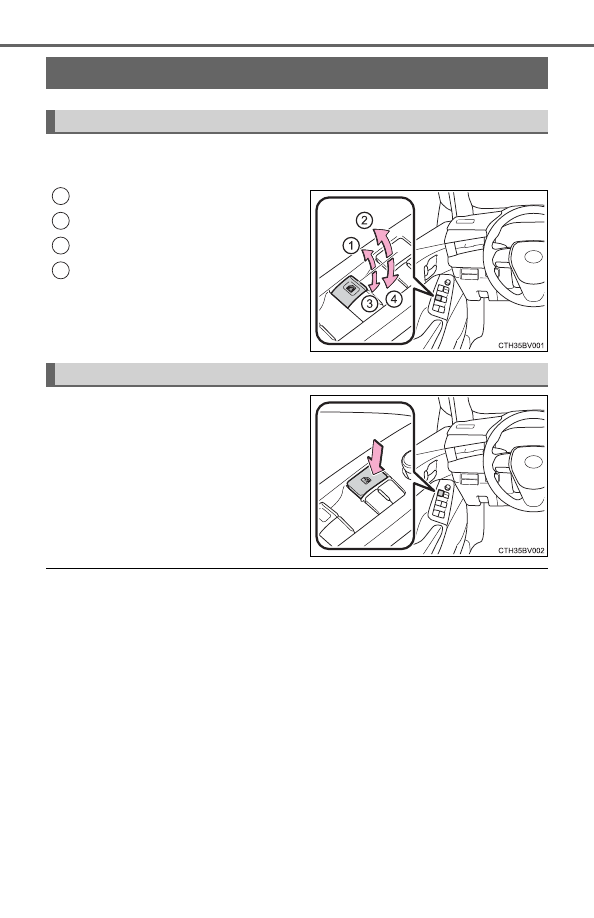

The power windows can be opened and closed using the switches.
Operating the switch moves the windows as follows:

Closing
One-touch closing

*

Opening
One-touch opening

*

*

: To stop the window partway, oper-

ate the switch in the opposite direc-
tion.

Press  the  switch  to  lock  the  pas-
senger window switches.

Use this switch to prevent children
from  accidentally  opening  or  clos-
ing a passenger window.

The power windows can be operated when
The engine switch is in IGNITION ON mode.

Operating the power windows after turning the engine off
The  power  windows  can  be  operated  for  approximately  45  seconds  even
after the engine switch is turned to ACCESSORY mode or turned off. They
cannot, however, be operated once either front door is opened.

Jam protection function
If  an  object  becomes  jammed  between  the  window  and  the  window  frame
while the window is closing, window movement is stopped and the window is
opened slightly.

Catch protection function
If an object becomes caught between the door and window while the window
is opening, window movement is stopped.

Power windows

Opening and closing procedures

1
2
3
4

Window lock switch

151

3-5. Opening and closing the windows

3

Opera

tion of e

ach compon

ent

When the window cannot be opened or closed
When  the  jam  protection  function  or  catch  protection  function  operates
unusually and the door window cannot be opened or closed, perform the fol-
lowing operations with the power window switch of that door.

Stop  the  vehicle.  With  the  engine  switch  in  IGNITION  ON  mode,  within  4
seconds of the jam protection function or catch protection function activat-
ing, continuously operate the power window switch in the one-touch closing
direction  or  one-touch  opening  direction  so  that  the  door  window  can  be
opened and closed.

If the door window cannot be opened and closed even when performing the
above operations, perform the following procedure for function initialization.

Turn the engine switch to IGNITION ON mode.
Pull and hold the power window switch in the one-touch closing direction
and completely close the door window.
Release  the  power  window  switch  for  a  moment,  resume  pulling  the
switch  in  the  one-touch  closing  direction,  and  hold  it  there  for  approxi-
mately 6 seconds or more.
Press and hold the power window switch in the one-touch opening direc-
tion. After  the  door  window  is  completely  opened,  continue  holding  the
switch for an additional 1 second or more.
Release  the  power  window  switch  for  a  moment,  resume  pushing  the
switch in the one-touch opening direction, and hold it there for approxi-
mately 4 seconds or more.
Pull and hold the power window switch in the one-touch closing direction
again. After the door window is completely closed, continue holding the
switch for a further 1 second or more.

If  you  release  the  switch  while  the  window  is  moving,  start  again  from  the
beginning.
If the window reverses and cannot be fully closed or opened, have the vehicle
inspected by your Toyota dealer.

1

2

3

4

5

6

152

3-5. Opening and closing the windows

Door lock linked window operation

The power windows can be opened and closed using the mechanical key.

*

(

P. 452)

The  power  windows  can  be  opened  using  the  wireless  remote  control.

*

(

P. 115)

*

: These settings must be customized at your Toyota dealer.

Alarm
The alarm may be triggered if the alarm is set and a power window is closed
using the door lock linked power window operation function. (

P. 73)

Power windows open warning buzzer
A buzzer sounds and a message is shown on the multi-information display in
the instrument cluster when the engine switch is turned off and the driver’s
door is opened with the power windows open.

Customization
Some functions can be customized. (

P. 491)

153

3-5. Opening and closing the windows

3

Opera

tion of e

ach compon

ent

WARNING

Observe the following precautions.
Failing to do so may result in death or serious injury.

Opening and closing the windows

The driver is responsible for all the power window operations, including the
operation  for  the  passengers.  In  order  to  prevent  accidental  operation,
especially by a child, do not let a child operate the power windows. It is
possible for children and other passengers to have body parts caught in
the power window. Also, when riding with a child, it is recommended to use
the window lock switch.(

P. 150)

When using the wireless remote control or mechanical key and operating
the  power  windows,  operate  the  power  window  after  checking  to  make
sure that there is no possibility of any passenger having any of their body
parts caught in the window. Also do not let a child operate window by the
wireless remote control or mechanical key. It is possible for children and
other passengers to get caught in the power window.

When exiting the vehicle, turn the engine switch off, carry the key and exit
the vehicle along with the child. There may be accidental operation, due to
mischief, etc., that may possibly lead to an accident.

Jam protection function

Never use any part of your body to intentionally activate the jam protection
function.

The jam protection function may not work if something gets jammed just
before  the  window  is  fully  closed.  Be  careful  not  to  get  any  part  of  your
body jammed in the window.

Catch protection function

Never  use  any  part  of  your  body  or  clothing  to  intentionally  activate  the
catch protection function.

The catch protection function may not work if something gets caught just
before the window is fully opened. Be careful not to get any part of your
body or clothing caught in the window.

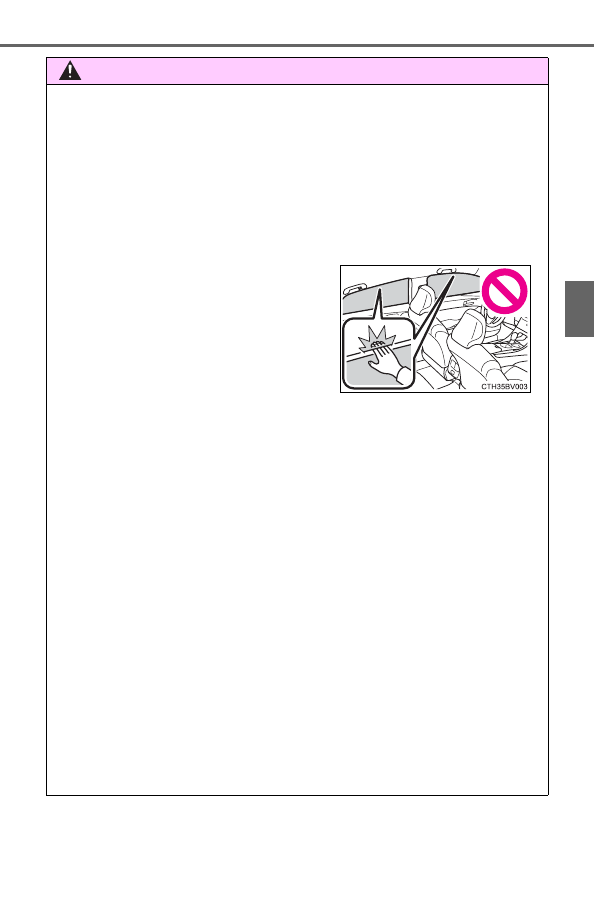

Check to make sure that all passengers
do not have any part of their body in a
position where it could be caught when
a window is being operated.

154

3-5. Opening and closing the windows

Opens the moon roof

*

The moon roof stops slightly before
the  fully  open  position  to  reduce
wind noise.
Press the switch again to fully open
the moon roof.

Closes the moon roof

*

*

: Lightly  press  either  side  of  the

moon roof switch to stop the moon
roof partway.

Tilts the moon roof up

*

Tilts the moon roof down

*

*

: Lightly  press  either  side  of  the

moon roof switch to stop the moon
roof partway.

Moon roof

: If equipped

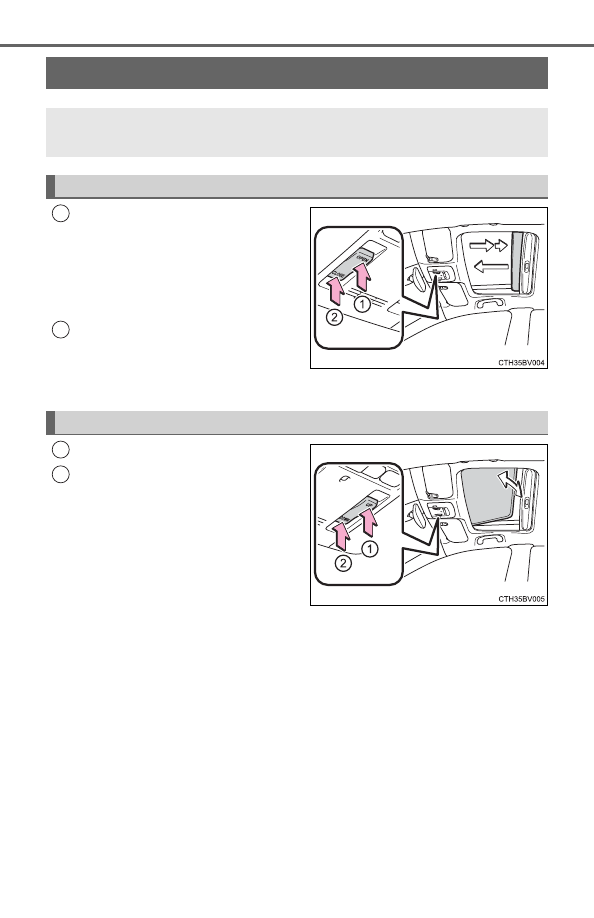

Use the overhead switches to open and close the moon roof and
tilt it up and down.

Opening and closing

1

2

Tilting up and down

1
2

155

3-5. Opening and closing the windows

3

Opera

tion of e

ach compon

ent

The moon roof can be operated when
The engine switch is in IGNITION ON mode.

Operating the moon roof after turning the engine off
The  moon  roof  can  be  operated  for  approximately  45  seconds  after  the
engine switch is turned to ACCESSORY mode or turned off. It cannot, how-
ever, be operated once either front door is opened.

Jam protection function
If an object is detected between the moon roof and the frame while the moon
roof  is  closing  or  tilting  down,  travel  is  stopped  and  the  moon  roof  opens
slightly.

Sunshade
The sunshade can be opened and closed manually. However, the sunshade
will open automatically when the moon roof is opened.

Door lock linked moon roof operation

The moon roof can be opened and closed using the mechanical key.

(

P. 452)

The moon roof can be opened using the wireless remote control.

(

P. 115)

*

: These settings must be customized at your Toyota dealer.

156

3-5. Opening and closing the windows

When the moon roof does not close normally
Perform the following procedure:

If the moon roof closes but then re-opens slightly

Stop the vehicle.
Press and hold the “CLOSE” switch.

*

1

The  moon  roof  will  close,  reopen  and  pause  for  approximately  10  sec-
onds.

*

2

 Then it will close again, tilt up and pause for approximately 1 sec-

ond. Finally, it will tilt down, open and close.
Check  to  make  sure  that  the  moon  roof  is  completely  closed  and  then
release the switch.

If the moon roof tilts down but then tilts back up

Stop the vehicle.
Press and hold the “UP” switch

*

1

 until the moon roof moves into the tilt

up position and stops.
Release the “UP” switch once and then press and hold the “UP” switch
again.

*

1

The moon roof will pause for approximately 10 seconds in the tilt up posi-
tion.

*

2

 Then it will adjust slightly and pause for approximately 1 second.

Finally, it will tilt down, open and close.
Check  to  make  sure  that  the  moon  roof  is  completely  closed  and  then
release the switch.

*

1

: If the switch is released at the incorrect time, the procedure will have to

be performed again from the beginning.

*

2

: If  the  switch  is  released  after  the  above  mentioned  10  second  pause,

automatic  operation  will  be  disabled.  In  that  case,  press  and  hold  the
“CLOSE”  or  “UP”  switch,  and  the  moon  roof  will  tilt  up  and  pause  for
approximately 1 second. Then it will tilt down, open and close. Check to
make sure that the moon roof is completely closed and then release the
switch.

If the moon roof does not fully close even after performing the above proce-
dure correctly, have the vehicle inspected by your Toyota dealer.

Alarm
The alarm may be triggered if the alarm is set and the moon roof is closed
using the door lock linked moon roof operation function. (

P. 72)

Moon roof open warning buzzer
A buzzer sounds and a message is shown on the multi-information display in
the instrument cluster when the engine switch is turned off and the driver's
door is opened with the moon roof open.

Customization
Some functions can be customized. (

P. 491)

1

2

3

1

2

3

4

157

3-5. Opening and closing the windows

3

Opera

tion of e

ach compon

ent

WARNING

Observe the following precautions.
Failing to do so may cause death or serious injury.

Opening the moon roof

Do not allow any passengers to put their hands or heads outside the vehi-
cle while it is moving.

Do not sit on top of the moon roof.

Opening and closing the moon roof

The driver is responsible for moon roof opening and closing operations.
In order to prevent accidental operation, especially by a child, do not let a
child operate the moon roof. It is possible for children and other passen-
gers to have body parts caught in the moon roof.

When exiting the vehicle, turn the engine switch off, carry the key and exit
the vehicle along with the child. There may be accidental operation, due to
mischief, etc., that may possibly lead to an accident.

Jam protection function

Never use any part of your body to intentionally activate the jam protection
function.

The  jam  protection  function  may  not  work  if  something  gets  caught  just
before the moon roof is fully closed. Also, the jam protection function is not
designed to operate while the switch is being pressed. Take care so that
your fingers, etc. do not get caught.

Check to make sure that all passengers
do not have any part of their body in a
position where it could be caught when
the moon roof is being operated.

When using the wireless remote control
or  mechanical  key  and  operating  the
moon roof, operate the moon roof after
checking to make sure that there is no
possibility of any passenger having any
of  their  body  parts  caught  in  the  moon
roof.  Also,  do  not  let  a  child  operate
moon roof by the wireless remote con-
trol or mechanical key. It is possible for
children  and  other  passengers  to  get
caught in the moon roof.

158

3-5. Opening and closing the windows

160

4-1. Before driving

P. 174

With the brake pedal depressed, shift the shift lever to D.
(

P. 179)

Release the parking brake. (

P. 187)

Gradually release the brake pedal and gently depress the accelera-
tor pedal to accelerate the vehicle.

With the shift lever in D, depress the brake pedal.
If necessary, set the parking brake.

If the vehicle is to be stopped for an extended period of time, shift the shift
lever to P or N. (

P. 179)

With the shift lever in D, depress the brake pedal.
Set the parking brake (

P. 186), and shift the shift lever to P (P.

179).
Press the engine switch to stop the engine.
Lock the door, making sure that you have the key on your person.

If parking on a hill, block the wheels as needed.

Make sure that the parking brake is set and shift the shift lever to D.
Gently depress the accelerator pedal.
Release the parking brake.

Driving the vehicle

The  following  procedures  should  be  observed  to  ensure  safe
driving:

Starting the engine

Driving

Stopping

Parking the vehicle

Starting off on a steep uphill

1

2
3

1
2

1
2

3
4

1
2
3















Content   ..  8  9  10  11   ..
