2. Instrument cluster

Instrument cluster

■

Odometer
Displays the total distance the vehicle has been driven.

■

Trip meter A/trip meter B
Displays the distance the vehicle has been driven since the meter
was last reset. Trip meters A and B can be used to record and dis-
play different distances independently.

To reset, display the desired trip meter and press and hold the “ODO/
TRIP” switch.

Displays suggestions to the driver in the following situations. To select
a response to a displayed suggestion, use the meter control switches.

The suggestion function can be turned on/off.
(Customizable features:

P. 491)

■

Suggestion to turn off the headlights
If the headlights are left on for a certain amount of time after the
engine switch has been turned off, if the headlight switch is in the
“AUTO” position, a suggestion message will be displayed asking if
you wish to turn the headlights off. To turn the headlights off, select
“Yes”.

If a front door is opened after the engine switch is turned off, this sug-
gestion message will not be displayed.

Odometer/trip meter

Suggestion function

2. Instrument cluster

■

Eco Driving Indicator

Eco Driving Indicator will not operate under the following conditions:

●

The shift lever is in any position other than D.

●

A paddle shift switch (if equipped) is operated.

●

Neither normal mode nor Eco drive mode is selected. (

P. 295)

●

The vehicle speed is approximately 80 mph (130 km/h) or higher.

■

Suspension of the settings display

●

Some settings cannot be changed while driving. When changing settings,
park the vehicle in a safe place.

●

If a warning message is displayed, operation of the settings display will be
suspended.

■

Tire pressure

●

It may take a few minutes to display the tire inflation pressure after the
engine switch is turned to IGNITION ON mode. It may also take a few min-
utes to display the tire inflation pressure after inflation pressure has been
adjusted.

●

“---” may be displayed if the tire position information cannot be determined
due to unfavorable radio wave conditions.

●

Tire inflation pressure changes with temperature. The displayed values may
also be different from the values measured using a tire pressure gauge.

■

Liquid crystal display
Small spots or light spots may appear on the display. This phenomenon is
characteristic of liquid crystal displays, and there is no problem continuing to
use the display.

■

Customization
Some functions can be customized. (

P. 91, 491)

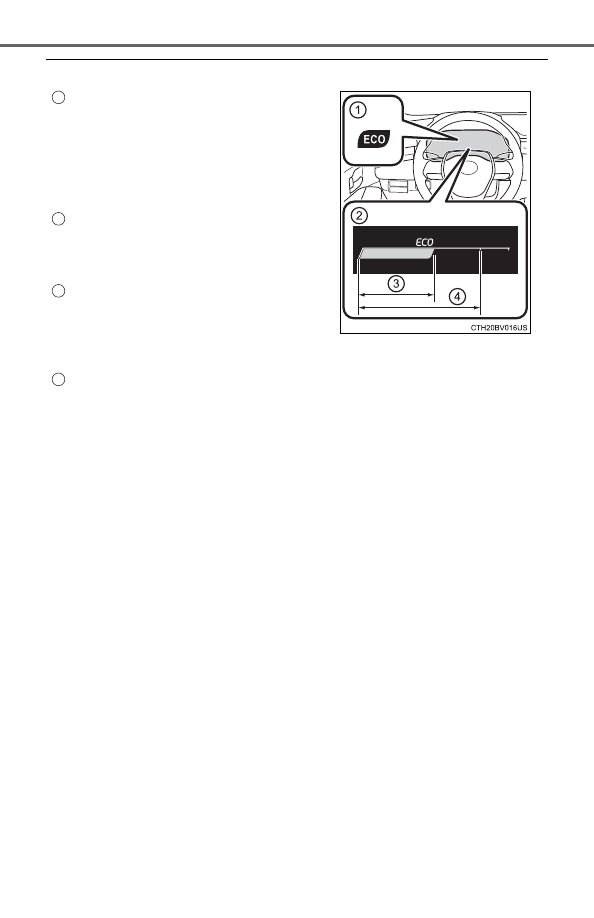

Eco Driving Indicator Light
During  Eco-friendly  acceleration  (Eco
driving), the Eco Driving Indicator Light
will  turn  on.  When  the  acceleration
exceeds  the  Zone  of  Eco  driving,  or
when  the  vehicle  is  stopped,  the  light
turns off.
Eco Driving Indicator Zone Display
Suggests  the  Zone  of  Eco  driving  with
current  Eco  driving  ratio  based  on
acceleration.
Eco driving ratio based on acceleration
If the acceleration exceeds the Zone of
Eco  driving,  the  right  side  of  the  Eco
Driving  Indicator  Zone  Display  will  illu-
minate.
Zone of Eco driving

2. Instrument cluster

Instrument cluster

WARNING

■

Caution for use while driving

●

When operating the multi-information display while driving, pay extra
attention to the safety of the area around the vehicle.

●

Do not look continuously at the multi-information display while driving as
you may fail to see pedestrians, objects on the road, etc. ahead of the
vehicle.

■

The information display at low temperatures
Allow the interior of the vehicle to warm up before using the liquid crystal
information display. At extremely low temperatures, the information display
monitor may respond slowly, and display changes may be delayed.
For example, there is a lag between the driver’s shifting and the new gear
number appearing on the display. This lag could cause the driver to down-
shift again, causing rapid and excessive engine braking and possibly an
accident resulting in death or injury.

■

Cautions during setting up the display
As the engine needs to be running during setting up the display, ensure that
the vehicle is parked in a place with adequate ventilation. In a closed area
such as a garage, exhaust gases including harmful carbon monoxide (CO)
may collect and enter the vehicle. This may lead to death or a serious
health hazard.

NOTICE

■

While setting up the display
To prevent battery discharge, ensure that the engine is running while setting
up the display features.

100

2. Instrument cluster

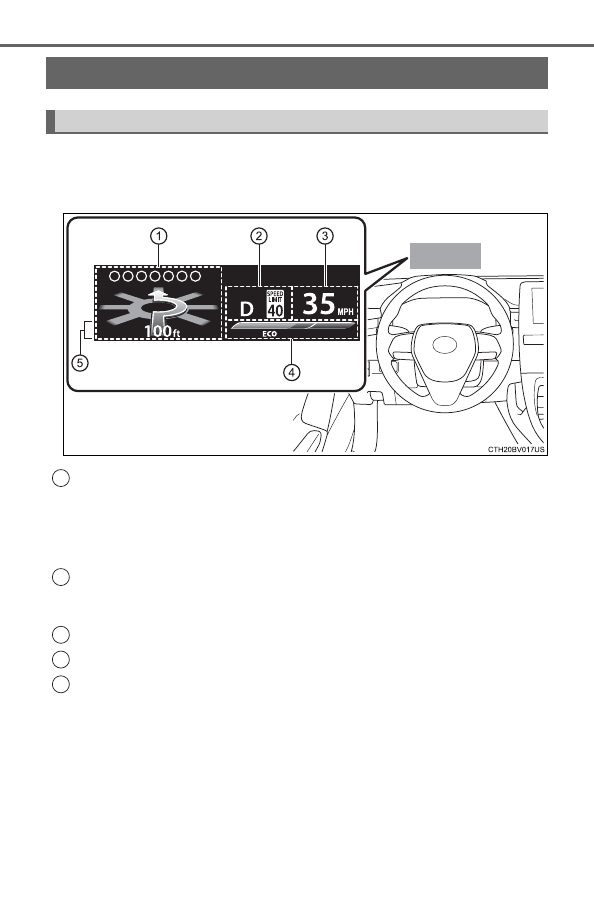

The head-up display is linked to the meters and navigation system
and projects a variety of information in front of the driver, such as the
current vehicle speed.

Driving assist system status/navigation system-linked display area
(

P. 102)

The following pop-up displays will be displayed in certain situations:

• Pre-collision warning (pre-collision system)
• Alert from the Intelligent Clearance Sonar system (if equipped)

Shift position/speed limit display area

• Shift position (

P. 179)

• Speed limit (vehicles with a navigation system) (U.S.A. only)

Vehicle speed display
Eco Driving Indicator/Tachometer (

P. 103)

Information display area (

P. 104)

The following pop-up displays will be displayed in certain situations:

• Warning/message
• Hands-free system status
• Audio system operation status

Head-up display



: If equipped

Summary of functions

3
4
5

101

2. Instrument cluster

Instrument cluster

Select

on the multi-information display (

P. 91) and then

◆

Enabling/disabling the head-up display

Press

to enable/disable the head-up display.

◆

Changing the head-up display settings

Press and hold

to change the following settings:

■

Display brightness/position
Select to adjust the brightness and position of the head-up display.

■

Display content
Select to enable/disable the following items:

• Route guidance to destination
• Driving assist system status
• Compass

Select to change the display between the following:

• Eco Driving Indicator
• Tachometer
• No content

■

Display angle
Select to adjust the angle of the head-up display.

Using the head-up display

102

2. Instrument cluster

◆

Driving assist system status display

Displays the operational status of the following systems:

• Dynamic radar cruise control with full-speed range (

P. 238)

• LDA (Lane Departure Alert with steering control) (

P. 228)

• Intuitive parking assist (if equipped) (

P. 266)

◆

Navigation system-linked display area

Displays the following items, which are linked to the navigation sys-
tem:

■

Street name
When the navigation system is performing route guidance, the
name of the next street will be displayed on the top of the display
area.

■

Route guidance to destination
Displayed when the navigation system is performing route guid-
ance. When approaching an intersection, an arrow will be displayed
to indicate the suggested direction of travel.

■

Compass
Displays the direction of travel.

Driving assist system status/navigation system-linked display
area

103

2. Instrument cluster

Instrument cluster

■

Eco Driving Indicator

Eco Driving Indicator Zone
Display
Eco driving ratio based on
acceleration
Zone of Eco driving

Displayed content is the same
as that displayed on the multi-
information display (Eco Driving
Indicator). For details, refer to P.
98.

■

Tachometer
Displays the engine speed in revolutions per minute.

Eco Driving Indicator/Tachometer

104

2. Instrument cluster

Displays the following items in the appropriate situation:

■

Warning/Message
● Alert from the LDA (Lane Departure Alert with steering control)
● Dynamic radar cruise control with full-speed range
●

message

Displayed when a suggestion/advice pop-up display is displayed on the
multi-information display. (

P. 97)

●

message

Displayed when a warning message is displayed on the multi-informa-
tion display. (

P. 433)

● Outside temperature

Displayed in the following situations:

• When the engine switch is turned to IGNITION ON mode
• When the low outside temperature indicator is flashing

Displayed content is the same as that displayed on the multi-information
display. For details, refer to the explanation of the outside temperature
display on the multi-information display. (

P. 82)

■

Hands-free system status

Displayed when the hands-free system is operated.

■

Audio system operation status

Displayed when the audio system is operated.

Information display area

105

2. Instrument cluster

Instrument cluster

■

Head-up display
The head-up display may seem dark or hard to see when viewed through
sunglasses, especially polarized sunglasses.
Adjust the brightness of the head-up display or remove your sunglasses.

■

Display brightness

The brightness of the head-up display can be adjusted on

of the multi-

information display. Also, it is automatically adjusted according to the ambient
brightness.

■

Enabling/disabling of the head-up display
If the head-up display is disabled, it will remain disabled when the engine
switch is turned off then back to IGNITION ON mode.

■

Street name display
Only street names which are included in the map data will be displayed.

WARNING

■

Before using the head-up display

●

Check that the position and brightness of the head-up display image does
not interfere with safe driving. Incorrect adjustment of the image’s position
or brightness may obstruct the driver’s view and lead to an accident,
resulting in death or serious injury.

●

Do not continuously look at the head-up display while driving as you may
fail to see pedestrians, objects on the road, etc. ahead of the vehicle.

■

Caution for changing settings of the head-up display
As the engine needs to be running while changing the settings of the head-
up display, ensure that the vehicle is parked in a place with adequate venti-
lation. In a closed area such as a garage, exhaust gases including harmful
carbon monoxide (CO) may collect and enter the vehicle. This may lead to
death or a serious health hazard.

106

2. Instrument cluster

NOTICE

■

To prevent damage to components

■

When changing the settings of the head-up display
To prevent battery discharge, ensure that the engine is running while the
changing the settings of the head-up display.

●

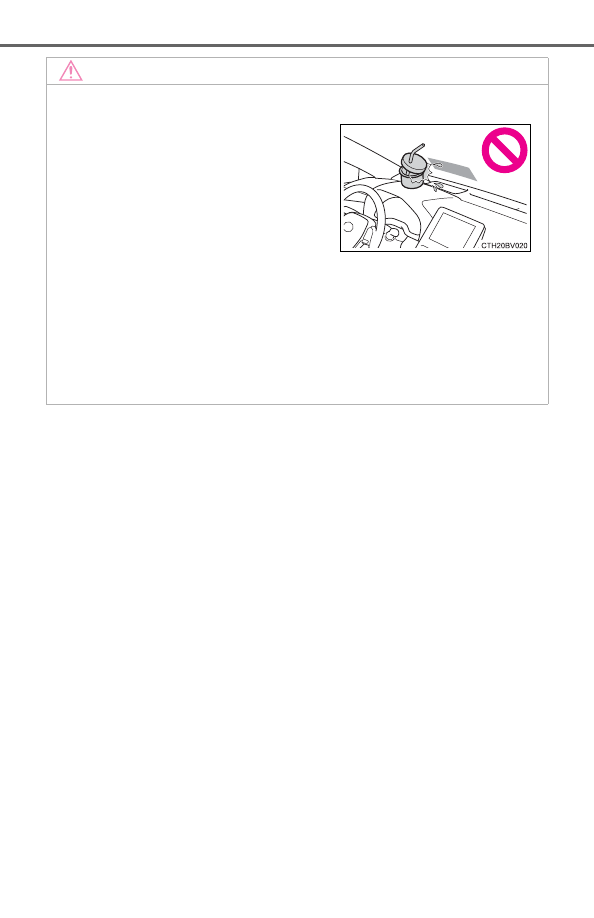

Do not place any drinks near the head-
up display projector. If the projector gets
wet, electrical malfunctions may result.

●

Do not place anything on or put stickers
onto the head-up display projector.
Doing so could interrupt head-up dis-
play indications.

●

Do not touch the inside of the head-up
display projector or thrust sharp edges
or the like into the projector.
Doing so could cause mechanical mal-
functions.

107

2. Instrument cluster

Instrument cluster



Entune Audio Plus (vehicles without Data Communication Module)

Press the “MENU” button.
Select “Info” on the “Menu”
screen.

If the “History” screen is displayed,
select “Trip Information”.

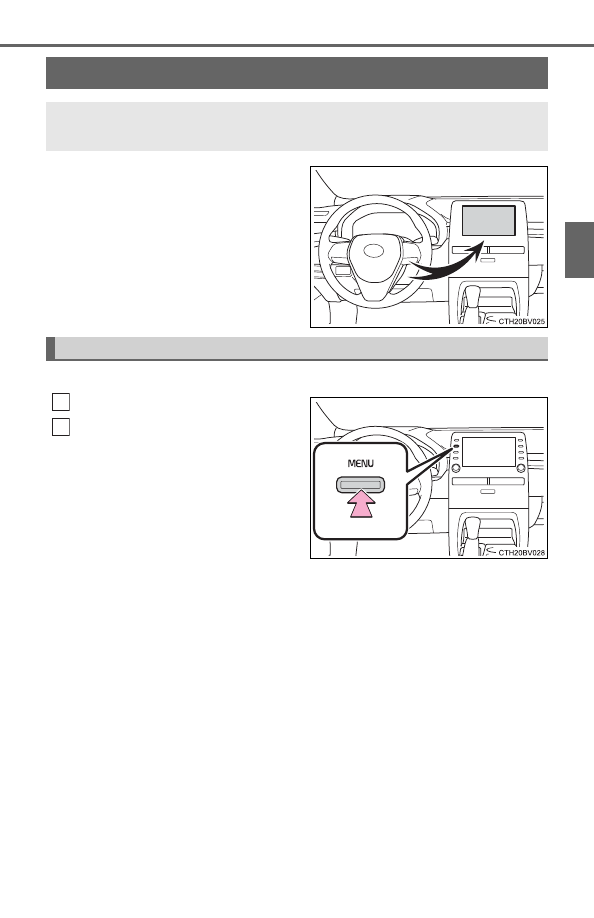

Fuel consumption information

Fuel consumption information can be displayed on the audio
system screen.

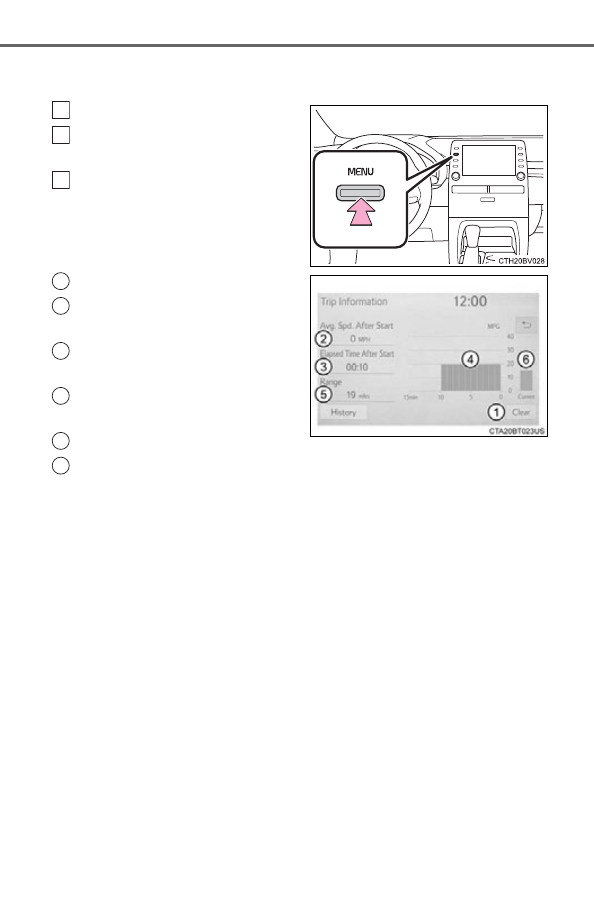

Trip information

1
2

108

2. Instrument cluster



Entune Audio Plus (vehicles with Data Communication Module) or
Entune Premium Audio

Press the “MENU” button.
Select “Info” on the “Menu”
screen.
Select “ECO” on the “Informa-
tion” screen.

If the “History” screen is displayed,
select “Trip Information”.

Resetting the consumption data
Average vehicle speed since
the engine was started
Elapsed time since the engine
was started
Fuel consumption in the past 15
minutes
Cruising range (

P. 110)

Current fuel consumption

Average fuel consumption for the past 15 minutes is divided by color
into past averages and averages attained since the engine switch was
last turned to IGNITION ON mode. Use the displayed average fuel
consumption as a reference.

This image is an example only.

1
2

5
6

109

2. Instrument cluster

Instrument cluster



Entune Audio Plus (vehicles without Data Communication Module)
Press the “MENU” button.
Select “Info” on the “Menu” screen.

If the “Trip Information” screen is displayed, select “History”.



Entune Audio Plus (vehicles with Data Communication Module) or
Entune Premium Audio
Press the “MENU” button.
Select “Info” on the “Menu” screen.
Select “ECO” on the “Information” screen.

If the “Trip Information” screen is displayed, select “History”.

Resetting the past record data
Best recorded fuel consumption
Current fuel economy
Previous

fuel

consumption

record



Entune Audio Plus

Displays the daily average fuel consumption. (Instead of the date,
“Trip 1” through “Trip 5” will be displayed.)



Entune Premium Audio

Displays the daily average fuel consumption.

Updating the average fuel consumption data

The average fuel consumption history is divided by color into past
averages and the average fuel consumption since the last updated.
Use the displayed average fuel consumption as a reference.

This image is an example only.

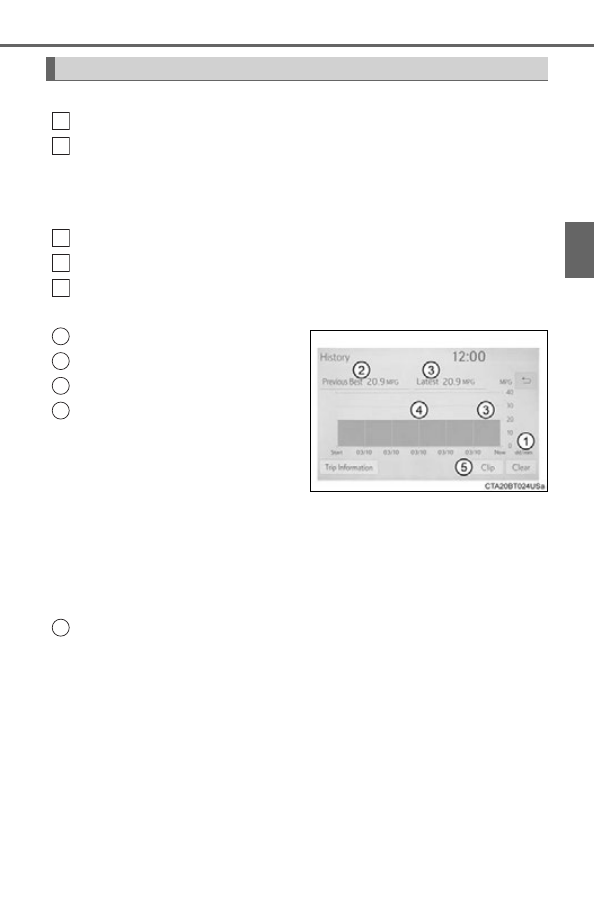

History

1
2

1
2
3

1
2
3
4

110

2. Instrument cluster

■

Updating the past record data
Update the average fuel consumption by selecting “Clip” to measure the cur-
rent fuel consumption again.

■

Resetting the data
The fuel consumption data can be deleted by selecting “Clear”.

■

Cruising range
Displays the estimated maximum distance that can be driven with the quan-
tity of fuel remaining.
This distance is computed based on your average fuel consumption.
As a result, the actual distance that can be driven may differ from that dis-
played.

112

3-1. Key information

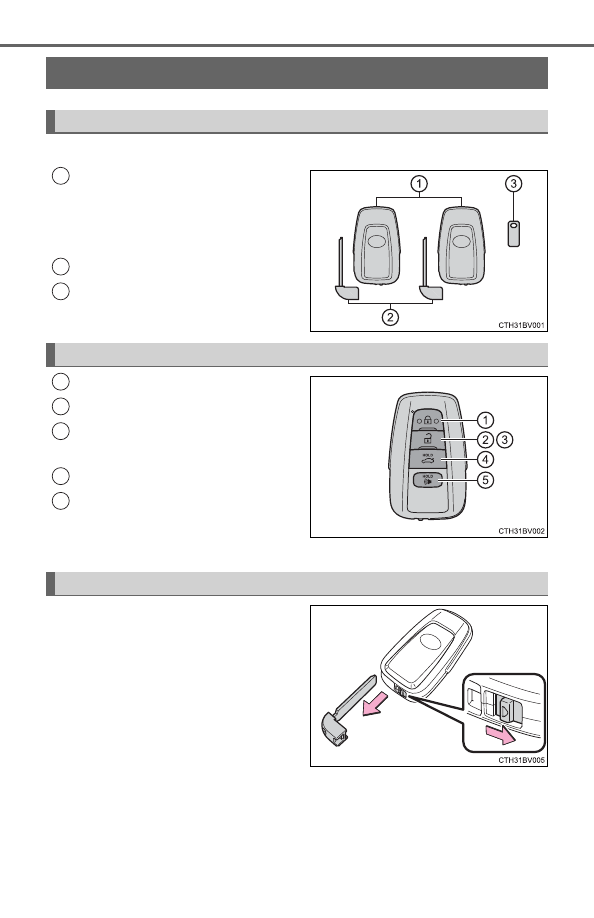

The following keys are provided with the vehicle.

Electronic keys

• Operating the smart key system

(

P. 125)

• Operating the wireless remote

control function (

P. 112)

Mechanical keys
Key number plate

Locks all the doors (

P. 115)

Unlocks all the doors (

P. 115)

Opens the windows

and

moon roof

1, 2

(

P. 115)

Opens the trunk (

P. 121)

Sounds the alarm (

P. 113)

: If equipped

: This setting must be customized at your Toyota dealer.

To take out the mechanical key,
slide the release lever and take
the key out.

The  mechanical  key  can  only  be
inserted  in  one  direction,  as  the
key only has grooves on one side.
If  the  key  cannot  be  inserted  in  a
lock  cylinder,  turn  it  over  and  re-
attempt to insert it.
After  using  the  mechanical  key,  store  it  in  the  electronic  key.  Carry  the
mechanical key together with the electronic key. If the electronic key bat-
tery  is  depleted  or  the  entry  function  does  not  operate  properly,  you  will
need the mechanical key. (

P. 452)

Keys

The keys

2
3

Wireless remote control

1
2
3

4
5

Using the mechanical key

Content .. 5 6 7 8 ..
