Toyota Avalon (2019 year). Manual - part 5





65

1-1. For safe use

1

For safet

y and s

ecurity

Install  the  child  restraint  system  in  accordance  to  the  operation
manual enclosed with the child restraint system.

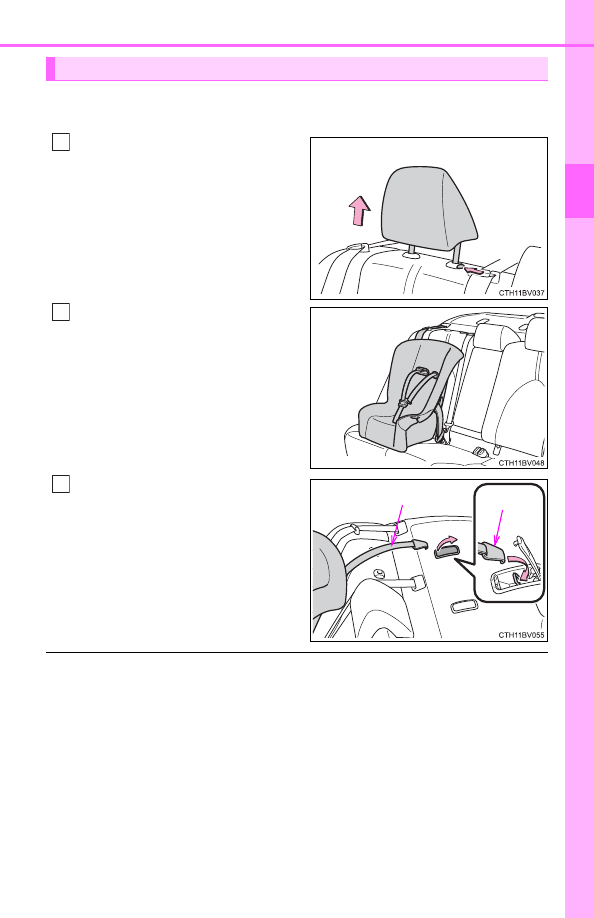

Adjust the head restraint to the
upmost position.

If the head restraint interferes with
the  child  restraint  system  installa-
tion and the head restraint can be
removed,

remove

the

head

restraint. (

P. 141)

Secure  the  child  restraint  sys-
tem  using  the  seat  belt  or
LATCH anchors.

Open the anchor bracket cover,
latch  the  hook  onto  the  anchor
bracket  and  tighten  the  top
tether strap.

Make  sure  the  top  tether  strap  is
securely latched.

Laws and regulations pertaining to anchorages
The LATCH system conforms to FMVSS225 or CMVSS210.2.
Child  restraint  systems  conforming  to  FMVSS213  or  CMVSS213  specifica-
tions can be used.
This vehicle is designed to conform to the SAE J1819.

Child restraint systems with a top tether strap

1

2

Hook

Top tether strap

3

66

1-1. For safe use

WARNING

When installing a booster seat
To prevent the belt from going into ALR lock mode, do not fully extend the
shoulder belt. ALR mode causes the belt to tighten only. This could cause
injury or discomfort to the child. (

P. 30)

When installing a child restraint system
Follow the directions given in the child restraint system installation manual
and fix the child restraint system securely in place.
If the child restraint system is not correctly fixed in place, the child or other
passengers may be seriously injured or even killed in the event of sudden
braking, sudden swerving or an accident.

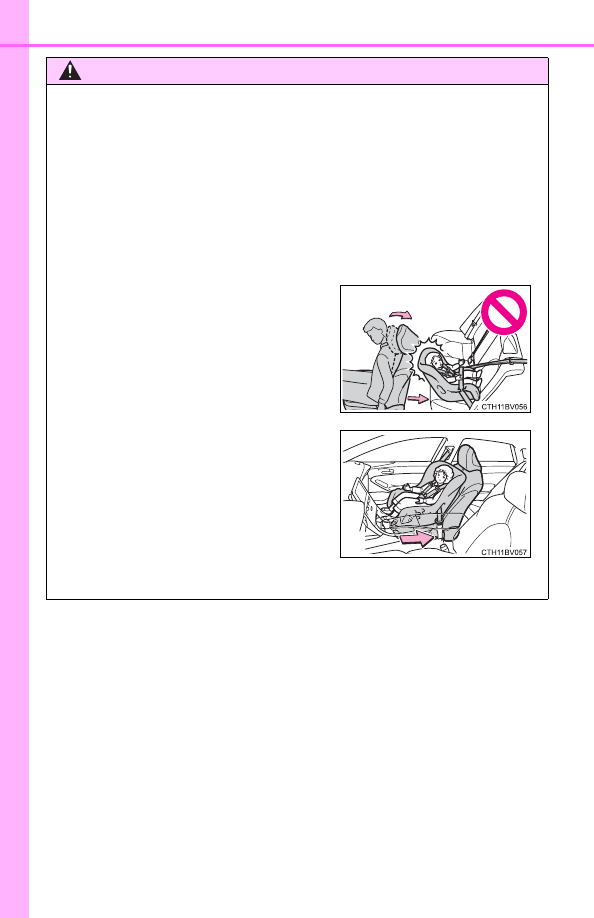

If  the  driver’s  seat  interferes  with  the
child  restraint  system  and  prevents  it
from being attached correctly, attach the
child  restraint  system  to  the  right-hand
rear seat.

Adjust the front passenger seat so that
it  does  not  interfere  with  the  child
restraint system.

Only put a forward-facing child restraint
system on the front seat when unavoid-
able.  When  installing  a  forward-facing
child  restraint  system  on the  front  pas-
senger seat, move the seat as far back
as possible even if the “AIR BAG OFF”
indicator  light  is  illuminated.  Failure  to
do  so  may  result  in  death  or  serious
injury if the airbags deploy (inflate).

67

1-1. For safe use

1

For safet

y and s

ecurity

WARNING

When installing a child restraint system

When a booster seat is installed, always ensure that the shoulder belt is
positioned  across  the  center  of  the  child’s  shoulder.  The  belt  should  be
kept away from the child’s neck, but not so that it could fall off the child’s
shoulder. Failing to do so may result in death or serious injury in the event
of sudden braking, sudden swerving or an accident.

Ensure that the belt and plate are securely locked and the seat belt is not
twisted.

Shake the child restraint system left and right, and forward and backward
to ensure that it has been securely installed.

After securing a child restraint system, never adjust the seat.

Follow  all  installation  instructions  provided  by  the  child  restraint  system
manufacturer.

When securing some types of child restraint systems in rear seats, it may
not be possible to properly use the seat belts in positions next to the child
restraint without interfering with it or affecting seat belt effectiveness. Be
sure your seat belt fits snugly across your shoulder and low on your hips. If
it  does  not,  or  if  it  interferes  with  the  child  restraint,  move  to  a  different
position. Failure to do so may result in death or serious injury.

Do not use a seat belt extender
If a seat belt extender is used when installing a child restraint system, the
seat belt will not securely hold the child restraint system, which could cause
death or serious injury to the child or other passengers in the event of a sud-
den braking, sudden swerving or an accident.

To correctly attach a child restraint system to the anchors
When using the LATCH anchors, be sure that there are no foreign objects
around  the  anchors  and  that  the  seat  belt  is  not  caught  behind  the  child
restraint.  Make  sure  the  child  restraint  system  is  securely  attached,  or  it
may cause death or serious injury to the child or other passengers in the
event of sudden braking, sudden swerve or an accident.

68

1-1. For safe use

Exhaust gas precautions

Harmful  substance  to  the  human  body  is  included  in  exhaust
gases if inhaled.

WARNING

Exhaust gases include harmful carbon monoxide (CO), which is colorless and
odorless. Observe the following precautions.
Failure to do so may cause exhaust gases enter the vehicle and may lead to
an accident caused by light-headedness, or may lead to death or a serious
health hazard.

Important points while driving

Keep the trunk lid closed.

If you smell exhaust gases in the vehicle even when the trunk lid is closed,
open the windows and have the vehicle inspected at your Toyota dealer as
soon as possible.

When parking

If  the  vehicle  is  in  a  poorly  ventilated  area  or  a  closed  area,  such  as  a
garage, stop the engine.

Do not leave the vehicle with the engine on for a long time.
If such a situation cannot be avoided, park the vehicle in an open space
and ensure that exhaust fumes do not enter the vehicle interior.

Do not leave the engine running in an area with snow build-up, or where it
is snowing. If snowbanks build up around the vehicle while the engine is
running, exhaust gases may collect and enter the vehicle.

Exhaust pipe
The exhaust system needs to be checked periodically. If there is a hole or
crack caused by corrosion, damage to a joint or abnormal exhaust noise, be
sure to have the vehicle inspected and repaired by your Toyota dealer.

69

1

For safet

y and s

ecurity

1-2. Theft deterrent system

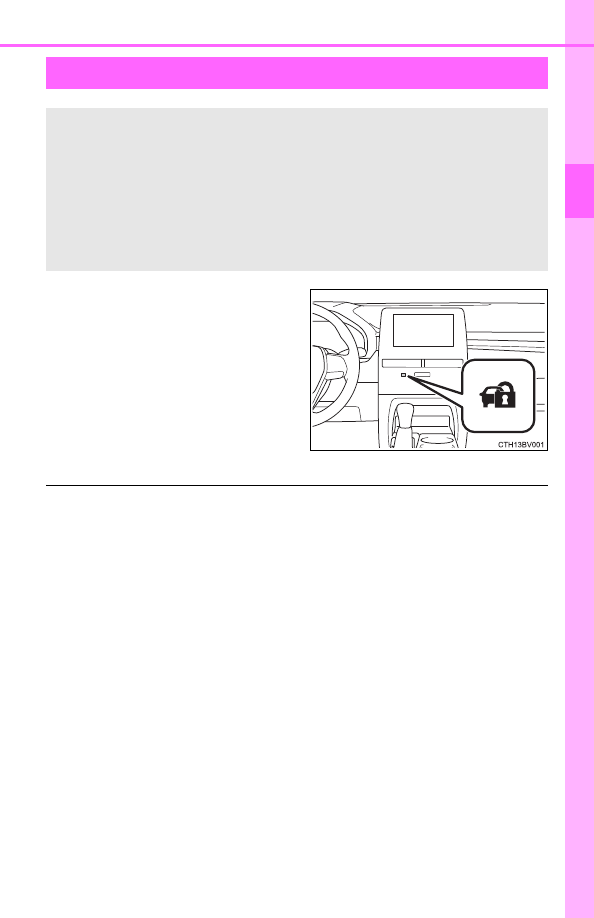

The  indicator  light  flashes  after
the engine switch has been turned
off  to  indicate  that  the  system  is
operating.
The  indicator  light  stops  flashing
after  the  engine  switch  has  been
turned  to  ACCESSORY  or  IGNI-
TION  ON  mode  to  indicate  that
the system has been canceled.

System maintenance
The vehicle has a maintenance-free type engine immobilizer system.

Conditions that may cause the system to malfunction

If the grip portion of the key is in contact with a metallic object

If the key is in close proximity to or touching a key to the security system
(key with a built-in transponder chip) of another vehicle

Engine immobilizer system

The vehicle’s keys have built-in transponder chips that prevent
the engine from starting if a key has not been previously regis-
tered in the vehicle’s on-board computer.
Never leave the keys inside the vehicle when you leave the vehi-
cle.
This system is designed to help prevent vehicle theft but does
not guarantee absolute security against all vehicle thefts.

70

1-2. Theft deterrent system

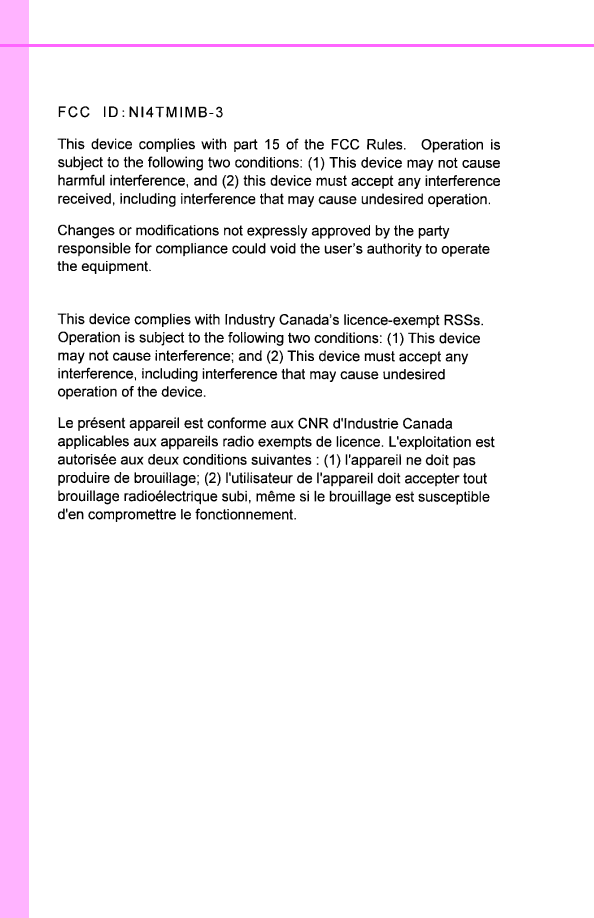

Certifications for the engine immobilizer system

For vehicles sold in the U.S.A.

For vehicles sold in Canada

71

1-2. Theft deterrent system

1

For safet

y and s

ecurity

WARNING

Certifications for the engine immobilizer system
Changes or modifications not expressly approved by the party responsible
for compliance could void the user’s authority to operate the equipment.

NOTICE

To ensure the system operates correctly
Do  not  modify  or  remove  the  system.  If  modified  or  removed,  the  proper
operation of the system cannot be guaranteed.

72

1-2. Theft deterrent system

The alarm uses light and sound to give an alert when an intrusion is
detected.
The  alarm  is  triggered  in  the  following  situations  when  the  alarm  is
set:
● A locked door is unlocked or opened in any way other than using

the entry function, wireless remote control or mechanical key. (The
doors will lock again automatically.)

● The trunk is opened in any way other than using the entry function

or wireless remote control.

● The hood is opened.

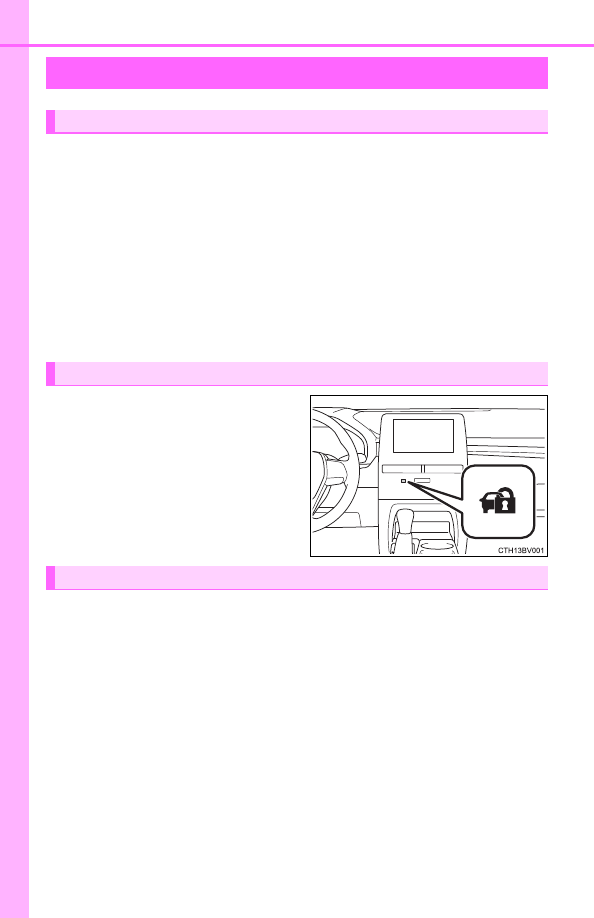

Close  the  doors,  trunk  and  hood,
and lock all the doors. The system
will  be  set  automatically  after  30
seconds.

The  indicator  light  changes  from
being on to flashing when the sys-
tem is set.

Do one of the following to deactivate or stop the alarm:
● Unlock the doors.
● Open the trunk using the entry function or wireless remote control.
● Turn the engine switch to ACCESSORY or IGNITION ON mode, or

start the engine. (The alarm will be deactivated or stopped after a
few seconds.)

Alarm

The alarm

Setting the alarm system

Deactivating or stopping the alarm

73

1-2. Theft deterrent system

1

For safet

y and s

ecurity

System maintenance
The vehicle has a maintenance-free type alarm system.

Items to check before locking the vehicle
To prevent unexpected triggering of the alarm and vehicle theft, make sure of
the following:

Nobody is in the vehicle.

The windows and moon roof (if equipped) are closed before the alarm is set.

No valuables or other personal items are left in the vehicle.

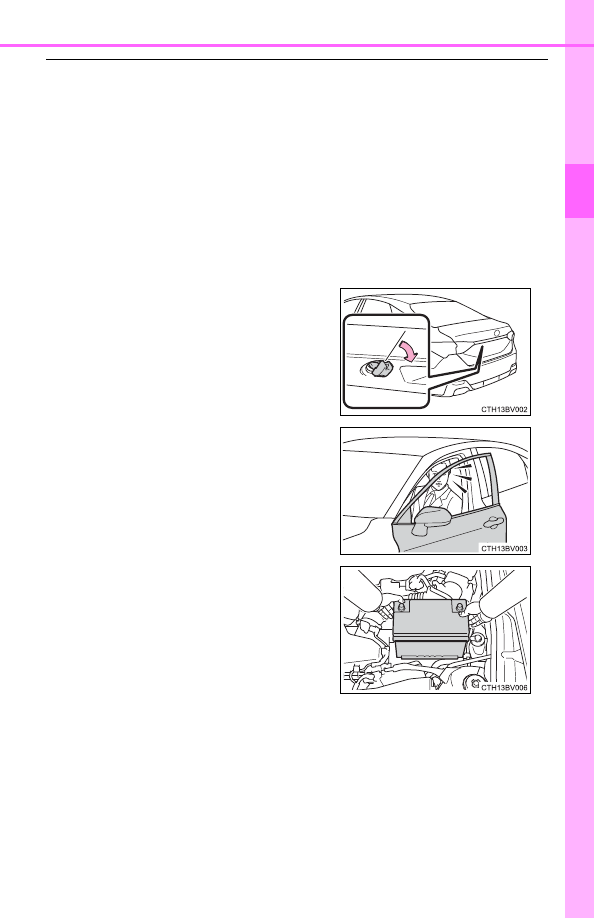

Triggering of the alarm
The alarm may be triggered in the following situations:
(Stopping the alarm deactivates the alarm system.)

The trunk is opened using the mechani-
cal key.

A person inside the vehicle opens a door
or the trunk or hood, or unlocks the vehi-
cle.

The  battery  is  recharged  or  replaced
when the vehicle is locked. (

P. 457)

74

1-2. Theft deterrent system

Alarm-operated door lock
In the following cases, depending on the situation, the door may automatically
lock to prevent improper entry into the vehicle:

When a person remaining in the vehicle unlocks the door and the alarm is
activated.

While the alarm is activated, a person remaining in the vehicle unlocks the
door.

When recharging or replacing the battery

NOTICE

To ensure the system operates correctly
Do  not  modify  or  remove  the  system.  If  modified  or  removed,  the  proper
operation of the system cannot be guaranteed.

76

2. Instrument cluster

The units used on the meters and some indicators may differ depending on
the target region.

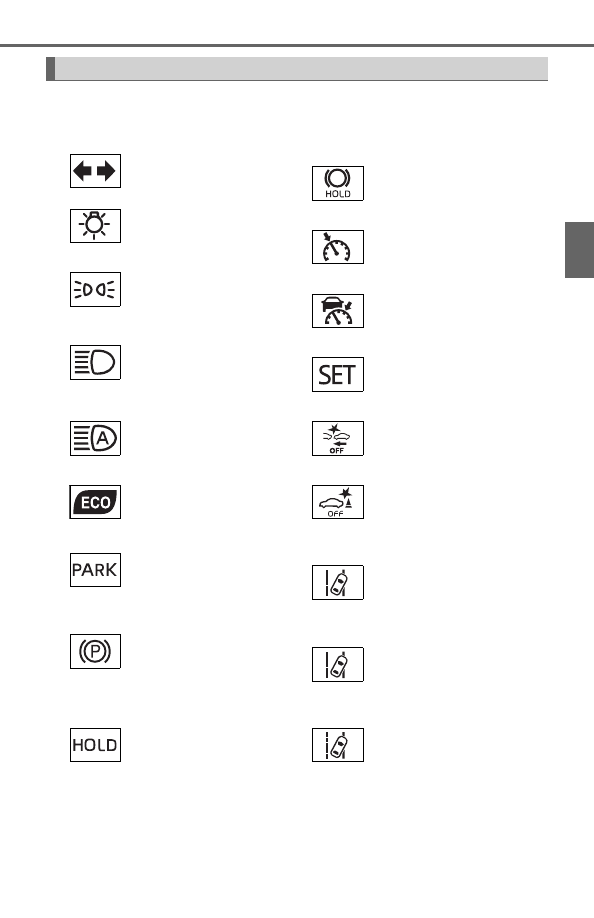

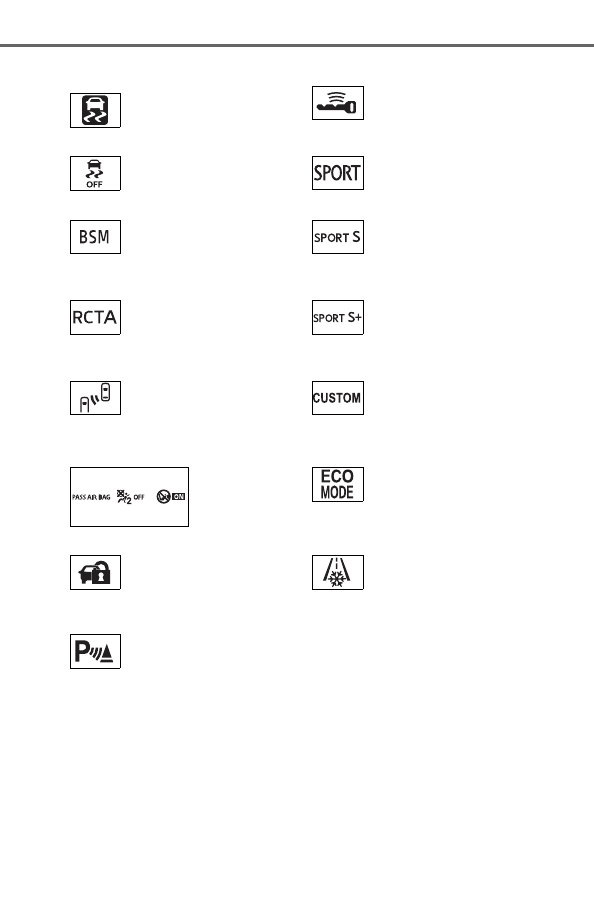

Warning lights and indicators

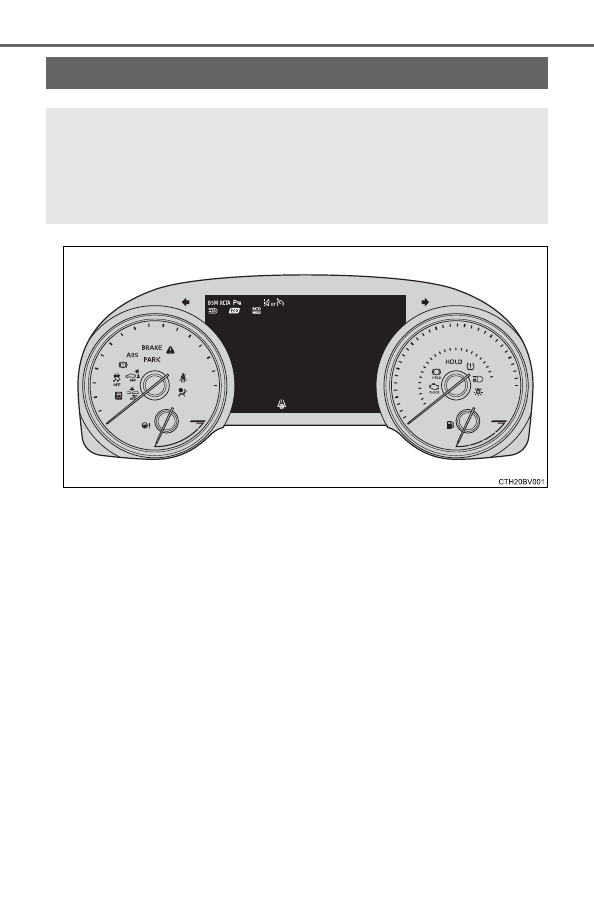

The warning lights and indicators on the instrument cluster, cen-
ter panel and outside rear view mirrors inform the driver of the
status of the vehicle’s various systems.
For  the  purpose  of  explanation,  the  following  illustrations  dis-
play all warning lights and indicators illuminated.

77

2. Instrument cluster

2

Instrument cluster

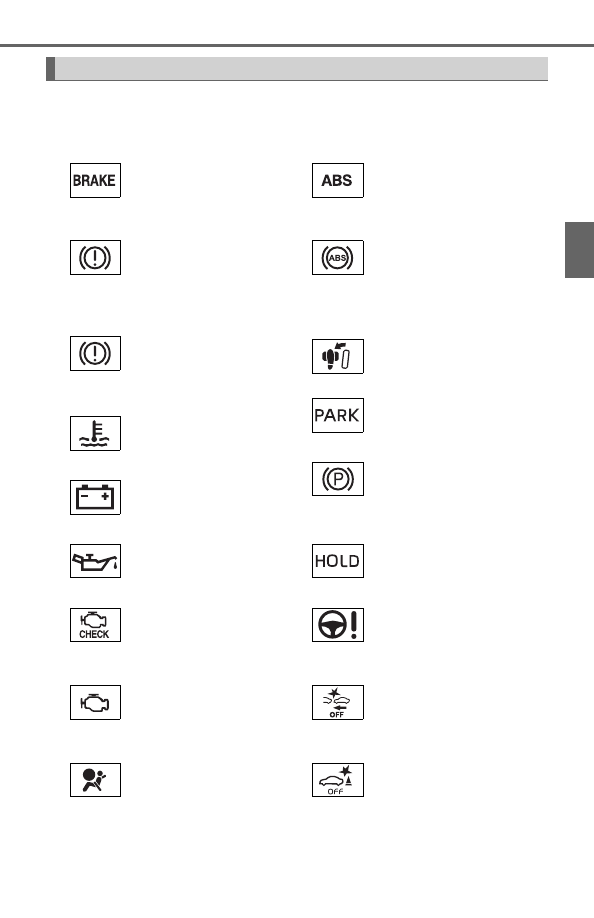

Warning lights inform the driver of malfunctions in the indicated vehi-
cle’s systems.

Warning lights

*

1

(U.S.A.)

Brake system warning
light (

P. 423)

*

1

(U.S.A.)

ABS warning light
(

P. 424)

*

1

(Canada)

(Red)

Brake system warning
light (

P. 423)

*

1

(Canada)

ABS warning light
(

P. 424)

*

1

(Yellow)

Brake  system  warning
light (

P. 423)

*

2

Brake  Override  System/
Drive-Start  Control/Intel-
ligent  Clearance  Sonar
(if  equipped)  warning
light (

P. 424)

*

2

High  coolant  tempera-
ture warning light
(

P. 423)

(U.S.A.)

Parking brake indicator
(

P. 425)

*

2

Charging system
warning light (

P. 423)

(Canada)

Parking brake indicator
(

P. 425)

*

2

Low engine oil pressure
warning light (

P. 423)

*

1, 3

Brake hold operated
indicator (

P. 425)

*

1

(U.S.A.)

Malfunction indicator
lamp (

P. 424)

*

1

(Red/yellow)

Electric power steering
system warning light
(

P. 425)

*

1

(Canada)

Malfunction indicator
lamp (

P. 424)

*

1, 4

PCS warning light
(

P. 425)

*

1

SRS warning light
(

P. 424)

*

1, 3

(if equipped)

ICS OFF indicator
(

P. 426)

78

2. Instrument cluster

*

1

: These  lights  turn  on  when  the  engine  switch  is  turned  to  IGNITION  ON

mode to indicate that a system check is being performed. They will turn off
after the engine is started, or after a few seconds. There may be a mal-
function in a system if a light does not come on, or turn off. Have the vehi-
cle inspected by your Toyota dealer.

*

2

: This light illuminates on the multi-information display.

*

3

: This light flashes to indicate a malfunction.

*

4

: This light flashes or illuminates to indicate a malfunction.

*

5

: This light illuminates on the center panel.

*

2

(Amber)

LDA indicator (

P. 425)

*

5

Rear passengers’ seat
belt reminder lights
(

P. 426)

*

1

Slip indicator (

P. 426)

*

1

Master warning light
(

P. 426)

Low fuel level warning
light (

P. 426)

*

1

Tire pressure warning

light (

P. 427)

Driver’s and front
passenger’s seat belt
reminder light (

P. 426)

79

2. Instrument cluster

2

Instrument cluster

The indicators inform the driver of the operating state of the vehicle’s
various systems.

Indicators

Turn signal indicator
(

P. 185)

*

1

Brake hold standby
indicator (

P. 190)

(U.S.A.)

Headlight indicator
(

P. 192)

*

2

Cruise control indicator
(

P. 238)

(Canada)

Tail light indicator
(

P. 192)

*

2

Radar cruise control
indicator (

P. 238)

Headlight high beam
indicator (

P. 193)

*

2

Cruise control “SET”
indicator (

P. 238)

*

2

Automatic High Beam
indicator (

P. 196)

*

1, 4

PCS warning light
(

P. 220)

*

1, 2, 3

Eco driving indicator
(

P. 98)

*

1, 4

(if equipped)

ICS OFF indicator
(

P. 277)

(U.S.A.)

Parking brake indicator
(

P. 186)

*

2

(White)

LDA indicator (

P. 228)

(Canada)

Parking brake indicator
(

P. 186)

*

2

(Green)

LDA indicator (

P. 228)

*

1

Brake hold operated
indicator (

P. 190)

*

2, 5

(Amber)

LDA indicator (

P. 228)

80

2. Instrument cluster

*

1, 5

Slip indicator (

P. 300)

*

2

Smart  key  system  indi-
cator (

P. 174)

*

1, 4

VSC OFF indicator
(

P. 301)

*

2

“SPORT” indicator
(

P. 295)

*

2

“BSM” indicator
(

P. 251)

*

2

(if equipped)

“SPORT S” indicator
(

P. 295)

*

2

“RCTA” indicator
(

P. 251)

*

2

(if equipped)

“SPORT S+” indicator
(

P. 295)

*

6, 7

BSM  (Blind  Spot  Moni-
tor)  outside  rear  view
mirror indicators
(

P. 251)

*

2

(if equipped)

“CUSTOM” indicator
(

P. 295)

*

1, 8

“AIR BAG
ON/OFF”
indicator
(

P. 48)

*

2

“ECO MODE” indicator
(

P. 295)

*

8

Security indicator
(

P. 69, 72)

*

2, 9

Low  outside  tempera-
ture indicator (

P. 82)

*

2

(if equipped)

Intuitive  parking  assist
indicator (

P. 266)















Content   ..  3  4  5  6   ..
