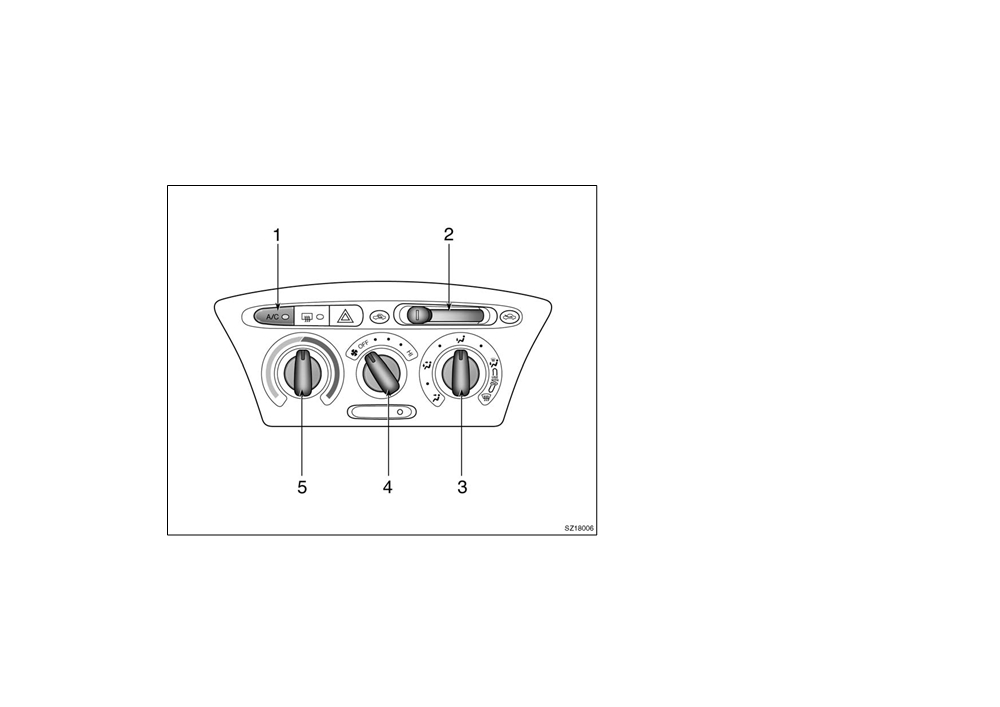

Controls
1. “A/C” Button
(on some models)
2. Air intake selector
3. Air flow selector
4. Fan speed selector
5. Temperature selector
128
2005 ECHO from Aug. ’04 Prod. (OM52636U)
Fan speed selector
5. Windshield—Air flows mainly from the
windshield vents.
Turn the knob to adjust the fan speed—to
the right to increase, to the left to de-
Use with the air intake selector posi-
crease.
tioned in FRESH.
Temperature selector
For details about air flow selector settings,
see “Air flow selector settings” described
Turn the knob to adjust the temperature—
below.
to the right to warm, to the left to cool.
Turning the air flow control knob to wind-
shield or floor/windshield position turns on
the defroster−linked air conditioning. This
is to clean up the front view more quickly.
When the “A/C” button is not pressed in,
turning the air flow control knob to anoth-

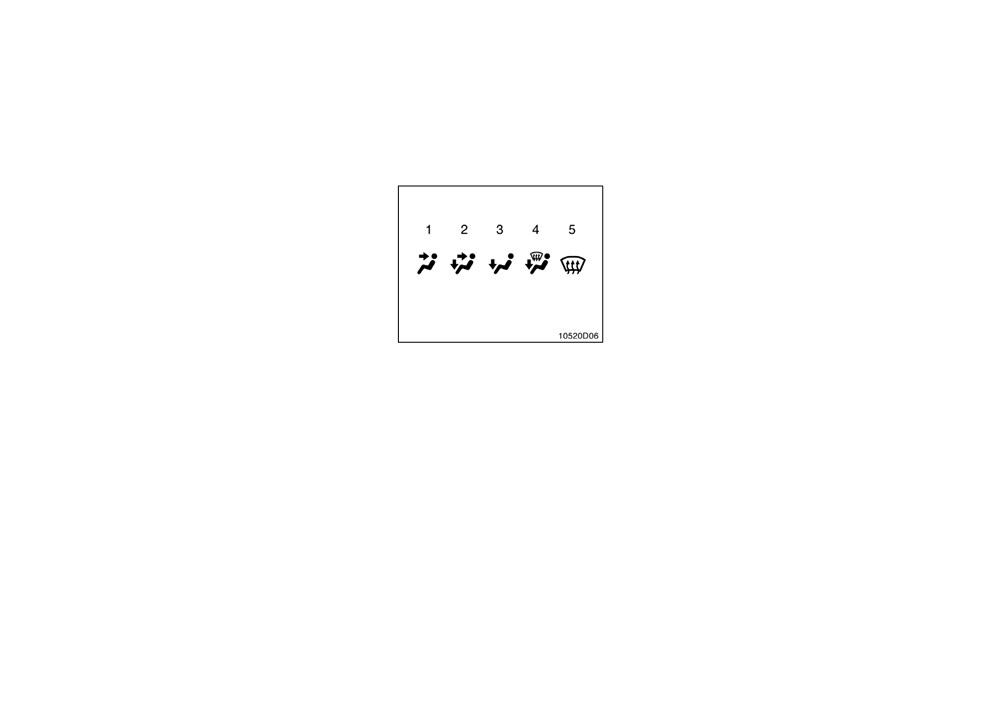

Air flow selector
er position turns off the air conditioning.
Turn the knob to select the vents used for
air flow.
1. Panel—Air flows mainly from the
instrument panel vents.
2. Bi−level—Air flows from both the floor
vents and the instrument panel vents.
3. Floor—Air flows mainly from the floor
vents.
4. Floor/Windshield—Air flows mainly
from the floor vents and windshield
vents.
Use with the air intake selector posi-
tioned in FRESH.
129
2005 ECHO from Aug. ’04 Prod. (OM52636U)
“A/C” button
To turn on the air conditioning, press the
“A/C” button. The
“A/C” button indicator
will come on. To turn the air conditioning
off, press the button again.

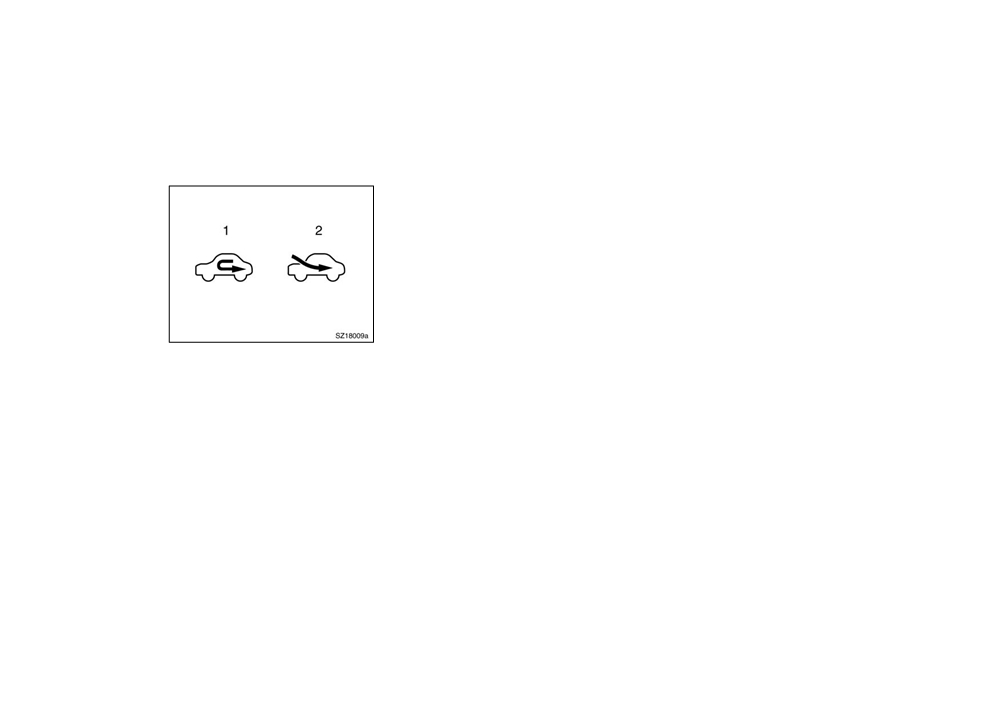

Air intake selector
Move the lever to select the air source.
1. Recirculate—Recirculates the air inside
the vehicle.
2. Fresh—Draws outside air into the sys-
tem.
130
2005 ECHO from Aug. ’04 Prod. (OM52636U)

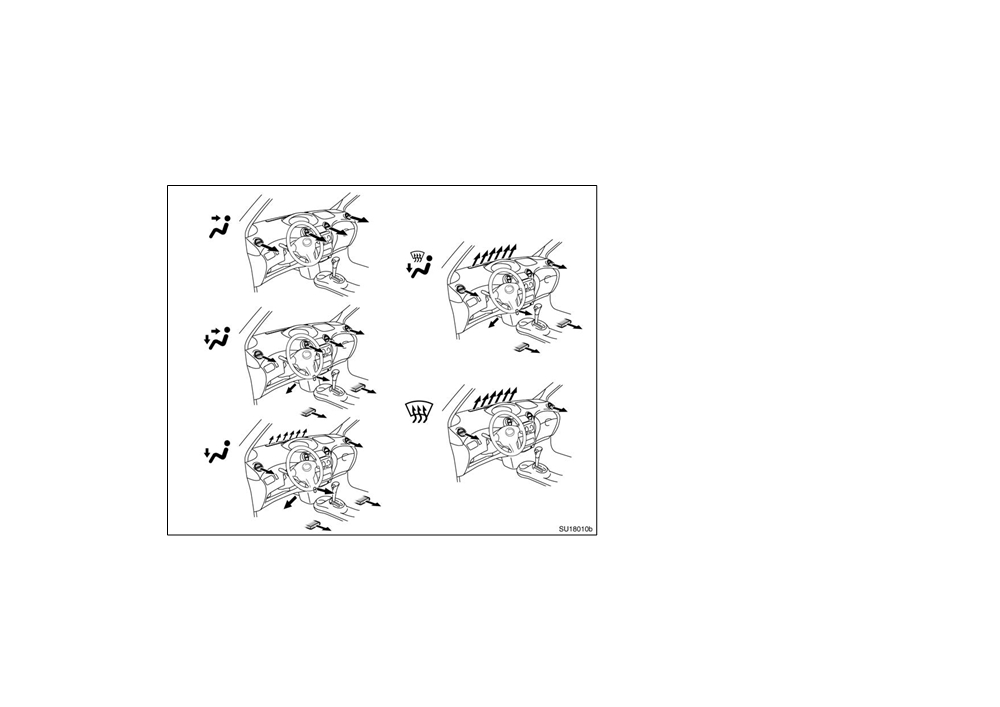

Air flow selector settings
Operating tips
D To cool off your Toyota after it has
been parked in the hot sun, drive with
the windows open for a few minutes.
This vents the hot air, allowing the air
conditioning to cool the interior more
quickly.
D Make sure the air intake grilles in front
of the windshield are not blocked
(by
leaves or snow, for example).
D On humid days, do not blow cold air
on the windshield. The windshield could
fog up because of the difference in air
temperature on the inside and outside
of the windshield.
D Keep the area under the front seats
clear to allow air to circulate through-
out the vehicle.
D On cold days, set the fan speed to
“high” for a minute to help clear the
intake ducts of snow or moisture. This
can reduce the amount of fogging on
the windows.
131
2005 ECHO from Aug. ’04 Prod. (OM52636U)
D When driving on dusty roads, close all
Heating
Air conditioning
windows. If dust thrown up by the ve-
For best results, set controls to:
For best results, set controls to:
hicle is still drawn into the vehicle after
closing the windows, it is recommended
Fan speed—Any setting except “OFF”
Fan speed—Any setting except “OFF”
that the air intake selector be set to
Temperature—Towards red zone
Temperature—Towards blue zone
FRESH and the fan speed selector to
Air intake—FRESH (outside air)
Air intake—FRESH (outside air)
any setting except
“OFF”.
Air flow—FLOOR
Air flow—PANEL
Air conditioning—OFF
Air conditioning—ON
D If following another vehicle on a dusty
road, or driving in windy and dusty
D For quick heating, select recirculated
D For quick cooling, move the air intake
conditions, it is recommended that the
air for a few minutes. To keep the
selector to recirculate for a few min-
air intake selector be temporarily set to
windows from fogging, select fresh af-
utes.
RECIRCULATED, which will close off
ter the vehicle interior has been
Ventilation
the outside passage and prevent out-
warmed.
side air and dust from entering the
For best results, set controls to:
D Press the “A/C” button on for dehumidi-
vehicle interior.
fied heating.
Fan speed—Any setting except “OFF”
D When turning the temperature selector
Temperature—Towards blue zone
D Choose floor/windshield air flow to heat
fully to the left-“Max.cool” position,
Air intake—FRESH (outside air)
the vehicle interior while defrosting or
cold air comes out from the center
Air flow—PANEL
defogging the windshield.
vents in spite of the position of the air
Air conditioning—OFF
flow selector.
132
2005 ECHO from Aug. ’04 Prod. (OM52636U)
Instrument panel vents
Defogging
Defrosting
—Center vents
—Side vents
The inside of the windshield
The outside of the windshield
Close
Close
For best results, set controls to:
For best results, set controls to:
Fan speed—Any setting except “OFF”
Fan speed—Any setting except “OFF”
Temperature—Towards red zone to heat;
Temperature—Towards red zone
blue zone to cool
Air intake—FRESH (outside air)
Open
Open
Air intake—FRESH (outside air)
Air flow—WINDSHIELD
Air flow—WINDSHIELD
Turning the air flow control knob to wind-
Turning the air flow control knob to wind-
shield position turns on the defroster−
shield position turns on the defroster−
linked air conditioning. This is to clean up
linked air conditioning. This is to clean up
the front view more quickly.
the front view more quickly.
When the “A/C” button is not pressed in,
If air flow control is not satisfactory, check
When the “A/C” button is not pressed in,
turning the air flow control knob to a posi-
the instrument panel vents. The instrument
turning the air flow control knob to a posi-
tion other than windshield or floor/wind-
panel vents may be opened or closed as
tion other than windshield or floor/wind-
shield turns off the air conditioning.
shown.
shield turns off the air conditioning.
D To heat the vehicle interior while de-
D On humid days, do not blow cold air
frosting
the
windshield,
choose
on the windshield—the difference be-
floor/windshield air flow.
tween the outside and inside tempera-
tures could make the fogging worse.
133
2005 ECHO from Aug. ’04 Prod. (OM52636U)
Air conditioning filter—
(on some models: particle
—Checking and replacing the
filter)
air conditioning filter
The air conditioning filters may clog
after long use. The filters may need to
be replaced if the air flow of the air
conditioning and heater experiences ex-
treme reductions in operating efficiency,
or if the windows become to fog up
easily in FRESH mode.
To maintain the air conditioning efficiency,
replace the air conditioning filters accord-
ing to the maintenance schedule. In dusty
areas or areas with heavy traffic flow,
such as inner city or desert areas, early
replacement may be required. (For sched-
uled maintenance information, please refer

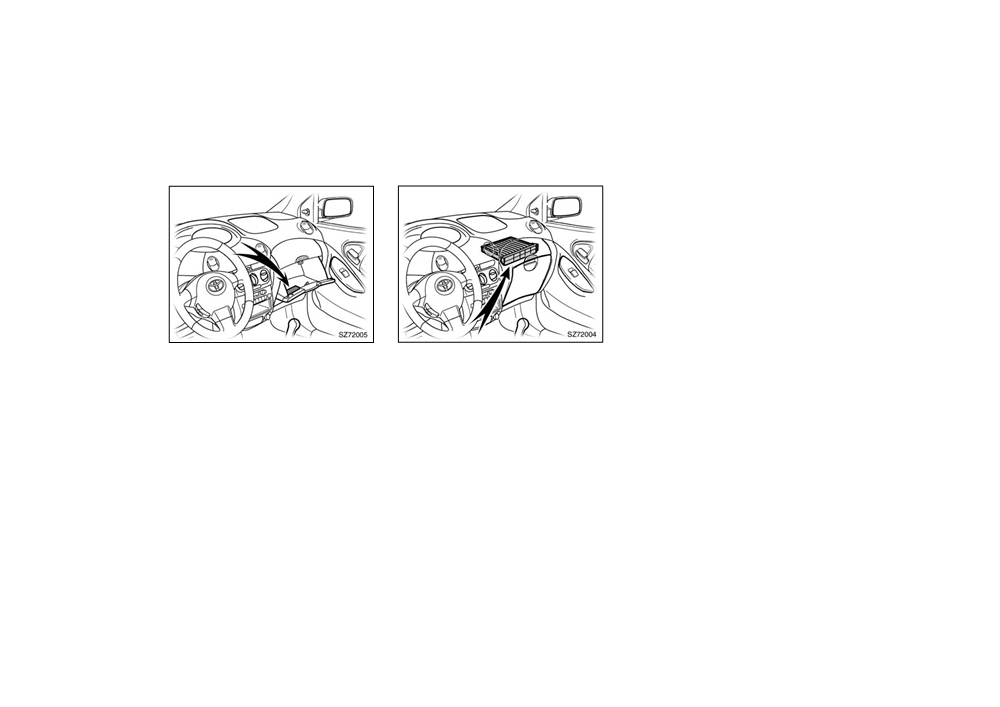

The air conditioning filter information
The air conditioning filter is behind the
to the
“Scheduled Maintenance Guide” or
label is placed inside the glove box as
glove box.
“Owner’s Manual Supplement”.)
shown and indicates that a filter has
been installed.
The air conditioning filter prevents dust
from entering the vehicle through the air
conditioning vent.
134
2005 ECHO from Aug. ’04 Prod. (OM52636U)

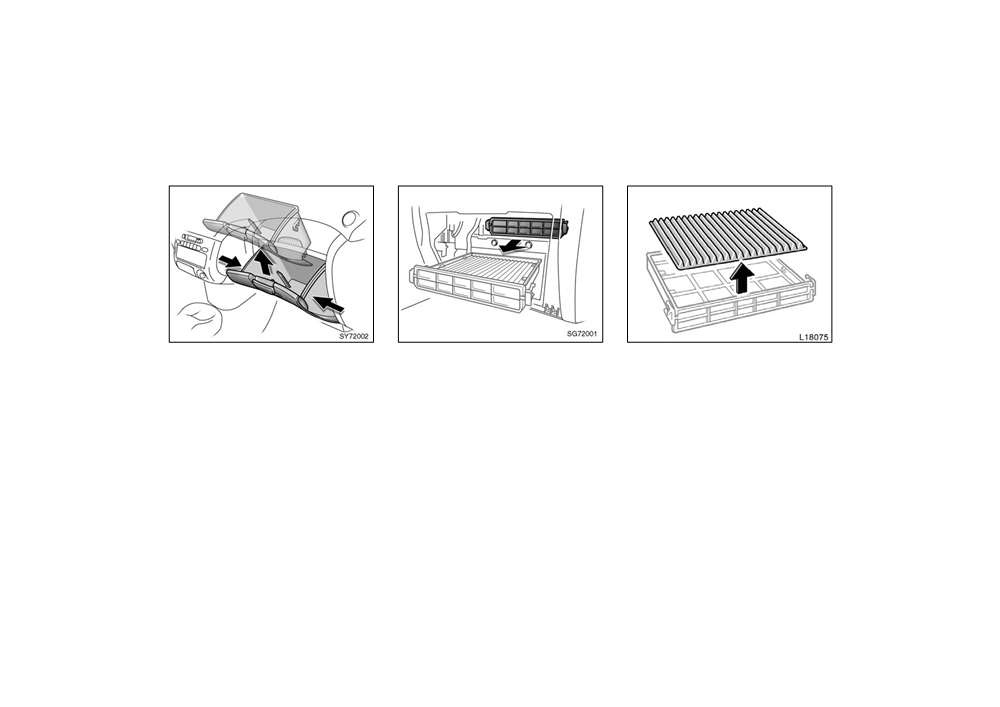

1. Remove the glove box from the in-
2. Pull out the air conditioning filter
3. Remove the filter from the filter
strument panel, while pushing to-
case as shown in the illustration.
case.
gether both sides of the glove box.
4. Inspect the filter on the surface.
If it is dirty, it should be replaced.
INFORMATION:
The air filter should be installed proper-
ly in position. The use of air condition-
ing with the air filter removed may
cause deteriorated dustproof perfor-
mance and then affect air conditioning
performance.
135
2005 ECHO from Aug. ’04 Prod. (OM52636U)
Air conditioning filter—
—Checking and cleaning the
(on some models: mesh filter)
air conditioning filter
The air conditioning filters may clog
after long use. The filters may need to
be replaced if the air flow of the air
conditioning and heater experiences ex-
treme reductions in operating efficiency,
or if the windows become to fog up
easily in FRESH mode.
To maintain the air conditioning efficiency,
clean the air conditioning filters according
to the maintenance schedule. In dusty
areas or areas with heavy traffic flow,
such as inner city or desert areas, early
replacement may be required. (For sched-
uled maintenance information, please refer
The air conditioning filter information
The air conditioning filter is behind the
to the
“Scheduled Maintenance Guide” or
label is placed inside the glove box as
glove box.
“Owner’s Manual Supplement”.)
shown and indicates that a filter has
been installed.
The air conditioning filter prevents dust
from entering the vehicle through the air
conditioning vent.
136
2005 ECHO from Aug. ’04 Prod. (OM52636U)

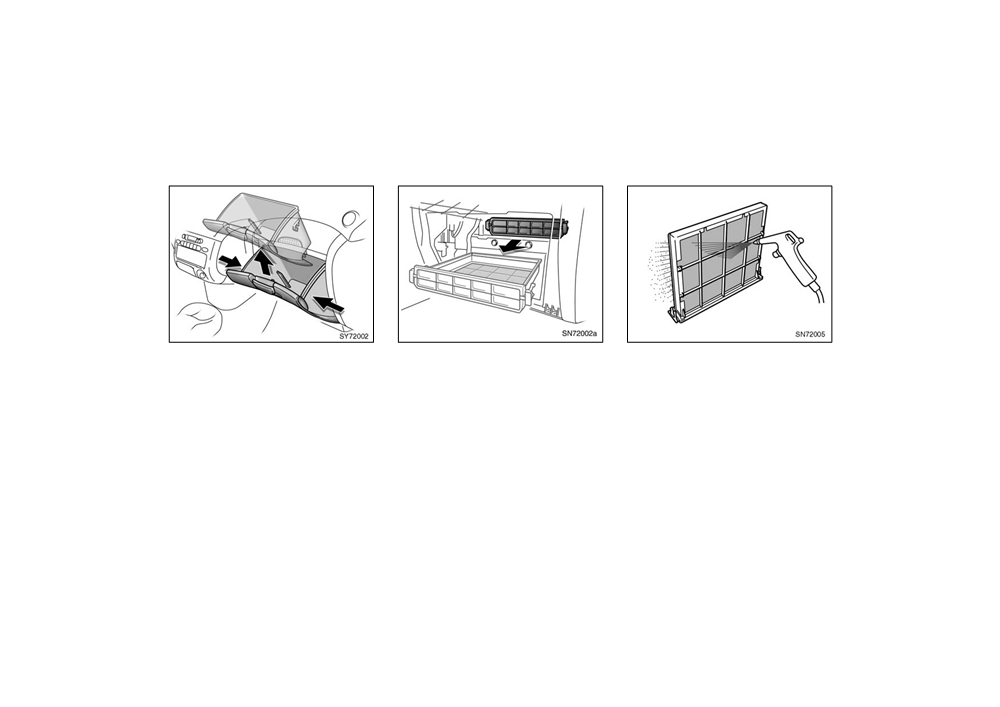

1. Remove the glove box from the in-
2. Pull out the air conditioning filter
3. Clean the filter.
strument panel, while pushing to-
case as shown in the illustration.
When cleaning the air conditioning filter,
gether both sides of the glove box.
blow the dust out of the filter with com-
pressed air from the backside of the filter.
INFORMATION:
D Frequency of the cleaning varies de-
pending on road conditions
(dusty
road, etc). Earlier cleaning is recom-
mended.
D The air filter should be installed
properly in position. The use of air
conditioning with the air filter re-
moved may cause deteriorated dust-
proof performance and then affect
air conditioning performance.
137
2005 ECHO from Aug. ’04 Prod. (OM52636U)
138
2005 ECHO from Aug. ’04 Prod. (OM52636U)
SECTION 1− 10
OPERATION OF INSTRUMENTS AND
CONTROLS
Other equipment
Clock
140
Cigarette lighter and ashtray
140
Power outlet
141
Glove box
142
Auxiliary boxes
142
Cup holders
143
Floor mat
144
139
2005 ECHO from Aug. ’04 Prod. (OM52636U)

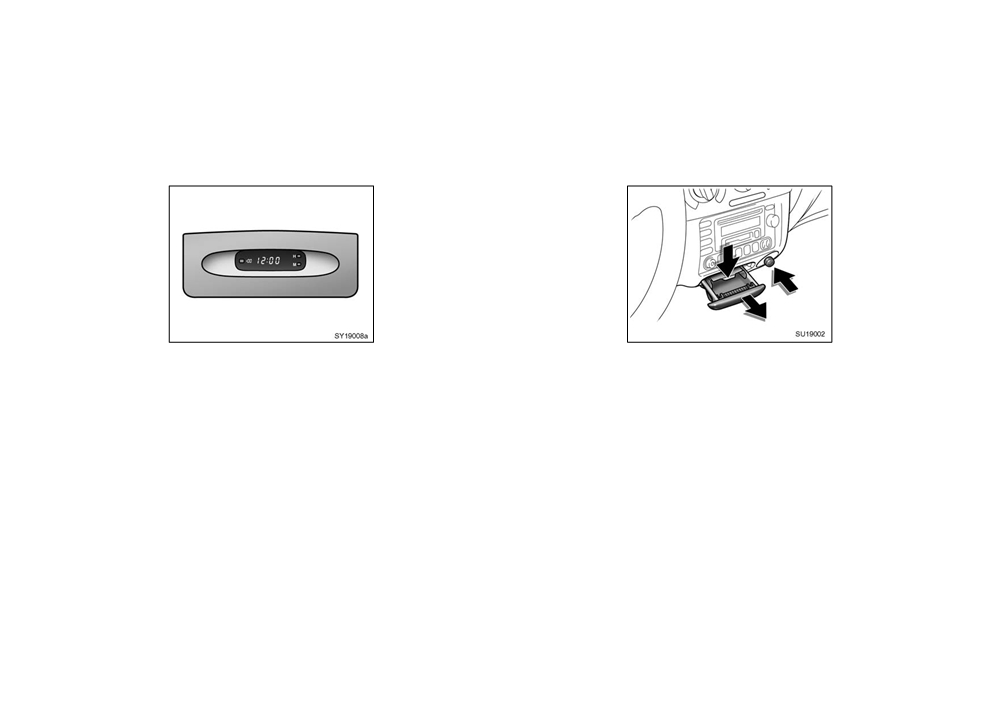

Clock
Cigarette lighter and ashtray
If the electrical power source has been
disconnected from the clock, the time dis-
play will automatically be set to 1:00 (one
o’clock).
When the instrument panel lights are
turned on, the brightness of the time in-
dication will be reduced.
To reset the hour: Push the “H” button.
CIGARETTE LIGHTER
To reset the minutes: Push the “M” button.
To use the cigarette lighter, press it in.
The key must be in the
“ACC” or
“ON”
After it finishes heating up, it automati-
position.
cally pops out ready for use.
If quick adjustment to a full hour is de-
If the engine is not running, the key must
sired, push the “:00” button.
be in the “ACC” position to use the light-
er.
For example, if the
“:00” button is de-
pressed when the time is between
Do not hold the cigarette lighter pressed
1:01—1:29, the time will change to 1:00. If
in.
the time is between
1:30—1:59, the time
Use a Toyota genuine cigarette lighter or
will change to 2:00.
equivalent for replacement.
140
2005 ECHO from Aug. ’04 Prod. (OM52636U)
Power outlet
(without cigarette lighter)
ASHTRAY
z Close the power outlet lid when the
To use the ashtray, open out.
power outlet is not in use. Inserting
When finished with your cigarette, thor-
anything other than an appropriate
oughly extinguish it in the ashtray to pre-
plug that fits the outlet, or allowing
vent other cigarette butts from catching
any liquid to get into the outlet may
fire. After using the ashtray, push it back
cause electrical failure or short cir-
in completely.
cuits.
To remove the ashtray, press down on the
lock spring plate and pull out.
CAUTION
To reduce the chance of injury in
case of an accident or sudden stop
The power outlet is designed for power
while driving, always completely close
supply for car accessories.
the ashtray after use.
The key must be in the
“ACC” or
“ON”
position for the power outlet to be used.
NOTICE
z To prevent the fuse from being
blown, do not use the electricity
over the total vehicle capacity of
12V/120W.
z To prevent the battery from being
discharged, do not use the power
outlet longer than necessary when
the engine is not running.
141
2005 ECHO from Aug. ’04 Prod. (OM52636U)
Glove box
Auxiliary boxes
Instrument panel
Passenger’s seat
To open the glove box door, pull the
lever.
To use the box, pull on the handle.
To use the box, slightly lift up the box
and pull it out as shown in the illustra-
CAUTION
This auxiliary box can be used to store
tion.
the first−aid kit.
To reduce the chance of injury in
case of an accident or a sudden stop,
CAUTION
always keep the glove box door
closed while driving.
To reduce the chance of injury in
case of an accident or a sudden stop,
always keep the auxiliary box closed
while driving.
142
2005 ECHO from Aug. ’04 Prod. (OM52636U)
Cup holders
NOTICE
Instrument panel: During hot weather,
the interior of the vehicle becomes
very hot. Do not leave anything flam-
mable or deformable such as a light-
er, glasses, etc. inside.
Front
Rear
(2−door models: for right and left
sides)
The cup holder is designed for holding
cups or drink−cans securely in its
holes.
CAUTION
Do not place anything else other than
cups or drink−cans in the cup holder,
as such items may be thrown about
and possibly injure people in the ve-
hicle during sudden braking or in an
accident.
Rear (center)
143
2005 ECHO from Aug. ’04 Prod. (OM52636U)
Floor mat
Use a floor mat of the correct size.
CAUTION
If the floor carpet and floor mat have two
holes, then it is designed for use with a
Make sure the floor mat is properly
locking clip. Fix the floor mat with locking
placed on the floor carpet. If the floor
clip into the holes in the floor carpet.
mat slips and interferes with the
movement of the pedals during driv-
ing, it may cause an accident.
144
2005 ECHO from Aug. ’04 Prod. (OM52636U)
