(e) Malfunction Indicator Lamp
Emissions Inspection and Maintenance
The light may occasionally flicker when
(I/M) programs
the engine is idling or it may come on
This lamp comes on when the ignition
briefly after a hard stop. There is no
key is turned to the “ON” position and
Your vehicle may not pass a state emis-
cause for concern if it then goes out when
goes off after the engine starts. This
sion inspection if the malfunction indicator
the engine is accelerated slightly.
means that the warning light system is
lamp remains on. Contact your Toyota
operating properly.
dealer to check your vehicle’s emission
The light may come on when the oil level
control system and OBD (On−Board Diag-
is extremely low. It is not designed to
If the lamp remains on, first check the
nostics) system before taking your vehicle
indicate low oil level, and the oil level
followings.
for the inspection.
must be checked using the level dipstick.
D Empty fuel tank
For details, see “Emissions inspection and
If the fuel tank is empty, refuel immedi-
NOTICE
maintenance (I/M) programs” in Section 6.
ately.
(f) Low Fuel Level Warning Light
Do not drive the vehicle with the
D Loose fuel tank cap
warning light on—even for one block.
This light comes on/flashes when the fuel
If the fuel tank cap is loose, securely
It may ruin the engine.
level in the tank becomes nearly empty.
tighten it.
Fill up the tank as soon as possible.
These cases are temporary malfunctions.
(h)
“ABS” Warning Light
On inclines or curves, due to the move-
The malfunction indicator lamp will go off
The light comes on when the ignition key
ment of fuel in the tank, the low fuel level
after taking several driving trips.
is turned to the “ON” position. If the anti−
warning light may come on/flash earlier
If the lamp does not go off even after
than usual.
lock brake system works properly, the
several trips...
light turns off after a few seconds. There-
(g) Low Engine Oil Pressure Warning
or
after, if the system malfunctions, the light
Light
If the fuel tank is not empty or the fuel
comes on again.
This light warns that the engine oil pres-
tank cap is not loose...
When the “ABS” warning light is on (and
sure is too low.
the brake system warning light is off), the
D There is a problem somewhere in the
If it flickers or stays on while you are
anti−lock brake system does not operate,
engine, emission control system, auto-
driving, pull off the road to a safe place
but the brake system still operates con-
matic transmission electrical system or
and stop the engine immediately. Call a
ventionally.
warning light system itself.
Toyota dealer or qualified repair shop for
Contact your Toyota dealer as soon as
assistance.
possible to service the vehicle.
94
2005 ECHO from Aug. ’04 Prod. (OM52636U)
When the “ABS” warning light is on (and
(j) SRS Warning Light
(k) Low Windshield Washer Fluid Level
the brake system warning light is off), the
Warning Light
This light will come on when the igni-
anti−lock brake system does not operate
tion key is turned to the “ON” position.
The light warns that the windshield washer
so that the wheels could lock up during
After about 6 seconds, the light will go
fluid level is too low. Add washer fluid at
a sudden braking or braking on slippery
off. This means the system of the air-
your earliest opportunity.
(For instructions,
road surfaces.
bags and front seat belt pretensioners
see “Adding washer fluid” in Section 7−3.)
If either of the following conditions
are operating properly.
The light operates to warn that the engine
occurs, this indicates a malfunction
This warning light system monitors the
is almost overheating.
somewhere in the parts monitored by
airbag sensor assembly, front airbag sen-
(l) High Engine Coolant Temperature
the warning light system. Contact your
sors, side airbag sensors, door side air-
Warning Light
Toyota dealer as soon as possible to
bag sensors, seat belt pretensioner as-
service the vehicle.
The light operates to warn that the engine
semblies,
inflators,
warning
light,
is almost overheating.
D The light does not come on when the
interconnecting wiring and power sources.
ignition key is turned to the
“ON” posi-
The light will come on when the ignition
If either of the following conditions occurs,
tion, or remains on.
key is turned to the
“ON” position. After
this indicates a malfunction somewhere in
a few seconds, the light will go off.
D The light comes on while you are driv-
the parts monitored by the warning light
ing.
system. Contact your Toyota dealer as
If it flashes while you are driving, stop the
soon as possible to service the vehicle.
vehicle and check your engine. For de-
A warning light turning on briefly during
tailed instructions, see
“If your vehicle
operation does not indicate a problem.
D The light does not come on when the
overheats” in Section
4.
ignition key is turned to the
“ON” posi-
(i) Open Door Warning Light
tion or remains on for more than
6
This light remains on until all the doors
NOTICE
seconds or flashes.
and trunk lid are completely closed.
D The light comes on or flashes while
Continued driving with the light on
driving.
could result in engine overheating.
(m) Key Reminder Buzzer
This buzzer acts as a reminder to remove
the key when you open the driver’s door
with the ignition key in the
“ACC” or
“LOCK” position.
95
2005 ECHO from Aug. ’04 Prod. (OM52636U)
(n) Light Reminder Buzzer
CHECKING
SERVICE
REMINDER
INDICATORS (except the low fuel level
This buzzer will sound if the head light
warning light and low windshield wash-
switch is left on and the driver’s door is
er fluid level warning light)
opened with the key removed from the
ignition switch.
1. Apply the parking brake.
2. Open one of the doors or trunk lid.
The open door warning light should
come on.
3. Close the door.
The open door warning light should go
off.
4. Turn the ignition key to
“ON”, but do
not start the engine.
All the service reminder indicators except
the open door warning light should come
on. The “ABS” warning light goes off after
a few seconds. The SRS warning light
goes off after about
6 seconds.
If any service reminder indicator or warn-
ing buzzer does not function as described
above, have it checked by your Toyota
dealer as soon as possible.
96
2005 ECHO from Aug. ’04 Prod. (OM52636U)
SECTION 1− 7
OPERATION OF INSTRUMENTS AND
CONTROLS
Ignition switch, Transmission and Parking brake
Ignition switch with steering lock
98
Automatic transmission
99
Manual transmission
102
Parking brake
103
97
2005 ECHO from Aug. ’04 Prod. (OM52636U)
Ignition switch with steering
lock
“LOCK”—Engine is off and the steering
wheel is locked. The key can be re-
moved only at this position.
You must push in the key to turn the key
from
“ACC” to the
“LOCK” position. On
vehicles with an automatic transmission,
the selector lever must be put in the
“P”
position before pushing the key.
When starting the engine, the key may
seem stuck at the
“LOCK” position. To
free it, first be sure the key is pushed all
the way in, and then rock the steering
wheel slightly while turning the key gently.
“START”—Starter motor on. The key
will return to the
“ON” position when
CAUTION
released.
For manual transmission:
For starting tips, see Section
3.
Never remove the key when the ve-
“ON”—Engine on and all accessories
hicle is moving, as this will lock the
on.
steering wheel and result in loss of
This is the normal driving position.
steering control.
“ACC”—Accessories such as the radio
operate, but the engine is off.
NOTICE
If you leave the key in the
“ACC” or
“LOCK” position and open the driver’s
Do not leave the key in the
“ON”
door, a buzzer will remind you to remove
position if the engine is not running.
the key.
The battery will discharge and the
ignition could be damaged.
98
2005 ECHO from Aug. ’04 Prod. (OM52636U)
Automatic transmission
Your automatic transmission has a shift
lock system to minimize the possibility of
incorrect operation. This means you can
Lock release button
To prevent misshifting
only shift out of
“P” position when the
Selector lever
brake pedal is depressed (with the ignition
switch in
“ON” position and the lock re-
lease button depressed).
(a) Selector lever
P: Parking, engine starting and key re-
moval
R: Reverse
N: Neutral
Overdrive
switch
D: Normal driving (with overdrive on)
2: Stronger engine braking
L: Maximum engine braking
With the brake pedal depressed, shift while
holding the lock release button in. (The
ignition switch must be in “ON” position.)
Shift while holding the lock
release button in
Shift normally
99
2005 ECHO from Aug. ’04 Prod. (OM52636U)
(c) Normal driving
3. Release the parking brake and brake
pedal. Depress the accelerator pedal
1. Start the engine as instructed in
“How
slowly for smooth starting.
to start the engine” in Section
3. The
transmission must be in
“P” or
“N”.
(d) Using engine braking
2. With your foot holding down the brake
To use engine braking, you can downshift
pedal, shift the selector lever to
“D”.
the transmission as follows:
When the lever is in the “D” position, the
D Push the overdrive switch. The
“O/D
automatic transmission system will select
OFF” indicator light will come on and
the most suitable gear for running condi-
the transmission will downshift to third
tions such as normal cruising, hill climb-
gear.
ing, hard towing, etc.
D Shift into the
“2” position. The trans-
Always turn the overdrive on for better
mission will downshift to second gear
fuel economy and quieter driving. If the
when the vehicle speed drops down to
(b) Overdrive switch
engine coolant temperature is low, the
or lower than
91 km/h (57 mph), and
You can select either third gear(with over-
transmission will not shift into overdrive
stronger engine braking will be en-
drive off) or forth gear
(with overdrive on)
gear even with the overdrive on.
abled.
by pushing this switch.
D Shift into the
“L” position. The trans-
To turn the overdrive off, push the switch.
CAUTION
mission will downshift to first gear
The “O/D OFF” indicator light should come
when the vehicle speed drops down to
on. To turn the overdrive again, push the
Never put your foot on the accelera-
or lower than
45 km/h (28 mph), and
switch again. The
“O/D OFF” indicator
tor pedal while shifting.
maximum engine braking will be en-
light should go off.
abled.
Always drive your vehicle with the over-
drive on for better fuel economy and
quieter driving.
If the engine is turned off when the over-
drive is off and restarted, the overdrive
will automatically be on.
100
2005 ECHO from Aug. ’04 Prod. (OM52636U)
(g) Parking
CAUTION
NOTICE
1. Bring the vehicle to a complete stop.
z Be careful not to overrev the en-
Be careful when downshifting on a
2. Pull the parking brake lever up fully to
gine. The approximate maximum al-
slippery surface. Abrupt shifting
securely apply the parking brake.
lowable speed for each position is
could cause the vehicle to skid or
3. With the brake pedal pressed down,
given below for your reference:
spin.
shift the selector lever to the
“P” posi-
“2”
110 km/h (69 mph)
tion.
“L”
60 km/h (37 mph)
(e) Using
“2” and “L” positions
z Do not continue hill climbing or
CAUTION
The
“2” and
“L” positions are used for
hard towing for a long time in the
strong engine braking as described pre-
“2” or “L” position. This may cause
While the vehicle is moving, never
viously.
severe automatic transmission dam-
attempt to move the selector lever
With the selector lever in
“2” or
“L”, you
age from overheating. To prevent
into
“P” position under any circum-
can start the vehicle in motion as with the
such damage,
“D” position should
stances. Serious mechanical damage
lever in
“D”.
be used in hill climbing or hard
and loss of vehicle control may re-
With the selector lever in
“2”, the vehicle
towing.
sult.
will start in first gear and automatically
shift to second gear.
(f) Backing up
(h) Good driving practice
With the selector lever in
“L”, the trans-
1. Bring the vehicle to a complete stop.
D If the transmission repeatedly shifts up
mission is engaged in first gear.
2. With the brake pedal held down with
and down between third gear and over-
your foot, shift the selector lever to the
drive when climbing a gentle slope, the
“R” position.
overdrive switch should be turned off.
Be sure to turn the switch on immedi-
NOTICE
ately afterward.
Never shift into reverse while the ve-
D When towing a trailer, in order to main-
tain engine braking efficiency, do not
hicle is moving.
use overdrive.
101
2005 ECHO from Aug. ’04 Prod. (OM52636U)
Manual transmission
Low altitude
CAUTION
—1219 m (4000 ft.) or lower
gear
km/h (mph)
Always keep your foot on the brake
1 to 2 or 2 to 1
24 (15)
pedal while stopped with the engine
2 to 3 or 3 to 2
40 (25)
running. This prevents the vehicle
3 to 4 or 4 to 3
64 (40)
from creeping.
4 to 5 / 5 to 4
72/64 (45/40)
High altitude
—Higher than 1219 m (4000 ft.)
NOTICE
Upshifting
gear
km/h (mph)
Always use the brake pedal or the
1 to 2
24 (15)
parking brake to hold the vehicle on
2 to 3
57 (36)
an upgrade. Do not attempt to hold
3 to 4
72 (45)
the vehicle using the accelerator ped-
4 to 5
85 (53)
The shift pattern is conventional as
al, as this can cause the transmission
shown above.
Downshifting
to overheat.
gear
km/h (mph)
Press the clutch pedal down fully while
2 to 1
24 (15)
shifting, and then release it slowly. Do not
(i) If you cannot shift the selector le-
3 to 2
40 (25)
ver out of
“P” position
rest your foot on the pedal while driving,
4 to 3
64 (40)
because it will cause clutch trouble. Do
If you cannot shift the selector lever from
5 to 4
64 (40)
not use the clutch to hold the vehicle
“P” position even though the brake pedal
when stopped on an uphill grade—use the
is depressed, use the shift lock override
parking brake.
button. For instructions, see “If you cannot
shift automatic transmission selector lever”
Recommended shifting speeds
in Section
4.
The transmission is fully synchronized and
upshifting or downshifting is easy.
For the best compromise between fuel
economy and vehicle performance, you
should upshift or downshift at the following
speeds:
102
2005 ECHO from Aug. ’04 Prod. (OM52636U)
Parking brake
Downshift to the appropriate gear if accel-
Good driving practice
eration is needed when you are cruising
D If it is difficult to shift into reverse, put
below the above downshifting speeds.
the transmission in neutral, release the
Upshifting too soon or downshifting too
clutch pedal momentarily, and then try
late will cause lugging, and possibly ping-
again.
ing. Regularly revving the engine to maxi-
D When towing a trailer, in order to main-
mum speed in each gear will cause ex-
tain engine braking efficiency, do not
cessive engine wear and high fuel
use fifth gear.
consumption.
Maximum allowable speeds
CAUTION
To get on a highway or to pass slower
traffic, maximum acceleration may be nec-
Be careful when downshifting on a
essary. Make sure you observe the follow-
slippery surface. Abrupt shifting
Type A
ing maximum allowable speeds in each
could cause the vehicle to skid or
spin.
gear:
gear
km/h (mph)
1
54 (33)
NOTICE
2
100 (62)
3
146 (91)
Make sure the vehicle is completely
stopped before shifting into reverse.
NOTICE
Do not downshift if you are going
faster than the maximum allowable
speed for the next lower gear.
Type B
103
2005 ECHO from Aug. ’04 Prod. (OM52636U)
When parking, firmly apply the parking
brake to avoid inadvertent creeping.
To set: Pull up the lever. For better hold-
ing power, first depress the brake pedal
and hold it while setting the parking
brake.
To release: Pull up the lever slightly
(1),
press the thumb button (2), and lower (3).
To remind you that the parking brake is
set, the parking brake reminder light in
the instrument panel remains on until you
release the parking brake.
CAUTION
Before driving, be sure the parking
brake is fully released and the park-
ing brake reminder light is off.
104
2005 ECHO from Aug. ’04 Prod. (OM52636U)
SECTION 1− 8
OPERATION OF INSTRUMENTS AND
CONTROLS
Audio system
Reference
106
Using your audio system
106
Audio system operating hints
122
105
2005 ECHO from Aug. ’04 Prod. (OM52636U)
Using your audio system—
Reference
—Some basics
This Section describes some of the basic
features on Toyota audio systems. Some
information may not pertain to your sys-
tem.
Your audio system works when the ignition
key is in the
“ACC” or “ON” position.
TURNING THE SYSTEM ON AND OFF
Push
“PWR/VOL” or
“PWR·VOL” to turn
the audio system on and off.
Push “AM”,
“FM1·2”,
“FM”,
“FM1”,
“FM2”,
“TAPE”,
“DISC”,
“LOAD” or “AUX” to turn
on that function without pushing
“PWR/

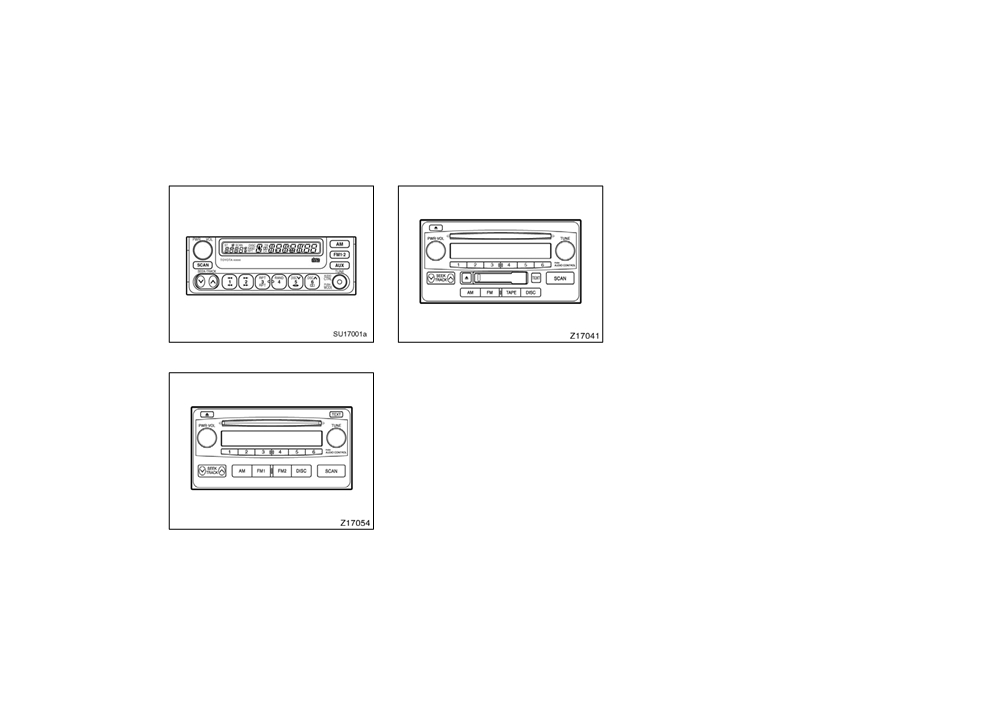

Type 1: AM·FM radio
(with cassette and
Type 3: AM·FM radio/cassette player/com-
VOL” or “PWR·VOL”. To turn on the cas-
compact disc changer controller)
pact disc player
sette or compact disc player, a cassette
or compact disc must be loaded in the
player.
You can turn on each player by inserting
a cassette tape or compact disc.
You can turn off each player by ejecting
the cassette tape or compact disc. If the
audio system was previously off, then the
entire audio system will be turned off
when you eject the cassette tape or com-
pact disc. If another function was pre-
viously playing, it will come on again.
Type 2: AM·FM radio/compact disc player
106
2005 ECHO from Aug. ’04 Prod. (OM52636U)
SWITCHING BETWEEN FUNCTIONS
YOUR RADIO ANTENNA
YOUR COMPACT DISC PLAYER
Push “AM”,
“FM1·2”,
“FM”,
“FM1”,
“FM2”,
To lower a manual antenna, carefully push
When you insert a disc, gently push it in
“TAPE”,
“DISC”,
“LOAD”, or
“AUX” if the
it down.
with the label side up.
(The player will
system is already on but you want to
automatically eject a disc if the label side
switch from one function to another.
NOTICE
is down.) The player will play from track
1 through the end of the disc. Then it will
TONE AND BALANCE
To prevent damage to the antenna,
play from track
1 again.
For details about your system’s tone and
make sure it is retracted before driv-
balance controls, see the description of
ing your Toyota through an automatic
NOTICE
your own system.
car wash.
Never try to disassemble or oil any
Tone
part of the compact disc player. Do
YOUR CASSETTE PLAYER
How good an audio program sounds to
not insert anything other than com-
you is largely determined by the mix of
When you insert a cassette, the exposed
pact discs into the slot.
the treble, midrange, and bass levels. In
tape should face to the right.
fact, different kinds of music and vocal
NOTICE
The player is intended for use with 12 cm
programs usually sound better with differ-
(4.7 in.) discs only.
ent mixes of treble, midrange and bass.
Do not oil any part of the player and
Balance
do not insert anything other than cas-
sette tapes into the slot, or the tape
A good balance of the left and right stereo
player may be damaged.
channels and of the front and rear sound
levels is also important.
Keep in mind that if you are listening to
a stereo recording or broadcast, changing
the right/left balance will increase the vol-
ume of one group of sounds while de-
creasing the volume of another.
107
2005 ECHO from Aug. ’04 Prod. (OM52636U)
—Controls and features

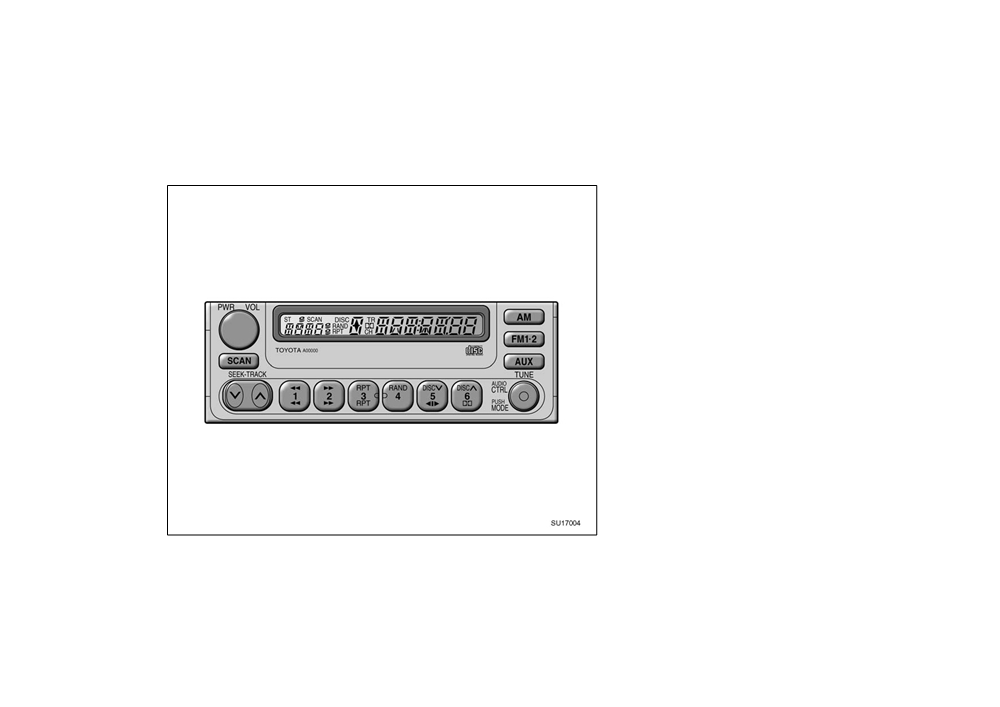

"Type 1
Details of specific buttons, controls, and
features are described in the alphabetical
list that follows.
108
2005 ECHO from Aug. ’04 Prod. (OM52636U)
1 2 3 4 5 6 (Preset buttons)
AM
(Reverse/Fast forward buttons)
These buttons are used to preset and
Push “AM” to turn on the radio and select
Cassette Player
tune in radio stations.
the AM band.
“AM” will appear on the
Push the fast forward button to fast for-
display.
To preset a station to a button: Tune in
ward a cassette tape. “FF” will appear on
the desired station
(see
“TUNE” knob or
If the audio system is off, you can turn
the display. Push the reverse button to
“SEEK” button). Push and hold down the
on the radio by pushing “AM”. Also, push
rewind a tape.
“REW” will appear on the
button until you hear a beep—this will set
“AM” to switch from cassette or compact
display.
the station to the button. The button num-
disc operation to radio operation.
To stop the tape while it is fast forward-
ber will appear on the display.
CTRL / MODE (Audio control and mode
ing, push the fast forward button or
To tune in to a preset station: Push the
adjustment)
“TAPE”; to stop the tape while it is re-
button for the station you want. The but-
winding, push the reverse button or
Manual tone adjustment function—
ton number and station frequency will ap-
“TAPE”.
This knob is used to adjust the tone
pear on the display.
If a tape side rewinds completely, the cas-
manually.
These systems can store one AM and two
sette player will stop and then play that
For low−pitch tone adjustment, push
FM stations for each button
(The display
same side. If a tape fast forwards com-
“CTRL
/ MODE” repeatedly until
“BAS”
will show “AM”, “FM1” or “FM2” when you
pletely, the cassette player will play the
appears on the display. Then turn the
push “AM” “FM1·2”).
other side of the tape, using the auto−re-
knob to suit your preference.
(Program)
verse feature.
The display will show the range from
Compact Disc Player
Push “
” to select the other side of a
“BAS −5” to “BAS 5”.
If you want to fast forward or reverse
cassette tape. The display indicates which
For high−pitch tone adjustment, push
through a compact disc track, push and
side is currently selected
(“
” indicates
“CTRL
/ MODE” repeatedly until
“TRE”
hold in the fast forward or reverse button.
appears on the display. Then turn the
top side,
“
” indicates bottom side).
When you release the button, the compact
knob to suit your preference.
Auto−reverse feature: After the cassette
disc player will resume playing.
The display will show the range from
player reaches the end of a tape side, it
“TRE −5” to “TRE 5”.
automatically reverses and begins to play
the other side. This is true whether the
cassette was playing or fast forwarding.
109
2005 ECHO from Aug. ’04 Prod. (OM52636U)
Sound balance adjustment function—
With compact disc player or compact
If
“Err
3” or
“Err
4” appears on the
disc changer
display, it indicates there is a trouble in-
This knob is also used to adjust the
side the system. Eject the disc or maga-
sound balance between the front and rear,
Push “AUX” to switch from radio to com-
zine. Set the disc or magazine again.
and the right and left speakers.
pact disc operation. If the audio system is
off, you can turn on the compact disc
If
“OPEn” appears on the display, it
For front/rear adjustment, push
“CTRL
/
player by pushing
“AUX”. In both cases,
indicates the compact disc changer lid is
MODE” repeatedly until
“FAd” appears on
a disc must already be loaded in the
open. Close the compact disc changer lid.
the display. Then turn the knob to adjust
player.
the front/rear balance.
If the malfunction is not rectified, take
When the audio is set into compact disc
your vehicle to your Toyota dealer.
The display will show the range from
operation, the display shows the track or,
“FAd−F7” to “FAd−R7”.
DISC ƝƜ
track and disc number currently being
For left/right adjustment, push
“CTRL
/
Compact disc changer only—
played. Each time you push
“AUX”, the
MODE” repeatedly until
“BAL” appears on
system changes to the changer.
By using this button, you can select a
the display. Then turn the knob to adjust
disc you wish to listen to.
If the player malfunctions, your audio sys-
the left/right balance.
tem will display one of the six following
Push either side of the button until the
The display will show the range from
error messages.
number of the disc you want to listen to
“BAL−L7” to “BAL−R7”.
appears on the display.
If
“WAIT” appears on the display, it indi-
AUX (Auxiliary button)
cates that the inside of the player unit
Dolbyr
B NR∗
This button is used to operate each player
may be too hot due to the very high ambi-
If you are listening to a tape that was
when a cassette tape player, compact disc
ent temperature. Remove the disc or mag-
recorded with Dolbyr B Noise Reduction,
player or compact disc changer is
azine from the player and allow the player
push the
“
” button. The
“
B” will
equipped with this radio player.
to cool down.
appear on the display. Push the button
With cassette tape player
If
“Err
1” appears on the display, it
again to turn off Dolbyr B NR.
indicates the disc is dirty, damaged, or it
Push “AUX” to switch from radio to cas-
The Dolby NR mode reduces tape noise
was inserted up−side down. Clean the
sette operation. If the audio system is off,
by about 10 dB. For best sound reproduc-
disc or insert it correctly.
you can turn on the cassette player by
tion, play your tapes with this button on
pushing “AUX”. In both cases, a cassette
If
“Err
2” appears on the display, it
or off according to the mode used for
must already be loaded in the player.
indicates no disc is loaded inside the
recording the tape.
magazine. Insert a disc.
110
2005 ECHO from Aug. ’04 Prod. (OM52636U)
