Toyota Yaris Hybrid (2017 year). Manual - part 28

460

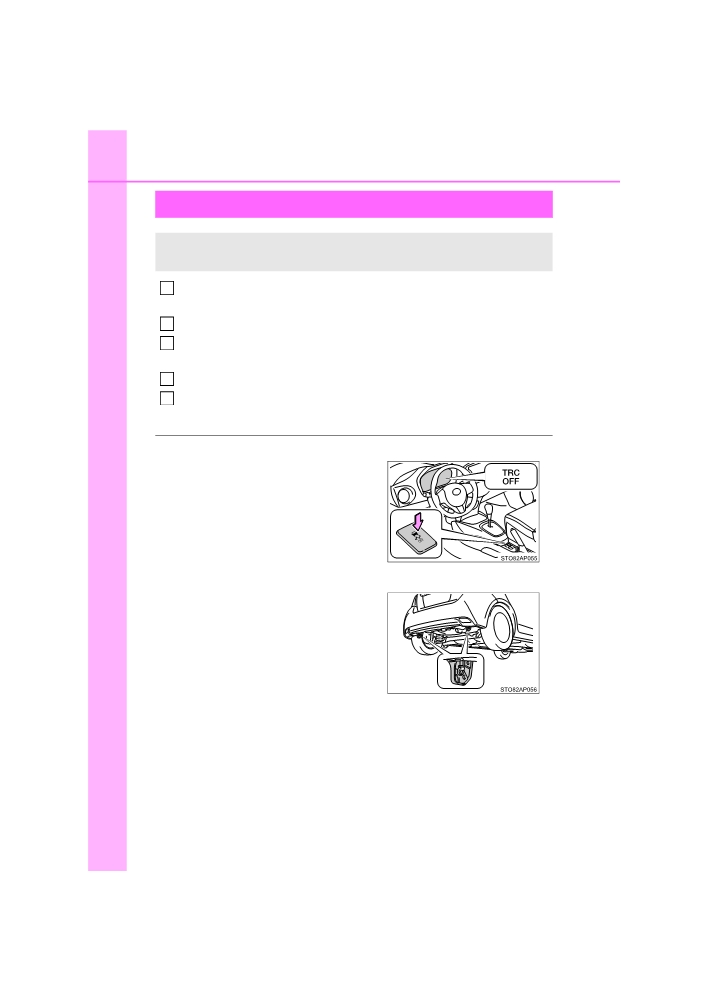

8-2. Steps to take in an emergency

If the vehicle becomes stuck

Carry out the following procedures if the tires spin or the vehicle

becomes stuck in mud, dirt or snow:

1

Stop the hybrid system. Set the parking brake and shift the shift

lever to P.

2

Remove the mud, snow or sand from around the front wheels.

3

Place wood, stones or some other material under the front wheels

to help provide traction.

4

Restart the hybrid system.

5

Shift the shift lever to D or R and release the parking brake. Then,

while exercising caution, depress the accelerator pedal.

■When it is difficult to free the vehicle

Press the switch to turn off TRC.

■Emergency hooks

When your vehicle becomes stuck and

cannot move, the emergency hooks are

used for another vehicle to pull your vehi-

cle out in an emergency.

Your vehicle is not designed to tow

another vehicle.

YARIS_HV_OM_Europe_OM52G76E

464

9-1. Specifications

Maintenance data (fuel, oil level, etc.)

Dimensions and weights

Overall length

3950 mm (155.5 in.)

Overall width

1695 mm (66.7 in.)

1510 mm (59.4 in.)

Overall height*1

1520 mm (59.8 in.)*2

Wheelbase

2510 mm (98.8 in.)

1485 mm (58.4 in.)*3

Front

1470 mm (57.8 in.)*4

1460 mm (57.4 in.)*5

Tread

1470 mm (57.8 in.)*3

Rear

1460 mm (57.4 in.)*4

1445 mm (56.8 in.)*5

Gross vehicle mass

1565 kg (3450 lb.)

Maximum

Front

895 kg (1973 lb.)

permissible

axle capacity

Rear

825 kg (1819 lb.)

*1: Unladen vehicles

*2: Vehicles with rough road package

*3: 175/65R15 tires

*4: 185/60R15 tires

*5: 195/50R16 tires

YARIS_HV_OM_Europe_OM52G76E

9-1. Specifications

465

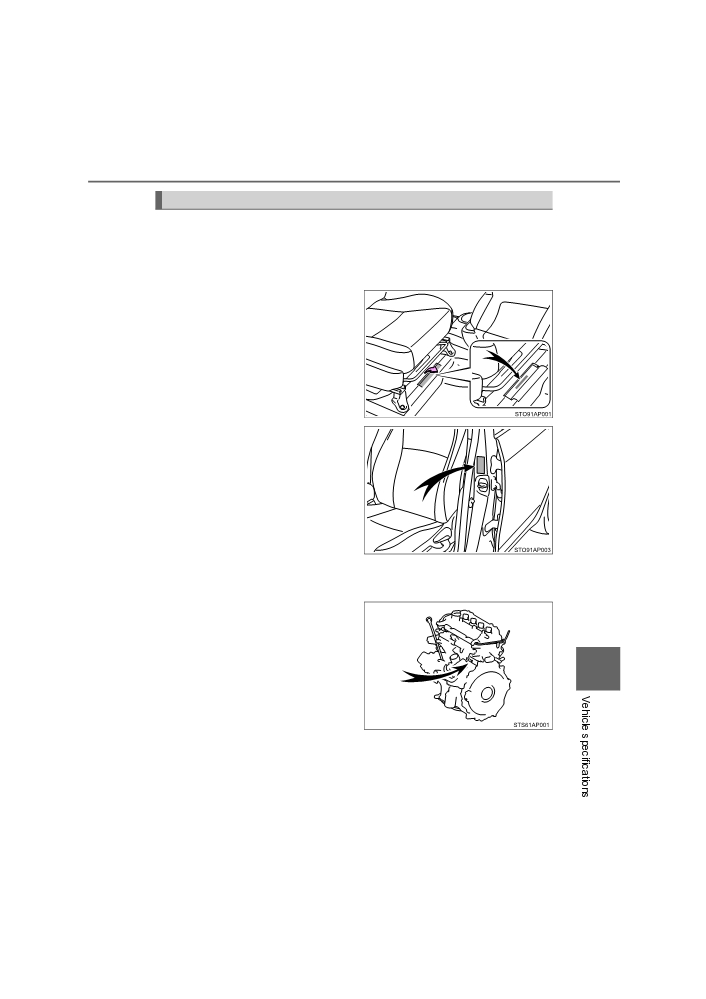

Vehicle identification

■ Vehicle identification number

The vehicle identification number (VIN) is the legal identifier for

your vehicle. This is the primary identification number for your

Toyota. It is used in registering the ownership of your vehicle.

This number is stamped under

the front right seat.

This number is also on the

manufacturer’s label on the left-

hand side of the center pillar.

■ Engine number

The engine number is stamped on the engine block as shown.

9

YARIS_HV_OM_Europe_OM52G76E

466

9-1. Specifications

Engine

Model

1NZ-FXE

Type

4-cylinder in line, 4-cycle, gasoline

Bore and stroke

75.0  84.7 mm (2.95  3.33 in.)

Displacement

1497 cm3 (91.3 cu.in.)

Valve clearance

Intake: 0.15  0.25 mm (0.0060.010 in.)

(engine cold)

Exhaust: 0.25 0.35 mm (0.010  0.014 in.)

Fuel

EU area:

Unleaded gasoline conforming to European

Fuel type

standard EN228 only

Except EU area:

Unleaded gasoline only

Research Octane

95 or higher

Number

Fuel tank capacity

36 L (9.5 gal., 7.9 Imp.gal.)

(Reference)

Electric motor (Traction motor)

Type

Permanent magnet motor

Maximum output

45 kW

Maximum torque

169 N·m (17.2 kgf·m, 125 ft·lbf)

Hybrid battery (Traction battery)

Type

Nickel-Metal hydride battery

Voltage

7.2 V/module

Capacity

6.5 Ah (3HR)

Quantity

20 modules

Overall voltage

144 V

YARIS_HV_OM_Europe_OM52G76E

9-1. Specifications

467

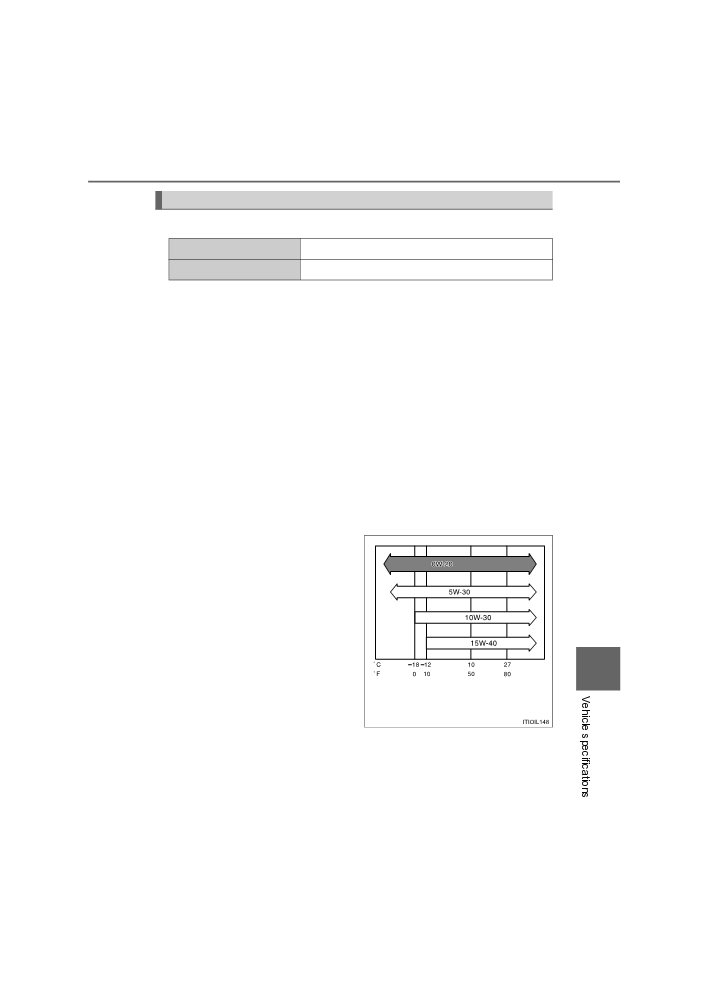

Lubrication system

■ Oil capacity (Drain and refill — reference*)

With filter

3.7 L (3.9 qt., 3.3 Imp.qt.)

Without filter

3.4 L (3.6 qt., 3.0 Imp.qt.)

*: The engine oil capacity is a reference quantity to be used when changing

the engine oil. Warm up the engine and turn off hybrid system, wait more

than 5 minutes, and check the oil level on the dipstick.

■ Engine oil selection

“Toyota Genuine Motor Oil” is used in your Toyota vehicle. Toyota

recommends the use of approved “Toyota Genuine Motor Oil”.

Another motor oil of matching quality can also be used.

Oil grade:

0W-20, 5W-30 and 10W-30:

API grade SL “Energy-Conserving”, SM “Energy-Conserving” or SN

“Resource-Conserving”; or ILSAC multigrade engine oil

15W-40:

API grade SL, SM or SN multigrade engine oil

Recommended viscosity (SAE):

SAE 0W-20 is filled into your

Toyota vehicle at manufactur-

Preferred

ing, and the best choice for

good fuel economy and good

starting in cold weather.

If SAE 0W-20 oil is not avail-

able, SAE 5W-30 oil may be

used. However, it should be

9

replaced with SAE 0W-20 at the

next oil change.

Temperature range anticipated

If you use SAE 10W-30 or a

before next oil change.

higher viscosity engine oil in

extremely low temperatures,

the engine may become difficult

to start, so SAE

0W-20 or

5W-30 engine oil is recom-

mended.

YARIS_HV_OM_Europe_OM52G76E

468

9-1. Specifications

Oil viscosity (0W-20 is explained here as an example):

• The 0W in 0W-20 indicates the characteristic of the oil which

allows cold startability. Oils with a lower value before the W allow

for easier starting of the engine in cold weather.

• The 20 in 0W-20 indicates the viscosity characteristic of the oil

when the oil is at high temperature. An oil with a higher viscosity

(one with a higher value) may be better suited if the vehicle is

operated at high speeds, or under extreme load conditions.

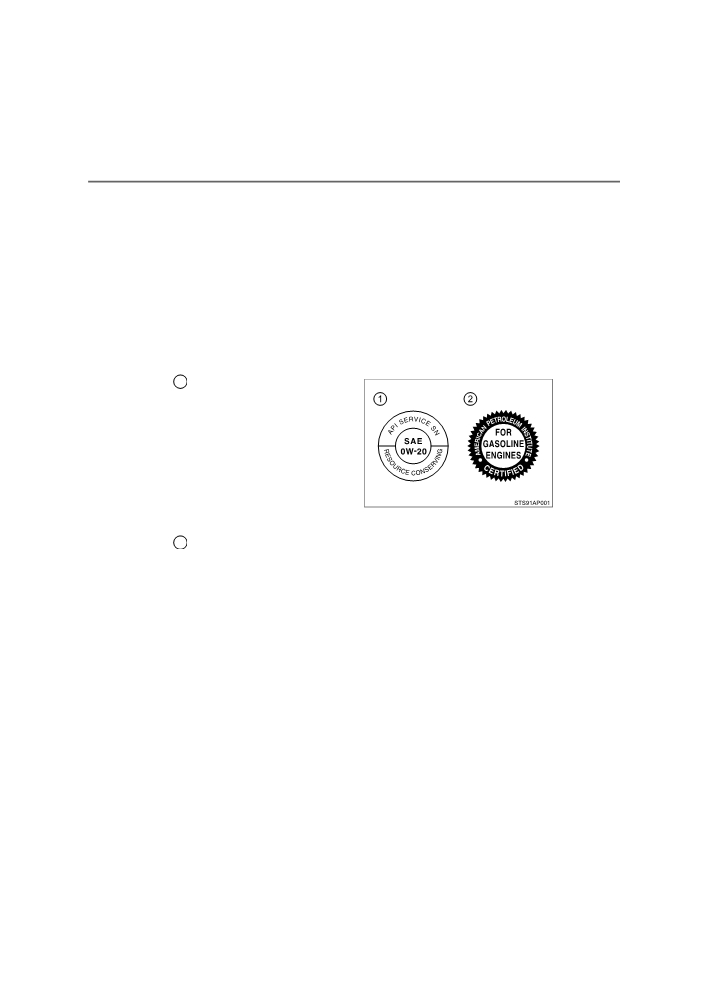

How to read oil container labels:

Either or both API registered marks are added to some oil contain-

ers to help you select the oil you should use.

API Service Symbol

1

Top portion: “API SERVICE SN”

means the oil quality designa-

tion by American Petroleum

Institute (API).

Center portion:

“SAE

0W-20”

means the SAE viscosity grade.

Lower portion: “Resource-Con-

serving” means that the oil has

fuel-saving and environmental

protection capabilities.

ILSAC Certification Mark

2

The International Lubricant Specification Advisory Committee (ILSAC)

Certification Mark is displayed on the front of the container.

YARIS_HV_OM_Europe_OM52G76E

9-1. Specifications

469

Cooling system

Gasoline engine

Capacity

4.5 L (4.8 qt., 4.0 Imp.qt.)

(Reference)

Power control unit

1.6 L (1.7 qt., 1.4 Imp.qt.)

Use either of the following:

•

“Toyota Super Long Life Coolant”

• A similar high-quality ethylene glycol-based

Coolant type

non-silicate, non-amine, non-nitrite, and non-

borate coolant with long-life hybrid organic

acid technology

Do not use plain water alone.

Ignition system

Spark plug

Make

DENSO FK16R-A8

Gap

0.8 mm (0.031 in.)

NOTICE

■ Iridium-tipped spark plugs

Use only iridium-tipped spark plugs. Do not adjust the spark plug gap.

Electrical system

12-volt battery

Open voltage* at

12.5 V or over Fully charged

20C (68F):

11.0  12.5 V Half charged

Under 11.0 V Discharged

(*: Voltage is checked

20 minutes after the

9

hybrid system and all lights are turned off.)

Charging rates

3  4 A max.

YARIS_HV_OM_Europe_OM52G76E

470

9-1. Specifications

Transmission

Fluid capacity*

3.3 L (3.5 qt., 2.9 Imp.qt.)

Fluid type

Toyota Genuine ATF WS

*: The fluid capacity is the reference quantity. If replacement is necessary,

contact any authorized Toyota dealer or repairer, or another duly qualified

and equipped professional.

NOTICE

■ Transmission fluid type

Using transmission fluid other than “Toyota Genuine ATF WS” may cause

deterioration in shift quality, locking up of the transmission accompanied by

vibration, and ultimately damage to the vehicle’s transmission.

Brakes

Pedal clearance*1

Left-hand drive vehicles

75 mm (3.0 in.)

Right-hand drive vehicles

73 mm (2.9 in.)

Pedal free play

1 — 6 mm (0.04 — 0.24 in.)

Parking brake lever travel*2

4 — 6 clicks

SAE J1704 or FMVSS No.116 DOT 4

Fluid type*3

SAE J1703 or FMVSS No.116 DOT 3

*1: Minimum pedal clearance when depressed with a force of 300 N (31 kgf,

67.4 lbf) while the hybrid system is operating

*2: Parking brake lever travel when pulled up with a force of 200 N (20.4 kgf,

45.0 lbf)

*3: Follow the indications of the designated fluid types for the brake reservoir

tank.

Steering

Free play

Less than 30 mm (1.2 in.)

YARIS_HV_OM_Europe_OM52G76E

9-1. Specifications

471

Tires and wheels

 15-inch tires

Tire size

175/65R15 84H

Front wheel

Rear wheel

kPa (kgf/cm2 or bar, psi)

kPa (kgf/cm2 or bar, psi)

Tire inflation pressure

(Recommended cold

Standard tire pressure:

Standard tire pressure:

tire inflation pressure)

230 (2.3, 33)

220 (2.2, 32)

ECO tire pressure*:

ECO tire pressure*:

250 (2.5, 36)

240 (2.4, 35)

Wheel size

15  5J

Wheel nut torque

103 N·m (10.5 kgf·m, 76 ft·lbf)

*: For some models, ECO tire pressure is shown on the tire pressure label.

(P. 437)

“For optimizing fuel economy, ECO tire pressure is recommended.

Tire pressure affects traveling comfort, road noise and steering character-

istics.”

Tire size

185/60R15 84H

Front wheel

Rear wheel

Vehicle speed

kPa

(kgf/cm2

kPa (kgf/cm2 or

or bar, psi)

bar, psi)

Tire inflation pressure

160 km/h

(Recommended cold

(99 mph) or

220 (2.2, 32)

200 (2.0, 29)

tire inflation pressure)

less

More than

160 km/h

230 (2.3, 33)

200 (2.0, 29)

(99 mph)

Wheel size

15  5 1/2J

9

Wheel nut torque

103 N·m (10.5 kgf·m, 76 ft·lbf)

YARIS_HV_OM_Europe_OM52G76E

472

9-1. Specifications

 16-inch tires

Tire size

195/50R16 84V

Front wheel

Rear wheel

Vehicle speed

kPa

(kgf/cm2

kPa (kgf/cm2 or

or bar, psi)

bar, psi)

Tire inflation pressure

160 km/h

(Recommended cold

(99 mph) or

220 (2.2, 32)

200 (2.0, 29)

tire inflation pressure)

less

More than

160 km/h

240 (2.4, 35)

210 (2.1, 30)

(99 mph)

Wheel size

16  6J

Wheel nut torque

103 N·m (10.5 kgf·m, 76 ft·lbf)

 Compact spare tires

Tire size

T125/70D16 96M

Tire inflation pressure

(Recommended cold

420 kPa (4.2 kgf/cm2 or bar, 60 psi)

tire inflation pressure)

Wheel size

16  4T

Wheel nut torque

103 N·m (10.5 kgf·m, 76 ft·lbf)

YARIS_HV_OM_Europe_OM52G76E

9-1. Specifications

473

Light bulbs

Light Bulbs

W

Type

Halogen headlights

55

A

Front fog lights*

19

B

Front position light/daytime running lights

21/5

C

(bulb type)

Front turn signal lights

21

D

Side turn signal lights

5

D

Exterior

Rear turn signal lights

21

F

Stop/tail lights (bulb type)

21/5

C

Back-up light

21

C

Rear fog light

21

C

License plate lights

5

C

Vanity lights*

5

E

Interior

Personal lights/interior light

5

C

Luggage compartment light

5

E

A: HIR2 halogen bulbs

B: H16 halogen bulbs

C: Wedge base bulbs (clear)

D: Wedge base bulbs (amber)

E: Double end bulbs

F: Single end bulbs (clear)

*: If equipped

9

YARIS_HV_OM_Europe_OM52G76E

474

9-1. Specifications

Fuel information

EU area:

You must only use unleaded gasoline conforming to European stan-

dard EN228.

Select unleaded gasoline with a Research Octane Number of 95 or

higher for optimum engine performance.

Except EU area:

You must only use unleaded gasoline.

Select unleaded gasoline with a Research Octane Number of 95 or

higher for optimum engine performance.

■ Use of ethanol blended gasoline in a gasoline engine

Toyota allows the use of ethanol blended gasoline where the ethanol content

is up to 10%. Make sure that the ethanol blended gasoline to be used has a

Research Octane Number that follows the above.

■ If your engine knocks

●Consult any authorized Toyota dealer or repairer, or another duly qualified

and equipped professional.

● You may occasionally notice light knocking for a short time while accelerat-

ing or driving uphill. This is normal and there is no need for concern.

NOTICE

■ Notice on fuel quality

●Do not use improper fuels. If improper fuels are used, the engine will be

damaged.

●Do not use leaded gasoline.

Leaded gasoline will cause the three-way catalytic converter to lose its

effectiveness and the emission control system to function improperly.

● EU area: Bioethanol fuel sold under names such as “E50” or “E85” and

fuel containing a large amount of ethanol should not be used. The use of

these fuels will damage the vehicle’s fuel system. In case of any doubt,

ask any authorized Toyota dealer or repairer, or another duly qualified and

equipped professional.

● Except EU area: Bioethanol fuel sold under names such as “E50” or “E85”

and fuel containing a large amount of ethanol should not be used. Your

vehicle can use gasoline mixed with 10% max ethanol. The use of fuel

with more than 10% ethanol content (E10) will damage the vehicle’s fuel

system. You must ensure that refueling is carried out only from a source

where fuel specification and quality can be guaranteed. In case of any

doubt, ask any authorized Toyota dealer or repairer, or another duly quali-

fied and equipped professional.

●Do not use the methanol blended gasoline such as M15, M85, M100.

The use of gasoline containing methanol may cause engine damage or

failure.

YARIS_HV_OM_Europe_OM52G76E

9-2. Customization

475

Customizable features

Your vehicle includes a variety of electronic features that can be

personalized to suit your preferences. Programming these pref-

erences requires specialized equipment and may be performed

by any authorized Toyota dealer or repairer, or another duly

qualified and equipped professional.

Customizable features

Some function settings are changed simultaneously with other func-

tions being customized. Contact any authorized Toyota dealer or

repairer, or another duly qualified and equipped professional for fur-

ther details.

Vehicles with a Navigation/Multimedia system: Settings that can be

1

changed using the Navigation/Multimedia system

(For further information on customizing settings using the Naviga-

tion/Multimedia system, refer to the “Navigation and multimedia

system Owner’s Manual”.)

Settings that can be changed by any authorized Toyota dealer or

2

repairer, or another duly qualified and equipped professional for fur-

ther details

Definition of symbols: O = Available, — = Not available

9

YARIS_HV_OM_Europe_OM52G76E

Content   ..  26  27  28  29   ..
