Toyota Yaris Hybrid (2017 year). Manual - part 9
136
3-2. Opening, closing and locking the doors
Alarm
Situation/Actions
An attempt was made to lock the doors other
Interior alarm pings
than using the smart entry & start system while
once and exterior alarm
the electronic key was still inside the vehicle.
sounds once for 5 sec-
Retrieve the electronic key from the vehicle
onds (on some models)
and lock the doors again.
The power switch was turned to ACCESSORY
mode while the driver’s door was open (or the
Interior alarm sounds
driver’s door was opened while the power switch
continuously
was in ACCESSORY mode).
Turn the power switch off and close the
driver’s door.
The driver’s door was opened while any shift
Interior alarm sounds
position other than P was selected without turn-
continuously
ing off the power switch.
Shift the shift lever to P.
■ Battery-saving function (vehicles with an entry function)
The battery-saving function will be activated in order to prevent the electronic
key battery and the vehicle battery from being discharged while the vehicle is
not in operation for a long time.
●In the following situations, the smart entry & start system may take some
time to unlock the doors.
• The electronic key has been left in an area of approximately 2 m (6 ft.) of
the outside of the vehicle for 10 minutes or longer.
• The smart entry & start system has not been used for 5 days or longer.
● If the smart entry & start system has not been used for 14 days or longer,
the doors cannot be unlocked at any doors except the driver’s door.
In this case, take hold of the driver’s door handle, or use the wireless remote
control or the mechanical key, to unlock the doors.
YARIS_HV_OM_Europe_OM52G76E
3-2. Opening, closing and locking the doors
137
■ Conditions affecting operation
The smart entry & start system uses weak radio waves. In the following situa-
tions, the communication between the electronic key and the vehicle may be
affected, preventing the smart entry & start system, wireless remote control
and immobilizer system from operating properly.
(Ways of coping: P. 448)
● When the electronic key battery is depleted
● Near a TV tower, electric power plant, gas station, radio station, large dis-
play, airport or other facility that generates strong radio waves or electrical
noise
● When the electronic key is in contact with, or is covered by the following
metallic objects
• Cards to which aluminum foil is attached
• Cigarette boxes that have aluminum foil inside
3
• Metallic wallets or bags
• Coins
• Hand warmers made of metal
• Media such as CDs and DVDs
● When other wireless keys (that emit radio waves) are being used nearby
● When carrying the electronic key together with the following devices that
emit radio waves
• Portable radio, cellular phone, cordless phone or other wireless commu-
nication device
• Another vehicle’s electronic key or a wireless key that emits radio waves
• Personal computers or personal digital assistants (PDAs)
• Digital audio players
• Portable game systems
●If window tint with a metallic content or metallic objects are attached to the
rear window
● When the electronic key is placed near a battery charger or electronic
devices
YARIS_HV_OM_Europe_OM52G76E
138
3-2. Opening, closing and locking the doors
■ Notes for the entry function (vehicles with an entry function)
● Even when the electronic key is within the effective range (detection areas),
the system may not operate properly in the following case:
• The electronic key is too close to the window or outside door handle, near
the ground, or in a high place when the doors are locked or unlocked.
● Do not leave the electronic key on top of the instrument panel or near the
door pockets when exiting the vehicle. Depending on the radio wave recep-
tion conditions, it may be detected by the antenna outside the cabin and the
door will become lockable from the outside, possibly trapping the electronic
key inside the vehicle.
● As long as the electronic key is within the effective range, the doors may be
locked or unlocked by anyone.
● The doors may unlock if a large amount of water splashes on the door han-
dle, such as in the rain or in a car wash when the electronic key is within the
effective range. (The door will automatically be locked after approximately
30 seconds if the doors are not opened and closed.)
● Gripping the door handle when wearing a glove may not unlock the door.
●If the wireless remote control is used to lock the doors when the electronic
key is near the vehicle, there is a possibility that the door may not be
unlocked by the entry function. (Use the wireless remote control to unlock
the doors.)
● A sudden approach to the effective range or door handle may prevent the
doors from being unlocked. In this case, return the door handle to the origi-
nal position and check that the doors unlock before pulling the door handle
again.
■ Notes for the start function
● Even when the electronic key is within the effective range (detection areas),
the system may not operate properly in the following case:
• The electronic key is on the instrument panel, luggage cover (if equipped)
or floor, or in the door pockets, glove box, accessory box of the instru-
ment panel, or in/near the front cup holder when the hybrid system is
started or power switch modes are changed.
●Even if the electronic key is not inside the vehicle, it may be possible to start
the hybrid system if the electronic key is near the window.
YARIS_HV_OM_Europe_OM52G76E
3-2. Opening, closing and locking the doors
139
■ Notes for locking the doors (vehicles with an entry function)
● Touching the door lock sensor while wearing gloves may delay or prevent
lock operation. Remove the gloves and touch the lock sensor again.
● When the lock operation is performed using the lock sensor, recognition sig-
nal will be shown up to two consecutive times. After this, no recognition sig-
nals will be given.
● If the door handle becomes wet while the electronic key is within the effec-
tive range, the door may lock and unlock repeatedly. Place the key in a posi-
tion 2 m (6 ft.) or more separate from the vehicle while the vehicle is being
washed. (Take care to ensure that the key is not stolen.)
● If the electronic key is inside the vehicle and a door handle becomes wet
during a car wash, a buzzer will sound outside the vehicle. To turn off the
alarm, lock all the doors.
● The lock sensor may not work properly if it comes into contact with ice,
3
snow, mud, etc. Clean the lock sensor and attempt to operate it again.
■ Notes for the unlocking function (vehicles with an entry function)
● A sudden approach to the effective range or door handle may prevent the
doors from being unlocked. In this case, return the door handle to the origi-
nal position and check that the doors unlock before pulling the door handle
again.
● Gripping the door handle when wearing a glove may not unlock the door.
Remove the gloves and touch the sensor on the back of the handle again.
● If the door handle becomes wet while the electronic key is within the effec-
tive range, the door may lock and unlock repeatedly. Place the key in a posi-
tion 2 m (6 ft.) or more separate from the vehicle while the vehicle is being
washed. (Take care to ensure that the key is not stolen.)
●If there is another electronic key in the detection area, it may take slightly
longer to unlock the doors after the door handle is gripped.
■ When the vehicle is not driven for extended periods
● To prevent theft of the vehicle, do not leave the electronic key within 2 m
(6 ft.) of the vehicle.
● The smart entry & start system can be deactivated in advance. (P. 475)
YARIS_HV_OM_Europe_OM52G76E
140
3-2. Opening, closing and locking the doors
■ To operate the system properly
Make sure to carry the electronic key when operating the system. Do not get
the electronic key too close to the vehicle when operating the system from the
outside of the vehicle.
Depending on the position and holding condition of the electronic key, the key
may not be detected correctly and the system may not operate properly. (The
alarm may go off accidentally, or the door lock prevention function may not
operate.)
■ If the smart entry & start system does not operate properly
●Locking and unlocking the doors: Use the mechanical key. (P. 448)
● Starting the hybrid system: P. 449
■ Customization
Settings (e. g. smart entry & start system) can be changed.
(Customizable features: P. 475)
■ If the smart entry & start system has been deactivated in a customized
setting
● Locking and unlocking the doors:
Use the wireless remote control or mechanical key. (P. 112, 448)
● Starting the hybrid system and changing power switch modes: P. 449
● Stopping the hybrid system: P. 183
YARIS_HV_OM_Europe_OM52G76E
3-2. Opening, closing and locking the doors
141

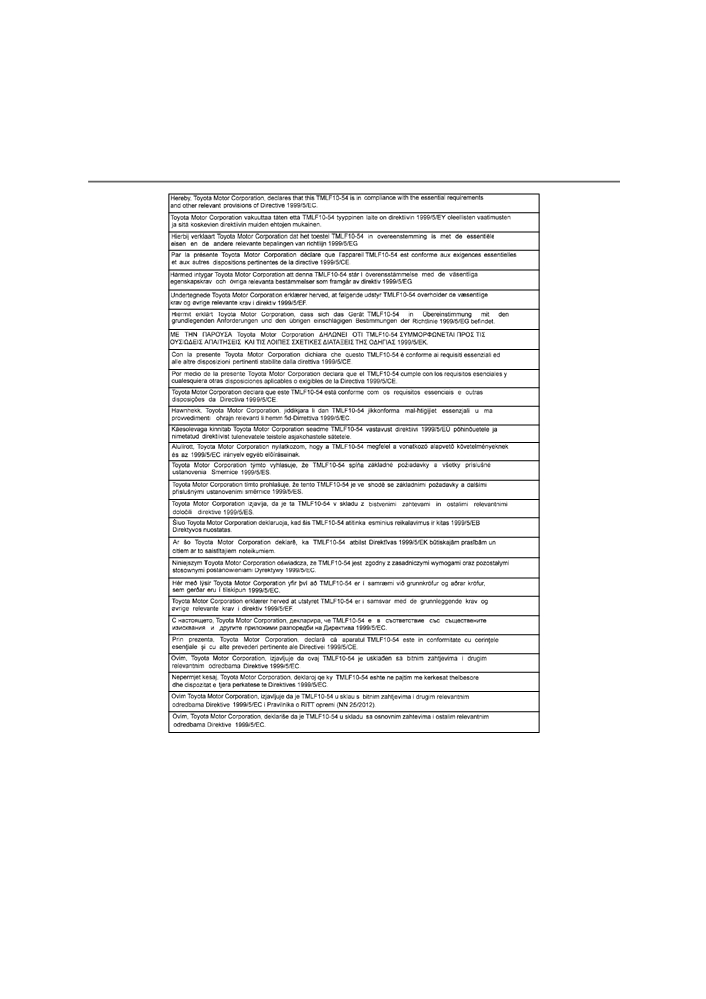

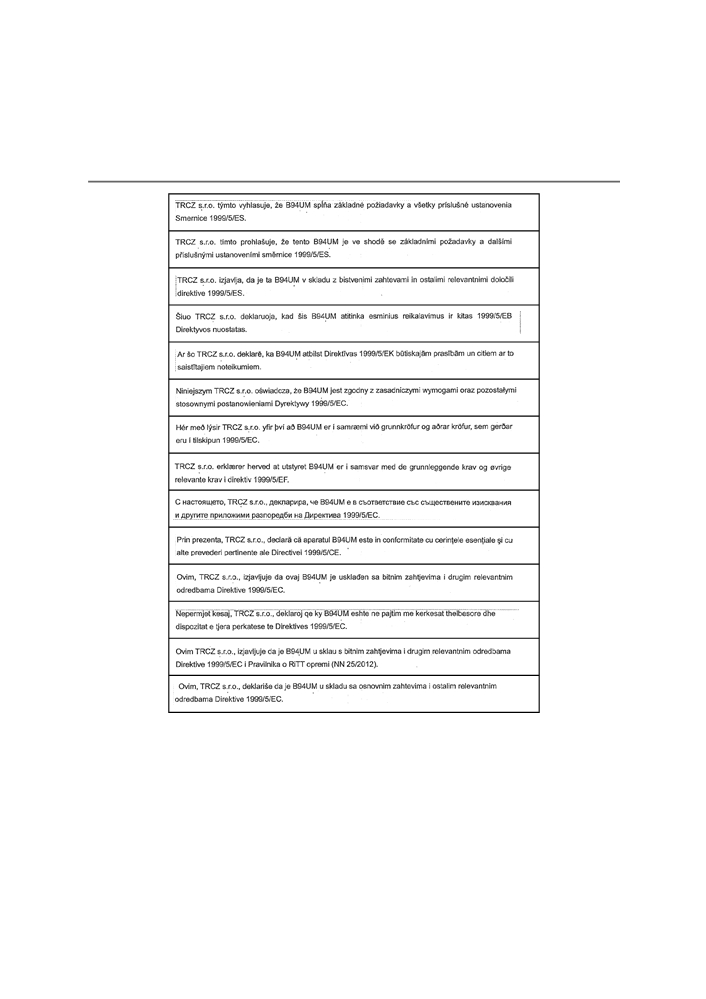

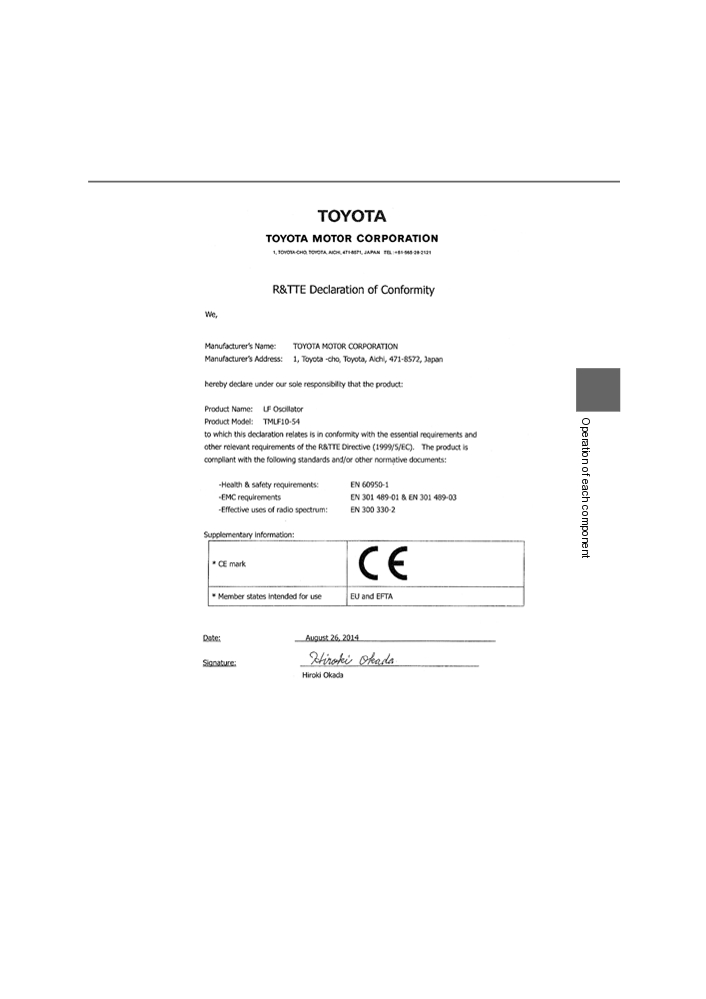

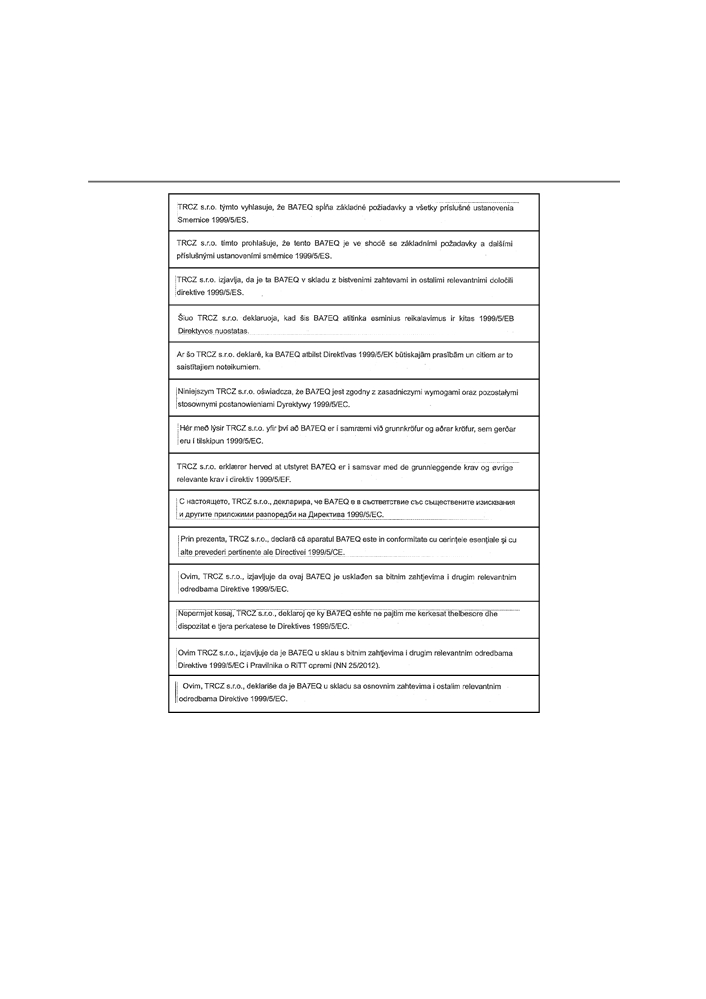

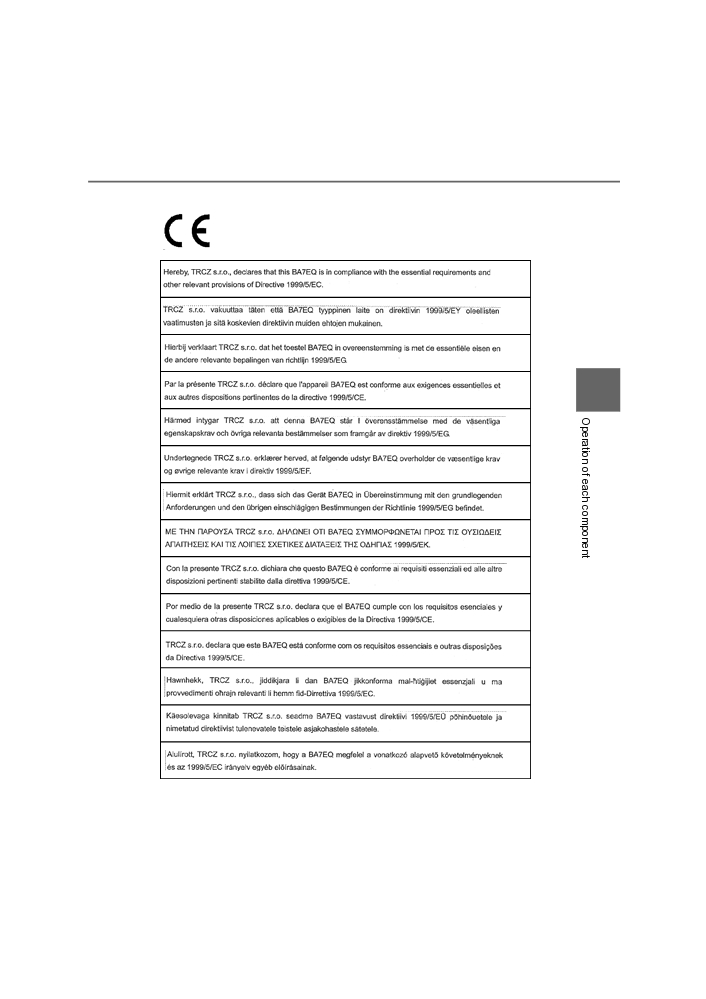

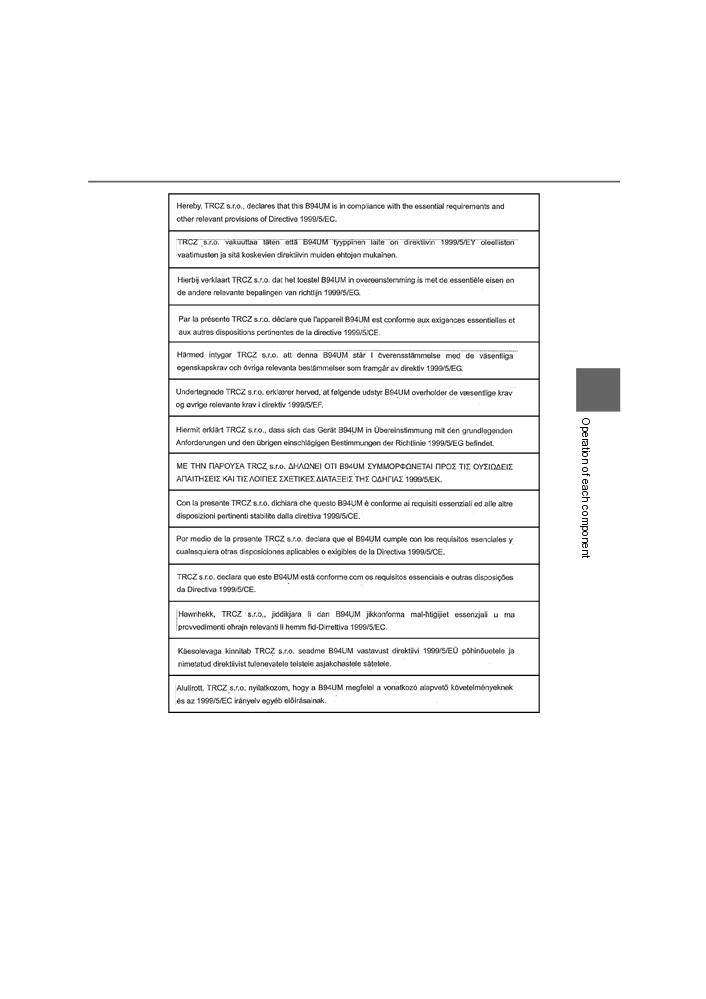

■ Certification for the smart entry & start system
The DECLARATION of CONFORMITY (DoC) is available at
the following address:
3
YARIS_HV_OM_Europe_OM52G76E
142
3-2. Opening, closing and locking the doors
YARIS_HV_OM_Europe_OM52G76E
3-2. Opening, closing and locking the doors
143
3
YARIS_HV_OM_Europe_OM52G76E
144
3-2. Opening, closing and locking the doors
YARIS_HV_OM_Europe_OM52G76E
3-2. Opening, closing and locking the doors
145
3
YARIS_HV_OM_Europe_OM52G76E
146
3-2. Opening, closing and locking the doors
YARIS_HV_OM_Europe_OM52G76E
3-2. Opening, closing and locking the doors
147
WARNING
■ Caution regarding interference with electronic devices
●People with implantable cardiac pacemakers, cardiac resynchronization
therapy-pacemakers or implantable cardioverter defibrillators should main-
tain a reasonable distance between themselves and the smart entry &
start system antennas. (P. 134)
The radio waves may affect the operation of such devices. If necessary,
the entry function can be disabled. Ask any authorized Toyota dealer or
repairer, or another duly qualified and equipped professional for details,
such as the frequency of radio waves and timing of the emitted radio
waves. Then, consult your doctor to see if you should disable the entry
function.
●Users of any electrical medical device other than implantable cardiac
3
pacemakers, cardiac resynchronization therapy-pacemakers or implant-
able cardioverter defibrillators should consult the manufacturer of the
device for information about its operation under the influence of radio
waves.
Radio waves could have unexpected effects on the operation of such
medical devices.
Ask any authorized Toyota dealer or repairer, or another duly qualified and
equipped professional for details on disabling the entry function.
YARIS_HV_OM_Europe_OM52G76E
148
3-3. Adjusting the seats
Front seats
Adjustment procedure
1
Seat position adjustment lever
2
Seatback angle adjustment
lever
3
Vertical height adjustment lever
(if equipped)
YARIS_HV_OM_Europe_OM52G76E
3-3. Adjusting the seats
149
WARNING
■ When adjusting the seat position
● Take care when adjusting the seat position to ensure that other passen-
gers are not injured by the moving seat.
●Do not put your hands under the seat or near the moving parts to avoid
injury.
Fingers or hands may become jammed in the seat mechanism.
■ Seat adjustment
● To reduce the risk of sliding under the lap belt during a collision, do not
recline the seat more than necessary.
If the seat is too reclined, the lap belt may slide past the hips and apply
restraint forces directly to the abdomen, or your neck may contact the
3
shoulder belt, increasing the risk of death or serious injury in the event of
an accident.
Adjustments should not be made while driving as the seat may unexpect-
edly move and cause the driver to lose control of the vehicle.
● After adjusting the seat, make sure that the seat is locked in position.
●Never allow anyone to touch seatback lock release levers while the vehi-
cle is moving.
● If anyone is in the vicinity, make sure they are clear of the seat back path
and let them know that the seat is about to move.
■ After returning the seatback to the upright position
Make sure the seatback is securely locked by pushing it forward and rear-
ward. Failure to do so may result in death or serious injury.
YARIS_HV_OM_Europe_OM52G76E
150
3-3. Adjusting the seats
Rear seats
The seatbacks of the rear seats can be folded down.
Folding down the rear seatbacks
1
Stow the rear seat belt buckles
as shown.
Stow the seat belts.
2
Center: P. 36
Outside: Use the seat belt
hangers to prevent the belts
from being tangled.
3
Lower the head restraints to the
lowest position.
YARIS_HV_OM_Europe_OM52G76E
3-3. Adjusting the seats
151
4
Pull the seatback lock release
knob and fold the seatback
down.
Each seatback may be folded sep-
arately.
Returning the rear seatbacks
1
Lift up the seatback until it locks.
2
Remove the outside seat belt from the seat belt hanger.
3
WARNING
■ When folding the rear seatbacks down
Observe the following precautions. Failure to do so may result in death or
serious injury.
●Do not fold the seatbacks down while driving.
● Stop the vehicle on level ground, set the parking brake and shift the shift
lever to P.
●Do not allow anyone to sit on a folded seatback or in the luggage compart-
ment while driving.
●Do not allow children to enter the luggage compartment.
●Do not allow anyone to sit on the rear center seat if the rear right seat is
folded down, as the seat belt buckle for the rear center seat belt is then
concealed under the folded seat and cannot be used.
● Be careful not to catch your hand when folding the rear seatbacks.
●Depending on the position of the front seat, it may interfere when trying to
fold down the rear seatbacks. If this happens, adjust the position of the
front seat.
YARIS_HV_OM_Europe_OM52G76E
152
3-3. Adjusting the seats
WARNING
■ After returning the rear seatback to the upright position
Observe the following precautions. Failure to do so may result in death or
serious injury.
● Make sure that the seatback is securely
locked in position by lightly pushing it
back and forth.
If the seatback is not securely locked,
the red marking will be visible on the
seatback lock release knob. Make sure
that the red marking is not visible.
●Check that the seat belts are not twisted or caught in the seatback.
NOTICE
■ Stowing the seat belts
The seat belts and the buckles must be stowed before you fold down the
rear seatbacks.
YARIS_HV_OM_Europe_OM52G76E
