5-10. Bluetooth®

WARNING

■ Caution while driving

Observe the following precautions to avoid an accident that could result in

death or serious injuries.

●Do not use a cellular phone.

●Do not connect Bluetooth® device or operate the controls.

■ Caution regarding interference with electronic devices

● Your audio unit is fitted with Bluetooth® antennas. People with implantable

cardiac pacemakers, cardiac resynchronization therapy-pacemakers or

implantable cardioverter defibrillators should maintain a reasonable dis-

tance between themselves and the Bluetooth® antennas. The radio waves

may affect the operation of such devices.

●Before using Bluetooth® devices, users of any electrical medical device

other than implantable cardiac pacemakers, cardiac resynchronization

therapy-pacemakers or implantable cardioverter defibrillators should con-

sult the manufacturer of the device for information about its operation

under the influence of radio waves. Radio waves could have unexpected

effects on the operation of such medical devices.

NOTICE

■ To prevent damage to Bluetooth® device

Do not leave Bluetooth® device in the vehicle. The temperature inside the

vehicle may become high, resulting in damage to the device.

C-HR_HV_OM_Europe_OM10538E

478

6-1. Using the air conditioning system and defogger

Air conditioning system

Air outlets and fan speed are automatically adjusted according

to the temperature setting.

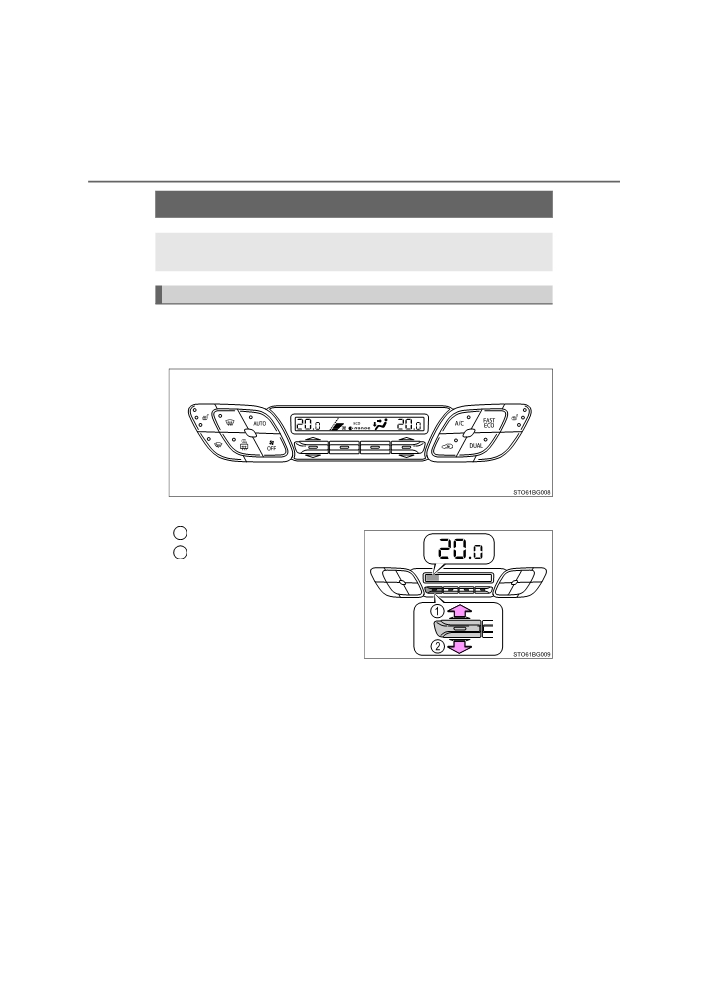

Air conditioning controls

The illustrations below are for left-hand drive vehicles.

The button positions and shapes will differ for right-hand drive vehi-

cles.

■ Adjusting the temperature setting

1

Increases the temperature

2

Decreases the temperature

C-HR_HV_OM_Europe_OM10538E

6-1. Using the air conditioning system and defogger

479

■ Fan speed setting

1

Increases the fan speed

2

Decreases the fan speed

Press

to turn the fan off.

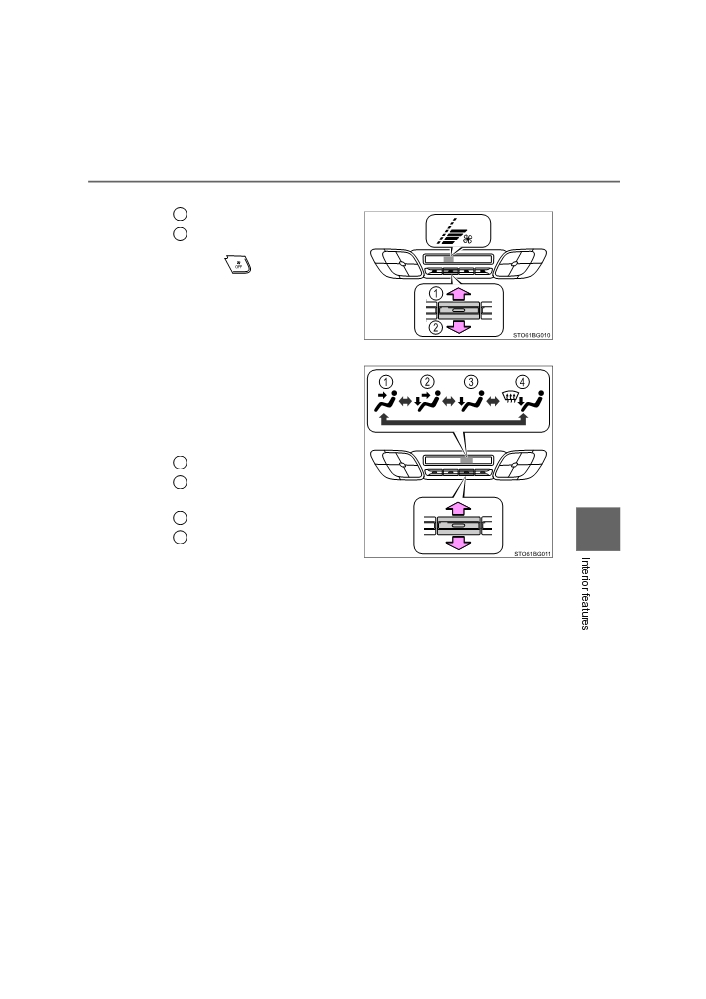

■ Change the airflow mode

To change the airflow mode,

move the airflow change knob

upward or downward.

The air outlets used are

changed each time the knob is

operated.

1

Air flows to the upper body.

2

Air flows to the upper body

and feet.

3

Air flows to the feet.

6

Air flows to the feet and the

4

windshield defogger oper-

ates.

C-HR_HV_OM_Europe_OM10538E

480

6-1. Using the air conditioning system and defogger

Using automatic mode

1

Press the

The dehumidification function begins to operate. Air outlets and fan

speed are automatically adjusted according to the temperature set-

ting.

2

Adjust the temperature setting.

3

To stop the operation, press the

■ Automatic mode indicator

If the fan speed setting or air flow modes are operated, the auto-

matic mode indicator goes off. However, automatic mode for func-

tions other than that operated is maintained.

■ Adjusting the temperature for driver and passenger seats sep-

arately

To turn on the dual control mode, perform any of the following pro-

cedures:

● Press

● Adjust the passenger’s side temperature setting.

The indicator comes on when the dual control mode is on.

C-HR_HV_OM_Europe_OM10538E

6-1. Using the air conditioning system and defogger

481

Other functions

■ Switching between outside air and recirculated air modes

Press

The mode switches between outside air mode (indicator off) and recir-

culated air mode (indicator on) each time

is pressed.

■ Blower customization

Fan speed settings can be changed.

Press

Press

Each time

is pressed, the fan speed changes as follows.

“NORMAL”“ECO”“FAST”

6

■ Defogging the windshield

Defoggers are used to defog the windshield and front side win-

dows.

Press

The dehumidification function operates and fan speed increases.

Set the outside/recirculated air mode button to the outside air mode if

the recirculated air mode is used. (It may switch automatically.)

To defog the windshield and the front side windows early, turn the air

flow and temperature up.

To return to the previous mode, press

again when the windshield

is defogged.

C-HR_HV_OM_Europe_OM10538E

482

6-1. Using the air conditioning system and defogger

■ Defogging the rear window and outside rear view mirrors

Defoggers are used to defog the rear window and to remove rain-

drops, dew and frost from the outside rear view mirrors.

Press

The defoggers will automatically turn off after a period of time.

■ Windshield wiper de-icer (if equipped)

This feature is used to prevent ice from building up on the wind-

shield and wiper blades.

Press

The windshield wiper de-icer will automatically turn off after a period of

time.

C-HR_HV_OM_Europe_OM10538E

6-1. Using the air conditioning system and defogger

483

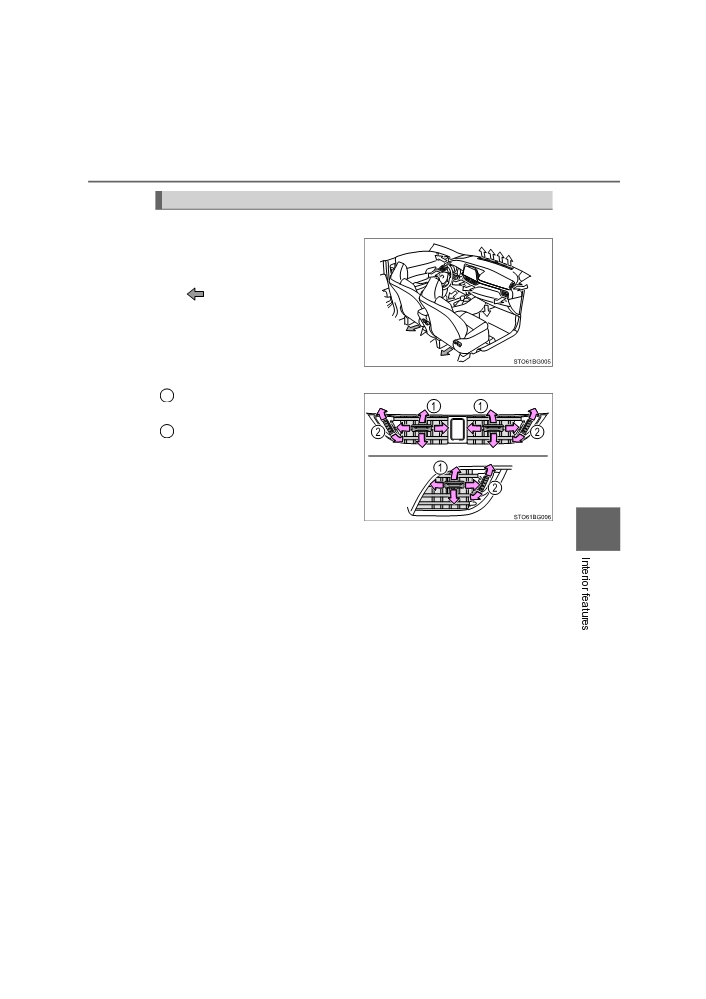

Air outlets

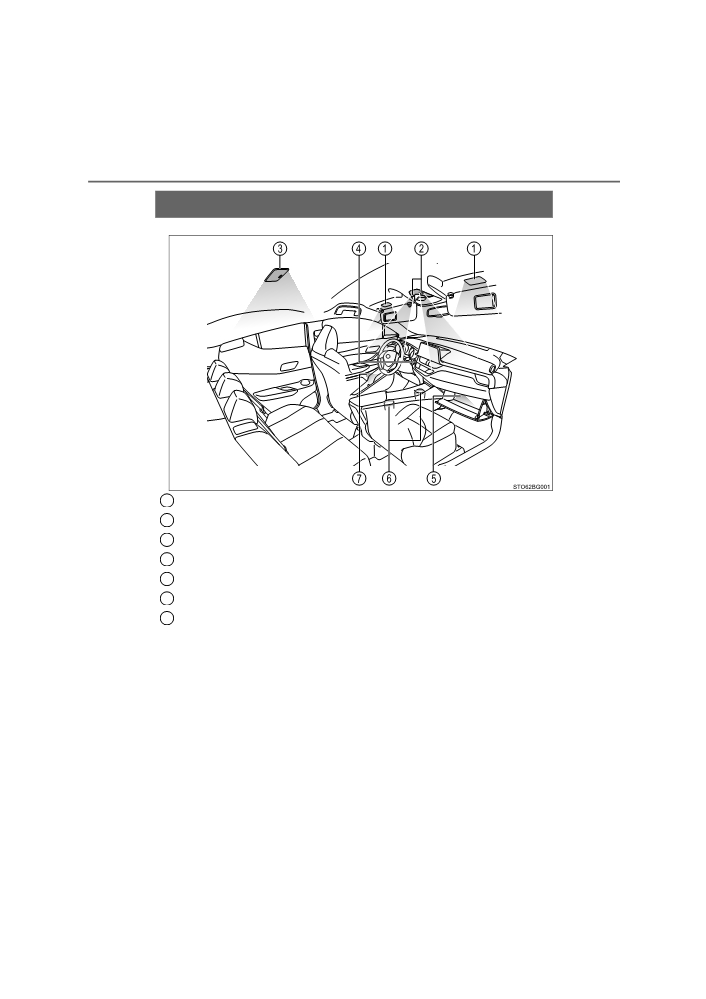

■ Location of air outlets

The air outlets and air volume

changes according to the

selected airflow mode.

: Some models

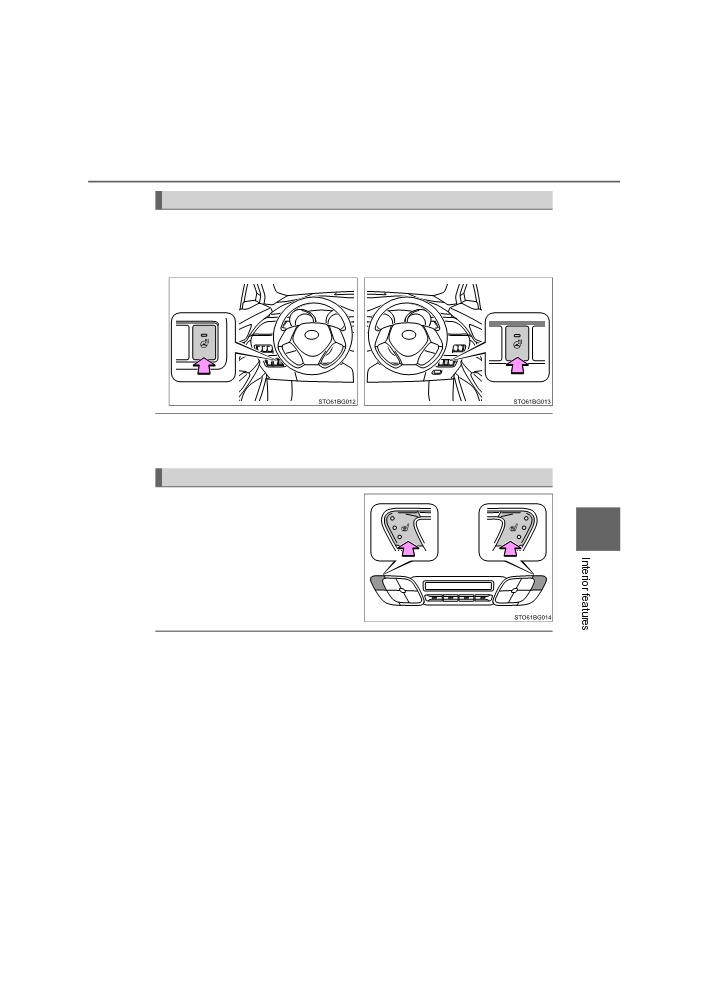

■ Adjusting the position of the air outlets

Direct air flow to the left or right,

1

up or down.

2

Turn the knob up to open or

close the vent.

6

C-HR_HV_OM_Europe_OM10538E

484

6-1. Using the air conditioning system and defogger

■ Using automatic mode

Fan speed is adjusted automatically according to the temperature setting and

the ambient conditions.

Therefore, the fan may stop for a while until warm or cool air is ready to flow

immediately after the

button is pressed.

■ Fogging up of the windows

●The windows will easily fog up when the humidity in the vehicle is high.

Turning

on will dehumidify the air from the outlets and defog the

windshield effectively.

● If you turn

off, the windows may fog up more easily.

● The windows may fog up if the recirculated air mode is used.

■ Outside/recirculated air mode

● When driving on dusty roads, in tunnels, or in heavy traffic, set the outside/

recirculated air mode button to the recirculated air mode. This is effective in

preventing outside air from entering the vehicle interior. During cooling oper-

ation, setting the recirculated air mode will also cool the vehicle interior

effectively.

● Outside/recirculated air mode may automatically switch depending on the

temperature setting or the inside temperature.

■ Operation of the air conditioning system in Eco drive mode

●In Eco drive mode, the air conditioning system is controlled as follows to pri-

oritize fuel efficiency:

• Engine speed and compressor operation controlled to restrict heating/

cooling capacity

• Fan speed restricted when automatic mode is selected

● To improve air conditioning performance, perform the following operations:

• Adjust the fan speed

• Adjust the temperature setting

• Turn off Eco drive mode

●Even when the drive mode is set to Eco drive mode, the air conditioning eco

mode can be turned off by pressing the

C-HR_HV_OM_Europe_OM10538E

6-1. Using the air conditioning system and defogger

485

■ When the outside temperature falls to nearly 0C (32F)

The dehumidification function may not operate even when

is pressed.

■ Ventilation and air conditioning odors

● To let flesh air in, set the air conditioning system to the outside air mode.

● During use, various odors from inside and outside the vehicle may enter into

and accumulate in the air conditioning system. This may then cause odor to

be emitted from the vents.

● To reduce potential odors from occurring:

• It is recommended that the air conditioning system be set to outside air

mode prior to turning the vehicle off.

• The start timing of the blower may be delayed for a short period of time

immediately after the air conditioning system is started in automatic

mode.

■ nanoe™ *1 (if equipped)

The air conditioning system adopts nanoe™ technology. This helps to fill the

cabin with refreshing air by emitting slightly acidic nanoe™ coated with water

particles through the passenger’s side vent*2.

● When the fan is turned on, nanoe™ system is activated.

● When the fan is operated in the following conditions, system performance

will be maximized. If the following conditions are not met, nanoe™ may not

operate at full capacity.

6

• The upper body, the upper body and feet or the feet air outlets are being

used. (P. 479)

• The passenger’s side vent is open.

● When nanoe™ is generated, a small amount of ozone is emitted and may

be faintly smelled in some situations. However, this is approximately the

same as the amount that already exists in nature, such as in forests, and it

has no affect on the human body.

● A slight noise may be heard during operation. This is not a malfunction.

*1: nanoe™ and the nanoe™ mark are trademarks of Panasonic Corporation.

*2: According to temperature and humidity conditions, fan speed and direction

of the air flow, nanoe™ may not operate at full capacity.

C-HR_HV_OM_Europe_OM10538E

486

6-1. Using the air conditioning system and defogger

■ Air conditioning filter

P. 558

■ Customization

Settings (e.g. A/C Auto switch operation) can be changed.

(Customizable features: P. 679)

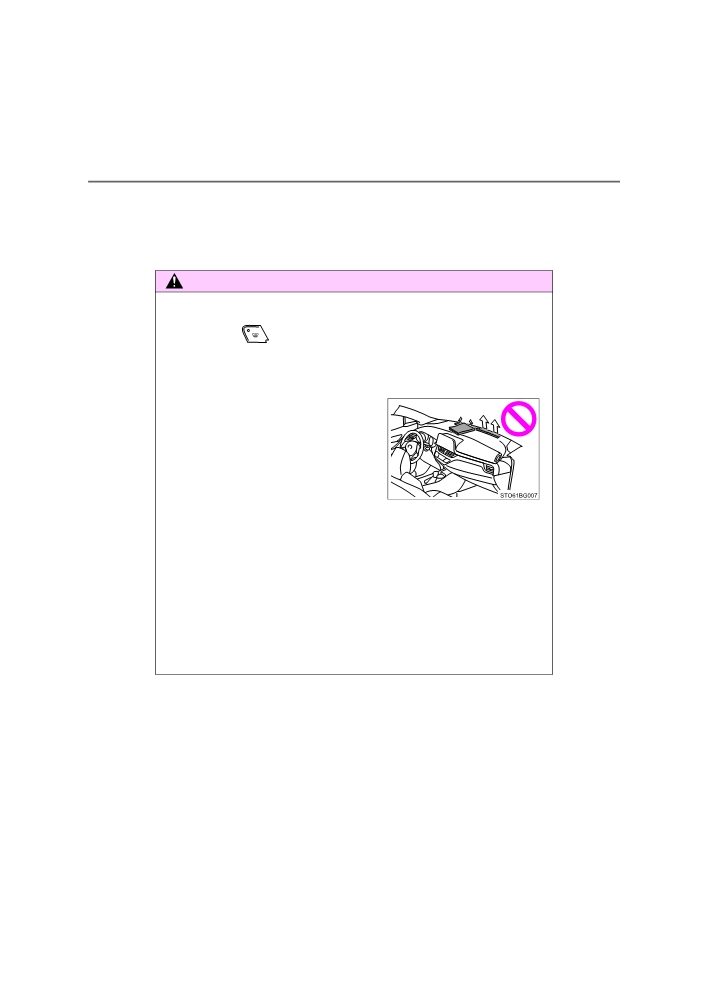

WARNING

■ To prevent the windshield from fogging up

●Do not use

during cool air operation in extremely humid weather.

The difference between the temperature of the outside air and that of the

windshield can cause the outer surface of the windshield to fog up, block-

ing your vision.

●Do not place anything on the instrument

panel which may cover the air outlets.

Otherwise, air flow may be obstructed,

preventing the windshield defoggers

from defogging.

■ To prevent burns

●Do not touch the rear view mirror surfaces when the outside rear view mir-

ror defoggers are on.

● Vehicles with windshield wiper de-icer: Do not touch the glass at the lower

part of the windshield or to the side of the front pillars when the windshield

wiper de-icer is on.

■ nanoe™ generator (if equipped)

Do not disassemble or repair the generator because it contains high voltage

parts.

Contact any authorized Toyota retailer or Toyota authorized repairer, or any

reliable repairer if the generator needs repair.

C-HR_HV_OM_Europe_OM10538E

6-1. Using the air conditioning system and defogger

487

NOTICE

■ To prevent 12-volt battery discharge

Do not leave the air conditioning system on longer than necessary when the

hybrid system is off.

■ To prevent damage to the nanoe™ (if equipped)

Do not insert anything into the driver's side vent, attach anything to it, or use

sprays around the driver's side vent. These things may cause the generator

not to work properly.

6

C-HR_HV_OM_Europe_OM10538E

488

6-1. Using the air conditioning system and defogger

Heated steering wheel/seat heaters

Heated steering wheel and seat heaters heat the side grips of the

steering wheel and front seats, respectively.

WARNING

●Care should be taken to prevent injury if anyone in the following categories

comes in contact with the steering wheel and seats when the heater is on:

• Babies, small children, the elderly, the sick and the physically chal-

lenged

• Persons with sensitive skin

• Persons who are fatigued

• Persons who have taken alcohol or drugs that induce sleep (sleeping

drugs, cold remedies, etc.)

●Observe the following precautions to prevent minor burns or overheating:

• Do not cover the seat with a blanket or cushion when using the seat

heater.

• Do not use seat heater more than necessary.

NOTICE

●Do not put heavy objects that have an uneven surface on the seat and do

not stick sharp objects (needles, nails, etc.) into the seat.

● To prevent 12-volt battery discharge, do not use the functions when the

hybrid system is off.

: If equipped

C-HR_HV_OM_Europe_OM10538E

6-1. Using the air conditioning system and defogger

489

Heated steering wheel

Turns the heated steering wheel on/off

The indicator light comes on when the heated steering wheel is operating.

 Left-hand drive vehicles

 Right-hand drive vehicles

■ Operating condition

The heated steering wheel can be used when the power switch is in ON

mode.

Seat heaters

Each time the switch is pressed,

the operation condition changes

6

as follows.

Hi (3 segments lit)  Mid (2 seg-

ments lit)  Lo (1 segment lit) 

Off

The level indicator (amber) light up

during operation.

■ Operating condition

The seat heaters can be used when the power switch is in ON mode.

C-HR_HV_OM_Europe_OM10538E

490

6-2. Using the interior lights

Interior lights list

1

Vanity lights (if equipped) (P. 505)

2

Interior light/front personal lights (if equipped) (P. 491)

3

Rear interior light (if equipped) (P. 491)

4

Power switch light

5

Glove box light (P. 494)

6

Cup holder illumination (if equipped)

7

Door trim lights (if equipped)

C-HR_HV_OM_Europe_OM10538E

6-2. Using the interior lights

491

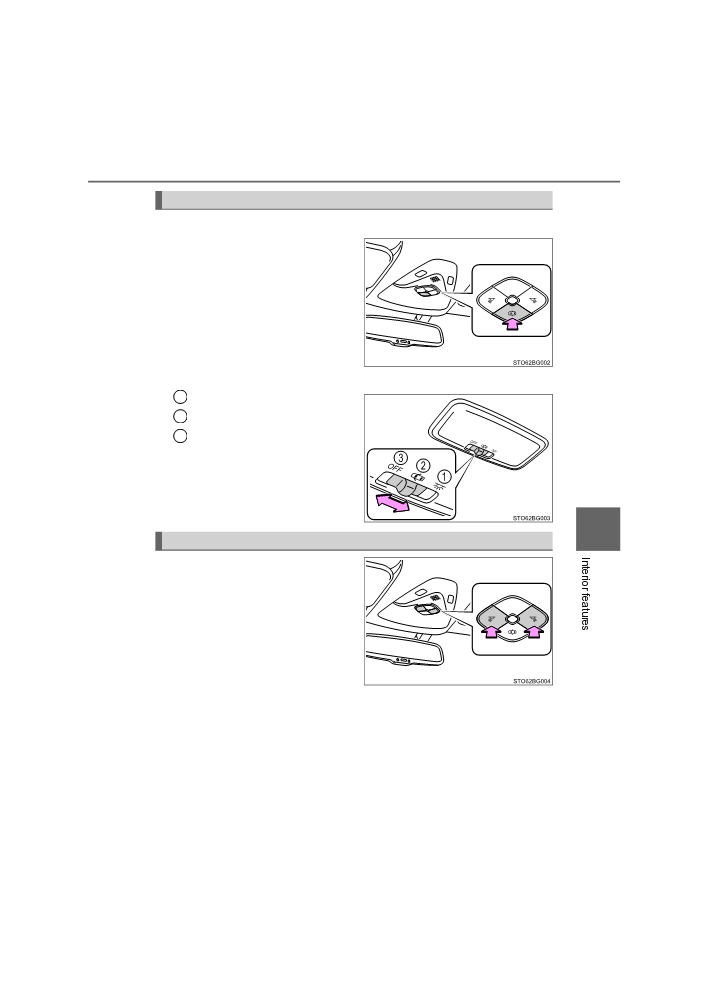

Interior lights (if equipped)

■ Front

Turns the door position on/off

■ Rear

1

On

2

Door position

3

Off

6

Personal lights (if equipped)

Turns the lights on/off

When the lights are on due to the

door link switch, a light will not turn

off even if its switch is pressed.

C-HR_HV_OM_Europe_OM10538E

Content   ..  27  28  29  30   ..
