Toyota Corolla (2004+). Manual - part 122





76-22
EXTERIOR/INTERIOR TRIM
- ROOF HEADLINING ASSY

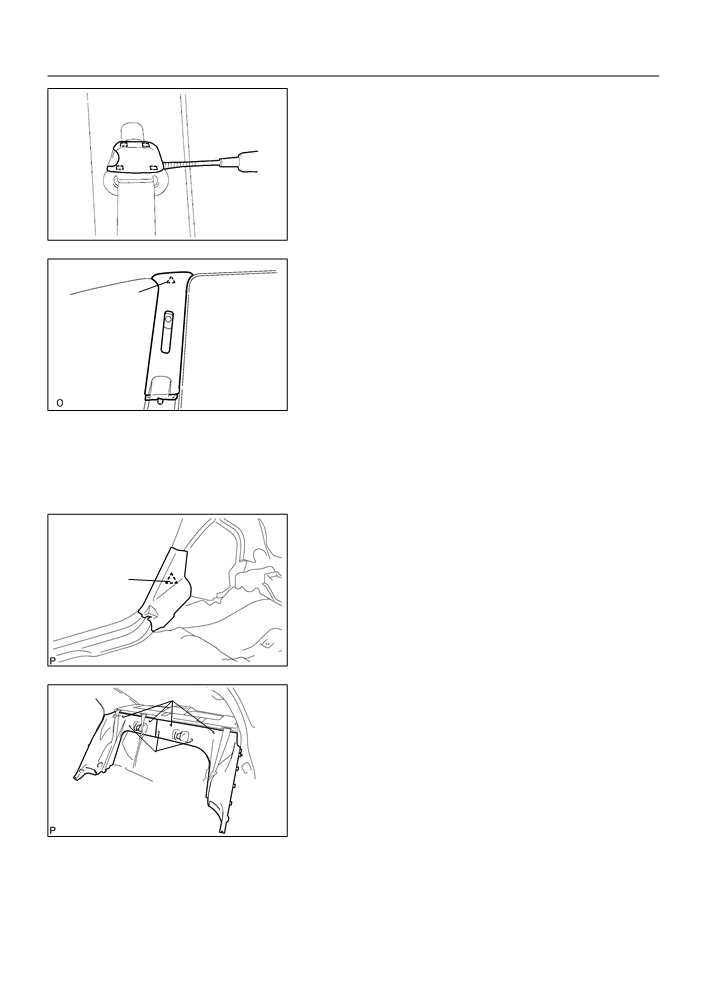

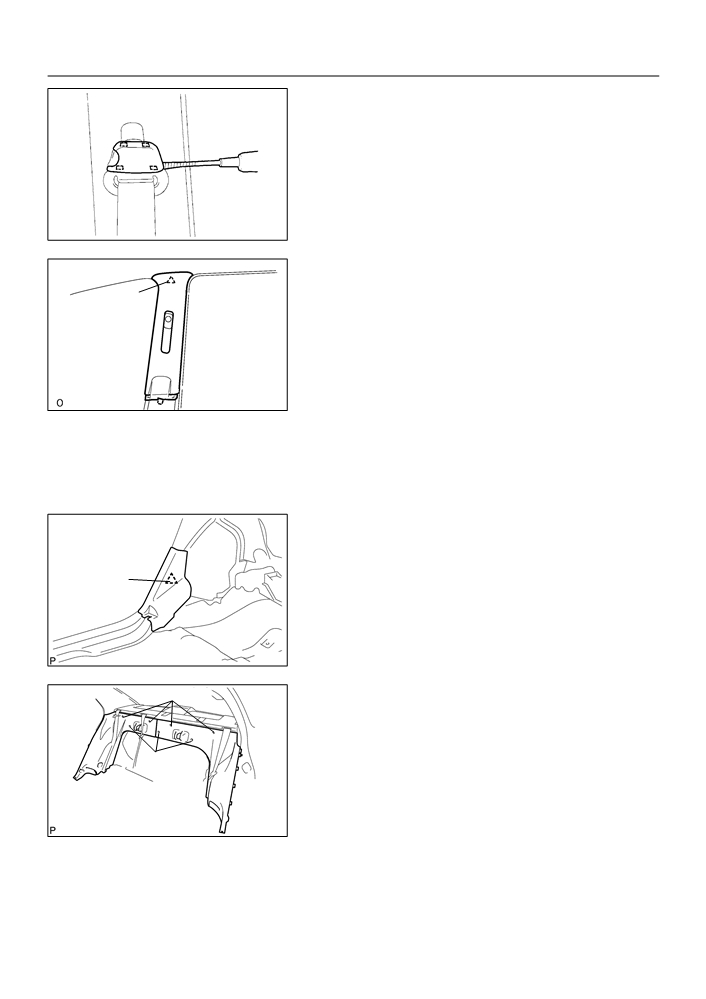

13. REMOVE CENTER PILLAR GARNISH RH
(a) Using a screwdriver, remove the shoulder anchor cover
cap.
HINT:
Tape the screwdriver tip before use.
(b) Remove the bolt and front seat outer belt shoulder an-
chor.
(c)
Remove the bolt and front seat outer belt floor anchor.
B55754
(d) Using a screwdriver, remove the center pillar upper gar-
nish RH.
Clip
HINT:
Tape the screwdriver tip before use.
(e) Employ the same manner described above to the other
side.
14. REMOVE CENTER PILLAR GARNISH LH
B50773
15.
REMOVE REAR SEAT CUSHION ASSEMBLY (See page 72-6, 72-8)
16.
REMOVE REAR SEAT BACK ASSY (FIXED TYPE REAR SEAT) (See page
72-8)
17.
REMOVE REAR SEAT BACK ASSY (SEPARATED TYPE REAR SEAT) (See page
72-6)
18. REMOVE REAR SEAT SIDE COVER RH (FIXED TYPE
REAR SEAT)
(a) Using a screwdriver, remove the rear seat side cover RH.
HINT:
Clip
Tape the screwdriver tip before use.
(b) Employ the same manner described above to the other
side.
19. REMOVE REAR SEAT SIDE GARNISH LH (FIXED
B59299
TYPE REAR SEAT)
20. REMOVE ROOM PARTITION BOARD LH
Built-in Clip
(SEPARATED TYPE REAR SEAT)
(a) Remove the 2 clips and 2 built-in clips room partition
board LH.
Clip
21. REMOVE ROOM PARTITION BOARD RH
(SEPARATED TYPE REAR SEAT)
(a) Remove the clip and 2 built-in clips room partition board
B59277
RH.
76-23
EXTERIOR/INTERIOR TRIM
- ROOF HEADLINING ASSY
22. REMOVE ROOF SIDE GARNISH INNER RH
(a) Using a screwdriver, remove the roof side garnish inner
RH.
HINT:
Tape the screwdriver tip before use.
Clip
(b) Employ the same manner described above to the other
side.
23. REMOVE ROOF SIDE GARNISH INNER LH
B59566
24. REMOVE PACKAGE TRAY TRIM PANEL ASSY
(a) Using a clip remover, remove the 7 clips.
(b) Pull out the belt from the slit and then remove the package
tray trim panel assembly.
B59276
25. REMOVE FRONT PILLAR GARNISH RH
(a) Using a screwdriver, remove the front pillar garnish RH.
HINT:
Tape the screwdriver tip before use.
(b) Employ the same manner described above to the other
Clip
side.
26. REMOVE FRONT PILLAR GARNISH LH
B59269
27. REMOVE RH VISOR ASSY
(a) Remove the 2 screws and RH visor assembly.
28. REMOVE LH VISOR ASSY
B59270
76-24
EXTERIOR/INTERIOR TRIM
- ROOF HEADLINING ASSY
29. REMOVE MAP LAMP ASSY (W/ SLIDING ROOF)
(a) Remove the screw.
(b) Using a screwdriver, remove the map lamp lens and cov-
er.
HINT:
Tape the screwdriver tip before use.
(c)
Remove the screw.
(d) Using a screwdriver, remove the glove box lamp assem-
bly.
HINT:
Tape the screwdriver tip before use.
B59271
30. REMOVE ROOM LAMP ASSY NO.1
(a) Using a screwdriver, remove the lens cover.
(b) Using a screwdriver, remove the room lamp assembly
No.1 as shown in the illustration.
B59272
31. REMOVE ASSIST GRIP SUB-ASSY
(a) Using a screwdriver, remove the 2 assist grip covers.
(b) Remove the 2 screws and assist grip sub-assy.
B50594
76-25
EXTERIOR/INTERIOR TRIM
- ROOF HEADLINING ASSY

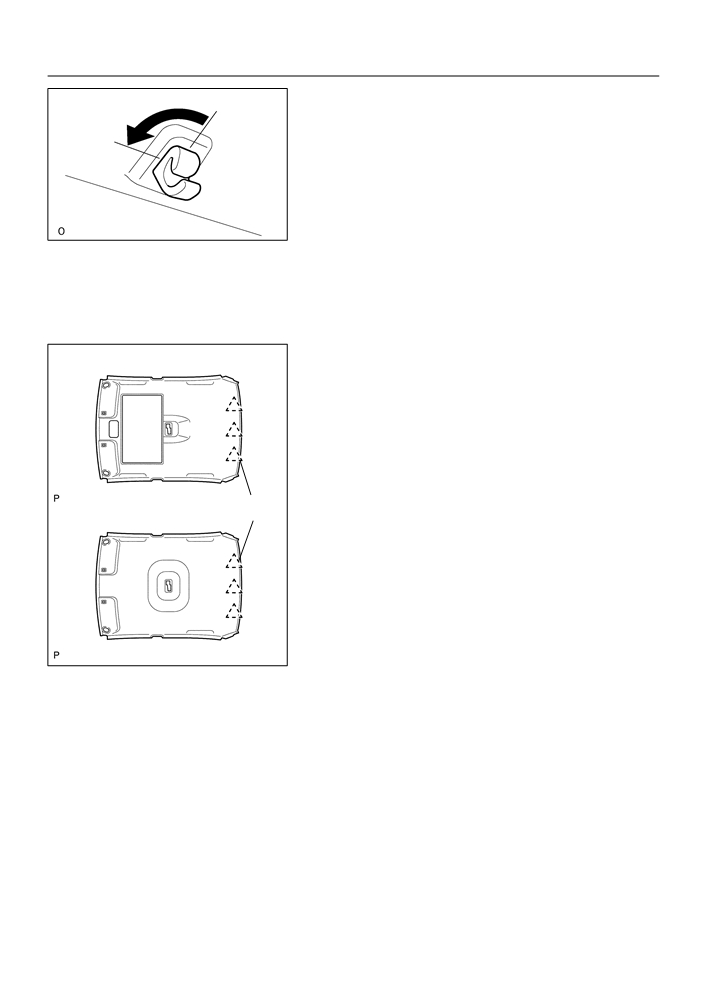

32. REMOVE VISOR HOLDER
90F
(a) Remove the holder of the sun visor by turning it counter-
clockwise.
B50596
33. REMOVE SUN ROOF OPENING TRIM MOULDING (W/ SLIDING ROOF)
34. REMOVE ROOF HEADLINING ASSY
w/ Sliding Roof
(a) Remove the 3 clips and roof headlining assembly.
w/o Sliding Roof
Clip
B59278
B59273
B59931
76-26
EXTERIOR/INTERIOR TRIM
- ROOF HEADLINING ASSY
35. INSTALL ROOF HEADLINING ASSY
w/ Sliding Roof
(a) Align the markings, and then install the wire harness with
tape.
Tape
HINT:
Be careful for dirt or foreign objects not to stick to the adhered
part when peeling off the double-stick tape.
(b) Attach the roof wire harness across the adhered part.
NOTICE:
Roof wire harness should be attached securely.
w/o Sliding Roof
(c)
Install the 3 clips.
Tape
B59275
B59274
B59930
36. INSTALL ROOM PARTITION BOARD RH (SEPARATED TYPE REAR SEAT)
37. INSTALL ROOM PARTITION BOARD LH (SEPARATED TYPE REAR SEAT)
38. INSTALL REAR SEAT SIDE COVER RH (FIXED TYPE REAR SEAT)
39. INSTALL REAR SEAT SIDE GARNISH LH (FIXED TYPE REAR SEAT)
40. INSTALL REAR SEAT BACK ASSY (FIXED TYPE REAR SEAT) (See page
72-8)
41. INSTALL REAR SEAT BACK ASSY (SEPARATED TYPE REAR SEAT) (See page
72-6)
76-15
EXTERIOR/INTERIOR TRIM
- SIDE MUDGUARD SUB-ASSY LH
SIDE MUDGUARD SUB-ASSY LH
760I4-02
REPLACEMENT
HINT:
Use the same procedures for the RH side and LH side.
1.
REMOVE SIDE MUDGUARD SUB-ASSY LH
(a) Using a clip remover, remove the 8 retainers and 9 clips.
(b) Using a moulding remover, remove the mudguard.
Retainer
Clip
B59782
2.
INSTALL SIDE MUDGUARD SUB-ASSY LH
New Clip
(a) Install the mudguard with 9 new clips.
(b) Install the 8 retainers to the mudguard.
Retainer
Clip
B59782
80-2
VEHICLE CONTROL SYSTEM
- IGNITION OR STARTER SWITCH ASSY
8002V-01
INSPECTION

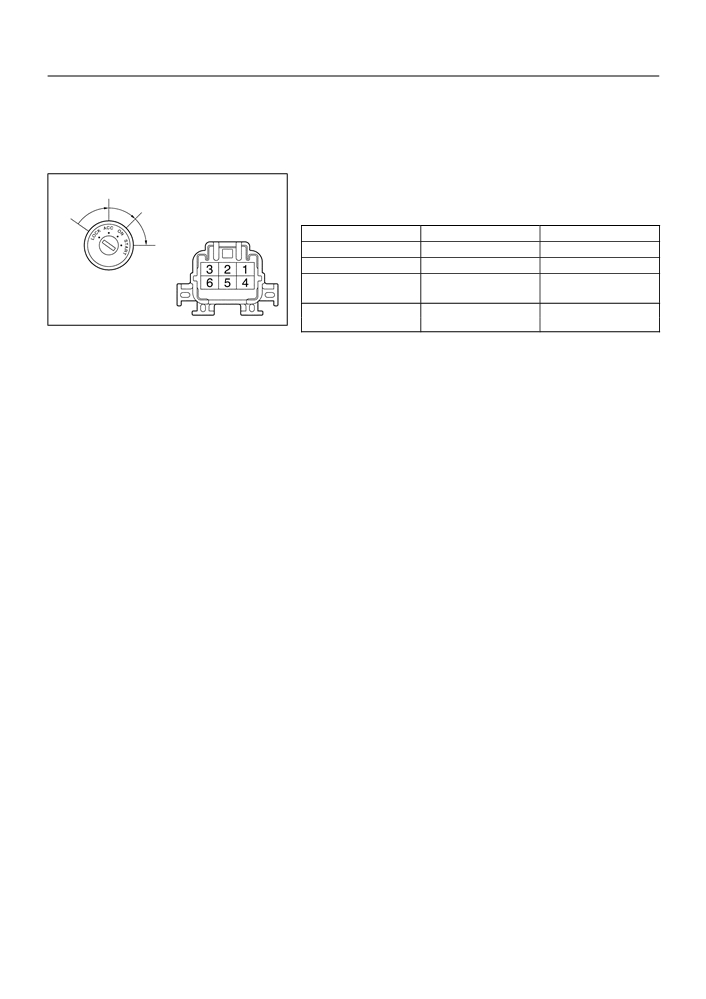

1.
INSPECT IGNITION OR STARTER SWITCH ASSY
ACC
(a) Inspect the ignition switch.
ON
LOCK
Standard:
Switch position
Terminal No.
Specified condition
START
LOCK
-
No continuity
ACC
1 3
Continuity
1 2 3
ON
Continuity
5 6
1 2
B59929
START
Continuity
4 5 6
If the continuity is not as specified, replace the switch.
80-1
VEHICLE CONTROL SYSTEM
- IGNITION OR STARTER SWITCH ASSY
IGNITION OR STARTER SWITCH ASSY
8002U-01
REPLACEMENT
1.
REMOVE STEERING COLUMN COVER (See page 50-8)
2.

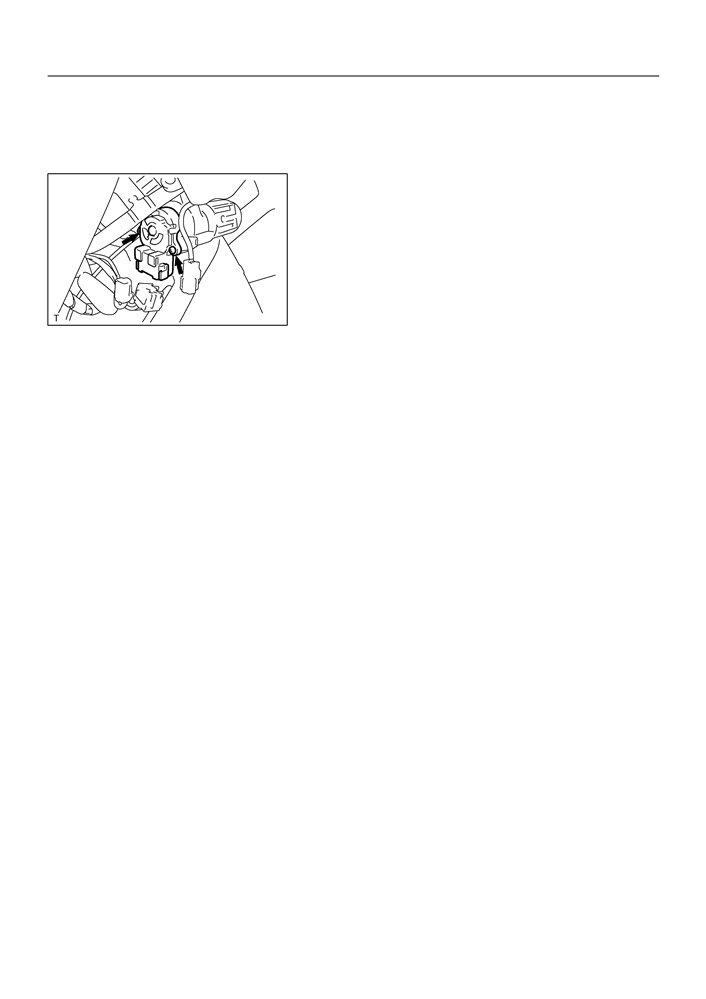

REMOVE IGNITION OR STARTER SWITCH ASSY
(a) Disconnect the ignition switch connector and unlock
warning switch connector.
(b) Remove the 2 clamps.
(c)
Remove the 2 screws and ignition switch.
D27169
82-4
CRUISE CONTROL
- CRUISE CONTROL ACTUATOR ASSY

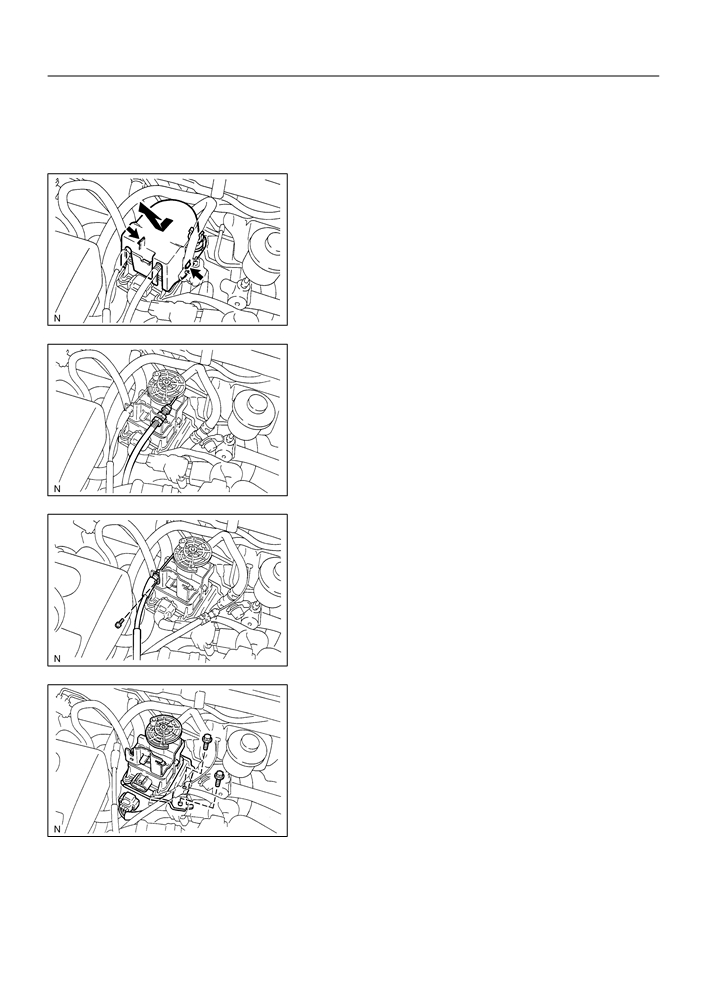

CRUISE CONTROL ACTUATOR ASSY
82024-01
REPLACEMENT
1.
REMOVE CRUISE CONTROL ACTUATOR COVER
(a) Disengage the 2 claws, then remove the cruise control ac-
tuator cover.
I32237
2.
SEPARATE ACCELERATOR CONTROL CABLE ASSY
(a) Loosen the double nut and separate the accelerator con-
trol cable assy.
I32238
3.
SEPARATE ACCELERATOR AUTO DRIVE CABLE
ASSY
(a) Remove the screw and separate the accelerator auto
drive cable assy.
I32239
4.
REMOVE CRUISE CONTROL ACTUATOR ASSY
(a) Disconnect the connector.
(b) Remove the 2 bolts and cruise control actuator assy.
Torque: 6.0 Nm (60 kgfcm, 52 in.lbf)
I32240
82-5
CRUISE CONTROL
- CLUTCH SWITCH ASSY
CLUTCH SWITCH ASSY
82025-01
REPLACEMENT
1.
REMOVE CLUTCH SWITCH ASSY
(a) Disconnect the connector.
(b) Loosen the nut and remove the clutch switch assy.
82-3
CRUISE CONTROL
- CRUISE CONTROL ECU ASSY
CRUISE CONTROL ECU ASSY
82023-01
REPLACEMENT
1.
REMOVE METER HOOD SUB-ASSY(See page 71-17)
2.
REMOVE COMBINATION METER ASSY(See page 71-17)
3.
REMOVE CRUISE CONTROL ECU ASSY
(a) Disconnect the connector.
(b) Remove the screw and cruise control ECU assy.
I32236
82-1
CRUISE CONTROL
- CRUISE CONTROL SYSTEM
CRUISE CONTROL SYSTEM
82021-01
ON-VEHICLE INSPECTION
Marking
1.
CHECK PLAY OF ACCELERATOR AUTO DRIVE
CABLE ASSY
(a) Push the wire into the cable so as not to move the throttle
link and put a mark on the position shown in the illustra-
tion.
I32249
Marking
(b) Pull the wire and check the moved distance of the mark.
2 - 6 mm
(0.079 - 0.236 in.)
I32250
2.
ADJUST PLAY IN ACCELERATOR AUTO DRIVE
CABLE ASSY
(a) Changing the double nut position shown by the arrows,
adjust the play to the standard value.
Standard: 2 - 6 mm (0.079 - 0.236 in.)
I32251
3.
ADJUST PLAY IN ACCELERATOR CONTROL CABLE
ASSY
(a) Remove the cruise control actuator cover and adjust the
play in the accelerator control cable assy by changing the
double nut position.
I32238
82-2
CRUISE CONTROL
- SPEED CONTROL MAIN SWITCH ASSY
SPEED CONTROL MAIN SWITCH ASSY
82022-03
REPLACEMENT
1.
DISCONNECT BATTERY NEGATIVE TERMINAL
2.
INSPECT PLACE FRONT WHEELS FACING STRAIGHT AHEAD
3.
REMOVE HORN BUTTON ASSY(See page 60-13)
4.
REMOVE STEERING WHEEL ASSY(See page 50-8)
SST
09950-50013 (09951-05010, 09952-05010, 09953-05020, 09954-05021)
5.
REMOVE SPEED CONTROL MAIN SWITCH ASSY
(a) Remove the 2 screws and cruise control main switch
assy.
I32235
6.
CENTER SPIRAL CABLE(See page 50-8)
7.
INSTALL STEERING WHEEL ASSY(See page 50-8)
8.
INSPECT STEERING WHEEL CENTER POINT(See page 50-8)
9.
INSPECT HORN BUTTON ASSY(See page 60-13)
10. INSTALL HORN BUTTON ASSY(See page 60-13)
11. INSPECT SRS WARNING LIGHT(See page 05-424)
99-8
MAINTENANCE
- BODY
BODY
9901B-10
ON-VEHICLE INSPECTION
1.
Canada:
TIGHTEN BOLTS AND NUTS ON CHASSIS AND BODY
(a)
Tighten the bolts and nuts on the chassis parts listed below, if necessary.
F
Front axle and suspension
F
Drive train
F
Rear axle and suspension
F
Brake system
F
Engine mounting
F
Other chassis parts
(b)
Tighten the bolts and nuts on the body parts listed below, if necessary.
F
Seat belt system
F
Seats
F
Doors and hood
F
Body mountings
F
Fuel tank
F
Exhaust pipe system
F
Other body parts
2.
REPLACE AIR CONDITIONING FILTER
(a)
Remove the glove compartment assembly.
(b)
Remove the filter case from the filter outlet.
(c)
Remove the filter from the filter case.
(d)
Replace the filter with a new one.
(e)
The installation procedures are the removal procedures in reverse order.
99-6
MAINTENANCE
- BRAKE
BRAKE
9900Z-11
ON-VEHICLE INSPECTION
1.
INSPECT BRAKE LINE PIPES AND HOSES
HINT:
Work in a well-lighted area. Turn the front wheels fully to the
right or left before begining.
(a) Check all the brake lines and hoses for:
F
Damage
F
Wear
F
Deformation
P09958
F
Cracks
F
Corrosion
F
Leaks
F
Bends
F
Twists
(b) Check all the clamps for tightness and the connections for
leakage.
(c)
Check that the hoses and lines are not near sharp edges,
moving parts and the exhaust system.
(d) Check that the lines are installed pass through the center
of the grommets.
2.
INSPECT FRONT BRAKE PADS AND DISCS (See page 32-25)
3.
INSPECT REAR BRAKE LININGS AND DRUMS (See page 32-31)
4.
INSPECT OR CHANGE BRAKE FLUID (See page 32-4)
Fluid: SAE J1703 or FMVSS No.116 DOT3
