73-12
THEFT DETERRENT & DOOR LOCK
- DOOR CONTROL TRANSMITTER
NOTICE:
If the number of the ON-LOCK operation of the ignition switch is 0, 4 or 6 or more, there will be no
response (power door lock and unlock operation) to inform which mode has been selected.
(5)
After selecting a mode, the integration relay automatically performs the power door
LOCK-UNLOCK operation within 3 seconds to inform the selected mode (see the table below).
HINT:
F
In the confirmation mode, when the operation is performed twice, it directs that 2 types of recognition
codes have been registered.
F
In the confirmation mode, If the number of the registration code is 0, the LOCK-UNLOCK operation
is automatically performed 5 times.
F
If the prohibition mode or confirmation mode is selected, registration procedure is completed.
Response of selected mode (Power door lock operation):
Add Mode
Confirmation Mode
1st time
2nd time
T1
T2
T2
LOCK
LOCK
UNLOCK
UNLOCK
Rewrite Mode
Prohibition Mode
T1
T1
T1
T1
LOCK
LOCK
UNLOCK
UNLOCK
T1: Approx. 1 sec.
T2: Approx. 2 sec.
B50827
(c)
Register the new recognition codes (Add mode or Rewrite mode):
(1)
Within 40 seconds after the add mode or the rewrite mode has been selected, press the LOCK
and UNLOCK switches on the transmitter switch simultaneously for 1.0 - 1.5 seconds.
Within 3 seconds after the previous operation, press either one of the switches for more than 1.0
seconds.
(2)
Within 3 seconds after the transmitter switch has been turned OFF, the LOCK-UNLOCK opera-
tion will be automatically performed once if the registration of the recognition code of the transmit-
ter is completed correctly. In case the LOCK-UNLOCK operation is performed twice, the registra-
tion of recognition code has failed. Perform the registration procedure from the beginning once
again.
73-13
THEFT DETERRENT & DOOR LOCK
- DOOR CONTROL TRANSMITTER

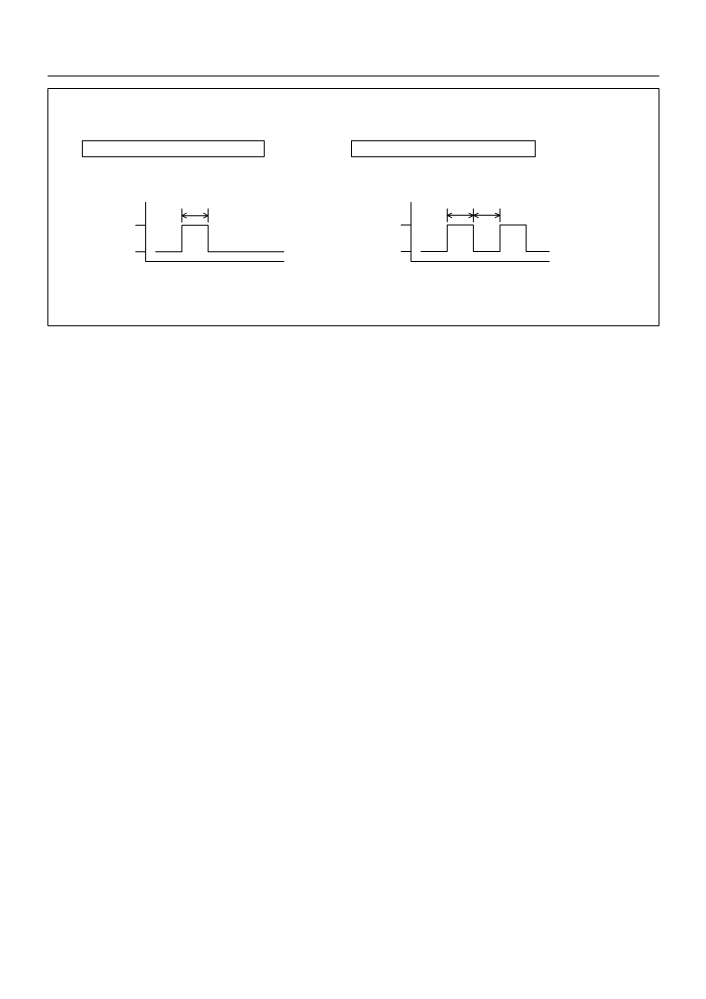

Response for registration completion:
LOCK-UNLOCK Occurs Once
LOCK-UNLOCK Occurs Twice
Registration of recognition code has
Registration of recognition code has failed.
been completed.
T1
T1
T1
LOCK
LOCK
UNLOCK
UNLOCK
T1: Approx. 1 sec.
B58900
(3)
If the multiple transmitter to be registered, repeat step (c) within 40 seconds after the previous
registration.
HINT:
F
4 types of recognition codes can be registered at one time.
F
If even one of the following conditions is satisfied, the registration mode will finish.
F
40 seconds have elapsed while an input of each mode is ready.
F
Any of the doors is opened
F
The key plate is inserted in the ignition key cylinder.
F
4 types of recognition codes are registered at once.
73-14
THEFT DETERRENT & DOOR LOCK
- TOYOTA VEHICLE INTRUSION PROTECTION
SYSTEM
TOYOTA VEHICLE INTRUSION PROTECTION SYSTEM
730AV-01
ON-VEHICLE INSPECTION
1.
OUTLINE OF TOYOTA VEHICLE INTRUSION PROTECTION (TVIP) SYSTEM
HINT:
The theft deterrent system has 2 modes; one is the active mode that is an initially set mode and another is
the passive mode that can be switched ON/OFF by the specified method (See step 4).
(a) When the theft deterrent system detects any theft, the system will sound the horns and flash the lights
to alert the people around the vehicle to the theft.
HINT:
Each mode (active and passive) has 4 states; disarmed state, arming preparation state, armed state, alarm
sounding state.
(1)
Disarmed state:
_
The user is near the vehicle.
_
The alarming function does not operate.
_
The theft deterrent function does not operate.
(2)
Arming preparation state:
_
Time from the user locks a door to leave the vehicle.
_
Time for transferring to the armed state.
_
The theft deterrent function does not operate.
(3)
Armed state:
_
The user leaves the vehicle completely.
_
The theft deterrent function operates.
(4)
Alarm sounding state:
Once a theft is detected in the armed state, the system will sound the horns and flash the lights
to alert the people around the vehicle to the theft.
Refer to the table for the alarming method and time.
Room Light
Illuminating (turn on)
Headlight
Flashing at a cycle of approx. 0.4 sec.
Alarming method
Hazard Warning Light
Flashing at a cycle of flasher relay
Vehicle Horn
Sounding at a cycle of approx. 0.4 sec.
Alarming time
Approx. 60 sec.
HINT:
In the alarm sounding state, when either of the front doors is unlocked and no key is inserted in the ignition
key cylinder, forced door lock signal is output.
THEFT DETERRENT & DOOR LOCK
- TOYOTA VEHICLE INTRUSION PROTECTION
73-15
SYSTEM
2.
ACTIVE ARMING MODE
Disarmed State
(No key inserted in ignition key cylinder)
Perform any of the followings and the system will go to ”Arming preparation state”:
F With all doors and luggage compartment door closed, lock all doors with key.
F With all doors and luggage compartment door closed, lock all doors by the wireless door
lock operation.
F With all doors and luggage compartment door closed, open and close either of doors or
luggage compartment door, and then close and lock all doors and luggage compartment
door.
Arming Preparation State
Perform any of the followings and the system
Perform the following and the system will
will return to ”Disarmed state”:
go to ”Armed state”:
F Open either of the closed doors or luggage
F Allow 30 seconds to elapse with all doors
compartment door.
and luggage compartment door closed and
F Unlock either of the locked front doors.
locked.
F Insert the key in the ignition key cylinder.
F Disconnect the battery once, and then
reconnect it.
Continued from next page
Continued to next page
73-16
THEFT DETERRENT & DOOR LOCK
- TOYOTA VEHICLE INTRUSION PROTECTION
SYSTEM
Continued to previous page
Continued from previous page
Armed State
Perform any of the followings and the system
Perform any of the followings and the system
will return to ”Disarmed state”:
will go to ”Alarm sounding state”:
F Unlock the locked doors by the wireless door
F Open either of the closed doors.
lock operation.
F Unlock either of the locked front doors in any
F Unlock the locked doors with key (except the
way other than the key and the wireless door
luggage compartment door).
lock operations.
F Insert the key into the ignition key cylinder
F Open the closed luggage compartment
and turn the ignition ON.
door.
F Reconnect the battery terminal.
F Turn the ignition switch ON without using the
key.
F Theft is detected by the glass breakage
sensor.
Alarm Sounding State
Perform any of the followings and the sys-
Once a theft is detected, lights will flash and
tem will return to ”Disarmed state”:
horns will sound to alert people around the
F Unlock the locked doors by the wireless
vehicle to the theft.
door lock operation.
F Unlock the locked doors with key (except
After the above specified alarming time (60
the luggage compartment door).
sec.) has elapsed, the system will return to
F Insert the key into the ignition key cylinder
”Armed state”.
and turn the ignition ON.
THEFT DETERRENT & DOOR LOCK
-
TOYOTA VEHICLE INTRUSION PROTECTION
73-17
SYSTEM
Indicator light output:
Condition
Indicator light
Disarmed state
OFF
Arming preparation state
ON
Armed state
BLINK
Alarm sounding state
ON
HINT:
Blinking frequency:
0.2 seconds (ON)
1.8 seconds (OFF)
73-18
THEFT DETERRENT & DOOR LOCK
- TOYOTA VEHICLE INTRUSION PROTECTION
SYSTEM
3.
PASSIVE ARMING MODE
_
This mode can be switched according to the specified method (See step 4).
_
Initially set mode (when shipped from factory) is the active mode (No passive mode).
Disarmed State (A)
Perform the following and the system will go to ”Disarmed state (B)”:
F Insert and remove the key from the ignition key cylinder, and then open and close the driver’s door.
Disarmed State (B)
Perform any of the followings and the system
Perform the following and the system will go to
will return to ”Disarmed state (A)”:
”Arming preparation state”:
F Push the unlock switch on the transmitter.
F Close all doors and luggage compartment
F Put the key in the lock cylinder on the driver’s
door.
or passenger’s door and turn it towards unlock.
F Insert the key in the ignition key cylinder.
F Reconnect the battery terminal.
Arming Preparation State
Perform the following and the system will re-
Perform the following and the system will go to
turn to ”Disarmed state (B)”:
”Armed state”:
F Open either of the closed doors or luggage
F Allow 30 seconds to elapse with all doors and
compartment door.
luggage compartment door closed.
Continued to next page
THEFT DETERRENT & DOOR LOCK
- TOYOTA VEHICLE INTRUSION PROTECTION
73-19
SYSTEM
Continued to previous page
Continued from previous page
Armed State
Perform any of the followings and the system
Perform any of the followings and the system will
will return to ”Disarmed state (A)”:
go to ”Alarm sounding state”:
F Push the unlock switch on the transmitter.
F Open either of the closed doors and allow the
F Put the key in the lock cylinder on the driver’s
entry delay time*1 to pass.
or passenger’s door and turn it towards
F Open the closed luggage compartment door.
unlock.
F Reconnect the battery terminal.
F Insert the key into the ignition key cylinder
F Turn the ignition ON without using the key.
and turn the ignition ON.
*1: See the ”Entry delay function”
on the next page
Alarm Sounding State
Perform any of the followings and the system
Perform the following and the system will return
will return to ”Disarmed state (A)”:
to ”Armed state”:
F Push the unlock switch on the transmitter.
F The alarm sounding time (60 sec.) has
F Put the key in the lock cylinder on the driver’s
elapsed.
or passenger’s door and turn it towards
unlock.
F Insert the key into the ignition key cylinder
and turn the ignition ON.
73-20
THEFT DETERRENT & DOOR LOCK
- TOYOTA VEHICLE INTRUSION PROTECTION
SYSTEM

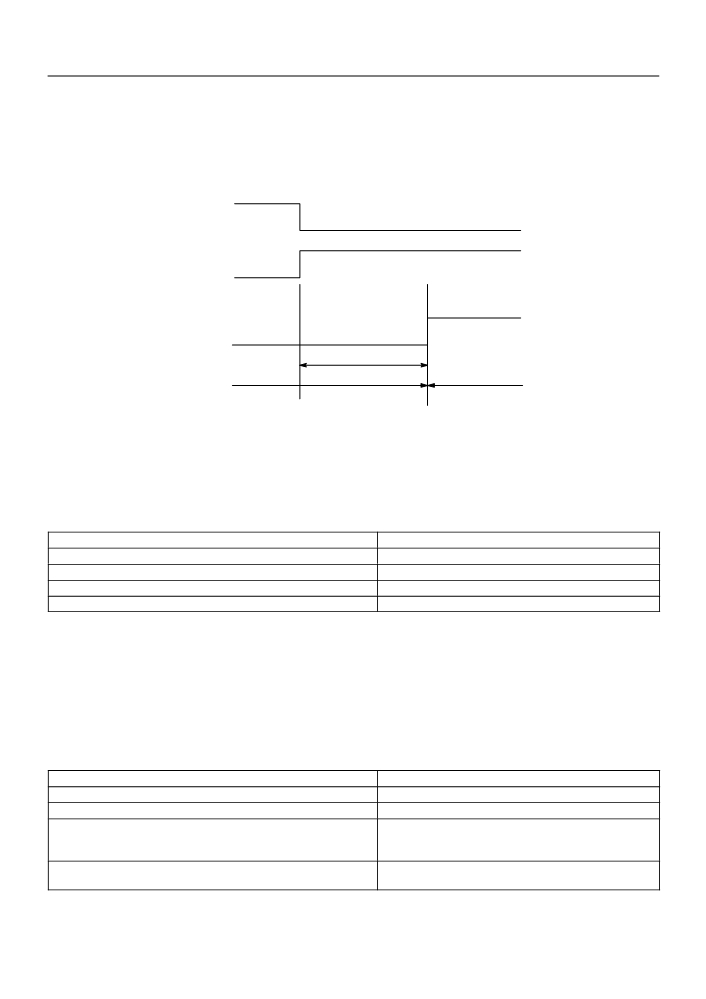

Entry delay function:
HINT:
In the armed state, if either closed door is opened, entry delay time will start.
If the transferring condition (Armed state Disarmed state) is satisfied during this entry delay time, the sys-
tem will transfer to the disarmed state. However if the condition is not satisfied, the system will judge it to
be a theft, and then the system will transfer to the alarm sounding state.
Close
Door
Open
ON
Indicator
OFF
Alarming output
ON
OFF
Entry delay time
(0, 14, 30 sec.)
System condition
Armed state
Alarm sounding
state
HINT:
The entry delay time can be selected among 0, 14, 30 seconds by the customizing function.
Indicator light output:
Condition
Indicator light
Disarmed state
OFF
Arming preparation state
ON
Armed state (Entry delay time)
BLINK (ON)
Alarm sounding state
ON
HINT:
Blinking frequency:
0.2 seconds (ON)
1.8 seconds (OFF)
Transfer to the active mode:
HINT:
In each state of the passive mode, when the transferring condition to the active mode (disarmed state of
active mode arming preparation state of active mode) is satisfied, the system will transfer to each state
of the active mode. In this case, the active mode will continue until the system transfers to the disarmed state.
State of Passive Mode Before Transfer
State of Active Mode After Transfer
Disarmed state
Arming preparation state
Arming preparation state
Arming preparation state (continuing for 30 sec.)
Armed state
Armed state (During entry delay time)
(After alarming time has elapsed, the system will transfer to the
armed state)
After alarming time has elapsed, the system will transfer to the
Alarm sounding state
armed state
THEFT DETERRENT & DOOR LOCK
- TOYOTA VEHICLE INTRUSION PROTECTION
73-21
SYSTEM
4.
CHANGING METHOD OF PASSIVE MODE
(ON or OFF)
F No key in the ignition key cylinder
F Driver’s door opened
( = Vehicle initial condition)
F All doors unlocked
Within
Insert and remove the key from the ignition
5 sec.
key cylinder 3 times.
Close the driver’s door.
Lock and unlock all doors 3 times by the key
Input to the vehicle
or remote control.
Output from the vehicle
Within
Open and close the driver’s door.
40 sec.
Lock and unlock the driver’s door lock knob
3 times.
Open the driver’s door.
2 sec.
The system starts forced door lock once
(answer back).
Unlock the driver’s door lock knob.
Close and open the driver’s door 3 to 5
Within
times
Close and open the driver’s door 2 times
20 sec.
3 times
4 times
5 times
Lock and unlock the driver’s door lock
Lock and unlock the driver’s door lock knob.
knob.
* 0 sec.
* 14 sec.
* 30 sec.
2 sec.
The system starts forced door lock once
The system starts forced door lock once
(answer back).
(answer back).
PASSIVE MODE OFF
PASSIVE MODE ON
HINT:
F Initial mode is PASSIVE MODE OFF.
F If there is a different signal in the middle of changing, it is invalid.
*: Entry delay time
73-22
THEFT DETERRENT & DOOR LOCK
- TOYOTA VEHICLE INTRUSION PROTECTION
SYSTEM
5.
FORCED DOOR LOCK CONTROL
(a) Forced door lock is a control that prevents intrusion into vehicles. When a door is unlocked (when an
alarm starts), instantaneously forced door lock will be executed.
(1)
Condition to execute forced door lock:
Detecting any or all of the following conditions activates forced door lock.
_
Theft deterrent system is in the alarm sounding state of the active mode.
_
No key is in the ignition key cylinder.
_
Any of the front doors is unlocked.
_
Since the previous forced door lock, 0.38 seconds or more have elapsed.
(2)
Conditions to stop forced door lock:
Detecting any of the following conditions stops forced door lock.
_
All doors are locked.
_
The alarm has finished.
_
The key is inserted into the key cylinder.
6.

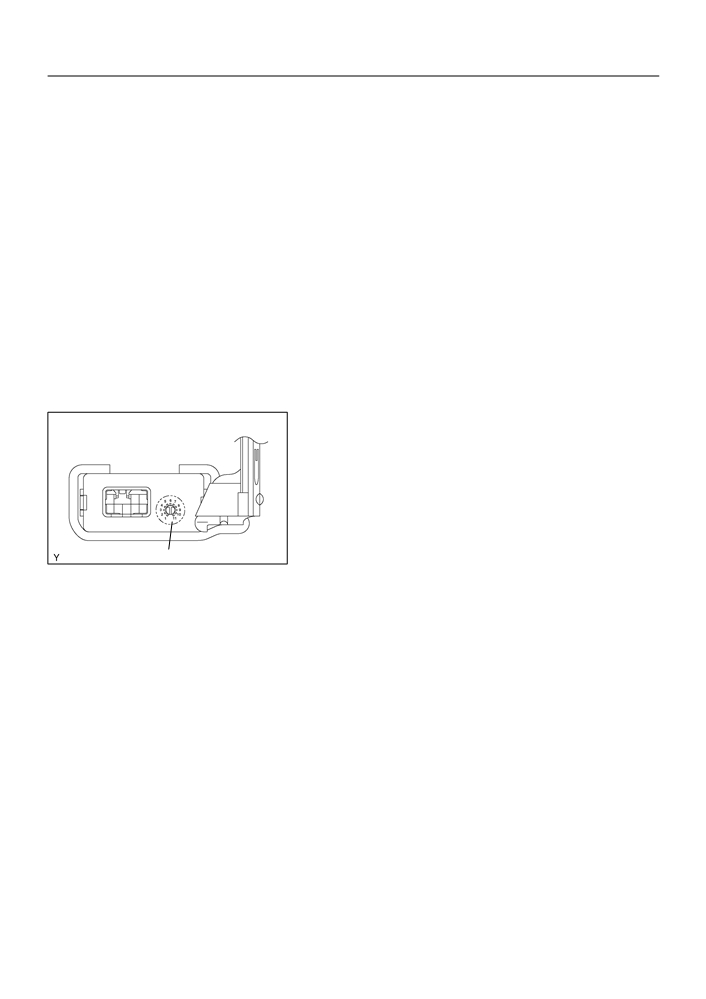

OPERATE GLASS BREAKAGE SENSOR
Glass Breakage Sensor ECU
(a) If the glass breakage sensor detects the glass is broken
(at 1st time), the sensor will issue an alarm for 20 seconds
(pre-alarming). If the glass breakage sensor detects the
glass is broken further more (at 2nd time), the sensor will
issue an alarm for 60 seconds.
(b) The sensitivity of the glass breakage sensor can be ad-
justed by the volume switch in the glass breakage sensor
Volume
B59188
ECU.
HINT:
Because the glass breakage sensor has a high sensitivity, it
might issue a wrong alarm if it is adjusted in the volume of high
sensitive.
73-8
THEFT DETERRENT & DOOR LOCK
- WIRELESS DOOR LOCK CONTROL SYSTEM
730B1-02
ON-VEHICLE INSPECTION
1.
INSPECT WIRELESS DOOR LOCK CONTROL FUNCTIONS
HINT:
F
The switch described in this text is a switch for transmitting signals
(LOCK switch, UNLOCK switch
and PANIC switch) which is built into the door control transmitter.
F
All the functions listed below must be checked in the remote control operational area.
(a)
Put the vehicle under the conditions that allow the wireless control function to be operated (See PRE-
CAUTION on page 73-7).
(b)
Check the basic function.
(1)
Check that all the doors lock when the LOCK switch is pressed.
(2)
Check that only the driver side door unlocks when the UNLOCK switch is pressed once and the
other doors unlock when the UNLOCK switch is pressed again within 3 seconds.
(c)
Check the chattering prevention function.
(1)
Check that the corresponding operation occurs only once and is not repeated continuously while
the switch is held. However, when the switch is operated repeatedly at 1 second intervals, check
that the corresponding operation is carried out.
(d)
Check the automatic lock function.
(1)
Check that all the doors lock automatically as long as none of them have been opened or all the
doors have not been locked within approx. 30 seconds after they are unlocked by pressing the
UNLOCK switch.
(2)
Check that the automatic locking function does not operate when any door has been opened or
all of them have been locked within approx. 30 seconds after they are unlocked by pressing the
UNLOCK switch.
(e)
Check the switch operation fail-safe function.
(1)
Check that the doors can not be locked using the switch while the key is in the ignition key cylin-
der. However, this does not apply when the system is in the recognition code registration mode.
(f)
Check the operation stop function when a door is open or not completely closed.
(1)
Check that the doors are not locked by the switch while any door is open or not completely closed.
However, the glass hatch open operation is possible in this situation.
(g)
Check the repeat function.
(1)
Check that all the doors attempt to automatically lock once again 1 second after the LOCK switch
has been pressed while the movement of the driver side door control knob is being restricted
while in the unlocked position.
(h)
Check the hazard warning lamps flashing functions (answer-back).
(1)
When the LOCK switch is pressed, check that the lamps flash once with the locking of all the
doors.
(2)
When the UNLOCK switch is pressed once, check that the lamps flash twice with the unlocking
of the driver side door.
(3)
When the UNLOCK switch is pressed again within 3 seconds, check that the lamps flash twice
with the unlocking of all the doors.
(i)
Check the remote panic alarm function.
(1)
Check that the horn sounds, and the headlamps, the taillamps and the hazard warning lamps
flash for 60 seconds by the theft alarm function when the PANIC switch is pressed. Also, check
that the horn stops sounding and the lamps stop flashing when either switch of the transmitter
is pressed once again.
(j)
Check the illuminated entry function.
(1)
When all the doors are locked, pressing the UNLOCK switch causes the room lamp (when the
lamp switch is in the DOOR position) to illuminate simultaneously with the unlock operation.
(2)
Check that the room lamp goes off in approx. 15 seconds if doors have not been opened.
73-9
THEFT DETERRENT & DOOR LOCK
- WIRELESS DOOR LOCK CONTROL SYSTEM
2.
CHECK DOOR CONTROL RECEIVER
Door Control Receiver
(a) Disconnect the D3 connector from the door control receiv-
(Wire Harness Side)
er.
(b) Check the continuity and voltage between the terminals
of the door control receiver connector and the body
D3
ground, as shown in the illustration and table.
Standard:
Symbols (Terminal No.)
Specified condition
B59092
+B (D3- 5) - Body ground
10 - 14 V
GND (D3-1) - Body ground
Continuity
If the result is not as specified, there may be a malfunction on
the wire harness side.
(c)
Reconnect the connector and check the voltage between
the terminal and body ground.
Standard:
Symbols (Terminal No.)
Condition
Specified Condition
No key in ignition key
1 V or less
RDA (D3-2) -
cylinder, all doors closed
Approx. 6 - 7 V
Body ground
and each transmitter
1 V or less
switch OFF ON
If the result is not as specified, the receiver may have a malfunc-
tion.
73-7
THEFT DETERRENT & DOOR LOCK
- WIRELESS DOOR LOCK CONTROL SYSTEM
WIRELESS DOOR LOCK CONTROL SYSTEM
730B0-02
PRECAUTION
1.
NOTICES WHEN CHECKING
(a) Power door LOCK/UNLOCK function:
The wireless remote control function operates only when the following 3 conditions are met.
(1)
No key is inserted into the ignition key cylinder.
(2)
All the doors are closed. However, doors can be unlocked even when any of the doors is opened.
(3)
The power door lock system operates normally.
HINT:
F
The UNLOCK function operates even when a door is open.
F
The UNLOCK function operates even when the key is inserted into the ignition key cylinder, however
it must be in the OFF position.
(b) Remote panic function:
The wireless remote control function operates only when the following condition is met.
(1)
The ignition switch is OFF.
HINT:
The key can be inserted, however it must be in the OFF position.
(c)
The wireless door lock remote control operational area differs depending on the situation.
(1)
The operational area differs depending on the operators and the ways the transmitter is held.
(2)
In certain areas, the remote control function will only operate partially for the operational area
will be reduced due to the vehicle body shape and the influence of the surrounding environment.
(3)
Since the transmitter uses faint electric waves, strong electric waves or noise in the frequency
used may reduce the operational area or the remote control may not function.
(4)
When the battery weakens, the operational area is reduced or the remote control may not func-
tion.
HINT:
If the door control transmitter has been left in a place that is exposed to direct sunlight, such as on the instru-
ment panel, it may cause the battery to weaken or cause other such problems.
74-4
SLIDING ROOF/CONVERTIBLE
- SLIDING ROOF SYSTEM
7405Q-02
INSPECTION
1.

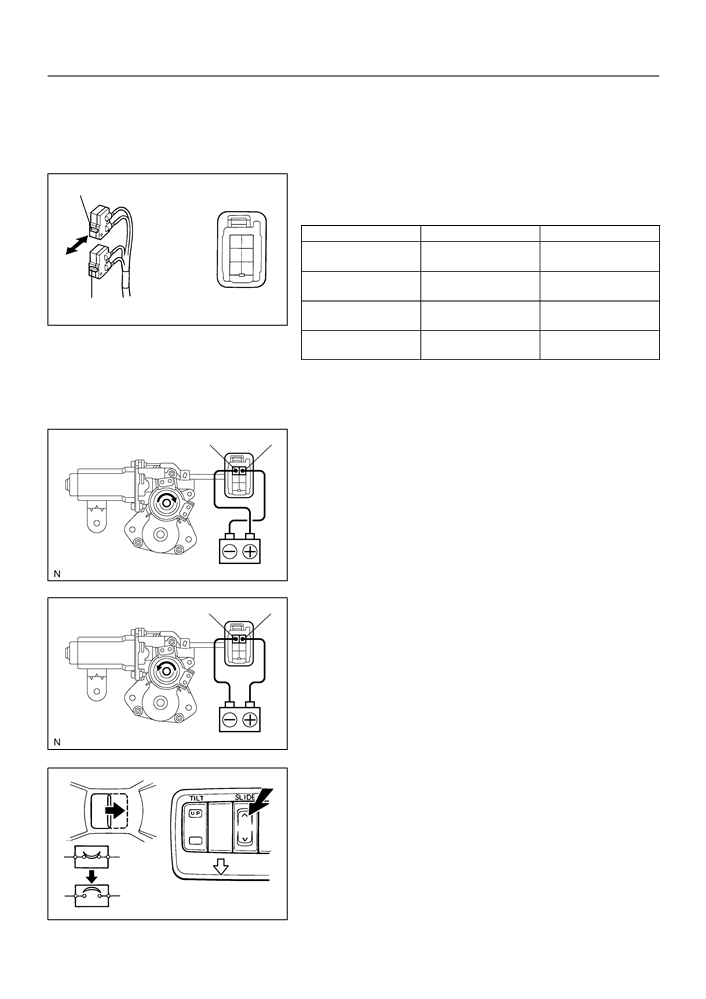

INSPECT SLIDING ROOF LIMIT SWITCH
Switch Pin
(a) Inspect the sliding roof limit switch continuity.
No.1 Limit
Standard:
Switch
ON
Switch position
Terminal No.
Specified condition
2
1
No.1 limit switch OFF
No.2 Limit
4 3
4 - 5
No continuity
OFF
(SW pin released)
6 5
Switch
No.1 limit switch ON
4 - 5
Continuity
(SW pin pushed)
Switch Pin
No.2 limit switch OFF
I00881
4 - 6
No continuity
(SW pin released)
No.2 limit switch ON
4 - 6
Continuity
(SW pin pushed)
If the continuity is not as specified, replace the switch.
2.
INSPECT SLIDING ROOF DRIVE GEAR SUB-ASSY
2
1
(a) Connect the positive (+) lead from the battery to terminal
2 and the negative (-) lead to terminal 1, and check that
the motor turns clockwise (moves to the close side).
I24304
(b) Reverse the polarity, check that the motor turns counter-
2
1
clockwise (moves to the open side).
If the operation is not as specified, replace the motor.
I24303
3.
INSPECT SLIDING ROOF MOTOR CIRCUIT BREAKER
(a) With the sliding roof in the fully opened position, hold the
sliding roof switch in the ”OPEN” side and check that there
is circuit breaker operating noise within 10 to 60 seconds.
within
10 to 60
seconds
Front
I32732















Content   ..  115  116  117  118   ..
