Toyota Corolla (2004+). Manual - part 76





05-447
DIAGNOSTICS
- SUPPLEMENTAL RESTRAINT SYSTEM (April, 2003)
3

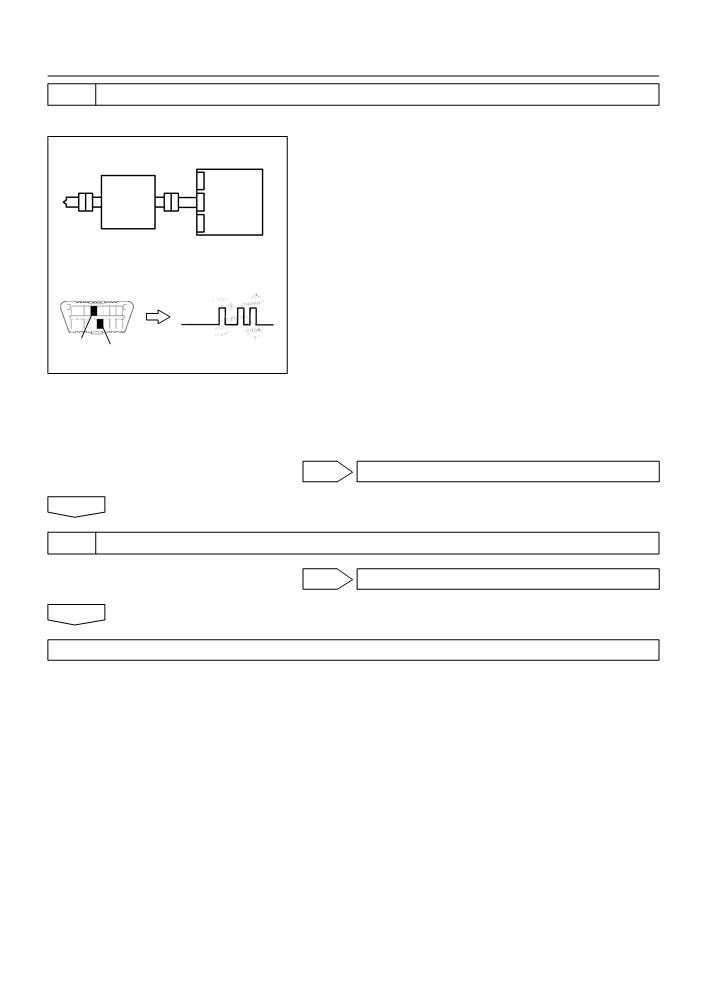

CHECK D SQUIB
SST
09843-18040
(a) Turn the ignition switch to LOCK.
(b) Disconnect the negative (-) terminal cable from the bat-
Airbag
D Squib
tery, and wait at least for 90 seconds.
Spiral
Sensor
Cable
(c)
Connect the horn button assy connectors.
Assy
Sub-Assy
(d) Connect the negative (-) terminal cable to the battery,
Center
and wait at least for 2 seconds.
(e) Turn the ignition switch to ON, and wait at least for 20 se-
conds.
(f)
Clear the DTC stored in memory (See page 05-424).
DLC3
DTC B0102/11
(g) Turn the ignition switch to LOCK, and wait at least for 20
seconds.
(h) Turn the ignition switch to ON, and wait at least for 20 se-
CG
conds.
Tc
H01003
H10600
W02042
H40037
(i)
Check the DTC (See page 05-424).
OK:
DTC B0102/11 is not output.
HINT:
Codes other than code B0102/11 may be output at this time, but
they are not relevant to this check.
NG REPLACE HORN BUTTON ASSY
OK
4
USE SIMULATION METHOD TO CHECK
NG Go to step 1
OK
REPLACE ALL SRS COMPONENTS INCLUDING THE WIRE HARNESS
05-448
DIAGNOSTICS
- SUPPLEMENTAL RESTRAINT SYSTEM (April, 2003)
5
CHECK INSTRUMENT PANEL WIRE(AIRBAG SENSOR ASSY CENTER - SPIRAL
CABLE SUB-ASSY)
(a) Disconnect the connector of the instrument panel wire.
Airbag
(b) For the connector (on the spiral cable sub-assy side) be-
D Squib
Spiral
Sensor
tween the airbag sensor assy center and the spiral cable
Cable
Assy
sub-assy, measure the resistance between D+ and body
Sub-Assy
Center
ground.
OK:
Resistance: 1 M W or Higher
NG REPAIR OR REPLACE INSTRUMENT PANEL
WIRE(AIRBAG SENSOR ASSY CENTER - SPI-
H01004
RAL CABLE SUB-ASSY)
H41424
H41440
OK
6

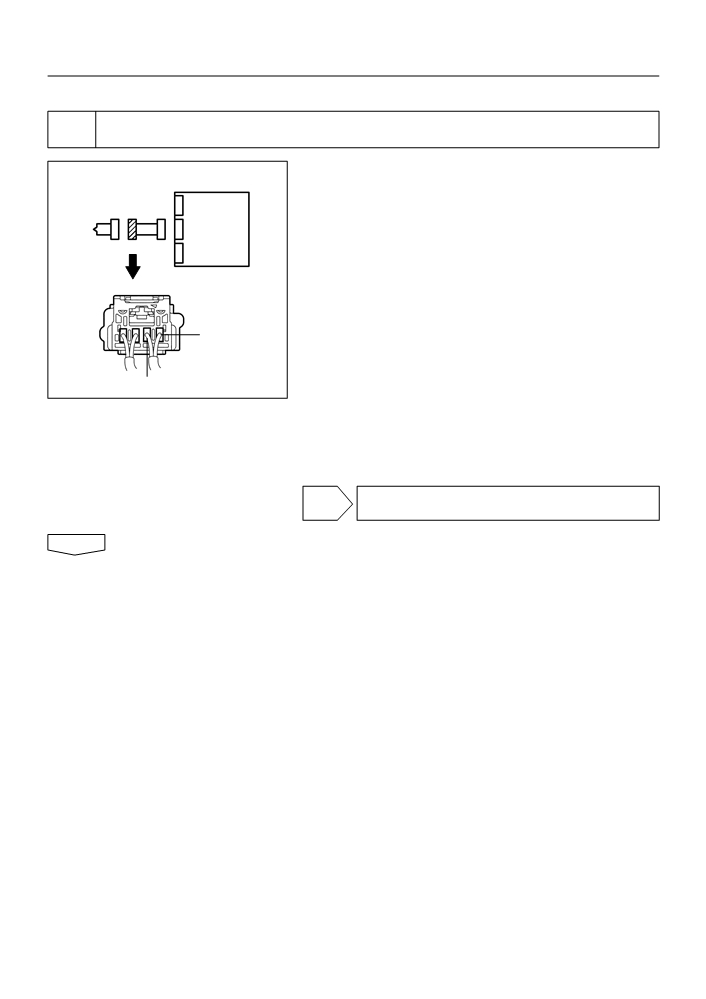

CHECK SPIRAL CABLE SUB-ASSY
(a) For the orange connector (on the spiral cable sub-assy
side) between the horn button assy and the spiral cable
sub-assy, measure the resistance between D+ and body
D Squib
Airbag
Spiral
ground.
Sensor
Cable
OK:
Assy
Sub-Assy
Resistance: 1 M W or Higher
Center
Color: Orange
H01000
C91344
H41441
NG REPLACE SPIRAL CABLE SUB-ASSY
OK
7
USE SIMULATION METHOD TO CHECK
NG Go to step 1
OK
REPLACE ALL SRS COMPONENTS INCLUDING THE WIRE HARNESS
05-449
DIAGNOSTICS
- SUPPLEMENTAL RESTRAINT SYSTEM (April, 2003)
0525G-13
DTC
B0103/12
SHORT IN D SQUIB CIRCUIT (TO B+)
CIRCUIT DESCRIPTION
The D squib circuit consists of the airbag sensor assy center, spiral cable sub-assy and horn button assy.
It causes the SRS to deploy when the SRS deployment conditions are satisfied.
DTC B0103/12 is recorded when a B+ short is detected in the D squib circuit.
DTC No.
DTC Detecting Condition
Trouble Area
F Short circuit in D squib wire harness (to B+)
F Horn button assy (D squib)
F D squib malfunction
F Spiral cable sub-assy
B0103/12
F Spiral cable sub-assy malfunction
F Airbag sensor assy center
F Airbag sensor assy center malfunction
F Instrument panel wire
WIRING DIAGRAM
See page 05-437.
INSPECTION PROCEDURE
1
CHECK D SQUIB CIRCUIT(AIRBAG SENSOR ASSY CENTER - HORN BUTTON
ASSY)
(a) Disconnect the negative (-) terminal cable from the bat-
tery, and wait at least for 90 seconds.
(b) Disconnect the connectors between the airbag sensor
D Squib
Airbag
Spiral
assy center and the horn button assy.
Sensor
Cable
(c)
Connect the negative (-) terminal cable to the battery,
Sub-Assy
Assy
Center
and wait at least for 2 seconds.
(d) Turn the ignition switch to ON.
(e) For the orange connector (on the spiral cable sub-assy
side) between the horn button assy and the spiral cable
sub-assy, measure the voltage between D+ and body
ground.
Color: Orange
OK:
Voltage: Below 1 V
H01001
C91344
H41439
NG Go to step 5
OK
05-450
DIAGNOSTICS
- SUPPLEMENTAL RESTRAINT SYSTEM (April, 2003)
2

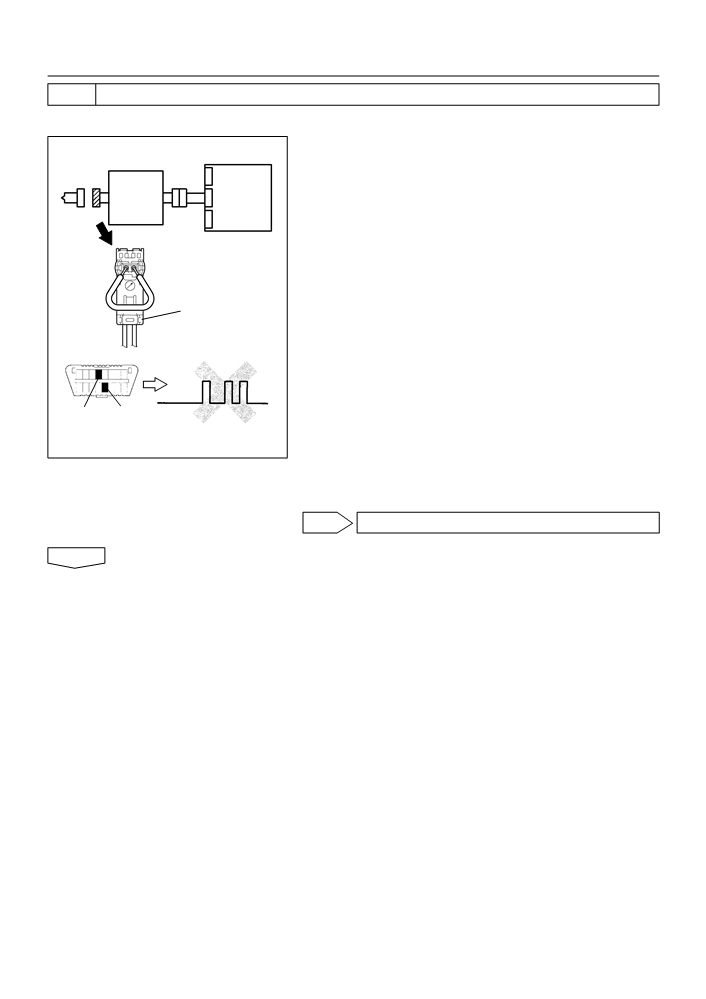

CHECK AIR BAG SENSOR ASSY CENTER
SST
09843-18040
(a) Turn the ignition switch to LOCK.
(b) Disconnect the negative (-) terminal cable from the bat-
D Squib
Airbag
tery, and wait at least for 90 seconds.
Spiral
Sensor
(c)
Connect the connector to the airbag sensor assy center.
Cable
Assy
Sub-Assy
(d) Using a service wire, connect D+ and D- of the orange
Center
connector (on the spiral cable sub-assy side) between
the horn button assy and the spiral cable sub-assy.
(e) Connect the negative (-) terminal cable to the battery,
and wait at least for 2 seconds.
(f)
Turn the ignition switch to ON, and wait at least for 20 se-
Color: Orange
conds.
(g) Clear the DTC stored in memory (See page 05-424).
(h) Turn the ignition switch to LOCK, and wait at least for 20
DTC B0103/12
DLC3
seconds.
(i)
Turn the ignition switch to ON, and wait at least for 60 se-
conds.
CG Tc
(j)
Check the DTC (See page 05-424).
H01002
OK:
C91348
H10600
W02043
H42106
DTC B0103/12 is not output.
HINT:
Codes other than code B0103/12 may be output at this time, but
they are not relevant to this check.
NG REPLACE AIR BAG SENSOR ASSY CENTER
OK
05-451
DIAGNOSTICS
- SUPPLEMENTAL RESTRAINT SYSTEM (April, 2003)
3
CHECK D SQUIB
SST
09843-18040
(a) Turn the ignition switch to LOCK.
(b) Disconnect the negative (-) terminal cable from the bat-
tery, and wait at least for 90 seconds.
D Squib
Airbag
Spiral
Sensor
(c)
Connect the horn button assy connectors.
Cable
Sub-Assy
Assy
(d) Connect the negative (-) terminal cable to the battery,
Center
and wait at least for 2 seconds.
(e) Turn the ignition switch to ON, and wait at least for 20 se-
conds.
DTC B0103/12
(f)
Clear the DTC stored in memory (See page 05-424).
DLC3
(g) Turn the ignition switch to LOCK, and wait at least for 20
seconds.
(h) Turn the ignition switch to ON, and wait at least for 20 se-
CG
conds.
Tc
H01003
H10600
W02043
H40038
(i)
Check the DTC (See page 05-424).
OK:
DTC B0103/12 is not output.
HINT:
Codes other than code B0103/12 may be output at this time, but
they are not relevant to this check.
NG REPLACE HORN BUTTON ASSY
OK
4
USE SIMULATION METHOD TO CHECK
NG Go to step 1
OK
REPLACE ALL SRS COMPONENTS INCLUDING THE WIRE HARNESS
05-452
DIAGNOSTICS
- SUPPLEMENTAL RESTRAINT SYSTEM (April, 2003)
5
CHECK INSTRUMENT PANEL WIRE(AIRBAG SENSOR ASSY CENTER - SPIRAL
CABLE SUB-ASSY)
(a) Turn the ignition switch to LOCK.
Airbag
(b) Disconnect the connectors of the instrument panel wire.
D Squib
Spiral
Sensor
(c)
Turn the ignition switch to ON.
Cable
Sub-Assy
Assy
(d) For the connector (on the spiral cable sub-assy side) be-
Center
tween the airbag sensor assy center and the spiral cable
sub-assy, measure the voltage between D+ and body
ground.
OK:
Voltage: Below 1 V
NG REPAIR OR REPLACE INSTRUMENT PANEL
WIRE(AIRBAG SENSOR ASSY CENTER - SPI-
H01004
RAL CABLE SUB-ASSY)
H41424
H41440
OK
6
CHECK SPIRAL CABLE SUB-ASSY
(a) For the orange connector (on the spiral cable sub-assy
side) between the horn button assy and the spiral cable
sub-assy, measure the voltage between D+ and body
Airbag
D Squib
Spiral
ground.
Sensor
Cable
OK:
Assy
Sub-Assy
Voltage: Below 1 V
Center
Color: Orange
H01000
C91344
H41441
NG REPLACE SPIRAL CABLE SUB-ASSY
OK
7
USE SIMULATION METHOD TO CHECK
NG Go to step 1
OK
REPLACE ALL SRS COMPONENTS INCLUDING THE WIRE HARNESS
05-453
DIAGNOSTICS
- SUPPLEMENTAL RESTRAINT SYSTEM (April, 2003)
055Y3-04
DTC
B0105/53
SHORT IN P SQUIB CIRCUIT
CIRCUIT DESCRIPTION
The P squib circuit consists of the airbag sensor assy center and instrument panel passenger airbag assy.
It causes the SRS to deploy when the SRS deployment conditions are satisfied.
DTC B0105/53 is recorded when a short is detected in the P squib circuit.
DTC No.
DTC Detecting Condition
Trouble Area
F Short circuit between P+ wire harness and P- wire
F Instrument panel passenger airbag assy (P squib)
harness of squib.
B0105/53
F Airbag sensor assy center
F P squib malfunction
F Instrument panel wire
F Airbag sensor assy center malfunction
WIRING DIAGRAM
Airbag Sensor Assy Center
A15
P Squib
10
Y-R
P+
A13
P+
1
11
P-
Y-G
A13
P-
2
H01454
05-454
DIAGNOSTICS
- SUPPLEMENTAL RESTRAINT SYSTEM (April, 2003)
INSPECTION PROCEDURE
1
CHECK P SQUIB CIRCUIT(AIRBAG SENSOR ASSY CENTER - INSTRUMENT
PANEL PASSENGER AIRBAG ASSY)
(a) Disconnect the negative (-) terminal cable from the bat-
tery, and wait at least for 90 seconds.
(b) Disconnect the connectors between the airbag sensor
Airbag
P Squib
Sensor
assy center and the instrument panel passenger airbag
Assy
assy.
Center
HINT:
Make sure that the connector is not damaged (The lock button
is not disengaged, or the claw of the lock is not deformed or
damaged). If the damage is found, replace the wire harness.
(c)
Release the airbag activation prevention mechanism of
P+
the connector (on the airbag sensor assy center side) be-
tween the airbag sensor assy center and the instrument
panel passenger airbag assy (See page 05-424).
R14286
P-
H41424
H41932
(d) For the connector (on the instrument panel passenger air-
bag assy side) between the airbag sensor assy center
and the instrument panel passenger airbag assy, mea-
sure the resistance between P+ and P-.
OK:
Resistance: 1 M W or Higher
NG REPAIR OR REPLACE INSTRUMENT PANEL
WIRE
OK
05-455
DIAGNOSTICS
- SUPPLEMENTAL RESTRAINT SYSTEM (April, 2003)
2
CHECK AIR BAG SENSOR ASSY CENTER
SST
09843-18040
(a) Connect the connector to the airbag sensor assy center.
(b) Connect the negative (-) terminal cable to the battery,
and wait at least for 2 seconds.
P Squib
Airbag
(c)
Turn the ignition switch to ON, and wait at least for 20 se-
Sensor
conds.
Assy
(d) Clear the DTC stored in memory (See page 05-424).
Center
(e) Turn the ignition switch to LOCK, and wait at least for 20
seconds.
DLC3
(f)
Turn the ignition switch to ON, and wait at least for 20 se-
DTC B0105/53
conds.
(g) Check the DTC (See page 05-424).
OK:
CG Tc
DTC B0105/53 is not output.
H01023
H10600
H01077
H41933
HINT:
Codes other than code B0105/53 may be output at this time, but
they are not relevant to this check.
NG REPLACE AIR BAG SENSOR ASSY CENTER
OK
05-456
DIAGNOSTICS
- SUPPLEMENTAL RESTRAINT SYSTEM (April, 2003)
3
CHECK P SQUIB
SST
09843-18040
(a) Turn the ignition switch to LOCK.
(b) Disconnect the negative (-) terminal cable from the bat-
tery, and wait at least for 90 seconds.
P Squib
Airbag
(c)
Connect the instrument panel passenger airbag assy
Sensor
Assy
connector.
Center
(d) Connect the negative (-) terminal cable to the battery,
and wait at least for 2 seconds.
(e) Turn the ignition switch to ON, and wait at least for 20 se-
DLC3
DTC B0105/53
conds.
(f)
Clear the DTC stored in memory (See page 05-424).
(g) Turn the ignition switch to LOCK, and wait at least for 20
seconds.
CG
Tc
(h) Turn the ignition switch to ON, and wait at least for 20 se-
H01024
H10600
H01077
H40041
conds.
(i)
Check the DTC (See page 05-424).
OK:
DTC B0105/53 is not output.
HINT:
Codes other than code B0105/53 may be output at this time, but
they are not relevant to this check.
NG REPLACE INSTRUMENT PANEL PASSENGER
AIR BAG ASSY
OK
USE SIMULATION METHOD TO CHECK
05-457
DIAGNOSTICS
- SUPPLEMENTAL RESTRAINT SYSTEM (April, 2003)
055Y4-04
DTC
B0106/54
OPEN IN P SQUIB CIRCUIT
CIRCUIT DESCRIPTION
The P squib circuit consists of the airbag sensor assy center and instrument panel passenger airbag assy.
It causes the SRS to deploy when the SRS deployment conditions are satisfied.
DTC B0106/54 is recorded when an open is detected in the P squib circuit.
DTC No.
DTC Detecting Condition
Trouble Area
F Open circuit in P+ wire harness or P- wire harness of
F Instrument panel passenger airbag assy (P squib)
squib
B0106/54
F Airbag sensor assy center
F P squib malfunction
F Instrument panel wire
F Airbag sensor assy center malfunction
WIRING DIAGRAM
See page 05-453.
INSPECTION PROCEDURE
1
CHECK P SQUIB CIRCUIT(AIRBAG SENSOR ASSY CENTER - INSTRUMENT
PANEL PASSENGER AIRBAG ASSY)
(a) Disconnect the negative (-) terminal cable from the bat-
tery, and wait at least for 90 seconds.
(b) Disconnect the connectors between the airbag sensor
P Squib
Airbag
assy center and the instrument panel passenger airbag
Sensor
Assy
assy.
Center
(c)
For the connector (on the instrument panel passenger air-
bag assy side) between the airbag sensor assy center
and the instrument panel passenger airbag assy, mea-
sure the resistance between P+ and P-.
OK:
P+
Resistance: Below 1
W
R14286
P-
H41424
H41932
NG REPAIR OR REPLACE INSTRUMENT PANEL
WIRE
OK
05-458
DIAGNOSTICS
- SUPPLEMENTAL RESTRAINT SYSTEM (April, 2003)
2
CHECK AIR BAG SENSOR ASSY CENTER
SST
09843-18040
(a) Connect the connector to the airbag sensor assy center.
(b) Using a service wire, connect P+ and P- of the connector
P Squib
Airbag
(on the instrument panel passenger airbag assy side) be-
Sensor
tween the airbag sensor assy center and the instrument
Assy
panel passenger airbag assy.
Center
(c)
Connect the negative (-) terminal cable to the battery,
and wait at least for 2 seconds.
(d) Turn the ignition switch to ON, and wait at least for 20 se-
conds.
(e) Clear the DTC stored in memory (See page 05-424).
(f)
Turn the ignition switch to LOCK, and wait at least for 20
seconds.
(g) Turn the ignition switch to ON, and wait at least for 20 se-
DLC3
DTC B0106/54
conds.
(h) Check the DTC (See page 05-424).
OK:
CG Tc
DTC B0106/54 is not output.
H01023
HINT:
H16855
H10600
H01078
H41934
Codes other than code B0106/54 may be output at this time, but
they are not relevant to this check.
NG REPLACE AIR BAG SENSOR ASSY CENTER
OK
05-459
DIAGNOSTICS
- SUPPLEMENTAL RESTRAINT SYSTEM (April, 2003)
3
CHECK P SQUIB
SST
09843-18040
(a) Turn the ignition switch to LOCK.
(b) Disconnect the negative (-) terminal cable from the bat-
tery, and wait at least for 90 seconds.
Airbag
P Squib
(c)
Connect the instrument panel passenger airbag assy
Sensor
Assy
connector.
Center
(d) Connect the negative (-) terminal cable to the battery,
and wait at least for 2 seconds.
(e) Turn the ignition switch to ON, and wait at least for 20 se-
DLC3
conds.
DTC B0106/54
(f)
Clear the DTC stored in memory (See page 05-424).
(g) Turn the ignition switch to LOCK, and wait at least for 20
seconds.
CG
(h) Turn the ignition switch to ON, and wait at least for 20 se-
Tc
H01024
H10600 H01078
H40043
conds.
(i)
Check the DTC (See page 05-424).
OK:
DTC B0106/54 is not output.
HINT:
Codes other than code B0106/54 may be output at this time, but
they are not relevant to this check.
NG REPLACE INSTRUMENT PANEL PASSENGER
AIR BAG ASSY
OK
USE SIMULATION METHOD TO CHECK
05-460
DIAGNOSTICS
- SUPPLEMENTAL RESTRAINT SYSTEM (April, 2003)
0525J-13
DTC
B0107/51
SHORT IN P SQUIB CIRCUIT (TO GROUND)
CIRCUIT DESCRIPTION
The P squib circuit consists of the airbag sensor assy center and instrument panel passenger airbag assy.
It causes the SRS to deploy when the SRS deployment conditions are satisfied.
DTC B0107/51 is recorded when ground short is detected in the P squib circuit.
DTC No.
DTC Detecting Condition
Trouble Area
F Short circuit in P squib wire harness (to ground)
F Instrument panel passenger airbag assy (P squib)
B0107/51
F P squib malfunction
F Airbag sensor assy center
F Airbag sensor assy center malfunction
F Instrument panel wire
WIRING DIAGRAM
See page 05-453.
INSPECTION PROCEDURE
1
CHECK P SQUIB CIRCUIT(AIRBAG SENSOR ASSY CENTER - INSTRUMENT
PANEL PASSENGER AIRBAG ASSY)
(a) Disconnect the negative (-) terminal cable from the bat-
tery, and wait at least for 90 seconds.
(b) Disconnect the connectors between the airbag sensor
P Squib
Airbag
assy center and the instrument panel passenger airbag
Sensor
assy.
Assy
Center
(c)
For the connector (on the instrument panel passenger air-
bag assy side) between the airbag sensor assy center
and the instrument panel passenger airbag assy, mea-
sure the resistance between P+ and body ground.
OK:
P+
Resistance: 1 M W or Higher
R14286
P-
H41424
H41932
NG REPAIR OR REPLACE INSTRUMENT PANEL
WIRE
OK
05-461
DIAGNOSTICS
- SUPPLEMENTAL RESTRAINT SYSTEM (April, 2003)
2
CHECK AIR BAG SENSOR ASSY CENTER
SST
09843-18040
(a) Connect the connector to the airbag sensor assy center.
(b) Using a service wire, connect P+ and P- of the connector
Airbag
P Squib
(on the instrument panel passenger airbag assy side) be-
Sensor
tween the airbag sensor assy center and the instrument
Assy
panel passenger airbag assy.
Center
(c)
Connect the negative (-) terminal cable to the battery,
and wait at least for 2 seconds.
(d) Turn the ignition switch to ON, and wait at least for 20 se-
conds.
(e) Clear the DTC stored in memory (See page 05-424).
(f)
Turn the ignition switch to LOCK, and wait at least for 20
seconds.
(g) Turn the ignition switch to ON, and wait at least for 20 se-
DLC3
DTC B0107/51
conds.
(h) Check the DTC (See page 05-424).
OK:
DTC B0107/51 is not output.
CG Tc
HINT:
H01023
H16855
H41977
Codes other than code B0107/51 may be output at this time, but
H10600
H01075
they are not relevant to this check.
NG REPLACE AIR BAG SENSOR ASSY CENTER
OK















Content   ..  74  75  76  77   ..
