Suzuki Kizashi (2010 year). Instruction - part 22





-------------------------------------------------------------------------------------------------------------------------------------------------------------

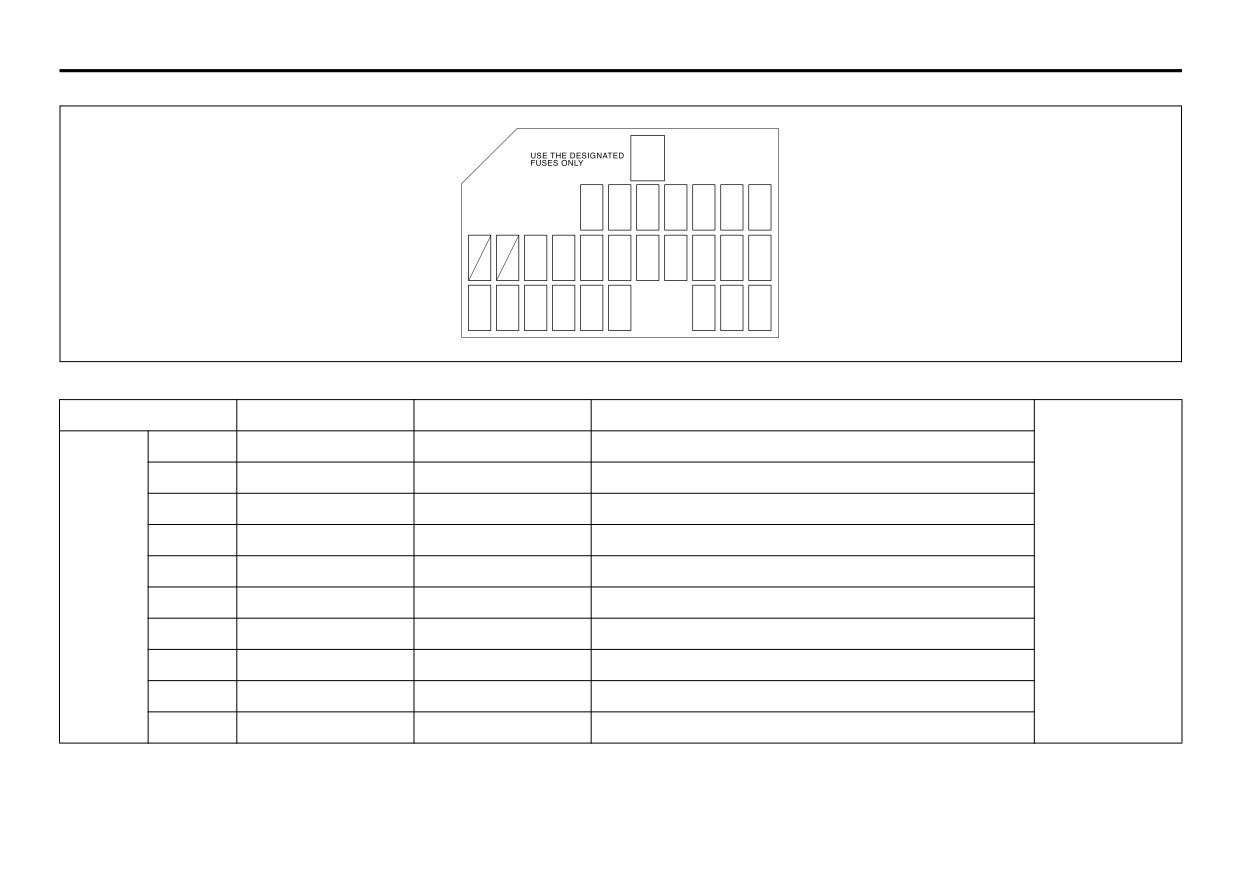

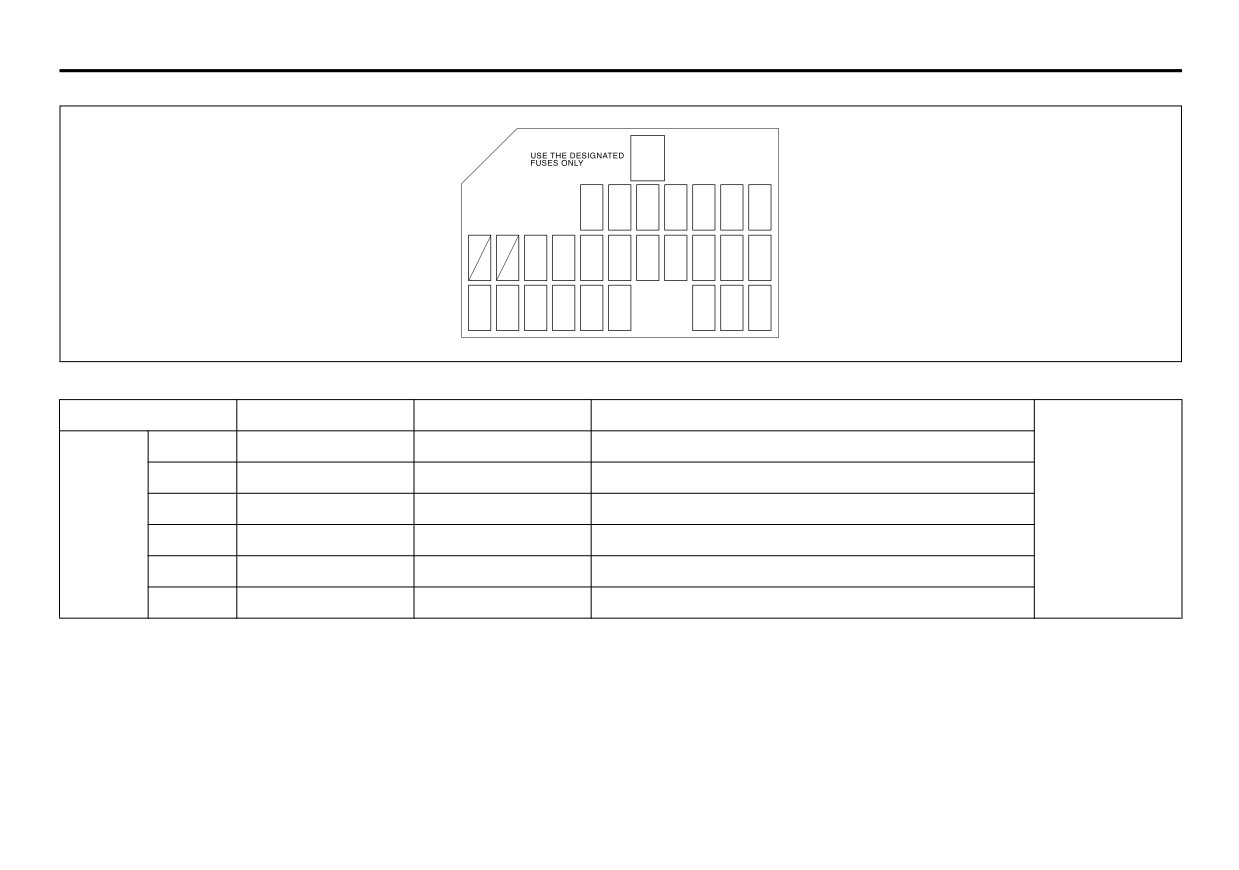

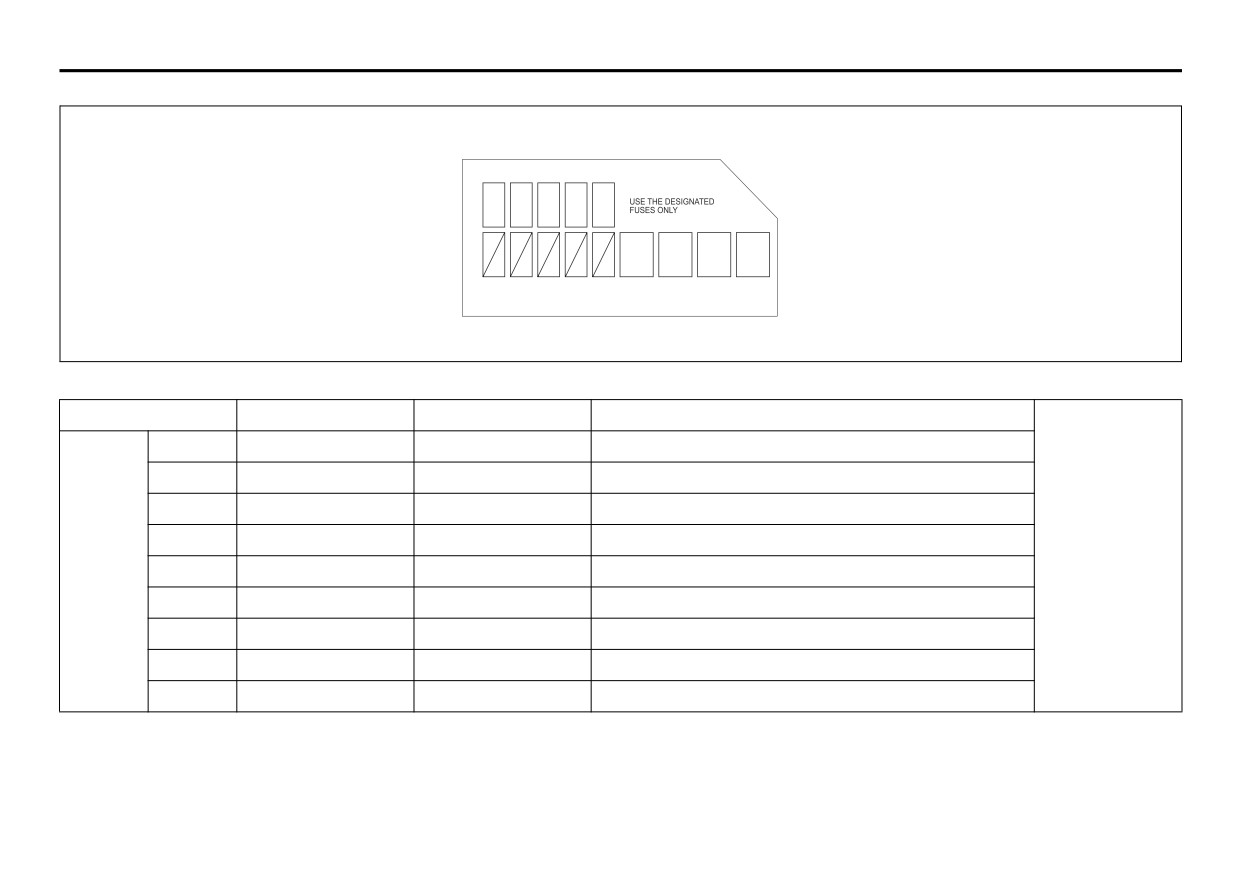

FUSES AND PROTECTED CIRCUITS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
57L70034
COLOR/SIZE (AMPS)
FUSE NAME
PROTECTED CIRCUIT
(11)
BROWN (7.5)
IG1 SIG
IG1 SIG
(12)
BROWN (7.5)
BPIM
Blank
(13)
BROWN (7.5)
MTR
Meter
(14)
RED (10)
BACK
Back-up light
Under the
dashboard of
(15)
RED (10)
A/B
Air bag
FUSE
the driver’s
BOX
(16)
BLUE (15)
STL
Steering lock
seat side
(17)
BROWN (7.5)
BCM
BCM
(18)
YELLOW (20)
S/R
Sunroof
(19)
BROWN (7.5)
RR FOG
Blank
(20)
RED (10)
TAIL
Tail light
11-7

-------------------------------------------------------------------------------------------------------------------------------------------------------------

FUSES AND PROTECTED CIRCUITS
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
57L70034
COLOR/SIZE (AMPS)
FUSE NAME
PROTECTED CIRCUIT
(21)
RED (10)
STOP
Brake light
(22)
RED (10)
HAZ
Hazard
Under the
dashboard of
(23)
YELLOW (20)
DOOR FL
Front power window (Left)
FUSE
the driver’s
BOX
(24)
BLUE (15)
RADIO
Radio
seat side
(25)
RED (10)
DOME
Dome light
(26)
YELLOW (20)
D/L
Door lock
11-8

-------------------------------------------------------------------------------------------------------------------------------------------------------------

FUSES AND PROTECTED CIRCUITS
1
2
3
4
5
6
7
8
9
57L70016
COLOR/SIZE (AMPS)
FUSE NAME
PROTECTED CIRCUIT
(1)
YELLOW (20)
DOOR RR
Rear power window (Right)
(2)
YELLOW (20)
DOOR RL
Rear power window (Left)
(3)
YELLOW (20)
DOOR FR
Front power window (Right)
Under the
(4)
BLUE (15)
4WD
4WD
dashboard of
FUSE
the passen-
(5)
YELLOW (20)
BTRY FAN
Battery fan
BOX
ger’s seat side
(6)
BLUE (20)
AUDIO
Audio
(7)
PINK (30)
PWR SEAT R
Power seat (Right)
(8)
PINK (30)
PWR SEAT L
Power seat (Left)
(9)
PINK (30)
BELT
Blank
11-9

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SPECIFICATIONS
SPECIFICATIONS
NOTE:
Specifications are subject to change with- M/T: Instruction transaxle
2WD: 2-wheel drive
out notice.
CVT: Continuously variable transaxle
i-AWD: intelligent All Wheel Drive
ITEM: Dimensions
UNIT: mm (in.)
Overall length
4650 (183.1)
Overall width
1820 (71.7)
Overall height
1480 (58.3)
Wheelbase
2700 (106.3)
Tread
Front
1565 (61.6)
Rear
1565 (61.6)
Minimum running ground clearance
145 (5.7)
ITEM: Weight
Gross axle weight rating
See the safety certification label and the tire information label which
Gross vehicle weight rating
are located on the driver’s door lock pillar.
Vehicle capacity weight
12
12-1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SPECIFICATIONS
ITEM: Engine
Type
J24B (16V DOHC)
Number of cylinders
4
Bore
92.0 mm (3.62 in.)
Stroke
90.0 mm (3.54 in.)
Piston displacement
2393 cm3 (2393 cc, 146.0 cu.in)
Compression ratio
10.0 : 1
ITEM: Electrical
Ignition timing
5° B.T.D.C.
Standard spark plug
NGK SILFR6A11
Battery
12V GP24
Fuses
See “INSPECTION AND MAINTENANCE” and “FUSES AND PRO-
TECTED CIRCUITS” sections.
12-2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SPECIFICATIONS
ITEM: Light
WATTAGE
BULB No.
Headlight
12V 55W
H7
Front fog light
12V 55W
H11
Front turn signal light
12V 27W
2357A
Rear turn signal light
12V 21W
PY21W
Parking light
12V 5W
W5W
Brake/tail light
12V 21/5W
P21/5W
License plate light
12V 5W
C5W
Reversing light
12V 21W
P21W
Front dome light
12V 8W
-
Rear dome light
12V 10W
-
Glove box light
12V 1.4W
-
Footwell lights
LED
-
Trunk room light
12V 5W
W5W
Spot light
12V 8W
-
High mount stop light
LED
-
Front side marker light
12V 5W
168
Curtsey light
12V 5W
-
Vanity mirror light
12V 2W
-
12-3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

SPECIFICATIONS
ITEM: Wheel
Tire size, front and rear
P215/60R16, P215/55R17, P235/45R18
Tire pressure
For the specified tire pressure, see the Tire Information Label located
on the driver’s door lock pillar.
ITEM: Steering
Toe-in (total)
front
0 ± 2 mm (0 ± 0.08 in.)
rear
2 ± 1 mm (0.08 ± 0.04 in.)
Camber angle
front
-0° 30’ ± 1°
rear
-1° 15’ ± 30’
Caster angle
front
4° 10’ ± 1°
ITEM: Capacities
Coolant (including reserve tank)
6.6 L (13.9 US pt)
Fuel tank
63 L (16.7 US gal)
Engine oil (replaced with filter)
4.5 L (4.8 quarts)
Transaxle oil
Instruction transaxle: 2.5 L (5.3 US pt)
CVT: 8.34 L (17.7 US pt) (when overhauling)
Rear differential oil
0.8 L (1.7 US pt)
Transfer gear box oil
0.9 L (1.9 US pt)
12-4

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INDEX
Average Speed
2-81
INDEX
B
Symbols
Battery
7-39
“CRUISE” Indicator Light
2-75
Brake Assist System
3-28
“ESP® OFF” Indicator Light
2-72
Brake Fluid
7-25
“ESP® OFF” switch
3-33
Brake Pedal
3-11, 7-26
“i-AWD” Indicator Light
2-76, 3-19
Brake System Warning Light
2-70
“SET” Indicator Light
2-75
Brakes
7-25
A
Braking
3-28
Accelerator Pedal
3-12
Break-In
4-1
Accessory Socket
5-80
Brightness Control
2-79
Adding Coolant
7-19
Bulb Replacement
7-45
Adjusting Seat Position
2-23, 2-24
C
Adjusting Seatbacks
2-24, 2-25
Catalytic Converter
4-1
Adjusting the Lumbar Support
2-26
Center Console Box
5-89
AIR BAG Light
2-73
Changing Engine Oil and Filter
7-16
Air Cleaner
7-20
Changing Wheels
8-5
Air Conditioning System
7-57
Charging Light
2-73
All Seat Belts Except Rear Center
2-37
Child Lock System (rear doors)
2-5
Anti-Lock Brake System (ABS)
3-29
Child Restraint Systems
2-44
Anti-Lock Brake System (ABS) Warning Light
2-71
Cigarette Lighter
5-81
Armrest
5-90
Cleaning Interior
9-3
Ashtray
5-82
Cleaning the Exterior
9-4
Assist Grips
5-82
Clutch Pedal
3-11, 7-23
Audio Systems
5-10
Coat Hooks
5-83
Auto Dimming Rearview Mirror
2-21
Compact Spare Tire
7-34
Automatic Heating and Air Conditioning System
13
Continuously Variable Transaxle (CVT)
3-15
(Climate Control)
5-1
Continuously Variable Transaxle (CVT) Fluid
7-24
Automatic Lights Operation
2-101
Coolant Level Check
7-19
Automatic Locking Retractor
2-36
Coolant Replacement
7-20
Average Fuel Consumption
2-83
Corrosion Prevention
9-1
13-1

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INDEX
Courtesy Lights
5-79
Fluid Level Check
7-24
Cruise Control
3-21
Folding Rear Seats
2-32
Cup Holder and Storage Area
5-87
Footrest
5-89
CVT Selector Position (for continuously variable
Footwell Lights
5-79
transaxle)
2-81
Frame Hooks
5-96
D
Front Air Bags
2-57
Daily Inspection Checklist
3-1
Front Fog Light Switch
2-105
Daytime Running Light (D.R.L.) Indicator Light
2-76
Front Seat Back Pocket
5-89
Daytime Running Light (D.R.L.) System
2-104
Front Seat Heater
2-28
Door Locks
2-3
Front Seats
2-23
Drive Belt
7-15
Fuel Filler Cap
5-74
Driver’s Seat Belt Reminder Light
2-73
Fuel Filler Door
5-73
Driving on Hills
4-3
Fuel Gauge
2-78
Driving on Slippery Roads
4-4
Fuel Pump Labeling
1-1
Driving Range
2-81
Fuel Recommendation
1-1
E
Full Wheel Cover
8-5
Fuses
7-40
Electric Power Steering Warning Light
2-77
FUSES AND PROTECTED CIRCUITS
11-1
Electronic Stability Program (ESP®)
3-31
Fuses in the Engine Compartment
7-40
Emergency Locking Retractor (ELR)
2-36
Fuses under the Dash Board
7-42
Emission Compliance Label (for U.S.A.)
10-2
Engine Block Heater
3-12
G
Engine Coolant
7-18
Gasoline Containing MTBE
1-1
Engine Hood
5-75
Gasoline/Ethanol blends
1-1
Engine Oil and Filter
7-15
Gasoline/Methanol blends
1-1
Engine Serial Number
10-1
Gear Oil
7-22
Engine Switch
3-2
Gear Oil Level Check
7-23
Engine Switch Illumination
3-4
Gear Oil Replacement
7-23
ESP® Warning Light
2-71
GLOSSARY OF TIRE TERMINOLOGY
7-36
Exhaust Gas Warning
3-1
Glove Box
5-85
F
H
Floor Mats
5-91
Hazard Warning Switch
2-106
13-2

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INDEX
Head Restraints
2-27, 2-29
Interior Light Switch
5-78
Headlight Aiming
7-44
Interior Workable Area for Engine Starting, Power
Heated Rear Window and Heated Outside Rearview
Supply Mode Selection and “Remote Controller
Mirrors (if equipped) Switch
2-111
Outside” Warning
3-6
High Beam Indicator Light
2-75
Internal Trunk Release
2-6
Highway Driving
4-3
J
Hill Hold Control System
3-34
Jacking Instructions
8-2
HomeLink®
5-93
Jump Starting Instructions
8-6
Horn
2-111
K
How the ABS Works
3-30
Keyless Push Start System
3-4
I
Keyless Start System Remote Controller
2-6
Identification Numbers
10-1
Keys
2-1
If the Engine is Flooded
8-8
L
If the Engine Overheats
8-8
Lap-Shoulder Belt
2-36
If the Starter Does Not Operate
8-7
Lidded Instrument Panel Box
5-87
If You Cannot Shift CVT Gearshift Lever Out of
Light Reminder Buzzer
2-104
“P” (PARK)
3-18
Lighting Control Lever
2-100
If Your Vehicle Gets Stuck
4-4
Lighting Operation
2-100
Illumination Indicator Light
2-75
Locking Rear Seatback
2-34
Immobilizer System
2-2, 3-4
Low Fuel Warning Light
2-74
Immobilizer/Keyless Start System Warning Light
2-76
Low Tire Pressure Warning Light
2-69, 3-35
Improving Fuel Economy
4-2
Luggage Under-box
5-92
Information Display
2-80
M
Inside Rearview Mirror
2-20
Maintenance Recommended under Severe Driving
Installation of Child Restraint with Top Strap
2-52
Conditions
7-7, 7-11
Installation with Lap-Shoulder Seat Belts
Maintenance Schedule
7-2
(child restraint with no top strap)
2-46
Malfunction Indicator Light
2-74
Installation with the LATCH System
2-49
Manual Transaxle
3-13
Instantaneous fuel consumption
2-82
Master Warning Indicator Light
2-77
Instrument Cluster
2-68
Mirrors
2-20
intelligent All Wheel Drive (i-AWD) Indicator Light
2-76
13-3

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INDEX
N
Roof Rack Anchors
5-92
Net/Rope Hooks
5-92
S
O
Safety Certification Label
10-2
Odometer
2-84
Seat Belt Extender
2-53
Oil Level Check
7-15
Seat Belt Inspection
2-43
Oil Pressure Light
2-72
Seat Belt Pretensioner System
2-54
On-Board Vehicle Computers and Event Data
Seat Belt Reminder
2-40
Recorders
10-3
Seat Belts and Child Restraint Systems
2-34
Open Door Warning Light
2-75
Seat Position Memory System
2-26
Outside Rearview Mirrors
2-22
Selection of Coolant
7-18
Overhead Console
5-86
Selection of Power Supply Modes
3-4
Setting Mode
2-85
P
Shoulder Anchor Height Adjuster
2-43
Parking Brake Lever
3-10, 7-27
Side Air Bags and Side Curtain Air Bags
2-59
Parking Sensors
3-23
Side Door Locks
2-3
Pedals
3-11
Snow Tires
7-35
Periodic Maintenance Schedule
7-3
Spark Plugs
7-20
Power Door Locking System
2-4
SPECIFICATIONS
12-1
Power Mirror Control
2-22
Specified Fluid
7-24
Power Window Controls
2-17
Specified Gear Oil
7-22
Power-Assisted Brakes
3-28
Specified Oil
7-15
R
Speedometer
2-78
Radio Antenna
5-9
Spot Light
5-80
Rain-sensing Wipers
2-108
Stability Control System
3-31
Rain-sensing Wipers and Washer Lever
2-107
Starting the Engine
3-7
Rear Center Seat Belt
2-38
Steering Wheel
7-27
Rear Seats
2-29
Sun Visor
5-77
Refill with Oil and Check for Leaks
7-18
Sunroof
5-83
Refilling
7-16
Supplemental Restraint System (air bags)
2-55
Replace the Oil Filter
7-17
T
Replacing Tires and/or Wheels
3-38
Tachometer
2-78
Reporting Safety Defects
10-4
13-4

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INDEX
Temperature Gauge
2-79
V
Theft Deterrent Alarm System
2-14
Vehicle Cleaning
9-3
Thermometer
2-84
Vehicle Identification Number
10-1
Tilt/Telescoping/Steering Lock Lever
2-110
Vehicle Loading
6-1, 7-37
Tire Chains
4-5
W
Tire Changing Tool
8-1
Warning and Indicator Lights
2-69
Tire Inflation Pressure
7-30
Warning and Indicator Messages
2-86
Tire Inspection
7-31
Warranties
10-2
Tire Pressure Monitoring System (TPMS)
3-34
Washing
9-5
Tire Rotation
7-34
Waxing
9-6
Tire Sidewall Labeling
7-28
Windows
2-17
Tire Size
7-29
Windshield Washer
2-109
Tires
7-28
Windshield Washer Fluid
7-56
Towing a Disabled Vehicle
8-7
Windshield Wipers
2-107
Towing Your Vehicle (recreational towing)
6-2
Wiper Blades
7-54
Traction Control System
3-31
Trailer Towing
6-2
Transaxle Warning Light
2-76
Trip meter
2-84
Trunk Lid
2-5
Trunk Lid Lock Switch
2-6
Trunk Light
5-79
Turn Signal Control Lever
2-105
Turn Signal Indicators
2-75
Turn Signal Operation
2-106
U
Uniform Tire Quality Grading
7-33
Universal Serial Bus (USB) Socket
5-81
Using the 2WD/i-AWD (intelligent All Wheel Drive)
Switch
3-19
Using the Transaxle
3-13
13-5

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content      ..     20      21      22
