Suzuki Kizashi (2010 year). Instruction - part 6





-------------------------------------------------------------------------------------------------------------------------------------------------------------

BEFORE DRIVING

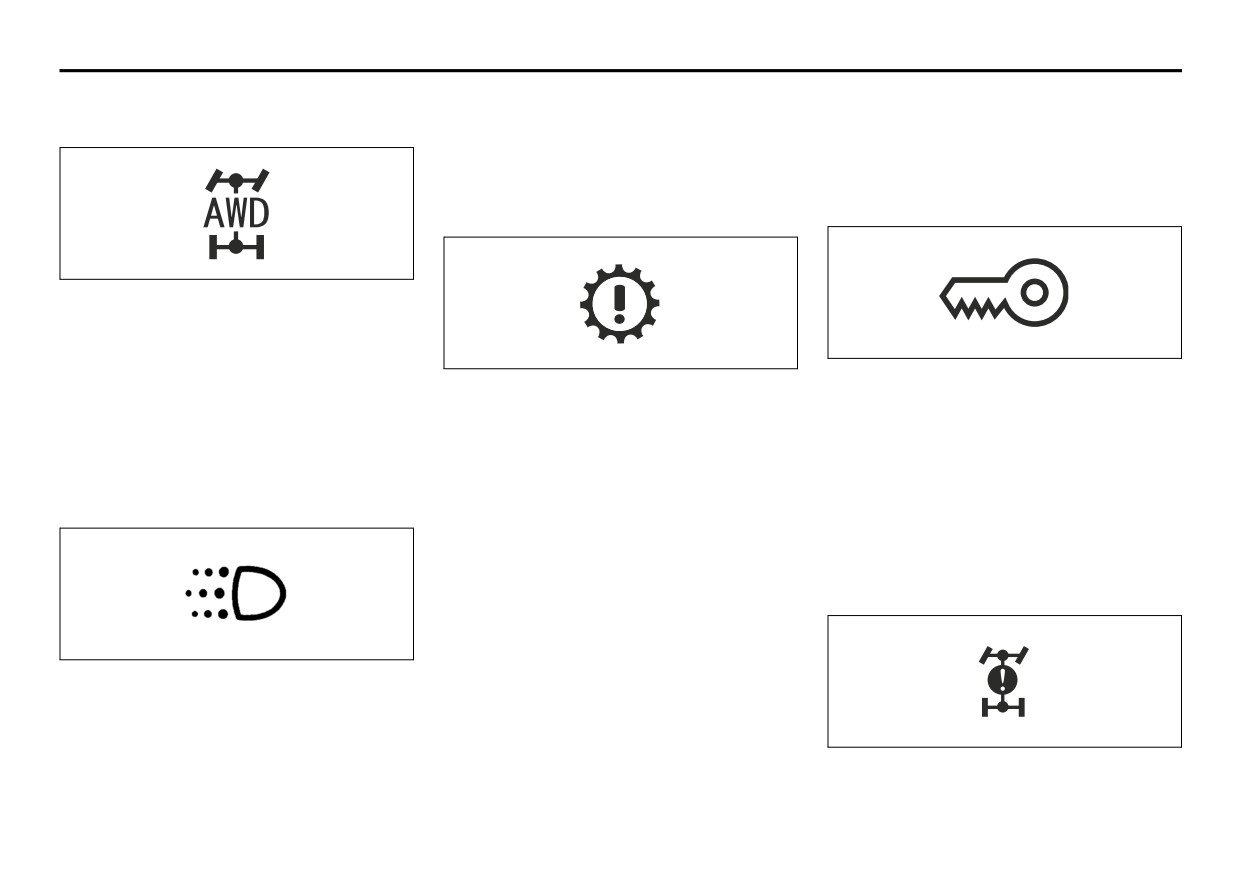

Intelligent All Wheel Drive (i-AWD)
Conditions for D.R.L. system operation
• The light does not go out in about 2 sec-
Indicator Light (if equipped)
1) The engine is running.
onds after changing the ignition mode to
2) The parking brake is released.
“ON” by pressing the engine switch.
3) The headlights are off.
Immobilizer/Keyless Start System
Transaxle Warning Light (if
Warning Light
equipped)
57L30044
When the 2WD/i-AWD switch is in the “i-
AWD” mode with the engine switch in the
“ON” mode, the light comes on and stays
80JM122
on.
80J219
When you press the engine switch to
For details, refer to “Using the 2WD/i-AWD
This light comes on when you press the
change the ignition mode to “ON”, the light
Switch” in the “OPERATING YOUR VEHI-
engine switch to change the ignition mode
comes on briefly so you can check that the
CLE” section.
to “ON” if there is any problem with the
light is working. If this light stays on, there
continuously variable transaxle (CVT).
is a problem with the system. This light
Daytime Running Light (D.R.L.) Indi-
• The light should normally come on when
flashes if you press the engine switch while
cator Light (if equipped)
the ignition mode is changed to “ON” by
the system is not sensing the remote con-
pressing the engine switch and stay on
troller. For details, refer to
“Immobilizer
for about 2 seconds before going out.
System” in this section.
NOTE:
i-AWD Warning Light (if equipped)
The following conditions may indicate
some problem with the CVT system. If any
of these conditions occurs, have your vehi-
cle inspected by an authorized SUZUKI
60B245
dealer.
With the D.R.L. system, the headlights
• The light comes on while driving.
light, but are dimmer than the low beam,
• The light does not come on even when
when the following three conditions are all
the ignition mode is changed to “ON” by
met. Whenever the D.R.L. system is oper-
pressing the engine switch.
57L30042
ating, the D.R.L. indicator light remains on.
When you press the engine switch to
change the ignition mode to “ON”, the light
2-76

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BEFORE DRIVING
comes on briefly so you can check that the

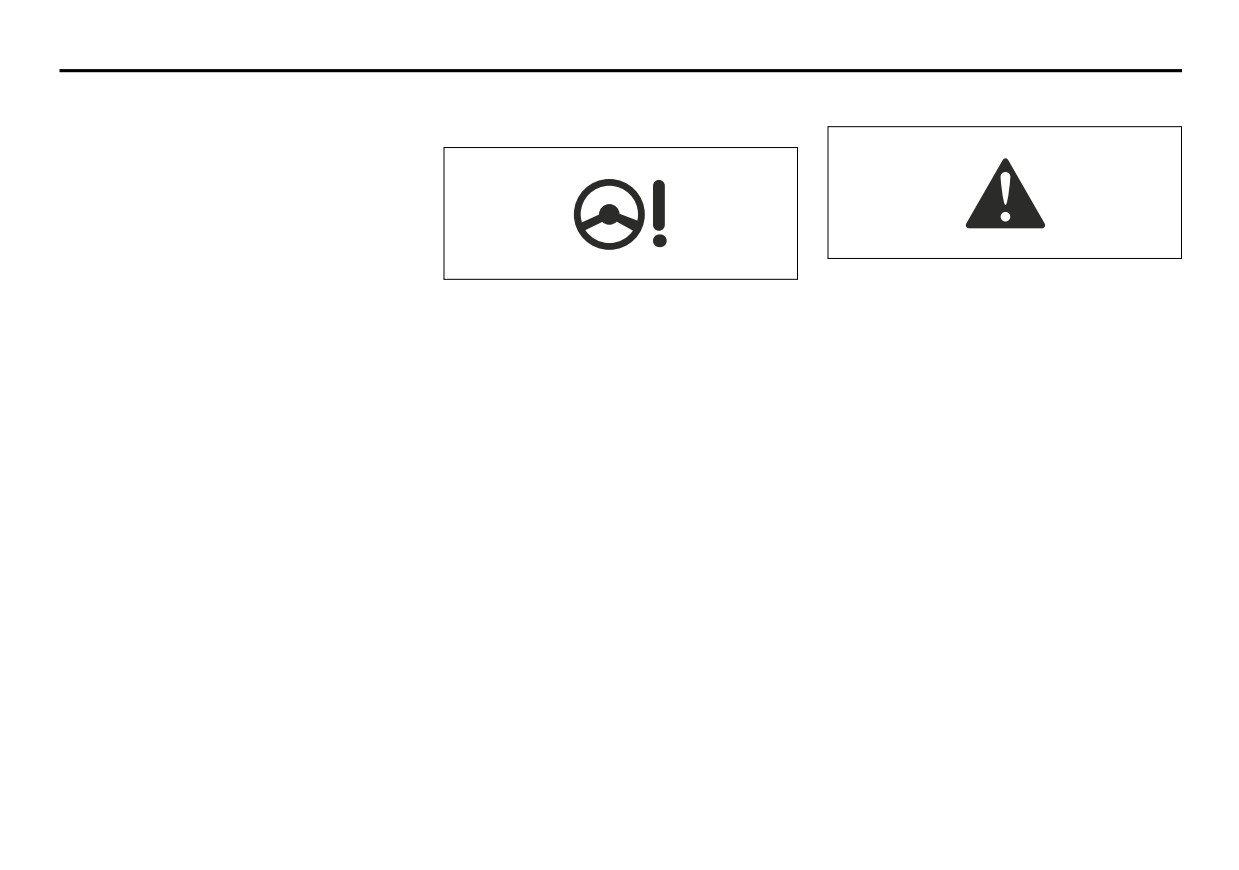

Electric Power Steering Warning
Master Warning Indicator Light
light is working.
Light
This light comes on if there is any prob-
lem with the intelligent all wheel drive (i-
AWD) system. The drive mode will then
automatically switch to the two-wheel
drive (2WD) mode.
The light flashes if the vehicle is in any of
the following conditions, and the drive
78K049
train mode will then automatically switch
80J408
When you press the engine switch to
to the 2WD mode.
This light comes on while the engine is
change the ignition mode to “ON”, the light
- Wheels of different diameters are fitted
running if there is any problem with the
comes on briefly so you can check that the
to the vehicle.
electric power steering system.
light is working. When the information dis-
- Drive train components overheat as a
• The light should normally come on when
play shows warning and indicator mes-
result of spinning of a drive wheel in
you press the engine switch to change
sages, this indicator light may also come
the mud or snow.
the ignition mode to “ON” and go out as
on or blink.
The light should normally come on when
soon as the engine is started.
you press the engine switch to change
For details, refer to “Information Display” in
the ignition mode to “ON” and continue
this section.
NOTE:
to light or go out depending on the drive
The following conditions may indicate a
train mode engaged.
problem with the electric power steering
system. In the event of any of these con-
NOTE:
ditions, have your vehicle inspected by
Should the light flash, immediately move
an authorized SUZUKI dealer.
the vehicle to a safe place and park it there
- The light comes on while driving.
to protect the drive train components. If
- The light does not come on even when
you let the engine run at idle for a while,
you press the engine switch to change
the light will stop flashing and then stay lit,
the ignition mode to “ON”.
and the i-AWD mode will resume.
- The light stays on after the engine has
started.
The electric power steering system
stops functioning if it has any problem.
Without the system operating, the steer-
ing wheel will require more effort to turn
than usual.
2-77

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BEFORE DRIVING
Speedometer
Tachometer
Fuel Gauge
EXAMPLE
EXAMPLE
EXAMPLE
(1)
(2)
57L21057
57L21058
57L21059
The speedometer indicates vehicle speed
The tachometer indicates engine speed in
When you press the engine switch to
in km/h and mph.
revolutions per minute.
change the ignition mode to
“ON”, this
gauge gives an approximate indication of
CAUTION
the amount of fuel in the fuel tank. “F”
stands for full and “E” stands for empty.
Never drive with the engine speed
indicator in the red zone or severe
If the indicator gets off the graduation of
engine damage can result.
“E” (not character “E”), refill the tank as
When downshifting to a lower gear,
soon as possible.
make sure not to operate with exces-
sive revolution speeds of the engine.
NOTE:
Refer to
“Downshifting maximum
The indicator moves a little depending on
allowable speeds” in the “OPERAT-
road conditions
(for example, slope or
ING YOUR VEHICLE” section.
curve) and driving conditions because of
fuel moving in the tank.
2-78

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BEFORE DRIVING
If the low fuel warning light (1) comes on,
Temperature Gauge
Brightness Control
fill the fuel tank immediately.
When the low fuel warning light (1) comes
on, a ding sounds once to remind you to fill
the fuel.
If you do not fill the fuel, a ding sounds
every time you press the engine switch to
change the ignition mode to “ON”.
CAUTION
Avoid driving with an extremely low
(1)
fuel level. Running out of fuel could
cause the engine to misfire, damag-
ing the catalytic converter.
57L21060
57L21080
NOTE:
The activation point of the low fuel warning
When the ignition mode has been changed
When the engine switch
is
pressed to
light (1) varies depending on road condi-
to “ON” by pressing the engine switch, this
change the ignition mode to
“ON”, the
tions
(for example, slope or curve) and
gauge indicates the engine coolant tem-
instrument panel lights come on.
driving conditions because of fuel moving
perature. Under normal driving conditions,
in the tank.
the indicator should stay within the normal,
Your vehicle has a system to automatically
acceptable temperature range between “H”
dim the brightness of the instrument panel
The mark (2) indicates that the fuel filler
and “C”. If the indicator approaches “H”,
lights when the parking lights or headlights
door is located on the left side of the vehi-
overheating is indicated. Follow the
are on.
cle.
instructions for engine overheating in the
You can change the brightness of the
“EMERGENCY SERVICE” section.
instrument panel lights regardless of
whether the parking lights or headlights
CAUTION
are off or on.
Continuing to drive the vehicle when
To increase the brightness of the instru-
engine overheating is indicated can
ment panel lights, turn the brightness con-
result in severe engine damage.
trol knob (1) clockwise.
To reduce the brightness of the instrument
panel lights, turn the brightness control
knob (1) counterclockwise.
2-79

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BEFORE DRIVING
NOTE:
Information Display
EXAMPLE

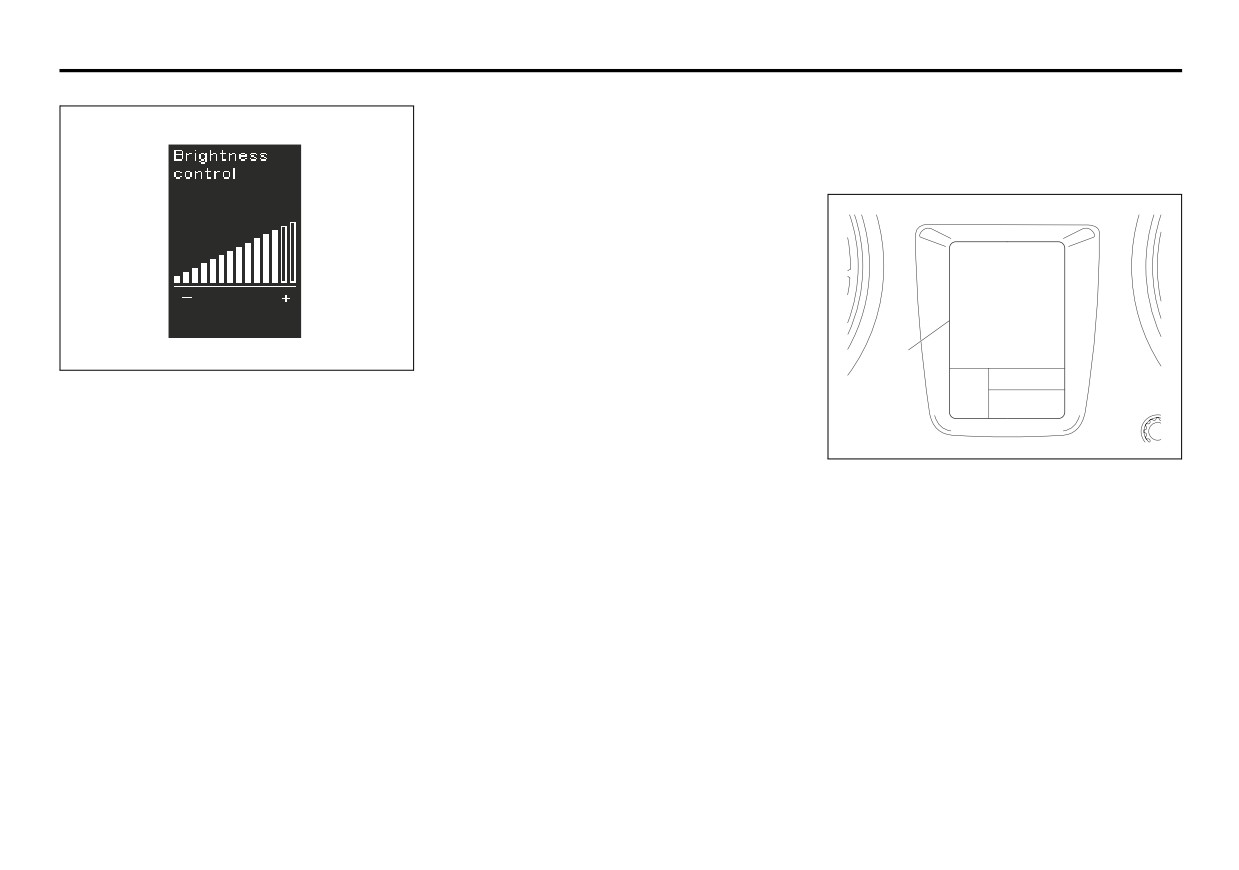

• If you do not turn the brightness control
The information display is shown when the
knob within about 5 seconds of activat-
ignition mode has been changed to “ON”
ing the brightness control display, the
by pressing the ignition switch.
brightness control display will be can-
celed automatically.
• When you reconnect the battery, the
brightness of the instrument panel lights
will be reinitialized. Readjust the bright-
ness according to your preference.
(B)
NOTE:
If you select the lowest brightness level
when the parking lights or headlights are
(1)
57L21081
on, the instrument panel lights other than
(C)
(A)
meter lights are turned off.
(D)
57L30067
(1) Information display
2-80

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BEFORE DRIVING
CVT Selector Position
(for continu-
EXAMPLE
ously variable transaxle)
EXAMPLE
(4)
(2)
57L21127

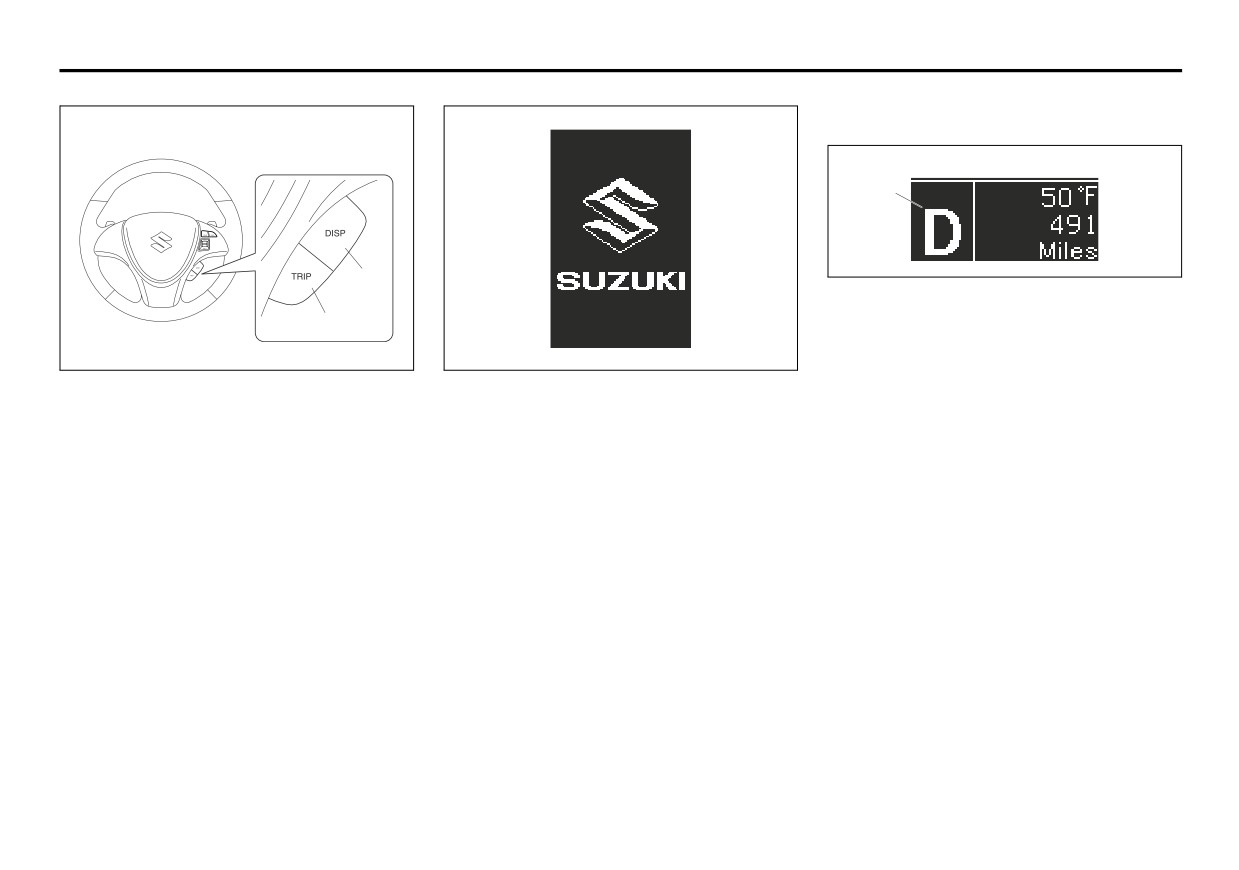

The display (A) shows the continuously
(3)
variable transaxle selector position (4).
Fuel Consumption/Driving Range/
57L30043
57L30068
Average Speed
(2) DISP switch
When the engine switch is pressed to
When there are no warning or indicator
(3) TRIP switch
change the ignition mode to
“ON”, the
messages on the display
(B), you can
message shown in the above illustration
select one of the following five indications
The information display shows the follow-
will appear on the display for several sec-
to appear on the display, instantaneous
ing information.
onds.
fuel consumption, average fuel consump-
Some warning and indicator messages
tion, driving range, average speed, or no
Display (A)
may appear on the display when the igni-
indication.
CVT selector position indicator (for contin-
tion mode is changed to “ACC” by pressing
uously variable transaxle)
the engine switch.
Display (B)
Warning and Indicator Messages/Fuel
Consumption/Driving
Range/Average
Speed
Display (C)
Trip meter/Thermometer
Display (D)
Odometer
2-81

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BEFORE DRIVING

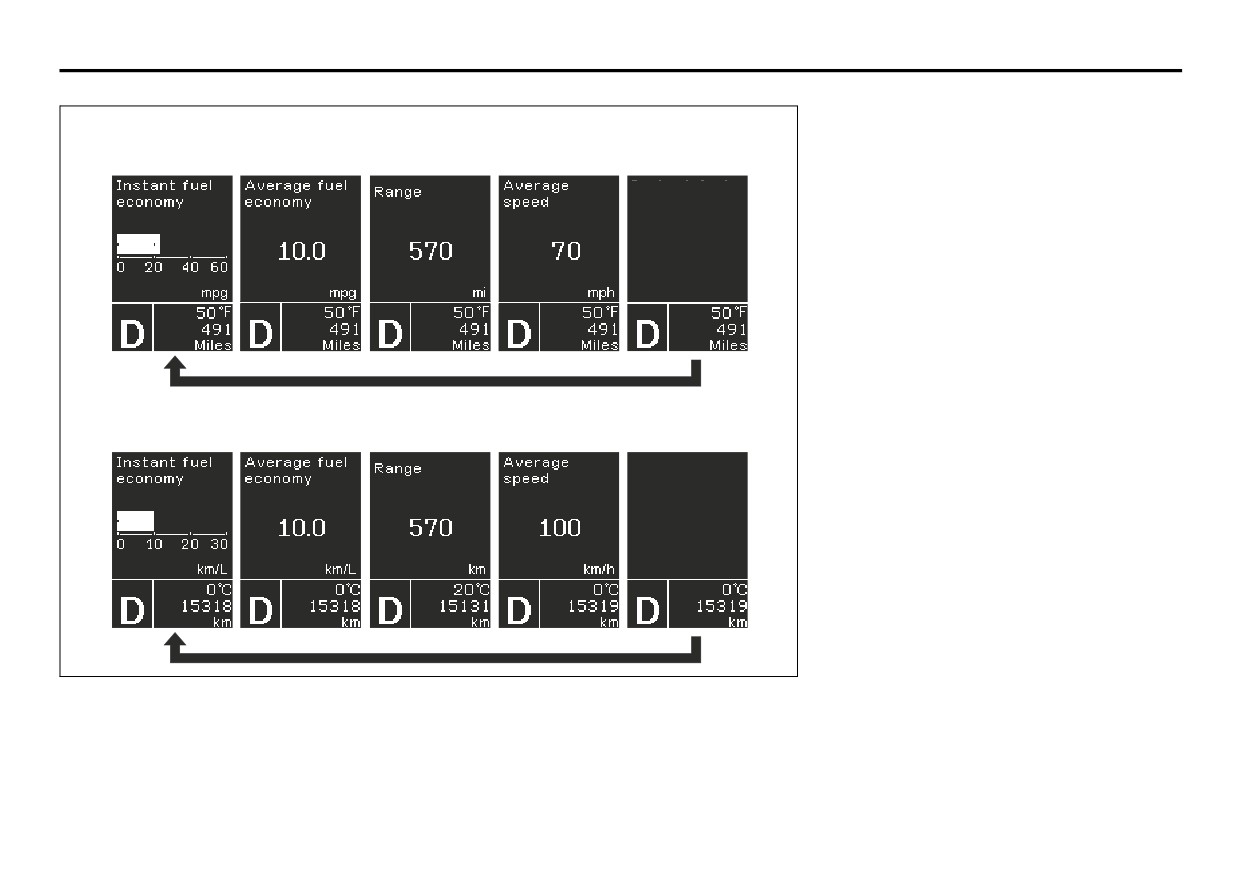

To switch the display indication, pull the
EXAMPLE
DISP switch (2) quickly.
Mile
(a)
(b)
(c)
(d)
(e)
NOTE:
The value of fuel consumption, driving
range and average speed shown in the dis-
play are affected by conditions such as the
following;
• road condition
• surrounding traffic condition
• driving condition
• vehicle condition
• a malfunction which causes the malfunc-
tion indicator light to come on or blink
Instantaneous fuel consumption
If you selected instantaneous fuel con-
Km
(a)
(b)
(c)
(d)
(e)
sumption the last time you drove the vehi-
cle, the display does not show the bar
graph when the engine switch is pressed
to change the ignition mode to “ON”. The
display shows the bar graph only when the
vehicle is moving.
57L21082
(a) Instantaneous fuel consumption
(b) Average fuel consumption
(c) Driving range
(d) Average speed
(e) No indication
2-82

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BEFORE DRIVING
Average fuel consumption
To change when the value of average fuel
NOTE:
If you selected average fuel consumption
consumption is reset, refer to

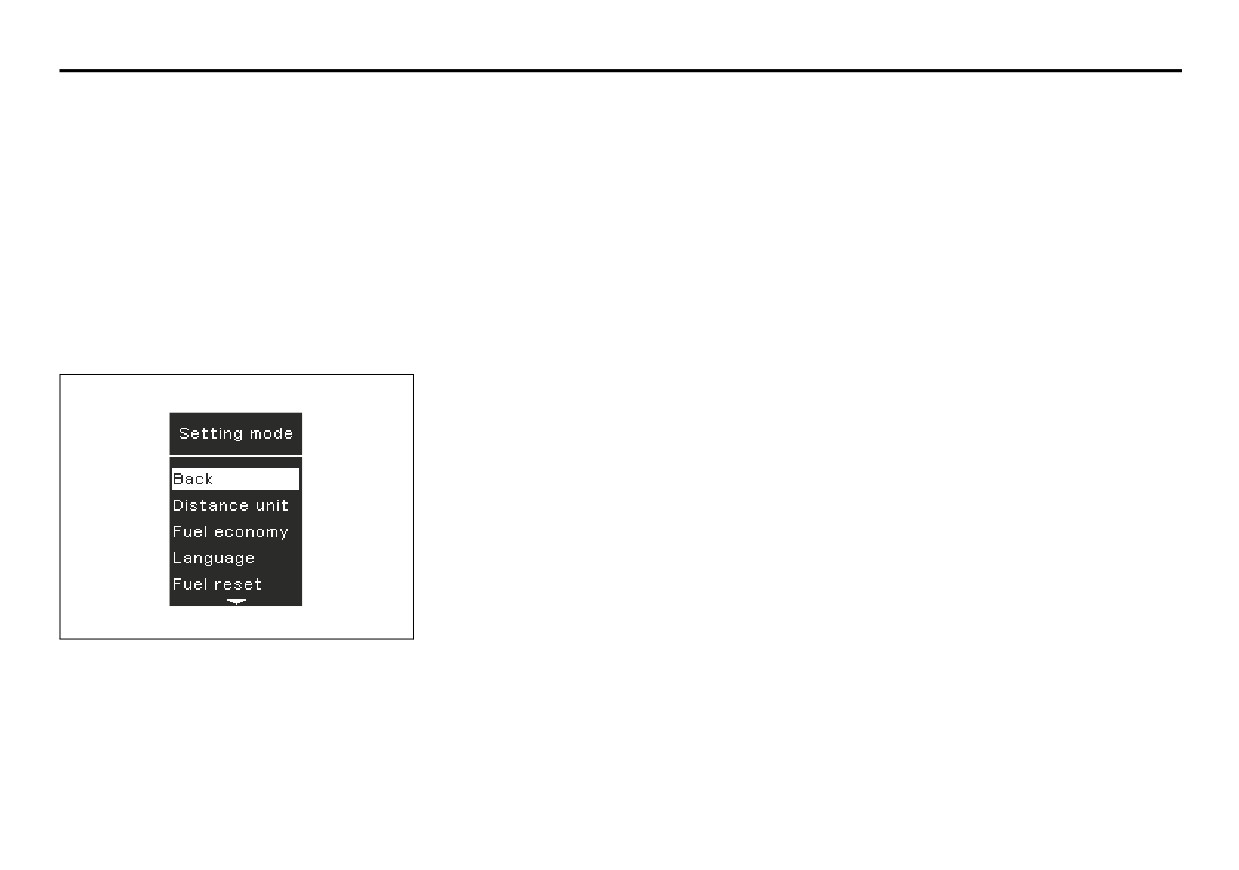

“Setting
• If you refuel when the ignition mode is
the last time you drove the vehicle, the dis-
Mode” later in this section.
changed to “ON” by pressing the engine
play shows the last value of average fuel
switch, the driving range may not indi-
consumption from previous driving when
NOTE:
cate the correct value.
the engine switch is pressed to change the
If you add only a small amount of fuel
• When you reconnect the negative (-) ter-
ignition mode to “ON”. Unless you reset
when you select “Reset after refuel”, the
minal to the battery, the value of driving
the value of average fuel consumption, the
average fuel consumption value may not
range will be shown after driving for a
display indicates the value of average fuel
be reset.
period of time.
consumption which includes average fuel
consumption during previous driving.
Driving range
Average Speed
If you selected driving range the last time
If you selected average speed the last time
you drove the vehicle, the display indicates
you drove the vehicle, the display indicates
NOTE:
“---” for a few seconds and then indicates
the last value of average speed from previ-
When you reconnect the negative (-) ter-
the current driving range when the engine
ous driving when the engine switch is
minal to the battery, the value of average
pressed to change the ignition mode to
switch is pressed to change the ignition
fuel consumption will be shown after driv-
“ON”. Unless you reset the value of aver-
mode to “ON”.
ing for a period of time.
age speed, the display indicates the value
The driving range shown in the display is
of average speed which includes average
You can select when the value of average
the approximate distance you can drive
speed during previous driving.
fuel consumption is reset from among the
until the fuel gauge indicates “E”, based on
To reset the value of average speed, pull
following three methods;
current driving conditions.
and hold the DISP switch (2) for about 2
• Reset after refuel: the value of average
When the remaining fuel in fuel tank
seconds when the display indicates an
fuel consumption will be reset automati-
reaches a low level, the display “---” will
average speed. The display shows “---”
cally by refueling.
appear.
and then indicates a new average speed
• Reset with trip A: the value of average
after driving for a short time.
If the low fuel warning light comes on, fill
fuel consumption will be reset automati-
the fuel tank immediately regardless of the
cally by resetting trip meter A.
NOTE:
value of driving range shown in the display.
• Reset instructionly: the value of average
When you reconnect the negative (-) ter-
fuel consumption will be reset by pulling
As the driving range after refueling is cal-
minal to the battery, the value of average
and holding the DISP switch (2) when
culated based on the most recent driving
speed will be shown after driving for a
the display indicates the average fuel
condition, the value is different each time
period of time.
consumption.
you refuel.
2-83

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BEFORE DRIVING
Odometer/Trip meter/Thermometer
Odometer
Thermometer
When the engine switch is pressed to
The odometer records the total distance
The thermometer
indicates
the
outside
change the ignition mode to “ON”, the dis-
the vehicle has been driven.
temperature.
play (C) shows one of the following three
indications, trip meter A, trip meter B and
CAUTION
EXAMPLE
thermometer. Also, the display (D) shows
Keep track of your odometer reading
the odometer reading.
and check the maintenance schedule
regularly for required services.
EXAMPLE
Increased wear or damage to certain
parts can result from failure to per-
(f)
form required services at the proper
mileage intervals.
Trip meter
(g)
The trip meter can be used to measure the
distance traveled on short trips or between
fuel stops.
57L21084
You can use the trip meter A and trip meter
If the outside temperature nears freezing,
(h)
B independently.
the message shown in the above illustra-
To reset the trip meter to zero, pull and
tion will appear on the display.
(i)
hold the TRIP switch (3) for about 2 sec-
onds when the display shows the trip
NOTE:
meter.
The outside temperature indication is not
57L21083
the actual outside temperature when driv-
(f)
Trip meter A
ing at low speed, or when stopped.
(g) Trip meter B
(h) Thermometer
(i)
Odometer
To switch the display indication (C), pull the
TRIP switch (3) quickly.
2-84

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BEFORE DRIVING
Setting Mode
NOTE:
Temperature units
When the ignition mode is changed to
• If you pull and hold the DISP switch (2)
You can change the units that temperature
“ON” by pressing the engine switch and
to enter the setting mode when the dis-
is displayed in.
the vehicle is stationary, you can enter the
play (B) shows average fuel consump-
setting mode of the information display by
tion or average speed, the value will be
NOTE:
pulling and holding the DISP switch (2) for
reset simultaneously. If you do not want
When you change the units that tempera-
more than 3 seconds.
to reset the value, pull the DISP switch
ture is displayed in, the air conditioning
quickly to switch the indication of the dis-
system temperature display units will be
To select the setting that you want to
play.
changed automatically.
change, pull the TRIP switch (3).
• If you press the engine switch or start to
To change the setting, pull the DISP
move the vehicle when the display is in
Foot lights
switch (2).
the setting mode, the setting mode will
The foot lights can be programmed for
To exit the setting mode, select “Back”
be canceled automatically.
interlocked operation with either lighting
and pull the DISP switch (2).
control or door operation and for no light-
Distance units
ing.
You can change the units odo/trip meter
distance is displayed in.
Default setting
If you select
“YES” and pull the DISP
NOTE:
switch (2), all settings will be reinitialized.
When you change the units odo/trip meter
distance is displayed in, the trip meter will
be reset automatically.
Fuel economy units
You can change the units that fuel con-
sumption is displayed in.
Language
57L21085
You can change the language of the infor-
NOTE:
mation display.
Current settings appear with reversed text
and background colors.
Avg. fuel economy reset
You can change when the value of average
fuel consumption is reset.
2-85

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BEFORE DRIVING
Warning and Indicator Messages
NOTE:
The display shows warning and indicator
• When the problem that causes a mes-
messages to let you know about certain
sage to appear is corrected, the mes-
vehicle problems.
sage will disappear.
A tone may also sound to alert you.
• If a message is displayed, and other
problems requiring a message occur, the
If warning and indicator messages appear
message for each of the problems will be
on the display, follow the messages.
alternately displayed about every 5 sec-
onds.
Master warning indicator
• When you pull and hold the DISP switch
(2) for about 2 seconds while a message
is displayed, the message will disappear
temporarily. If the problem that caused
the message is not corrected, the mes-
sage will appear again after 5 seconds.
78K049
When the display shows warning and indi-
cator messages, the master warning indi-
cator may also come on or blink.
2-86

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BEFORE DRIVING
Warning and indicator messages
Warning and Indicator
Master Warning
Sound
Cause and Remedy
Message
Indicator
Blinks
“Ping” (one time from interior
A door or the engine hood is not properly
(only while vehicle
buzzer; only while vehicle is
closed. Stop in a safe place and close the
is in motion)
in motion)
door or engine hood properly. (#1)
NOTE:
After disconnecting and reconnecting the
battery cable, the display image may show
that the passenger door is open even
though it is the driver’s door that is open.
The display will show the correct image
when you press the engine switch to
change the ignition mode to “ON”.
57L30073
Off
Off
This message is displayed when the “ACC”
position is selected as the power supply
position. (#1)
57L21087
(#1) This message will disappear for a while even if the problem that caused the message to appear is not corrected.
2-87

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BEFORE DRIVING
Warning and Indicator
Master Warning
Sound
Cause and Remedy
Message
Indicator
Off
Off
The brake pedal is depressed. Press the
engine switch to start the engine.
57L21088
CVT
Off
Off
The engine switch is pressed with the gear-
shift lever in a position other than “P” or “N”
and/or without depressing the brake pedal.
Try again as instructed by the message.
57L21089
2-88

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BEFORE DRIVING
Warning and Indicator
Master Warning
Sound
Cause and Remedy
Message
Indicator
Manual Transaxle
Off
Off
The engine switch is pressed without
depressing the brake and clutch pedals. Try
again as instructed by the message.
57L21120
CVT
Off
Off
The engine switch is pressed with the gear-
shift lever in a position other than “P”. Try
again as instructed by the message.
57L21090
2-89

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BEFORE DRIVING
Warning and Indicator
Master Warning
Sound
Cause and Remedy
Message
Indicator
Blinks
“Ping” (one time from interior
There is a problem with the steering lock
buzzer)
system.
Have your vehicle inspected by an autho-
rized SUZUKI dealer.
57L21091
Blinks
“Ping” (one time from interior
There is a problem with the keyless push
buzzer)
start system.
Have your vehicle inspected by an autho-
rized SUZUKI dealer.
57L21092
2-90

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BEFORE DRIVING
Warning and Indicator
Master Warning
Sound
Cause and Remedy
Message
Indicator
Blinks
Repeated beeps under cer-
The remote controller may be outside the
tain conditions
(for about
2
vehicle or its battery may have become dis-
seconds from exterior and/or
charged. Locate the remote controller or
interior buzzers)
touch the engine switch with the remote
controller.
If the message still appears, replace the
remote controller battery.
57L21093
57L21094
2-91

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BEFORE DRIVING
Warning and Indicator
Master Warning
Sound
Cause and Remedy
Message
Indicator
Blinks
Continuous beep (from inte-
The headlights and position lights are left
rior buzzer)
on. Turn them off.
57L21095
Off
Off
This message is displayed when the “ON”
position is selected as the power supply
position. (#1)
57L21096
(#1) This message will disappear for a while even if the problem that caused the message to appear is not corrected.
2-92















Content      ..     4      5      6      7     ..
