Suzuki Kizashi (2010 year). Instruction - part 5





-------------------------------------------------------------------------------------------------------------------------------------------------------------

BEFORE DRIVING
Front Side Air Bags, Rear Side Air
Bags and Side Curtain Air Bags
EXAMPLE
EXAMPLE
57L21053
57L21054
Front side air bags are located in the part
The rear side air bags are stowed in the
57L21052
of the front seatbacks closest to the doors.
covers at both door-side ends of the rear
The words “SRS AIRBAG” are indicated on
seatback. The words “SRS AIRBAG” are
the tag to identify the location of the front
molded into each of the seatback ends.
side air bags.
2-59

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BEFORE DRIVING
Side collision range
Front side air bags, rear side air bags
EXAMPLE
and side curtain air bags will not inflate
80JM146
80JM032
Side curtain air bags are located in the roof
54G027
Front side air bags, rear side air bags and
lining. The words
“SRS AIRBAG” are
side curtain air bags are designed to inflate
molded into the pillar to identify the loca-
only in severe side impact collisions.
tion of the side curtain air bags.
2-60

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BEFORE DRIVING
Front side air bags, rear side air bags
ALWAYS WEAR YOUR SEAT BELTS. Be
Front Passenger’s Seat Belt Buckle
and side curtain air bags will probably
aware that no system can prevent all pos-
Sensor
not inflate
sible injuries that may occur in an accident.
The front passenger’s seat belt buckle is
equipped with a sensor to monitor whether
WARNING
or not the front passenger’s seat belt is fas-
tened.
An air bag supplements, or adds to,
the crash protection offered by seat
WARNING
belts. The driver and all passengers
must be properly restrained by wear-
When the buckle sensor has a prob-
ing seat belts at all times, whether or
lem, the AIR BAG light on the instru-
not air bags are mounted at their
ment cluster will turn on. If this
seating position, to minimize the risk
happens, deployment of the front
of severe injury or death in the event
passenger’s air bag will not include
of a crash.
consideration of whether the front
passenger’s seat belt is fastened or
not. Have the air bag system
57L21126
WARNING
inspected by an authorized SUZUKI
Front side air bags, rear side air bags and
If the AIR BAG light in the instrument
dealer as soon as possible.
side curtain air bags are not designed to
cluster ever comes on and stays on,
inflate in frontal or rear collisions, rollovers
it means that something may be
or minor side collisions, since they would
wrong with the air bag system. If this
offer no protection in those types of acci-
ever happens, have the vehicle ser-
dents. Only the front side air bag, rear side
viced immediately, because the air
air bag and side curtain air bag on the side
bags may not offer the protection for
of the vehicle that is struck will inflate.
which they were designed.
However, in a frontal angle collision, the
right and left front side air bags, rear side
air bags and side curtain airbags may
inflate. Remember, since an air bag
deploys only one time during an accident,
seat belts are needed to restrain occu-
pants from further movements during the
accident.
Therefore, an air bag is NOT a substitute
for seat belts. To maximize your protection,
2-61

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BEFORE DRIVING
Front Passenger Sensing System
When you press the engine switch to
NOTE:
The front passenger sensing system will
change the ignition mode to
“ON”, the
If the front passenger seat is unoccupied,
turn off the front passenger’s front air bag
“PASS AIR BAG OFF” indicator comes on
the “PASS AIR BAG OFF” indicator will not
and seat belt pretensioner under certain
for several seconds to let you know the
come on but the front passenger’s front air
conditions. This system works using a sen-
system is working. When the front passen-
bag will not deploy and the seat belt pre-
sor mat that is part of the front passenger’s
ger sensing system has turned off the front
tensioner will not operate.
seat. The front passenger sensing system
passenger’s front air bag including the seat
is designed to detect whether an occupant
belt pretensioner, the
“PASS AIR BAG
If you have secured a child in the front pas-
is present in the seat and, if an occupant is
OFF” indicator will come on and stay on to
senger seat in a forward-facing child
present, to determine whether the front
remind you that the front passenger’s front
restraint system or booster seat and the
passenger’s front air bag and seat belt pre-
air bag is off.
“PASS AIR BAG OFF” indicator light is not
tensioner should be enabled or disabled
on, turn the vehicle off, remove the child
The front passenger sensing system uses
(turned off).
restraint or booster seat from the vehicle
front seat pressure measurements and
and reinstall it following the child restraint
pressure locations to determine whether to
NOTE:
or booster seat manufacturer’s directions.
activate or deactivate the front passenger’s
The front passenger’s side air bag and the
Also refer to
“Seat Belts and Child
front air bag. The front passenger sensing
side curtain air bag are not controlled by
Restraint Systems” in this section. If, after
system may or may not turn off the front air
the front passenger sensing system.
reinstalling the child restraint and restart-
bag, depending on the front passenger’s
ing the vehicle, the “PASS AIR BAG OFF”
seating posture and body build. The air
indicator is still not lit, check to make sure
bag should be turned off in the following
that the vehicle’s seatback is not pressing
situations:
the child restraint into the seat cushion. If
• There is no occupant in the front pas-
this happens, slightly recline the vehicle’s
senger seat.
PASSENGER
seatback and adjust the seat cushion if
AIRBAG OFF
• The occupant of the front passenger
possible. Also make sure the child restraint
seat lifts his or her weight off of the seat
is not trapped under the vehicle head
for a period of time.
restraint. If this happens, adjust the head
PASSENGER
• The occupant of the front passenger
restraint. If the “PASS AIR BAG OFF” indi-
AIRBAG OFF
seat is an infant or small child in a child
cator is still not on, secure the child in the
restraint system or a small child in a
child restraint or booster seat in a rear seat
booster seat.
position in the vehicle and check with your
• A smaller person, such as a child who
dealer.
has outgrown child restraints or a very
57L21055
small adolescent is seated in the front
passenger seat.
2-62

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BEFORE DRIVING
The front passenger sensing system is
designed to enable the front passenger’s
front air bag when the system senses a
properly-seated adult in the front passen-
ger’s seat. When the passenger sensing
system has allowed the air bag to be
enabled, the “PASS AIR BAG OFF” indica-
tor will remain off to remind you that the air
bag is active.
If a person of adult size is sitting in the
front passenger’s seat and the “PASS AIR
BAG OFF” indicator comes on, it could be
because that person isn’t sitting properly in
the seat. If this happens, unfasten the seat
65D607
52D258
belts, sit upright in the center of the seat
with the seatback nearly vertical and your
When seated as shown in the above illus-
WARNING
legs outstretched, and refasten the seat
tration, the front passenger sensing sys-
belt.
tem senses a properly-seated occupant
Do
not
install a rear-facing
child
and enables the air bag.
restraint in the front passenger’s
seat. If the passenger’s front air bag
When using a seat belt extender, follow the
inflates, a child in a rear-facing child
instructions in the
“Seat Belt Extender”
restraint could be seriously injured.
section.
The back of a rear-facing child
restraint would be too close to the
WARNING
inflating air bag.
Do not place any heavy objects on
the front passenger’s seat. The pres-
According to accident statistics, children
sure sensors in the sensor mat could
are safer when properly restrained in rear
be damaged and the front passenger
seating positions than in front seating posi-
sensing system may not work prop-
tions. Whenever possible, SUZUKI recom-
erly.
mends you install child restraints in the
rear seat.
2-63

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BEFORE DRIVING
How the System Works
WARNING
WARNING
In a frontal collision, the crash sensors will
detect rapid deceleration and send a signal
The front passenger sensing system
Do not spill any liquids on the seat.
to the controller. If the controller judges
may not work properly in the follow-
Liquids can damage the sensors
that the deceleration represents a severe
ing situations:
under the front seat.
frontal crash, the controller will trigger the
• The occupant is sitting near the
Have the front passenger’s sensor
inflators. The controller also judges:
dashboard or is not sitting in the
mat inspected by your dealer after
• Whether the front air bags should deploy
proper position.
a collision.
at reduced power or at full power accord-
• Objects placed under the seat are
Do not replace the front seats. If
ing to crash severity.
pushing up on the seat cushion.
you replace them, the air bags and
• Whether the air bags should deploy at
front passenger sensing system
reduced power or at full power according
may not work properly.
to crash severity.
WARNING
Do not use a seat cover. If you use
• Whether the front passenger’s front air
If the “PASS AIR BAG OFF” indicator
a seat cover, the front passenger
bag should deploy or not based on clas-
sensing system may not work prop-
on the instrument panel turns on
sification of the occupant of the front
even though there is no occupant or
erly.
passenger’s seat.
an adult occupant in the front pas-
senger’s seat, it means that some-
Since your vehicle is equipped with front
side air bags, rear side air bags and side
thing may be wrong with the
passenger sensing system. Have the
curtain air bags, crash sensors will detect
a side collision, and if the controller judges
system inspected by an authorized
SUZUKI dealer as soon as possible.
that the side collision is severe enough, it
will trigger the front side air bag, rear side
air bags and side curtain air bag inflators.
The inflators inflate the appropriate air
bags with nitrogen or argon gas. The
inflated air bags provide a cushion for your
head (front air bags and side curtain air
bags only) and upper body. The air bag
inflates and deflates so quickly that you
may not even realize that it has activated.
The air bag will neither hinder your view
nor make it harder to exit the vehicle.
2-64

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BEFORE DRIVING
Air bags must inflate quickly and forcefully
in order to reduce the chance of serious or
WARNING
fatal injuries. However, an unavoidable
The driver should not lean over the
consequence of the quick inflation is that
steering wheel. The front passen-
the air bag may irritate bare skin, such as
ger should not rest his or her body
the facial area against a front air bag. Also,
against the dashboard, or other-
upon inflation, a loud noise will occur and
wise get too close to the dash-
some powder and smoke will be released.
board. For vehicles with side air
These conditions are not harmful and do
bags, rear side air bags and side
not indicate a fire in the car. Be aware,
curtain air bags, occupants should
however, that some air bag components
not lean on or sleep against the
may be hot for a while after inflation.
door. In these situations, the out-of-
A seat belt helps keep you in the proper
position occupant would be too
position for maximum protection when an
close to an inflating air bag, and
65D610
air bag inflates. Adjust your seat as far
may suffer severe injury.
back as possible while still maintaining
Do not attach any objects to, or
control of the vehicle. Sit fully back in your
place any objects over, the steering
seat; sit up straight; do not lean over the
wheel or dashboard. Do not place
steering wheel or dashboard. Front occu-
any objects between the air bag
pants should not lean on or sleep against
and the driver or front passenger.
the door. Please refer to the “Seat Adjust-
These objects may interfere with air
ment” section and the
“Seat Belts and
bag operation or may be propelled
Child Restraint Systems” section in the
by the air bag in the event of a
“BEFORE DRIVING” section for details on
crash. Either of these conditions
proper seat and seat belt adjustments.
may cause severe injury.
For vehicles with front side air
bags, do not place seat covers on
the front seats, because seat cov-
ers could restrict the air bag’s infla-
54G582
tion. Also, do not place any cup
holders or other objects on the
door, as these objects could be
propelled by the air bag in the event
of a crash. Either of these condi-
tions may cause severe injury.
2-65

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BEFORE DRIVING
Note that even though your vehicle may be
Servicing the Air Bag System
To prevent damage or unintended inflation
moderately damaged in a collision, the col-
If the air bags inflate, have the air bags and
of the air bag system, be sure the battery
lision may not have been severe enough to
related components replaced by an autho-
is disconnected and the engine switch has
trigger the front, side, rear side, or side
rized SUZUKI dealer as soon as possible.
been in the “LOCK” (OFF) mode for at
curtain air bags to inflate. If your car sus-
least
90 seconds before performing any
If your vehicle ever gets in deep water and
tains ANY front-end or side damage, have
electrical service work on your SUZUKI.
the driver’s floor is submerged, the air bag
the air bag system inspected by an autho-
Do not touch air bag system components
controller could be damaged. If this hap-
rized SUZUKI dealer to ensure it is in
or wires. The wires are wrapped with yel-
pens, have the air bag system inspected
proper working order.
low tape or yellow tubing, and the couplers
by the SUZUKI dealer as soon as possible.
are yellow for easy identification.
Your vehicle is equipped with a diagnostic
Special procedures are required for servic-
module which records information about
Scrapping a car that has an undeployed air
ing or replacing an air bag. For that reason,
the air bag system if the air bags deploy in
bag can be hazardous. Ask your dealer,
only an authorized SUZUKI dealer should
a crash. The module records information
body repair shop or scrap yard for help
be allowed to service or replace your air
about overall system status, which sensors
with disposal.
bags. Please remind anyone who services
activated the deployment, and whether the
your SUZUKI that it has air bags.
front seat belts were in use.
Service on or around air bag components
or wiring must be performed only by an
authorized SUZUKI dealer. Improper ser-
vice could result in unintended air bag
deployment or could render the air bags
inoperative. Either of these two conditions
may result in severe injury.
2-66

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BEFORE DRIVING
If it is necessary to modify the advanced
front air bag system to accommodate a
person with disabilities, owners in the con-
tinental United States can call American
Suzuki toll-free at 1-800-934-0934, or write
to:
American Suzuki Motor Corporation
Automotive Customer Relations
3251 East Imperial Highway
Brea, CA 92821-6795
If you purchased your SUZUKI in Canada
please contact the Suzuki Canada Cus-
tomer Relations Department by telephone
at
1-905-889-2677 extension 2254 or in
writing at:
Suzuki Canada Inc.
Customer Relations
100 East Beaver Creek Road
Richmond Hill, On
L4B 1J6
2-67

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BEFORE DRIVING
Instrument Cluster
1. Speedometer
2. Tachometer
3. Fuel gauge
4. Temperature gauge
5. Information display
6. Brightness control knob
EXAMPLE
(2)
(1)
(4)
(5)
(6)
(3)
57L21056
2-68

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BEFORE DRIVING
Warning and Indicator Lights
should be checked at least once a month
when cold and set to the recommended
WARNING
Low Tire Pressure Warning Light
inflation pressure as specified in the vehi-
The load rating of your tires is
(if equipped)
cle placard and owner’s instruction.
reduced at lower inflation pressures.
The low tire pressure warning light is also
If your tires become even moderately
used to inform you of a TPMS malfunction.
under-inflated, the vehicle load may
When the system detects a malfunction,
exceed the load rating of the tires,
this light will flash for approximately one
which can lead to tire failure. The low
minute and then remain continuously illu-
tire pressure warning light will not
minated. This sequence will be repeated
alert you of this condition. The warn-
after the ignition mode is changed to “ON”
ing light will only come on when one
52D305
by pressing the engine switch as long as
or more of your tires become signifi-
As an added safety feature, your vehicle
the malfunction exists.
cantly under-inflated. Check and
has been equipped with a tire pressure
adjust your tire inflation pressure at
monitoring system (TPMS) that uses a low
NOTE:
least once a month. Refer to “Tires”
tire pressure warning light to inform you
The low tire pressure warning light may not
in the
“INSPECTION AND MAINTE-
when one or more of your tires is signifi-
come on immediately if you have a sudden
NANCE” section.
cantly under-inflated.
loss of air pressure.
When you press the engine switch to
WARNING
change the ignition mode to “ON”, this light
comes on briefly so you can check that the
If the low tire pressure warning light
light is working.
does not light for
2 seconds after
pressing the engine switch to change
When the low tire pressure warning light is
the ignition mode to “ON”, or comes
lit, one or more of your tires is significantly
on and blinks while driving there may
under-inflated. You should stop and check
be a problem with the tire pressure
your tires as soon as possible, and inflate
monitoring system. Have your vehi-
them to the proper pressure as indicated
cle inspected by an authorized
on the vehicle’s tire information placard.
SUZUKI dealer. Even if the light turns
Driving on a significantly under-inflated tire
off after blinking, indicating that mon-
causes the tire to overheat and can lead to
itoring system has recovered, make
tire failure. Under-inflation also reduces
sure to have an authorized SUZUKI
fuel efficiency and tire tread life, and may
dealer check the system.
affect the vehicle’s handling and stopping
ability. Each tire, including the spare,
2-69

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BEFORE DRIVING
Refer to “Tire Pressure Monitoring System”
Brake System Warning Light
WARNING
in the “OPERATING YOUR VEHICLE” sec-
tion for additional details on the tire pres-
If the low tire pressure warning light
sure monitoring system. Refer to “Tires” in
comes on and stays on, reduce your
the “INSPECTION AND MAINTENANCE”
speed and avoid abrupt steering and
section for information
on
maintaining
braking. Stop in a safe place as soon
proper tire pressure.
as possible and check your tires.
• If you have a flat tire, replace it with
65D477
the spare tire. Refer to
“Jacking
Instructions” in the “EMERGENCY
This light comes on briefly when you press
SERVICE” section. Refer to
the engine switch to change the ignition
“Replacing Tires and/or Wheels”
mode to “ON”. The light also comes on
for instructions on how to restore
under the following conditions: 1) when the
normal operation of the tire pres-
parking brake is engaged and 2) when the
sure monitoring system after you
fluid in the brake fluid reservoir falls below
have had a flat tire.
the specified level. The light should go out
• If one or more of your tires is
after fully releasing the parking brake, if the
under-inflated, adjust the inflation
fluid level in the brake fluid reservoir is
pressure in all of your tires to the
adequate.
recommended inflation pressure as
If this light and the ABS warning light stay
soon as possible.
on, or come on simultaneously when driv-
Be aware that driving on a signifi-
ing, then there may be something wrong
cantly under-inflated tire can cause
with both the rear brake proportioning
the tire to overheat and can lead to
valve function and anti-lock function of the
tire failure, and may affect steering
ABS.
control and brake effectiveness. This
If the brake system warning light comes on
could lead to an accident, resulting in
while you are driving the vehicle, it may
severe injury or death.
mean that there is something wrong with
the vehicle’s brake system. If this happens,
you should:
2-70

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BEFORE DRIVING
1) Pull off the road and stop carefully.
NOTE:
For details of the ABS, refer to “Anti-Lock
Because the disc brake system is self-
Brake System (ABS)” in the “OPERATING
WARNING
adjusting, the fluid level will drop as the
YOUR VEHICLE” section.
brake pads become worn.
Remember that stopping distance
Replenishing the brake fluid reservoir is
ESP® Warning Light
may be longer, you may have to push
considered normal periodic maintenance.
harder on the pedal, and the pedal
may go down farther than normal.
Anti-Lock Brake System (ABS)
Warning Light
2) Test the brakes by carefully starting and
stopping on the shoulder of the road.
3) If you determine that it is safe, drive
cautiously at low speed to the nearest
52KM133
dealer for repairs,
or
ESP® is a registered trademark of Daimler
4) Have the vehicle towed to the nearest
AG.
dealer for repairs.
65D529
WARNING
When you press the engine switch to
This light blinks 5 times per second when
change the ignition mode to “ON”, the light
one of the ESP® systems other than ABS
If any of the following conditions
comes on briefly so you can check that the
is activated. If this light blinks, drive care-
occur, you should immediately ask
light is working. If the light stays on, or
fully.
an SUZUKI dealer to inspect the
comes on when driving, there may be
brake system.
When you press the engine switch to
something wrong with the ABS.
• If the brake system warning light
change the ignition mode to “ON”, the light
does not go out after the parking
If the ABS light and the brake system
comes on briefly so you can check that the
brake has been fully released.
warning light stay on, or come on simulta-
light is working. If the light stays on, or
• If the brake system warning light
neously when driving, then there may be
comes on when driving and remains on,
does not come on when you press
something wrong with both the rear brake
there may be something wrong with the
the engine switch to change the
proportioning valve function and anti-lock
ESP® systems
(other than ABS). You
ignition mode to “ON”.
function of the ABS.
should have the system inspected by an
• If the brake system warning light
authorized SUZUKI dealer.
If one of these happens, have the system
comes on at any time during vehi-
inspected by an authorized SUZUKI
cle operation.
dealer. If the ABS becomes inoperative,
the brake system will function as an ordi-
nary brake system that has no ABS.
2-71

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BEFORE DRIVING
NOTE:
“ESP® OFF” Indicator Light
Oil Pressure Light
When you disconnect and re-connect the
battery, ESP® system functions other than
ABS will be deactivated. For details on how
to reactive the ESP® systems, refer to
“ESP® Warning Light” in the “OPERATING
YOUR VEHICLE” section.
For details of the ESP® systems, refer to
“Electronic Stability Program
(ESP®)” in
57L30045
50G051
the “OPERATING YOUR VEHICLE” sec-
When you press the engine switch to
This light comes on when you press the
tion.
change the ignition mode to “ON”, this light
engine switch to change the ignition mode
comes on briefly so you can check that the
to “ON”, and goes out when the engine is
WARNING
light is working.
started. The light will come on and remain
The ESP® systems cannot prevent
on if there is insufficient oil pressure. If the
When the “ESP® OFF” switch is pushed to
accidents. Always drive carefully.
light comes on when driving, pull off the
turn off the ESP® systems
(other than
road as soon as you can and stop the
ABS), the “ESP® OFF” light comes on and
engine. Check the oil level and add oil if
stays on.
necessary. If there is enough oil, the lubri-
For details of the ESP® systems, refer to
cation system should be inspected by an
“Electronic Stability Program
(ESP®)” in
authorized SUZUKI dealer before you drive
the “OPERATING YOUR VEHICLE” sec-
the vehicle again.
tion.
CAUTION
• If you operate the engine with this
light on, severe engine damage can
result.
• Do not rely on the Oil Pressure
Light to indicate the need to add
oil. Be sure to periodically check
the engine oil level.
2-72

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BEFORE DRIVING
Charging Light
Driver’s Seat Belt Reminder Light
AIR BAG Light
50G052
60G049
63J030
This light comes on when you press the
If the driver’s seat belt is unbuckled when
This light monitors inflators, crash sensors,
engine switch to change the ignition mode
you press the engine switch to change the
seat belt pretensioners, the front passen-
to “ON”, and goes out when the engine is
ignition mode to “ON”, this light will come
ger sensing system, and corresponding
started. The light will come on and remain
on and then blink. When the light comes
electrical circuits.
on if there is something wrong with the bat-
on, a buzzer will also sound intermittently
This light blinks or comes on for several
tery charging system. If the light comes on
for about
6 seconds. The reminder will
seconds when you press the engine switch
when the engine is running, the charging
repeat several times under certain condi-
to change the ignition mode to “ON”, so
system should be inspected immediately
tions until the driver’s seat belt is buckled.
you can check if the light is working. The
by an authorized SUZUKI dealer.
After repeating several times, the reminder
light will come on and stay on if there is a
will be canceled even if the driver’s seat
problem in the air bag system or the seat
belt remains unbuckled.
belt pretensioner system.
For details about the seat belt reminder,
WARNING
refer to
“Seat Belts and Child Restraint
Systems” in this section.
If the AIR BAG light does not blink or
come on when you press the engine
WARNING
switch to change the ignition mode to
“ON”, or stays on or comes on when
It is absolutely essential that the
driving, the air bag system or the seat
driver and passengers wear their seat
belt pretensioner system may not
belts at all times. Persons who are
work properly. Have both systems
not wearing seat belts have a much
inspected by an authorized SUZUKI
greater risk of injury if an accident
dealer.
occurs. Make a regular habit of buck-
ling your seat belt before starting the
engine.
2-73

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BEFORE DRIVING
Malfunction Indicator Light
Low Fuel Warning Light
CAUTION
Continuing to drive the vehicle when
the malfunction indicator light is on
or blinking can cause permanent
damage to the vehicle’s emission
control system, and can affect fuel
economy and driveability.
65D530
54G343
Your vehicle has a computer-controlled
NOTE:
If this light comes on, fill the fuel tank
emission control system. A malfunction
If the fuel filler cap is not installed fully, the
immediately.
indicator light is provided on the instrument
electrical system gets wet (such as by driv-
When this light comes on, a ding sounds
panel to indicate when it is necessary to
ing through a deep puddle of water) or the
once to remind you to fill the fuel.
have the emission control system serviced.
fuel tank gets nearly empty, the malfunc-
If you do not fill the fuel, a ding sounds
The malfunction indicator light comes on
tion indicator light may come on. If so, the
every time you press the engine switch to
when you press the engine switch to
light will go off after driving a few times
change the ignition mode to “ON”.
change the ignition mode to “ON” to let you
after the fuel filler cap is installed fully, the
know the light is working and goes out
electrical system dries out or the fuel tank
NOTE:
when the engine is started.
is filled.
The activation point of this light varies
depending on road conditions (for exam-
If the malfunction indicator light comes on
ple, slope or curve) and driving conditions
or blinks when the engine is running, ser-
because of fuel moving in the tank.
vice to the emission control system is nec-
essary. Bring the vehicle to an authorized
SUZUKI dealer to have the emission con-
trol system serviced right away and avoid
hard acceleration until the service is per-
formed.
Also, if the light comes on, there may be
something wrong with the continuously
variable transaxle system. Have the sys-
tem inspected by an authorized SUZUKI
dealer.
2-74

-------------------------------------------------------------------------------------------------------------------------------------------------------------

BEFORE DRIVING

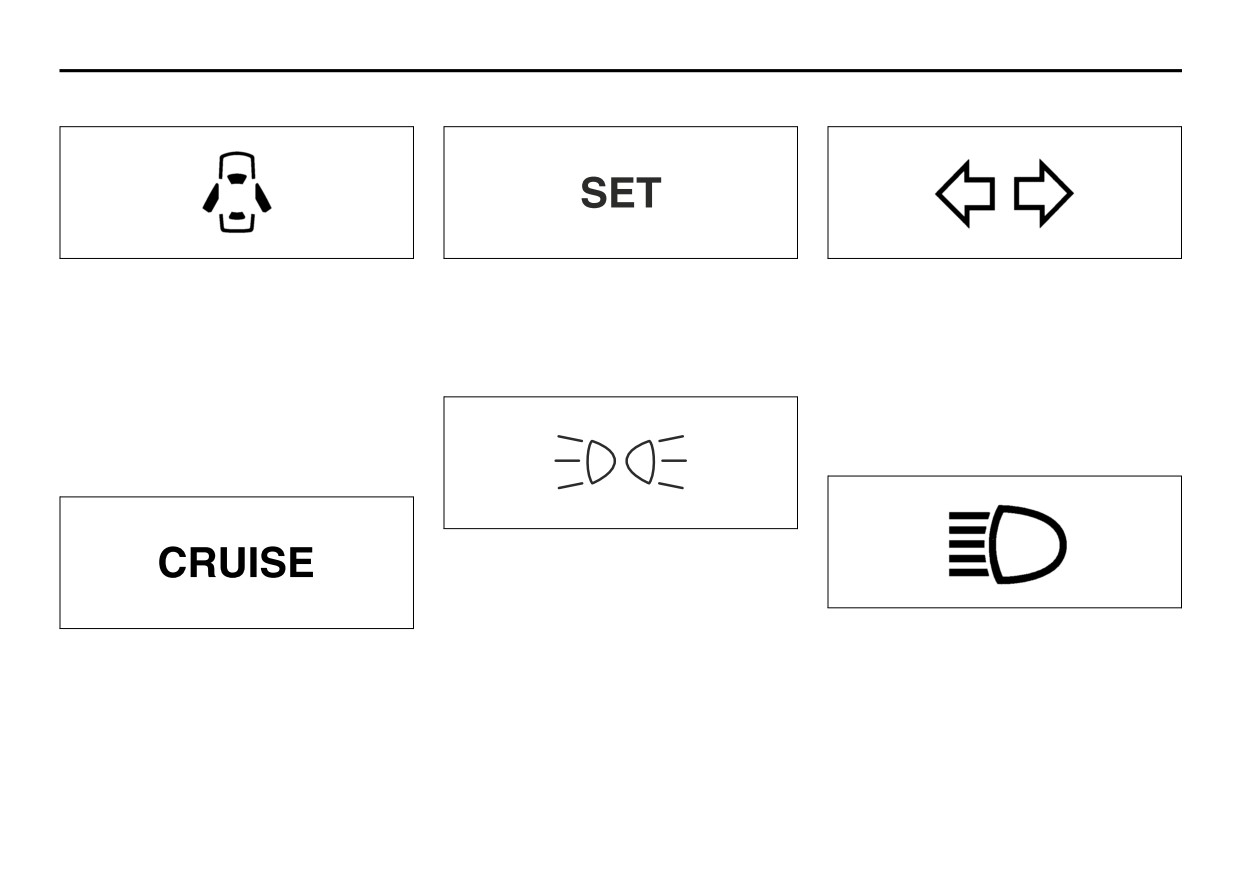

Open Door Warning Light
“SET” Indicator Light (if equipped)
Turn Signal Indicators
54G391
65D474
50G055
This light remains on until all doors and the
When the vehicle’s speed is controlled by
When you turn on the left or right turn sig-
engine hood are completely closed.
the cruise control system, this light will be
nals, the corresponding green arrow on the
If any of the doors or the engine hood
on.
instrument panel will flash along with the
becomes open while the vehicle is moving,
respective turn signal lights.
a warning sound will remind you to close
Illumination Indicator Light
When you turn on the hazard warning
all the doors and the engine hood com-
switch, both arrows will flash along with all
pletely.
of the turn signal lights.
“CRUISE” Indicator Light
High Beam Indicator Light
(if equipped)
64J045
This indicator light comes on while the
position lights, tail light and/or the head-
lights are on.
50G056
52D113
This indicator comes on when headlight
When the cruise control system is on, this
high beams are turned on.
light will be on.
2-75















Content      ..     3      4      5      6     ..
