INSTRUMENT PANEL
Tachometer
Safety Belt Reminder Light
Safety Belt Reminder Tone
When the key is turned to ON, a chime will
If your vehicle has this feature, a tone
come on for several seconds to remind
(instead of a chime) will sound for several
people to fasten their safety belts, unless
seconds when the ignition is ON to remind
the driver’s safety belt is already buckled.
people to fasten their safety belts. The tone
will not sound if the driver’s safety belt is
fastened.
WARNING
It is absolutely essential that the
driver and passengers wear their seat
belts at all times. Persons who are
not wearing seat belts have a much
The safety belt light will also come on and
greater risk of injury if an accident
stay on until the driver’s safety belt is buck-
occurs. Make a regular habit of buck-
led.
ling your seat belt before putting the
The tachometer shows your engine speed
If the driver’s belt is already buckled, nei-
key in the ignition.
in revolutions per minute (rpm).
ther the chime nor the light will come on.
CAUTION
Do not operate the engine with the
tachometer in the red area, or engine
damage may occur. The damage
would not be covered by your war-
ranty.
3-19

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT PANEL
Air Bag Readiness Light
Charging System Light
There is an air bag readiness light on the
WARNING
instrument panel. The air bag readiness
If the air bag readiness light stays on
system checks the air bag’s electrical sys-
after you start your vehicle, it means
tem for malfunctions. The light tells you if
the air bag system may not be work-
there is an electrical problem. The system
ing properly. The air bags in your
check includes the air bag sensor, the air
vehicle may not inflate in a crash, or
bag modules, the wiring and the crash
they could even inflate without a
sensing and diagnostic module. For more
crash. To help avoid injury to yourself
information on the air bag system, see “Air
The charging system light will come on
or others, have your vehicle serviced
Bag Systems” in section 1.
when you turn on the ignition, and the
right away if the air bag readiness
engine is not running, as a check to show
light stays on after you start your
you it is working.
vehicle.
When the engine is running, the light
The air bag readiness light should be illu-
should go out.
minated for a few seconds when you turn
the ignition key to ON. If the light doesn’t
If it stays on, or comes on while you are
S4U3042A
come on then, have it fixed so it will be
driving, you may have a problem with the
ready to warn you if there is a problem.
electrical charging system. It could indicate
This light will come on when you start your
that you have a loose generator drive belt,
vehicle, and it will flash for a few seconds.
or another electrical problem. Have it
Then the light should go out. This means
checked right away. Driving while this light
the system is ready.
is on could drain your battery.
If the air bag readiness light stays on after
If you must drive a short distance with the
you start the vehicle or comes on or
light on, be certain to turn off all your
flashes when you are driving, the air bag
accessories, such as the radio and air con-
system may not work properly. Have your
ditioner.
vehicle serviced right away.
3-20

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT PANEL
Brake System Warning Light
Anti-Lock Brake System Warning
Your vehicle’s hydraulic brake system is
WARNING
Light
divided into two parts. If one part isn’t
If any of the following conditions
working, the other part can still work and
occur, you should immediately ask
you will be able to stop the vehicle. For
your SUZUKI dealer to inspect the
good braking, though, you need both parts
brake system.
working well.
• If the brake system warning light
If the warning light comes on, there is a
does not go out after the engine
brake problem. Have your brake system
has been started and the parking
inspected right away.
brake has been fully released.
• If the brake system warning light
If your vehicle has an anti-lock brake sys-
tem, the ABS warning light comes on
does not come on when the igni-
tion switch is turned to the “ON”
briefly when you turn the ignition ON. This
indicates that the system is performing a
position.
• If the brake system warning light
self-check and the indicator bulb is operat-
ing properly. The light should go out after
comes on at any time during vehi-
cle operation.
several seconds.
Contact your SUZUKI dealer for repairs if
This light should come on briefly when you
If the light comes on while you are driving,
the ABS warning light does any of the fol-
turn the ignition key to ON. If it doesn’t
pull off the road and stop carefully. You
lowing:
come on then, have it fixed so it will be
may notice that the pedal is harder to
• Does not come on when the ignition is
ready to warn you if there’s a problem.
push. Or, the pedal may go closer to the
turned ON.
floor. It may take longer to stop. If the light
When the ignition is on, the brake system
• Does not go out after several seconds.
is still on, have the vehicle towed for ser-
warning light will also come on when you
• Comes on while driving.
vice. See “Towing Your Vehicle” in section
set your parking brake. The light will stay
4.
on if your parking brake doesn’t release
If the ABS warning light comes on while
fully. If the lights stays on after your parking
driving, your vehicle may have an ABS
WARNING
brake is fully released, it means you have a
malfunction. Although your vehicle will
brake problem.
If the brake system warning light
operate normally without ABS, have your
comes on, remember that stopping
SUZUKI dealer check the system and
distance may be longer, you may
make any necessary repairs as soon as
have to push harder on the pedal,
possible.
and the pedal may go down farther
than normal.
3-21

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT PANEL

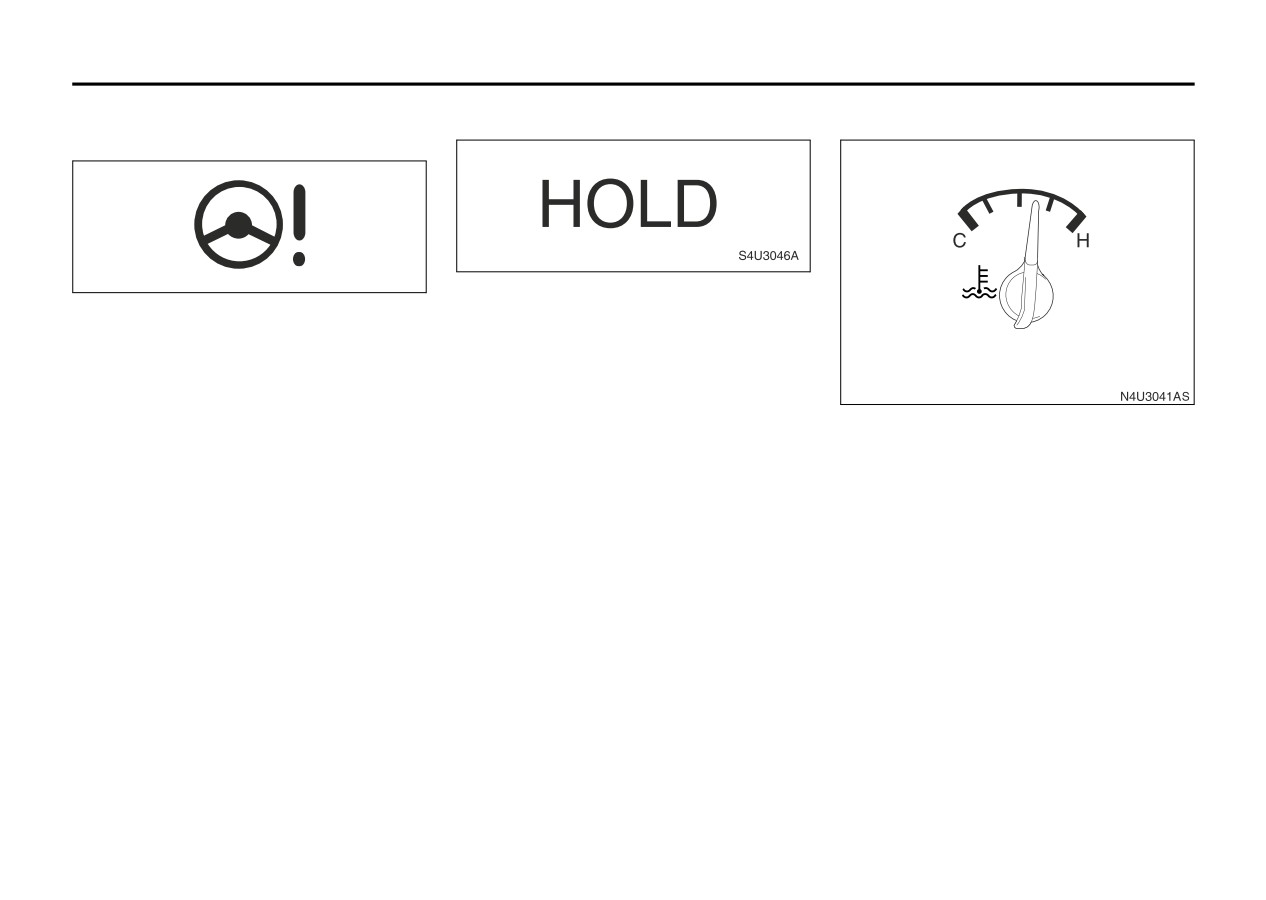

Speed Sensitive Power Steering
Hold Mode Light
Engine Coolant Temperature Gauge
(SSPS) Warning Light
N5U3003A
If your vehicle has this feature, this light will
If your vehicle has Speed Sensitive Power
come on when the Hold mode is active.
Steering
(SSPS), this warning light will
If the HOLD mode light flashes, have your
come on briefly when you turn the ignition
vehicle checked.
to ON as a check to show you the bulb is
See “Hold Mode” under “Automatic Trans-
working.
mission Operation” in section 2 for addi-
Then it should go out after a few seconds.
tional information on this feature.
Your vehicle is equipped with an engine
coolant temperature gauge. With the igni-
If the warning light does not come on, have
tion in the ON position, this gauge shows
it fixed so it will be able to warn you if there
the engine coolant temperature.
is a problem.
If the gauge pointer moves into the red
If the warning light stays on, or comes on
area, your engine is too hot! It means that
while you are driving, the SSPS system
your engine coolant has overheated.
may not be working. If this happens, see
your SUZUKI dealer for service.
If you have been operating your vehicle
under normal driving conditions, you
should pull off the road, stop your vehicle
and turn off the engine as soon as possi-
ble.
See “Engine Overheating” in section 5.
3-22

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT PANEL
Malfunction Indicator Lamp
tem on your vehicle. Diagnosis and ser-
CAUTION
vice may be required.
Check Engine Light
If you keep driving your vehicle with
Light On Steady
this light on, your emission controls
An emission control system malfunction
may not work as well, your fuel econ-
has been detected on your vehicle. Diag-
omy may not be as good, and your
nosis and service may be required.
engine may not run as smoothly. This
could lead to costly repairs that may
If the Light Is Flashing
S5U3008AS
not be covered by your warranty.
The following may prevent more serious
damage to your vehicle:
Your vehicle is equipped with a computer
CAUTION
• Reducing vehicle speed.
which monitors operation of the fuel, igni-
• Avoiding hard accelerations.
tion and emission control systems.
Modifications made to the engine,
• Avoiding steep uphill grades.
transmission, exhaust or intake or
This system is called OBD II (On-Board
fuel system of your vehicle can affect
If the light stops flashing and remains on
Diagnostics-Second Generation) and is
your vehicle’s emission controls and
steady, see “If the Light Is On Steady” fol-
intended to assure that emissions are at
may cause this light to come on.
lowing.
acceptable levels for the life of the vehicle,
Modifications to these systems could
helping to produce a cleaner environment.
If the light continues to flash, when it is
lead to costly repairs not covered by
The Check Engine Light comes on to indi-
your warranty. This may also result in
safe to do so, stop the vehicle. Find a safe
cate that there is a problem and service is
place to park your vehicle. Turn the key off,
a failure to pass a required Emission
required. Malfunctions often will be indi-
Inspection/Maintenance test.
wait at least 10 seconds and restart the
cated by the system before any problem is
engine. If the light remains on steady, see
apparent. This may prevent more serious
“If the Light Is On Steady” following. If the
When the ignition is on, this light should
damage to your vehicle. This system is
light is still flashing, see your SUZUKI
come on and should go out after a few sec-
also designed to assist your service techni-
dealer for service as soon as possible. Fol-
onds as a check to show you it is working.
cian in correctly diagnosing any malfunc-
low the driving guidelines described above.
If the light doesn’t come on, have it
tion.
repaired.
This light will also come on during a mal-
function in one of two ways:
Light Flashing
A misfire condition has been detected. A
misfire increases vehicle emissions and
may damage the emission control sys-
3-23

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT PANEL
If the Light Is On Steady
If you experience one or more of these
tems during normal driving. This may take
You also may be able to correct the emis-
conditions, change the fuel brand you use.
several days of routine driving. If you have
sion system malfunction by considering the
It will require at least one full tank of the
done this and your vehicle still does not
following:
proper fuel to turn the light off.
pass the inspection for lack of OBD system
readiness, your SUZUKI dealer can pre-
Did you recently put fuel into your vehicle?
If none of the above steps have made the
pare the vehicle for inspection.
light turn off, your SUZUKI dealer can
If so, reinstall the fuel cap, making sure to
check the vehicle. Your SUZUKI dealer has
fully install the cap. See “Filling Your Tank”
Oil Pressure Light
the proper test equipment and diagnostic
in section 5. The diagnostic system can
tools to fix any mechanical or electrical
determine if the fuel cap has been left off
problems that may have developed.
or is improperly installed. A loose or miss-
ing fuel cap will allow fuel to evaporate into
Emissions Inspection and Maintenance
the atmosphere. A few driving trips with the
Programs
cap properly installed should turn the light
Some state/provincial and local govern-
off.
ments have or may begin programs to
Did you just drive through a deep puddle of
inspect the emission control equipment on
If you have a low engine oil pressure prob-
water?
your vehicle. Failure to pass this inspection
could prevent you from getting a vehicle
lem, this light will stay on after you start
If so, your electrical system may be wet.
your engine, or come on when you are
registration.
The condition will usually be corrected
driving. This indicates that your engine is
when the electrical system dries out. A few
Here are some things you need to know to
not receiving enough oil.
driving trips should turn the light off.
help your vehicle pass an inspection:
The engine could be low on oil, or could
Have you recently changed brands of fuel?
Your vehicle will not pass this inspection if
have some other oil problem. Have it fixed
the Check Engine light is on or is not work-
immediately.
If so, be sure to fuel your vehicle with qual-
ing properly.
ity fuel. See “Gasoline Octane” in section
The oil light could also come on in three
5. Poor fuel quality will cause your engine
Your vehicle will not pass this inspection if
other situations:
not to run as efficiently as designed. You
the OBD
(on-board diagnostic) system
• When the ignition is on but the engine is
may notice stalling after start-up, stalling
determines that critical emission control
when you put the vehicle into gear, misfir-
systems have not been completely diag-
not running, the light will come on as a
check to show you it is working. The light
ing, hesitation on acceleration or stumbling
nosed by the system. The vehicle would be
on acceleration. (These conditions may go
considered not ready for inspection. This
will go out after you start the engine. If it
doesn’t come on with the ignition on, you
away once the engine is warmed up.) This
can happen if you have recently replaced
will be detected by the system and cause
your battery or if your battery has run
may have a problem with the fuse or
bulb. Have it fixed right away.
the light to turn on.
down. The diagnostic system is designed
to evaluate critical emission control sys-
3-24

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT PANEL
• If you’re idling at a stop sign, the light
Fog Lamp Light
Highbeam On Light
may blink on and then off.
• If you make a hard stop, the light may
come on for a moment. This is normal.
WARNING
Don’t keep driving if the oil pressure
is low. If you do, your engine can
become so hot that it catches fire.
If your vehicle has this feature, the fog
This light comes on whenever the high-
You or others could be burned. Check
lamps indicator light will come on when the
beam headlamps are on.
your oil as soon as possible and have
fog lamps are in use.
your vehicle serviced.
See “Headlamp High/Low-Beam Changer”
The light will go out when the fog lamps
under “Turn Signal/Multifunction Lever” in
are turned off.
this section for additional information.
CAUTION
See “Fog Lamps” under Exterior Lamps in
Operating your engine with the low
Fuel Gauge
this section for more information.
oil pressure light on can result in
severe engine damage which is not
Cruise Control Light
covered by your warranty.
N5U3004A
If your vehicle has this feature, this light will
come on briefly when the ignition is turned
on.
The CRUISE light comes on whenever the
Your fuel gauge tells you approximately
cruise control is set. See “Cruise Control”
how much fuel you have left, when the igni-
in this section. The light will turn off when
tion is on. When the indicator nears empty,
the cruise control is turned off.
the low fuel warning light will come on. You
3-25

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT PANEL
still have a little fuel left, but you should get
Low Fuel Warning Light
Daytime Running Lamps Indicator
more soon. See “Low Fuel Warning Light”
Light
in this section for more information.
Here are four things that some owners ask
about. None of these show a problem with
your fuel gauge:
• At the service station, the gas pump
shuts off before the gauge reads full.
S5U3002A
• It takes a little more or less fuel to fill up
This light will come on when the fuel tank is
than the gauge indicated. For example,
low on fuel.
This light will come on when the Daytime
the gauge may have indicated the tank
Running Lamps (DRL) are on.
was half full, but it actually took a little
To turn it off, add fuel to the fuel tank. See
“Filling Your Tank” in section 5.
See
“Daytime Running Lamps
(DRL)”
more or less than half the tank’s capacity
to fill the tank.
under “Exterior Lamps” in this section for
• The indicator moves a little when you
Door Ajar Light
further information on the DRL system.
turn a corner or speed up.
• The gauge goes back to empty when
Passenger Air Bag Off Indicator
you turn off the ignition.
The passenger air bag off indicator
appears in the clock display located in the
For your fuel tank capacity, see “Capacities
center of the instrument panel.
and Specifications” in section 5.
S4U2029A
PASSENGER
This light will stay on until all doors are
AIR BAG OFF
closed and completely latched.
If the key is in the ignition while the driver’s
N5U1002AS
door is open, you will also hear a warning
chime.
When the ignition key is turned to ON or
Make sure that all doors are completely
START, the passenger air bag off indicator
closed and this light is out before driving.
will light for several seconds as a system
check. Then, after several more seconds, if
the words “PASSENGER AIR BAG OFF”
remain lit, it means that the passenger
sensing system has turned off the right
3-26

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT PANEL
front passenger’s frontal air bag and side
Tire Pressure Monitoring System
air bag. See “Passenger Sensing System”
Warning Light
WARNING
in Section
1 for more on this, including
(Continued)
important safety information.
As an added safety feature, your
vehicle has been equipped with a tire
WARNING
pressure monitoring system (TPMS)
If the air bag readiness light in the
that illuminates a low tire pressure
instrument panel cluster ever comes
telltale when one or more of your
on and stays on, it means that some-
L5U3012A
tires is significantly under-inflated.
thing may be wrong with the air bag
Accordingly, when the low tire pres-
system. If this ever happens, have the
The light comes on when the tire pressure
sure telltale illuminates, you should
monitoring system detects that one or
vehicle serviced promptly, because
stop and check your tires as soon as
an adult-size person sitting in the
more of your tires is significantly under-
possible and inflate them to the
inflated. This light will also come on for a
right front passenger’s seat may not
proper pressure. Driving on a signifi-
have the protection of the frontal air
few seconds and then go off when you turn
cantly under-inflated tire causes the
the ignition to ON. This indicates that the
bag and side air bag. See “Air Bag
tire to overheat and can lead to tire
Readiness Light” in this section.
tire pressure monitoring system is func-
failure.
tioning properly.
Under-inflation also reduces fuel effi-
ciency and tire tread life and may
WARNING
affect the vehicle’s handling and
stopping ability.
Each tire, including the spare (if pro-
Please note that the TPMS is not a
vided), should be checked monthly
substitute for proper tire mainte-
when cold and inflated to the inflation
nance, and it is the driver’s responsi-
pressure recommended by the vehi-
bility
to maintain correct tire
cle manufacturer on the vehicle plac-
pressure, even if under-inflation has
ard or tire inflation pressure label and
not reached the level to trigger illumi-
this instruction. (If your vehicle has tires
nation of the TPMS low tire pressure
of a different size than the size indi-
telltale.
cated on the vehicle label or tire infla-
(Continued)
tion pressure label, you should
determine the proper tire inflation
pressure for those tires.)
(Continued)
3-27

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT PANEL
WARNING
WARNING
WARNING
(Continued)
When the malfunction indicator is
If the tire pressure warning light does
If the tire pressure monitoring system
illuminated, the system may not be
not come on when the ignition is
warning light does not illuminate
able to detect or signal low tire pres-
turned to the
“ON” position, or
when the ignition key is turned to the
sure as intended. TPMS malfunctions
comes on and blinks for approxi-
“ON” position, have the system
may occur for a variety of reasons,
mately one minute and then illumi-
inspected by an authorized service
including the installation of replace-
nate continuously, while driving there
facility. If the warning light flashes
ment or alternate tires or wheels on
may be a problem with the tire pres-
while driving, check to see whether
the vehicle that prevent the TPMS
sure monitoring system. Have your
the warning light goes off after a few
from functioning properly. Always
vehicle inspected by an authorized
minutes of driving.
check the TPMS malfunction telltale
dealer.
after replacing one or more tires or
Your vehicle has also been equipped with
wheels on your vehicle to ensure that
the replacement or alternate tires and
WARNING
a TPMS malfunction indictor to indicate
when the system is not operating properly.
wheels allow the TPMS to continue to
If the tire pressure warning light
The TPMS malfunction indicator is com-
function properly.
comes on and stays on, reduce your
bined with the low tire pressure telltale.
speed and avoid abrupt steering and
When the system detects a malfunction,
In this situation, please have the system
braking. Stop in a safe place as soon
the telltale will flash for approximately one
inspected by an authorized service facility.
as possible and check your tires.
minute and then remain continuously illu-
If you replace one or more tires and the
• If you have a flat tire, replace it with
minated. This sequence will continue upon
TPMS warning light goes off during driv-
a spare tire. Refer to “Changing a
subsequent vehicle start-ups as long as
ing, there is no problem. However, if the
Flat Tire” in section 5.
the malfunction exists.
warning light does not go off, or if it flashes
• If one or more of your tires is
again when the vehicle is driven, have the
under-inflated, adjust the inflation
vehicle inspected by an authorized service
pressure in all of your tires to the
facility.
recommended inflation pressure as
soon as possible.
Be aware that driving on a signifi-
cantly under-inflated tire can cause
the tire to overheat and can lead to
tire failure, and may affect steering
control and brake effectiveness. This
could lead to an accident, resulting in
severe injury or death.
3-28

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT PANEL
See “Tire pressure Monitoring System” in
Audio System
Cautions on Handling
Section 5 for more information.
Precautions
When the inside of the car is very cold
and the player is used soon after switch-
ing on the heater, moisture may form on
the disc or the optical parts of the player
(A)
and proper playback may not be possi-
ble. If moisture forms on the disc, wipe it
52D274
off with a soft cloth. If moisture forms on
This unit has been designed specifically for
the optical parts of the player, do not use
playback of compact discs bearing the
the player for about one hour, this will
mark (A).
allow the condensation to disappear nor-
No other discs can be played.
mally.
Driving on extremely bumpy roads which
cause severe vibrations may cause
Removing the disc
Proper way to hold
sound to skip.
the compact disc
This unit uses a precision mechanism.
Even in the event that trouble arises,
never open the case, disassemble the
unit, or lubricate the rotating parts.
Please bring the unit to an authorized
SUZUKI dealer.
52D275
To remove a compact disc from its storage
case, press down on the center of the case
and lift the disc out, holding it carefully by
the edges.
Always handle the compact disc by the
edges.
3-29

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT PANEL
Never touch the surface.
52D348
52D350
52D347
Never stick labels on the surface of the
Do not use compact discs that have large
To remove fingermarks and dust, use a
compact disc or mark the surface with a
scratches, are misshaped, or cracked, etc.
soft cloth, and wipe in a straight line from
pencil or pen.
Use of such discs will cause damage or
the center of the compact disc to the cir-
prevent the system from operating prop-
cumference.
erly.
(B)
(B)
(C)
52D349
Do not use any solvents such as commer-
52D351
cially available cleaners, anti-static spray,
or thinner to clean compact discs.
Do not expose compact discs to direct sun-
light or any heat source.
NOTE:
• Do not use commercially available CD
protection sheets or discs equipped with
52D277
stabilizers, etc.
New discs may have some roughness
These may get caught in the internal
around the edges. The unit may not work
mechanism and damage the disc.
or the sound may skip if such discs are
• CD-R discs may not be able to playback
used. Use a ball-point pen
(B), etc. to
in this unit due to the recording condi-
remove the roughness (C) from edges of
tions.
the disc before insertion inside the unit.
• CD-RW discs can not playback in this
unit.
3-30

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT PANEL
Radio with CD (Double Display, MP3/WMA) (AGC-6380)
PLAYING THE RADIO
Power/Volume knob (1):
2
3
9
Press this knob to turn the system on and
off.
Turn the Power/Volume knob clockwise or
counterclockwise to increase or decrease
the volume.
11
10
Press this button for a short time to MUTE
the radio. Press the button again to cancel
MUTE.
5
4
Finding a Station
AM button (2):
6
12
Press this button to switch to an AM sta-
tion. The display will show the selection.
8
1
FM button (3):
Press this button to switch to an FM sta-
tion. The display will show the selection.
TUNE button (4):
Press this button to select radio stations.
7
(Manual tuning)
Press the up arrows to increase the fre-
84Z022
quency.
1. Power/Volume knob
7. Preset station buttons
Press the down arrows to decrease the fre-
2. AM button
•2 RPT: Repeat button
quency.
3. FM button
•3 RDM: Random button
The frequency of the AM band changes
4. TUNE button
•4 INT: Introduction button
10 kHz each time and the frequency of the
5. SEEK button
8. SOUND (SCROLL) button
FM band changes 200 kHz each time.
6. SCAN/AST button
9. CD/AUX button
SEEK button (5):
10. EJECT button
Press this button to search for and select
11. DIR button
receivable radio stations. (Seek tuning)
12. INFO/DISP button
To search for the next receivable higher
station, press the up arrows.
3-31

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT PANEL
To search for the previous receivable lower
Preset station buttons (7):
SOUND button (8):
station, press the down arrows.
Setting Preset Stations
Setting the Tone (Bass/Mid/Treble)
SCAN/AST button (6):
Up to 36 stations (six FM1, six FM2, six
Press this button until “BAS” appears on
Press this button to scan radio stations.
FM-A and six AM1, six AM2, six AM-A),
the display. Turn the volume knob to
(Scan tuning)
can be programmed on the six numbered
increase or to decrease the bass. The dis-
preset buttons, by performing the following
play will show the bass level. When fin-
Scan
steps:
ished making the selection, press this
The radio will go to a station, play for a few
button again to select the bass level.
seconds, and then go on to the next sta-
1) Turn the radio on.
tion. Press this button again to stop scan-
2) Press the AM or FM button to select
Press this button until “MID” appears on
ning.
FM1, FM2, FM-A, AM1, AM2 or AM-A.
the display. Turn the volume knob to
3) Tune in the desired station.
increase or to decrease the mid. The dis-
The radio will only scan stations with a
4) Press and hold one of the six numbered
play will show the mid level. When finished
strong signal that are in the selected band.
preset buttons.
making the selection, press this button
The preset button number
(Display:
again to select the mid level.
Automatic Store
CH#1 ~ CH#6) will flash on the display
Press and hold this button to use Auto
Press this button until “TRE” appears on
when the station has been set. When-
Store.
the display. Turn the volume knob to
ever that numbered preset button is
increase or to decrease the treble. The dis-
FM1’s 6 preset stations with the strongest
pressed, the memorized station will
play will show the treble level. When fin-
signal in the region can be automatically
return.
ished making the selection, press this
stored. The display will show
“AUTO
5) Repeat the previous four steps for each
button again to select the treble level. If a
SCANNING”, and “SCANNING” will flash
preset button.
station is weak or noisy, decrease the tre-
on display.
ble.
ORDER OF SOUND FUNCTIONS
Stored stations will flash for a short time on
Adjusting the Speakers (Balance/Fade)
display in sequence. Once the stations are
To adjust the balance between the right
stored, the radio will switch to FM-A and
BASS MID
TRE
and the left speakers, press this button
the first preset station will begin to play.
VOL
until “BAL” appears on the display. Turn the
FM-A will appear on the display when lis-
FAD
volume knob to change the balance. The
tening to the automatically stored stations.
display will show the balance level. When
Press the AM or FM button to stop auto-
EQ OFF
BAL
finished making the selection, press this
matic store.
84Z023
button again to select the balance level.
To adjust the fade between the front and
rear speakers, press this button until “FAD”
appears on the display. Turn the volume
3-32

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT PANEL
knob to change the fade between the front
PLAYING A CD
If there is no apparent damage, try a
and the rear speakers. The display will
Insert a CD partway into the slot, label side
known good CD.
show the fade level. When finished making
up. The player will pull it in and the CD
Do not add any label to a CD, it could get
the selection, press this button again to
should begin playing. You can insert a CD
caught in the CD player. If a CD is
select the fade level.
with the ignition off.
recorded on a personal computer and a
Setting the EQ
When the CD is inserted,
“CDP” will
description label is needed, try labeling the
Press this button until “EQ OFF” appears
appear on the display. As the CD is loading
top of the recorded CD with a marking pen
on the display to select customized equal-
“LOADING” will appear on the display. As
instead.
ization settings designed for classic,
each new track starts to play, the track and
If an error appears on the display, see “CD
dance, rock, jazz, pop, voice and techno.
track number will appear on the display.
Messages” later in this section.
Turn the volume knob until the desired
If the ignition or radio is turned off with a
equalization setting appears on the display.
RPT (Repeat) button (7):
CD in the player, it will stay in the player.
When finished making the selection, press
Press this button to repeat the current
When a CD is in the player and the ignition
the SOUND button again to select the
track. RPT will appear on the display.
is turned on, the radio must be turned on
equalization setting.
Press this button again to turn off repeat
before the CD will start playback. When
play.
To cancel an equalization setting, press
the ignition and radio are turned on, the
the SOUND button until “EQ OFF” appears
CD will start playing where it stopped, if it
RDM (Random) button (7):
on the display, turn the volume knob until
was the last selected audio source.
Press this button to hear the tracks in ran-
“OFF” appears on the display, then press
dom, rather than sequential, order. “RDM”
The CD player can play the smaller 3 inch
the SOUND button again to select the
will appear on the display. Press this button
(8 cm) single CDs with an adapter ring.
equalization setting.
again to turn off random play.
Full-size CDs and the smaller CDs are
loaded in the same manner.
INT (Scan) button (7):
EQ OFF CLASSIC
DANCE
Press this button to listen to the first few
If playing a CD-R, the sound quality may
seconds of each track on each loaded CD.
TECHNO
be reduced due to CD-R quality, the
ROCK
“INTRO” will appear on the display. To stop
method of recording, the quality of the
scanning, press this button again. The cur-
music that has been recorded, and the way
VOICE
POP
JAZZ
rent track will begin to play.
the CD-R has been handled. There may be
84Z024
an increase in skipping, difficulty in finding
TUNE (Previous/Next Track) button (4):
tracks, and/or difficulty in loading and
Press the down arrows to go to the start of
ejecting. If these problems occur, check
the current track or press the up arrows to
the bottom surface of the CD. If the surface
go to the next track. The track number will
of the CD is damaged, such as cracked,
appear on the display. The player will con-
broken, or scratched, the CD will not play
tinue moving backward or forward through
properly.
3-33

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT PANEL
the CD with each press of the up or down
not eject when the ignition or the radio is
the complexity and confusion in trying to
arrows.
turned off.
locate a particular folder during playback. If
a CD contains more than the maximum of
AM button (2):
Using an MP3/WMA CD
50 folders, 5 sessions, and 999 files the
Press this button to listen to the radio when
player will let you access and navigate up
a CD is playing. The inactive CD will
MP3/WMA Format
to the maximum, but all items over the
remain safely inside the radio for future lis-
If you burn your own MP3/WMA disc on a
maximum will be ignored.
tening.
personal computer:
Root Directory
FM button (3):
• Make sure the MP3/WMA files are
The root directory will be treated as a
Press this button to listen to the radio when
recorded on a CD-R disc.
folder. If the root directory has compressed
a CD is playing. The inactive CD will
• Make sure to finalize the disc when burn-
audio files, the directory will be displayed
remain safely inside the radio for future lis-
ing an MP3/WMA disc, using multiple
as
“ROOT”. All files contained directly
tening.
sessions. It is usually better to burn the
under the root directory will be accessed
disc all at once.
CD/AUX button (9):
prior to any other directory.
• Files can be recorded with a variety of
Press this button to play a CD when listen-
fixed or variable bit rates. Song title, art-
Empty Directory or Folder
ing to the radio. “CDP” will appear on the
ist name, and album will be available for
If a root directory or a folder exists some-
display when the CD player has been
display by the radio when recorded using
where in the file structure that contains
selected. The CD symbol will appear on
ID3 tags version 1 and 2.
only folders/subfolders and no compressed
the display when a CD is loaded.
• Do not mix standard audio and MP3/
files directly beneath them, the player will
Press this button while a CD is playing to
WMA files on one disc.
advance to the next folder in the file struc-
pause the CD. “PAUSE” will flash on the
• Make sure each MP3/WMA file has a
ture that contains compressed audio files
display. Press this button again to resume
“.mp3” or
“.wma” extension, other file
and the empty folder will not be displayed
playing the CD.
extensions may not work.
or numbered.
Press this button to play a CD when listen-
The player will be able to read and play a
No Folder
ing to the audio contents from other device
maximum of 50 folders, 5 sessions, and
When the CD contains only compressed
(AUX mode). “CDP” will appear on the dis-
999 files. Long file names and folder
files, the files will be located under the root
play when the CD player has been
names may use more disc memory space
folder. The next and previous folder func-
selected. The CD symbol will appear on
than necessary. To conserve space on the
tions will have no function on a CD that
the display when a CD is loaded.
disc, minimize the length of the file, and
was recorded without folders or playlists.
folder names. You can also play an MP3/
When displaying the name of the folder the
EJECT button (10):
WMA CD that was recorded using no file
radio will display “ROOT”.
Press this button to eject a CD. The only
folders. The system can support up to 8
way a CD can be ejected from the player is
When the CD contains only compressed
folders in depth, but, keep the depth of the
by pressing the eject button. The CD will
audio files, but no folders, all files will be
folders to a minimum in order to keep down
located under the root folder. When the
3-34

-------------------------------------------------------------------------------------------------------------------------------------------------------------

INSTRUMENT PANEL
radio displays the name of the folder the
If the ignition or radio is turned off with a
If an error appears on the display, see “CD
radio will display “ROOT”.
CD in the player, it will stay in the player.
Messages” later in this section.
When a CD is in the player and the ignition
Order of Play
All of the CD functions work the same
is turned on, the radio must be turned on
Tracks will be played in the following order:
while playing an MP3/WMA, except for
before the CD will start playback. When
those listed here. See “Playing a CD” ear-
Play will begin from the first track under the
the ignition and radio are turned on, the
lier for more information.
root directory. When all tracks from the root
CD will start playing where it stopped, if it
directory have been played, play will con-
was the last selected audio source.
DIR (Directory) button (11):
tinue from files according to their numerical
Press this button to repeat the tracks in the
The CD player can play the smaller 3 inch
listing. After playing the last track from the
current directory. “DIR” will appear on the
(8 cm) single CDs with an adapter ring.
last folder, the player will begin playing
display.
Full-size CDs and the smaller CDs are
again at the first track of the first folder or
Press this button again to repeat the tracks
loaded in the same manner.
root directory.
in all of the directories. “ALL” will appear on
If playing a CD-R, the sound quality may
the display.
File System and Naming
be reduced due to CD-R quality, the
Press this button again to turn off repeat
The song name in the ID3 tag will be dis-
method of recording, the quality of the
play.
played. If the song name is not present in
music that has been recorded, and the way
the ID3 tag, then the radio will display the
SEEK (Previous/Next Folder) button (5)
the CD-R has been handled. There may be
file name without the extension (such as
(in MP3/WMA mode):
an increase in skipping, difficulty in finding
MP3/WMA) instead.
Press the up or down arrows to change the
tracks, and/or difficulty in loading and
folder. If the CD-R doesn’t have any folder,
Track names longer than 32 characters or
ejecting. If these problems occur, check
“ROOT” will flash on display for a short
4 pages will be shortened. The display will
the bottom surface of the CD. If the surface
time.
not show parts of words on the last page of
of the CD is damaged, such as cracked,
text and the extension of the filename will
broken, or scratched, the CD will not play
TUNE (Previous/Next Folder) button (4):
not be displayed.
properly.
Press the up or down arrows to go to the
first track in the previous or to go to the
Playing an MP3/WMA
If there is no apparent damage, try a
next folder. The player will continue moving
With the ignition on, insert a CD partway
known good CD.
backward or forward through the CD with
into the slot, label side up. The player will
Do not add any label to a CD, it could get
each press of the up or down arrows.
pull it in, then “LOADING”, and then “MP3”
caught in the CD player. If a CD is
or “WMA” will appear on the display. The
INFO/DISP (Information/Display) button
recorded on a personal computer and a
CD should begin playing. You can’t insert a
(12):
description label is needed, try labeling the
CD with the acc off. As each new track
Press this button to display additional text
top of the recorded CD with a marking pen
starts to play, the track number, and the
information related to the current MP3/
instead.
song name will appear on the display.
WMA song. A choice of additional informa-
3-35















Content      ..     4      5      6      7     ..
