4F-50 Electronic Stability Program:

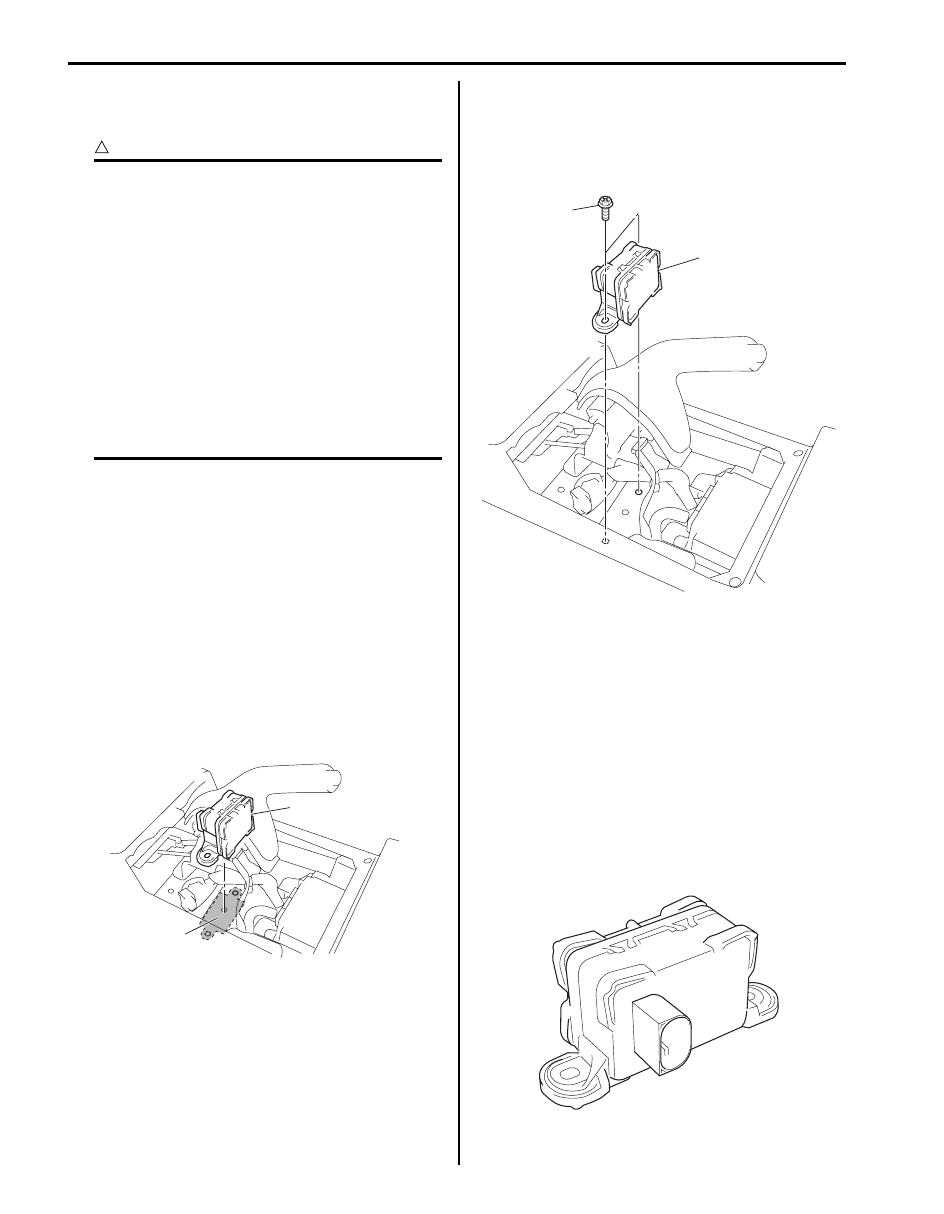

Yaw Rate / G Sensor Assembly Removal and
Installation

S5JB0E4606018

CAUTION

!



• When yaw rate / G sensor assembly is

replaced, ESP

® control module needs zero

calibration. Perform zero calibration by
SUZUKI scan tool referring to “Sensor
Calibration”.

• Regarding yaw rate / G sensor assembly

removal/installation, confirm specified
torque and never use impact wrench to
avoid damage.

• When handling the yaw rate / G sensor

assembly, be careful not to drop it or apply
an impact to it.
If an excessive impact was applied, never
attempt disassembly or repair but replace
it with a new one.



Removal

1) Disconnect negative (–) cable at battery.
2) Remove console rear panel referring to “Console

Box Components in Section 9H in related manual”.

3) Remove yaw rate / G sensor assembly from floor

panel.

Installation

1) Before installing yaw rate / G sensor assembly (1),

check installing condition as follows.
• Deformations around sensor installation area (2)

(in floor panel).

• Foreign matters on mating surface between

sensor and floor panel.

2) Install yaw rate / G sensor assembly (1) to floor

panel.

Tightening torque
Yaw rate / G sensor assembly bolt (a):  8 N·m (
0.8 kgf-m, 6.0 lb-ft)

3) Install console rear panel referring to “Console Box

Components in Section 9H in related manual”.

4) Connect negative (–) cable to battery.
5) After completing installation, calibrate yaw rate / G

sensor assembly referring to “Sensor Calibration”.

Yaw Rate / G Sensor Inspection

S5JB0E4606019

• Check sensor for dents, cracks or deformation.
• Check sensor connector (sensor side and harness

side) and sensor connector lock mechanism for
damage or crack.

• Check connector terminals for bend, corrosion or rust.
If it is found faulty, replace yaw rate / G sensor assembly.

2

1

I6JB01460029-05

1

(a)

I6JB01460030-02

I6JB01460031-01

Electronic Stability Program:  4F-51

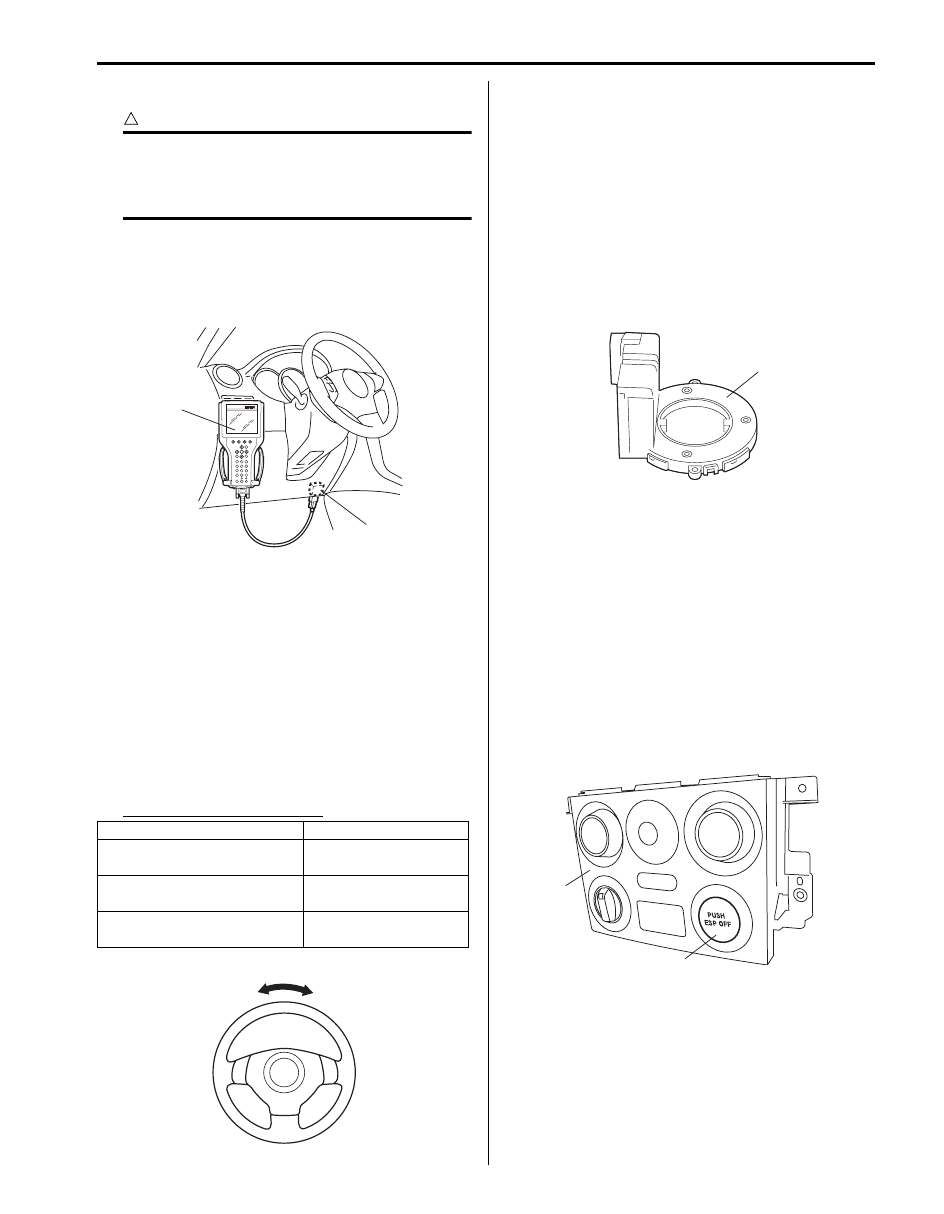

Steering Angle Sensor On-Vehicle Inspection

S5JB0E4606020

CAUTION

!



Before each inspection, confirm steering
angle sensor calibration is completed.
If calibration is incompleted, calibrate sensor
referring to “Sensor Calibration”.



1) Connect SUZUKI scan tool to data link connector

(DLC) (1) with ignition switch OFF.

Special tool
(A):  SUZUKI scan tool

2) Turn ignition switch to ON position and select menu

“DATA LIST” mode of SUZUKI scan tool.
Refer to scan tool operator's manual for further
derails.

3) Check “Steering angle Sen” under “DATA LIST” of

SUZUKI scan tool in the following steering wheel
conditions.
• Front wheels in straight-ahead position
• Rotate steering wheel a round in clockwise

(counter clockwise) from straight-ahead position

If steering angle condition is out of specification,
replace steering angle sensor.

Steering angle Specification

Steering Angle Sensor Removal and Installation

S5JB0E4606021

Refer to “Steering Angle Sensor Removal and
Installation in Section 6B”.

Steering Angle Sensor Inspection

S5JB0E4606022

• Check sensor for dents, cracks or deformation.
• Check sensor connector (sensor side and harness

side) and sensor connector lock mechanism for
damage or crack.

• Check connector terminals for bend, corrosion or rust.
If it is found faulty, replace steering angle sensor (1).

ESP

® OFF Switch Removal and Installation

S5JB0E4606023

Removal

1) Disconnect negative (–) cable at battery.
2) Remove center garnish with audio unit (if equipped)

and HVAC control module referring to “Audio Unit
Removal and Installation in Section 9C in related
manual”.

3) Remove HVAC control module from center garnish,

referring to “HVAC Control Module Removal and
Installation in Section 7A in related manual”.

4) Remove ESP

® OFF Switch (1) from center garnish

(2).

Installation
Reverse removal procedure.

Vehicle condition

Steering angle

Front wheels in straight-
ahead position

± 3°

Rotate steering wheel a
round in clockwise

360

± 3°

Rotate steering wheel a
round in counterclockwise

–360

± 3°

(A)

1

I5JB0A450008-01

I6JB01460032-01

1

I6JB01460033-01

2

1

I6JB01460034-01

4F-52 Electronic Stability Program:

ESP

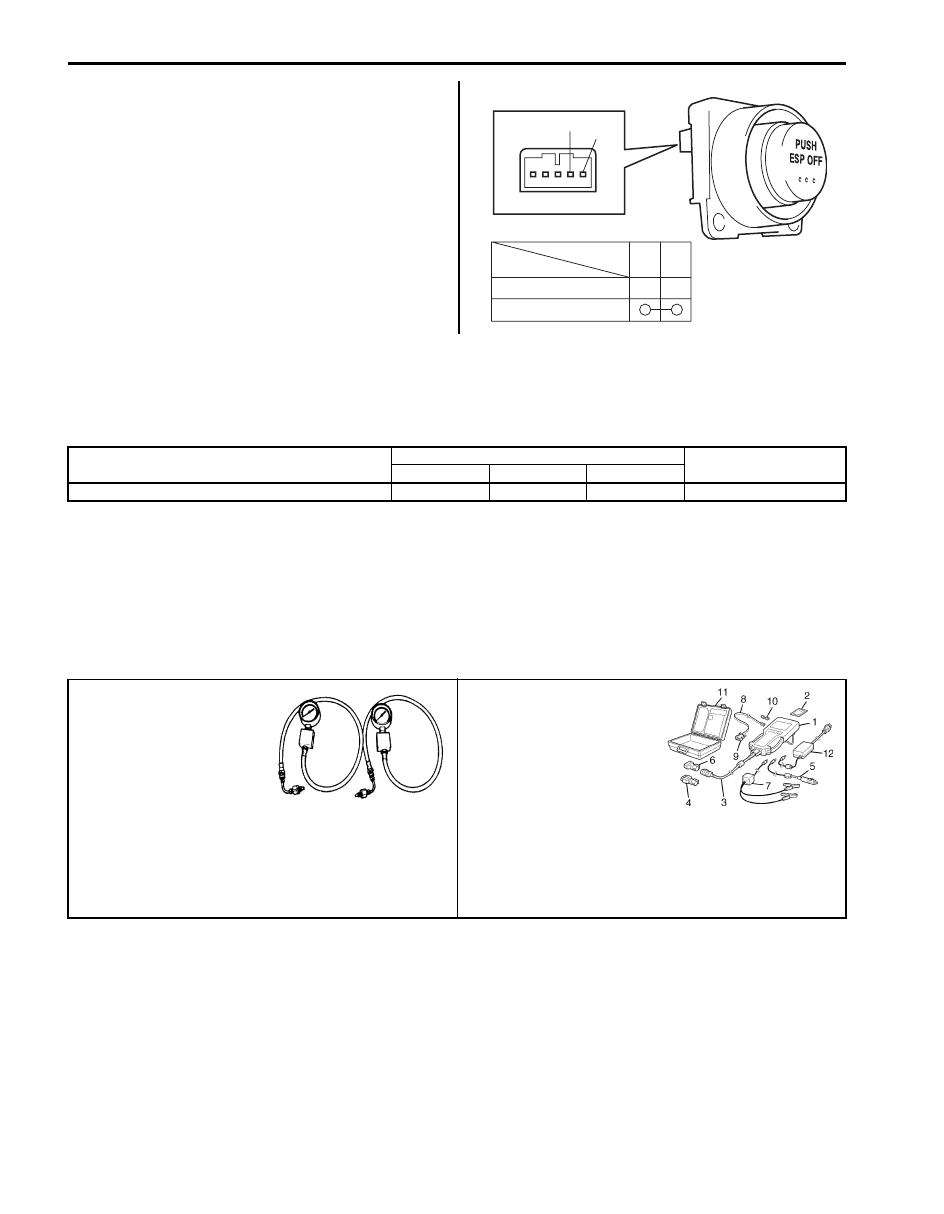

® OFF Switch Inspection

S5JB0E4606024

Check for continuity between terminals at each switch
position.
If check result is not as specified, replace ESP

® OFF

switch.

Specifications

Tightening Torque Specifications

S5JB0E4607001

Reference:
For the tightening torque of fastener not specified in this section, refer to “Fastener Information in Section 0A in related
manual”.

Special Tools and Equipment

Special Tool

S5JB0E4608001

ESP OFF switch

Terminal

FREE

PUSH

1

2

2

1

I6JB01460035-02

Fastening part

Tightening torque

Note

N

m

kgf-m

lb-ft

Yaw rate / G sensor assembly bolt

8

0.8

6.0

)

09956–02311

SUZUKI scan tool

Brake pressure gauge

)

This kit includes following
items. 1. Tech 2, 2. PCMCIA
card, 3. DLC cable, 4. SAE
16/19 adapter, 5. Cigarette
cable, 6. DLC loop back
adapter, 7. Battery power
cable, 8. RS232 cable, 9.
RS232 adapter, 10. RS232
loop back connector, 11.
Storage case, 12.) / ) / ) /
)

 / ) / ) / )

Table of Contents 5- i

5

Section 5

CONTENTS

Transmission / Transaxle

Precautions ................................................. 5-*

Precautions.............................................................. 5-*

Precautions for Transmission / Transaxle.............. 5-*

Automatic Transmission/Transaxle....... 5A-1

Precautions...........................................................5A-1

Precautions in Diagnosing Trouble ..................... 5A-1

General Service Procedure Information...............5A-*
Precautions for Disassembly and

Reassembly .......................................................5A-*

General Description .............................................5A-2

Automatic Transmission Description................... 5A-2

Clutch / Brake Functions of Automatic

Transmission......................................................5A-*

Table of A/T System Component Operation ........5A-*

Automatic Gear Shift Table................................. 5A-4
CAN Communication System Description........... 5A-6
Electronic Shift Control Input / Output Table....... 5A-8

Brake Interlock System Description .....................5A-*
A/T Diagnosis General Description ......................5A-*
On-Board Diagnostic System Description............5A-*

Schematic and Routing Diagram........................5A-9

Electronic Shift Control Input / Output

Diagram ............................................................ 5A-9

Electronic Shift Control System Wiring

Diagram ..........................................................5A-10

Component Location .........................................5A-12

Electronic Shift Control System Components

Location ..........................................................5A-12

Diagnostic Information and Procedures..........5A-13

A/T System Check ...............................................5A-*
Malfunction Indicator Lamp (MIL) Check .............5A-*
Transmission Warning Light Operation Check

(Vehicle is Equipped with Engine Diagnosis
Connector) .........................................................5A-*

“POWER” Lamp Operation Check .......................5A-*

DTC Table.........................................................5A-13

DTC Check ..........................................................5A-*
DTC Clearance ....................................................5A-*

Fail Safe Table.................................................. 5A-15
Scan Tool Data ................................................. 5A-17

Visual Inspection..................................................5A-*
A/T Basic Check ..................................................5A-*
Road Test ............................................................5A-*

Manual Road Test............................................... 5A-*
Stall Test ............................................................. 5A-*
Time Lag Test ..................................................... 5A-*
Line Pressure Test .............................................. 5A-*
Engine Brake Test............................................... 5A-*
“P” Range Test.................................................... 5A-*
A/T Symptom Diagnosis...................................... 5A-*

No Gear Shift to 4th Gear .................................5A-20
No Lock-Up Occurs...........................................5A-21

Transmission Warning Light Circuit Check –

Light Does Not Come “ON” at Ignition Switch
ON (Vehicle is equipped with engine
diagnosis connector) ......................................... 5A-*

Transmission Warning Light Circuit Check –

Light Remains “ON” at Ignition Switch ON
(Vehicle is equipped with engine diagnosis
connector) ......................................................... 5A-*

“POWER” Light Circuit Check – Light Does

Not Come “ON” at Ignition Switch ON............... 5A-*

DTC P0705: Transmission Range Sensor

Circuit Malfunction............................................. 5A-*

DTC P0707: Transmission Range Sensor

Circuit Low ........................................................ 5A-*

DTC P0712: Transmission Fluid Temperature

Sensor “A” Circuit Low ...................................... 5A-*

DTC P0713: Transmission Fluid Temperature

Sensor “A” Circuit High ..................................... 5A-*

DTC P0717: Input / Turbine Speed Sensor

Circuit No Signal ............................................... 5A-*

DTC P0722: Output Speed Sensor Circuit No

Signal ................................................................ 5A-*

DTC P0741 / P0742: TCC Circuit

Performance or Stuck OFF / TCC Circuit
Stuck ON........................................................... 5A-*

DTC P0751 / P0752: Shift Solenoid-A

Performance or Stuck OFF / Shift Solenoid-
A Stuck ON ....................................................... 5A-*

DTC P0756 / P0757: Shift Solenoid-B

Performance or Stuck OFF / Shift Solenoid-
B Stuck ON ....................................................... 5A-*

DTC P0962: Pressure Control Solenoid “A”

Control Circuit Low............................................ 5A-*

DTC P0963: Pressure Control Solenoid “A”

Control Circuit High ........................................... 5A-*

NOTE
For the items with asterisk (*) in the “CONTENTS” below, refer to the same section of the service manual
mentioned in the “FOREWORD” of this manual.
