Suzuki Grand Vitara JB416 / JB420 (ESP model). Service manual - part 73





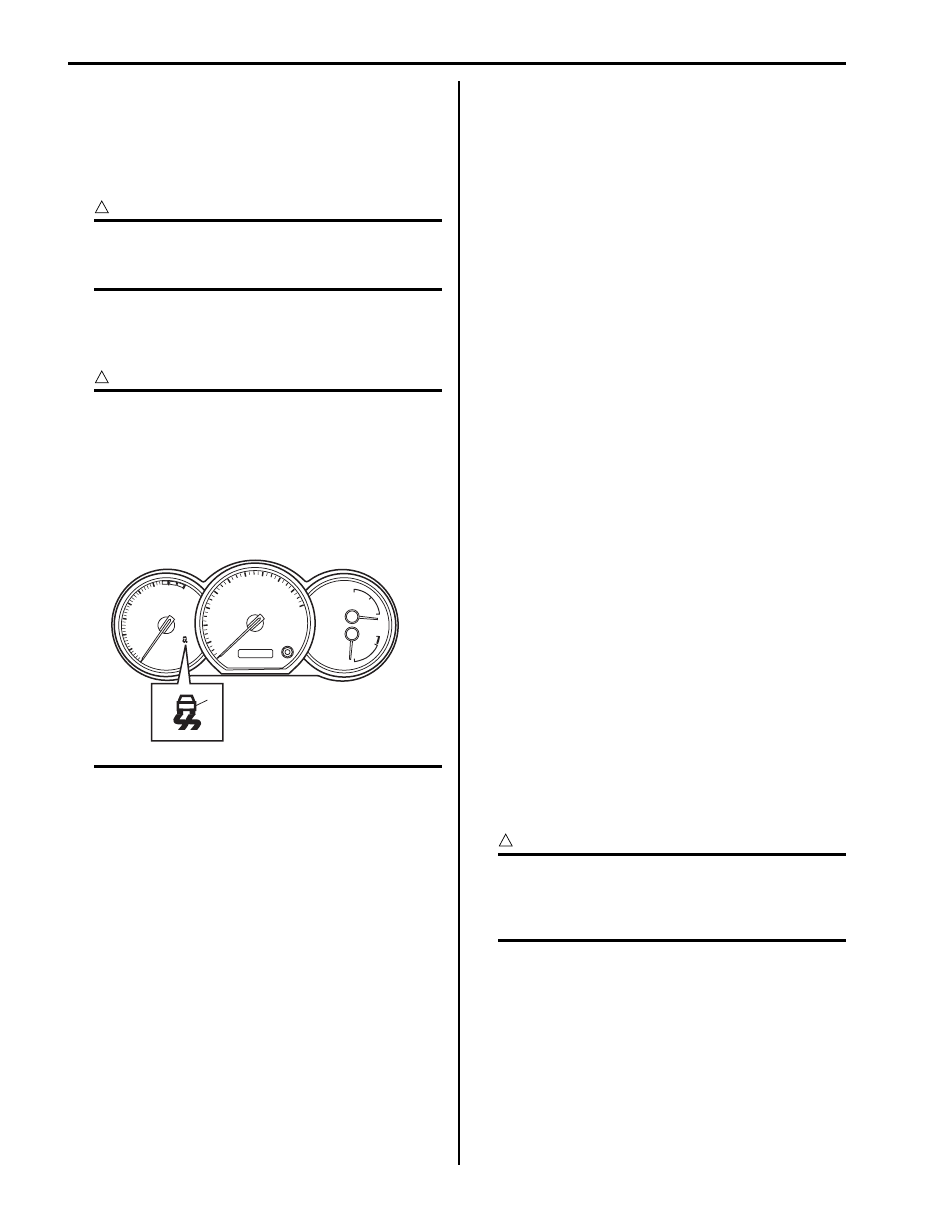

4F-46 Electronic Stability Program:

6) After completing the calibration, turn ignition switch

to OFF position and disconnect SUZUKI scan tool
from DLC.

Steering Angle Sensor Calibration (Not Using
SUZUKI Scan Tool)

CAUTION

!



When power is not supplied to the steering
angle sensor by removing battery or fuse,
steering angle sensor should be calibrated.



1) Set steering wheel in straight-ahead position.
2) Connect battery terminals and/or fuse and start

engine.

CAUTION

!



When power is not supplied to the steering
angle sensor by removing battery or fuse,
DTC C1075 is detected and SLIP indicator
lamp (1) flashes.
If DTC other than C1075 is detected, SLIP
indicator lamp flushes and other indicator
illuminate. In that case, repair the detected
DTC first.



3) Drive vehicle straight on level ground at 15 km/h (9.5

mph) or above for few seconds without spinning
wheels. And confirm that SLIP indicator lamp is OFF.

ESP

® Hydraulic Unit / Control Module

Assembly On-Vehicle Inspection

S5JB0E4606003

Refer to “ABS (ESP

®) Hydraulic Unit / Control Module

Assembly On-Vehicle Inspection in Section 4E”.

ESP

® Hydraulic Unit / Control Module

Assembly Removal and Installation

S5JB0E4606004

Refer to “ABS (ESP

®) Hydraulic Unit / Control Module

Assembly Removal and Installation in Section 4E”.

Front Wheel Speed Sensor On-Vehicle
Inspection

S5JB0E4606005

Refer to “Front Wheel Speed Sensor On-Vehicle
Inspection in Section 4E”.

Front Wheel Speed Sensor Removal and
Installation

S5JB0E4606006

Refer to “Front Wheel Speed Sensor Removal and
Installation in Section 4E”.

Front Wheel Speed Sensor Inspection

S5JB0E4606007

Refer to “Front Wheel Speed Sensor Inspection in
Section 4E”.

Rear Wheel Speed Sensor On-Vehicle
Inspection

S5JB0E4606008

Refer to “Front Wheel Speed Sensor On-Vehicle
Inspection” sin
ce rear wheel speed sensor is the same
as front wheel speed sensor.

Rear Wheel Speed Sensor Removal and
Installation

S5JB0E4606009

Refer to “Rear Wheel Speed Sensor Removal and
Installation in Section 4E”.

Rear Wheel Speed Sensor Inspection

S5JB0E4606010

Refer to “Front Wheel Speed Sensor Inspection” since
rear wheel speed sensor is the same as front wheel
speed sensor.

Front Wheel Encoder On-Vehicle Inspection

S5JB0E4606011

Refer to “Front Wheel Encoder On-Vehicle Inspection in
Section 4E”.

Front Wheel Encoder Removal and Installation

S5JB0E4606012

CAUTION

!



Front wheel encoder is included in front
wheel hub assembly. If front wheel encoder
needs to replaced, replace it as a front wheel
hub assembly.



For removal and installation of front wheel hub
assembly, referring to “Front Wheel Hub Assembly
Removal and Installation in Section 2B”
.

1

I6JB01460024-02

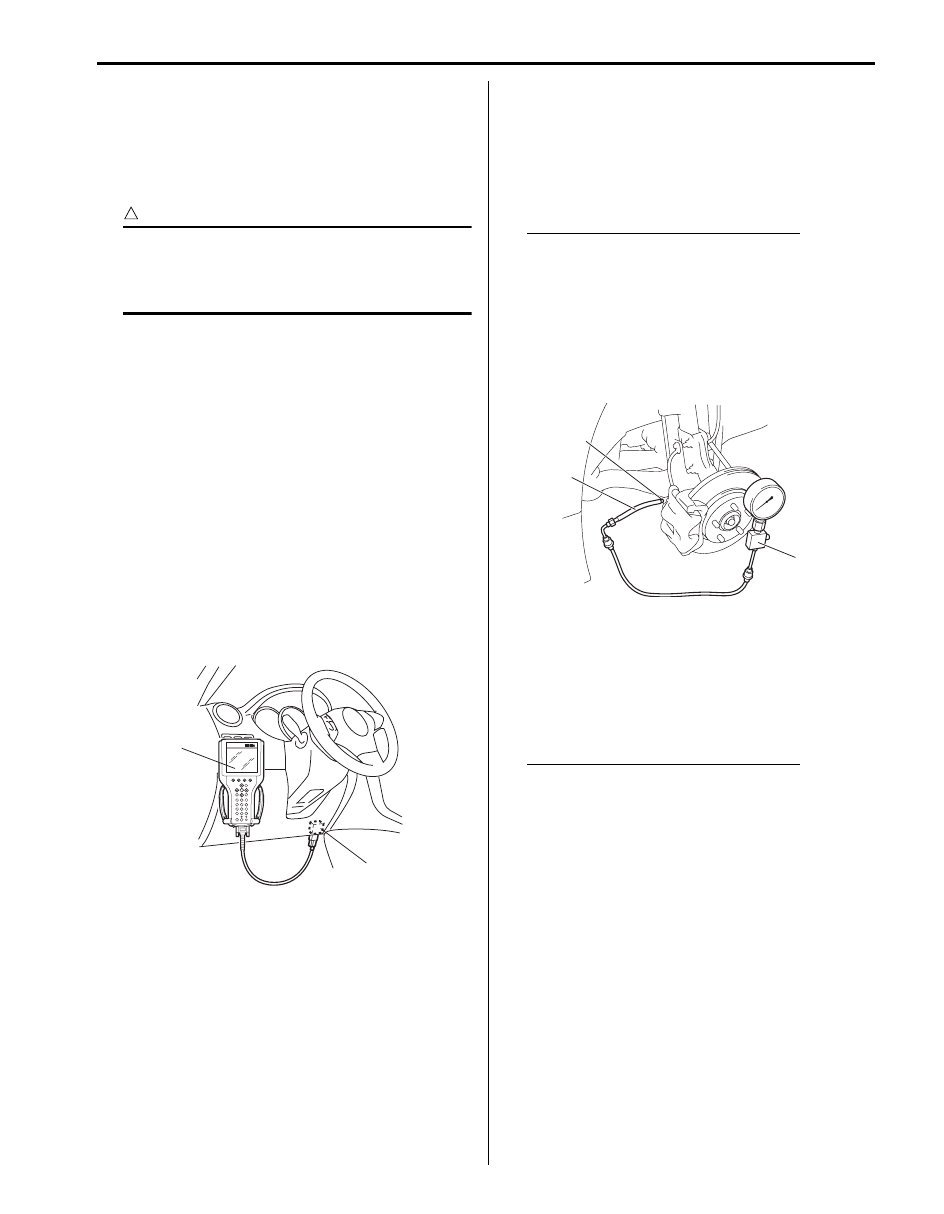

Electronic Stability Program:  4F-47

Rear Wheel Encoder On-Vehicle Inspection

S5JB0E4606013

Refer to “Rear Wheel Encoder On-Vehicle Inspection in
Section 4E”.

Rear Wheel Encoder Removal and Installation

S5JB0E4606014

CAUTION

!



Rear wheel encoder is included in rear wheel
hub assembly. If rear wheel encoder needs to
replaced, replace it as a rear wheel hub
assembly.



For removal and installation of front wheel hub
assembly, referring to “Rear Wheel Hub Assembly
Removal and Installation in Section 2C in related
manual”.

Master Cylinder Pressure Sensor On-Vehicle
Inspection

S5JB0E4606016

1) Calibrate yaw rate / G sensor assembly referring to

“Sensor Calibration”.

2) Check that basic brake system other than ESP

®

refer to “Brake Diagnosis Note in Section 4A in
related manual”.

3) Connect SUZUKI scan tool to data link connector

(DLC) (1) with ignition switch OFF.

Special tool
(A):  SUZUKI scan tool

4) Turn ignition switch to ON position and select menu

“DATA LIST” mode of SUZUKI scan tool. Refer to
scan tool operator's manual for further derails.

5) When brake pedal is released, check “Master Cyl

Press” under “DATA LIST” of SUZUKI scan tool.
If pressure is out of specification, replace ESP

®

hydraulic unit / control module assembly.

Master cylinder pressure specification
Brake pedal released: 0

± 0.8 MPa (0 ± 8 kg/cm

2

, 0

± 113 psi)

6) Hoist vehicle and remove right-side front wheel.
7) Connect special tool with rubber hose (1) to Front

brake caliper bleeder plug (2).

Special tool
(A):  09956–02311

8) When bleeder plug loosen and depress brake pedal

to make special tool gauge reading 10 MPa (100 kg/
cm

2

, 1422 psi), check “Master Cyl Press” under

“DATA LIST” of SUZUKI scan tool.
If pressure displayed on SUZUKI scan tool is out of
specification, replace ESP

® hydraulic unit / control

module assembly.

Master cylinder pressure specification
Brake pedal depressed 10 MPa (100 kg/cm

2

, 1422

psi): 10

± 1.2 MPa (100 ± 12 kg/cm

2

, 1422

± 170

psi)

9) After completing the check, turn ignition switch to

OFF position and disconnect SUZUKI scan tool from
DLC.

10) Tighten bleeder plug and bleed air from brake

system, referring to “Air Bleeding of Brake System in
Section 4A in related manual”.

(A)

1

I5JB0A450008-01

2

(A)

1

I6JB01460025-01

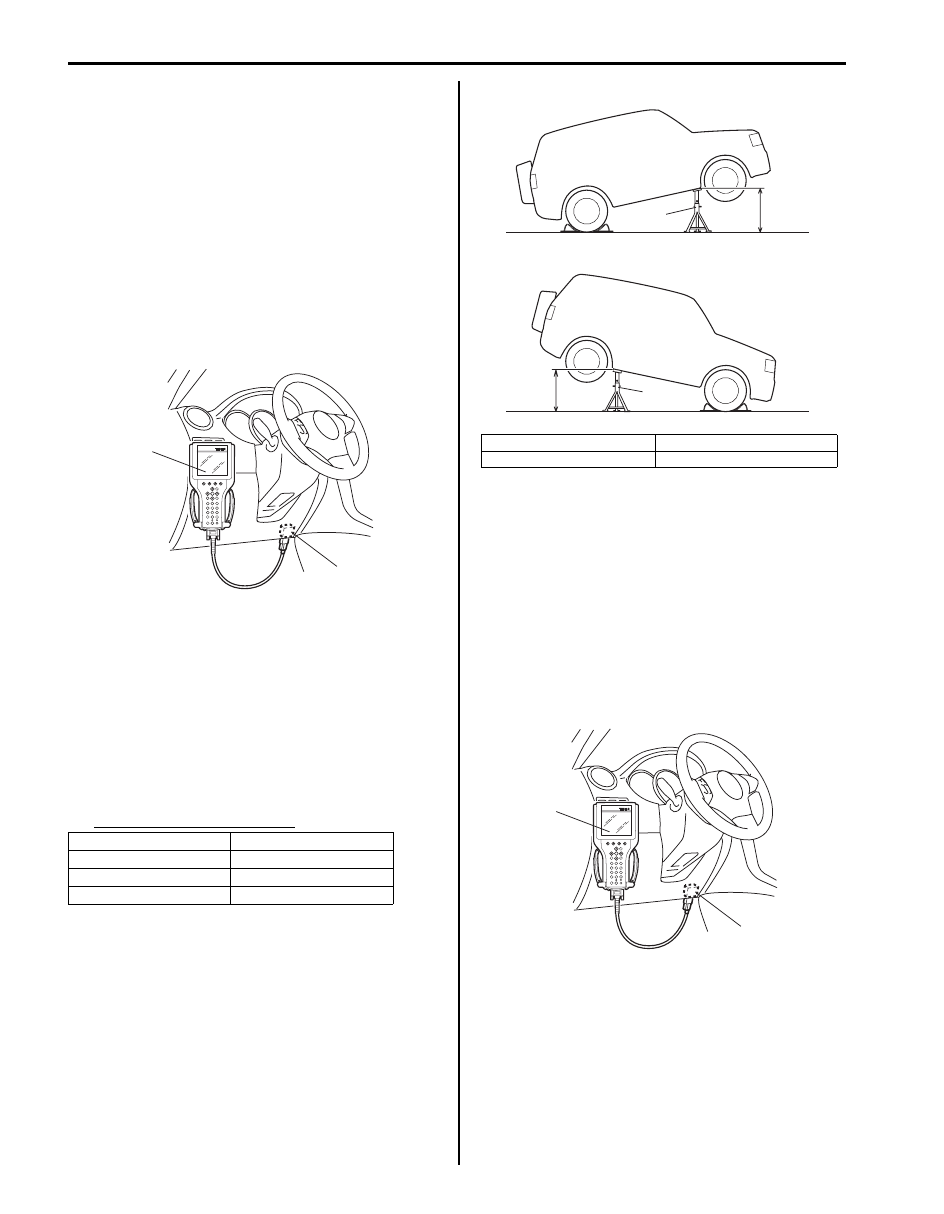

4F-48 Electronic Stability Program:

Yaw Rate / G Sensor Assembly On-Vehicle
Inspection

S5JB0E4606017

Longitudinal G Inspection

1) Calibrate yaw rate / G sensor assembly referring to

“Sensor Calibration”.

2) Park and level the vehicle with parking brake and fix

wheels with chokes.

3) Check yaw rate / G sensor assembly installation

condition.

4) Connect SUZUKI scan tool to data link connector

(DLC) (1) with ignition switch OFF.

Special tool
(A):  SUZUKI scan tool

5) Turn ignition switch to ON position and select menu

“DATA LIST” mode of SUZUKI scan tool. Refer to
scan tool operator's manual for further derails.

6) Check “G Sensor” under “DATA LIST” of SUZUKI

scan tool in the following vehicle conditions.
• Level condition
• Front-up condition
• Rear-up condition
If Longitudinal G condition is out of specification,
replace yaw rate / G sensor assembly.

Longitudinal G specification

Lateral G Inspection

1) Calibrate yaw rate / G sensor assembly referring to

“Sensor Calibration”.

2) Park and level the vehicle with parking brake and fix

wheels with chokes.

3) Check yaw rate / G sensor assembly installation

condition.

4) Connect SUZUKI scan tool to data link connector

(DLC) (1) with ignition switch OFF.

Special tool
(A):  SUZUKI scan tool

5) Turn ignition switch to ON position and select menu

“DATA LIST” mode of SUZUKI scan tool. Refer to
scan tool operator's manual for further derails.

Vehicle condition

Longitudinal G

Level condition

± 0.1 G

Front-up condition

0.1

± 0.1 G

Rear-up condition

–0.1

± 0.1 G

(A)

1

I5JB0A450008-01

[A]: Front-up condition

“a”: Approx 400 mm (15.75 in.)

[B]: Rear-up condition

1. Safety stand

[A]

[B]

“a”

“a”

1

1

I6JB01460026-02

(A)

1

I5JB0A450008-01

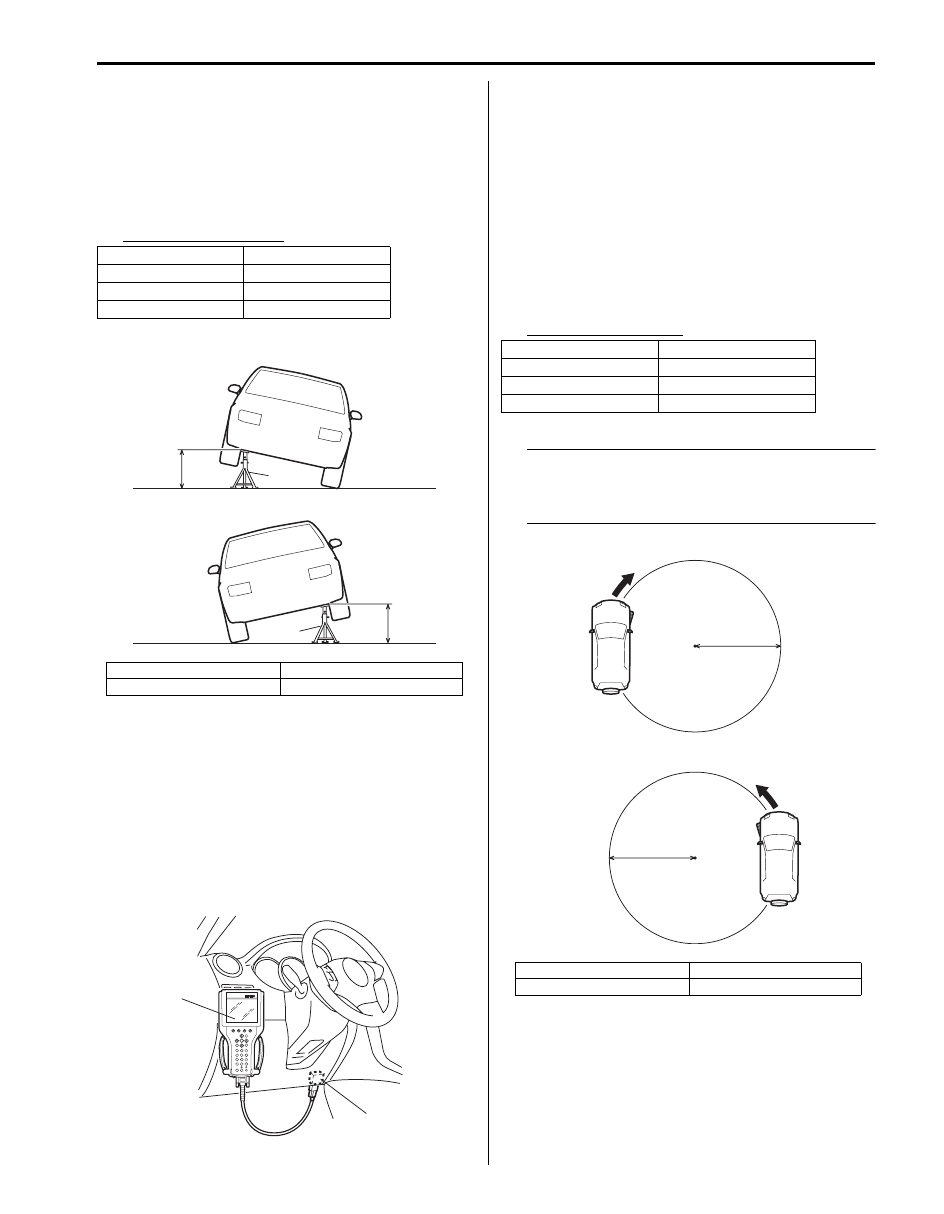

Electronic Stability Program:  4F-49

6) Check “G Sensor (lateral)” under “DATA LIST” of

SUZUKI scan tool in the following vehicle conditions.
• Level condition
• Right-up condition
• Left-up condition
If Lateral G condition is out of specification, replace
yaw rate / G sensor assembly.

Lateral G specification

Yaw Rate Inspection

1) Calibrate yaw rate / G sensor assembly referring to

“Sensor Calibration”.

2) Check yaw rate / G sensor assembly installation

condition.

3) Connect SUZUKI scan tool to data link connector

(DLC) (1) with ignition switch OFF.

Special tool
(A):  SUZUKI scan tool

4) Turn ignition switch to ON position and select menu

“DATA LIST” mode of SUZUKI scan tool. Refer to
scan tool operator's manual for further derails.

5) Check “Yaw rate sensor” under “DATA LIST” of

SUZUKI scan tool in the following vehicle conditions.
• Parking condition
• Drive vehicle in right turning condition with

steering wheel fully turned

• Drive vehicle in left turning condition with steering

wheel fully turned

If yaw rate condition is out of specification, replace
yaw rate / G sensor assembly.

Yaw rate specification

NOTE

• Drive the vehicle on level ground and at 10

km/h (6.2 mph).

• Minimum turning radius is 5.3 m (17.4 ft).



Vehicle condition

G Sensor (lateral)

Level condition

± 0.1 G

Right -up condition

0.1

± 0.1 G

Left-up condition

–0.1

± 0.1 G

[A]: Right-up condition

“a”: Approx. 350 mm (13.78 in.)

[B]: Left-up condition

1. Safety stand

[A]

[B]

“a”

“a”

1

1

I6JB01460027-01

(A)

1

I5JB0A450008-01

Vehicle condition

Yaw rate

Parking

± 4 deg/s

Right turning

30

± 4 deg/s

Left turning

–30

± 4 deg/s

[A]: Right turning

“a”: Approx. 5.3 m (17.4 ft)

[B]: Left turning

[A]

[B]

“a”

“a”

I6JB01460028-01
