Suzuki Grand Vitara JB416 / JB420 (ESP model). Service manual - part 42





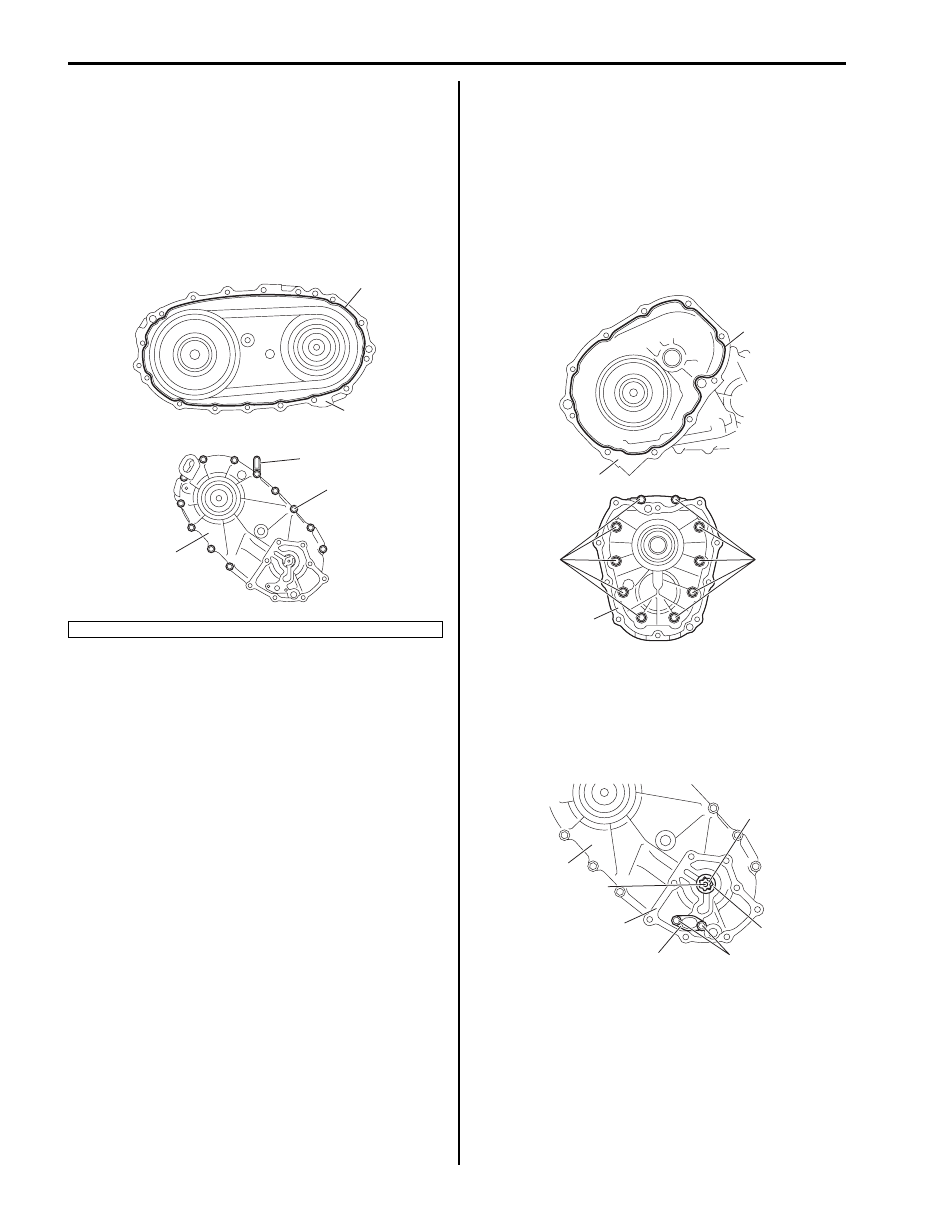

3C-63 Transfer: Motor-Shift Type (Transfer with Shift Actuator)

17) Clean mating surface of both center case and rear

case (1), apply sealant to rear case as shown in
figure by such amount that its section is 1.2 mm
(0.047 in.) in diameter, mate center case with rear
case and then tighten bolts (2) to specified torque.

“A”:  Sealant 99000–31260 (SUZUKI Bond
No.1217G)

Tightening torque
Rear case bolt (a):  23 N·m (2.3 kgf-m, 17.0 lb-ft)

18) Clean mating surface of both center case (1) and

front case, apply sealant to center case as shown in
figure by such amount that its section is 1.2 mm
(0.047 in.) in diameter, mate front case (3) with
center case and then tighten bolts (2) to specified
torque.

“A”:  Sealant 99000–31260 (SUZUKI Bond
No.1217G)

Tightening torque
Rear case bolt (a):  23 N·m (2.3 kgf-m, 17.0 lb-ft)

19) Install oil strainer (1) to rear case (2).

Tightening torque
Strainer bolt (a):  10 N·m (1.0 kgf-m, 7.5 lb-ft)

20) Install oil pump inner rotor (3), outer rotor (4) and

drive pin (5) to rear case (6).

3. Clamp

“A”

1

3

1

2, (a)

I5JB0A331047-02

“A”

1

2, (a)

2, (a)

3

I5JB0A331048-03

2

5

6

1

(a)

4

3

I5JB0A331050-01

Transfer: Motor-Shift Type (Transfer with Shift Actuator) 3C-64

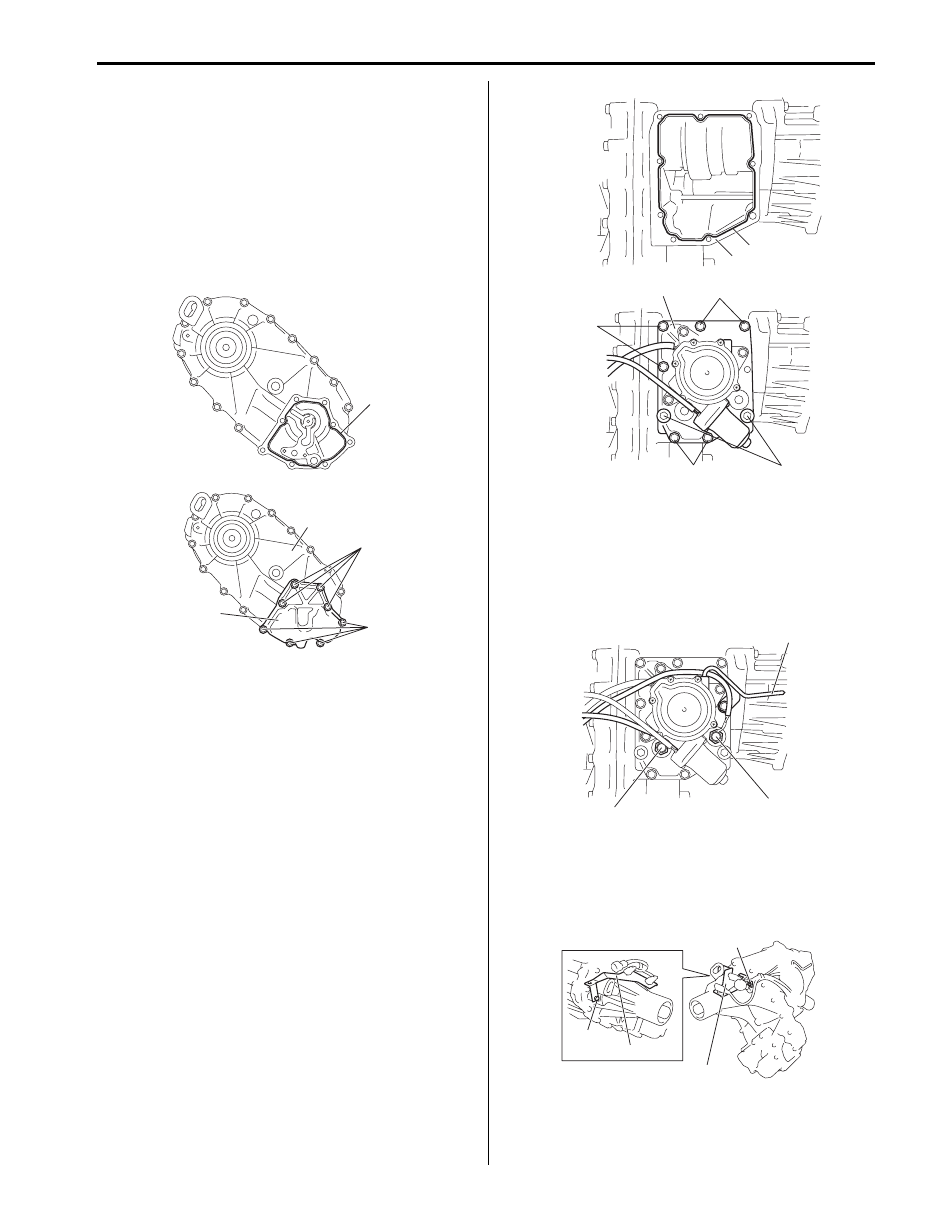

21) Clean mating surface of oil pump cover (1) and rear

case (2), apply sealant to rear case as shown in
figure by such amount that its section is 1.2 mm
(0.047 in.) in diameter, mate oil pump cover with rear
case and then tighten bolts (3) to specified torque.

“A”:  Sealant 99000–31260 (SUZUKI Bond
No.1217G)

Tightening torque
Oil pump cover bolt (a):  23 N·m (2.3 kgf-m, 17.0
lb-ft)

22) Clean mating surface of control cover (1) and center

case (2), apply sealant to center case as shown in
figure by such amount that its section is 1.2 mm
(0.047 in.) in diameter, confirm the each fork of
control cover is in groove of the sleeve, mate control
cover with center case and then tighten control cover
bolts (3) to which thread lock cement has been
applied and control cover dowel bolts (4) to specified
torque.

“A”:  Sealant 99000–31260 (SUZUKI Bond
No.1217G)
“B”:  Thread lock cement 99000–32110 (Thread
Lock Cement Super 1322)

Tightening torque
Control cover bolt (a):  23 N·m (2.3 kgf-m, 17.0 lb-
ft)
Control cover dowel bolt (b):  23 N·m (2.3 kgf-m,
17.0 lb-ft)

23) Install center differential lock switch (1), 4L/N switch

(2) and breather pipe (3).

Tightening torque
Center differential lock switch (a):  20 N·m (2.0
kgf-m, 14.5 lb-ft)
4L/N switch (b):  20 N·m (2.0 kgf-m, 14.5 lb-ft)

24) Install harness bracket (1).

Tightening torque
Harness bracket bolt (a):  10 N·m (1.0 kgf-m, 7.5
lb-ft)

“A”

3, (a)

3, (a)

1

2

I5JB0A331049-02

“A”

2

1

3, “B”, (a)

3, “B”, (a)

3, “B”, (a)

4, “B”, (b)

I5JB0A331051-04

3

2, (b)

1, (a)

I5JB0A331052-02

(a)

(a)

1

1

I5JB0A331053-01

3C-65 Transfer: Motor-Shift Type (Transfer with Shift Actuator)

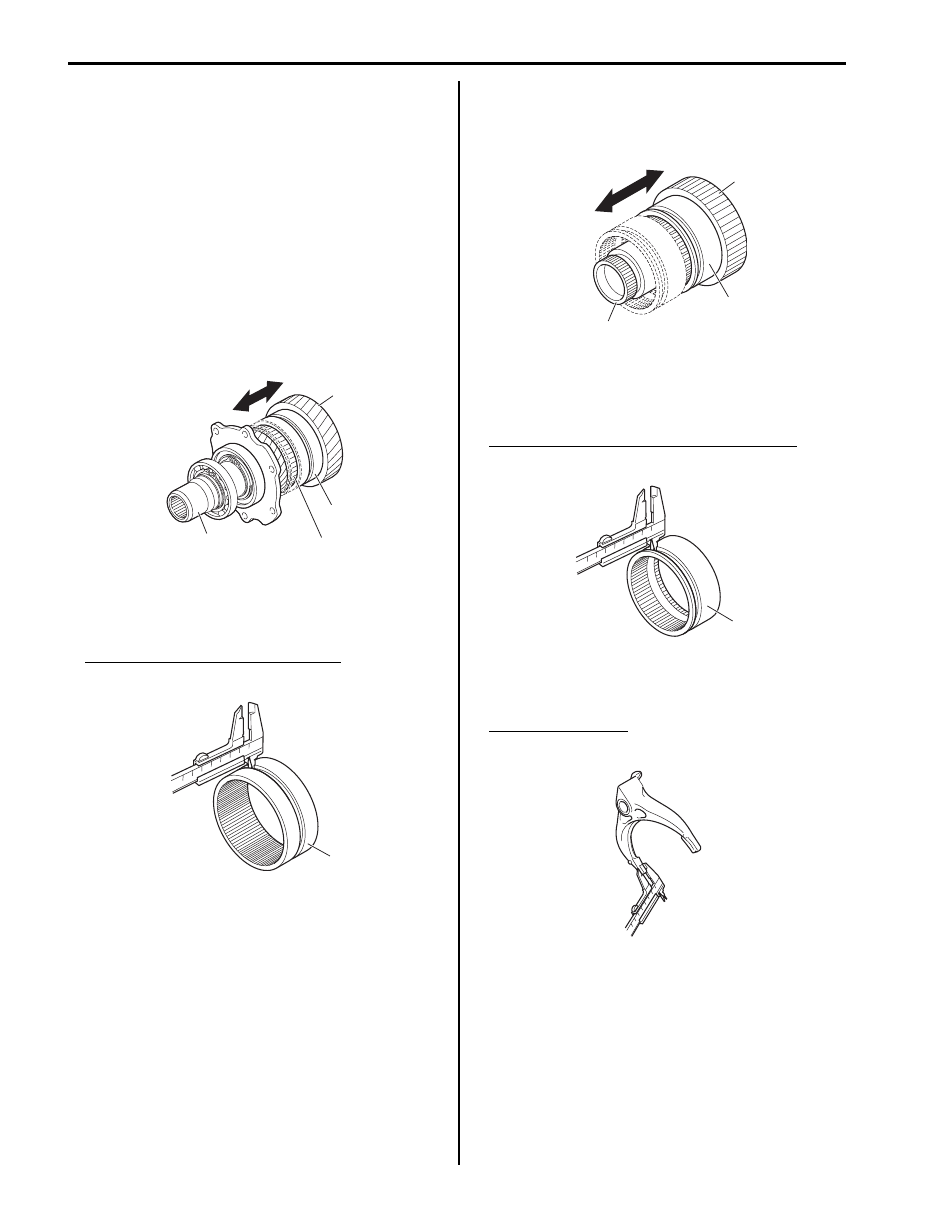

Transfer Assembly Inspection

S5JB0E3316010

• Check needle bearing and bearing contacting surface

for damage. Replace as required.

• Check gear tooth surface and shift mechanism in the

same manner as with transmission. Correct or replace
as necessary.

• Check drive chain and sprockets for abnormal wear or

damage. Replace as required.

• Check transfer control cover assembly for abnormal

wear or damage. Replace control cover assembly.

• Assemble input gear assembly (1), center differential

assembly (2), low gear (3) and reduction shift sleeve
(4), check whether reduction shift sleeve moves
smoothly, and replace it if defect is found.

• Measure the width of groove part of reduction shift

sleeve (1).
If measured value is out of specification, replace
reduction sleeve.

Reduction shift sleeve groove width
: 6.9 – 7.1 mm (0.272 – 0.280 in.)

• Assemble front drive shaft (1), front drive sprocket (2)

and differential lock clutch sleeve (3), check whether
differential lock clutch sleeve moves smoothly, and
replace it if defect is found.

• Measure the width of groove part of differential lock

clutch sleeve (1).
If measured value is out of specification, replace
reduction sleeve.

Differential lock clutch sleeve groove width
: 6.9 – 7.1 mm (0.272 – 0.280 in.)

• Measure thickness of shift fork. If thickness of shift

fork is out of specification, replace control cover
assembly.

Shift fork thickness
: 6.5 – 6.8 mm (0.256 – 0.268 in.)

3

4

2

1

I5JB0A331054-01

1

I5JB0A331055-01

2

3

1

I5JB0A331056-01

1

I5JB0A331057-01

I5JB0A331082-01

Transfer: Motor-Shift Type (Transfer with Shift Actuator) 3C-66

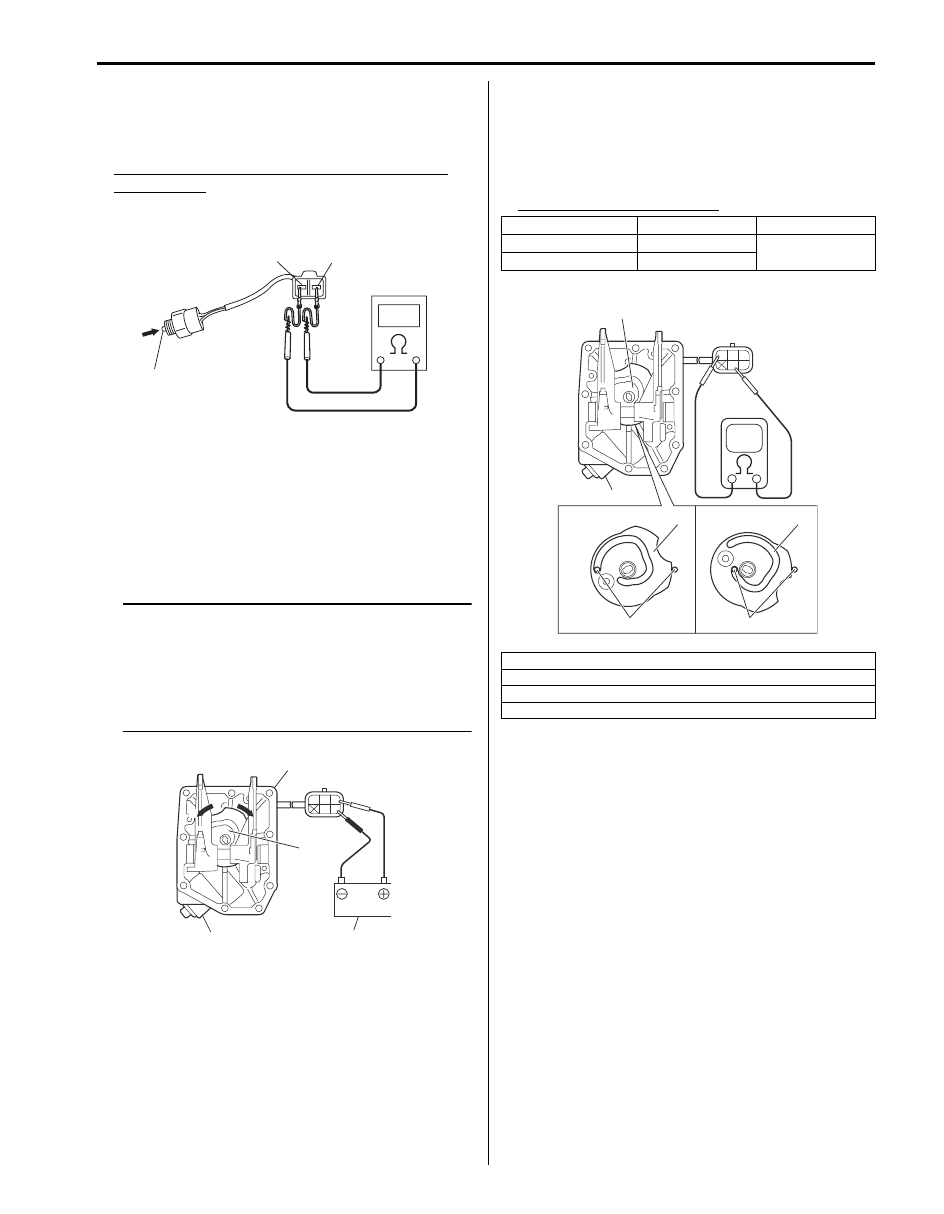

• Check 4L/N switch and center differential lock switch

for continuity between “a” and “b” terminals of switch.
If check result is not as specified below, replace
switch.

4L/N switch and center differential lock switch
specification
Switch button (1) released: Continuity
Switch button (1) kept pushing: No continuity

• Connect terminal “1” of transfer actuator (3) to the

positive of battery (4) and terminal “2” to the negative,
and confirm cam (2) rotates in the direction of A. At
the same time, connect terminal “2” of transfer
actuator (3) to the positive and terminal “1” to the
negative, and confirm it rotates in the direction of B. If
it doesn’t operate correctly, replace transfer actuator
assembly.

NOTE

•  Do not rotate transfer actuator applying

voltage, while transfer actuator removed
from transfer control cover assembly (1).

• Do not apply voltage of the battery in the

direction of rotation limit at rotation limit
position of transfer actuator.



• Operate the motor, and measure the resistance

between following terminals of transfer actuator when
matching transfer actuator (1) to 4H-lock position and
4L-lock position.
If measured value is out of specification, replace
transfer actuator.

Transfer actuator resistance

1

“a”

“b”

I5JB0A331058-01

1

2

1

3

5

4 2

4

3

A

B

I5JB0A331059-01

Transfer position

Terminal

Resistance

4H-lock

4 – 5

385 – 400

4L-lock

3 – 4

[A]: 4H-lock position
[B]: 4L-lock position

2. Cam
3. Shift fork pin

[A]

[B]

3

3

2

2

1

2

1

2

3

5

4

I5JB0A331060-02
