Registration for a PIN code

Steps

Operation

Time from the previous step

1

Turn off the ignition switch.

-

2

Close all doors (including rear gate).

-

3

Press and hold the “ ” button on the access key fob, and press and hold the
rear lock button until a chirp sounds.

-

4

Press and hold the “ ” button on the access key fob until a chirp sounds.

Within 30 seconds

The PIN code is inputted by using the rear lock button within 30 seconds after
the chirp sound of step 4.
For example, to register “32468” as the PIN code, perform the following
procedure.

Within 30 seconds

5

(1)

Press the button three times.

(2)

After a chirp sounds once, press the button twice.

(3)

After a chirp sounds once, press the button four times.

(4)

After a chirp sounds once (ding), press the button six times.

(5)

After a chirp sounds once (ding), press the button eight times.

6

Perform step 5 again within approximately 30 seconds after the chirp starts
sounding intermittently.

-

7

All doors will be unlocked and locked. Then the PIN code will be registered.

-

NOTE

Press the “ ” button within 30 seconds of step 6 to end the preparation mode and move on to the registration stage. Unless the
“ ” button is pressed within 30 seconds after step 6, the PIN code registration will be canceled.

Keyless access with push-button start system

118

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(121,1)

NOTE

.

Press the rear lock button ten times

to enter “0”.
.

Change the PIN code frequently to

protect your vehicle from theft.
.

If you have lent your vehicle to

another person, confirm that the PIN
code has not been changed or deleted.
If the PIN code has been changed or
deleted, reregister a new PIN code.
.

If you make an error during the

registration procedure, press the “ ”
or “

” button on the access key fob.

Then, start over from the procedure
described in “Preparation for register-
ing a PIN code”.
.

To protect your vehicle from theft,

you cannot register a string of the same
five numbers together, such as
“00000”, nor “12345” as a PIN code.
.

Do not register your vehicle license

plate number or simple numbers such
as “11122” or “12121” as a PIN code.
Doing so will increase the risk of
vehicle theft.
.

When you try to register “22222”, the

registered PIN code will be deleted. You
cannot unlock the doors by PIN Code
Access until a new code is registered.
.

After registering a new PIN code,

make sure that you can unlock the
doors using the PIN code.

.

The PIN code cannot be deleted

while the keyless access function is
disabled by operating the access key
fob.
.

Reregister the PIN code in the fol-

lowing cases.

– When you forget the PIN code.
– When you want to change the PIN
code.

!

Unlocking

Perform step 5 described in “Registration
for a PIN code”.

NOTE

.

You cannot unlock by PIN Code

Access in the following cases.

– When the access key fob is within
the operating ranges.
– When the ignition switch is in the
“ACC” or “ON” position.

.

If you make an operation error dur-

ing the unlocking procedure, start over
with the unlocking procedure after
waiting for 5 seconds or longer.
.

To protect your vehicle from theft, a

buzzer will sound if incorrect PIN codes
are entered five times continuously. If
this occurs, you cannot unlock the
doors by PIN Code Access for 5
minutes.

&

Power saving function

The keyless access function will be dis-
abled in the following cases to protect the
access key fob battery and the vehicle
battery.
.

Case 1: When the keyless access

function and the remote keyless entry
system have not been used for 2 weeks
or longer while all doors are locked

Operate one of the following items to
recover the keyless access function:

– Unlock the doors by any procedure
other than gripping the front passen-
ger’s door handle.
– Lock the doors.
– Open a door and then close it.

.

Case 2: When the access key fob has

been left in the operating range for 10
minutes or longer while all doors are
locked

Operate one of the following items to
recover the keyless access function:

– Unlock the doors by gripping the
door handle.
– Unlock the doors by pressing the
rear gate opener button.
– Lock the doors by touching the door
lock sensor.
– Lock or unlock the doors using the

– CONTINUED –

Keyless access with push-button start system

119

2

Keys

and

doors

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(122,1)

remote keyless entry system.
– Lock or unlock the doors using the
power door locking switch.
– Open either of the front doors.

&

Power saving function of ac-
cess key fob

This function stops the access key fob
from receiving signals and helps minimize
the battery consumption of the access key
fob.

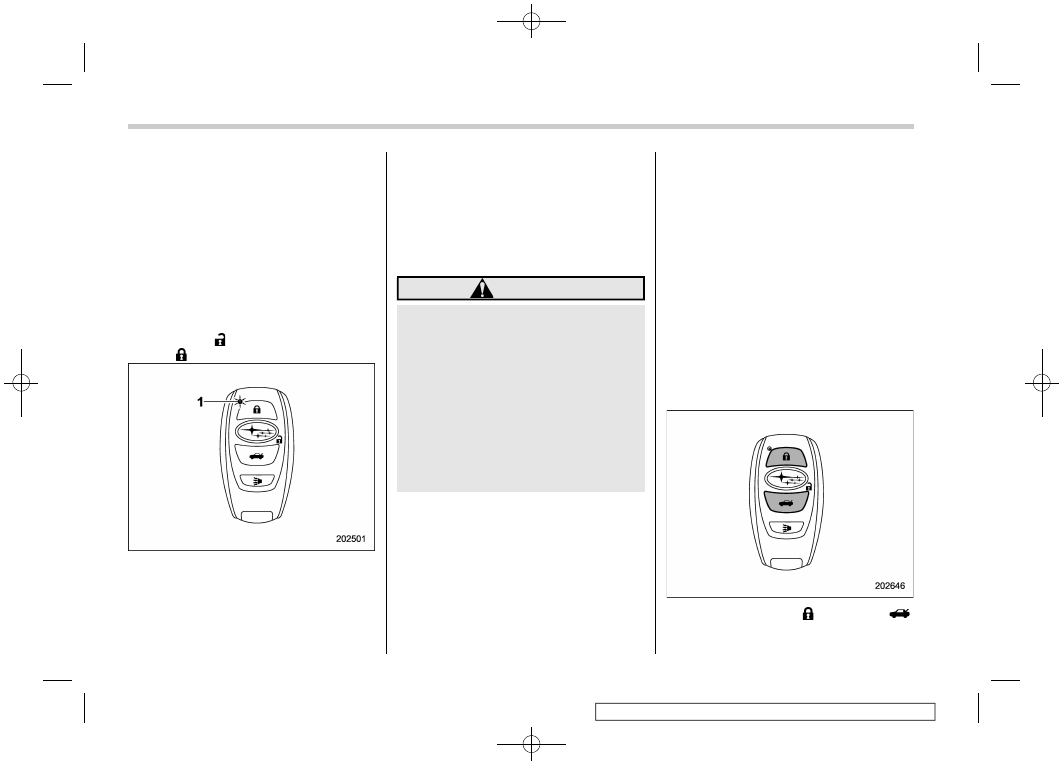

1. Press the “ ” button twice while hold-
ing the “ ” button.

1)

LED indicator

2. Confirm that the LED indicator blinks 4
times to notify that the setting is complete.
When the access key fob is in the power
save mode, the keyless access function

and push-button start system will not be
available.
To cancel the power save mode, press one
of the buttons on the access key fob.

&

Disabling keyless access
function

WARNING

If you wear an implanted pacemaker
or an implanted defibrillator, per-
form the procedure described in
“By operating the driver’s door”
FP121 to disable the keyless access
function. If you perform the proce-
dure described in “By operating the
access key fob”
FP120, the opera-
tion of an implanted pacemaker or
implanted defibrillator may be af-
fected by the radio waves from the
transmitter antenna.

When the vehicle is not going to be used
for a long time or when you choose not to
use the keyless access function, the key-
less access function can be disabled.

NOTE

.

The locking and unlocking function

by the remote keyless entry system is
not disabled.

.

To start the engine while the func-

tions are disabled, perform the proce-
dure described in “Starting engine”
FP428.

!

Disabling functions

!

By operating the access key fob

If you have registered a PIN code for PIN
Code Access, you can disable the keyless
access function by operating the access
key fob. For details about registering a PIN
code, refer to “Unlock using PIN Code
Access” FP117.
1. Open the driver’s door.
2. Rotate the lock lever toward the lock
position.

3. Press and hold the “ ” button and “

button on the access key fob simulta-

Keyless access with push-button start system

120

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(123,1)

neously for more than 5 seconds.

A chirp will sound, and the function will be
disabled.

!

By operating the driver’s door

– CONTINUED –

Keyless access with push-button start system

121

2

Keys

and

doors

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(124,1)

Steps

Operation

Time from the previous step

Driver’s door status

1

Sit in the driver’s seat, and close the door.

-

Close

2

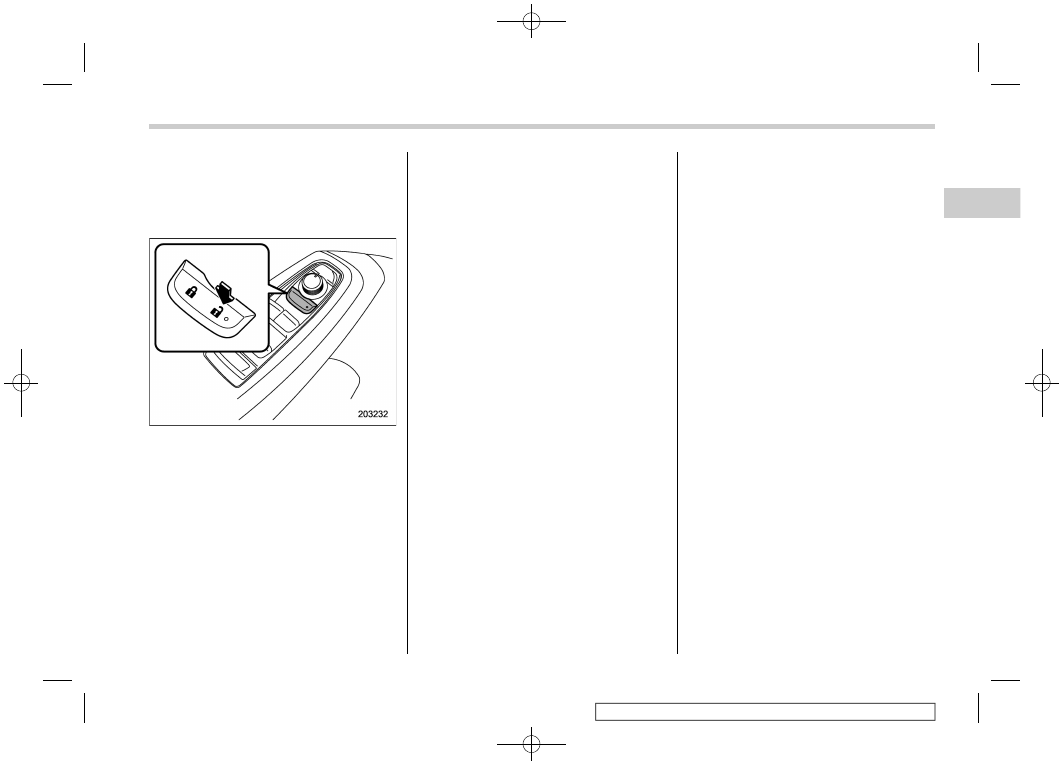

Push “ ” of the power door locking switch.

-

Close

3

Open the driver’s door.

Within 5 seconds

Close?Open

4

Push “ ” of the power door locking switch twice.

Within 5 seconds

Open

5

Close and open the driver’s door twice.

Within 10 seconds

Open?Close?Open?
Close?Open

6

Push “ ” of the power door locking switch twice while
the door is open.

Within 10 seconds

Open

7

Close and open the driver’s door once.

Within 10 seconds

Open?Close?Open

8

Close the door.

Within 5 seconds

Open?Close

A chirp will sound, and the functions will be disabled.

Keyless access with push-button start system

122

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(125,1)

NOTE

In steps 4 and 6, press the power door
locking switch slowly. If the switch is
pressed quickly, the functions may not
be disabled.

!

Enabling functions

When the procedure to disable the func-
tions is performed again, a chirp will
sound, and the functions are enabled.

NOTE

.

The keyless access function will be

enabled only if you perform the proce-
dure in the same manner used to
disable the function (for example, when
disabling by operating the driver’s
door, the function will not be enabled
even if you operate the access key fob).
.

Press the push-button ignition

switch if you do not know the proce-
dure in which the keyless access func-
tion was disabled.

– When disabling by operating the
driver’s door: a chirp will not sound
– When disabling by operating the
access key fob: a chirp will sound

&

Selecting audible signal op-
eration

Using an electronic chirp, the system will
give you an audible signal when the doors
lock and unlock. If desired, you may turn
the audible signal off. For more details,
contact a SUBARU dealer.

NOTE

The setting can be changed by operat-
ing the combination meter display
(color LCD). For details, refer to “Vehi-
cle Setting”
FP196.

&

Warning chimes and warning
indicator

The keyless access with push-button start
system sounds a warning chime and
flashes the access key warning indicator
on the combination meter in order to
minimize improper operations and help
protect your vehicle from theft.
For details, refer to “Warning chimes and
warning indicator of the keyless access
with push-button start system” FP178.

&

When access key fob does
not operate properly

Refer to “Access key fob – if access key
fob does not operate properly” FP427.

&

Replacing battery of access
key fob

Refer to “Replacing battery of access key
fob” FP484.

&

Replacing access key fob

Access key fobs can be replaced by a
SUBARU dealer. For more details, contact
a SUBARU dealer.

&

Certification for keyless ac-
cess with push-button start
system

.

U.S.-spec. models

FCC ID: HYQ14AHK
FCC ID: Y8PSSPIMB02
FCC ID: Y8PFJ16-1

CAUTION

FCC WARNING

Changes or modifications not ex-
pressly approved by the party re-
sponsible for compliance could void
the user’s authority to operate the
equipment.

NOTE

This device complies with part 15 of the

– CONTINUED –

Keyless access with push-button start system

123

2

Keys

and

doors

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(126,1)

FCC Rules. Operation is subject to the
following two conditions: (1) This de-
vice may not cause harmful interfer-
ence, and (2) this device must accept
any interference received, including
interference that may cause undesired
operation.

.

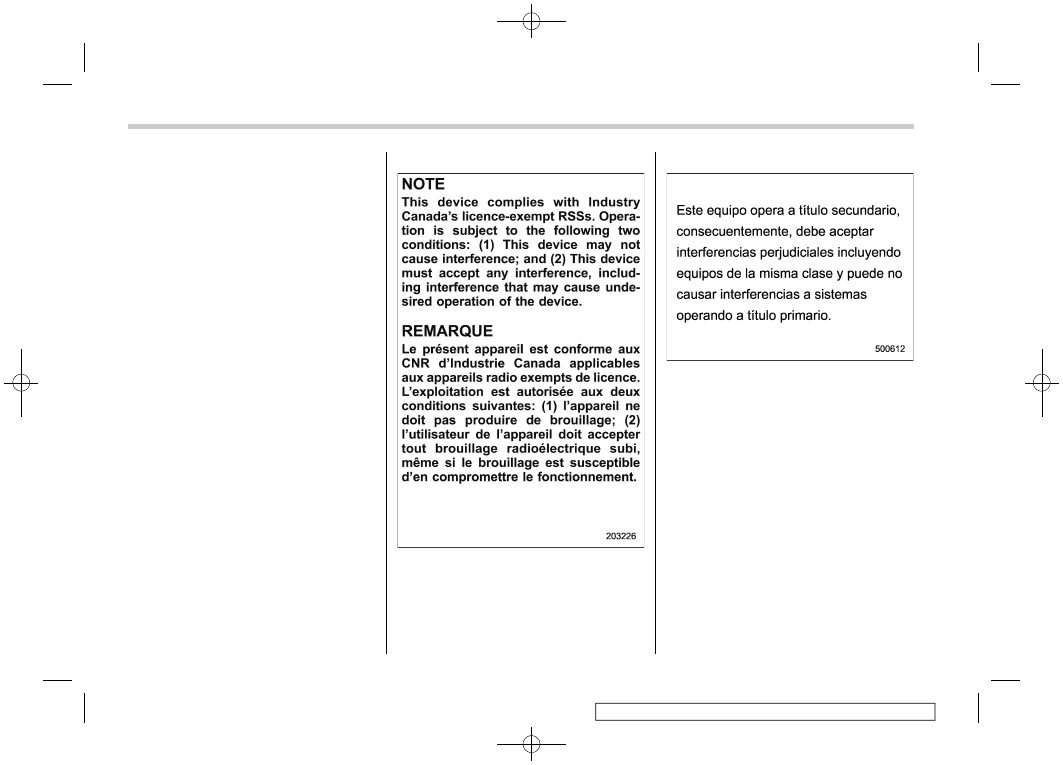

Canada-spec. models

.

Mexico-spec. models

IFT
RLVDE1415-1661
14AHK
DENSO

Keyless access with push-button start system

124

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(127,1)

2-3. Immobilizer

The immobilizer system is designed to
prevent an unauthorized person from
starting the engine. Only keys registered
with your vehicle’s immobilizer system can
be used to operate your vehicle. If engine
start is attempted with an unregistered
access key fob or key, the engine will not
start. Even if the engine does start, it will
stop after a few seconds. This system,
however, is not a 100% anti-theft guaran-
tee.

CAUTION

.

Do not place the key under direct

sunlight or anywhere it may be-
come hot.

.

Do not get the key wet. If the key

gets wet, wipe it dry with a cloth
immediately.

.

Do not modify or remove the

system. If modified or removed,
the proper operation of the sys-
tem cannot be guaranteed.

NOTE

.

To protect your vehicle from theft,

please pay close attention to the follow-
ing security precautions:

– Never leave your vehicle unat-
tended with its keys inside.
– Before leaving your vehicle,
close all windows and the moon-
roof, and lock the doors and rear
gate.
– Do not leave spare keys or any
record of your key number in the
vehicle.

.

The vehicle has a maintenance-free

type immobilizer system.

&

Security indicator light

Refer to “Security indicator light” FP183.

&

Key replacement

Your key number plate will be required if
you ever need a replacement key made.
Any new key must be registered for use
with your vehicle’s immobilizer system
before it can be used. The maximum
number of keys that can be registered for
use with one vehicle is as follows.
.

Four (models without “keyless access

with push-button start system”)
.

Seven (models with “keyless access

with push-button start system”)

One key that has already been registered
is required in order to register a new key.

NOTE

If you lose a key, the lost key’s ID code
still remains in the memory of the
vehicle’s immobilizer system. For se-
curity reasons, the lost key’s ID code
should be erased from the memory. To
erase the lost key’s ID code, all keys
that will be used are required.

For details about new key registration
and erasing the lost key’s ID code,
contact your SUBARU dealer.

&

Certification for immobilizer
system

.

For models with “keyless access

with push-button start system”:
Refer to “Certification for keyless access
with push-button start system” FP123.

– CONTINUED –

Immobilizer

125

2

Keys

and

doors

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content   ..  13  14  15  16   ..
