Subaru Forester (2019). Instruction - part 13





(101,1)

!

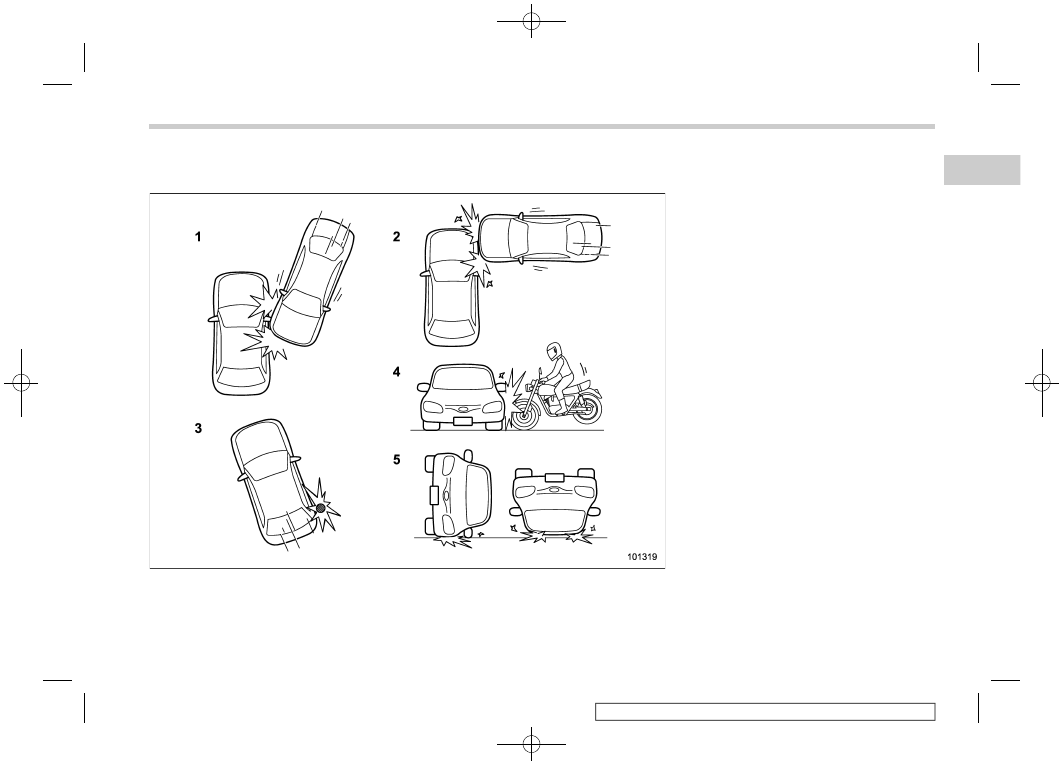

Examples of the types of accidents in which the SRS side airbag is unlikely to deploy.

1)

The vehicle is involved in an oblique side-
on impact.

2)

The vehicle is involved in a side-on
impact in an area outside the vicinity of
the passenger compartment.

3)

The vehicle strikes a telephone pole or
similar object.

4)

The vehicle is involved in a side-on
impact from a motorcycle.

5)

The vehicle rolls onto its side or the roof.

There are many types of collisions which
might not necessarily require SRS side
airbag deployment. In the event of acci-
dents like those illustrated, the SRS side
airbag may not deploy depending on the
level of accident forces involved.

– CONTINUED –

SRS airbag (Supplemental Restraint System airbag)

99

1

Seat,

seatbelt

and

SRS

airbags

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(102,1)

!

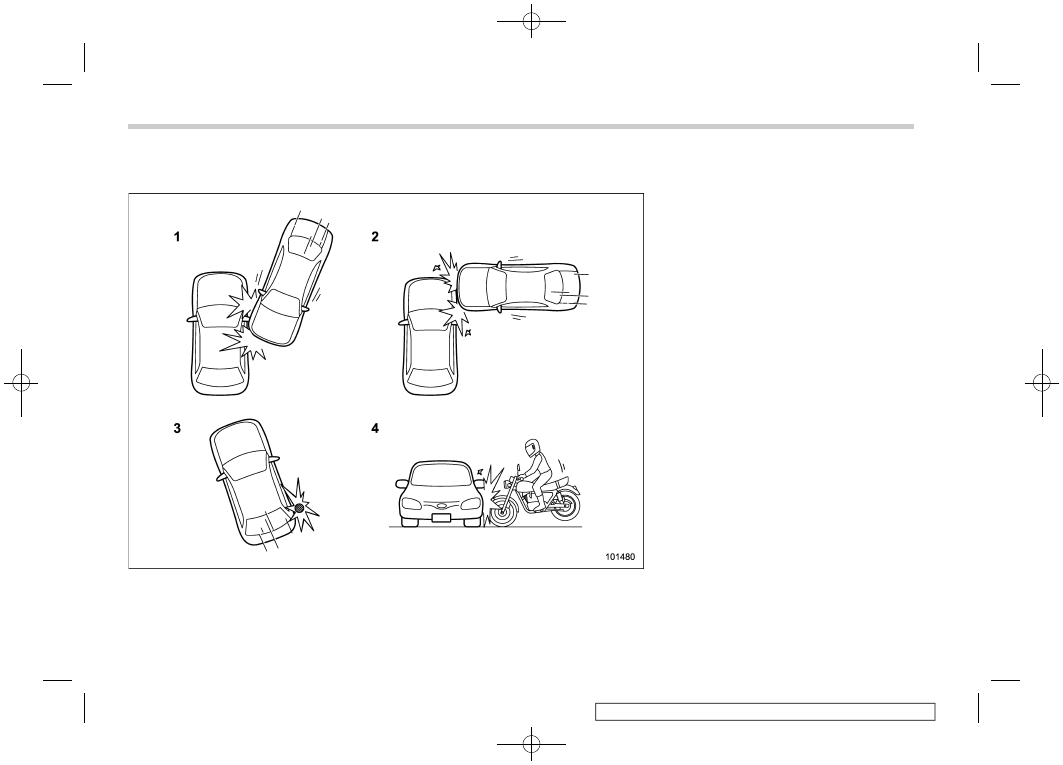

Examples of the types of accidents in which the SRS curtain airbag is unlikely to deploy.

1)

The vehicle is involved in an oblique side-
on impact.

2)

The vehicle is involved in a side-on
impact in an area outside the vicinity of
the passenger compartment.

3)

The vehicle strikes a telephone pole or
similar object.

4)

The vehicle is involved in a side-on
impact from a motorcycle.

There are many types of collisions which
might not necessarily require SRS curtain
airbag deployment. In the event of acci-
dents like those illustrated, the SRS
curtain airbag may not deploy depending
on the level of accident forces involved.

SRS airbag (Supplemental Restraint System airbag)

100

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(103,1)

!

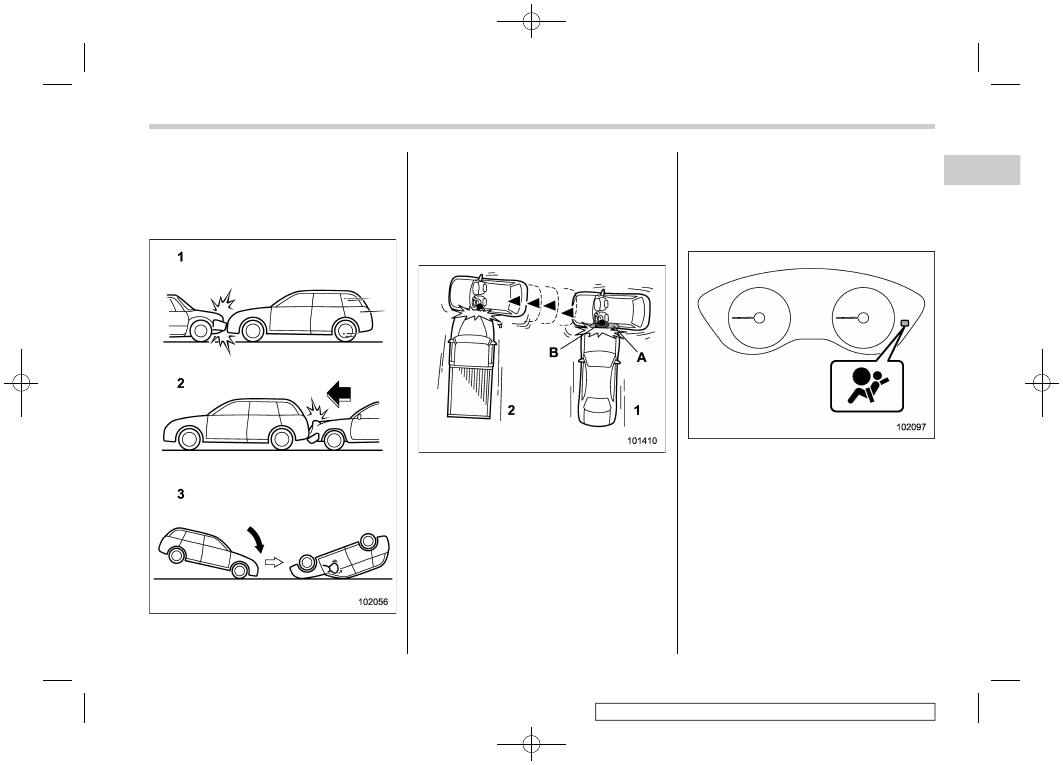

Examples of the types of acci-
dents in which the SRS side
airbag and SRS curtain airbag
are not designed to deploy in
most cases

1)

The vehicle is involved in frontal collision
with another vehicle (moving or station-

ary).

2)

The vehicle is struck from behind.

3)

The vehicle pitches end over end.

In the event of accidents like those
illustrated, the SRS side airbag and SRS
curtain airbag are not designed to deploy
in most cases.

1)

First impact

2)

Second impact

A)

SRS curtain airbag

B)

SRS side airbag

In an accident where the vehicle is struck
from the side more than once, the SRS
side airbag and SRS curtain airbag deploy
only once on the first impact.

Example: In the case of a double side
impact collision, first with one vehicle and
immediately followed by another from the

same direction, once the SRS side airbag
and SRS curtain airbag are activated on
the first impact, they will not be activated
on the second.

&

SRS airbag system monitors

SRS airbag system warning light

A diagnostic system continually monitors
the readiness of the SRS airbag system
(including front seatbelt pretensioners)
with the ignition switch in the “ON” position.
The SRS airbag system warning light will
show normal system operation by illumi-
nating for approximately 6 seconds when
the ignition switch is turned to the “ON”
position.

– CONTINUED –

SRS airbag (Supplemental Restraint System airbag)

101

1

Seat,

seatbelt

and

SRS

airbags

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(104,1)

The following components are monitored
by the indicator:
.

Front impact sensor

– Right-hand side
– Left-hand side

.

Airbag control module (including im-

pact sensor and rollover sensor)
.

Frontal airbag module

– Driver’s side
– Front passenger’s side

.

Knee airbag module (driver’s side)

.

Side impact sensor

– Center pillar right-hand side
– Center pillar left-hand side
– Front door right-hand side
– Front door left-hand side
– Rear wheel house right-hand side
– Rear wheel house left-hand side
– Under the rear center seat

.

Side airbag module

– Driver’s side
– Front passenger’s side

.

Curtain airbag module

– Right-hand side
– Left-hand side

.

Seatbelt pretensioner and adaptive

force limiter

– Driver’s side
– Front passenger’s side

.

Lap belt pretensioner

– Driver’s side
– Front passenger’s side

.

Seatbelt buckle switch (front passen-

ger’s side)
.

Front passenger’s occupant detection

system sensor
.

Front passenger’s occupant detection

control module
.

Front passenger’s frontal airbag ON

and OFF indicator
.

All related wiring

.

Driver’s seat position sensor

.

Passenger’s seat position sensor

.

Rear seatbelt pretensioner

– Right-hand side
– Left-hand side

WARNING

If the warning light exhibits any of
the following conditions, there may
be a malfunction in the seatbelt
pretensioners and/or SRS airbag
system.

.

Flashing or flickering of the warn-

ing light

.

No illumination of the warning

light when the ignition switch is
first turned to the “ON” position

.

Continuous illumination of the

warning light

.

Illumination of the warning light

while driving

Immediately take your vehicle to
your nearest SUBARU dealer to
have the system checked. Unless
checked and properly repaired, the
seatbelt pretensioners and/or SRS
airbag will not operate properly in
the event of a collision, which may
increase the risk of injury.

&

SRS airbag system servicing

WARNING

.

When discarding an airbag mod-

ule or scrapping the entire vehi-
cle damaged by a collision, con-
sult your SUBARU dealer.

.

The SRS airbag has no user-

serviceable parts. Do not use
electrical test equipment on any
circuit related to the SRS airbag
system. For required servicing of
the SRS airbag, consult your
nearest SUBARU dealer. Tamper-
ing with or disconnecting the
system’s wiring could result in
accidental inflation of the SRS
airbag or could make the system
inoperative, which may result in

SRS airbag (Supplemental Restraint System airbag)

102

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(105,1)

serious injury.

CAUTION

If you need service or repair in areas
indicated in the following list, have
the work performed by an author-
ized SUBARU dealer. The SRS air-
bag control module, impact sensors
and airbag modules are stored in
these areas.

.

Under the center of the instru-

ment panel

.

On both the right and left sides at

the front of the vehicle

.

Steering wheel and column and

nearby areas

.

Bottom of the steering column

and nearby areas

.

Top of the dashboard on front

passenger’s side and nearby
areas

.

Each front seat and nearby area

.

Inside each center pillar

.

Inside each front door

.

In each roof side (from the front

pillar to a point over the rear seat)

.

Between the rear seat cushion

and rear wheel house on each

side

.

Under the rear center seat

In the event that the SRS airbag is
deployed, replacement of the system
should be performed only by an author-
ized SUBARU dealer. When the compo-
nents of the SRS airbag system are
replaced, use only genuine SUBARU
parts.

NOTE

In the following cases, contact your
SUBARU dealer as soon as possible.
.

The front part of the vehicle was

involved in an accident in which only
the driver’s SRS frontal airbag or both
driver’s and front passenger’s SRS
frontal airbags did not deploy.
.

The pad of the steering wheel, the

cover over the front passenger’s SRS
frontal airbag, or either roof side (from
the front pillar to a point over the rear
seat) is scratched, cracked, or other-
wise damaged.
.

The center pillar, front door, rear

wheel house or rear sub frame, or an
area near these parts, was involved in
an accident in which the SRS side
airbag and SRS curtain airbag did not
deploy.
.

The fabric or leather of either front

seatback is cut, frayed, or otherwise
damaged.
.

The rear part of the vehicle was

involved in an accident in which no
SRS airbag was deployed.

&

Precautions against vehicle
modification

WARNING

.

To avoid accidental activation of

the system or rendering the sys-
tem inoperative, which may re-
sult in serious injury, no modifi-
cations should be made to any
components or wiring of the SRS
airbag system.

This includes following modifica-
tions.

– Installation of custom steering

wheels

– Attachment of additional trim

materials to the dashboard

– Installation of custom seats

– Replacement of seat fabric or

leather

– Installation of additional fabric

or leather on the front seat

– Attachment of a hands-free

– CONTINUED –

SRS airbag (Supplemental Restraint System airbag)

103

1

Seat,

seatbelt

and

SRS

airbags

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(106,1)

microphone or any other ac-
cessory to a front pillar, a
center pillar, a rear pillar, the
windshield, a side window, an
assist grip, or any other cabin
surface that would be near a
deploying SRS curtain airbag.

– Installation of additional elec-

trical/electronic equipment
such as a mobile two-way
radio on or near the SRS air-
bag system components and/
or wiring is not advisable. This
could interfere with proper
operation of the SRS airbag
system.

– Modifications on or inside the

front door panels for the pur-
pose of a speaker replace-
ment or sound insulation.

.

The impact sensors, which detect

the pressure of an impact, are
located in the doors. Do not
modify any components of the
doors or door trims, such as the
addition of door speakers for
example. Any modifications to
the doors create a risk of the
airbag system becoming inop-
erative or unintended airbag de-
ployment.

CAUTION

Do not perform any of the following
modifications. Such modifications
can interfere with proper operation
of the SRS airbag system.

.

Attachment of any equipment

(bush bar, winches, snow plow,
skid plate, etc.) other than genu-
ine SUBARU accessory parts to
the front end.

.

Modification of the suspension

system or front end structure.

.

Installation of a tire of different

size and construction from the
tires specified on the vehicle
placard attached to the driver’s
door pillar or specified for indivi-
dual vehicle models in this Own-
er’s Instruction.

.

Attachment of any equipment

(side steps or side sill protectors,
etc.) other than genuine SUBARU
accessory parts to the side body.

Always consult your SUBARU dealer if you
want to install any accessory parts on your
vehicle.

&

How to contact the vehicle
manufacturer concerning
modifications for persons
with disabilities that may af-
fect the advanced airbag
system

Changing or moving any parts of the front
seats, rear seat, seatbelts, front bumper,
front side frame, radiator panel, instrument
panel, combination meter, steering wheel,
steering column, tire, suspension or floor
panel can affect the operation of the
SUBARU advanced airbag system. If you
have any questions, you may contact the
following SUBARU distributors.

<Continental U.S., Alaska and the District
of Columbia>
Subaru of America, Inc.
Customer Retailer Services Department
P.O. Box 6000
Cherry Hill, NJ 08034-6000
1-800-SUBARU3 (1-800-782-2783)

<Hawaii>
Subaru Hawaii
2850 Pukoloa Street, Suite 202,
Honolulu, HI 96819-4467
808-839-2273

SRS airbag (Supplemental Restraint System airbag)

104

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(107,1)

<Guam>
Shen’s Corporation dba Prestige Automo-
bile
491, East Marine Corps Drive, Route 1
Dededo, Guam 96921-6225
671-633-2698

<Puerto Rico>
Trebol Motors
P.O. Box 11204, San Juan, Puerto Rico
00910
787-793-2828

<Canada>
Subaru Canada, Inc.
Consumer Support Department
560 Suffolk Court, Mississauga, Ontario
L5R 4J7
1-800-894-4212

There are currently no SUBARU distribu-
tors in any other U.S. territories. If you are
in such an area, please contact the
SUBARU distributor or dealer from which
you bought your vehicle.

SRS airbag (Supplemental Restraint System airbag)

105

1

Seat,

seatbelt

and

SRS

airbags

-------------------------------------------------------------------------------------------------------------------------------------------------------------

(111,1)

2-1. Keys

NOTE

For models with “keyless access with
push-button start system”, refer to
“Keyless access with push-button start
system”
FP110.

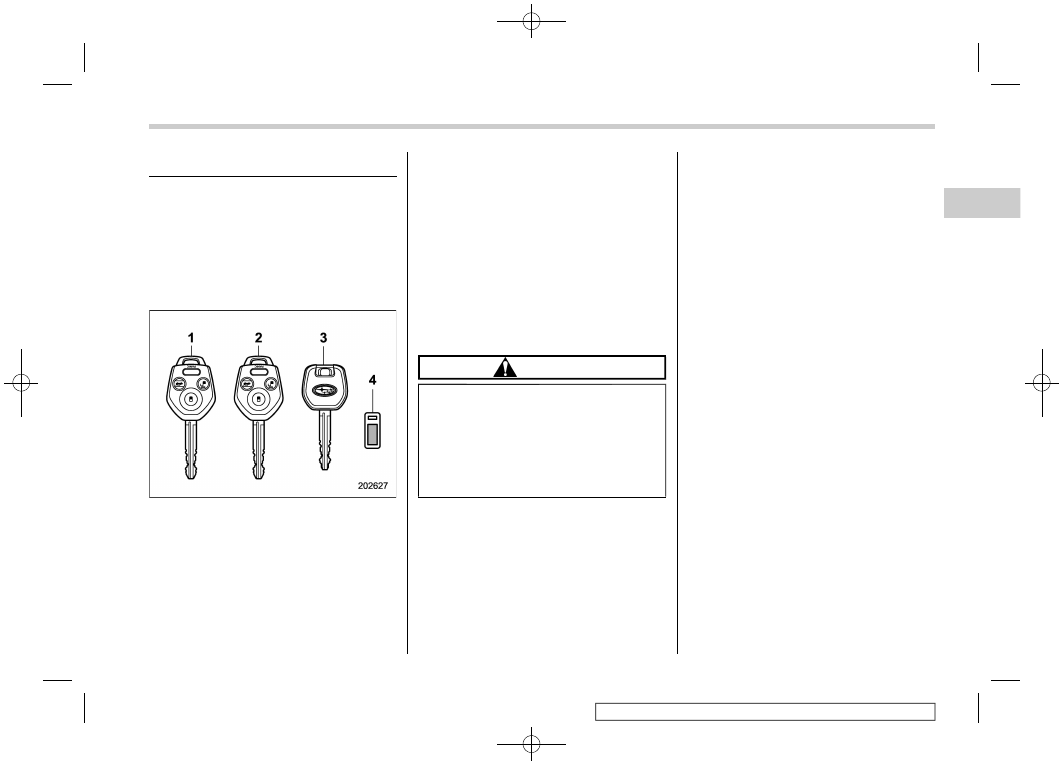

The following keys are provided with the
vehicle.

1)

Master key

2)

Submaster key

3)

Valet key

4)

Key number plate

A key can be used in the following
locations.
.

Ignition switch

.

Driver’s door

.

Glove box

The valet key fits only the ignition switch
and door locks. You can keep the glove
box locked when you leave your vehicle
and valet key at a parking facility.

NOTE

Locking/unlocking using the remote
keyless entry system can also be con-
trolled with the buttons on the key. For
details, refer to “Remote keyless entry
system”
FP127.

CAUTION

Do not attach a large key holder or
key case to either key. If it bangs
against your knees while you are
driving, it could turn the ignition
switch from the “ON” position to
the “ACC” or “LOCK” position,
thereby stopping the engine.

&

Key number plate

The key number is stamped on the key
number plate attached to the key set. Write
down the key number and keep it in
another safe place, not in the vehicle. This
number is needed to make a replacement
key if you lose your key or lock it inside the
vehicle. Refer to “Key replacement”
FP125.

Keys

109

2

Keys

and

doors

-------------------------------------------------------------------------------------------------------------------------------------------------------------















Content   ..  11  12  13  14   ..
