SsangYong Rexton. Service manual - part 659

BODY EXTERIOR 9C-9

SSANGYONG Y200

YAD9C070

YAD9C080

YAD9C090

YAD9C100

REPAIR PROCEDURE

HOOD ASSEMBLY

Removal and Installation

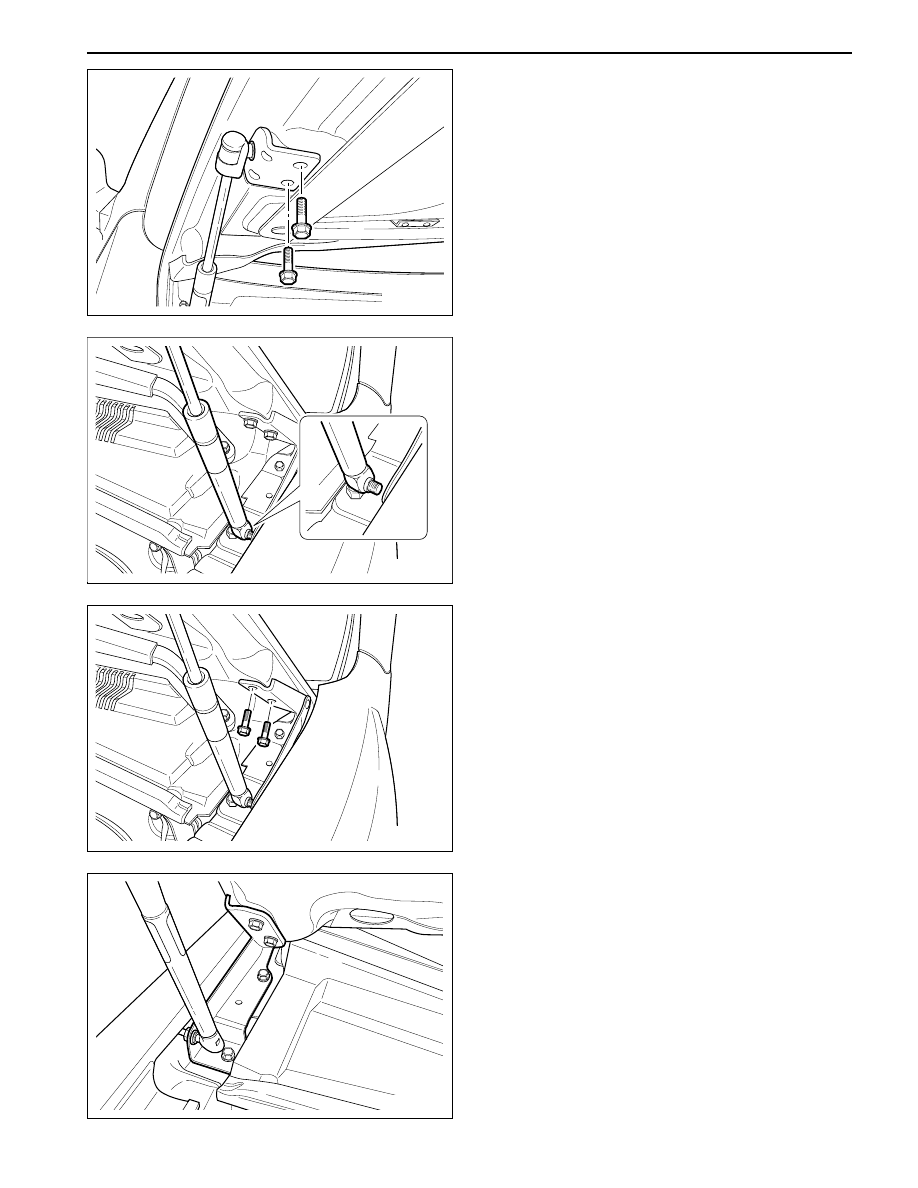

1. Release bolt of fixing bracket of shock absorber

in the hood.

Notice: While fixing bracket of shock absorber is
removed, back up hood, to prevent closing of hood
or use another supporting bar to prevent closing
of hood.

3. Remove hose of wiper washer.

4. After releasing fixing bolt of hood hinge, remove

hood assembly.

2. Remove shock absorber. (Method to remove

shock absorber ; refer to replacement shock
absorber of hood)

5. After releasing fixing bolt of hood hinge, remove

hood hinge.

SSANGYONG Y200

9C-10 BODY EXTERIOR

YAD9C110

YAD9C120

YAD9C130

YAD9C140

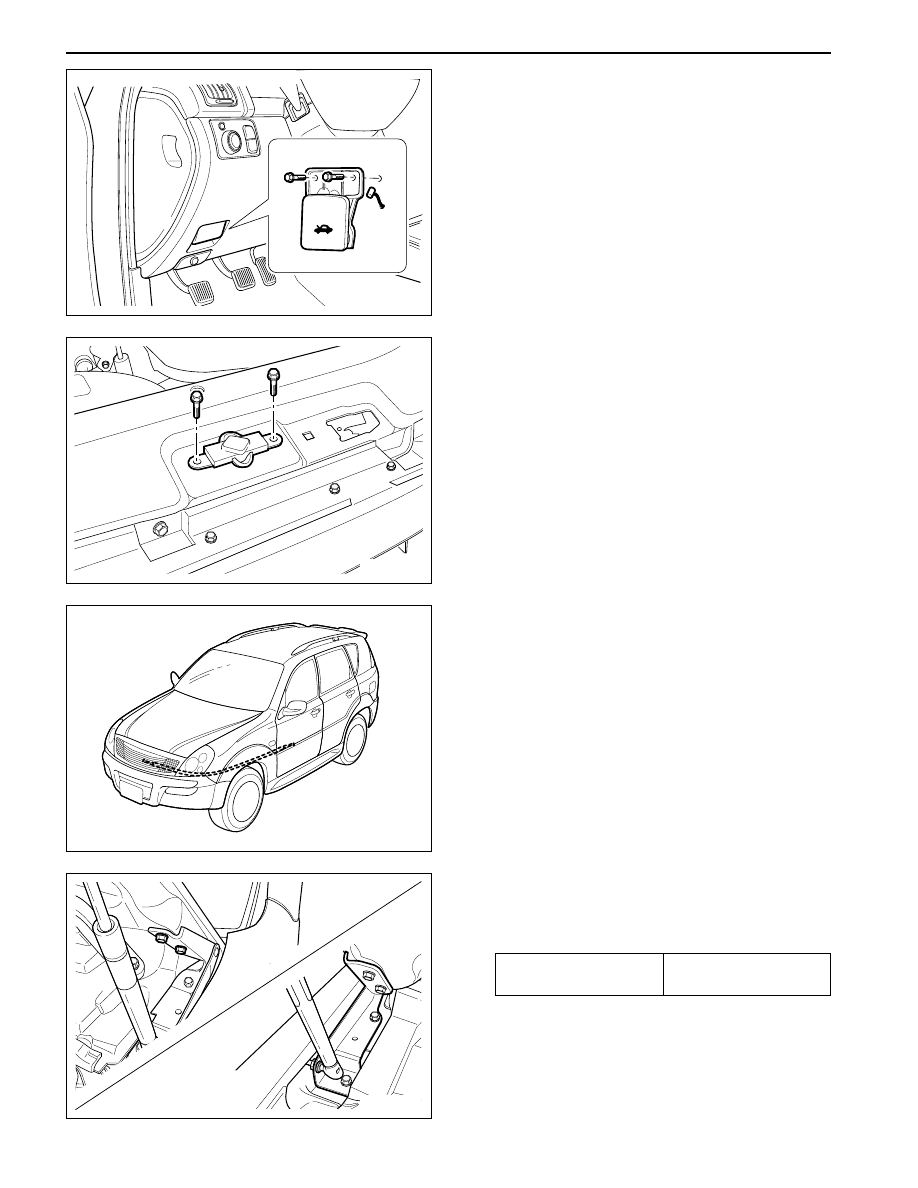

6. Remove hood latch and cable.

1) Remove cable and hood latch lever in the lower

main panel.

2) Push cable removed through groove of body

into direction of engine room.

3) After releasing fixing bolt of hood latch, remove

latch and cable.

4) Remove cable of hood latch.

7. Install the reverse order of removal .

1) After installing hood hinge into body and hood,

tighten fixing bolt  w i t h   t h e   t o r q u e   o f
specification.

Tightening Torque

29 - 39 N•m

(21 - 29 lb-ft)

BODY EXTERIOR 9C-11

SSANGYONG Y200

Bolt of Hood Latch

8 - 11 N•m

(44 - 52 lb-ft)

YAD9C150

YAD9C160

YAD9C170

YAD9C180

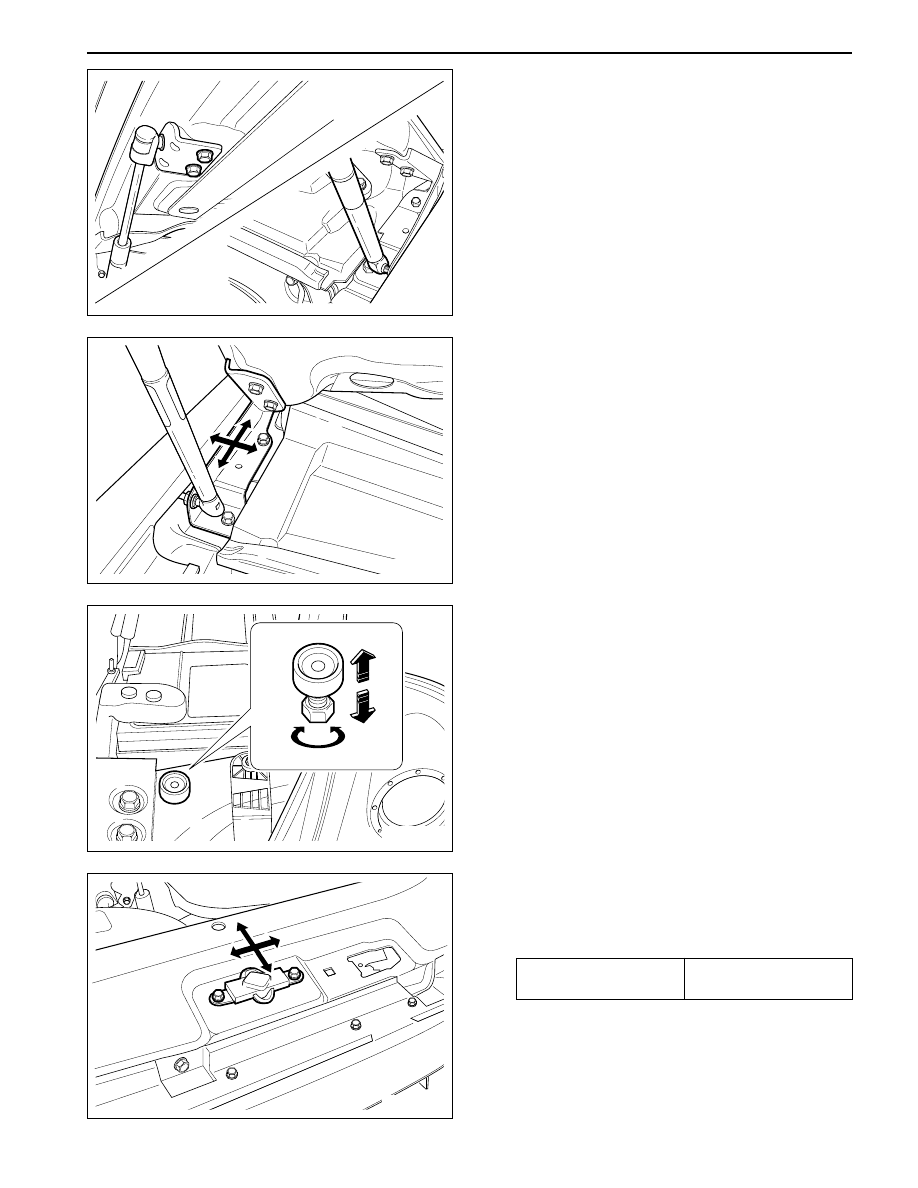

2) Install the shock absorber.

Adjusting Hood Hinge

1. Release little bit fixing bolt of hood hinge.

2. After adjusting hood hinge to forward and

backward, left and right, check whether right
position of hood is installed or not.

Adjusting Hood Latch

1. Install hood latch on the right position, if hood latch

is not installed on the right position, while hood is
installed, hood may distort and be unbalanced.

3. After adjusting over slam bumper, adjust height

of front end of hood.

SSANGYONG Y200

9C-12 BODY EXTERIOR

YAD9C190

YAD9C200

YAD9C210

YAD9C220

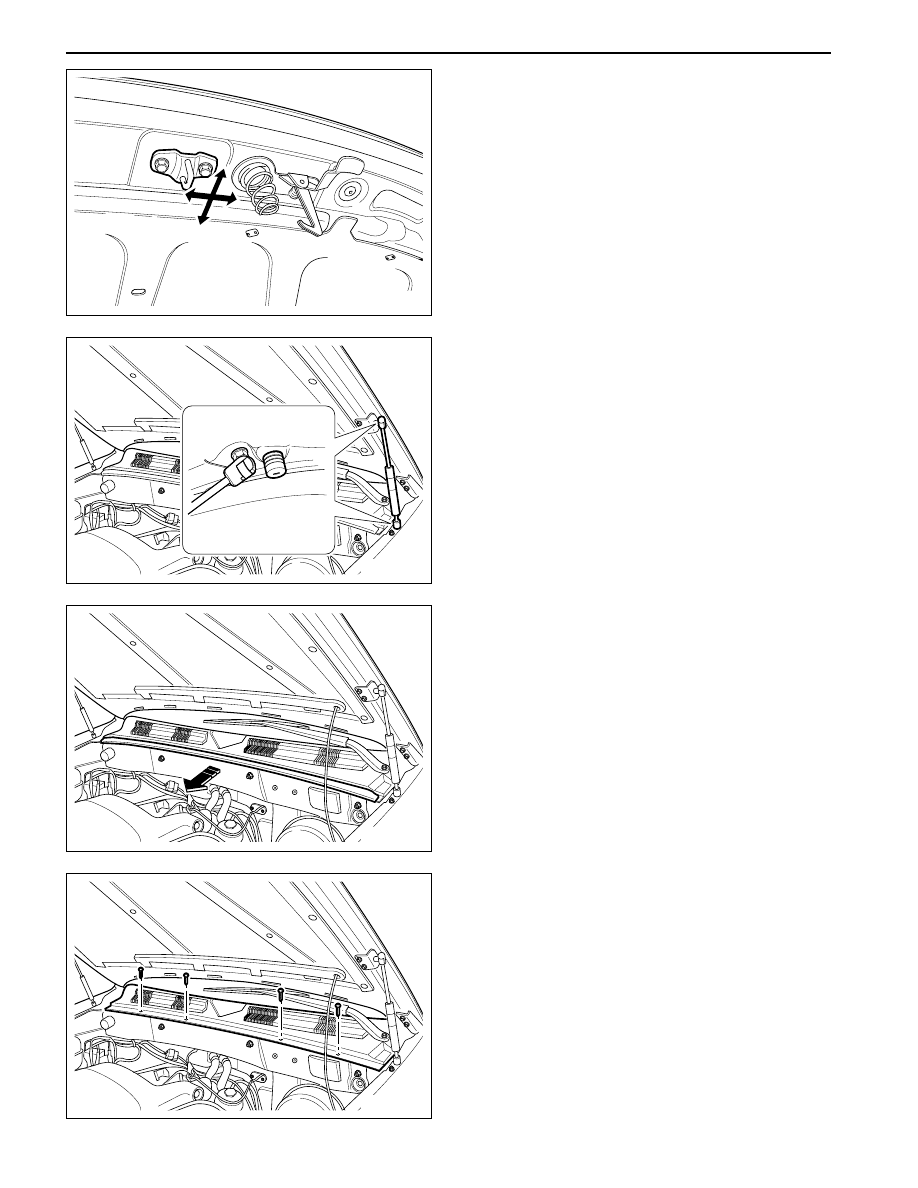

2. Release a little bit fixing bolt of striker.

3. After adjusting position of striker to forward and

backward, left and right, put center of latch.

Replacement Shock Absorber of Hood

1 . After inserting driver on the upper of bending

equipped both end of shock absorber, get the
bending out of shock absorber, and then, remove
shock absorber.

2. Insert shock absorber, until is sounded like a kind

of equipped sound.

COWL GRILL

Removal and Installation

1. Remove wiper arm and fixing nut of wiper in the

right and left. (M8)

2. Remove weather strip.
