SSANGYONG  Y200

7B-6  GENERAL HVAC SYSTEM

;;;

;;;

;;;

;;

;;

;;

;;

;;

;;

;;;

;;;

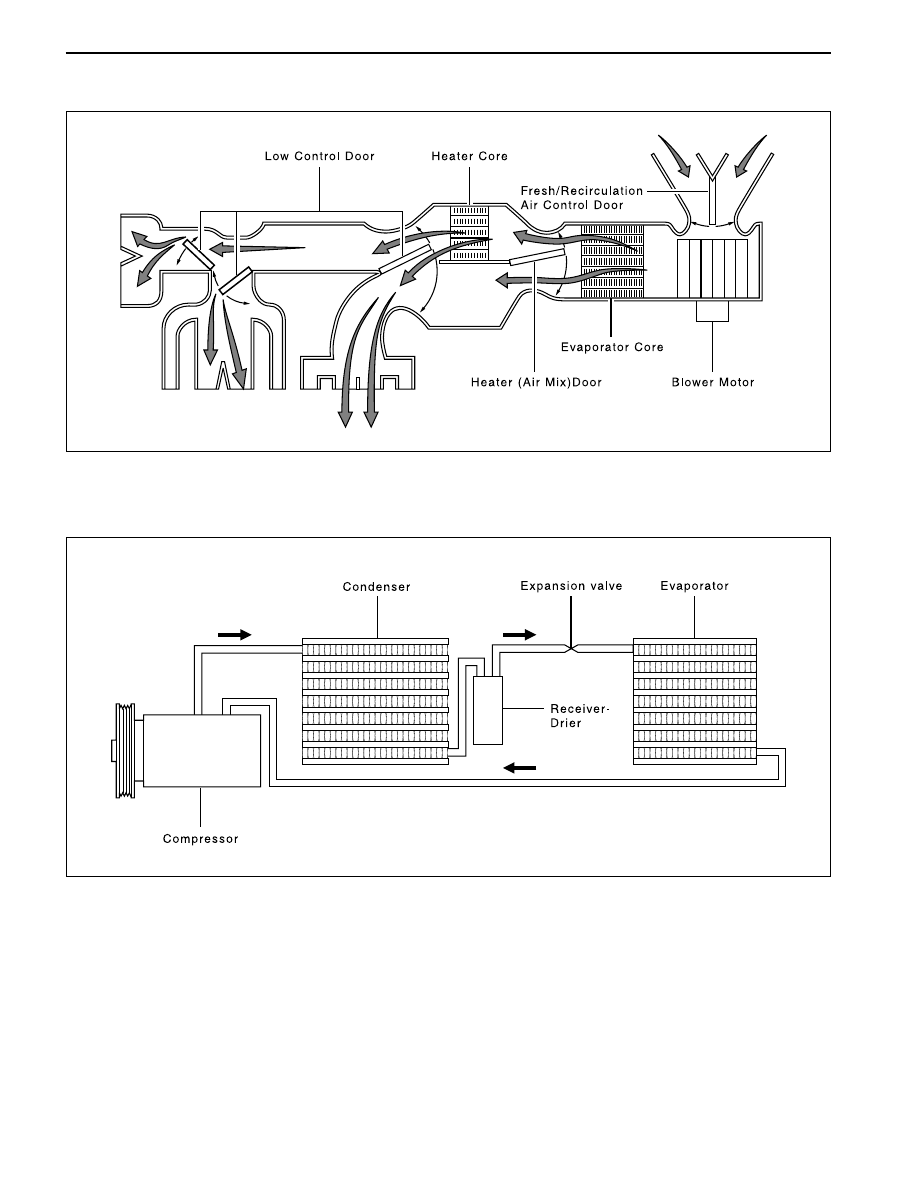

Airflow - Typical

A/C System - Typical

YAD7B020

YAD7B030

GENERAL HVAC SYSTEM  7B-7

SSANGYONG  Y200

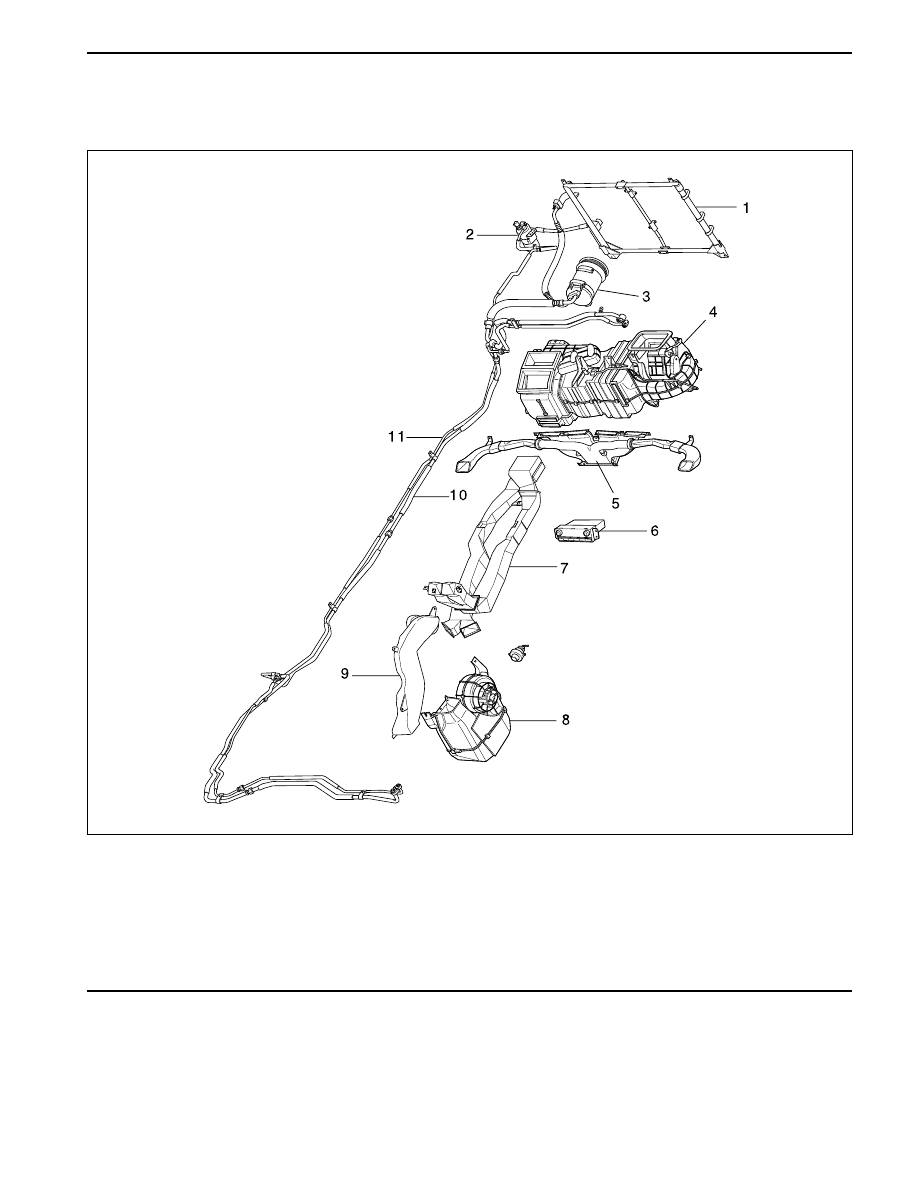

COMPONENT LOCATOR

A/C SYSTEM COMPONENT

1 Condenser
2 Receiver-Drier
3 Compressor
4 A/C & Heater (Blower) Module
5 Defrost Nozzle/Duct
6 Front A/C Controller

7 Rear Duct
8 Rear Cooler Assembly
9 Rear Cooler Duct

10 Suction Rear Pipe Line
11 Liquid Rear Pipe Line
12 Rear Cooler Controller

YAD7B040

SSANGYONG  Y200

7B-8  GENERAL HVAC SYSTEM

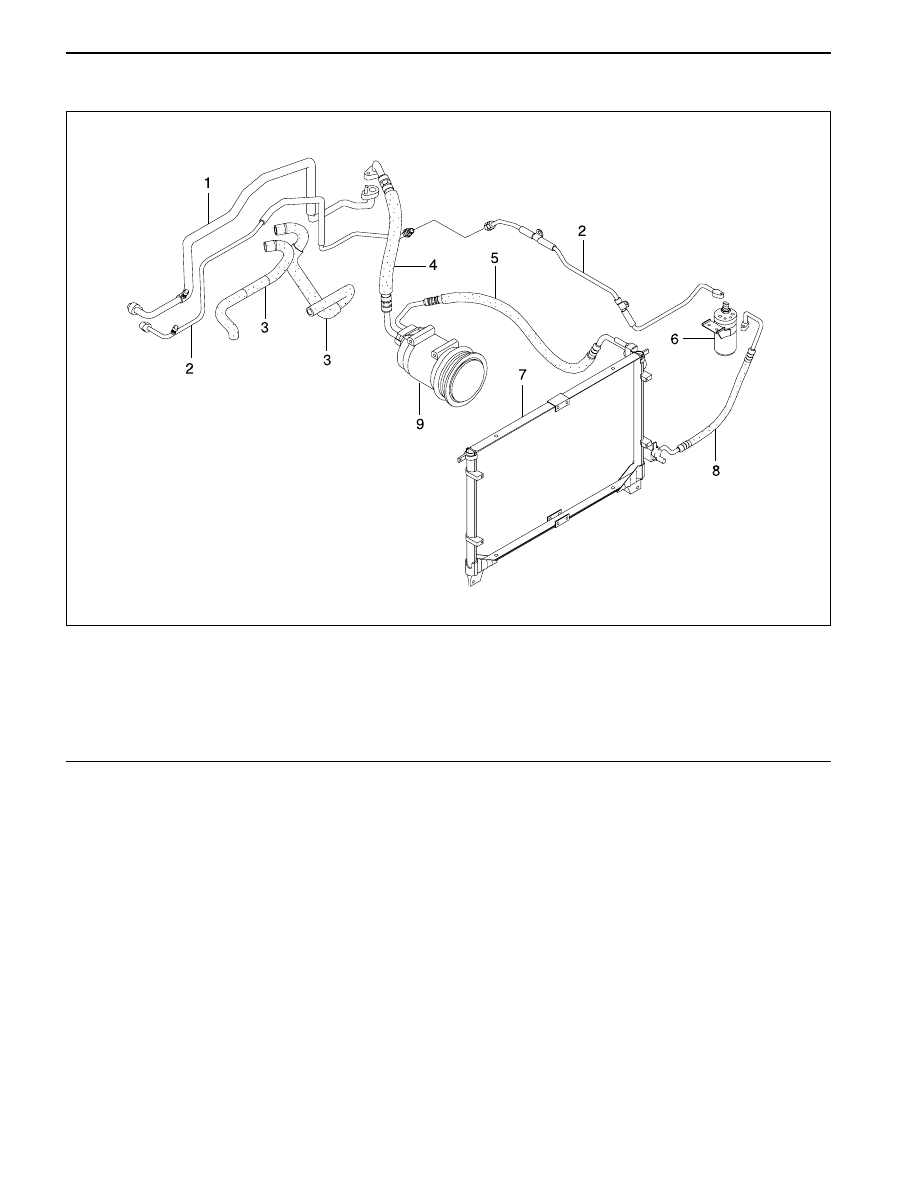

1 High Pressure Pipe
2 Low Pressure Pipe
3 Heater Hose
4 High Pressure Hose And Pipe
5 High Pressure Hose

6 Receiver-Drier
7 Condenser
8 Liquid Hose
9 Compressor

YAD7B330

A/C SYSTEM PIPE LINE

GENERAL HVAC SYSTEM  7B-9

SSANGYONG  Y200

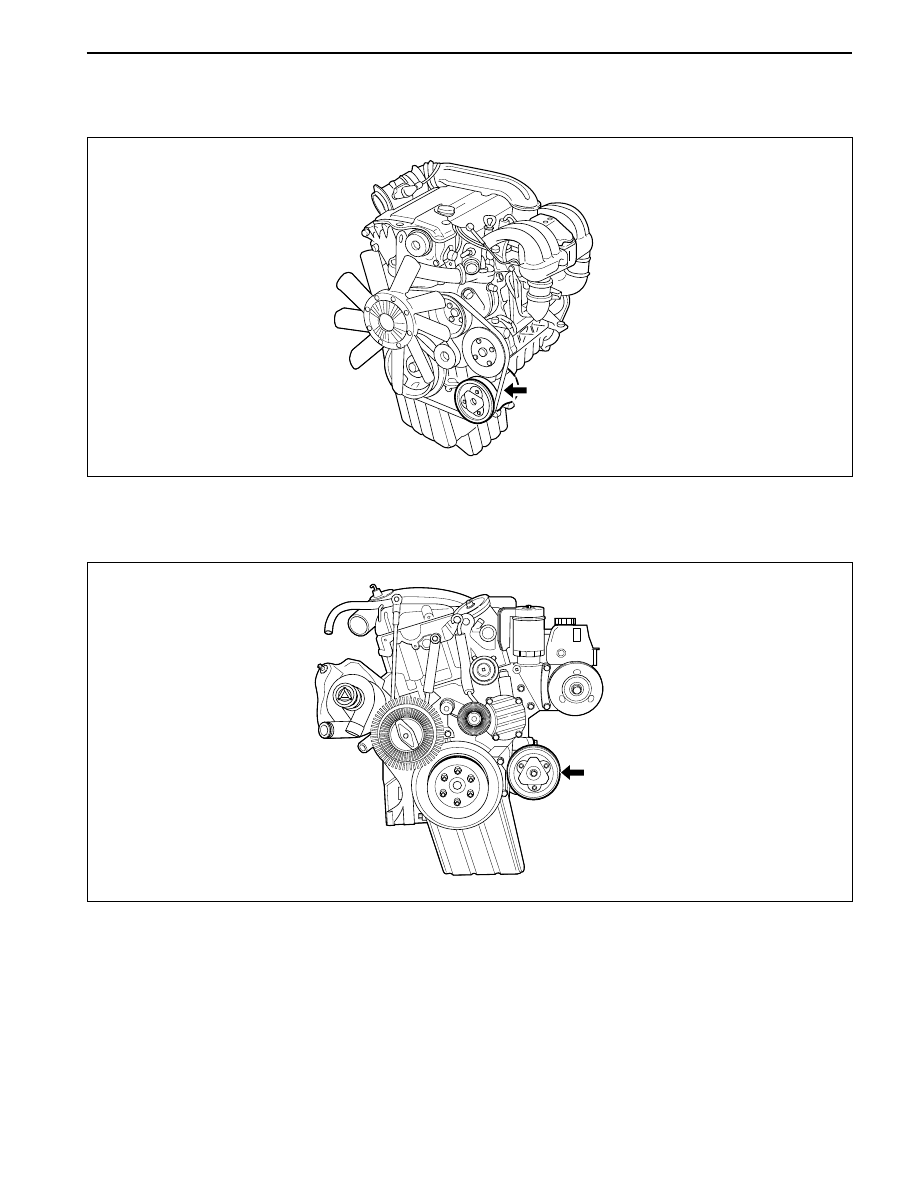

COMPRESSOR LOCATION

Gasoline Engine

Diesel Engine

YAD7B050

YAD7B060
