POWER STEERING  6A-23

SSANGYONG  Y200

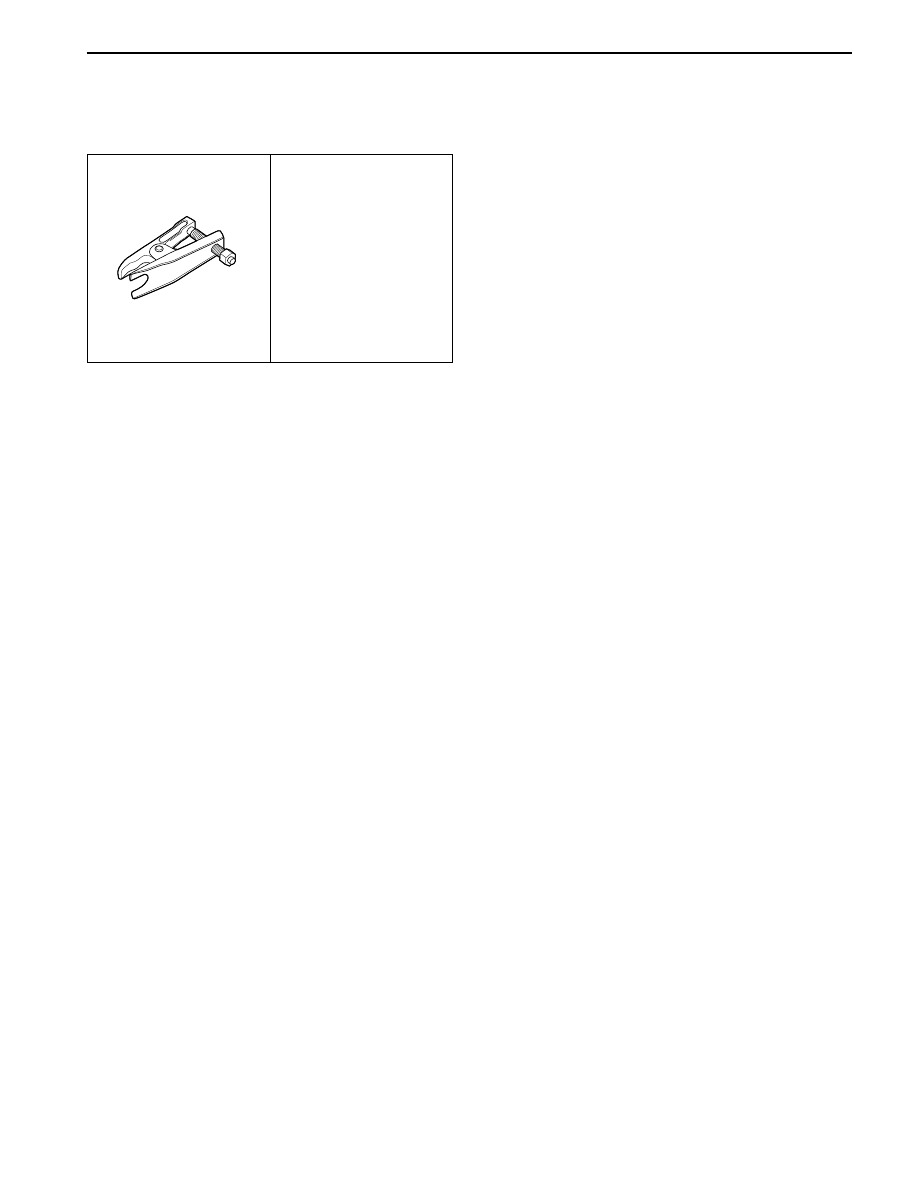

SPECIAL TOOLS AND EQUIPMENT

SPECIAL TOOLS TABLE

Tie Rod End Remover

YAD6A550

SECTION 6E

STEERING COLUMN

TABLE OF CONTENTS

General Description and Operation ............... 6E-2

Steering Wheel ................................................. 6E-2

Column & Shaft Assembly ............................... 6E-2

Lower Shaft ....................................................... 6E-2

Tightening Torque ............................................. 6E-3

Diagnostic Information and Procedures ........ 6E-4

Component  Locator ......................................... 6E-5

Steering Column Assembly .............................. 6E-5

Steering Assembly Cross Section ................... 6E-6

Steering Column & Wheel ................................ 6E-7

Maintenance and Repair .................................. 6E-8

On-Vehicle Service .............................................. 6E-8

Steering Column ............................................... 6E-8

Steering Wheel & Shaft ................................... 6E-11

Unit Repair ........................................................ 6E-15

Steering Gear Box ........................................... 6E-15

Special Tools And Equipment ........................ 6E-16

Special Tools Table ......................................... 6E-16

SSANGYONG  Y200

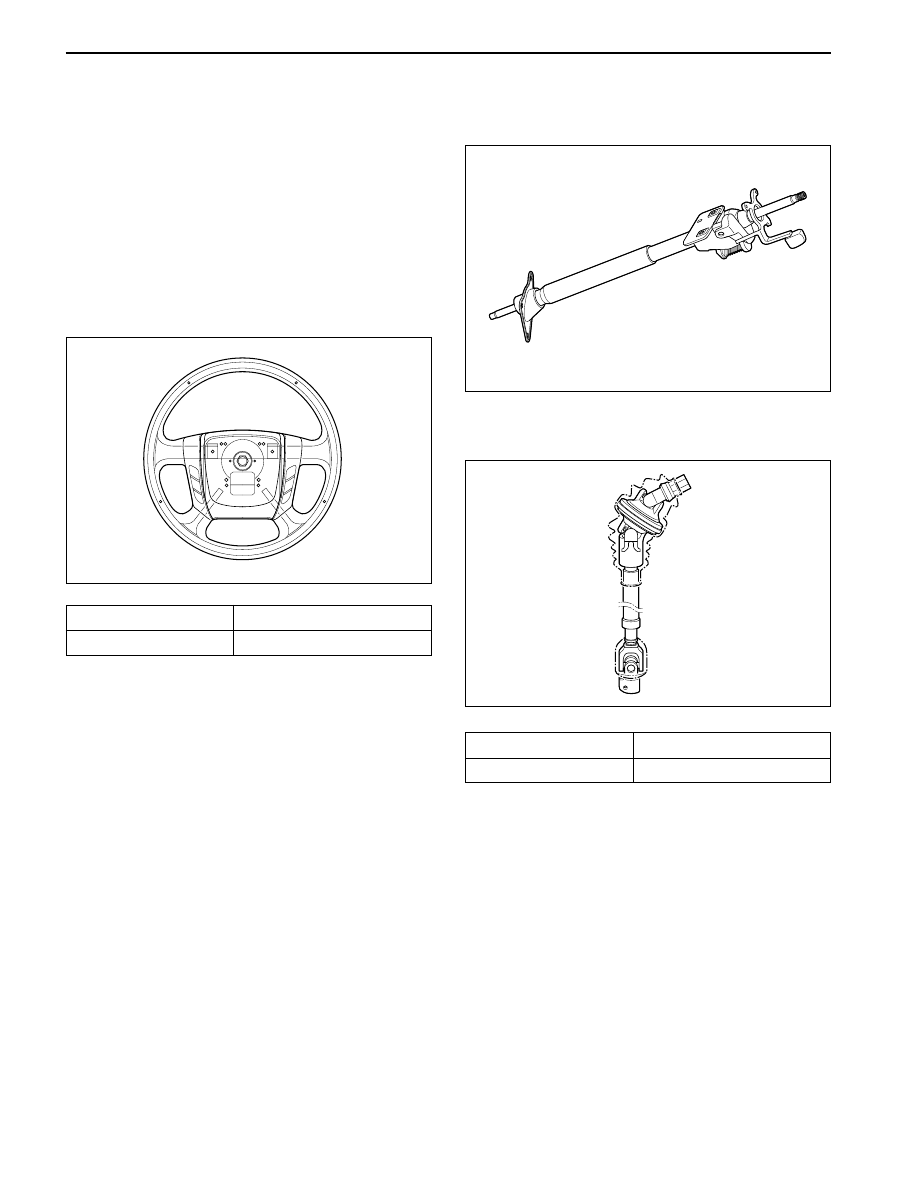

6E-2  STEERING COLUMN

Type

Outer Diameter

The steering wheel and column have the function of
steering. When collidings they soften the impact by
the steering wheel and also are designed in order that
the steering column shaft may be folded or absorb
the impact. The ignition switch and lock cylinder is
installed in steering column. If pulling the ignition
switch in “LOCK” position and draw out the key, as
the lock cylinder installed in column operates, you
cannot steer the vehicle.

STEERING WHEEL

YAD6E020

YAD6E010

YAD6E030

GENERAL DESCRIPTION AND OPERATION

4 Spoke Type

390 mm

The vibration absorbing damper is mounted in steering
wheel in order that the vibration may be minimized.

COLUMN & SHAFT ASSEMBLY

LOWER SHAFT

4 Spoke Type

390 mm

Type

Angle

Because the lower shaft uses the constant velocity
joint which the angular belocity change is not, torque
fluctuation is very little.

STEERING COLUMN  6E-3

SSANGYONG  Y200

TIGHTENING TORQUE

Steering Column Mounting Bolt (upper)

Steering Column Mounting Bolt (lower)

Steering Wheel and Steering Column shaft Lock Nut

Steering Column and Airbag Module Connection Bolt

Steering Column and Lower Shaft Connection Bolt

Steering Gear Box and Gear Box Cross Member

Mounting Bolt

Steering Gear Box and Lower Shaft Connection Bolt

Tie Rod End and Steering Lock Connection Nut

Tie Rod End Lock Nut

Steering Gear Box and Pressure Hose Connection Nut

Steering Gear Box and Return Line Connection Nut

Power Pump Bracket and Timing Gear Case Cover

Mounting Bolt

Power Pump and Pressure Hose Connection Nut

Return Line and Cilp Connection Bolt

20 - 25 N•m (15 - 18 lb-ft)

20 - 25 N•m (15 - 18 lb-ft)

40 - 60 N•m (30 - 44 lb-ft)

7 - 11 N•m (62 - 97 lb-in)

25 - 30 N•m (18 - 22 lb-ft)

70 - 90 N•m (52 - 66 lb-ft)

25 - 30 N•m (18 - 22 lb-ft)

35 - 45 N•m (26 - 33 lb-ft)

65 - 80 N•m (48 - 59 lb-ft)

15 - 20 N•m (11 - 15 lb-ft)

15 - 20 N•m (11 - 15 lb-ft)

20 - 23 N•m (15 - 17 lb-ft)

40 - 50 N•m (30 - 37 lb-ft)

9 - 14 N•m (80 - 124 lb-in)

Item

Steering Column Shaft

Power Steering Gear

Box

Power Steering Pump

Power Steering Line

Torque
