SSANGYONG Y200

4E-30 ABS AND TCS

Check the wiring harnesses and connectors in circuit
from the I/P cluster terminal A6 to terminal 21 of the
EBCM connector.

Is the voltage equal to the specified value?
Repair the open or high resistance.

Is the repair complete?

Check for continuity between terminal 16, 19 of the
ABS connector and ground G106.
Is the continuity equal to the specified value?

Replace the ABS unit.
Is the repair complete?

Repair the continuity between terminal 16, 19 of the
EBCM connector and ground G106.

Is the repair complete?
1. Turn the ignition to LOCK.

2. Check fuse F2 in the I/P fuse block.
Is fuse F2 blown?

Replace fuse F2.

Is the repair complete?
1. Turn the ignition ON.

2. Check the voltage at fuse F2.
Is the voltage equal to the specifies value?

Repair the power supply to fuse F2.

Is the repair complete?
1. Remove the I/P cluster.

2. Check circuit from fuse F2 to terminal 15 of the I/P

cluster connector.

3. Repair any open or high resistance found in a

wiring harness, a splice pack, or a connector.

Is the repair complete?

Electronic Brake-Force Distribution System (EBD) Indicator Lamp Inoperative (Cont’d)

Step

Action

Yes

Value

Go to Step 15

Go to Step 16

∞

Go to Step 20

Go to Step 21

Go to Step 17

Go to Step 18

≈

Ω

System OK

Go to Step 22

Go to Step 23

11 - 14 V

System OK

SSANGYONG Y200

4E-32 ABS AND TCS

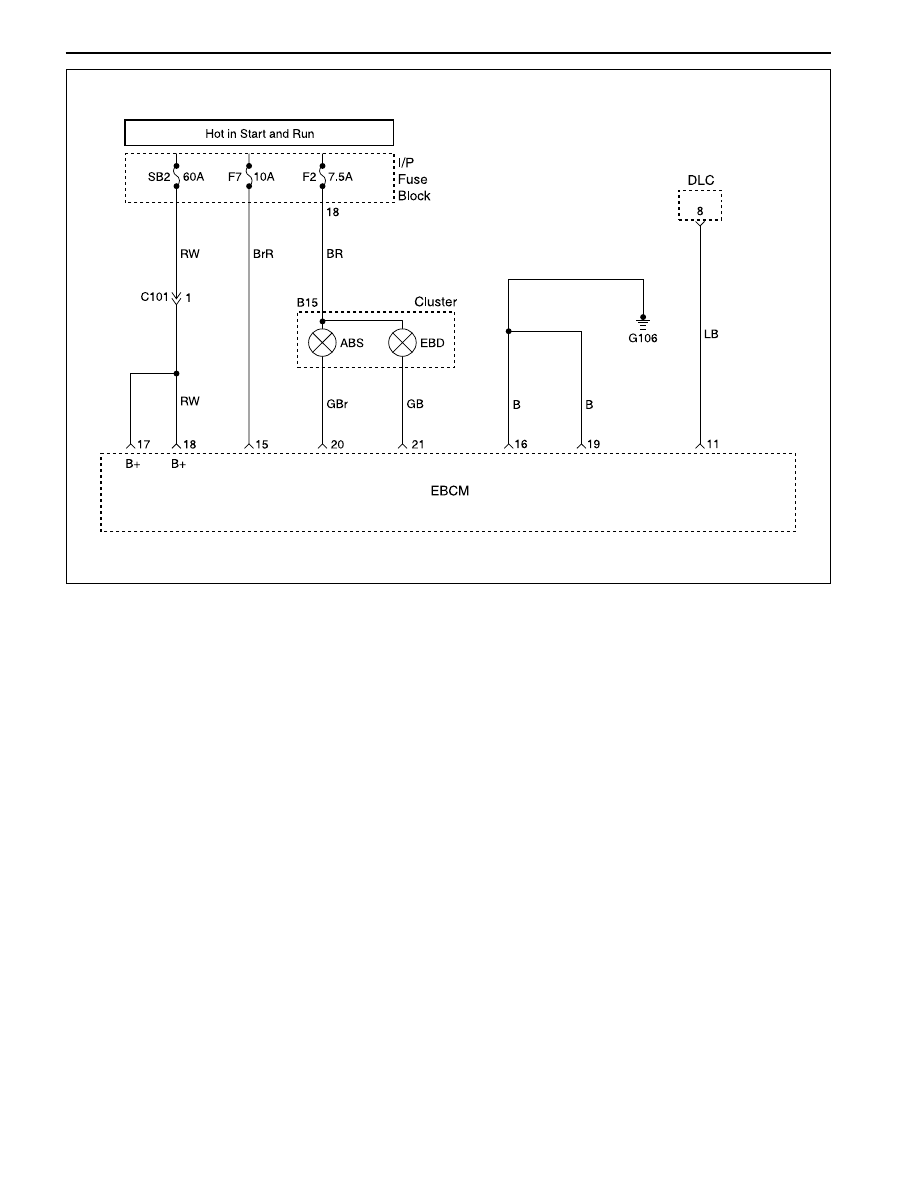

POWER SUPPLY TO CONTROL MODULE, NO DTCS STORED

YAD4E140

Circuit Description

Battery voltage is supplied to the electronic brake
control module (EBCM) through fuse F3 and F2 in the
I/P fuse block, to terminal 15 and 20 of the EBCM
connector. The voltage is present when the ignition
switch is in ON or START.

Diagnosis

This test checks for battery output, proper grounding,
blown fuses, a faulty ignition switch, and problems in
the circuitry.

Cause

•

The battery is defective.

•

There is a defective ground connection.

•

A wire is broken or shorted.

•

A fuse is blown.

•

The ignition switch is malfunctioning.

Action Taken When the DTC Sets

ABS action is disabled during the period of low voltage,
and the ABS warning lamp is ON for the remainder of
the ignition cycle.

Test Description

The number(s) below refer to step(s) on the diagnostic
table.

1. This step determines whether there is voltage at

the battery and the high current source.

7. This step checks for voltage at the ignition 1

source.

Diagnostic Aids

It is very important to perform a thorough inspection
of the wiring and the connectors. Failure to do so may
result in misdiagnosis, causing part replacement with
a reappearance of the malfunction.

ABS AND TCS 4E-33

SSANGYONG Y200

Check the voltage at the battery.

Is the voltage equal to the specified value?
Charge or replace the battery, as required.

Is the repair complete?

Check fuse F7 in the I/P fuse block.
Is the fuse blown?

1. Replace fuse F7.
2. Turn the ignition to ON.

Does the fuse blow again?

Check the ABS function.
Is the repair complete?

1. Turn the ignition to OFF.
2. Remove fuse F7.

3. Disconnect the ABS connector from the EBCM.

4. Measure the resistance to ground at terminals 15.
Does the ohmmeter show the specified value?

Repair the short to ground in circuit between F7 and
the ABS harness EBCM connector.
Is the repair complete?

1. Turn the ignition to ON.

2. Check the voltage at fuse F2.
Is the voltage equal to the specified value?

Repair the power supply to fuse 2.

Is the repair complete?
Check fuse F2 in the I/P fuse block.

Is the fuse F2 blown?
1. Replace fuse F2.

2. Turn the ignition to ON.

Does the fuse blow again?
Check the ABS function.

Is the repair complete?
1. Turn the ignition to OFF.

2. Remove fuse F2.

3. Disconnect the ABS connector from the EBCM.
4. Measure the resistance between ground and

terminal 20.

Is the resistance equal to the specified value?
Repair the short to ground in circuit fuse F2 of the I/P
fuse block and terminal 20 of the ABS harness EBCM
connector.

Is the repair complete?

1. Disconnect the EBCM connector from the EBCM.
2. Turn the ignition to ON.

3. Check for the presence of battery voltage between

ground and terminal 17, 18.

Is the voltage equal to the specified value?

Power Supply to Control Module, No DTCs Stored

Step

Action

Yes

Value

Go to Step 4

Go to Step 8

Go to Step 6

Go to Step 5

Go to Step 7

Go to Step 26

≈

Ω

System OK

Go to Step 14

Go to Step 18

System OK

Go to Step 14

Go to Step 13

≈

Ω

System OK

Go to Step 3

Go to Step 2

11 - 14 V

System OK

Go to Step 10

Go to Step 9

11 - 14 V

Go to Step 13

Go to Step 12

System OK

Go to Step 10

Go to Step 9

11 - 14 V

SSANGYONG Y200

4E-34 ABS AND TCS

1. Turn the ignition switch to OFF.

2. Trace the RW wires between terminal 15 of the

EBCM connector to fuse F7 of the I/P fuse block.

3. Repair the open in this circuit.

Is the repair complete?

Check the voltage between ground and terminal 20 of
the EBCM connector.
Is the voltage equal to the specified value?

1. Turn the ignition switch to OFF.
2. Check the resistance between ground and

terminals 16 of the EBCM connector.

Is the resistance equal to the specified value?

1. Turn the ignition to OFF
2. Check the resistance between ground and

terminals 16 of the EBCM connector.

Is the resistance equal to the specified value?
Examine terminals 15, 20, 16 of the EBCM connector.

Is there a defective terminal?

Repair the defective terminal or replace the connector
or wiring harness, as required.
Is the repair complete?

Replace the ABS unit.
Is the repair complete?

Repair the defective ground connection.

Is the repair complete?

Power Supply to Control Module, No DTCs Stored (Cont’d)

Step

Action

Yes

Value

Go to Step 20

Go to Step 23

≈

Ω

Go to Step 19

Go to Step 18

11 - 14 V

System OK

Go to Step 21

Go to Step 22

System OK
