ABS AND TCS  4E-11

SSANGYONG  Y200

Pressure Hold

1 Master Cylinder
2 Hydraulic Modulator
3 Damper
4 Pump
5 Pump Motor

YAD4E080

6 Accumulator
7 Inlet Valve for each wheel
8 Outlet Valve for each wheel
9 Front Wheel

10 Rear Wheel

SSANGYONG  Y200

4E-12  ABS AND TCS

Pressure Decrease

1 Master Cylinder
2 Hydraulic Modulator
3 Damper
4 Pump
5 Pump Motor

YAD4E090

6 Accumulator
7 Inlet Valve for each wheel
8 Outlet Valve for each wheel
9 Front Wheel

10 Rear Wheel

ABS AND TCS  4E-13

SSANGYONG  Y200

1 Master Cylinder
2 Hydraulic Modulator
3 Damper
4 Pump
5 Pump Motor
6 Accumulator
7 Inlet Valve for each wheel

ABS/TCS 5.3

Pressure Increase

YAD4E100

8 Outlet Valve for each wheel
9 Wheel

10 Prime Valve
11 Pilot Valve
12 Check Valve
13 ISD (Integrated Suction Damper)

SSANGYONG  Y200

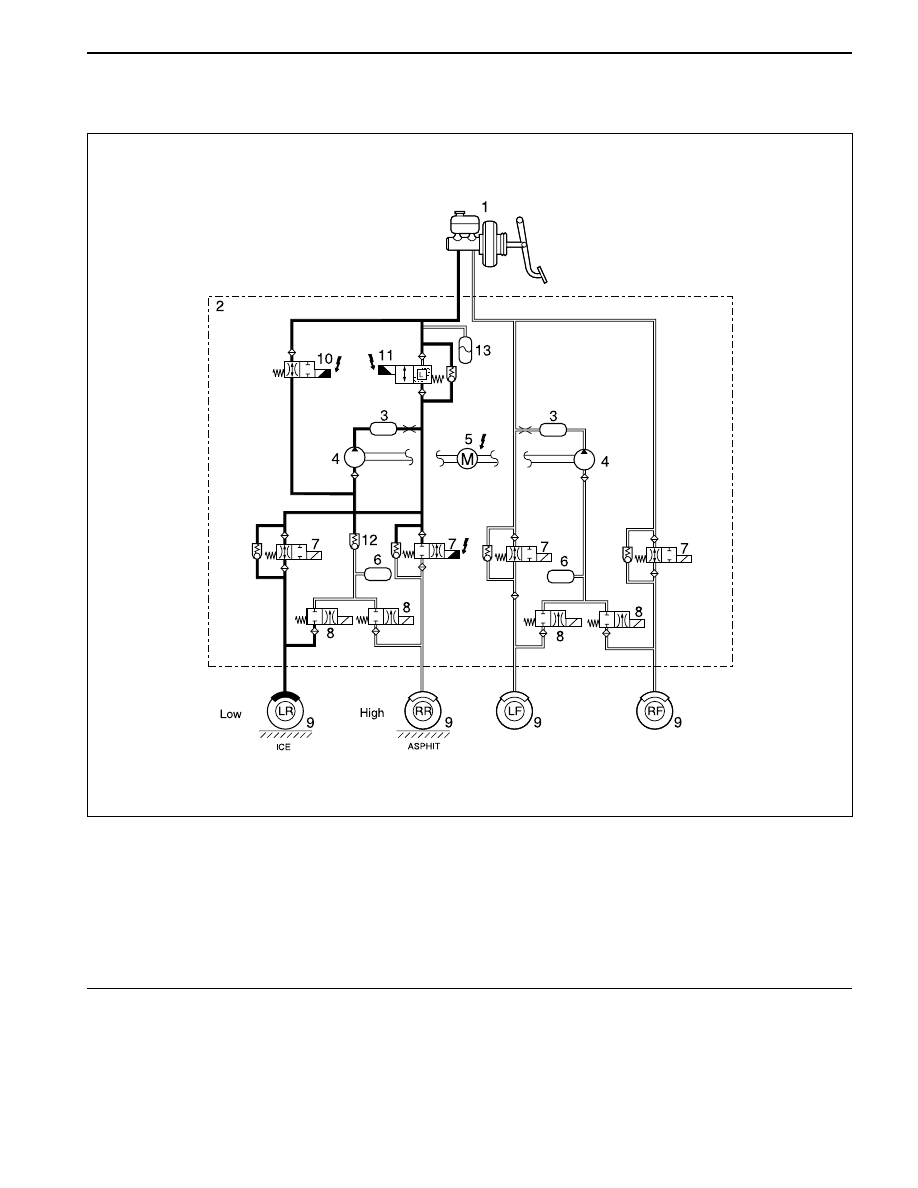

4E-14  ABS AND TCS

1 Master Cylinder
2 Hydraulic Modulator
3 Damper
4 Pump
5 Pump Motor
6 Accumulator
7 Inlet Valve for each wheel

Pressure Hold

YAD4E110

8 Outlet Valve for each wheel
9 Wheel

10 Prime Valve
11 Pilot Valve
12 Check Valve
13 ISD (Integrated Suction Damper)
