FRONT BRAKE  4B-9

SSANGYONG  Y200

YAD4B120

YAD4B130

YAD4B140

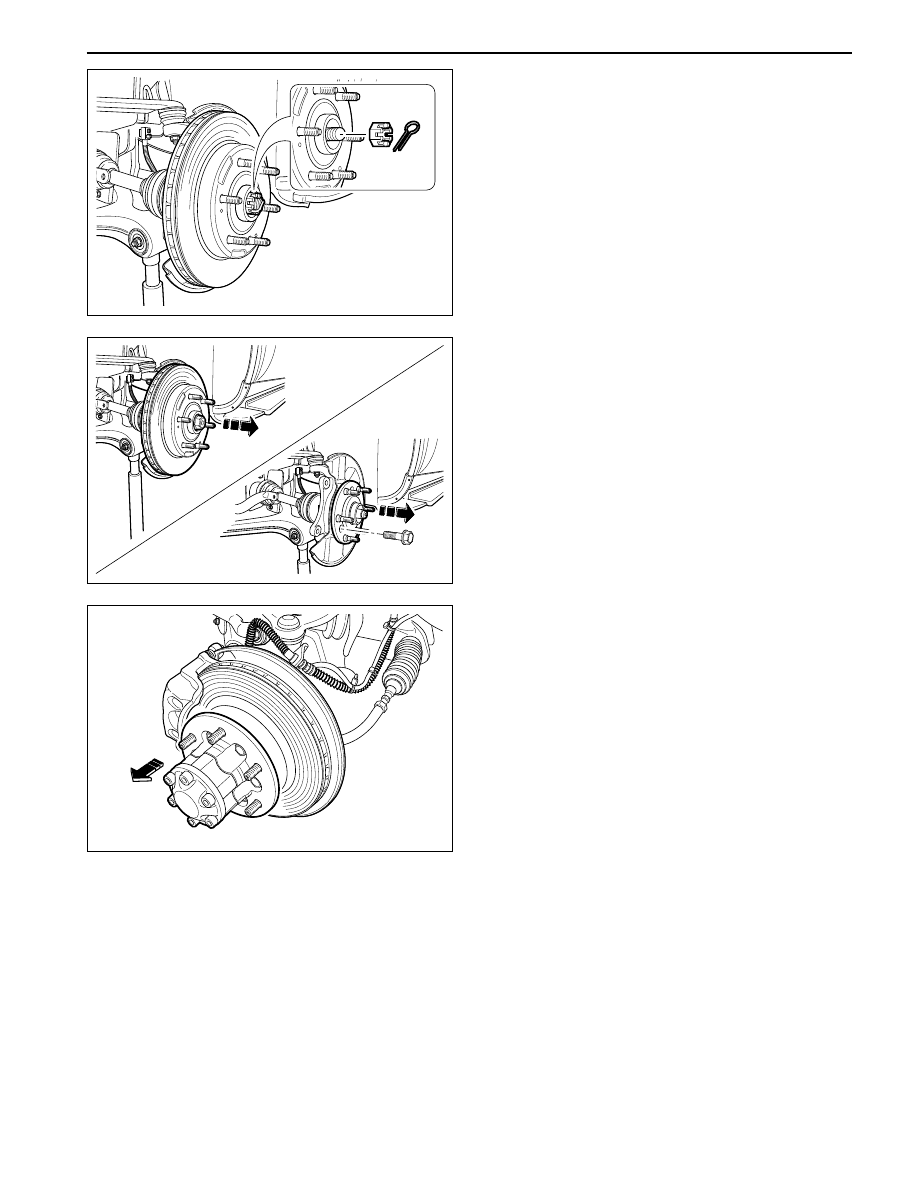

4. Remove the brake disc (Full-time 4WD)

5. Pull out the cotter pin from the front hub assembly

and remove the lock nut. (Full-time 4WD)

6. Remove the hub assembly mounting bolt and

remove the hub assembly.

Notice: For part-time 4WD, remove the locking hub
assembly and hub range before removing the
brake disc.

SSANGYONG  Y200

4B-10  FRONT BRAKE

YAD4B150

YAD4B160

YAD4B170

YAD4B180

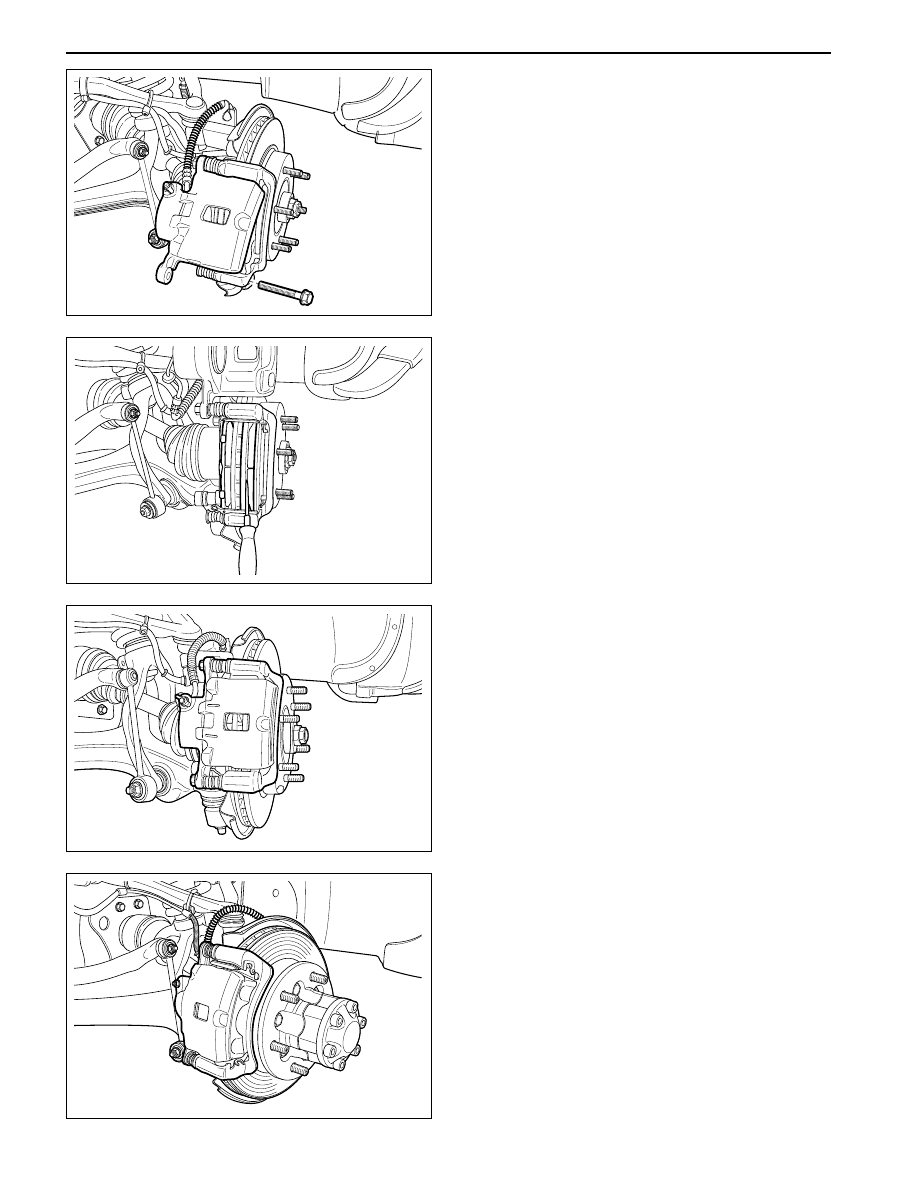

BRAKE PAD REPLACEMENT

1. Remove lower mounting bolt of the brake caliper

cylinder.

2. Move the caliper cylinder assembly upward and

fix it to prevent hose damage.

3. Remove the brake pad and replace the new pad.

4. Install the caliper cylinder assembly and fasten

the lower bolt.

Full-time

Part-time

FRONT BRAKE  4B-11

SSANGYONG  Y200

YAD4B190

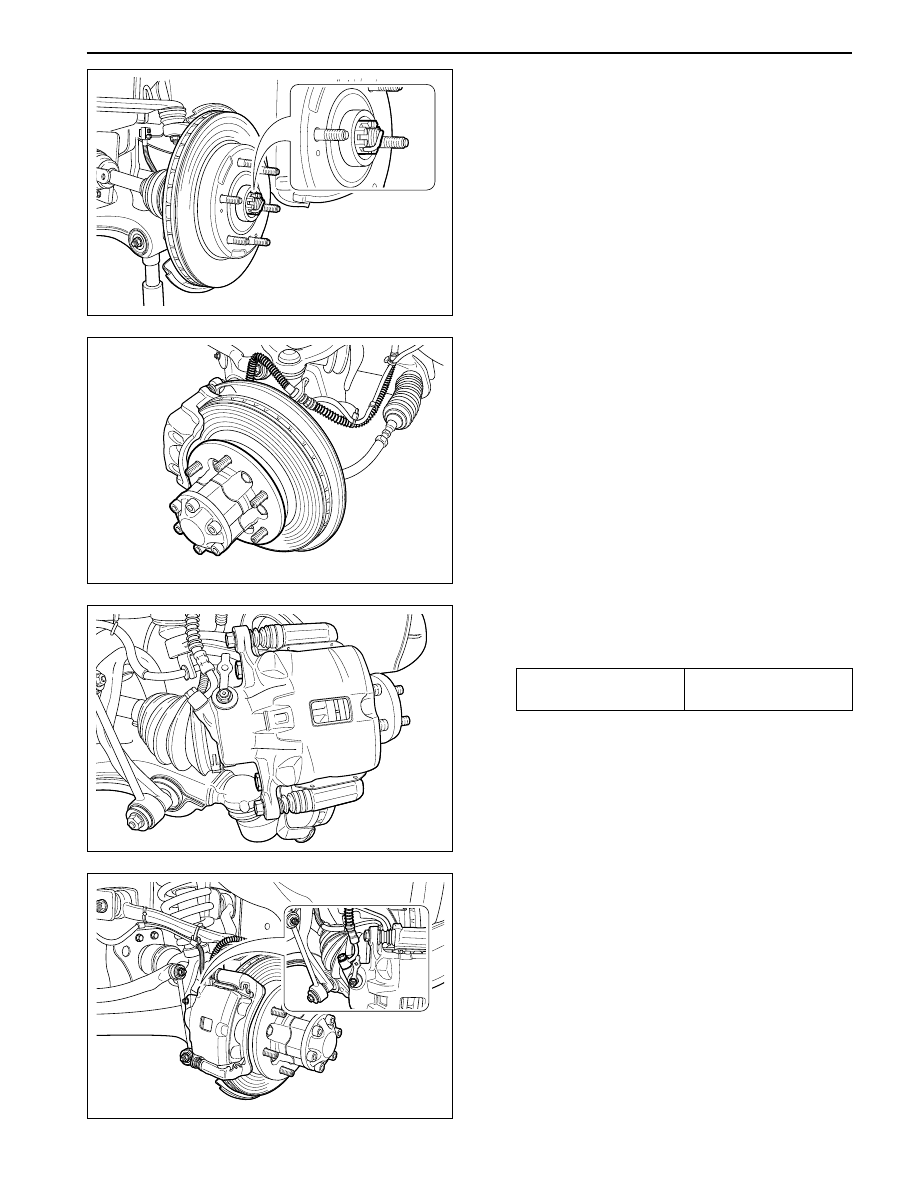

Installation Procedure

1. Install the front brake disc assembly to the knuckle

and fasten the lock nut as specified torque (full-
time 4WD).

YAD4B200

YAD4B210

YAD4B220

Install the front brake disc to the knuckle and
install the locking hub & hub range. Fasten the
mounting bolt (part-time 4WD).

2. Install the caliper assembly to the front disc and

fasten the caliper mounting bolt.

Installation Notice

Tightening Torque

85 - 105 N•m

(63 - 79 lb-ft)

SSANGYONG  Y200

4B-12  FRONT BRAKE

YAD4B230

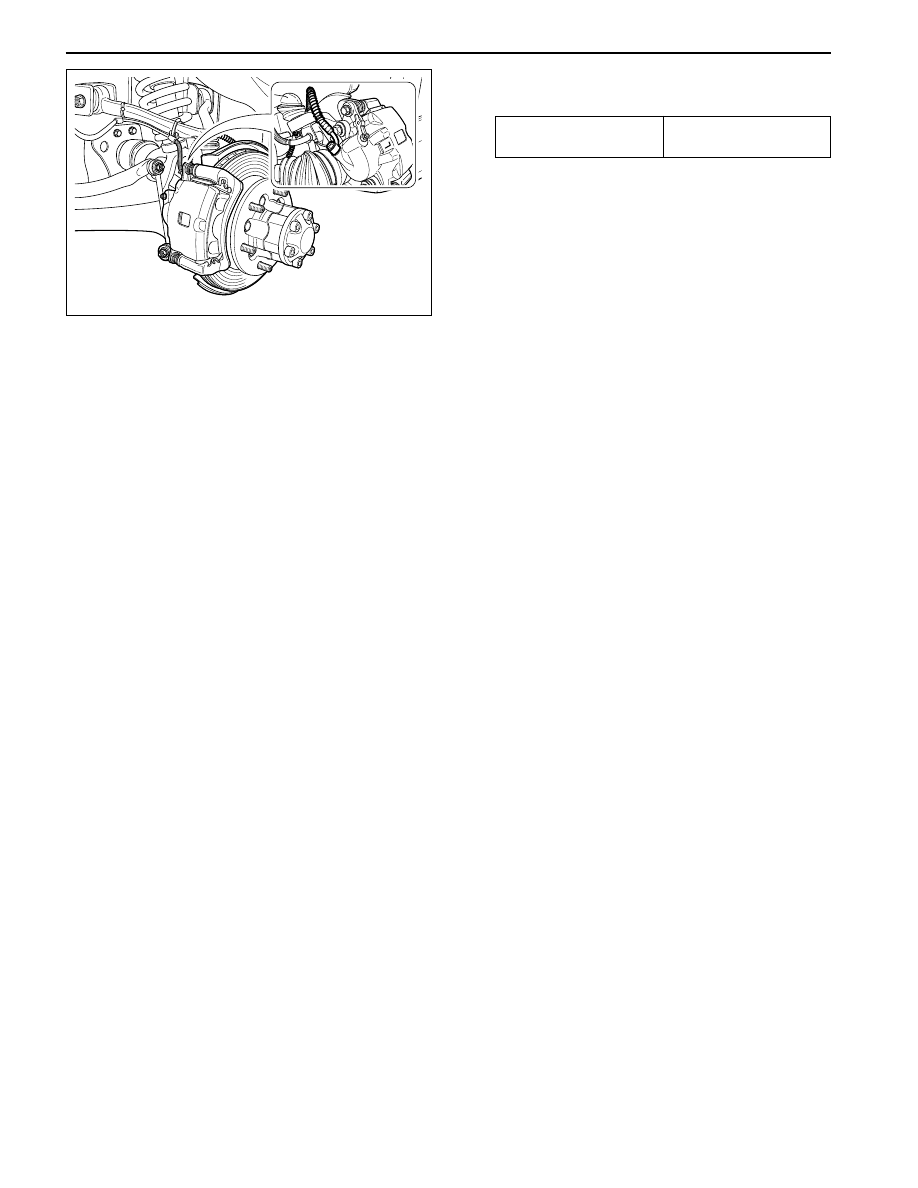

3. Connect the brake hose to the caliper cylinder.

Installation Notice

Tightening Torque

7 - 13 N•m

(62 - 115 lb-in)

Notice: The washer should be replaced new part.

4. Bleed the brake system after replacement.
