TIRES AND WHEELS  2E-13

SSANGYONG  Y200

ON-VEHICLE SERVICE

GENERAL TIRE

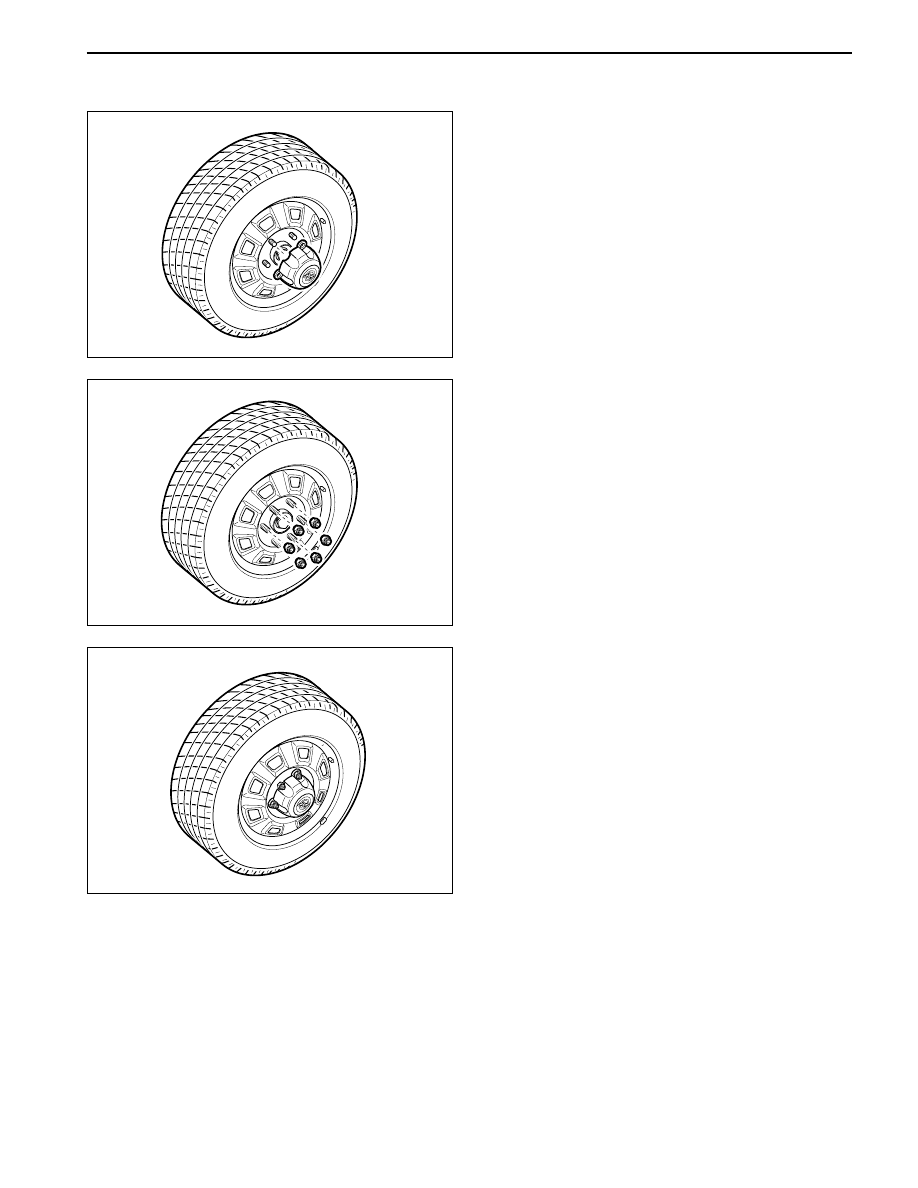

1. Remove the wheel cap.

YAD2E300

YAD2E310

YAD2E320

2. Loosen the wheel nuts and then raise and suitably

support the vehicle.

3. Remove the wheel nuts.

4. Installation should follow the removal procedure

in the reverse order.

REPAIR INSTRUCTIONS

SSANGYONG  Y200

2E-14  TIRES AND WHEELS

3

1

2

5

6

4

SPARE  TIRE

Removal Procedure

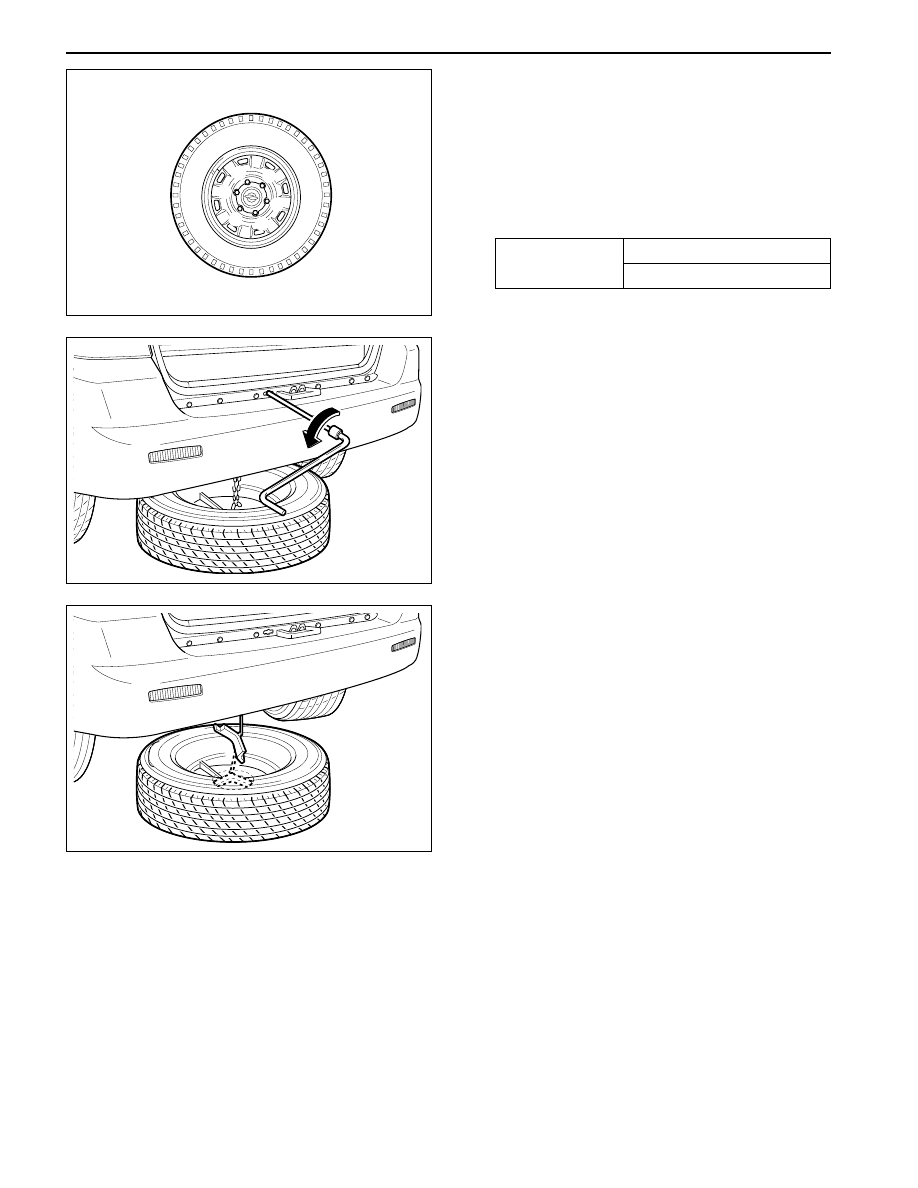

1. Prepare the spare tire handle and the wheel nut

wrench.

2 Install the handle through the hole at the rear side

of the vehicle.

3 Install the wheel nut wrench at the end of the

handle.

4 Turn the wheel nut wrench counterclockwise until

the spare tire takes down the ground.

YAD2E340

YAD2E350

5 Pull out the lift plate as shown.

6 Install the lift plate in the center of the wheel for

installation.

7 Turn the handle clockwise until listen the sound

“click”.

8 Remove the handle and the wheel nut wrench.

Notice:

•

Keep the spare tire available always.

•

When reinstall the spare tire, install the tire
tightly.

•

If the spare tire may move after installation,
reinstall the tire or contact to the approved
service shop for repair.

•

For installing the spare tire on the vehicle, follow
the installation direction. If you may install the
tire in reverse direction, it is not possible to
install it correctly.

General Instruction

•

Clean the contact surface between the wheel and
the hub.

•

Do not apply oil or grease to the nuts and bolts
(cause the wheel to work loose).

•

Raise the tires 3 cm off the ground using the
jacket.

•

Tighten the wheel nuts diagonally as shown.

YAD2E330

Tightening

Torque

Steel Wheel: 80 - 120 N•m

Alloy Wheel: 120 - 130 N•m

TIRES AND WHEELS  2E-15

SSANGYONG  Y200

SEPARATION

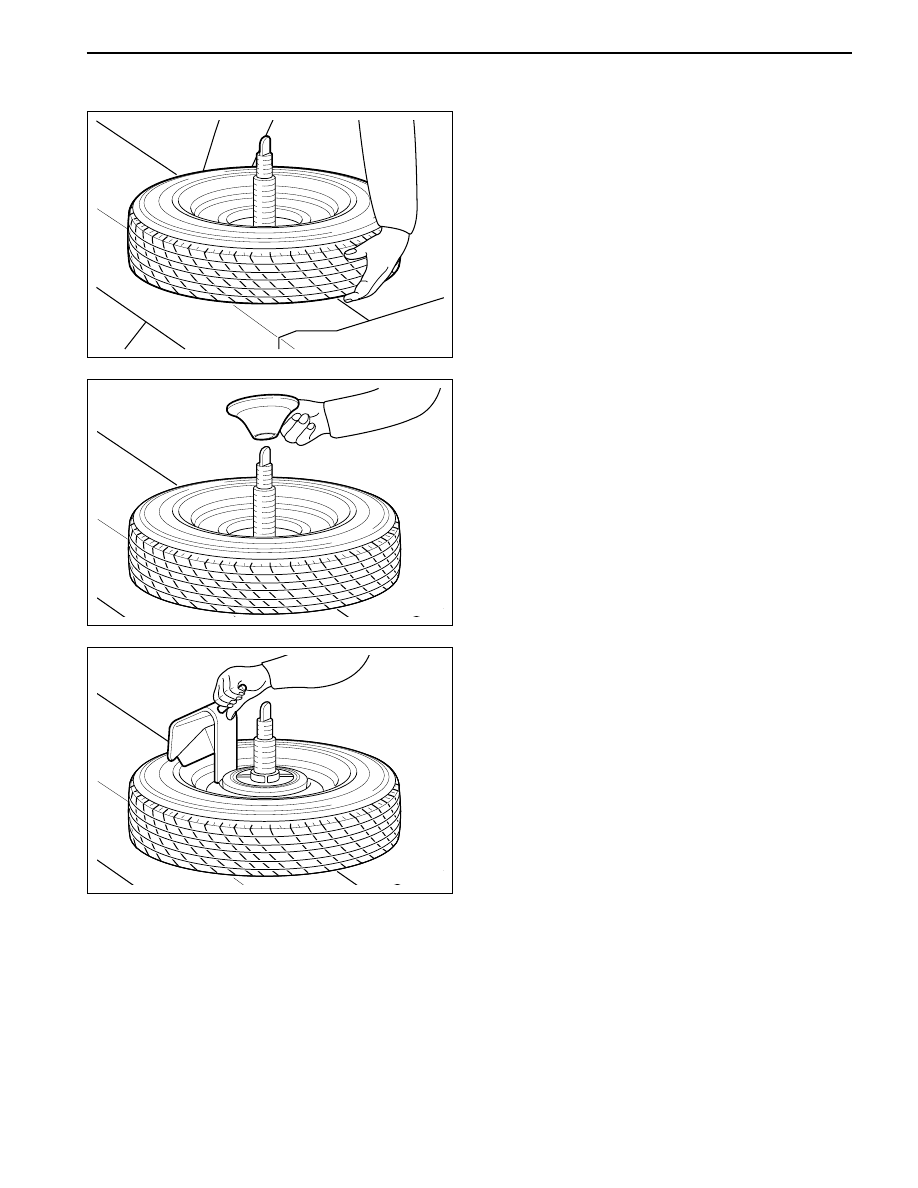

1. Fix the tire into the equipment and pull out the

valve core from the tire. Discharge the air inside
the tire completely.

Notice: The assembly and disassembly of the tire
is dangerous working job. So, only the skillful
worker must work this job following the approved
procedures.

YAD2E360

YAD2E370

YAD2E380

2. Tighten the locker in the center of the equipment

to assemble the rim to the equipment.

3. Remove the balance weight on the rim.

4. Separate the tire’s bead from the rim flange using

the approved lubricant.

Notice: Do not use silicone, synthetic detergent
and gasoline, etc.

MAINTENANCE AND REPLACEMENT

SSANGYONG  Y200

2E-16  TIRES AND WHEELS

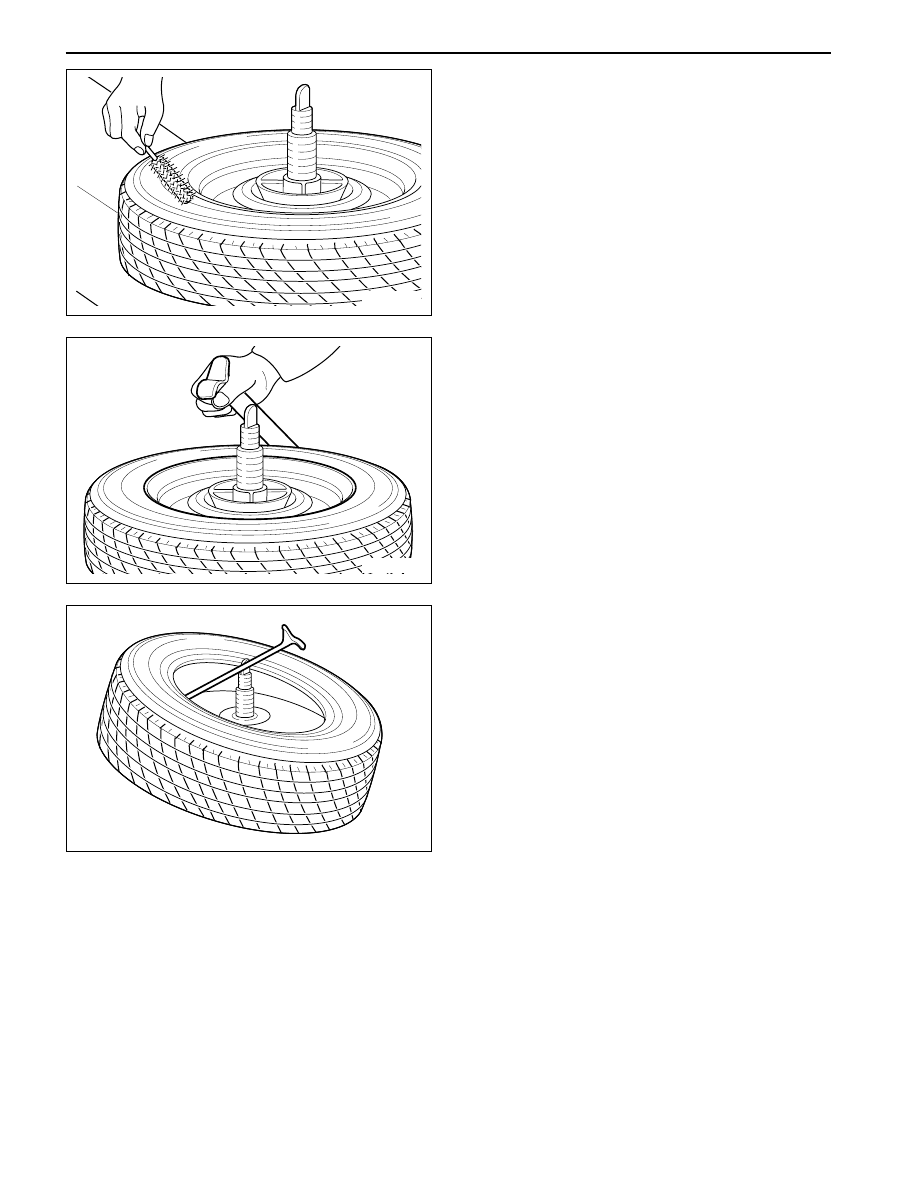

5. Apply the lubricant between the rim and the bead.

MAINTENANCE

1. Check any damage the rim and replace as needed.

Notice:

•

Do not repair the rim as welding or soldering.

•

Replace the new valve as replaces new tire.

YAD2E390

YAD2E400

YAD2E410

6. Insert the removal lever between the tire’s bead

and the rim and separate the rim from the tire.

Notice: Do not use the tool that may cause any
damage such as pipe, damaged bar.

7. Pull out the opposite bead upward using the lever

and then separate the bead from the rim.
