1F1-94  M162 ENGINE CONTROLS

ECM WIRING DIAGRAM (3.2L DOHC - 1 OF 7) (MSE 3.63D)

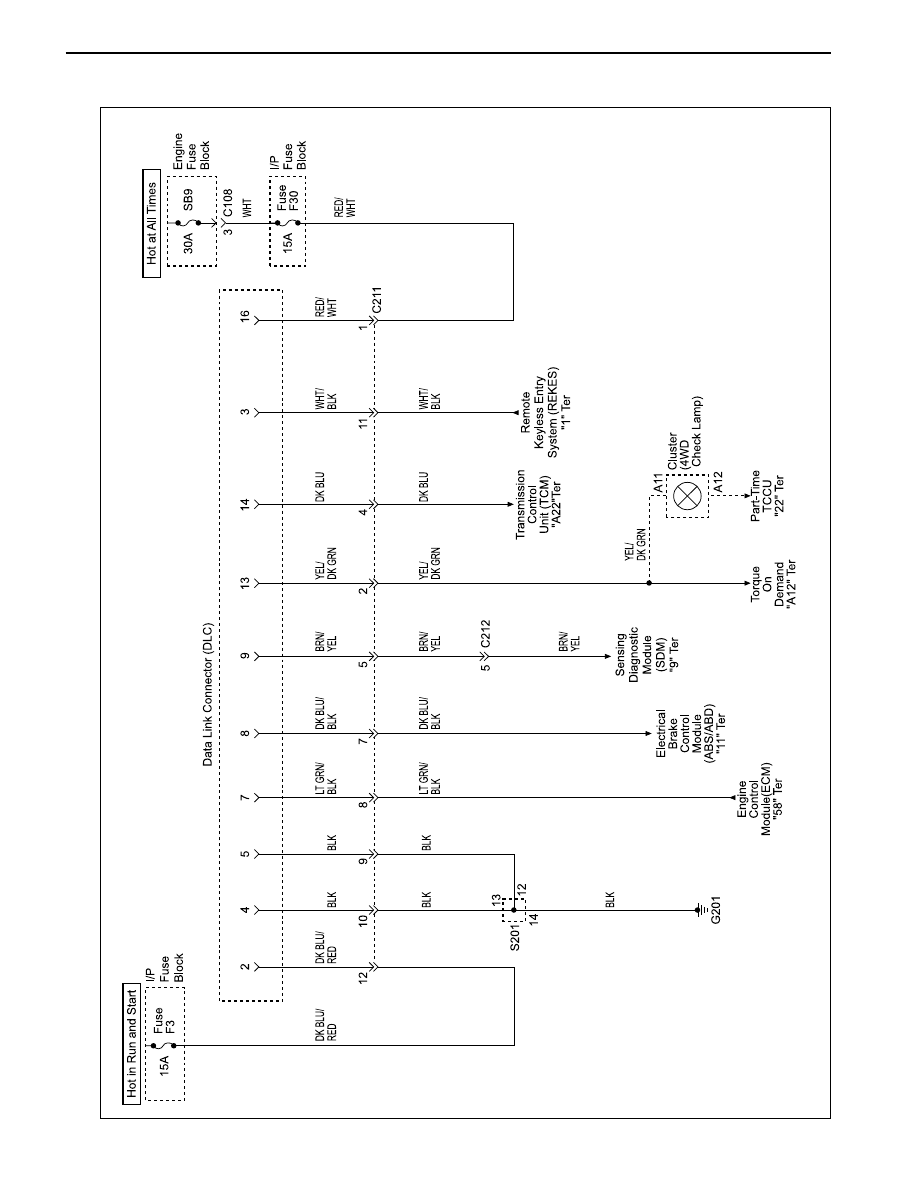

SCHEMATIC AND ROUTING DIAGRAMS

YAD1F010

M162 ENGINE CONTROLS  1F1-95

SSANGYONG  Y200

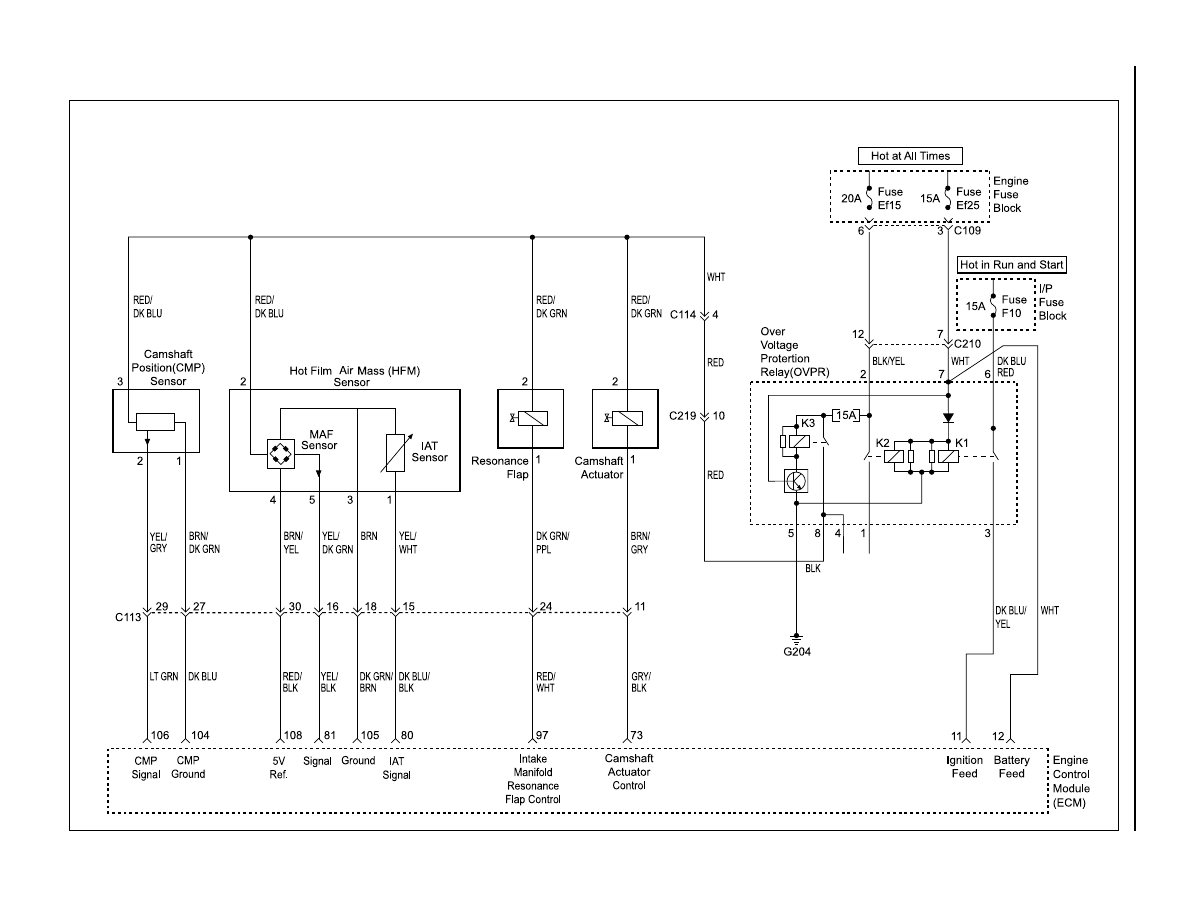

ECM WIRING DIAGRAM (3.2L DOHC - 2 OF 7) (MSE 3.63D)

Y

AD1F020

SSANGYONG  Y200

1F1-96  M162 ENGINE CONTROLS

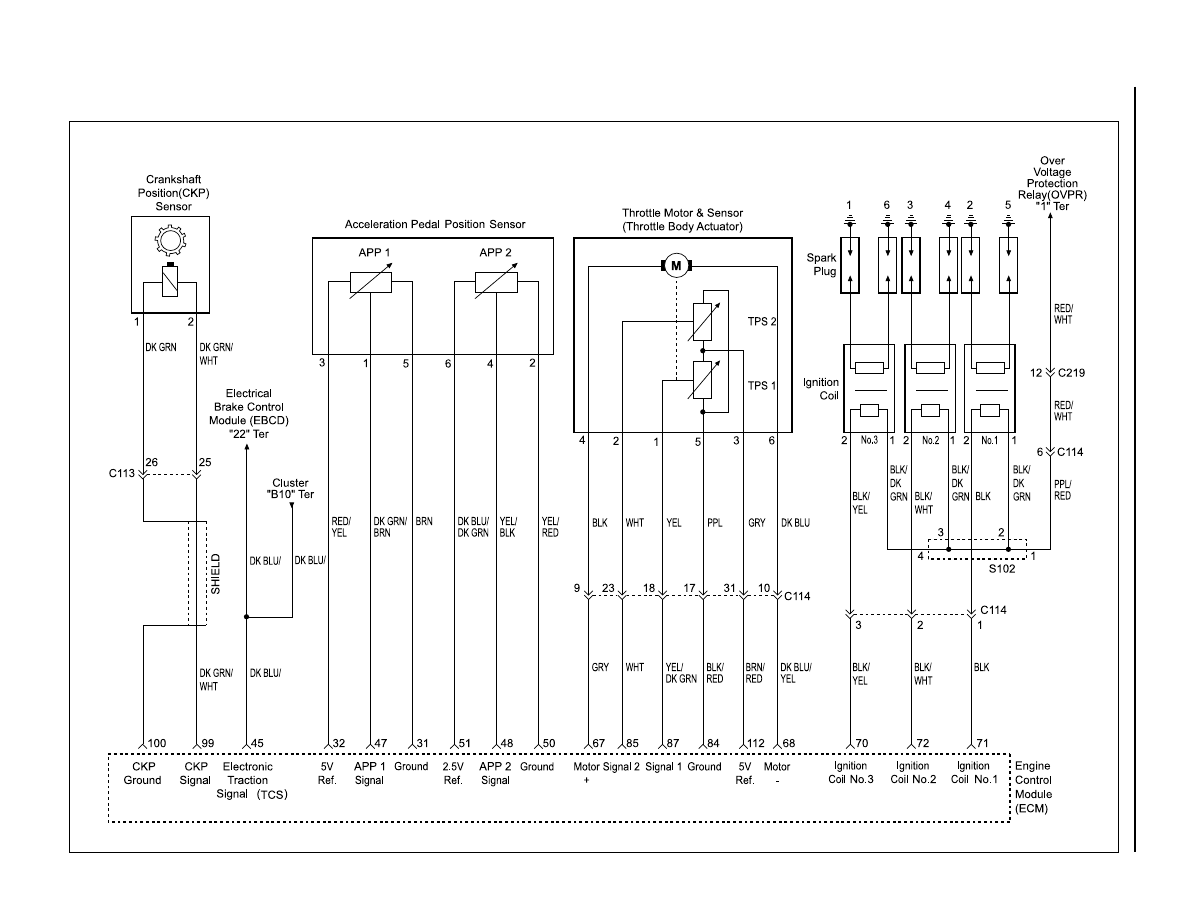

ECM WIRING DIAGRAM (3.2L DOHC - 3 OF 7) (MSE 3.63D)

Y

A

D1F030

M162 ENGINE CONTROLS  1F1-97

SSANGYONG  Y200

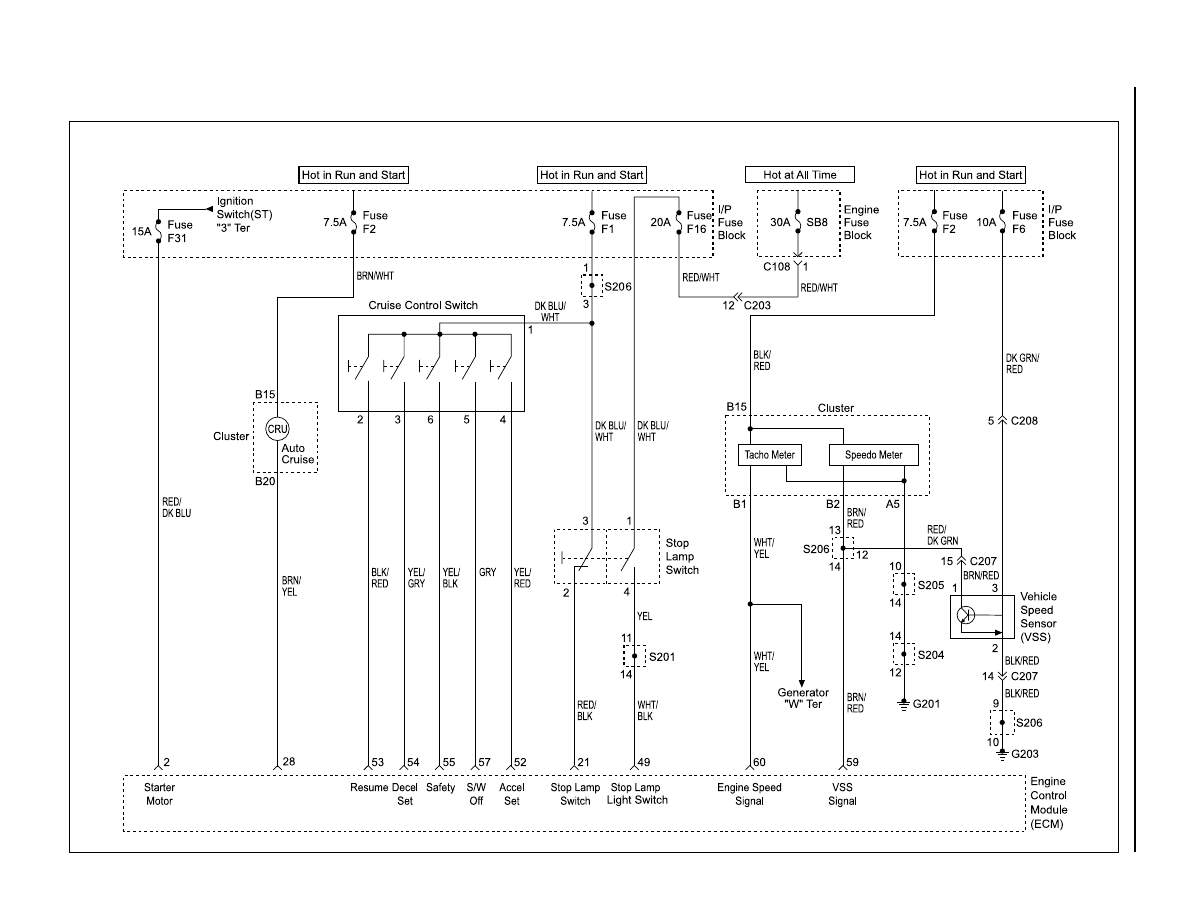

ECM WIRING DIAGRAM (3.2L DOHC - 4 OF 7) (MSE 3.63D)

Y

AD1F040
