M161 ENGINE MECHANICAL  1B2-15

SSANGYONG  Y200

YAD1B5G0

YAD1B5N0

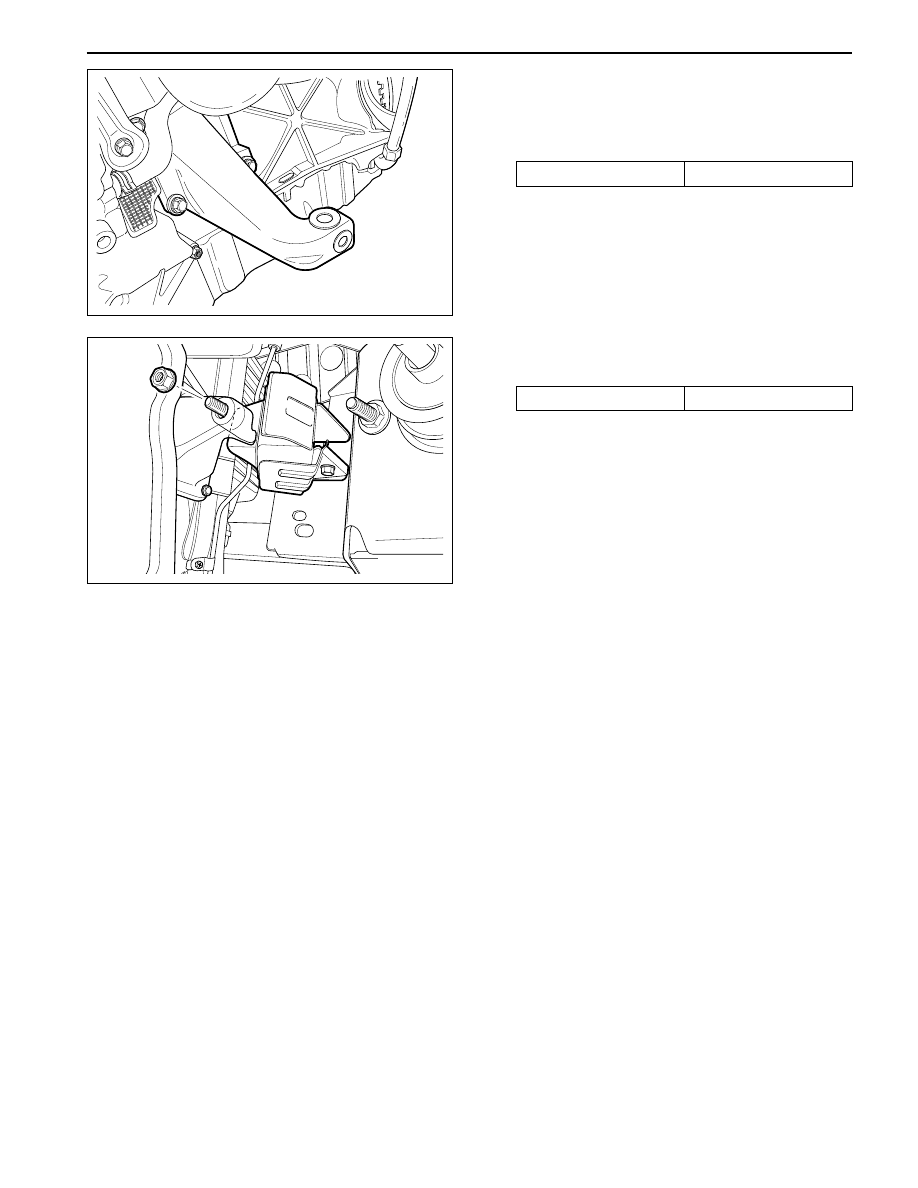

Removal & Installation Procedure

1. Unscrew the upper engine mount nuts and remove

the engine.

Installation Notice

2. Unscrew the lower nuts.

Installation Notice

Tightening Torque

70 N•m (52 lb-ft)

Tightening Torque

38 N•m (28 lb-ft)

3. Remove the hydraulic engine mounting insulator.

4. Installation should follow the removal procedure

in the reverse order.

SSANGYONG  Y200

1B2-16  M161 ENGINE MECHANICAL

YAD1B5P0

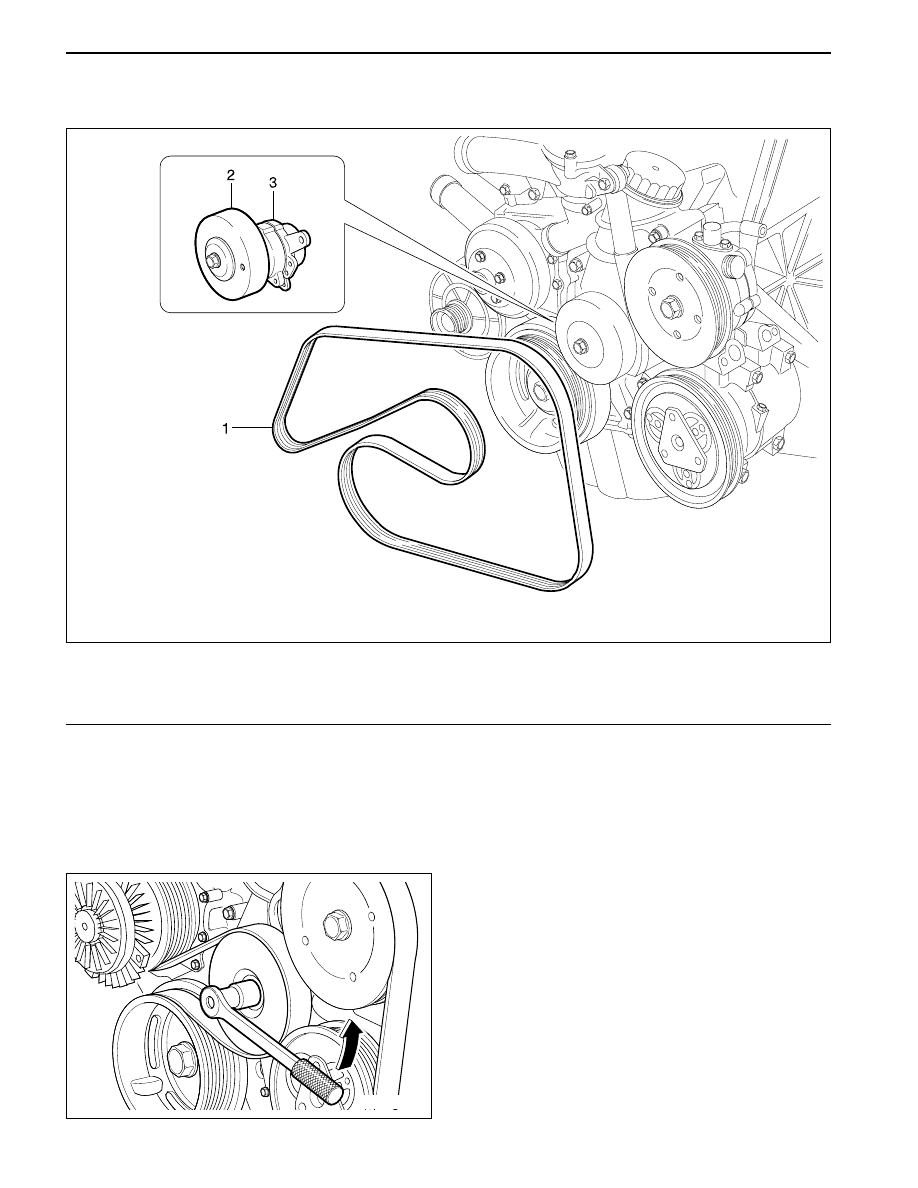

POLY  V - BELT

Preceding Work:

Removal of cooling fan

1 Poly V-Belt (2,155 mm)
2 Belt Tensioning Pulley

Removal & Installation Procedure

1. Release the belt tension by turning the stud on

the  cap with 12 sided wrench or spanner
counterclock-wise.

2. Remove the poly v-belt.

Notice: Check the belt for damage and tensioning
pulley bearing point for wear and replace them if
necessary.

3. Install the belt after prying the tensioning pulley.

3 Belt Tensioner

YAD1A130

M161 ENGINE MECHANICAL  1B2-17

SSANGYONG  Y200

YAD1B5Q0

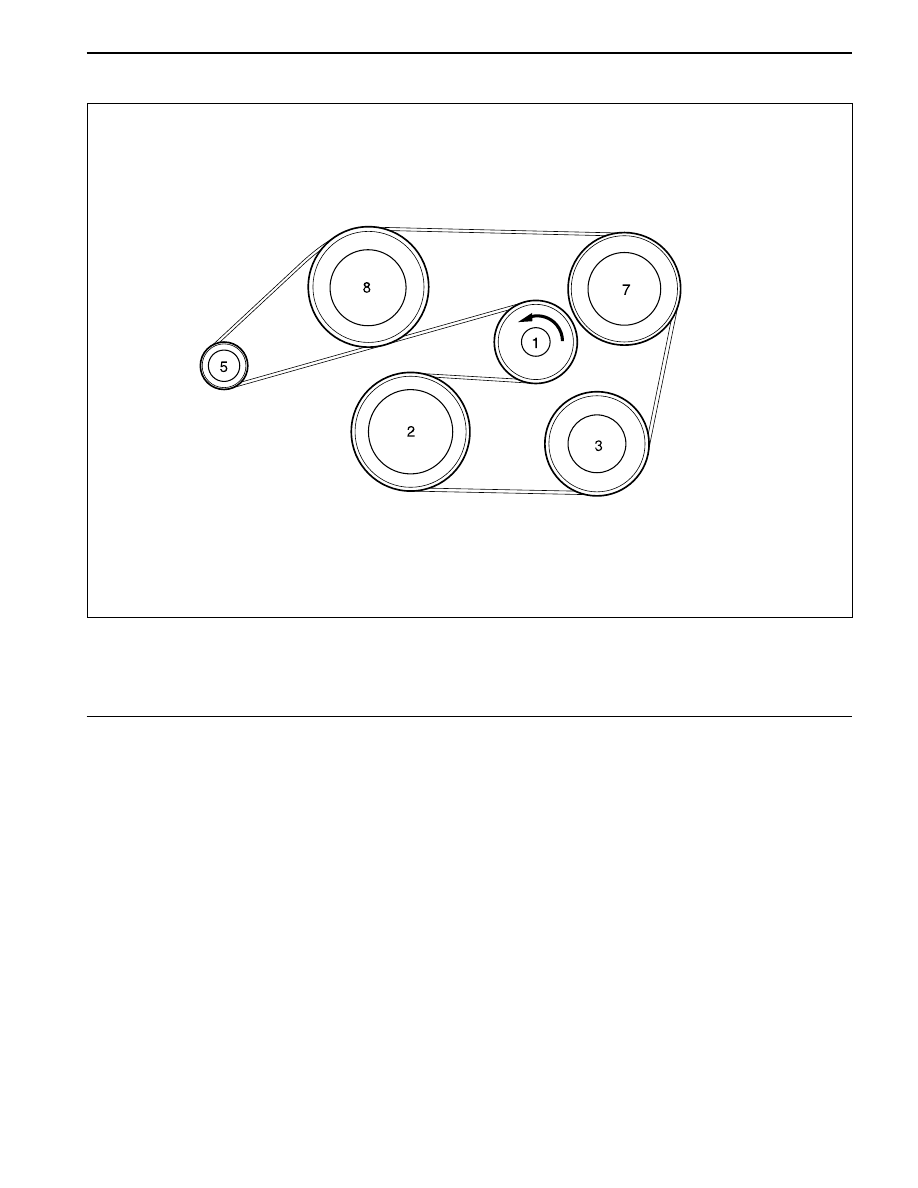

Poly V - Belt Arrangement

1 Belt Tensioning Pulley
2 Crankshaft Belt Pulley
3 A/C Compressor Pulley

5 Generator Pulley
7 Power Steering Pump Pulley
8 Water Pump Pulley

SSANGYONG  Y200

1B2-18  M161 ENGINE MECHANICAL

YAD1B5R0

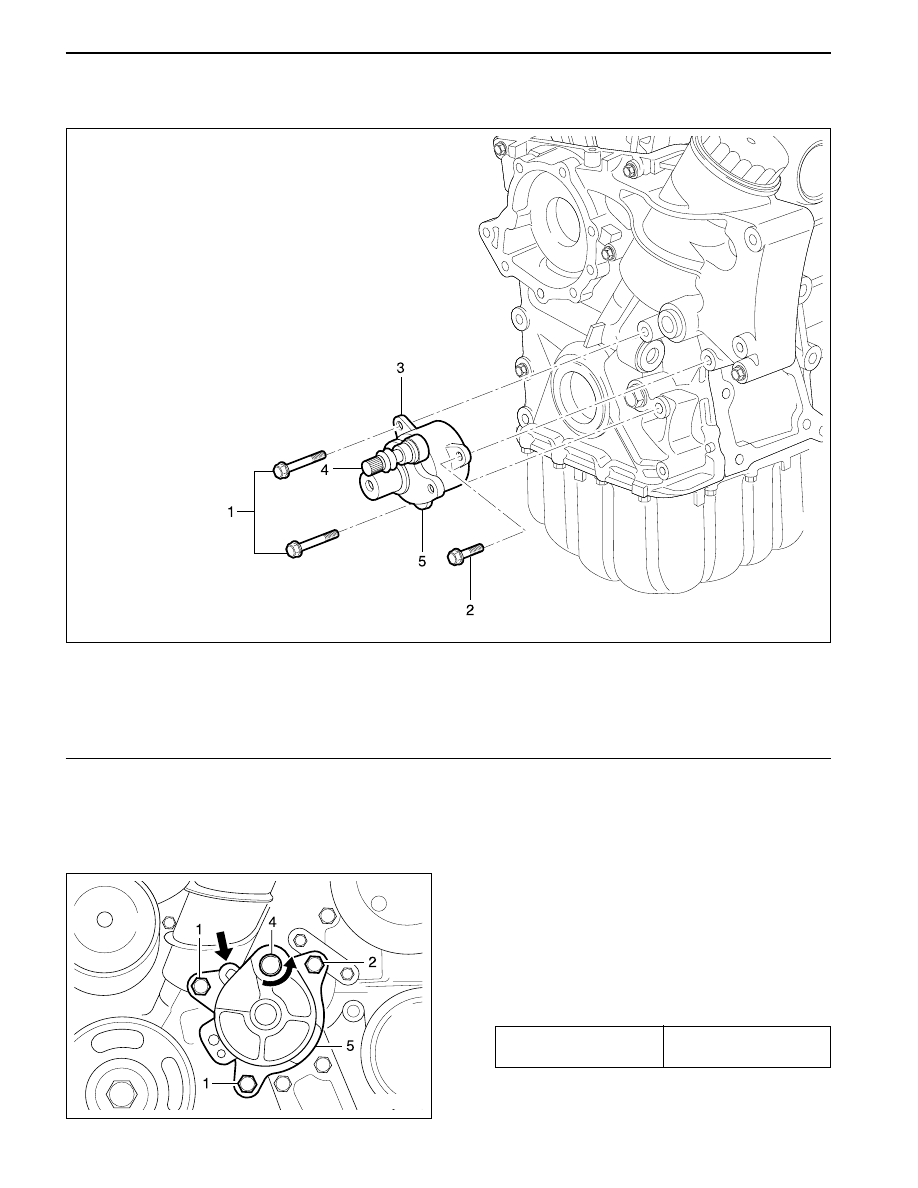

TENSIONING DEVICE

Preceding Work:

Removal of tensioning device shock absorber

1 Bolt (M8 x 75, 2 pieces) +

Washer ............ 22.5 - 27.5 N•m (16.6 - 0.3 lb-ft)

2 Bolt (M8 x 25, 1 pieces) +

Washer ............ 22.5 - 27.5 N•m (16.6 - 0.3 lb-ft)

Removal & Installation Procedure

1. Turn the stud bolt to counterclockwise.

2. Insert the pin (111 589 01 15 00) into the hole in

tensioning arm.

3. Unscrew the bolts (1, 2) and remove the tensioning

device.

Installation Notice

3 Tensioning Device
4 Stud bolt
5 Tensioning Arm

YAD1B5S0

4. Installation should follow the removal procedure

in the reverse order.

Tightening Torque

22.5 - 27.5 N•m

(16.6 - 20.3 lb-ft)
