M161 ENGINE MECHANICAL  1B2-11

SSANGYONG  Y200

YAD1B5K0

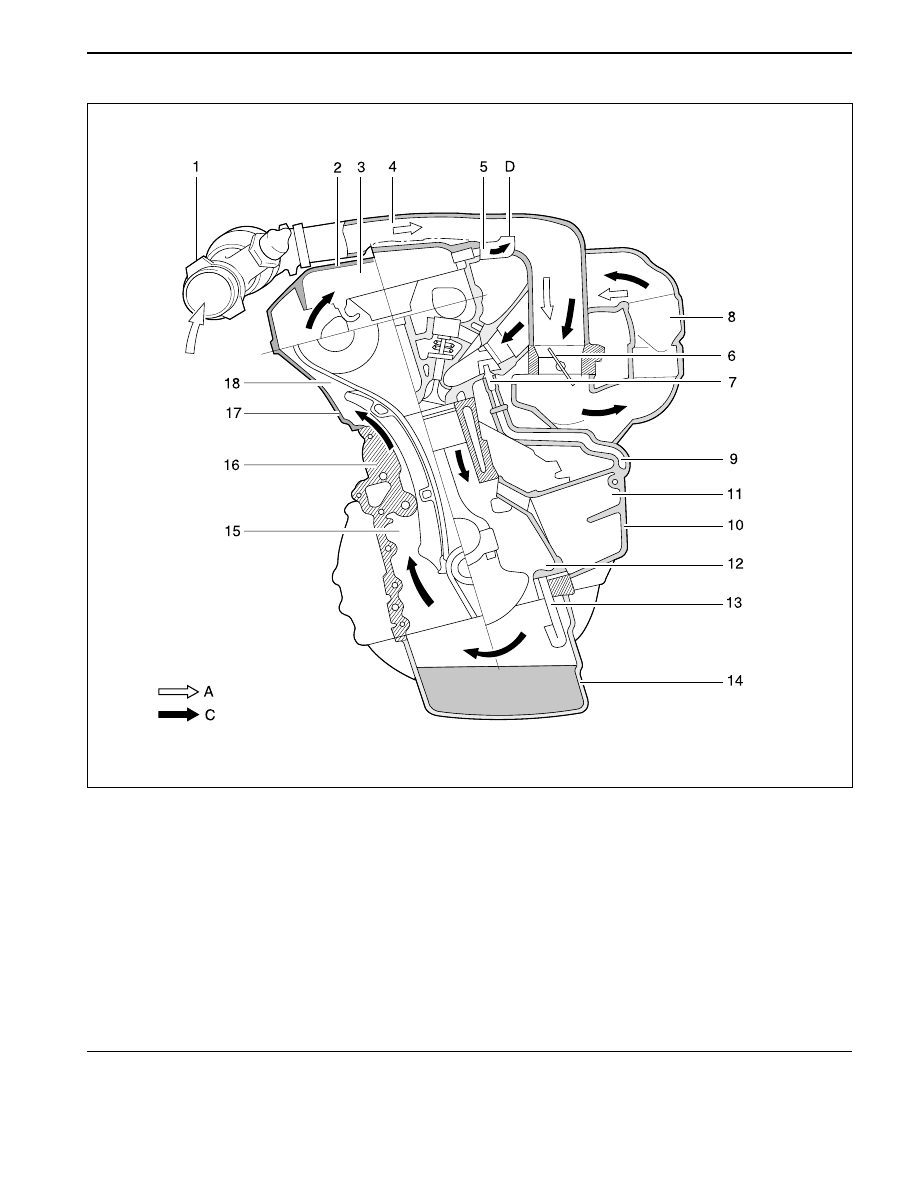

Operation When Full- Load at Partial Load

1 HFM Sensor
2 Cylinder Head Cover
3 Oil Spearation Chamber (Full-Load or Over

Mid-Load)

4 Intake Air Duct (Cross Pipe)
5 Vent Line (Full-Load or Over Mid-Load)
6 Throttle Valve
7 Restrictor, Diameter 1.1mm

(Mid-Load at Idling)

8 Intake Manifold
9 Vent Line (Mid-Load at Idling)

10 Air Conditioner Bracket

11 Oil Separation Chamber (Mid-Load at Idling)
12 Crank Chamber
13 Oil Return Pipe
14 Oil Pan
15 Timing Gear Case Cover
16 Crankcase
17 Chain Housing

A Fresh Air
C Blow-By Gas
D Vent Connection

SSANGYONG  Y200

1B2-12  M161 ENGINE MECHANICAL

Operation When Full- Load at Partial Load

•

The throttle valve (6) is partially opened or fully
opened.

The air flows very rapidly through the vent line (5) s
connection (D) and the intake air duct when full load
at partial load.

Consequently, most of the low-by gases are
supplied to the combustion chamber through the
timing gear case cover (15), chain housing (17), oil
separation chamber (3), vent line (5), throttle valve
(6), and intake manifold (8).

M161 ENGINE MECHANICAL  1B2-13

SSANGYONG  Y200

YAD1B5L0

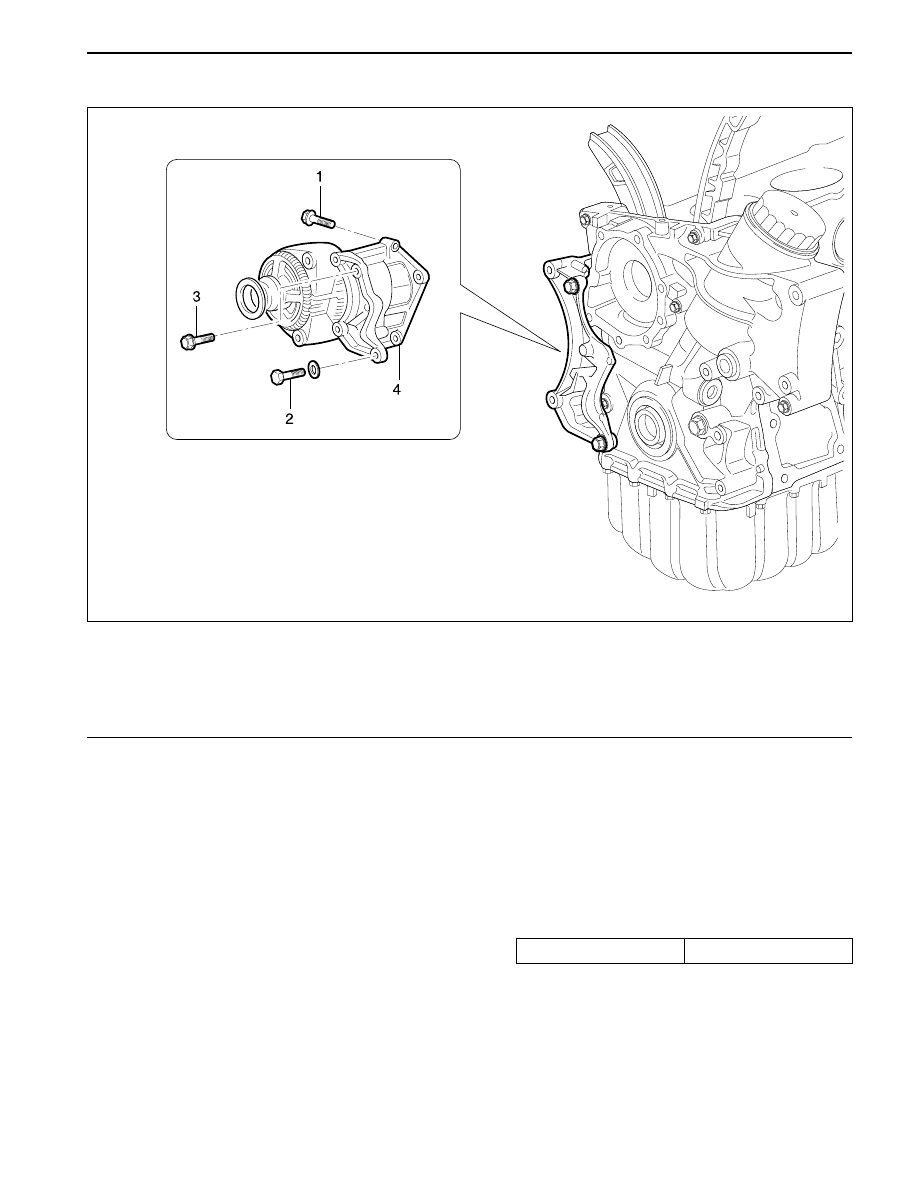

GENERATOR

1 Bolt (M8 X 40, 3 pieces)

...................... 22.5 - 27.5 N•m (16.6 - 20.3 lb-ft)

2 Bolt (M8 X 70, 2 pieces)

...................... 22.5 - 27.5 N•m (16.6 - 20.3 lb-ft)

Removal & Installation Procedure

1. Disconnect the negative battery cable.

2. Remove the drive belt.

3. Remove the generator.

4. Unscrew the generator carrier bolts and remove

the carrier.

Installation Notice

3 Bolt (M8 X 85, 1 piece)

...................... 22.5 - 27.5 N•m (16.6 - 20.3 lb-ft)

4 Generator Bracket

Notice: Apply 3 Nm of torque when mounting the
bolt (1) ; apply 25 Nm of torque when mounting
the bolts (2), and (3) ; and then tighten the bolt (1)
with 25 Nm of torque.

5. Installation should follow the removal procedure

in the reverse order.

Tightening Torque

70 N•m (52 lb-ft)

SSANGYONG  Y200

1B2-14  M161 ENGINE MECHANICAL

YAD1B5M0

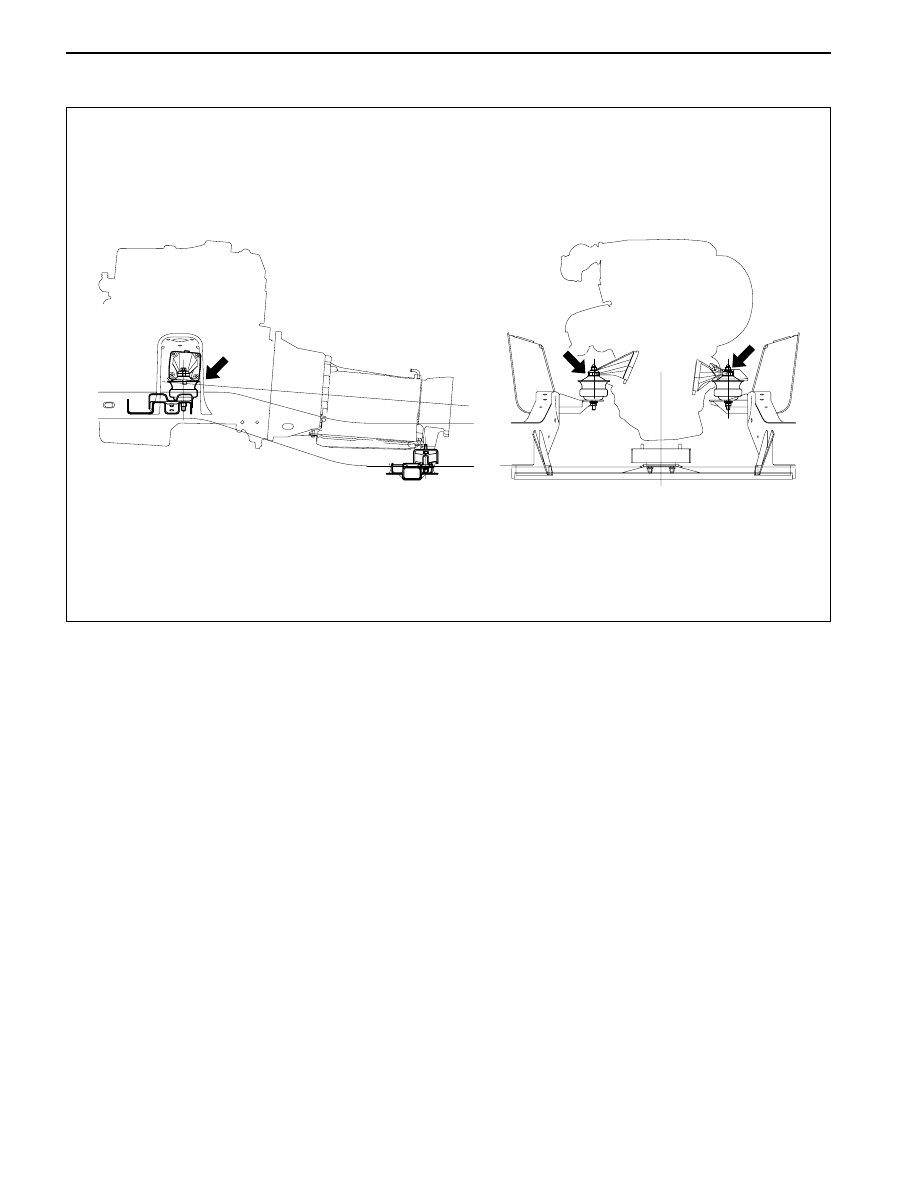

ENGINE MOUNT
