1A-14  ENGINE GENERAL INFORMATION

TDC Mark (M162 Engine)

Cylinder Number

TDC Mark (M161 Engine)

Cylinder Number

OT (TDC)

1, 6

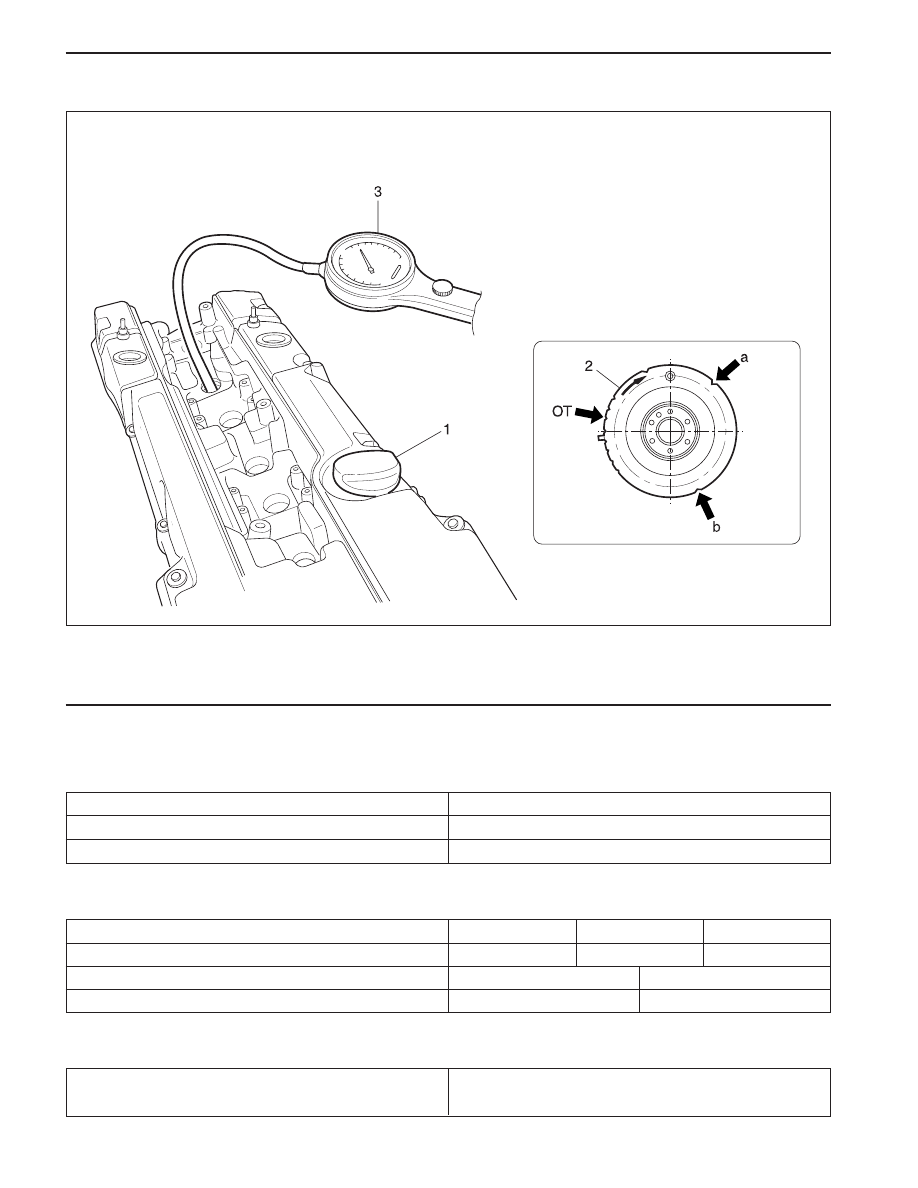

CYLINDER PRESSURE LEAKAGE TEST (GASOLINE ENGINE)

1 Engine Oil Filler Cap
2 Vibration Damper

Permissible Pressure Leakage

3 Cylinder Pressure Leakage Tester with

Connecting Hose

Universal Tool

At Whole Engine

At Valve and Cylinder Head Gasket

At Piston and Piston Ring

Max. 25 %

Max. 10 %

Max. 20 %

Cylinder Number By Mark On Vibration Damper At TDC

b (240 °)

3, 4

a (120 °)

2, 5

Cylinder Pressure Leakage Tester

Bosch, EFAW 210A

Sun, CLT 228

YAD1A110

OT (TDC)

1, 4

UT (BDC 180 °)

2, 3

ENGINE GENERAL INFORMATION  1A-15

SSANGYONG  Y200

Leakage Test

1. W a r m   t h e   e n g i n e   u p   t o   n o r m a l   o p e r a t i n g

temperature.

2. Disconnect the negative battery cable.

3. Remove the spark plugs.

4. Check the coolant level by opening the coolant

reservoir cap and replenish if insufficient.

5. Open the engine oil filler cap.

6. Connect the tester to air pressure line and adjust

the scale of tester.

7. Install the connecting hose to spark plug hole.

9. Connect the connecting hose to tester and

measure the leakage volume after blowing up
5 bar of compressed air.

Notice: Measure the leakage volume in the
completely opening condition of throttle valve by
pulling the acceleration cable.

10. Perform the pressure test according to the firing

order.

Notice:

Firing Order

•

M162 Engine: 1 - 5 - 3 - 6 - 2 - 4

•

M161 Engine: 1 - 3 - 4 - 2

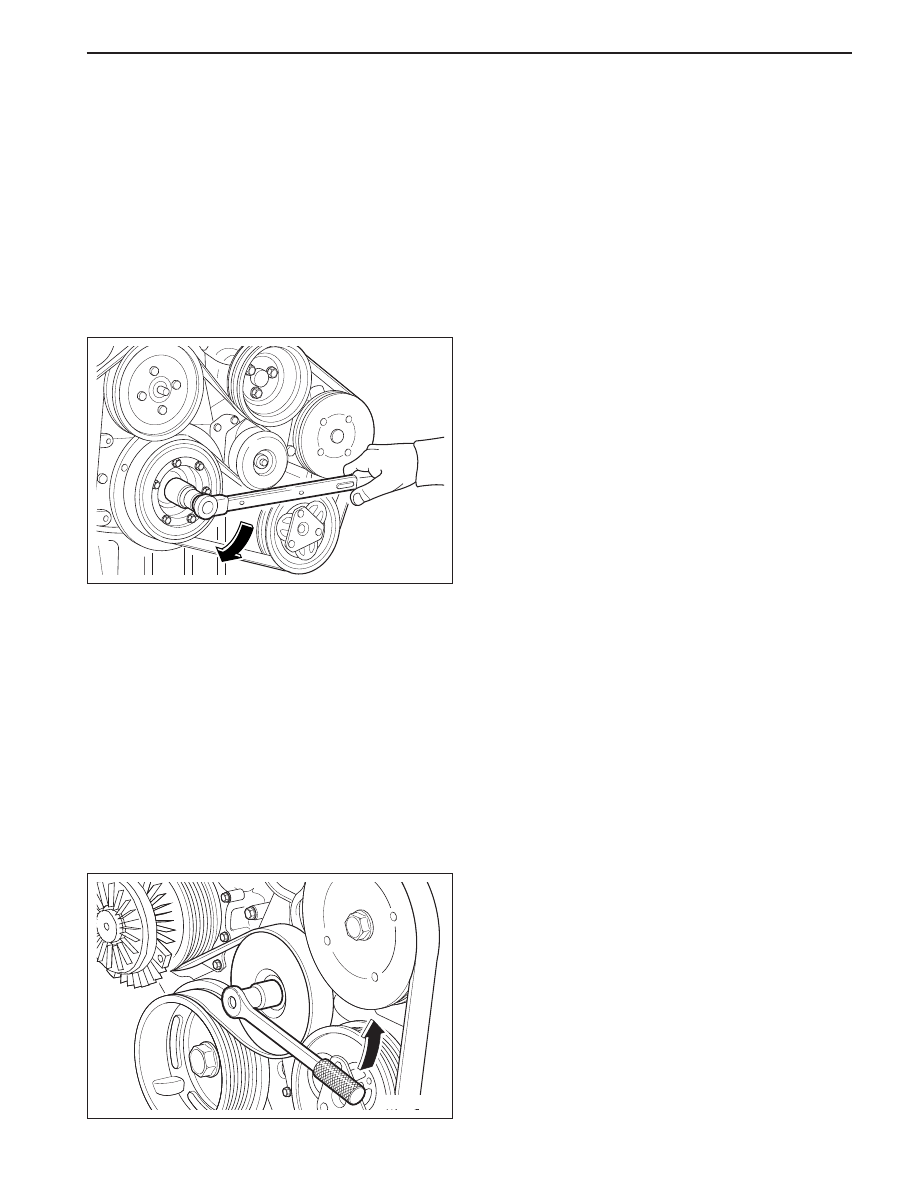

YAD1A120

YAD1A130

8. Position the piston of No.1 cylinder at TDC by

rotating the crankshaft.

M162 Engine

M161 Engine

11. C o m p a r e   t h e   l e a k a g e   p r e s s u r e   w i t h   t h e

specifications.

SSANGYONG  Y200

1A-16  ENGINE GENERAL INFORMATION

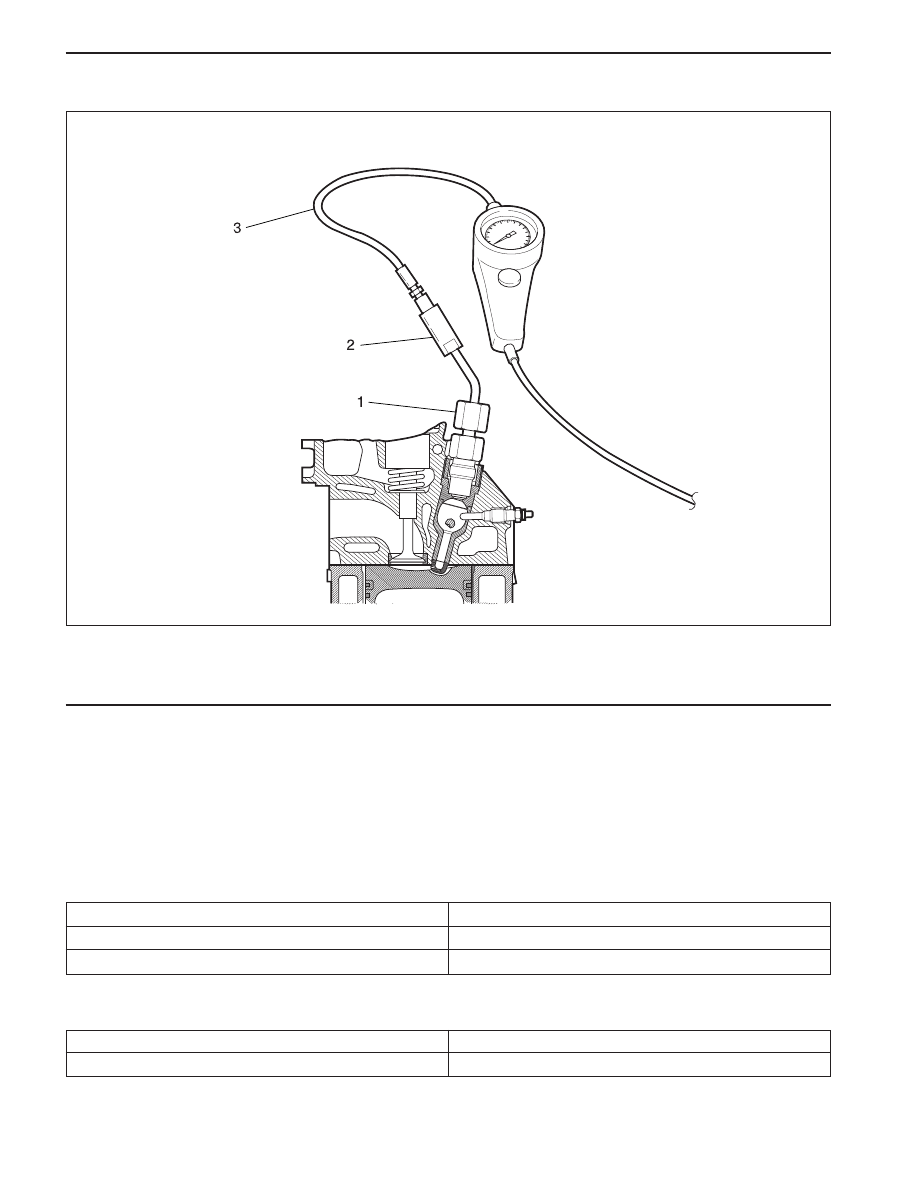

CYLINDER PRESSURE LEAKAGE TEST (DIESEL ENGINE)

YAD1A140

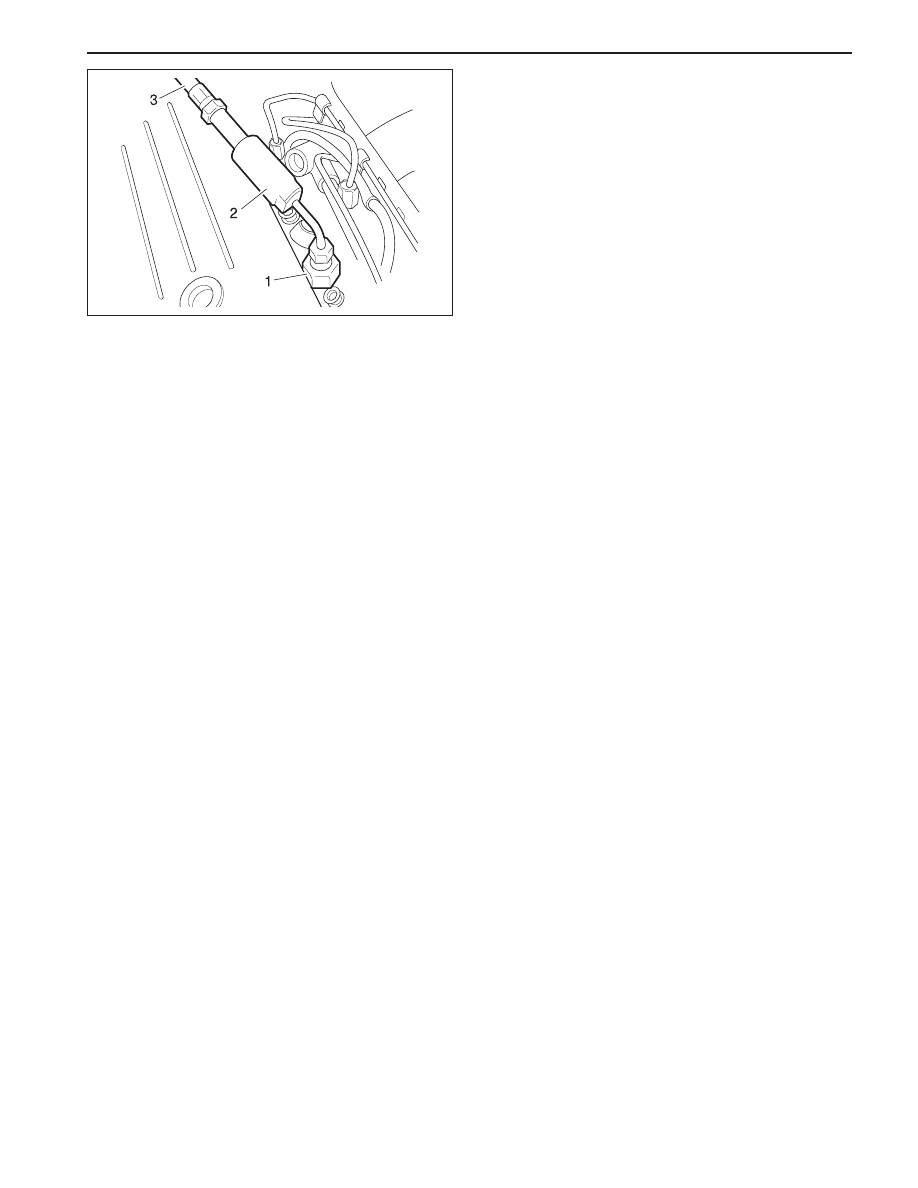

1 Connector
