ELECTRICAL WIRING DIAGRAMS  5-161

SSANGYONG  REXTON XDi (LHD)

A. CONNECTOR INFORMATION

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Connector Number

(Pin Number, Color)

Main - Roof

Main - Floor (LH)

Main - Floor (LH)

W/H Main

C202 (15Pin, White)

C205 (20Pin, Black)

C209 (22Pin, Yellow)

G201

Connecting Wiring

Harness

Under the I/P Fuse Box

Inside Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Remark

Connector Position

SSANGYONG  REXTON XDi (LHD)

5-162  ELECTRICAL WIRING DIAGRAMS

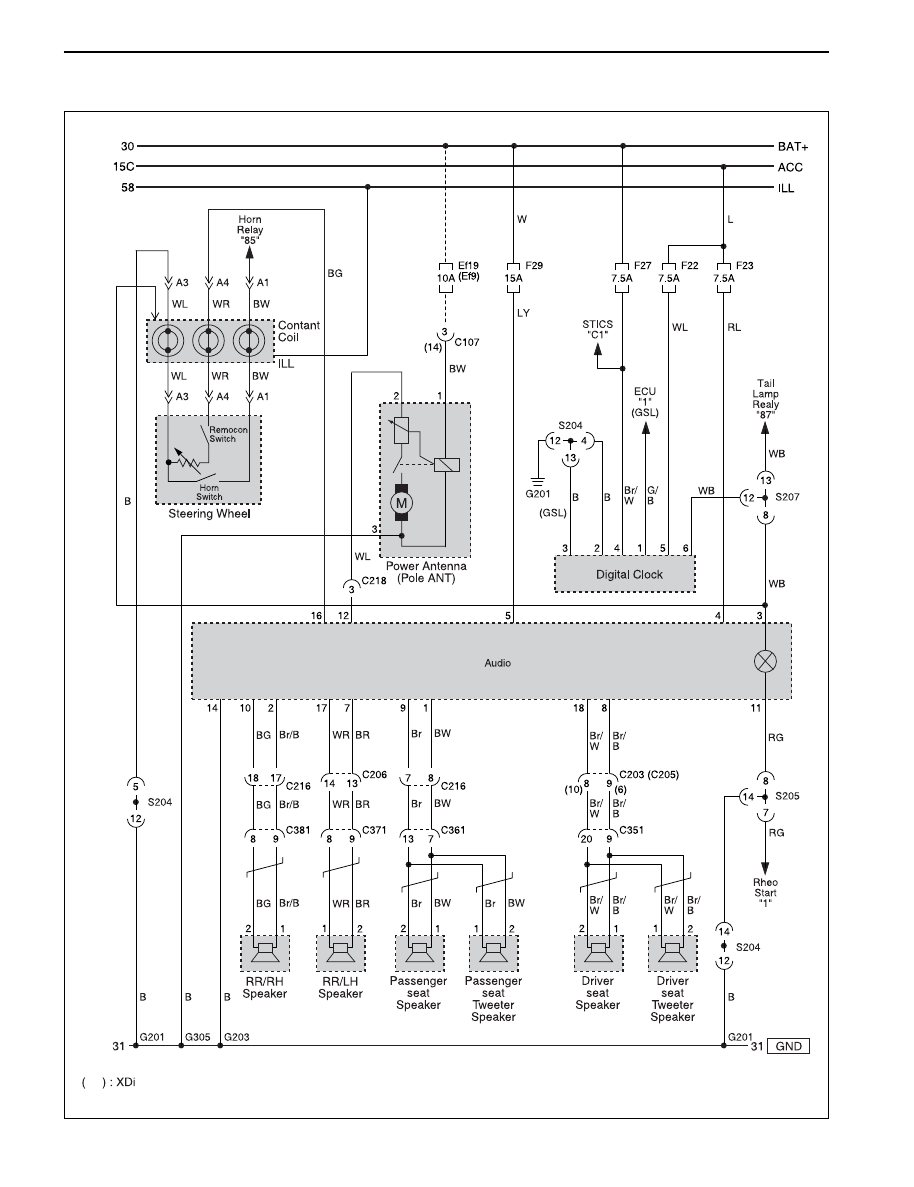

42. AUDIO, DIGITAL CIOCK CIRCUIT

ELECTRICAL WIRING DIAGRAMS  5-163

SSANGYONG  REXTON XDi (LHD)

A. CONNECTOR INFORMATION

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box (J) - Engine

Main - Floor (LH)

Main - Floor (LH)

Main - Floor (RH)

Main - Floor (RH)

Floor - Driver Door

Floor - Co-Driver Door

Floor - RR Left Door

Floor - RR Right Door

W/H Main

W/H Main

W/H Main

W/H Main

W/H Main

W/H Floor

C107 (14Pin, White)

C203 (13Pin, Green)

C206 (20Pin, Black)

C216 (18Pin, White)

C218 (22Pin, Yellow)

C351 (20Pin, White)

C361 (13Pin, White)

C371 (21Pin, White)

C381 (21Pin, White)

S204 (14Pin, Black)

S205 (14Pin, Black)

S207 (14Pin, Black)

G201

G203

G305

Connecting Wiring

Harness

Engine Room Fuse Box

Under the I/P Fuse Box

Inside Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Under Left “B” Filler

Under Right “B” Filler

Behind the Left the FATC

Behind the Left the FATC

Behind the Right the FATC

Inside Driver Side Cowl PNL

Under the Seat Heating SW

Behind the Quarter Grass #1

Behinel Conn Holder

Behinel Conn Holder

GND

GND

Tail Lamp

W/H Air Bag

Remark

Connector Position

SSANGYONG  REXTON XDi (LHD)

5-164  ELECTRICAL WIRING DIAGRAMS

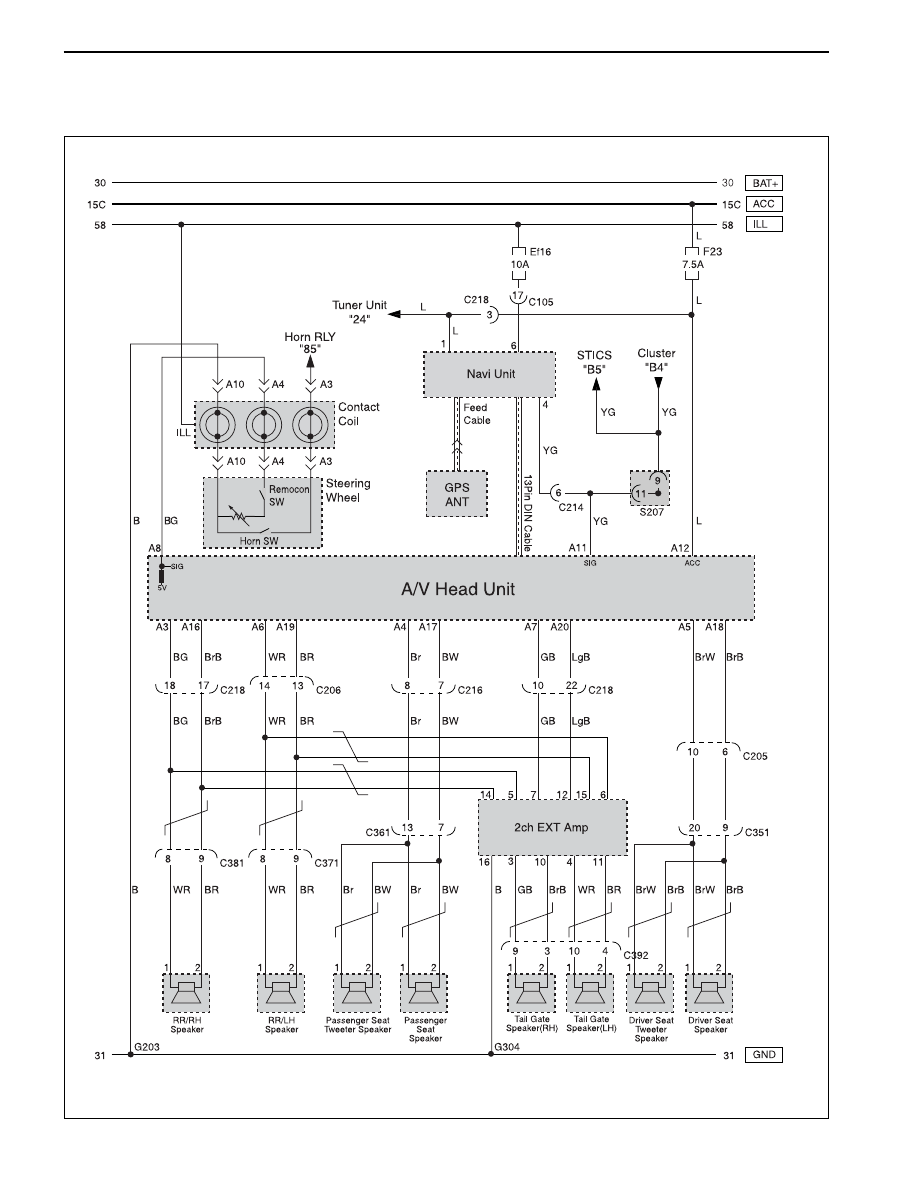

43. AUDIO(MULTI VISION)

1) HEAD UNIT, 2CH EXT AMP, REMOCON, NAVI UNIT, GPS
