ELECTRICAL WIRING DIAGRAMS  5-145

SSANGYONG  REXTON XDi (LHD)

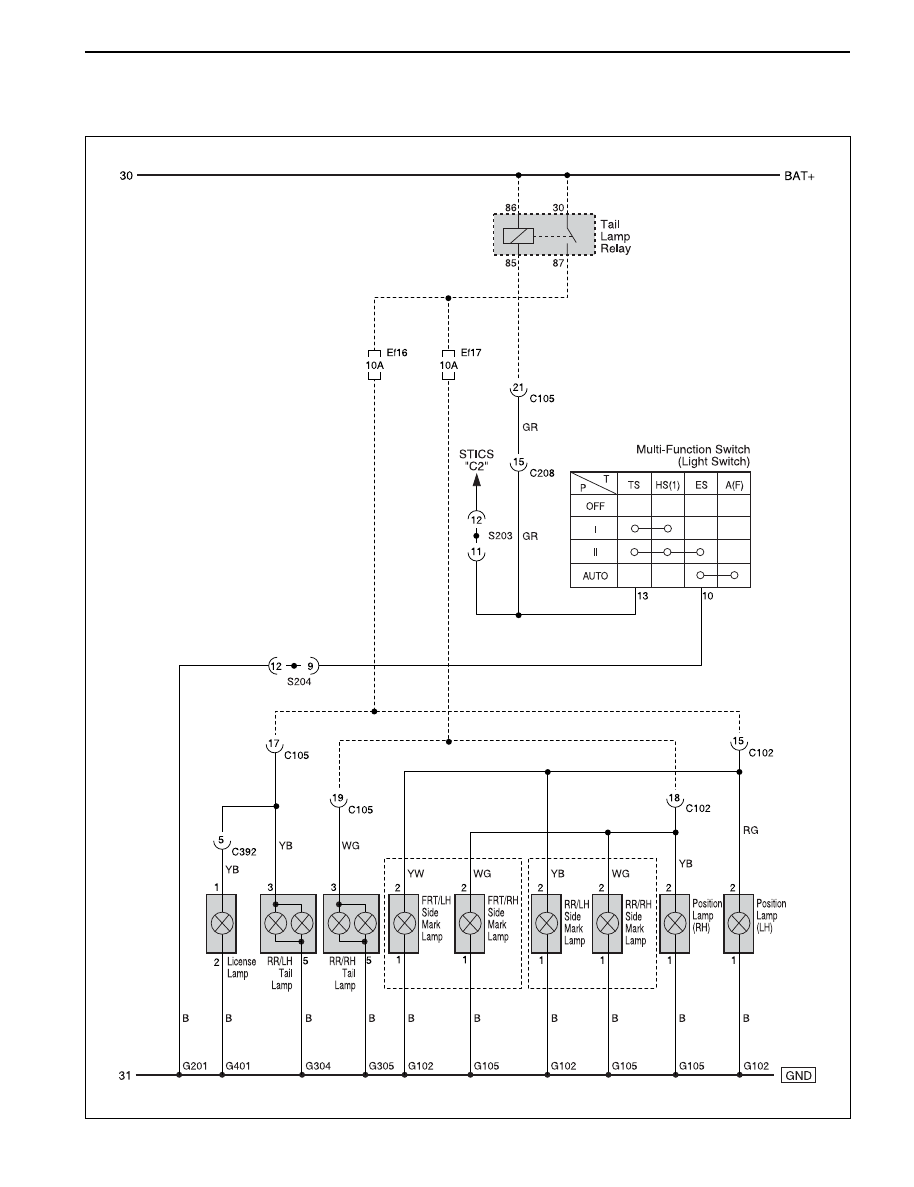

2) 2003 MODEL

SSANGYONG  REXTON XDi (LHD)

5-146  ELECTRICAL WIRING DIAGRAMS

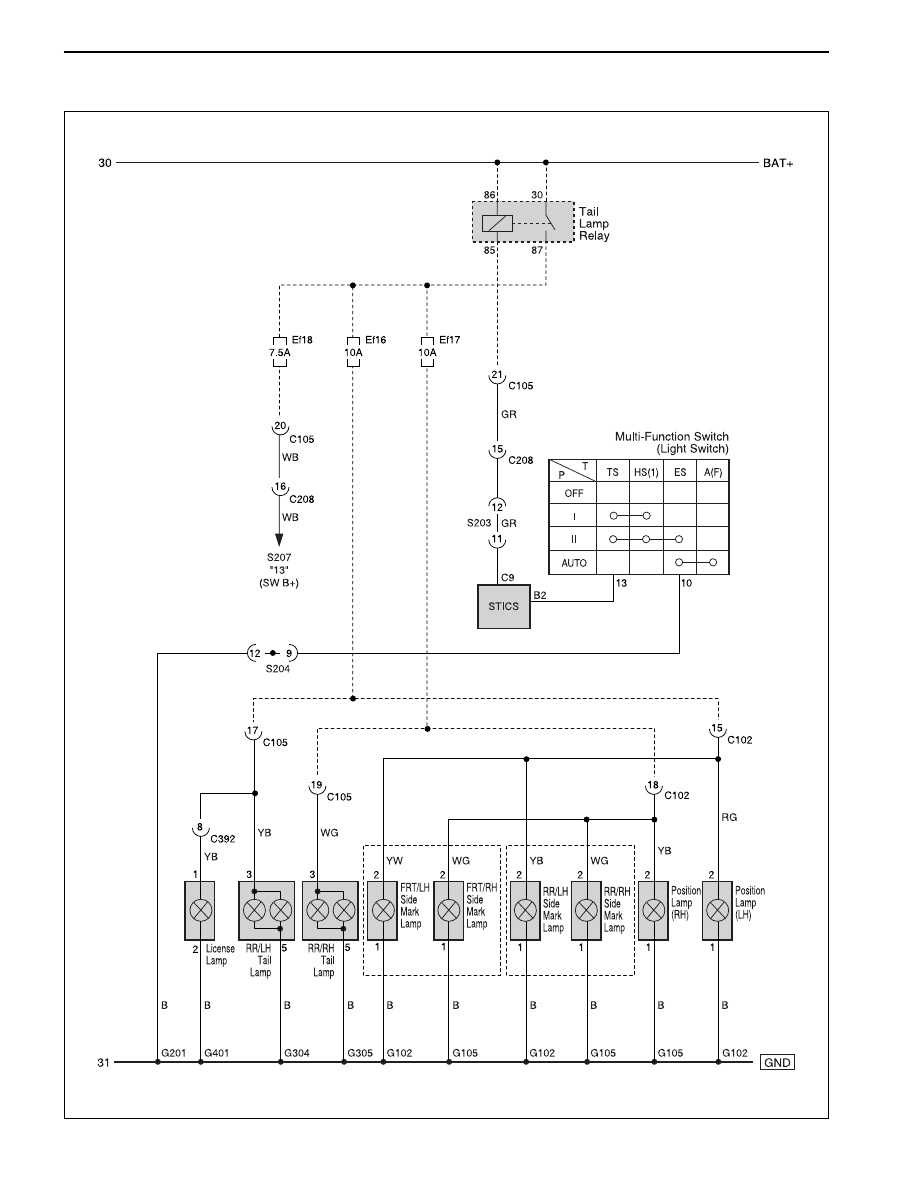

3) XDi

ELECTRICAL WIRING DIAGRAMS  5-147

SSANGYONG  REXTON XDi (LHD)

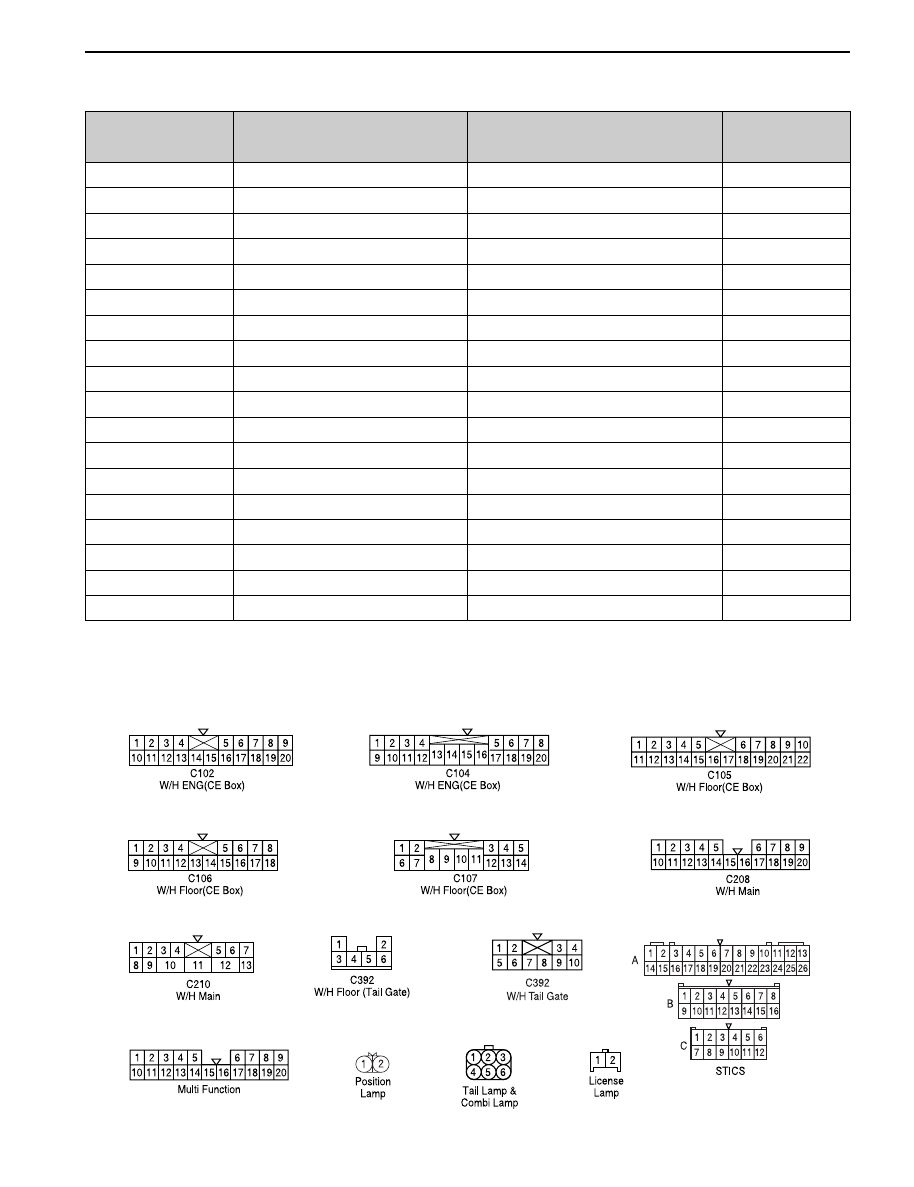

A. CONNECTOR INFORMATION

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box (B) - Engine

Engine Room Fuse Box (D) - Engine

Engine Room Fuse Box (E) - Engine

Engine Room Fuse Box (F) - Engine

Engine Room Fuse Box (J) - Engine

Main - Floor (LH)

Engine - Main (RH)

Floor - Tail Gate

Floor -  Tail Gate

W/H Main

W/H Main

W/H Main

W/H Engine

W/H Engine

W/H Main

W/H Floor

W/H Floor

W/H Floor

C102 (20Pin, White)

C104 (20Pin, White)

C105 (22Pin, White)

C106 (18Pin, White)

C107 (14Pin, White)

C208 (20Pin, Black)

C210 (13Pin, Green)

C392 (6Pin, White)

C392 (10Pin, White)

S203 (14Pin, Black)

S204 (14Pin, Black)

S207 (14Pin, Black)

G102

G105

G201

G304

G305

G401

Connecting Wiring

Harness

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Engine Room Fuse Box

Inside Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Inside the Left Side Cover the Tail Gate

Inside the Left Side Cover the Tail Gate

Upper the I/P Relay Box

Behind the Left the FATC

Behind the Right the FATC

Center BATT

Behine the Right Gead Lamp

Inside Driver Side Cowl PNL

Behind the Quarter Grass #1

Behind the Quarter Grass #1

Center the Tail Gate

GND

Tail Lamp

Remark

Connector Position

SSANGYONG  REXTON XDi (LHD)

5-148  ELECTRICAL WIRING DIAGRAMS

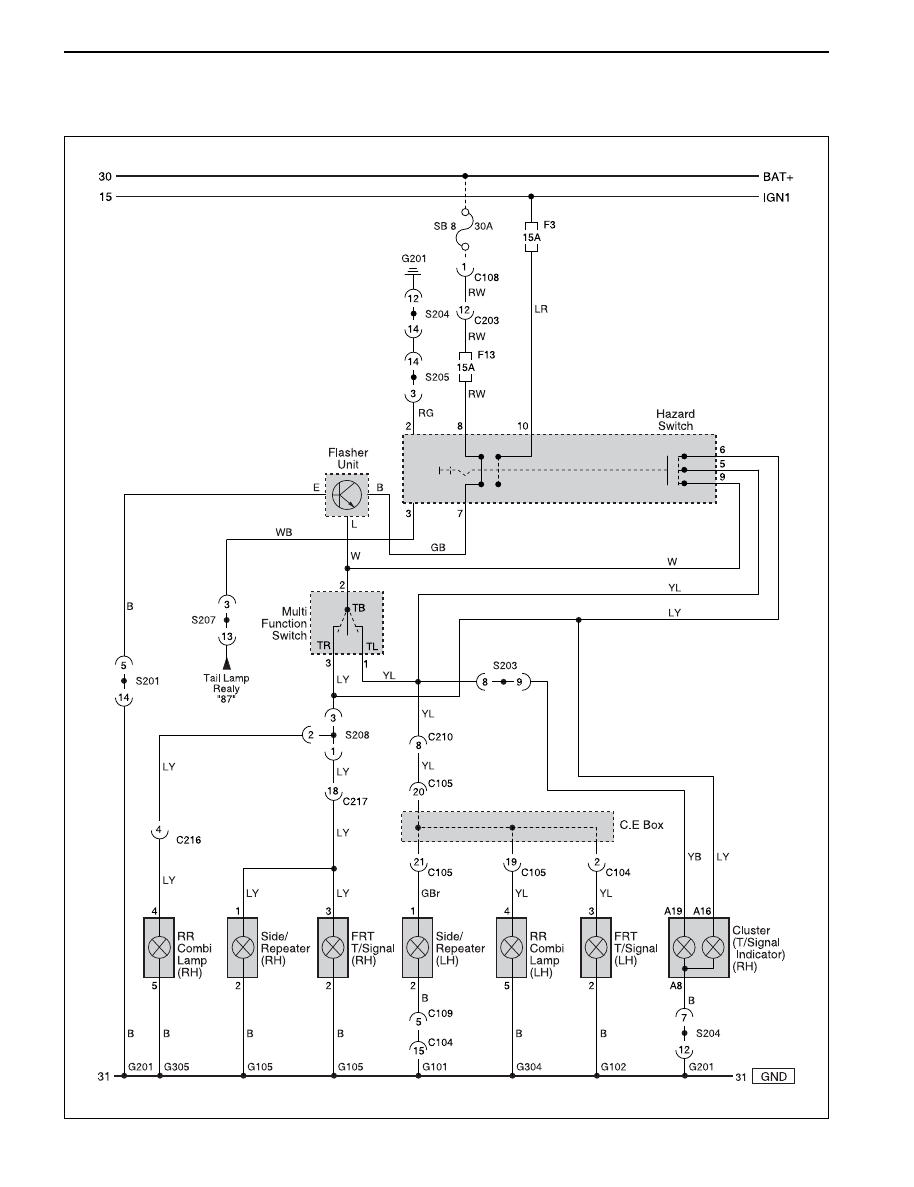

37. TURN SIGNAL & HAZARD LAMP CIRCUIT

1) ~ 2002 MODEL
