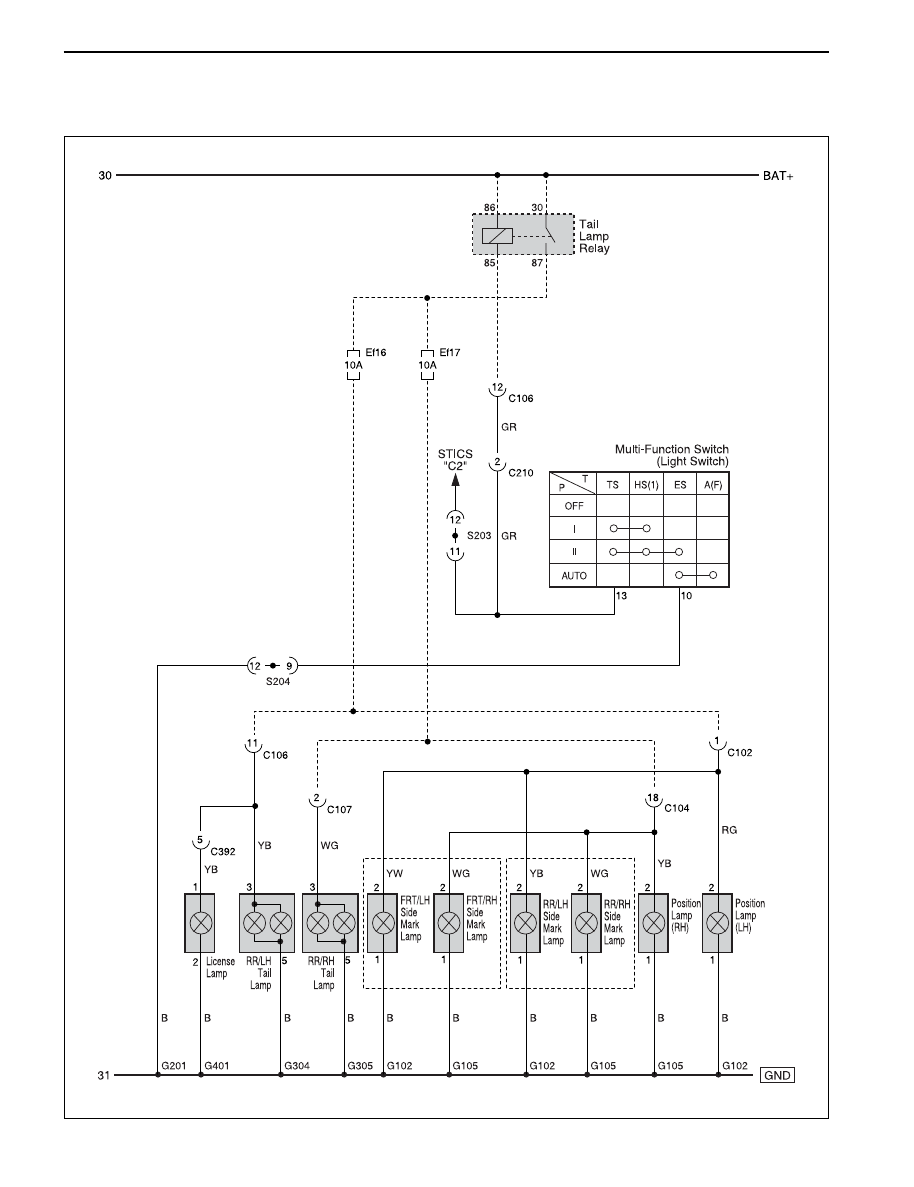

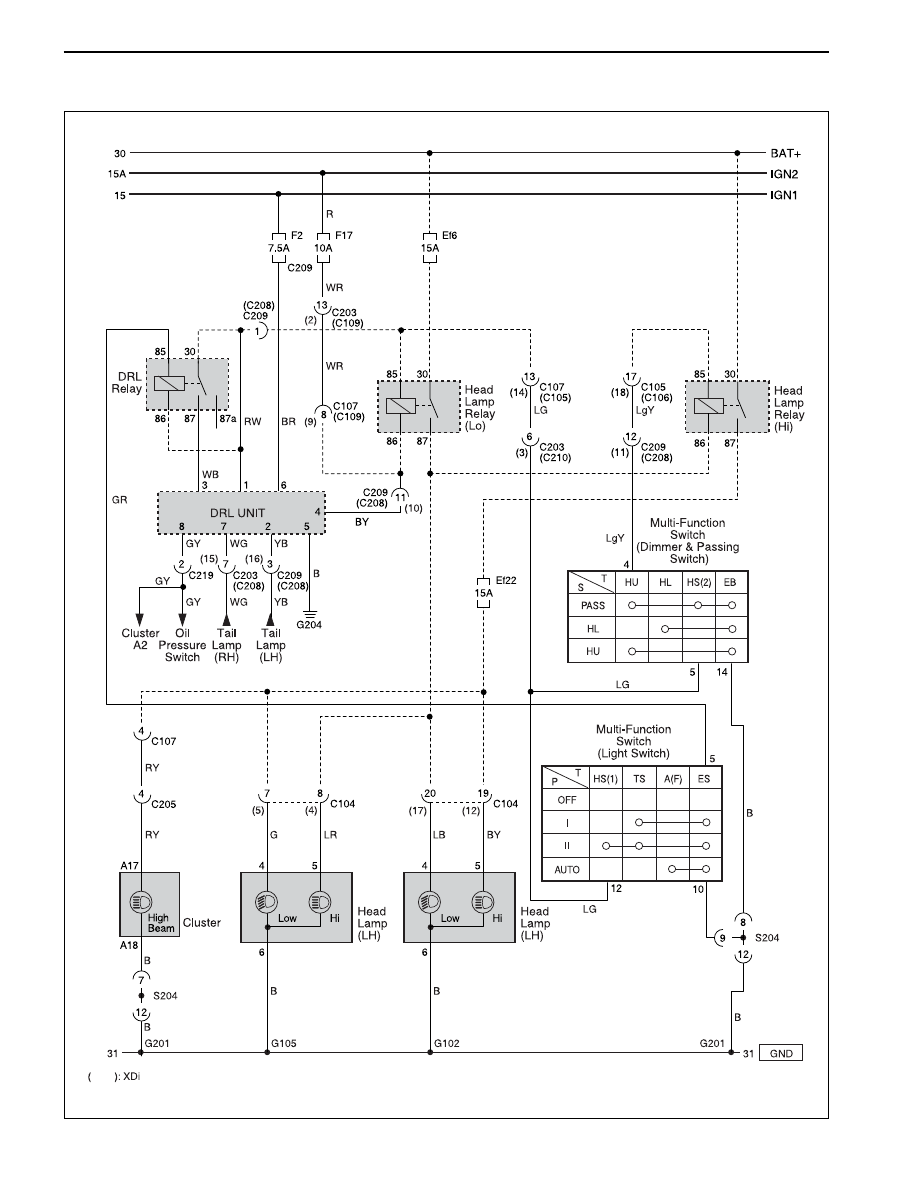

ELECTRICAL WIRING DIAGRAMS 5-141
SSANGYONG REXTON XDi (LHD)

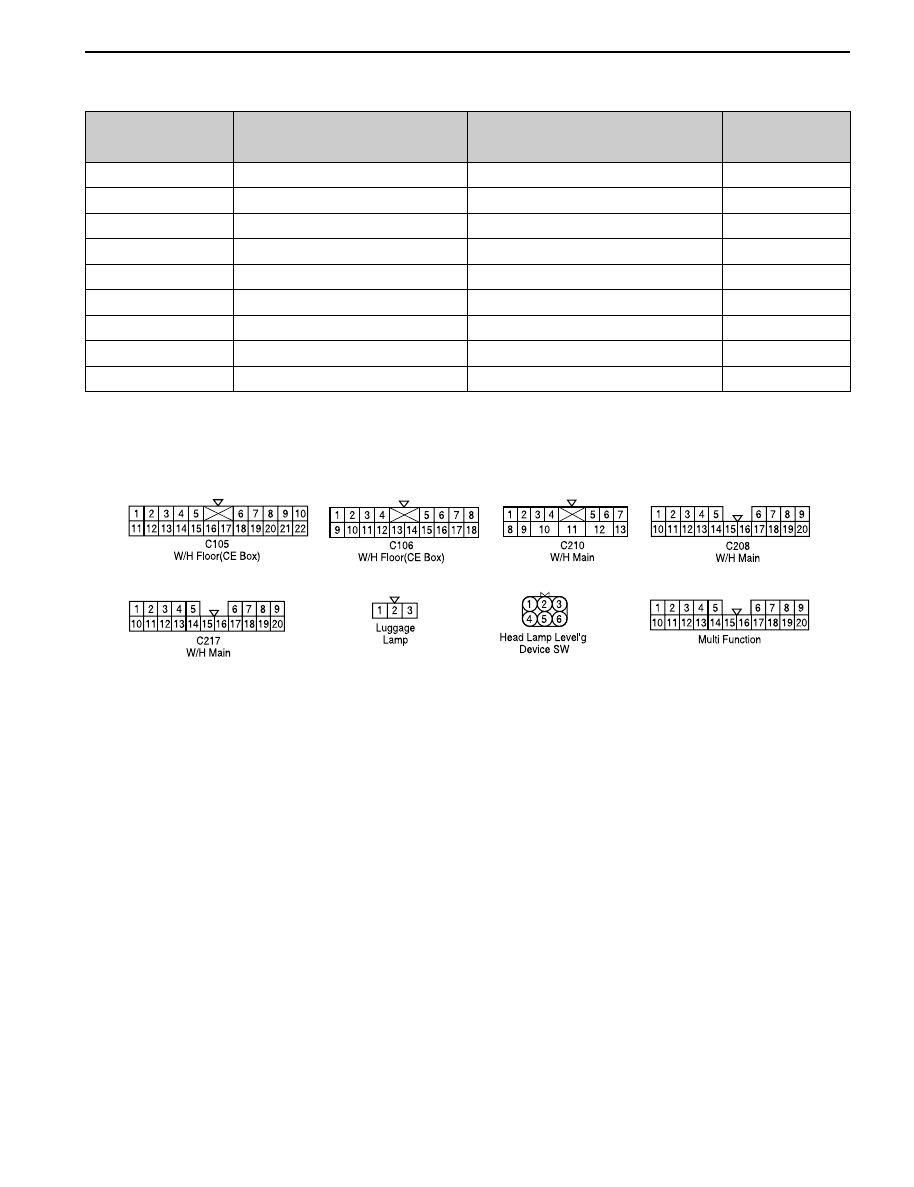

A. CONNECTOR INFORMATION
C105 (22Pin, White)
C106 (18Pin, White)
C208 (20Pin, Black)
C210 (13Pin, Green)
C217 (20Pin, Black)
S201 (14Pin, Black)
G102
G105
G201

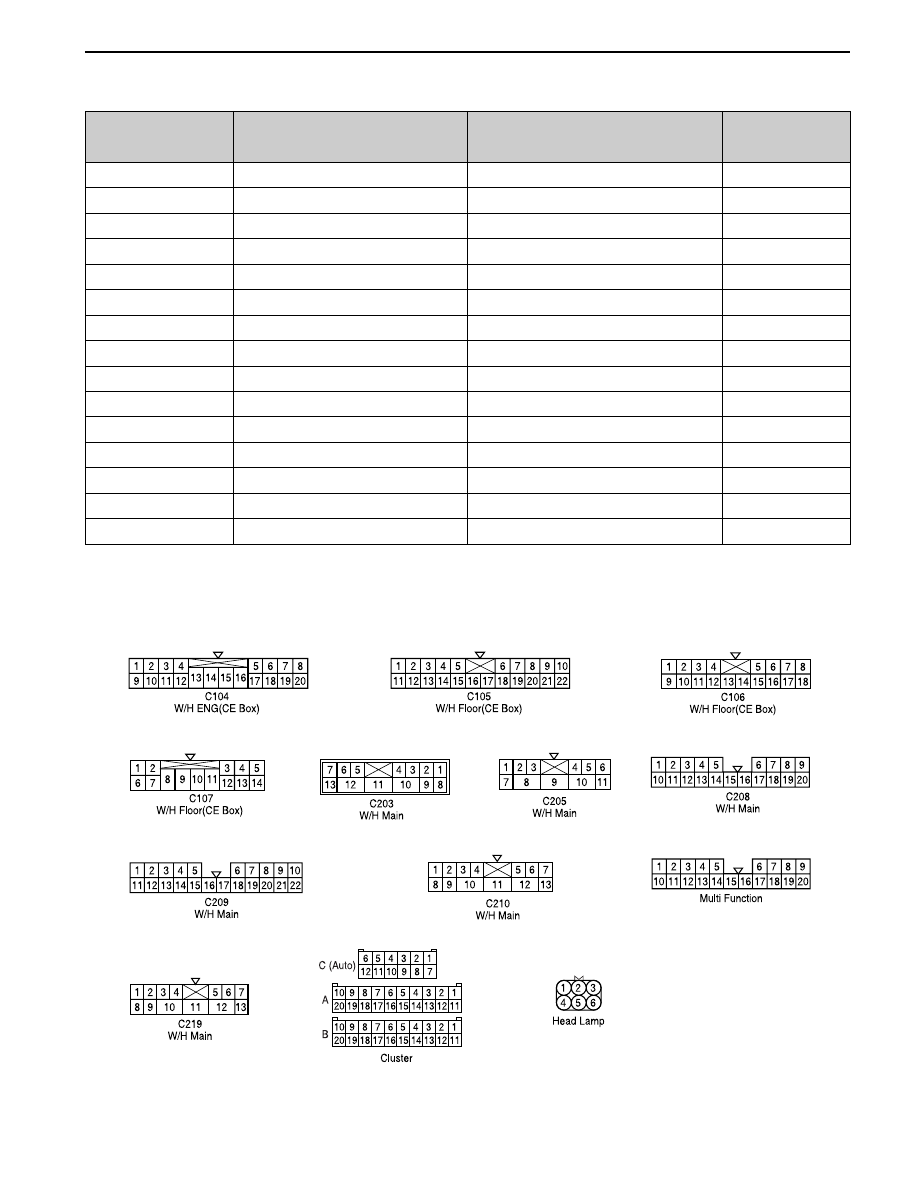

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION
Connector Number
(Pin Number, Color)
Engine Room Fuse Box (E) - Engine
Engine Room Fuse Box (F) - Engine
Main - Floor (LH)
Main - Floor (LH)
Engine - Main (RH)
W/H Main
W/H Engine
W/H Engine
W/H Main
Connecting Wiring
Harness
Engine Room Fuse Box
Engine Room Fuse Box
Inside Driver Side Cowl PNL
Inside Driver Side Cowl PNL
Inside Co-Driver Side Cowl PNL
Upper the I/P Relay Box
Center BATT
Behine the Right Head Lamp
Inside Driver Side Cowl PNL
GND
GND
Remark
Connector Position
