SsangYong Rexton. Service manual - part 270

ELECTRICAL WIRING DIAGRAMS  5-113

SSANGYONG  REXTON XDi (LHD)

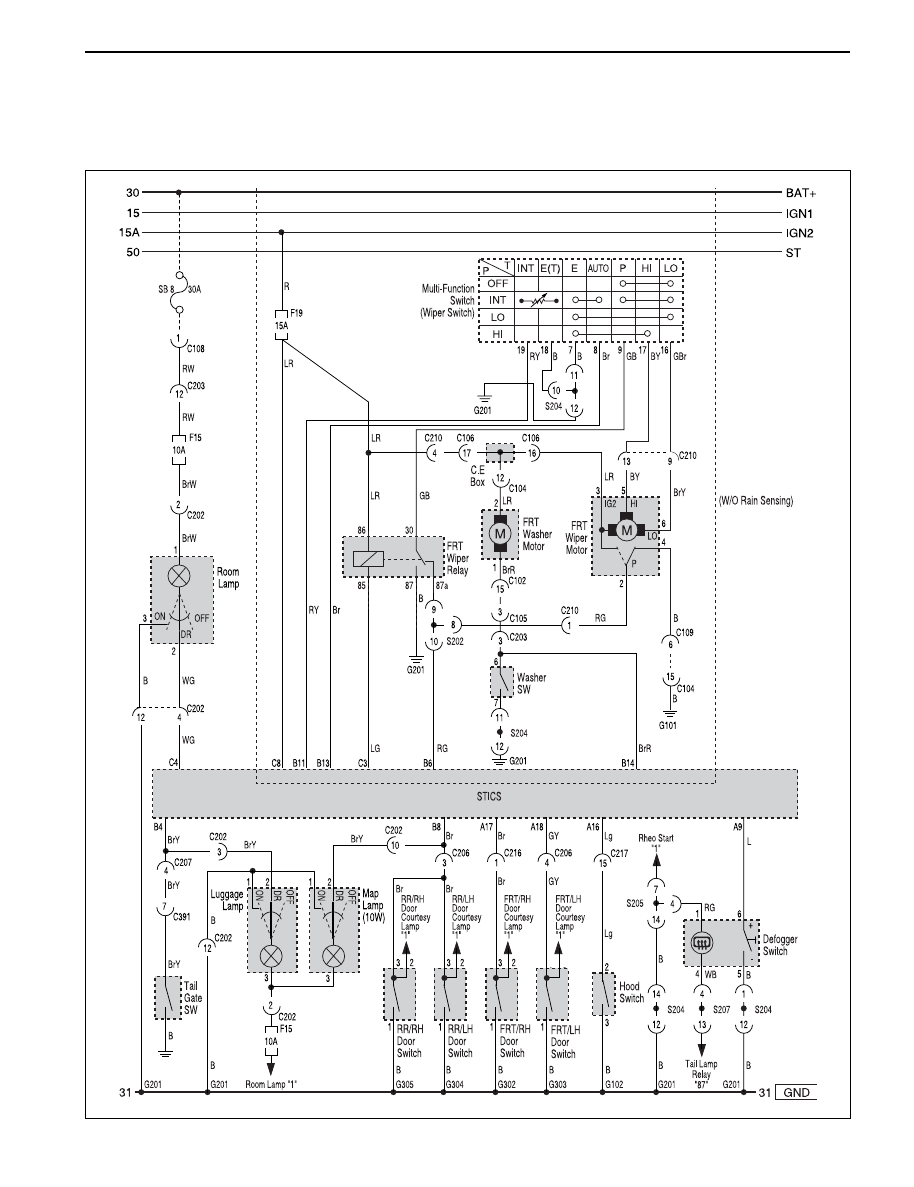

(2) FRT WIPER, DR SWITCH, LAMP (ROOM, MAP) CIRCUIT

SSANGYONG  REXTON XDi (LHD)

5-114  ELECTRICAL WIRING DIAGRAMS

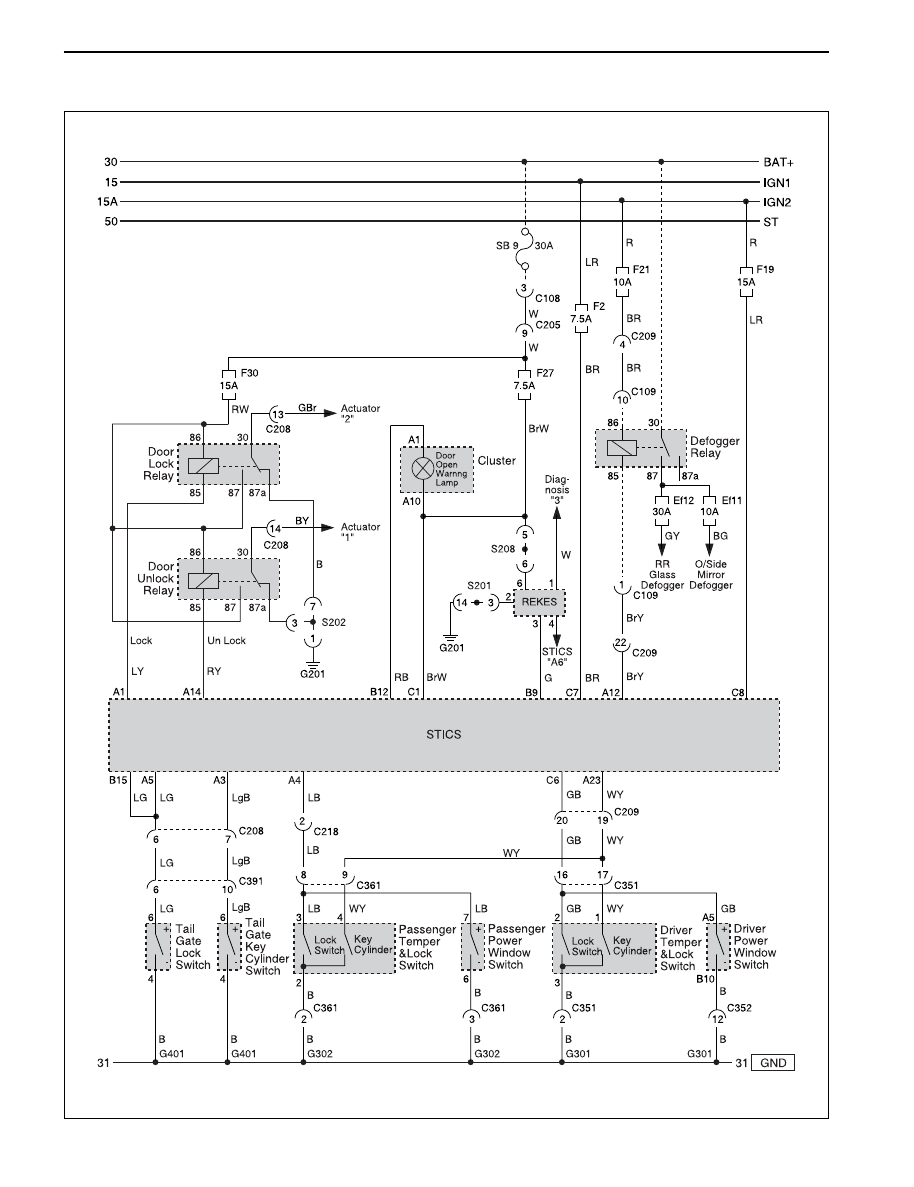

(3) DR LOCK, DEFOGGER, POWER WINDOW CIRCUIT

ELECTRICAL WIRING DIAGRAMS  5-115

SSANGYONG  REXTON XDi (LHD)

A. CONNECTOR INFORMATION

B. CONNECTOR IDENTIFICATION SYMBOL & PIN NUMBER POSITION

Connector Number

(Pin Number, Color)

Engine Room Fuse Box (K) - Engine

Engine Room Fuse Box (M) - Engine

Main - Floor (LH)

Main - Floor (LH)

Main - Floor (LH)

Main - Floor (RH)

Floor - Driver Door

Floor - Co-Driver Door

Floor - Co-Driver Door

Floor - Tail Gate

W/H Main

W/H Main

W/H Main

W/H Main

W/H Floor

W/H Floor

W/H Floor

C108 (4Pin, Colorless)

C109 (16Pin, White)

C205 (11Pin, White)

C208 (20Pin, Black)

C209 (22Pin, Yellow)

C218 (22Pin, Yellow)

C351 (20Pin, White)

C361 (13Pin, White)

C362 (12Pin, White)

C391 (10Pin, White)

S201 (14Pin, Black)

S202 (14Pin, Black)

S208 (14Pin, Black)

G201

G301

G302

G401

Connecting Wiring

Harness

Engine Room Fuse Box

Engine Room Fuse Box

Inside Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Inside Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Inside Co-Driver Side Cowl PNL

Inside the Left Side Cover the Tail Gate

Upper the I/P Relay Box

Upper the I/P Relay Box

Behind the Right the FATC

Center BATT

Under Driver Seat

Under Driver Seat

Center the Tail Gate

Behinel Conn Holder

Behinel Conn Holder

Behinel Conn Holder

GND

ECU GND

Remark

Connector Position

SSANGYONG  REXTON XDi (LHD)

5-116  ELECTRICAL WIRING DIAGRAMS

2) 2003 MODEL

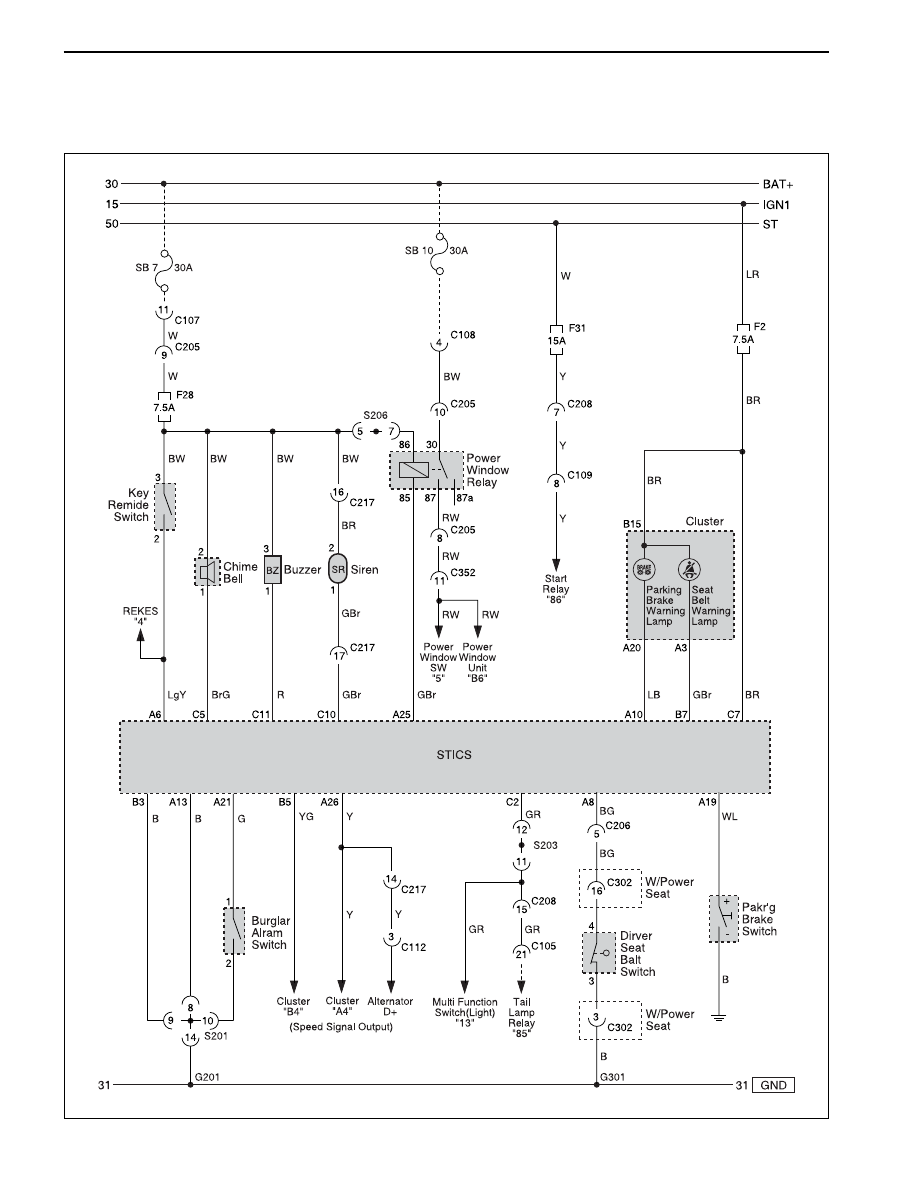

(1) POWER SUPPLY, GND, CHIME BELL, BUZZER, WARNING LAMP (PARKING BRAKE, SEAT

BELT) CIRCUIT
