SSANGYONG  REXTON XDi (LHD)

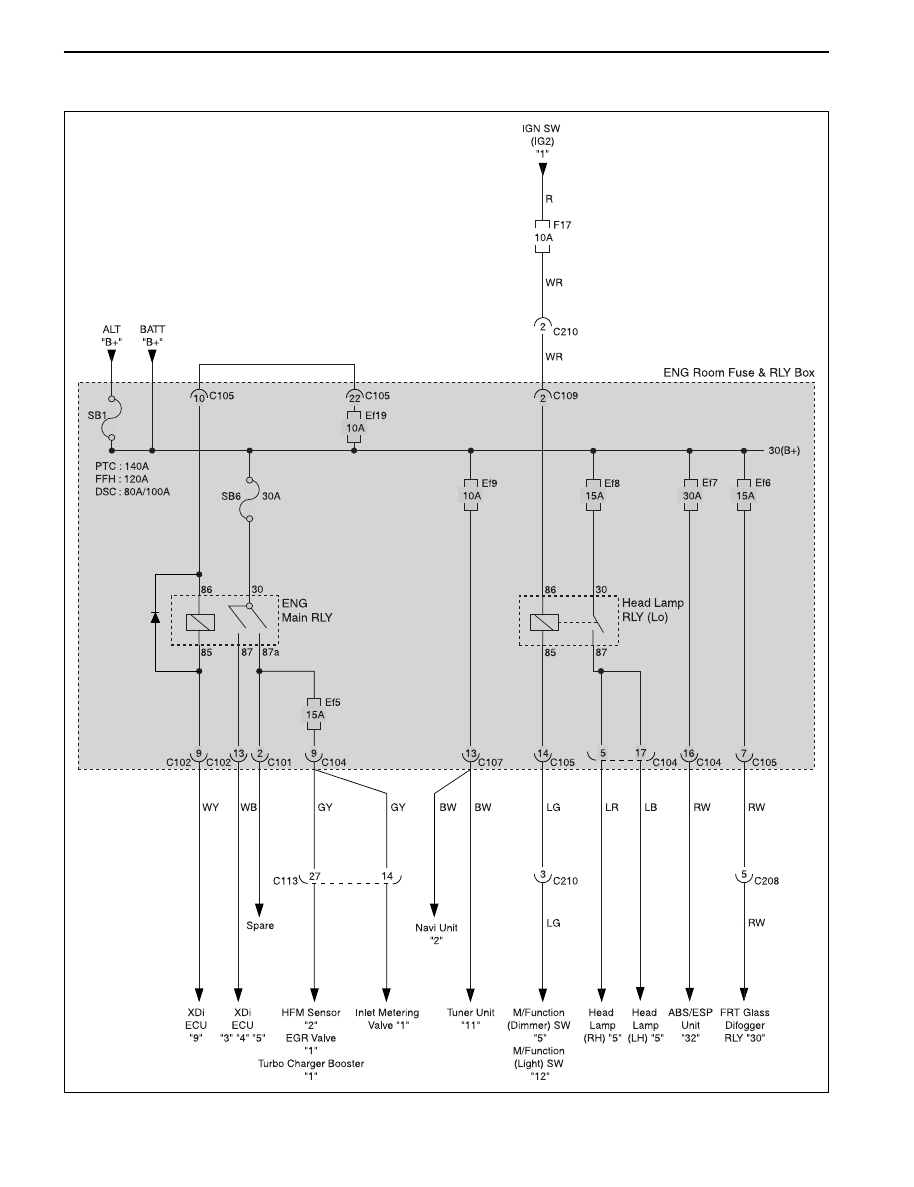

3-22  WIRING DIAGRAM FOR POWER SUPPLIES

(4) Ef5 ~ Ef9

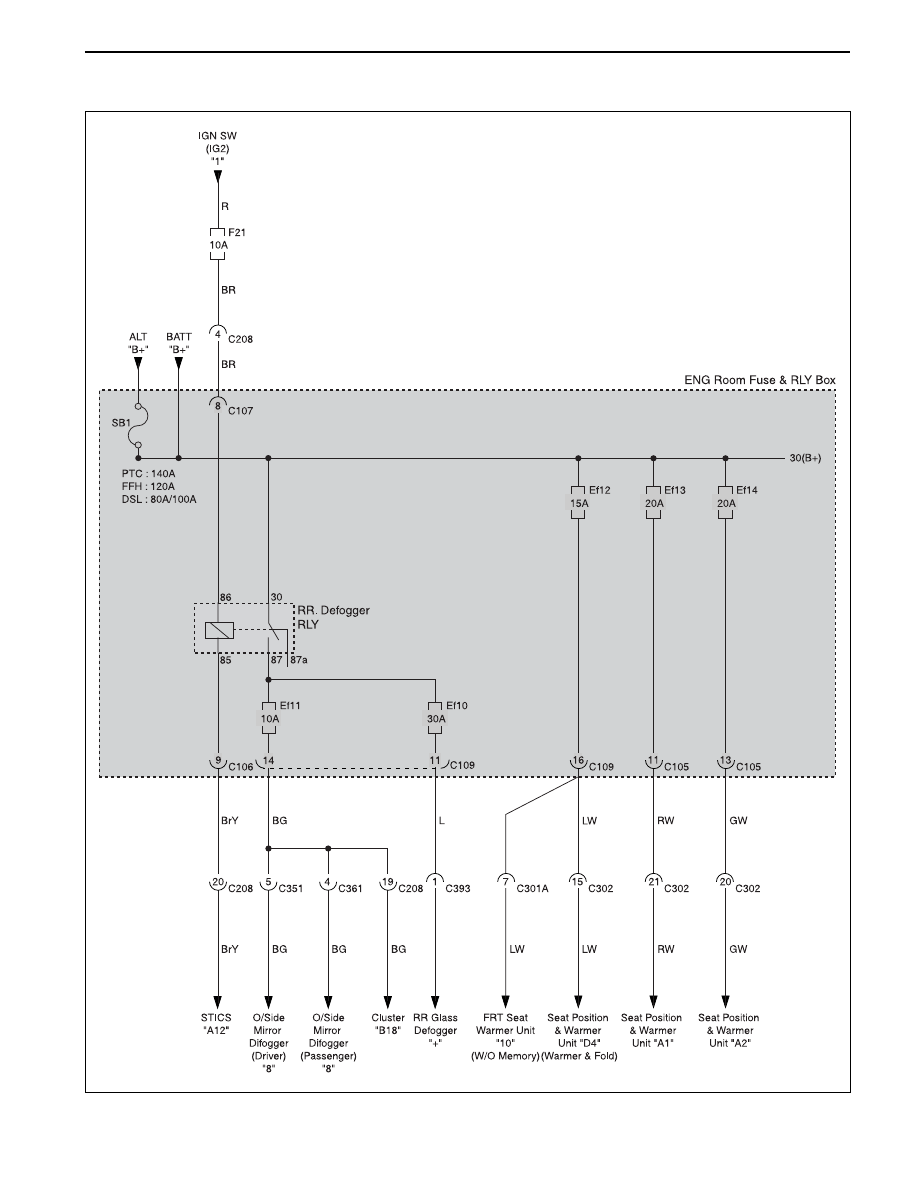

WIRING DIAGRAM FOR POWER SUPPLIES  3-23

SSANGYONG  REXTON XDi (LHD)

(5) Ef10 ~ Ef14

SSANGYONG  REXTON XDi (LHD)

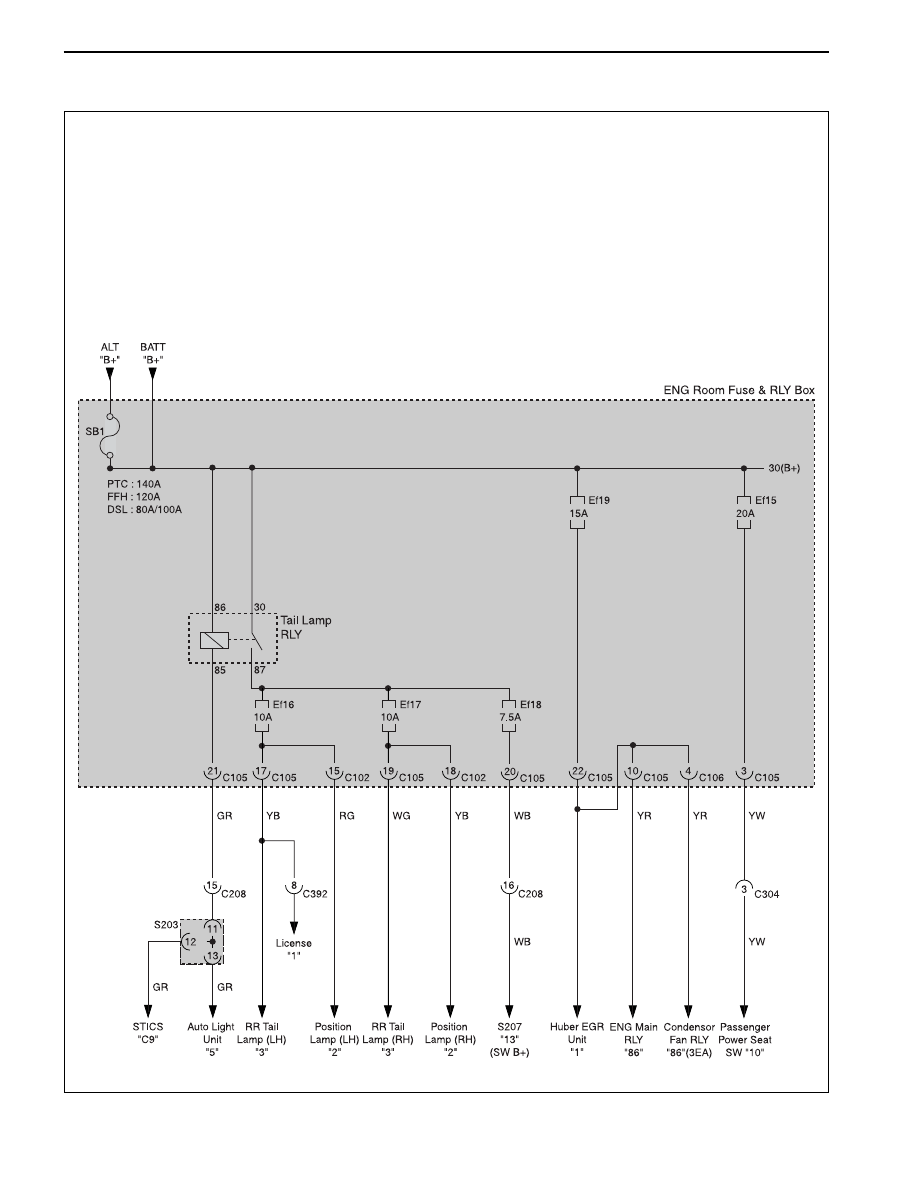

3-24  WIRING DIAGRAM FOR POWER SUPPLIES

(6) Ef15 ~ Ef20

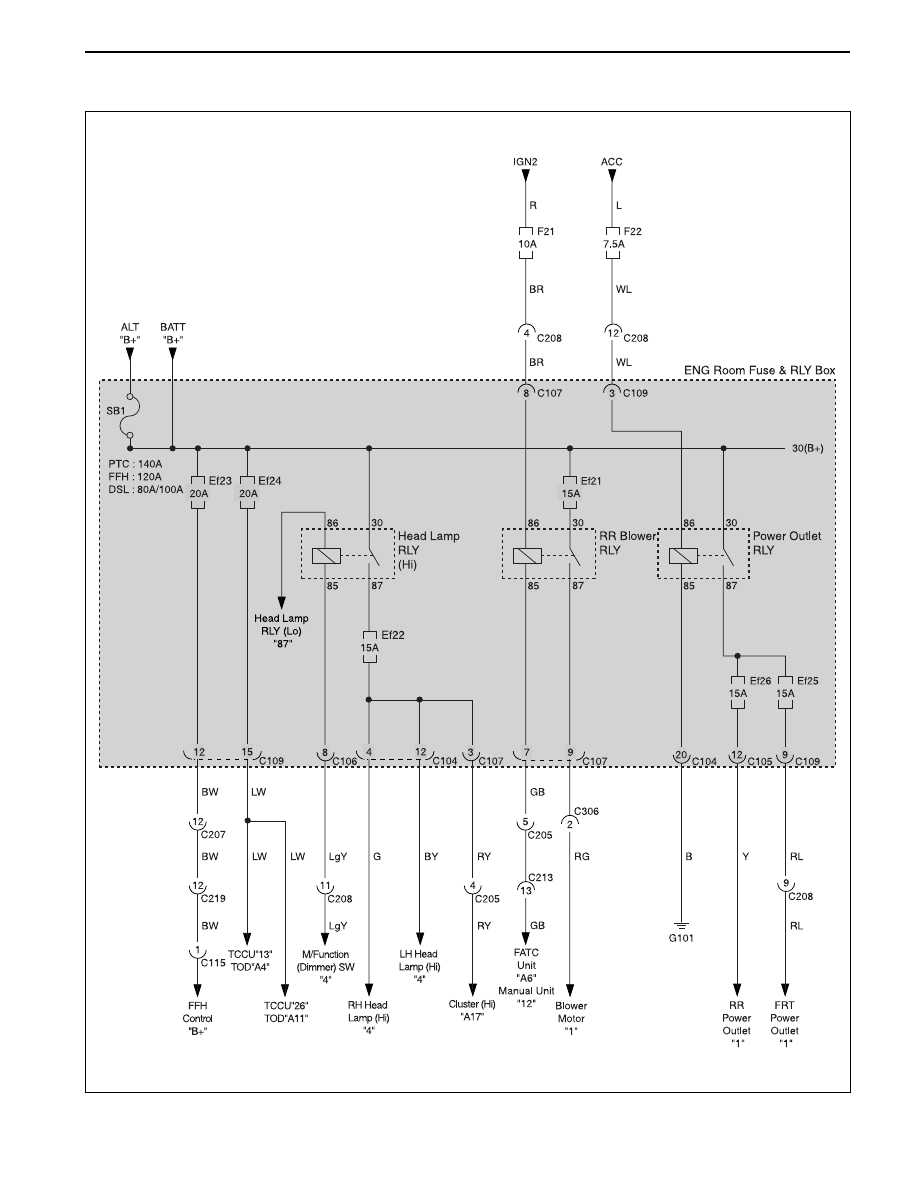

WIRING DIAGRAM FOR POWER SUPPLIES  3-25

SSANGYONG  REXTON XDi (LHD)

(7) Ef21 ~ Ef26
