SSANGYONG  REXTON XDi (LHD)

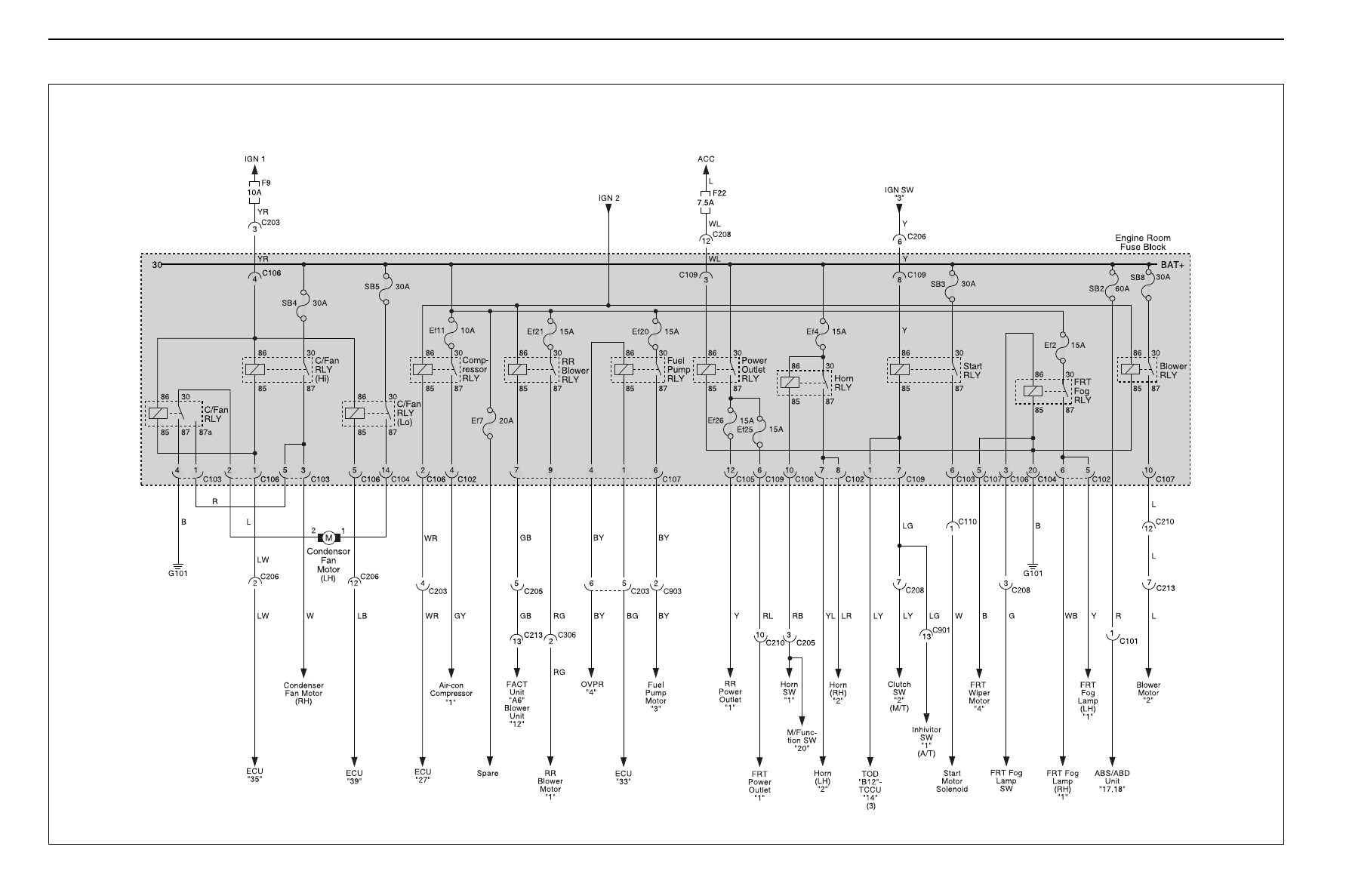

3-18  WIRING DIAGRAM FOR POWER SUPPLIES

WIRING DIAGRAM FOR POWER SUPPLIES  3-19

SSANGYONG  REXTON XDi (LHD)

3. POWER WIRING DIAGRAM (XDi, 2003 MODEL ~ )

1) ENG ROOM & FUSE BOX

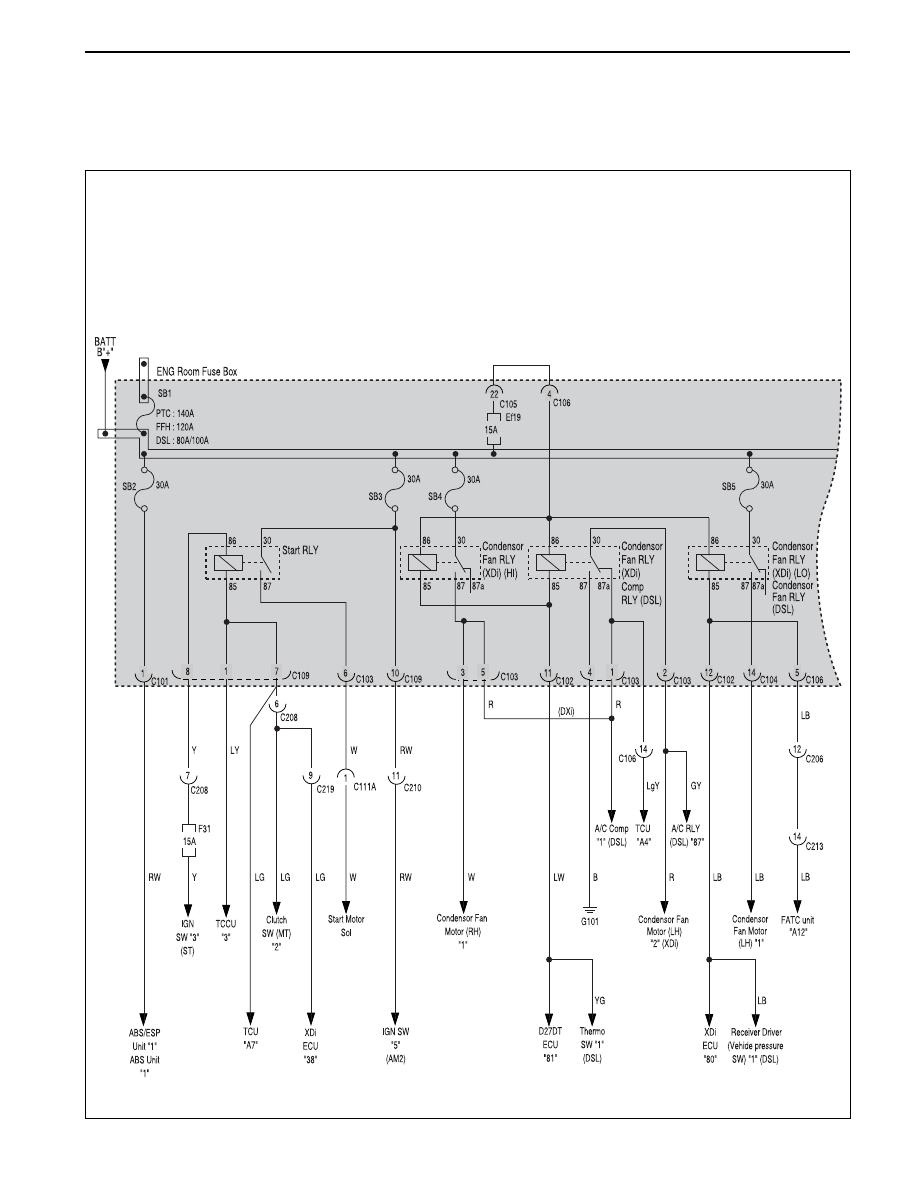

(1) SB1 ~ SB5

SSANGYONG  REXTON XDi (LHD)

3-20  WIRING DIAGRAM FOR POWER SUPPLIES

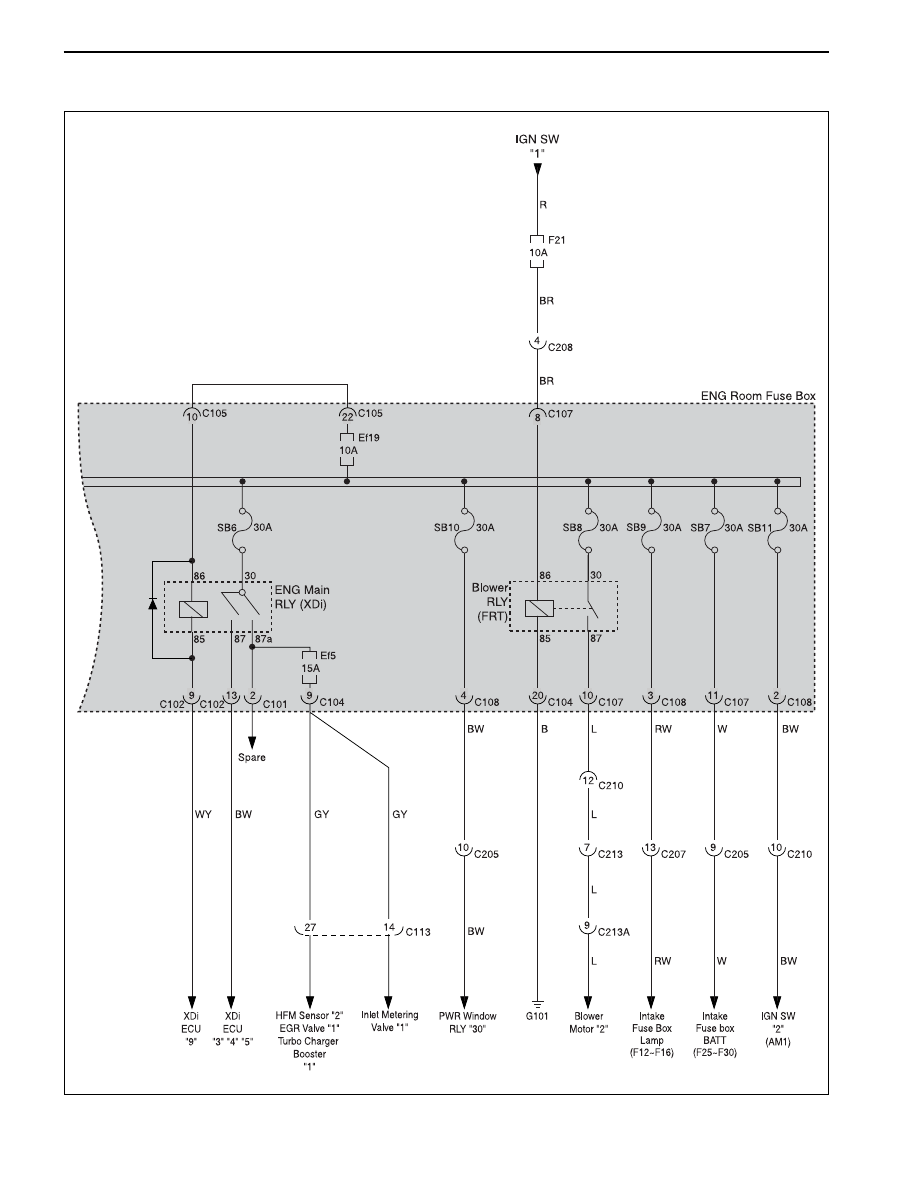

(2) SB6 ~ SB11

WIRING DIAGRAM FOR POWER SUPPLIES  3-21

SSANGYONG  REXTON XDi (LHD)

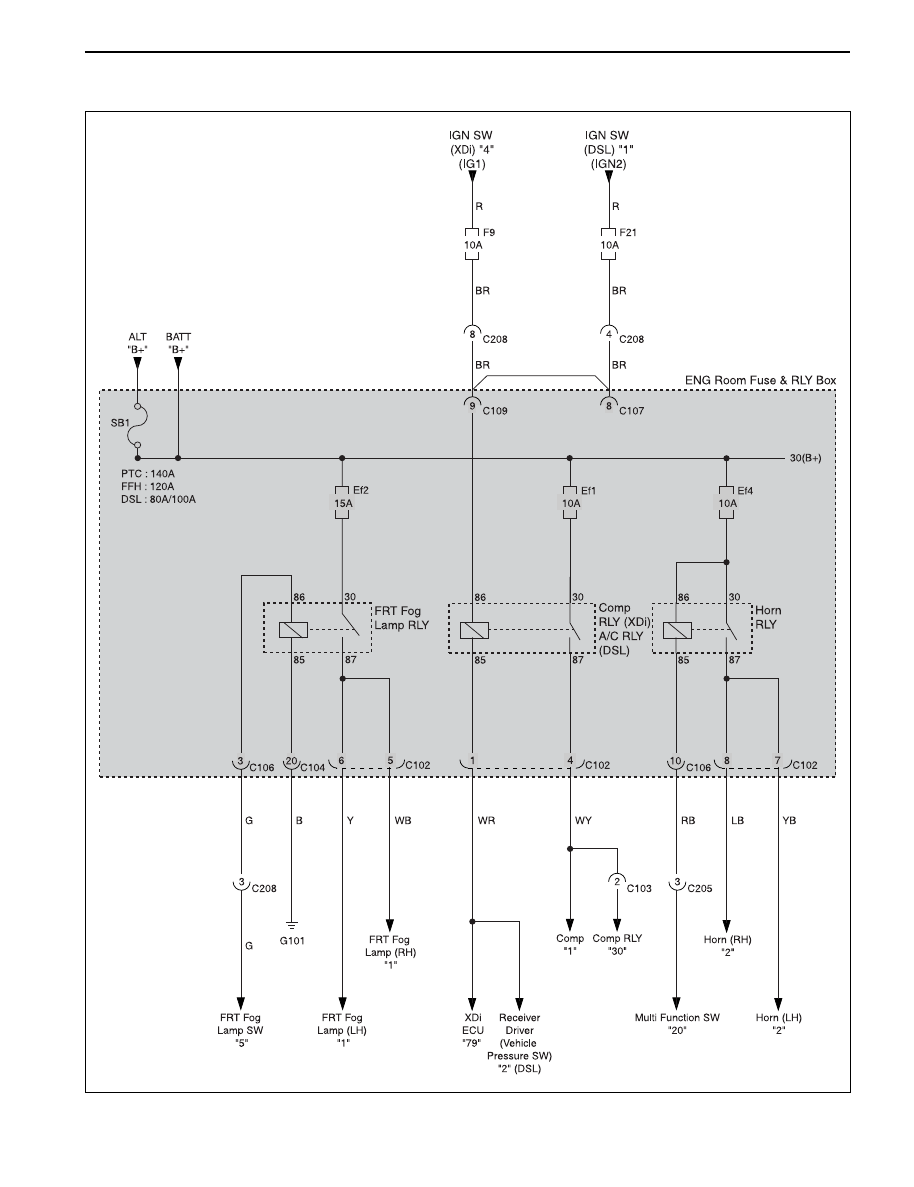

(3) Ef1 ~ Ef4
