SsangYong Rexton. Service manual - part 225

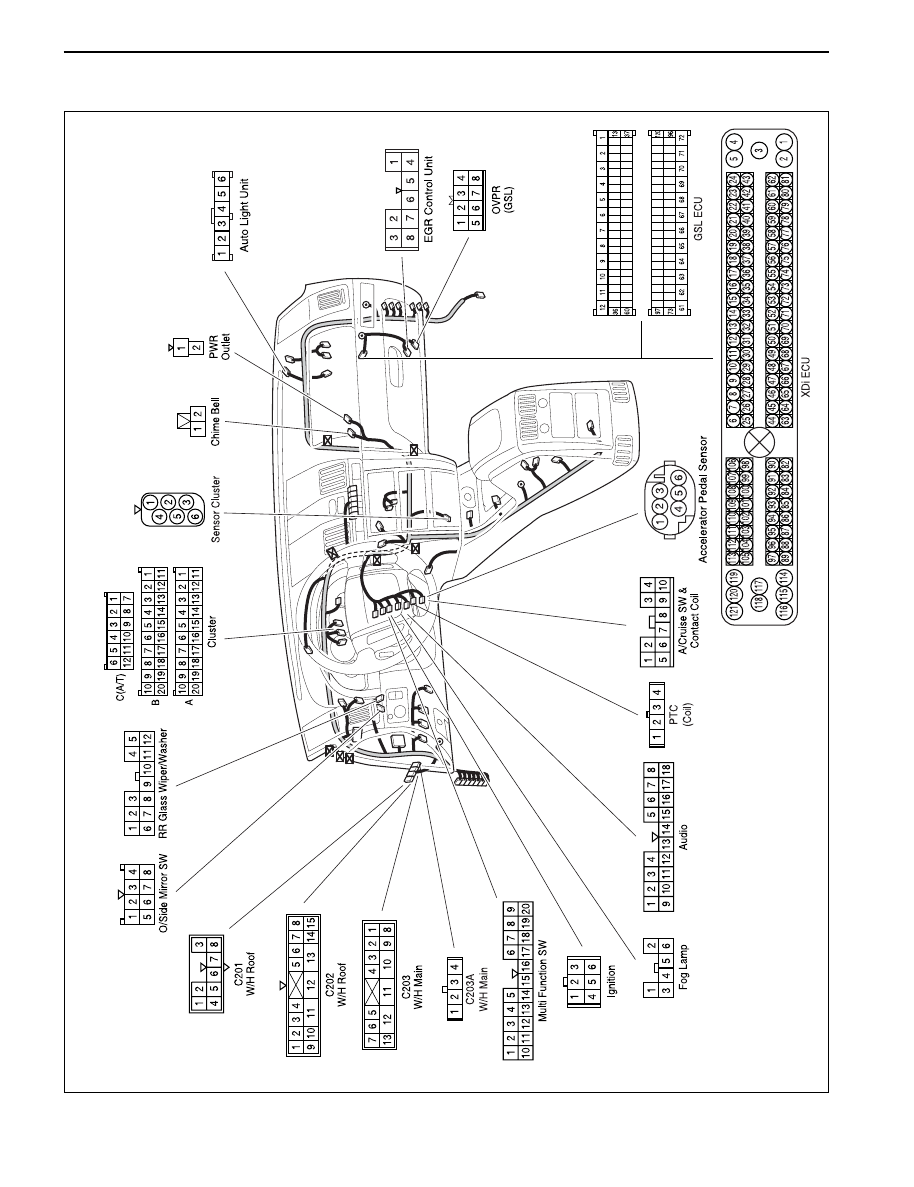

POSITION OF CONNECTORS AND GROUNDS  2-11

SSANGYONG  REXTON XDi (LHD)

SSANGYONG  REXTON XDi (LHD)

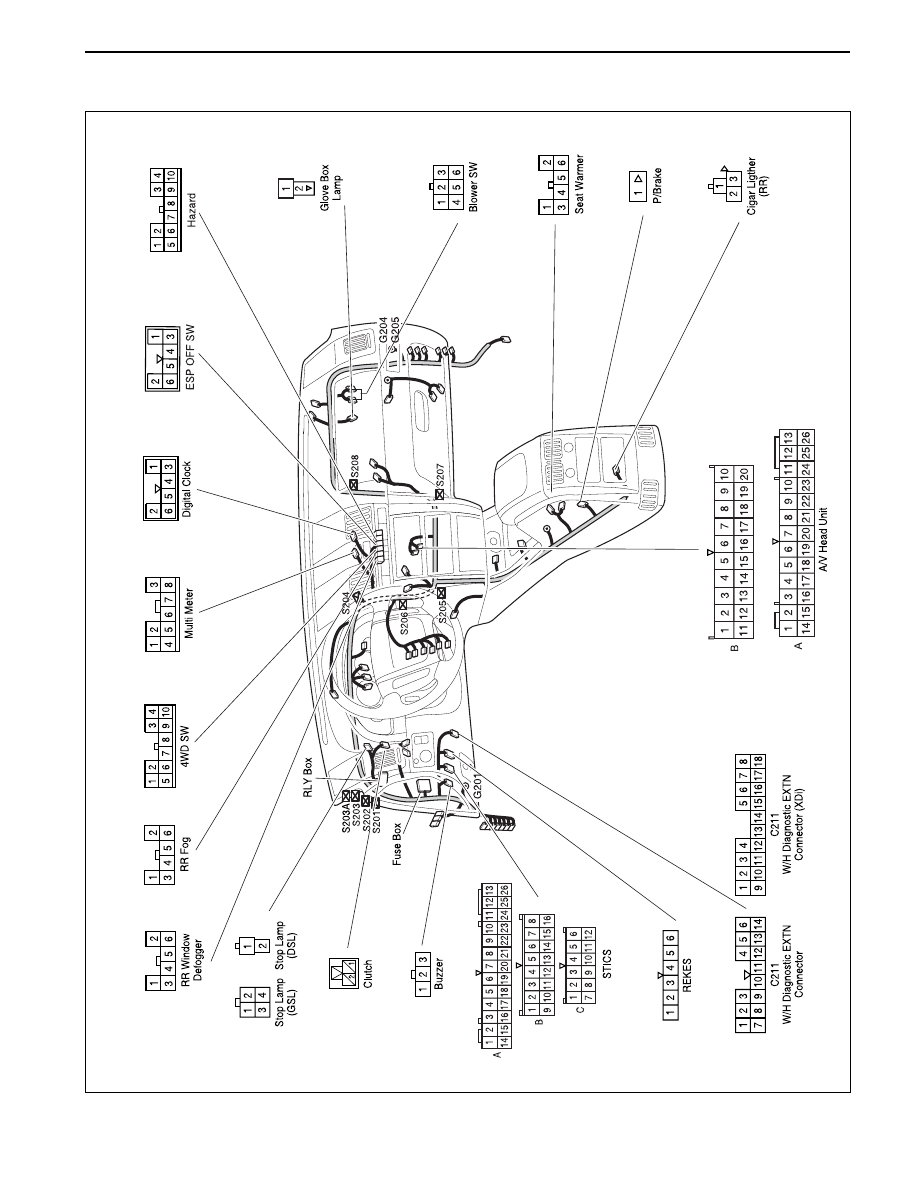

2-12  POSITION OF CONNECTORS AND GROUNDS

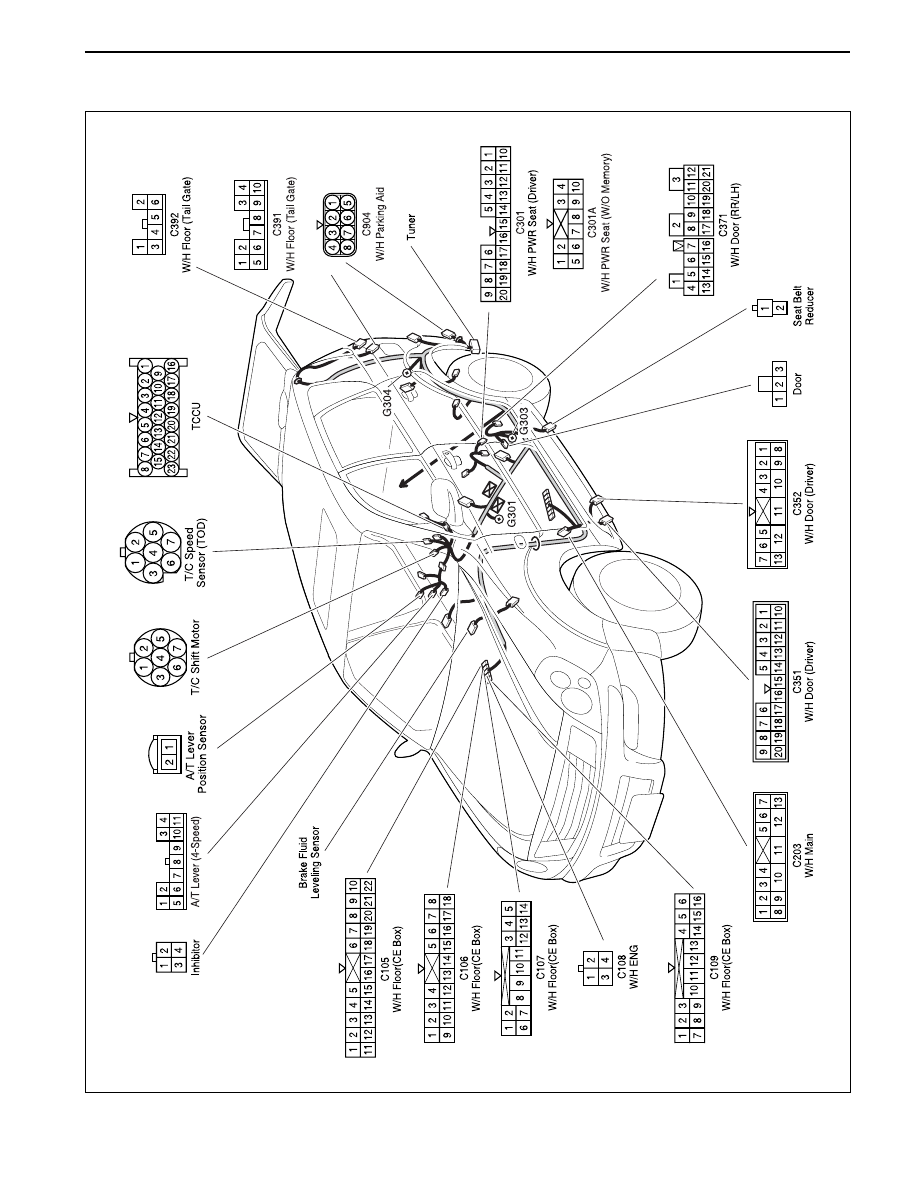

POSITION OF CONNECTORS AND GROUNDS  2-13

SSANGYONG  REXTON XDi (LHD)

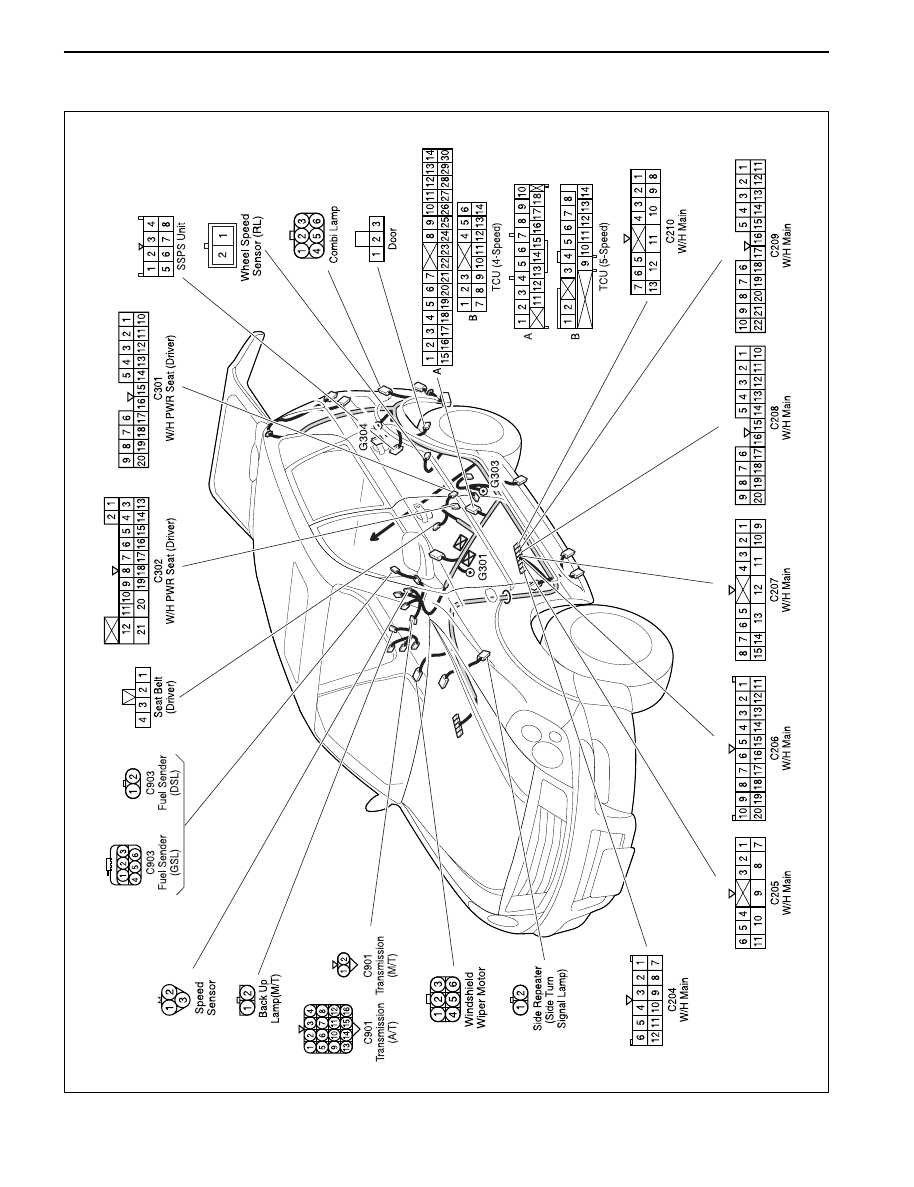

3) W/H FLOOR (LH)

SSANGYONG  REXTON XDi (LHD)

2-14  POSITION OF CONNECTORS AND GROUNDS
