POSITION OF CONNECTORS AND GROUNDS  2-7

SSANGYONG  REXTON XDi (LHD)

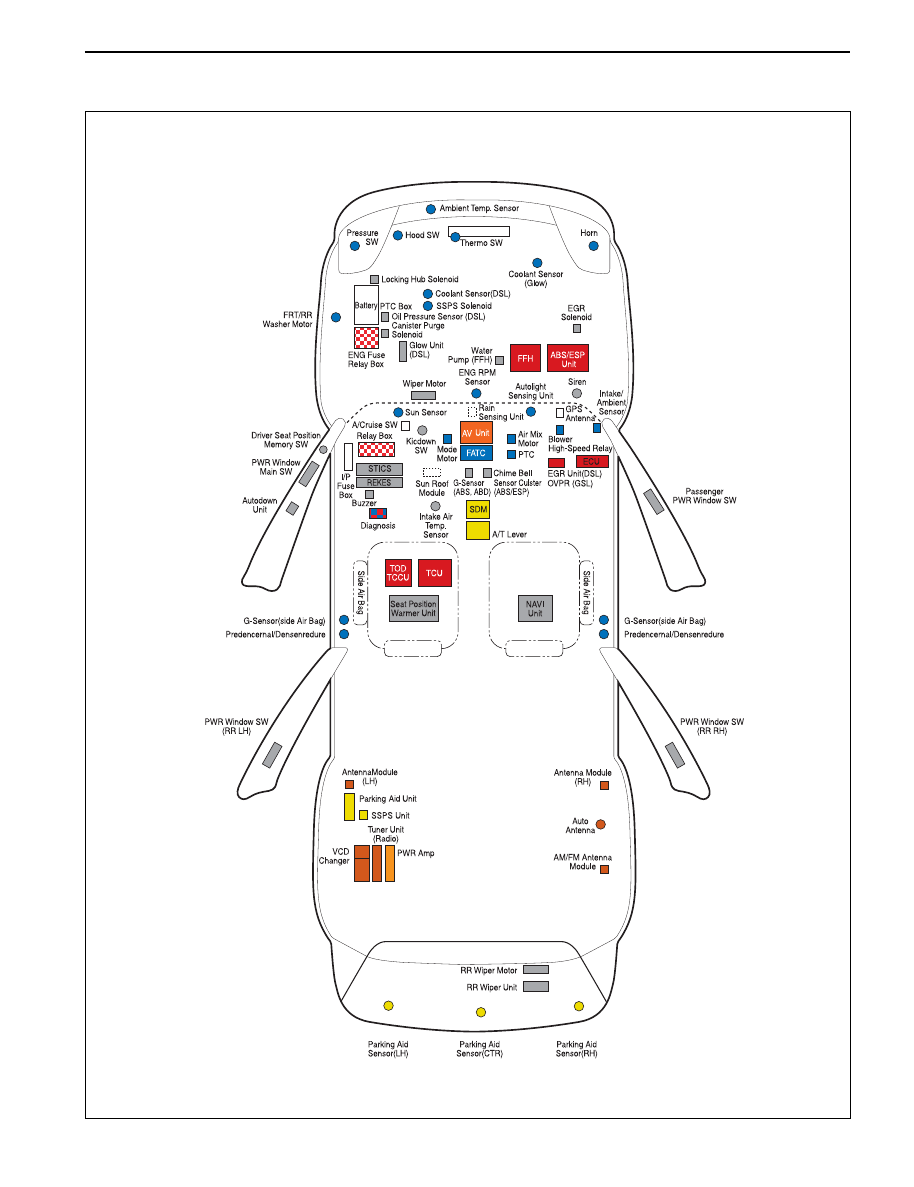

3. COMPONENTS LOCATION

SSANGYONG  REXTON XDi (LHD)

2-8  POSITION OF CONNECTORS AND GROUNDS

4. WIRING HARNESS, CONNECTOR & GROUND LOCATION

1) W/H ENGINE ROOM

POSITION OF CONNECTORS AND GROUNDS  2-9

SSANGYONG  REXTON XDi (LHD)

SSANGYONG  REXTON XDi (LHD)

2-10  POSITION OF CONNECTORS AND GROUNDS

2) W/H MAIN
